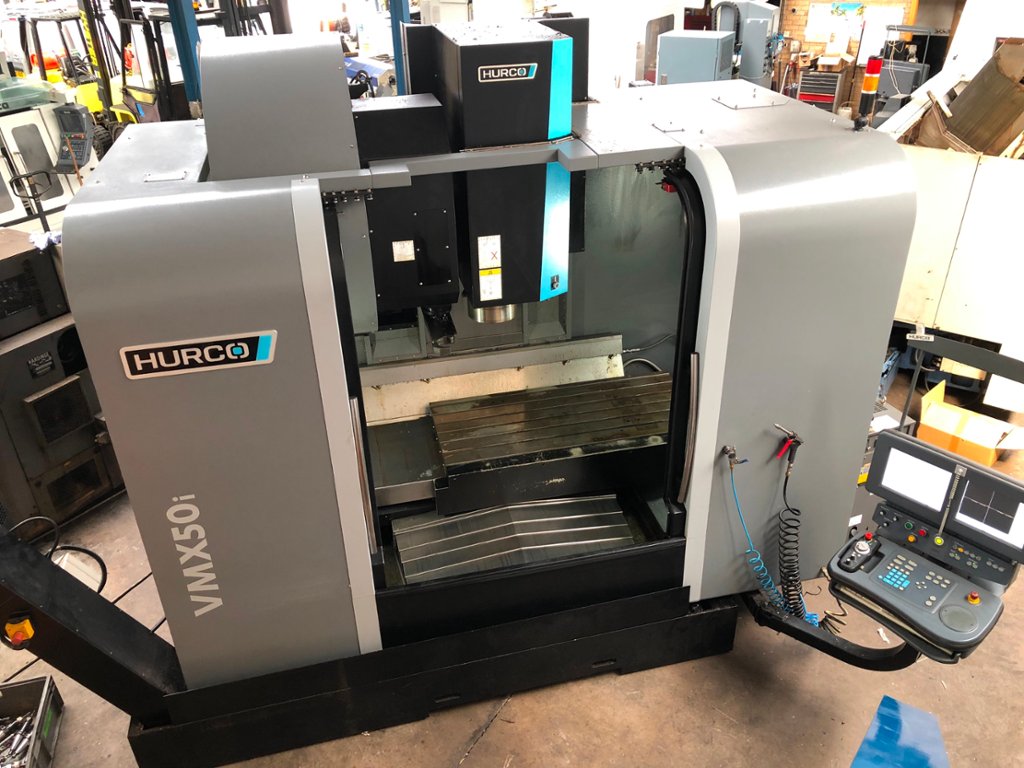

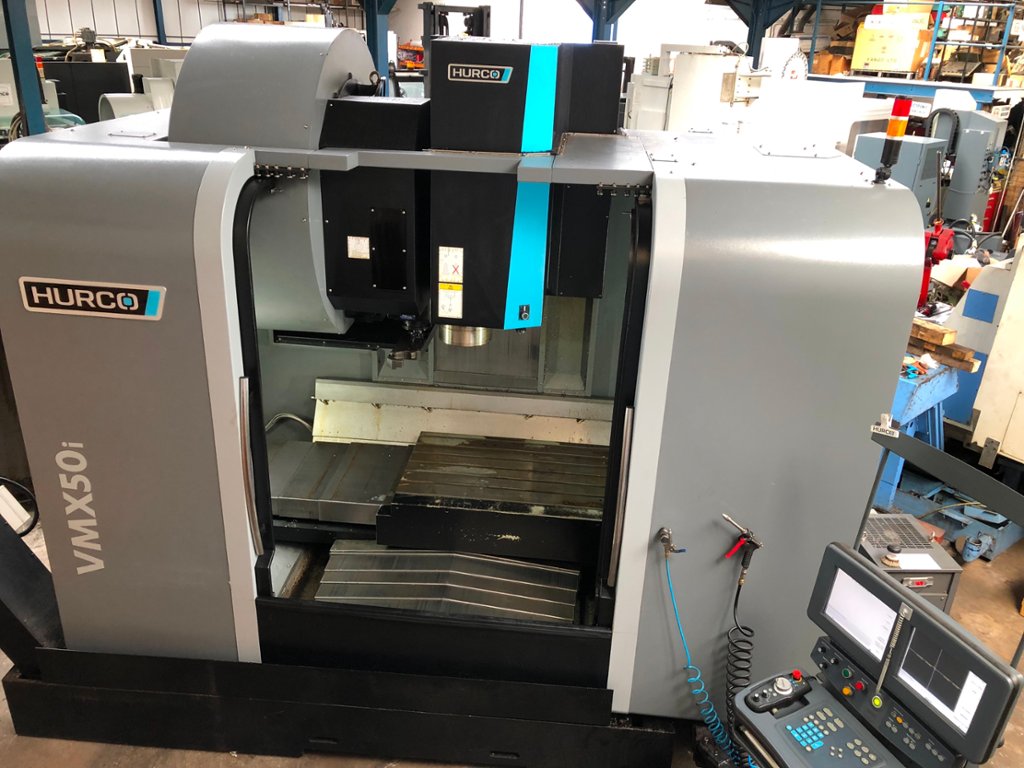

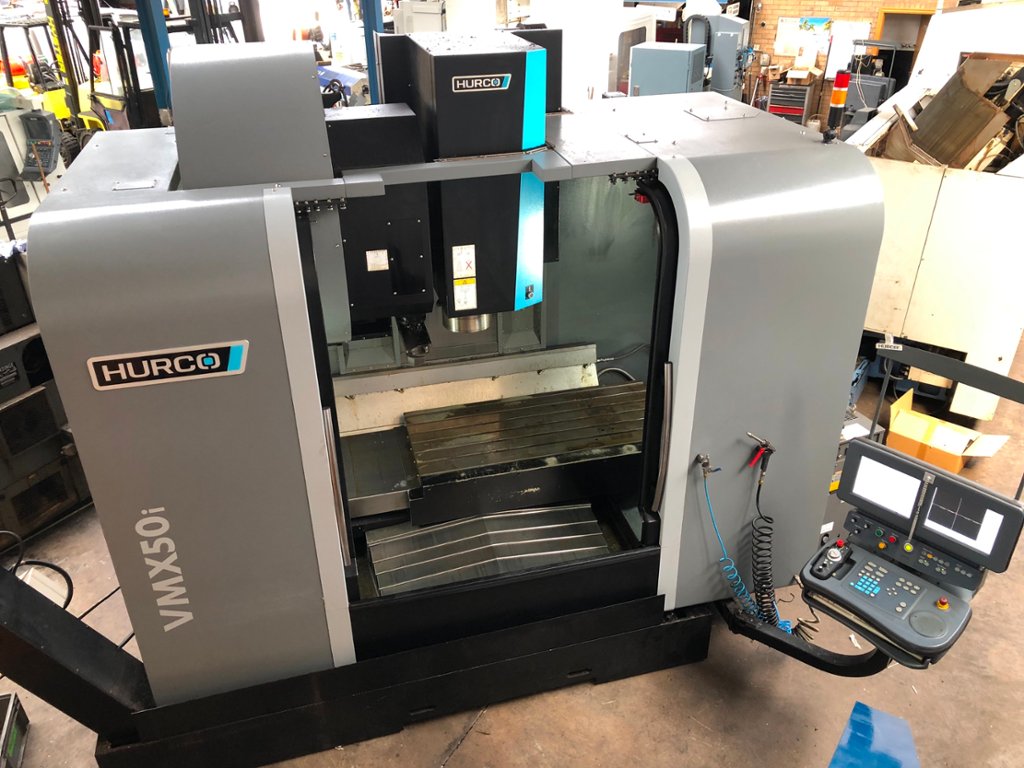

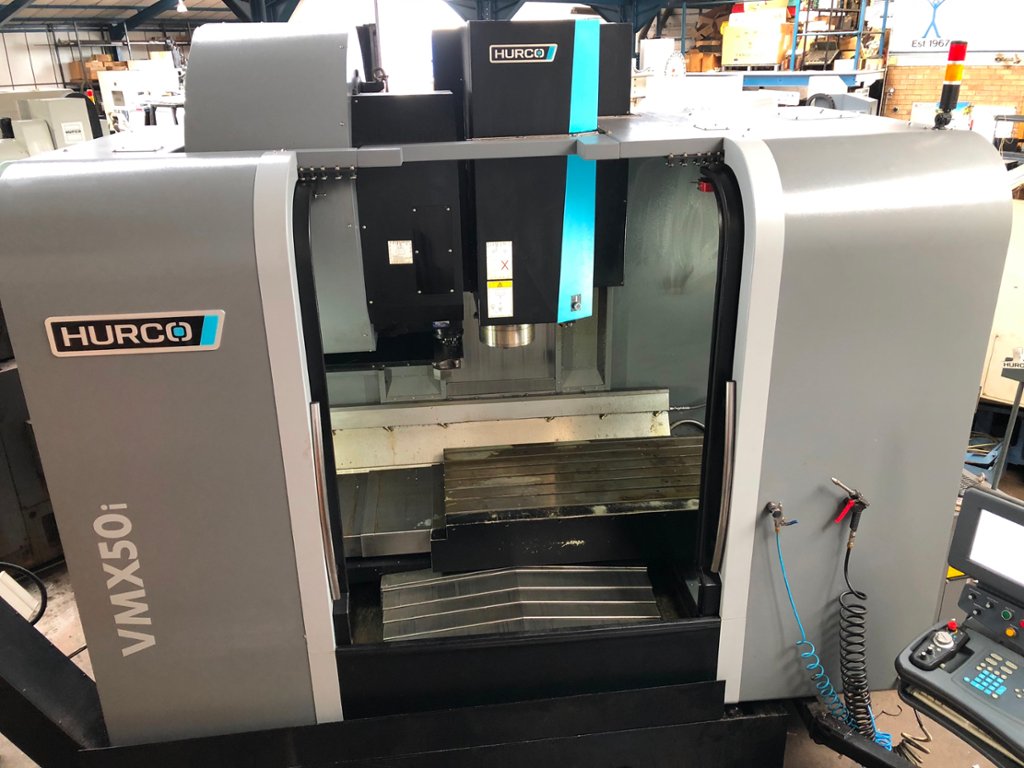

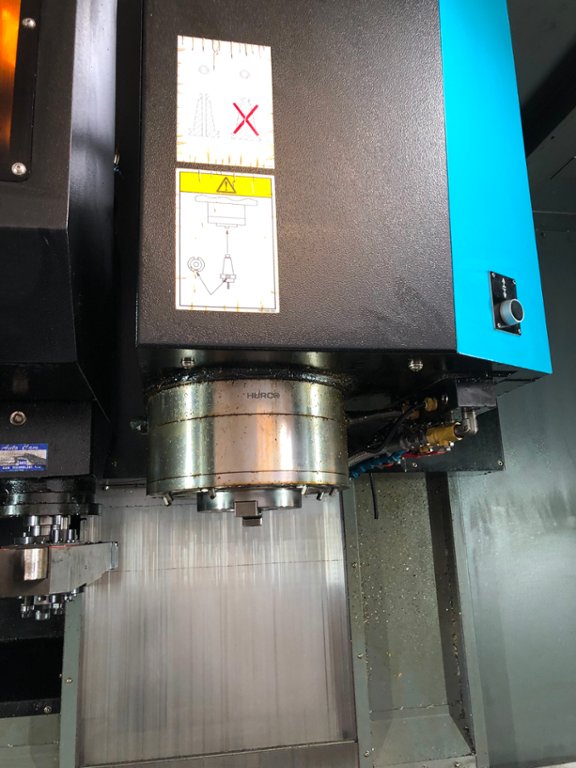

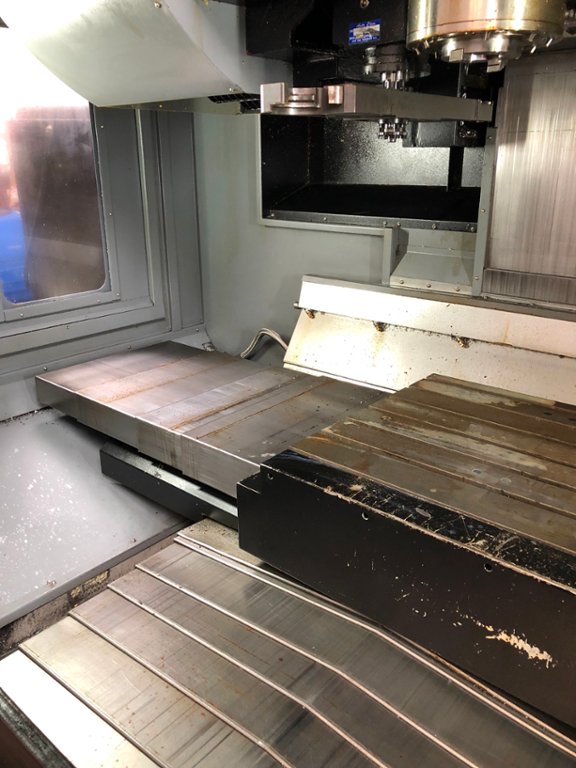

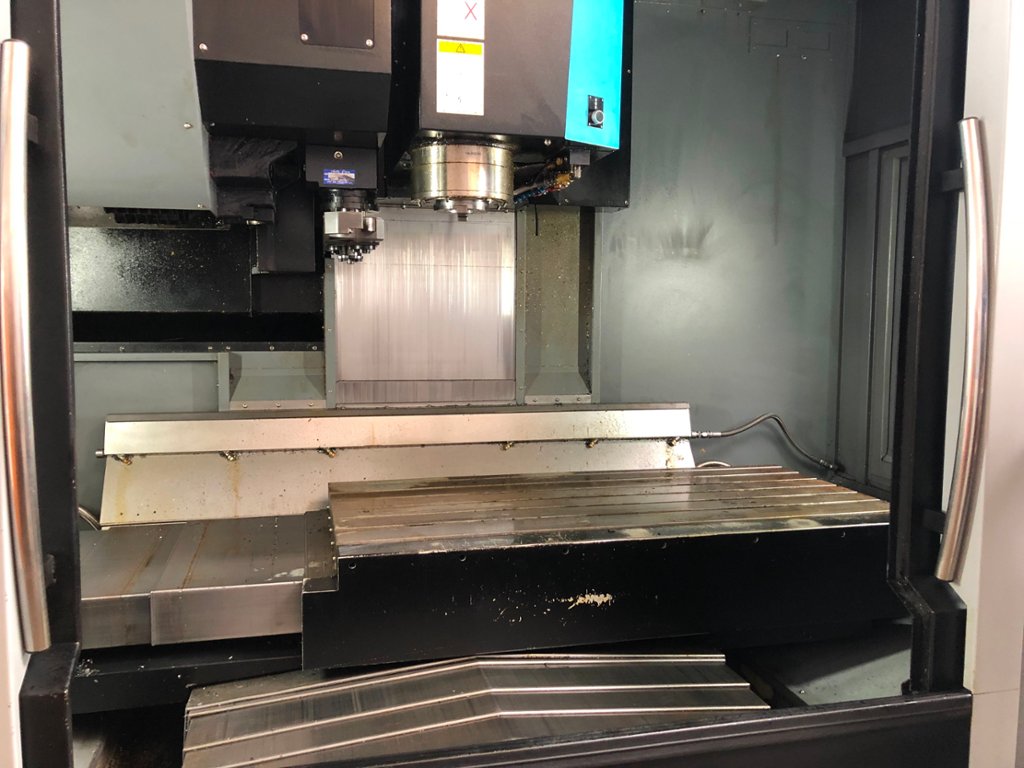

Lot 1 - Hurco VMX50i Vertical Machining Centre (2014)

Description:

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Specifications:

The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.



X, Y, Z Axis Travel 50 x 26 x 24 in (1,270 x 660 X 610 mm)
Spindle Nose to Table 6.0 in (152 mm)

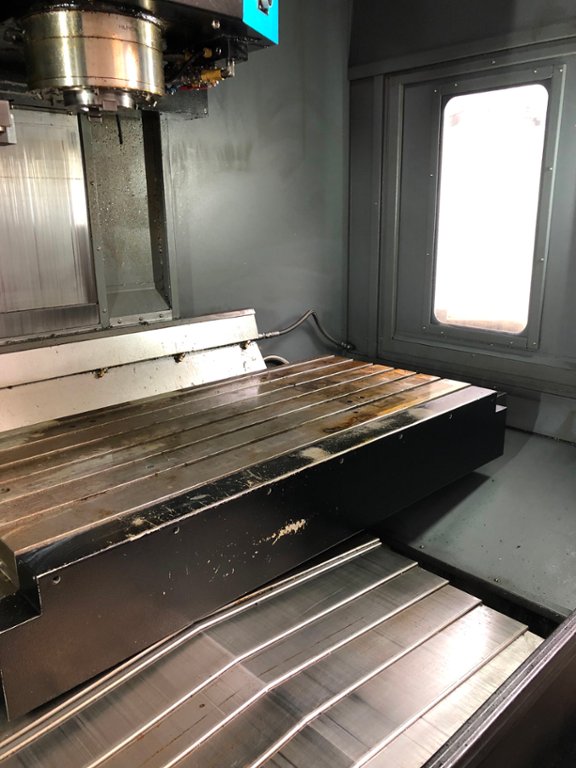

Table Size 59 x 26 in (1,500 x 660 mm)
Max Weight On Table 3,000 lbs (1,360 kg)
T-Slot Size 6 x .71 in (6 x 18 mm)
Peak Spindle Motor 24 hp (18 kW)
10k 210 ft-lbs @ 600 rpm (284 Nm @ 600 rpm)
12k 175 ft-lbs @ 720 rpm (237 Nm @ 720 rpm)
15k 140 ft-lbs @ 900 rpm (190 Nm @ 900 rpm)
Tool Type CAT 40
Max Tool Diameter 3.1 in (78.7 mm)
Max Tool Length 11.8 in (300 mm)
Max Tool Weight 15.4 lbs (7 kg)
Max Programmable Feedrate 944 inches/minute (24 m/minute)
Rapid Traverse X,Y,Z Axis 1,260 in/min, 1,260 in/min, 944 in/min (32 m/minute, 32 m/minute, 24 m/minute)
Machine Height 116.5 in (2,959 mm)
Required Floor Space 198.8 x 172.4 in (5,049x 4,378 mm)
Machine Weight 17,937 lbs (8,136 kg)

Bid information

Time remaining

DAYHRSMIN
251724

19 Sep 2019 15:00:00 BST

Opening bid: £37000

Bids: 0



Your Bid:

£


Minimum increment: £150

Autobid:

£

Final remove by date: 03/Oct/2019

Location: Coventry
