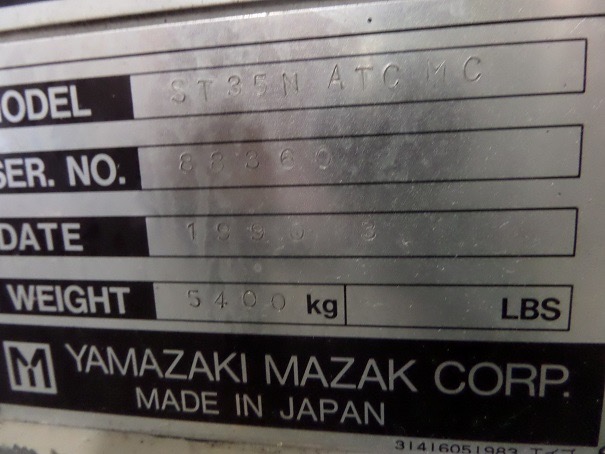

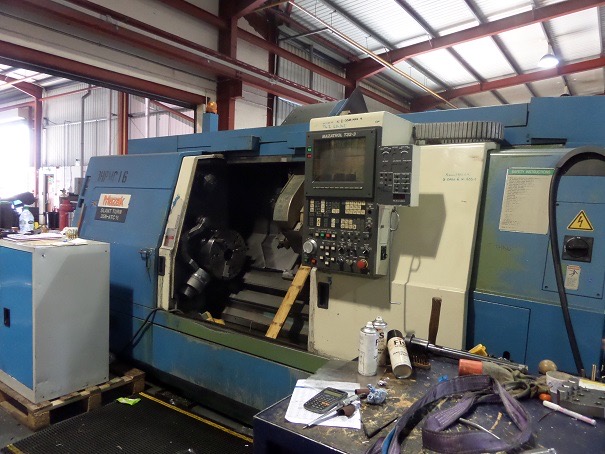

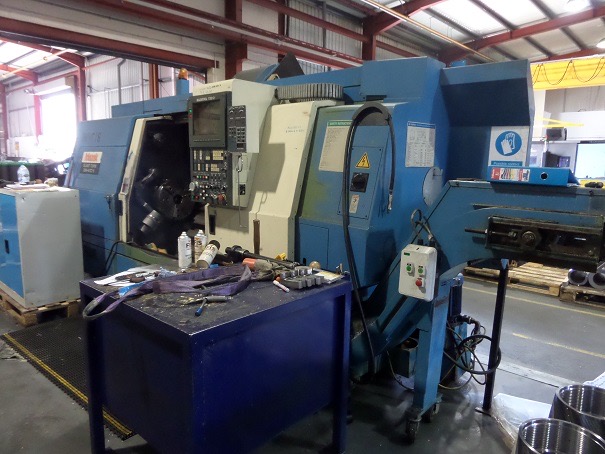

Lot 5 - Mazak Slant Turn 35N – ATC M/C - 3 axis turning centre with c axis and milling ( 1990)

Description:

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Specifications:

The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

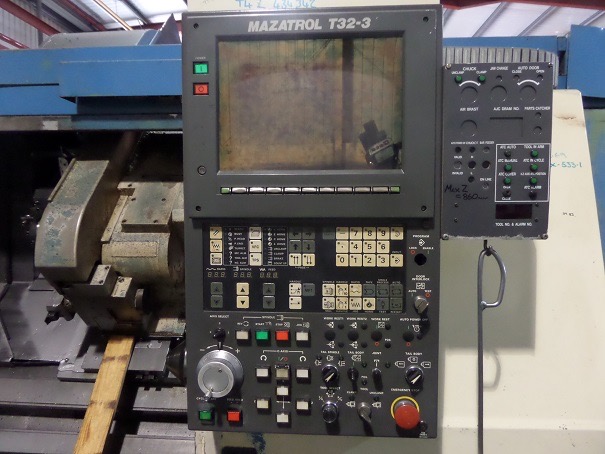

Mazatrol T-32-3 CNC Control

16-ATC Automatic Tool Changer

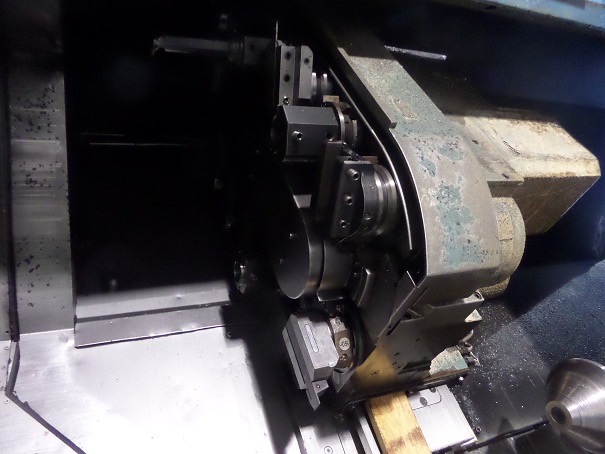

Live Milling – Numerous driven tools and static tools – carousel full of driven / static tooling plus extra driven & static tooling in cabinet including cabinet itself

25HP / 30HP Main Motor

Maximum Swing: 460mm

Maximum Turning Length: 1,000mm

Spindle Bore: 80mm

Spindle Nose: A2-6

Spindle Speed: 4 - 2,200 RPM

Tailstock Spindle Travel: 130mm

Tailstock Taper: MT #4

Rapid Feed Rate (X-Axis): 393 IPM

Rapid Feed Rate (Z-Axis): 590 IPM

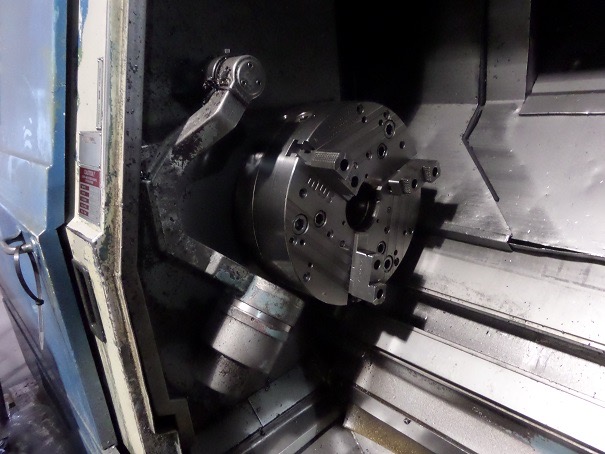

400 mm 3 jaw
Swarf Conveyor

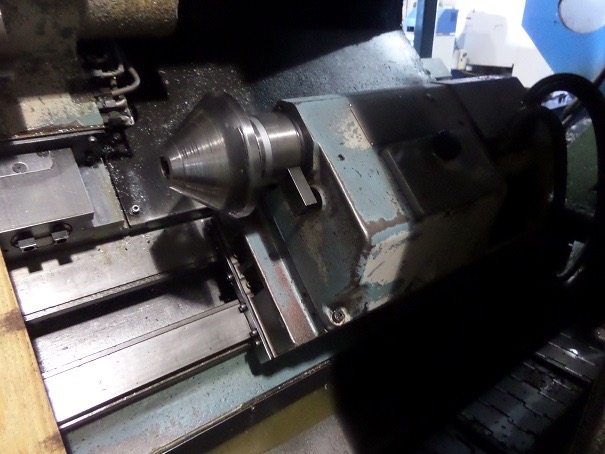

Tailstock



Loaded to suitable transport £ 150

Bid information

Time remaining

DAYHRSMIN
251721

19 Sep 2019 15:00:00 BST

Opening bid: £4000

Bids: 0



Your Bid:

£


Minimum increment: £100

Autobid:

£

Final remove by date: 03/Oct/2019

Location: Leicester

Lot location
