with horizontal and vertical spindles.
Heidenhain TNC 426 Control

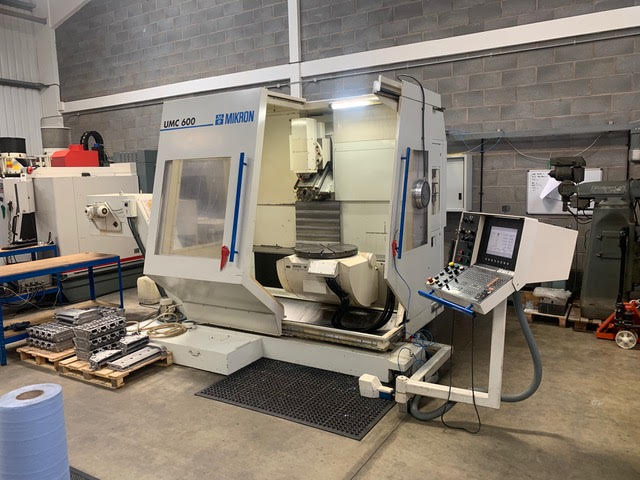

This machine when purchased was specially modified to a 900mm X axis stroke as opposed to 600mm on a standard UMC 600
After it was successfully proven it was added to the Mikron range as a UMC 900
This was the first UMC 900 built
I guess at the time they had no stickers available or it was not yet part of their range
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.
X axis 900mm
Y axis 600mm
Z axis 500 mm
Spindle power 9Kw
Spindle speed 6300 rpm
Tools 44 CAT 40
Linear scales XYZ

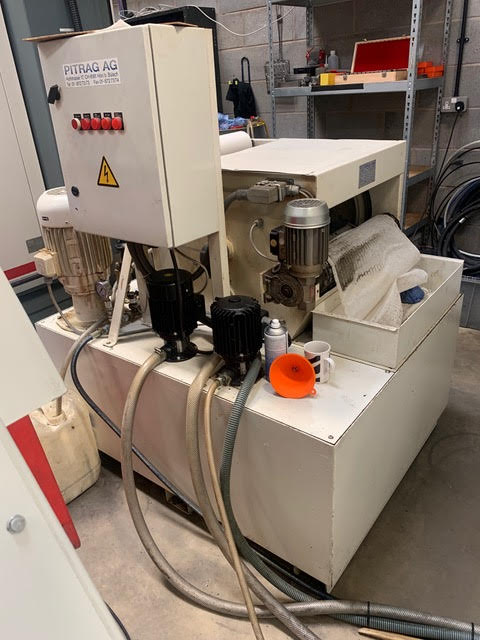

Coolant system with swarf conveyor and paper band filtration
High pressure coolant pump 70 bar
Tilting table +45 degree to -20 degree
Rotary table 0.001 degree increments
