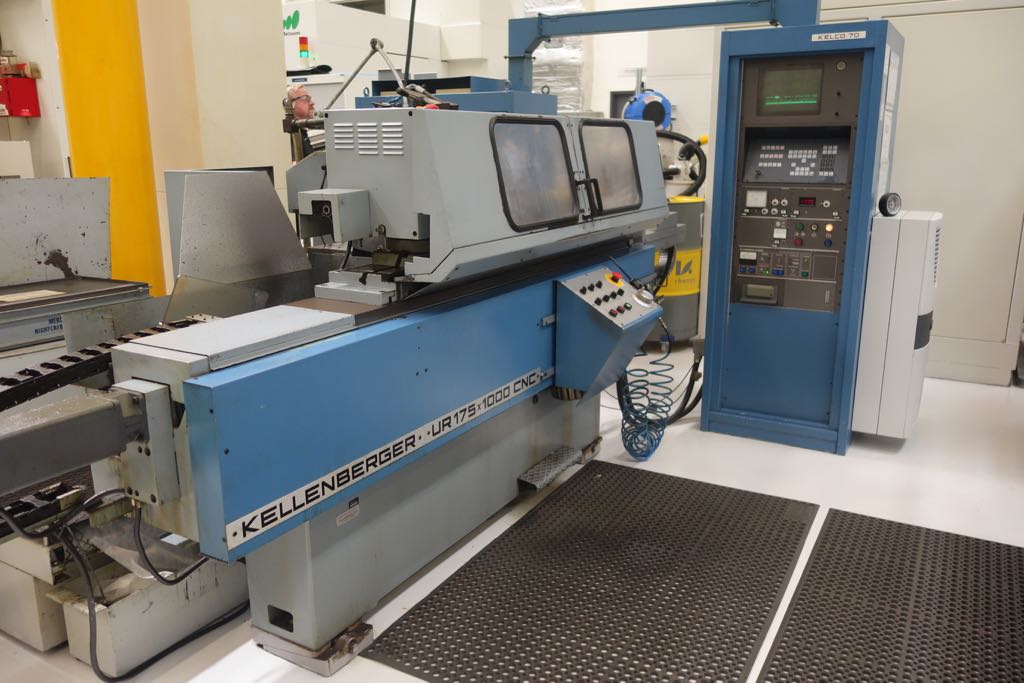

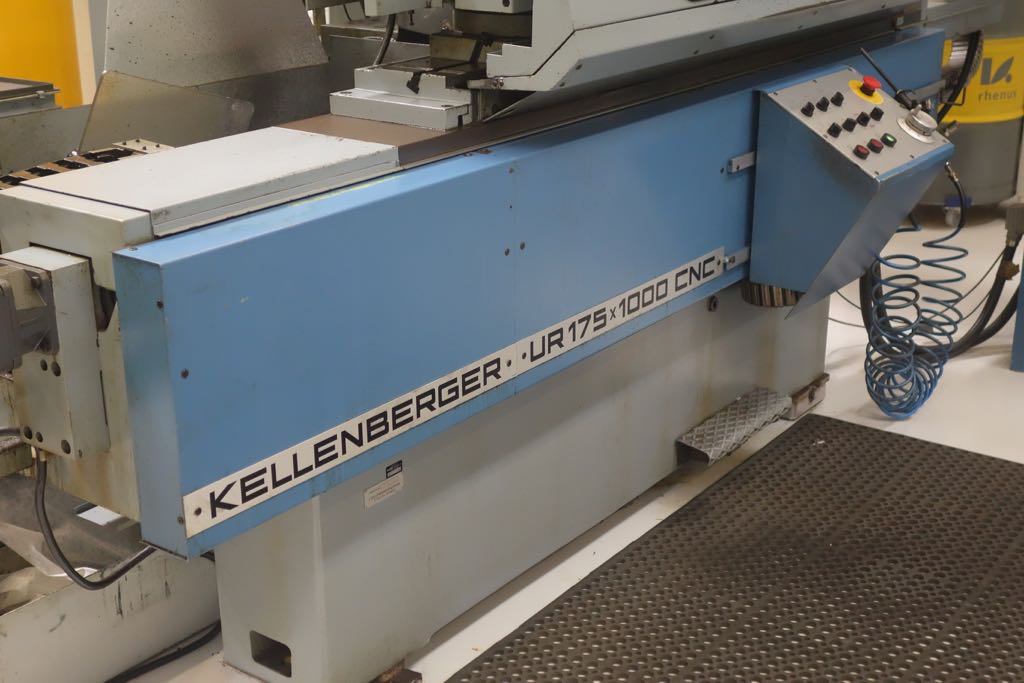

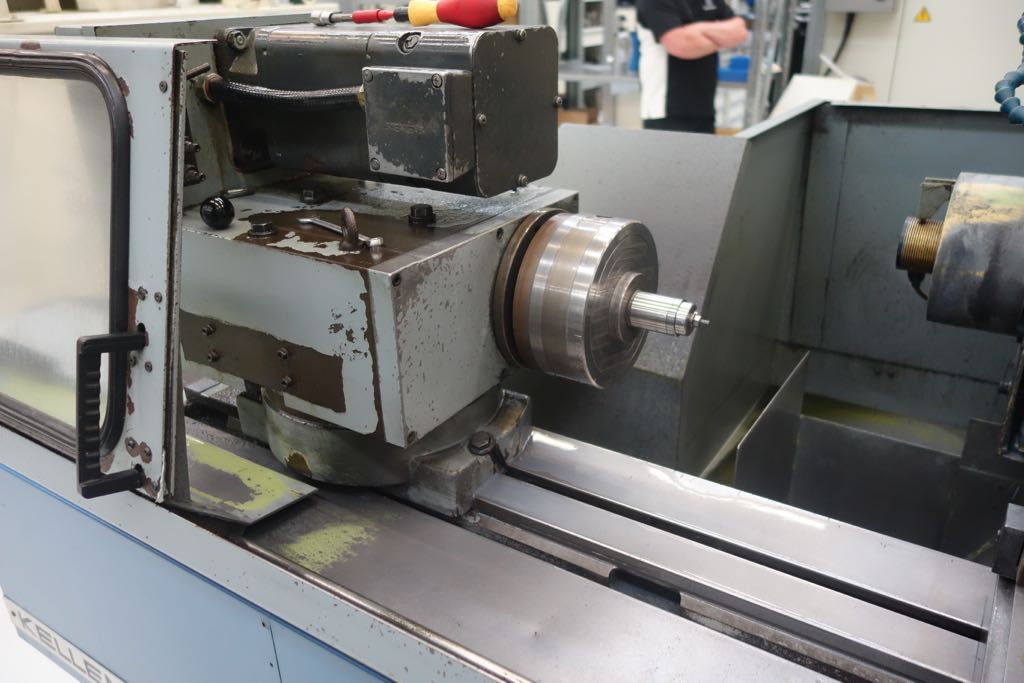

Lot 1 - 1992 Kellenburger UR 175x1000 CNC Cylindrical Grinder

Description:

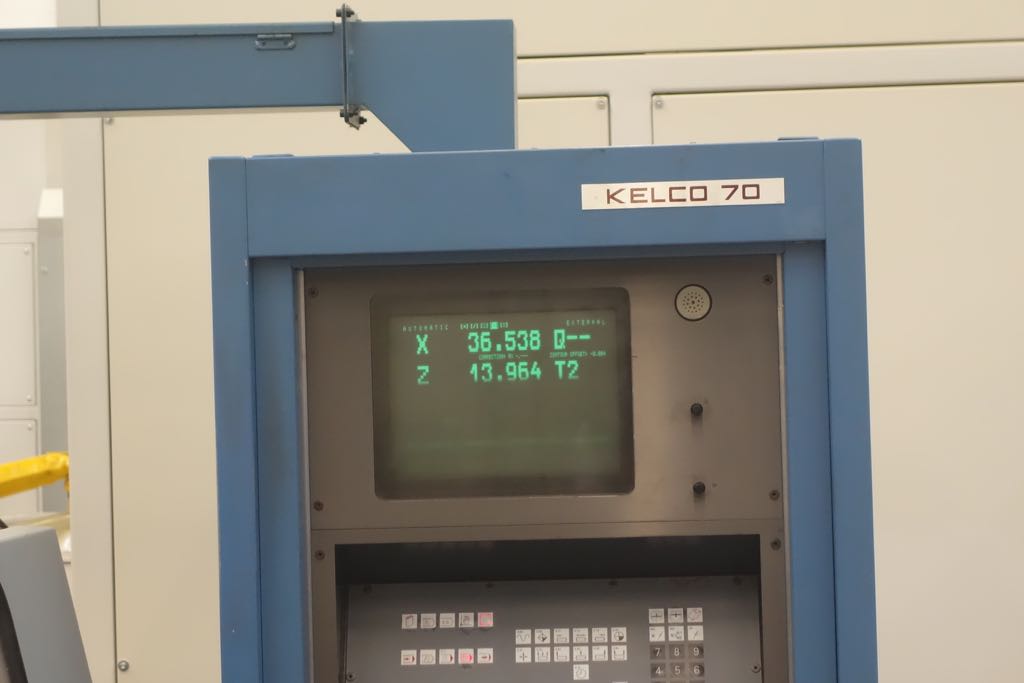

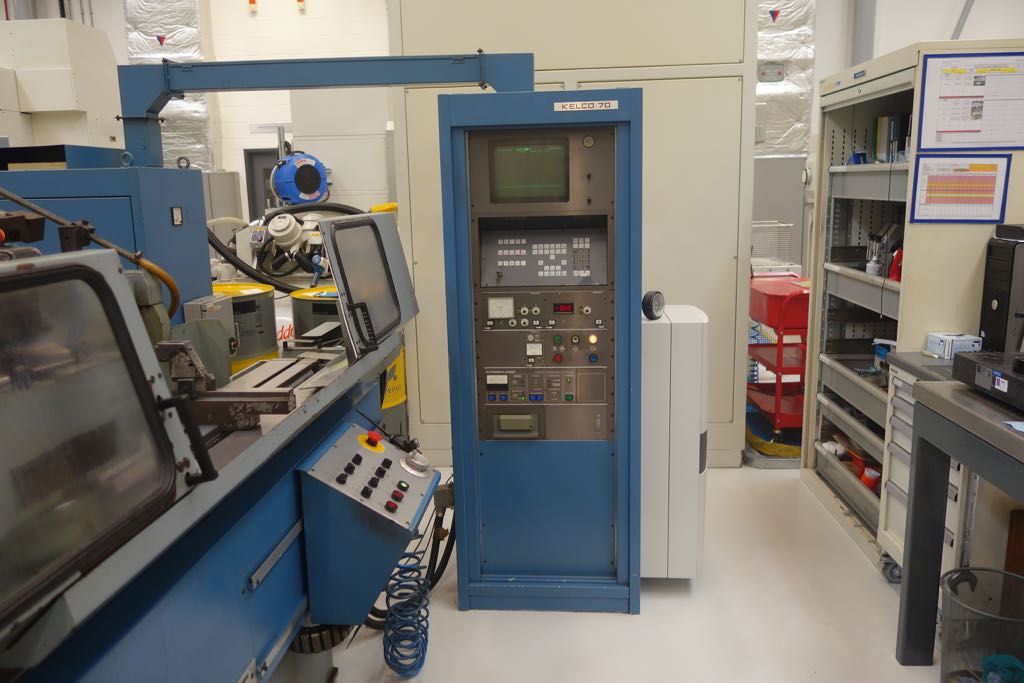

1992 Kellenburger UR 175x1000 CNC - Kelco 70

Maximum Swing: 13.74"
Maximum Distance Between Centers: 39.37"
Maximum Grinding Capacity: 13.74"
Height of Centers: 6.89"
Power Requirements: 13.4HP
Z-Axis Travel: 43.9"
Table Swivel: 9°
X-Axis Travel: 10.24"

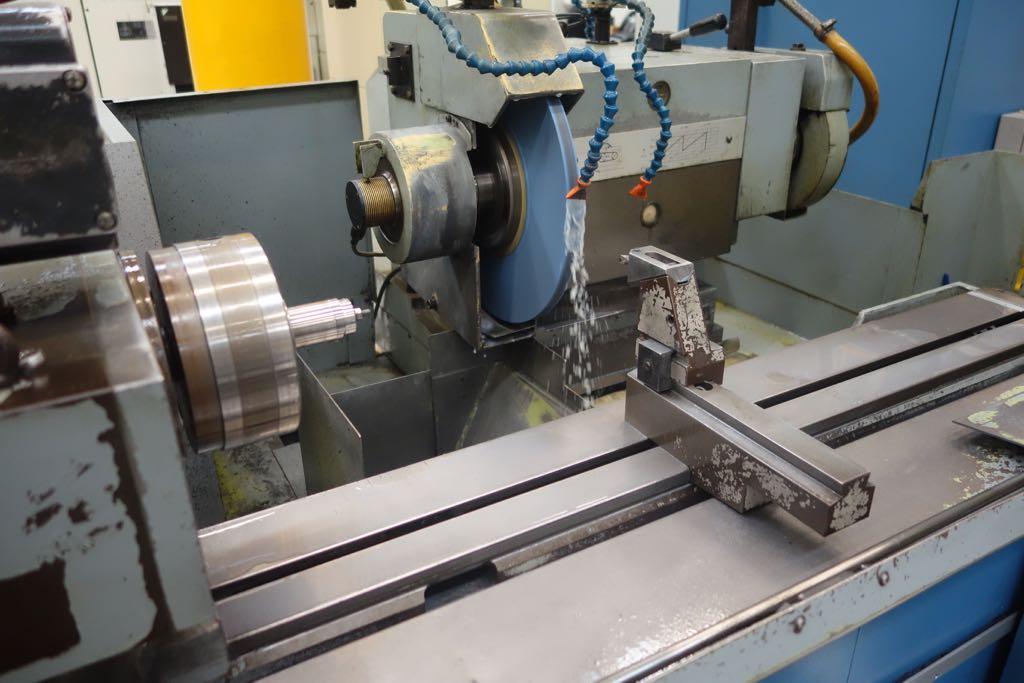

Max Grinding Wheel (Left): 15.75" x2.48" x5.00"
Max Grinding Wheel (Right): 8.86" x0.79" x3.00"
Wheelhead Motor Output: 5.9HP
Wheelhead Swivel: 200°
Internal Spindle Carrier: 3.15"

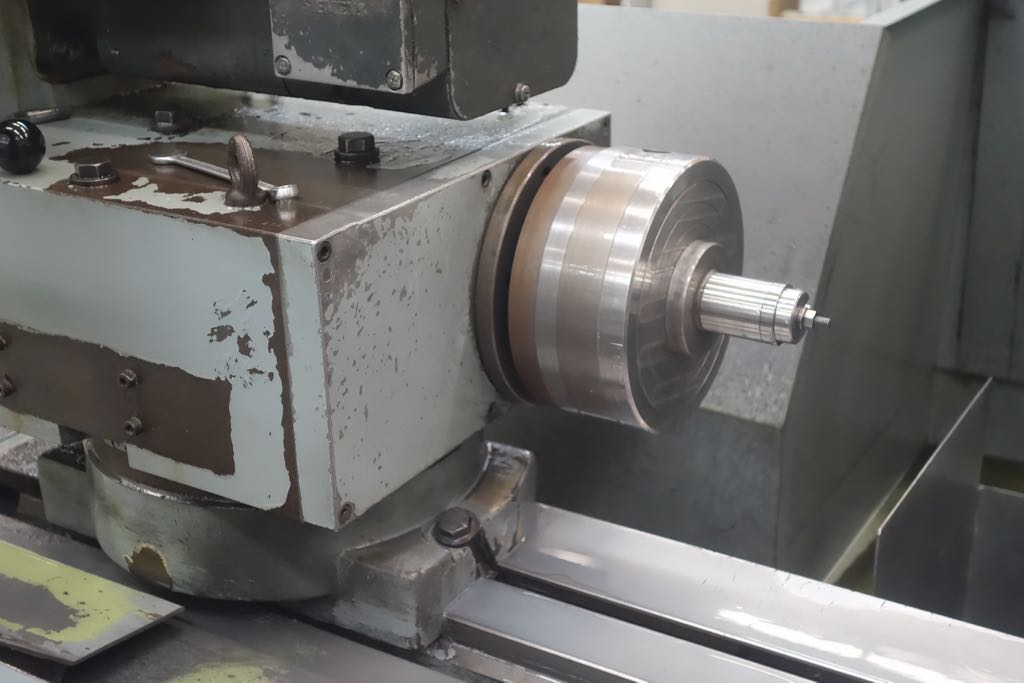

Workhead Swivel: -30° / +120°
Spindle Speeds: 5-500 RPM
Internal Taper of Spindle: #5MT
Workhead Motor Output: 3.2HP
Tailstock Taper: #4MT
Tailstock Sleeve Retraction: 1.18"

Location: Northamptonshire

*Specifications taken from the internet

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
