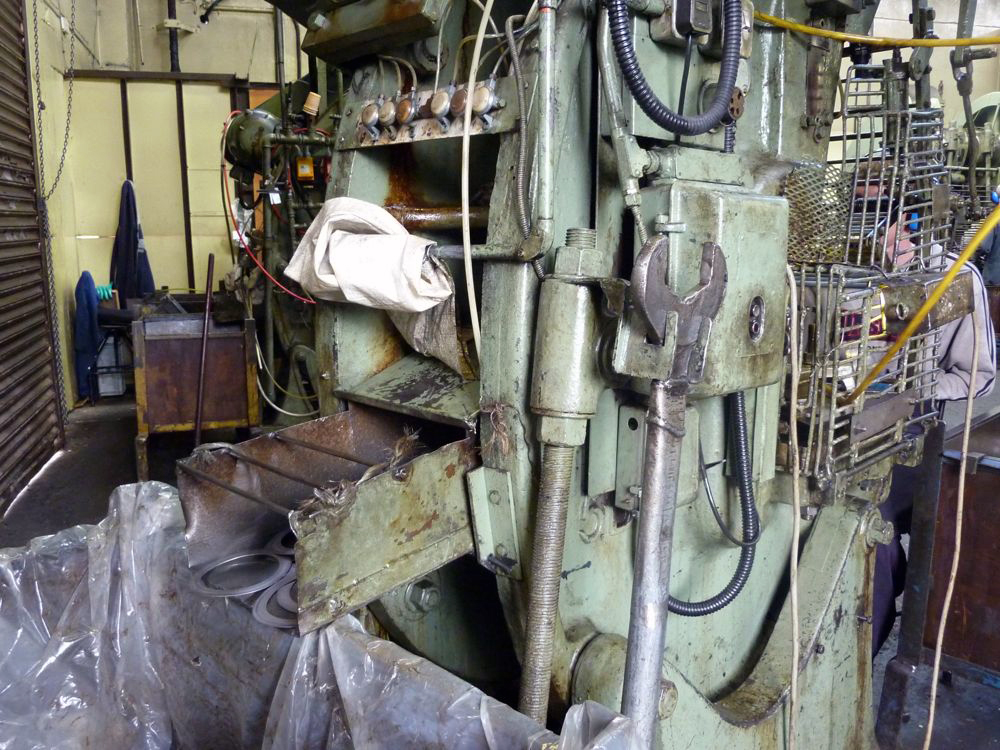

Lot 17 - 20 Ton Butterley Press (Butt 5)
Description:

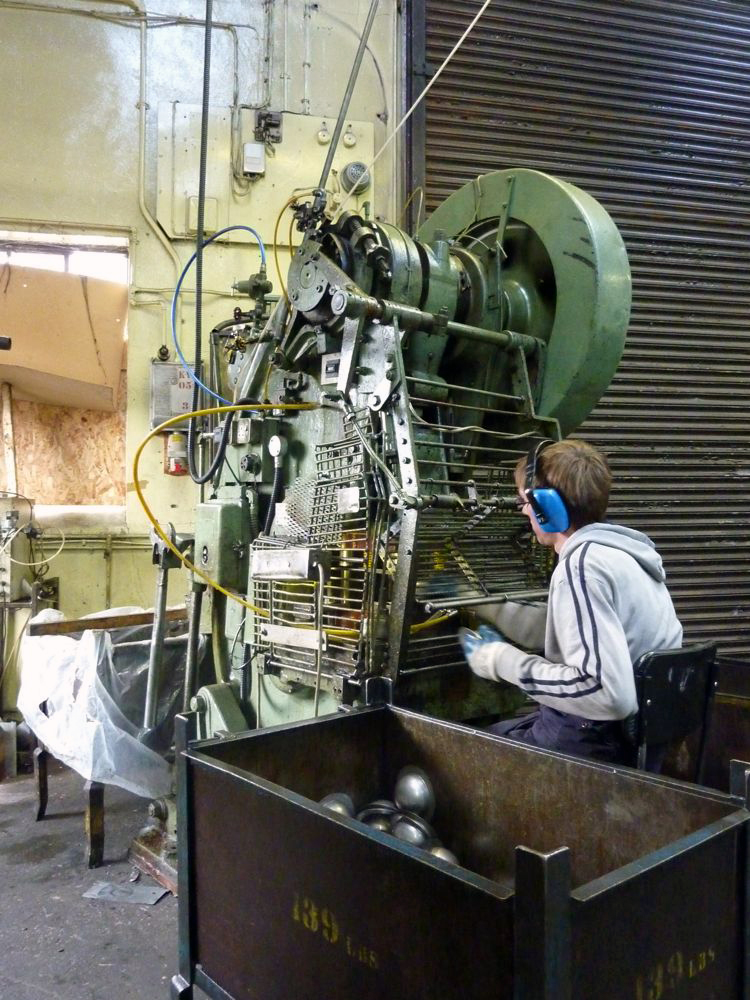

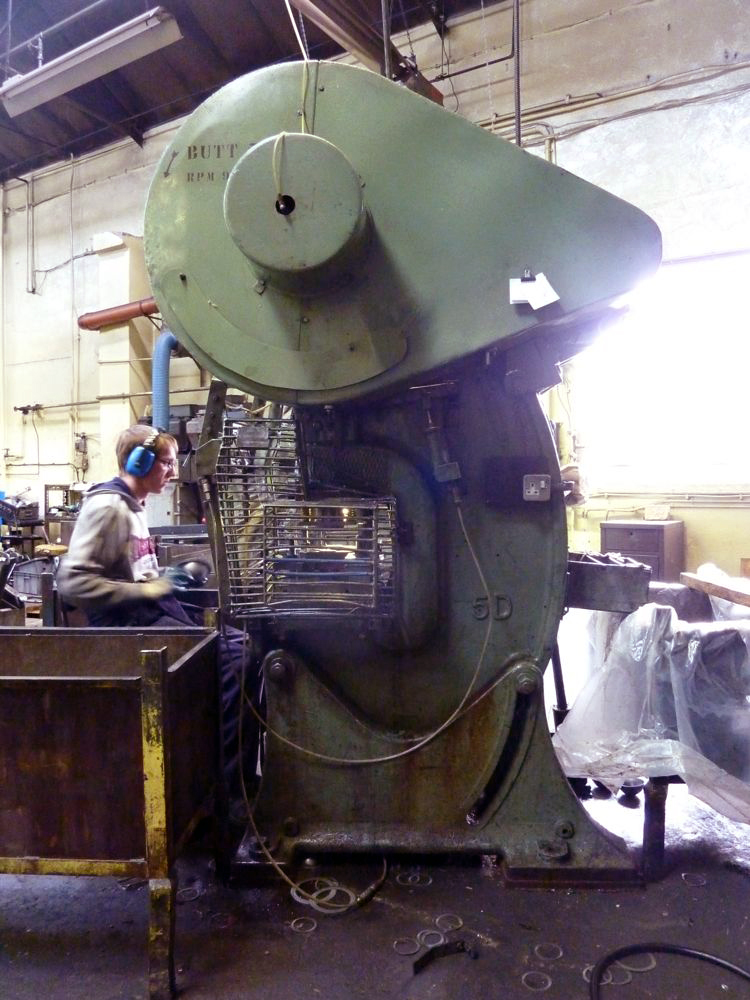

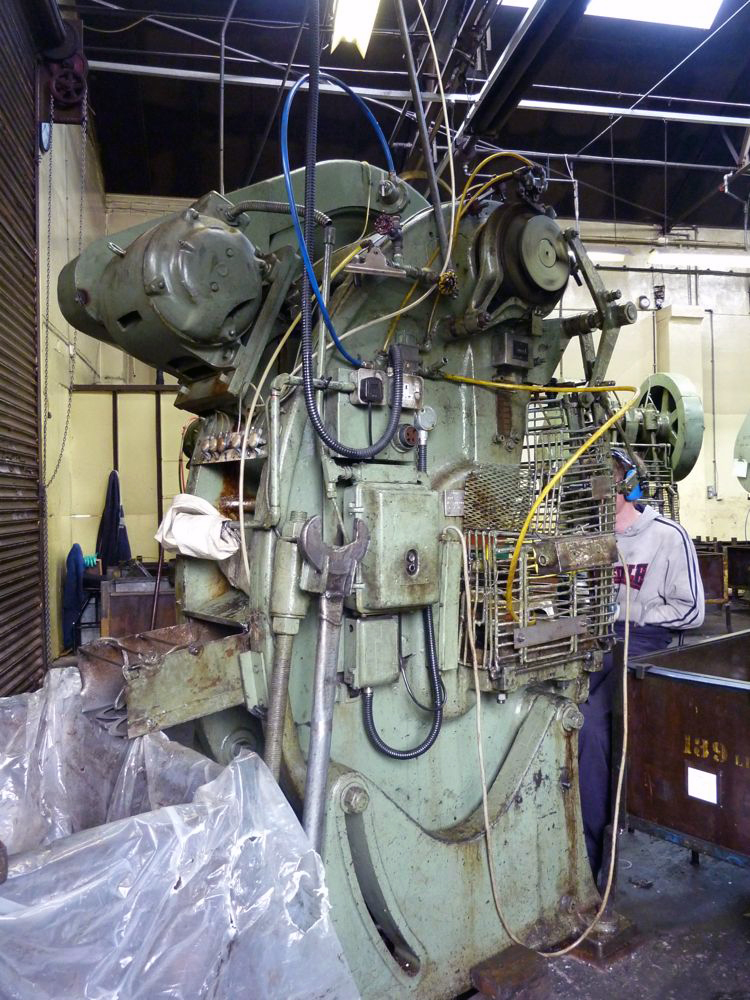

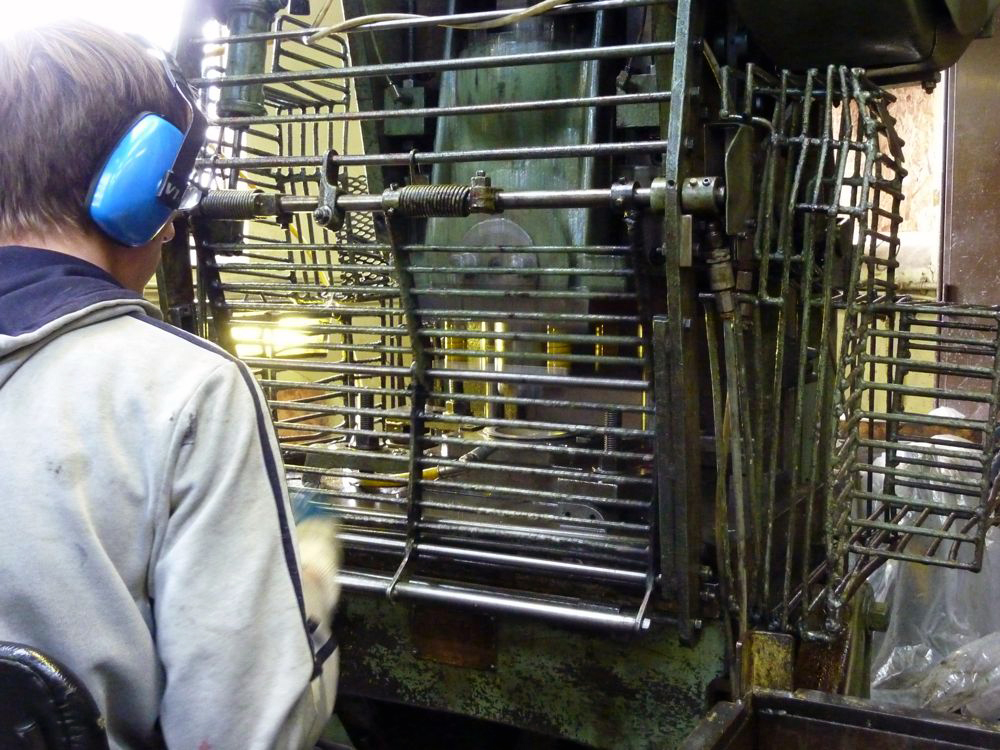

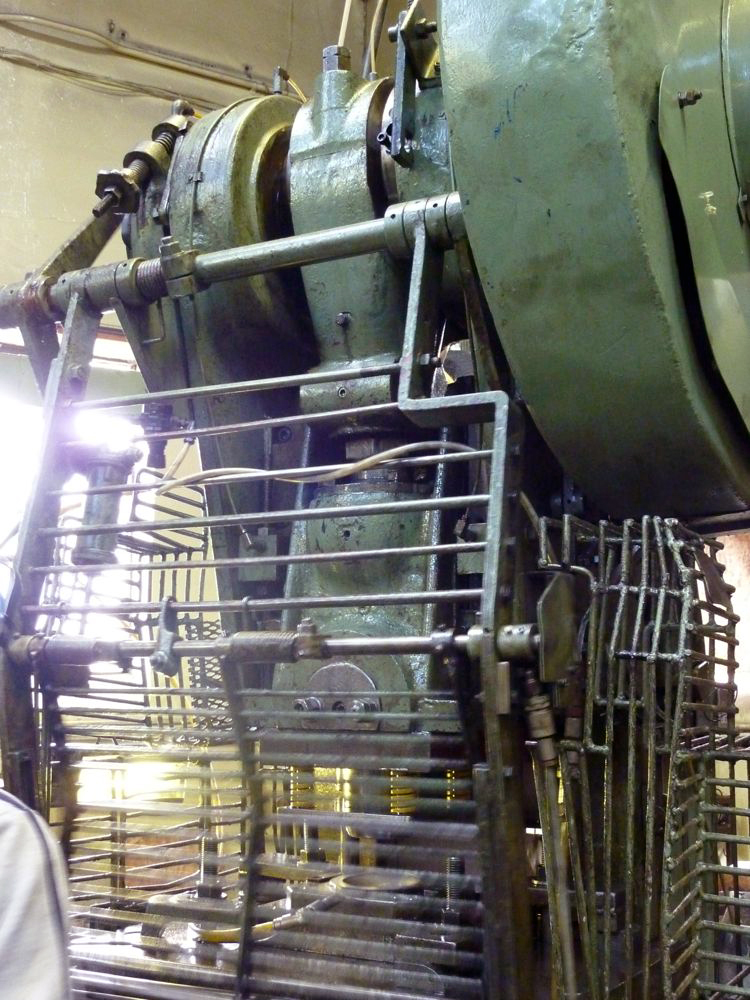

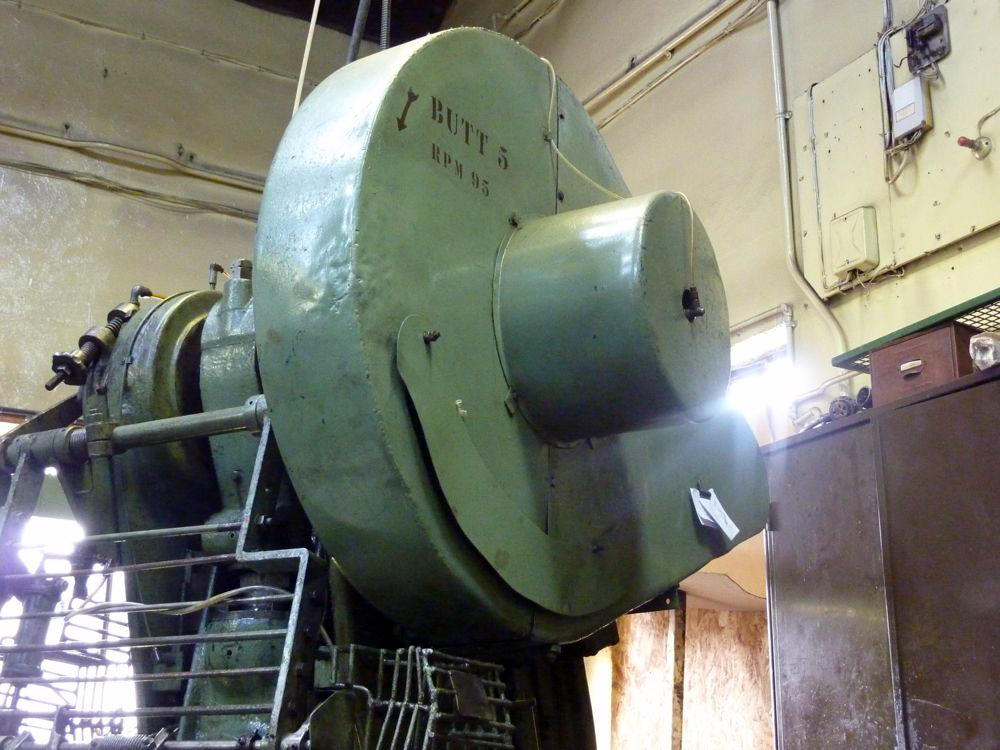

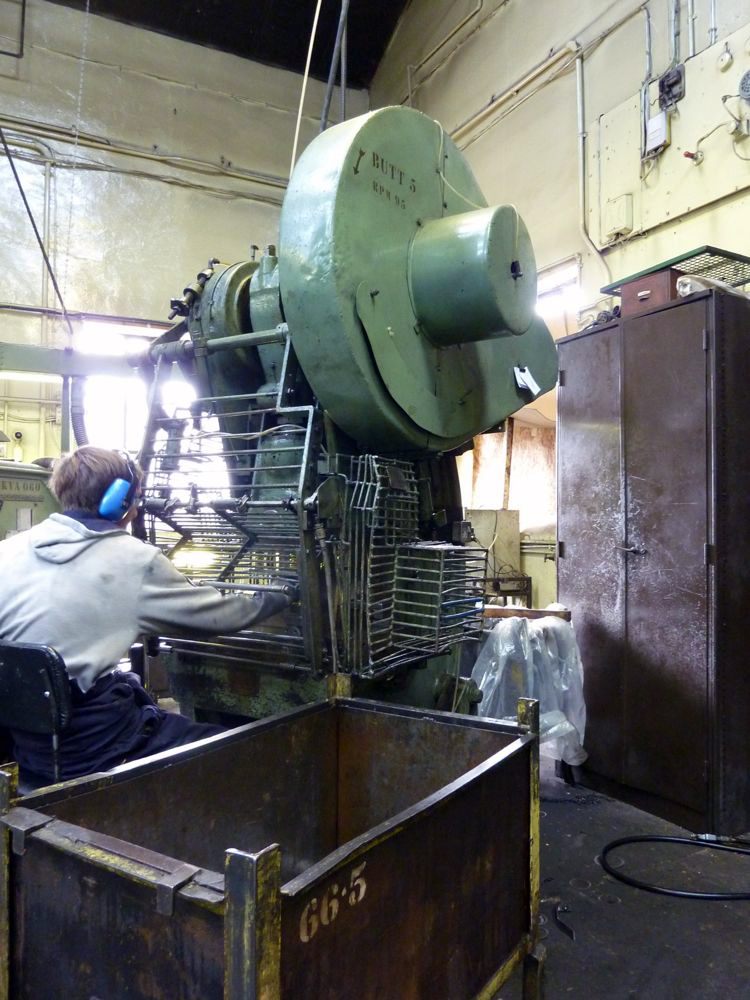

20 Ton Butterley Press (Butt 5)

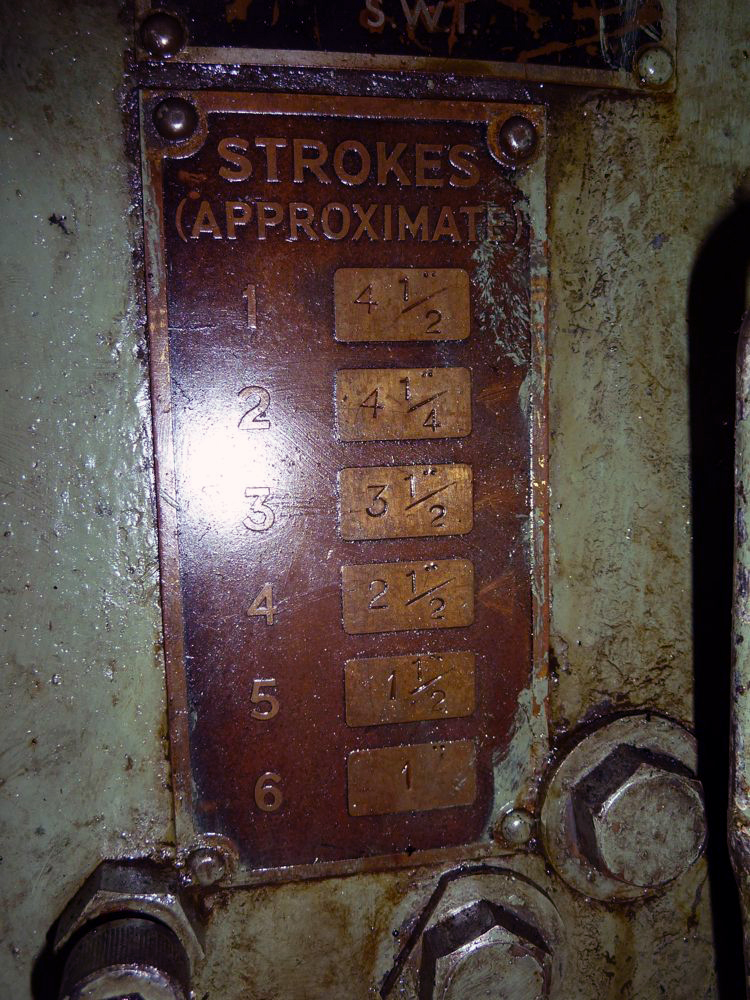

Capacity: 20 Ton Stroke: 1, 1 7/16, 2 3/8, 3 7/16, 4 3/16, 4 1/2 RAM Adjustment: 2 1/2 Strokes/min: 90
RAM Screwed in - Shut height: Min stroke: 8 1/2 Max stroke: 6 3/4 Open height: Min stroke: 9 1/2 Max stroke: 11 1/4
Bolster to guides: 11 1/2 Bolster to frame radius: 7 1/2 50 Inclinable Ungeared
Centre of RAM to frame radius F to B: 5
Centre of RAM to frame F to B: 8 /4
Bolster to Floor 35 1/8
Press Bolster: Thickness: 3, L to R 24, F to B 16 1/4, Hole(s): 6
Opening in Press Bed: 12 x 10 Adaptor: 2 dia x 2 Largest adaptor plate inside guides: 9 x 9 1/4
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
