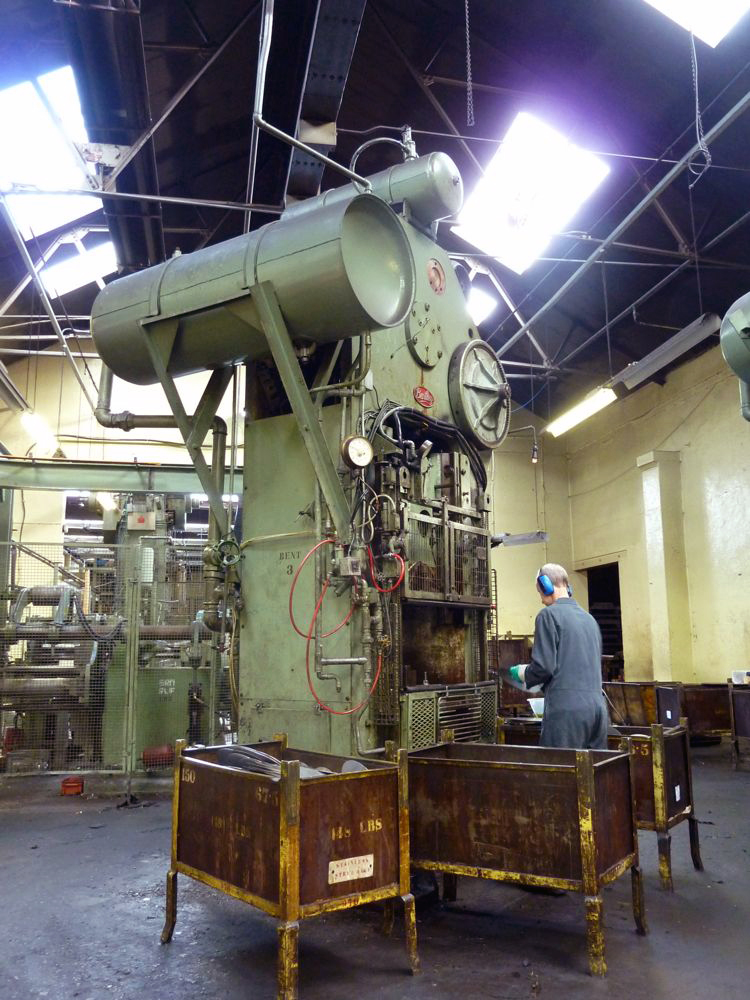

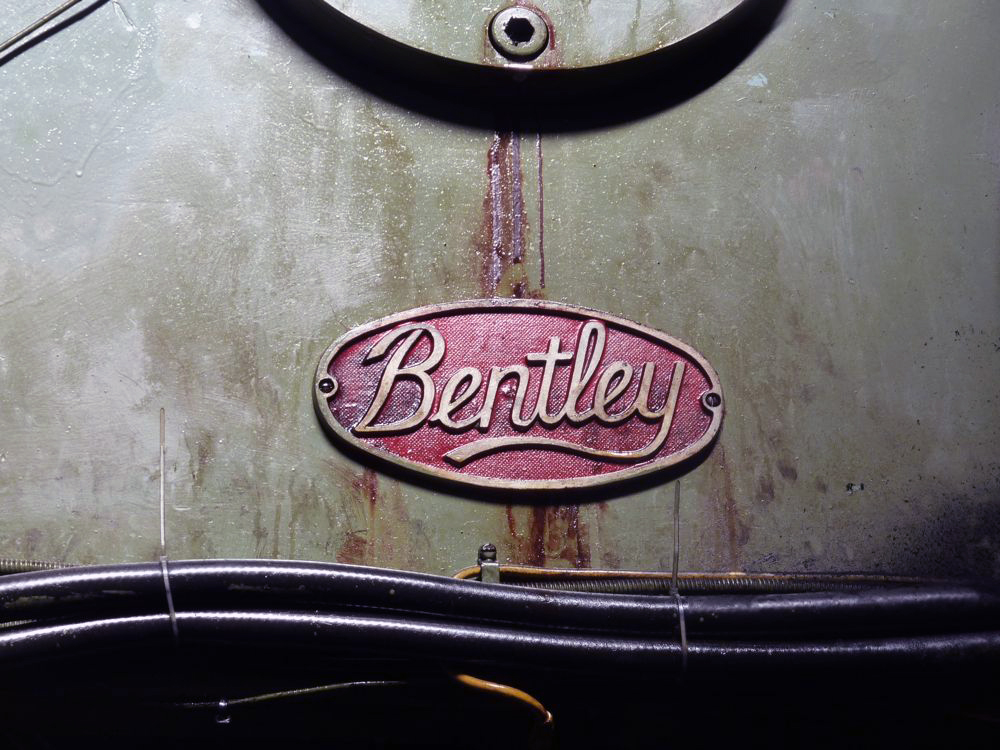

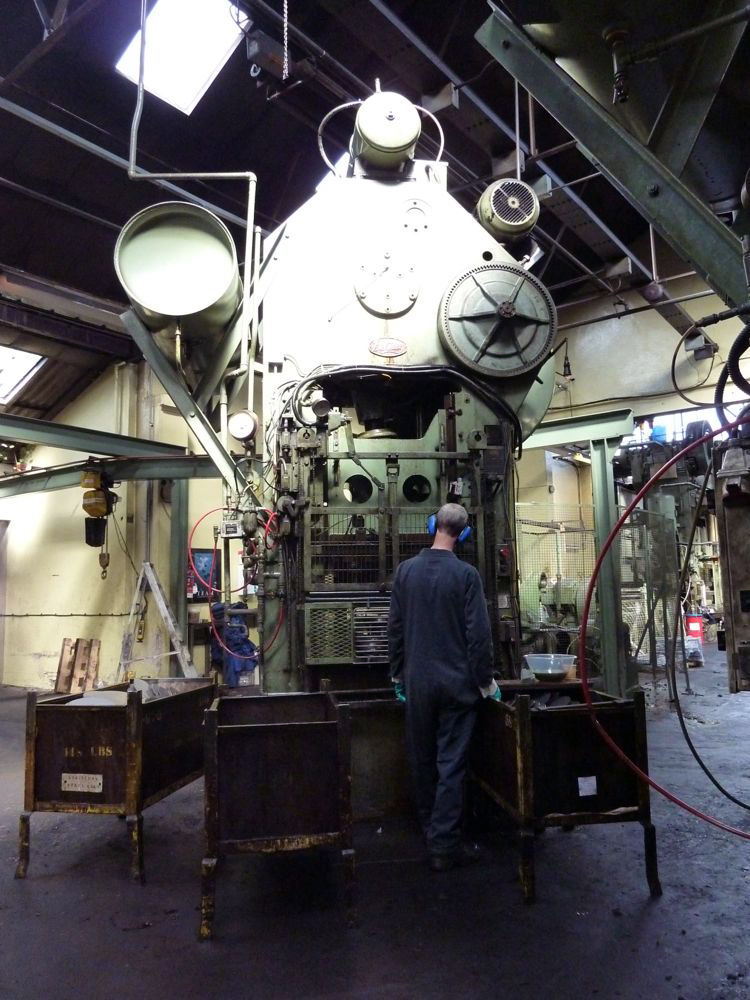

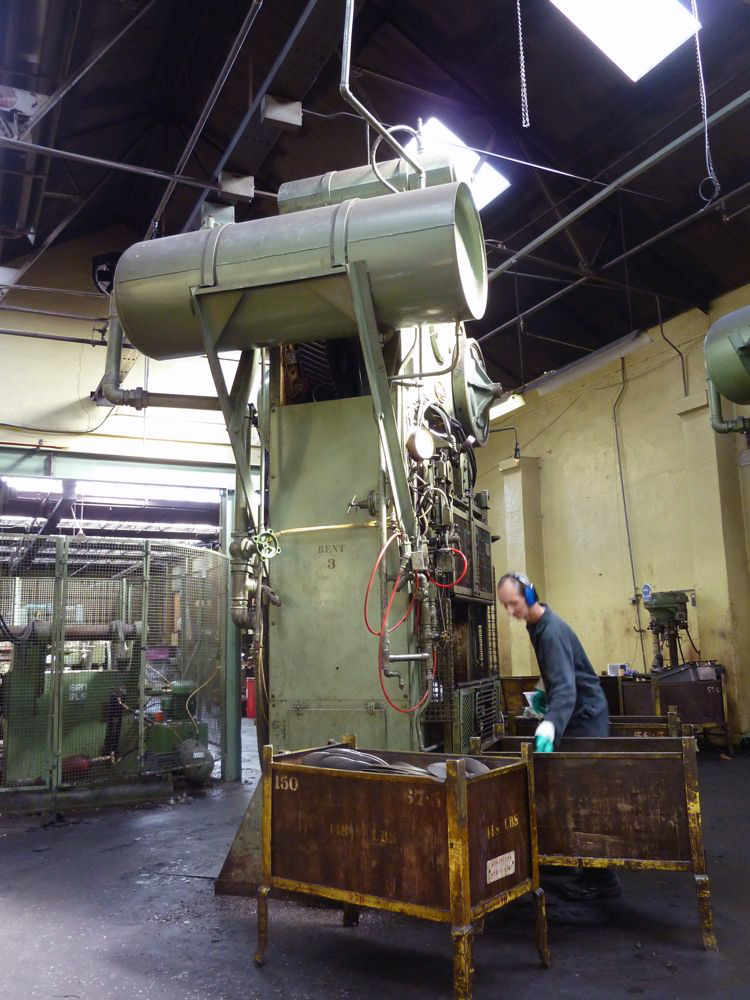

Lot 2 - 200 Ton G7 Bentley Press (Bentley 3)
Description:

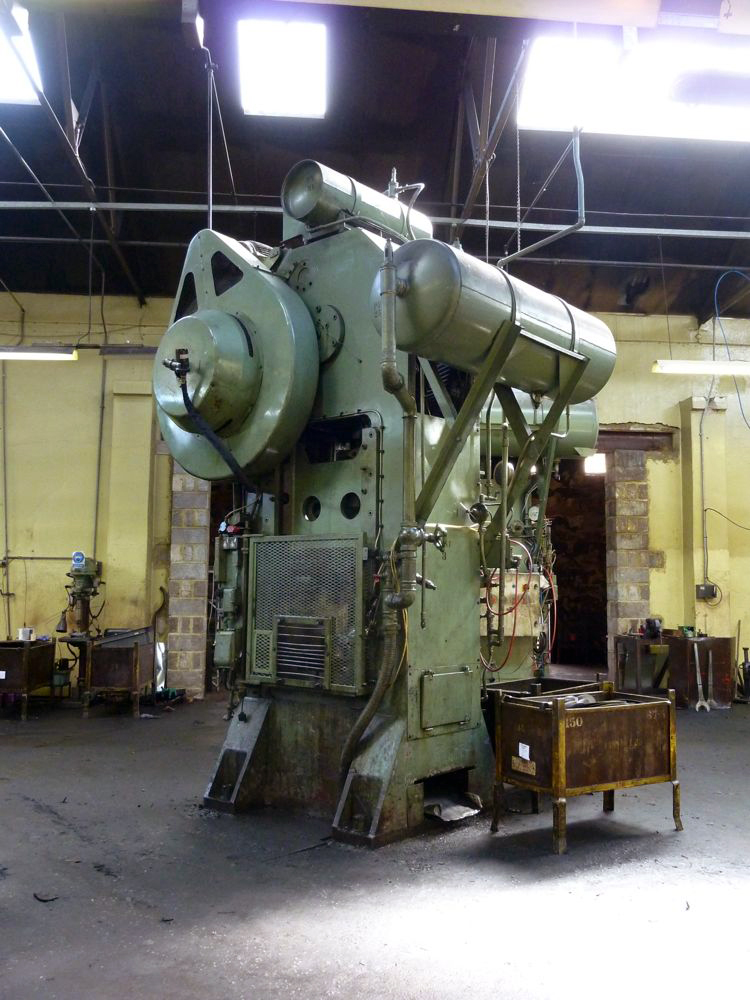

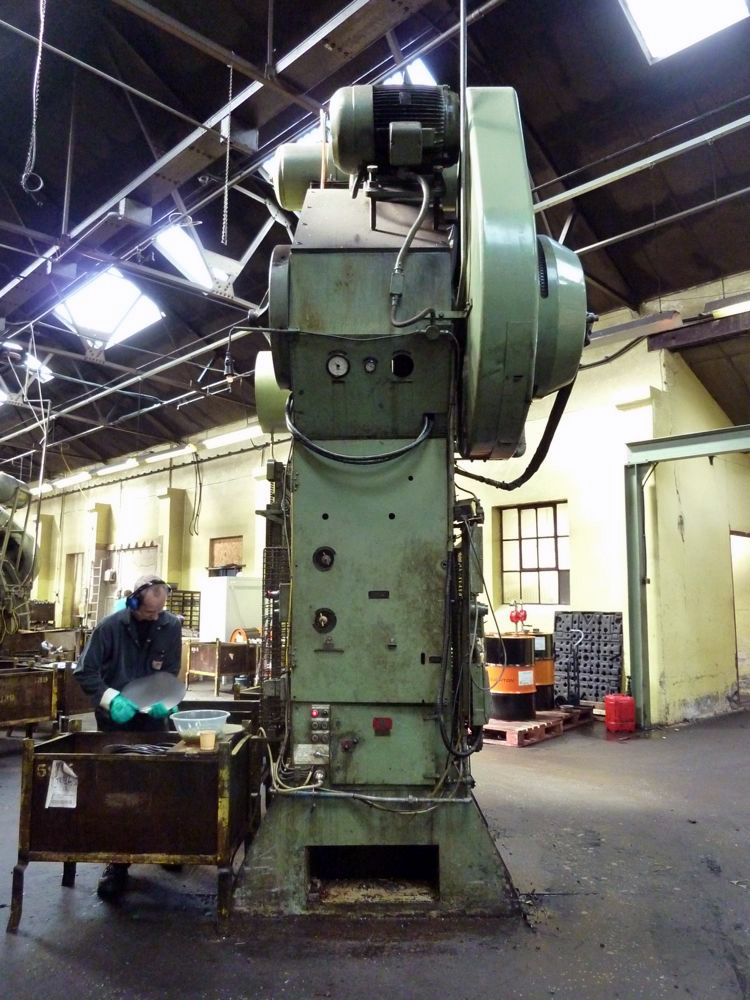

200 Ton G7 Bentley Press (Bentley 3)

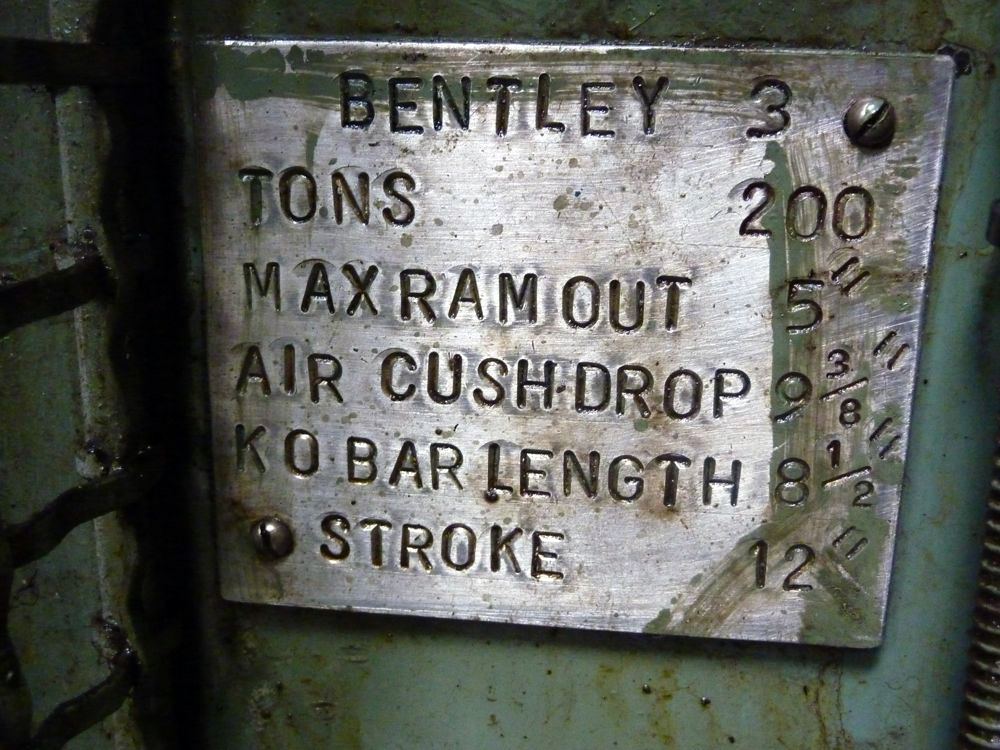

Capacity: 200 Ton Stroke: 12" RAM Adjustment: 5 Strokes/min: 30
RAM Screwed in - Shut height: Min stroke:15 1/8 Max stroke:15 1/8 Open height: Min stroke: 27 1/8 Max 27 1/8
Bolster to guides: 18
Centre of RAM to frame radius F to B: to slides 18
Centre of RAM to frame F to B: Lto R 17 1/4
Bolster to Floor 36
Press Bolster: Thickness: 7.630, L to R 34 1/2, F to B 30, Hole(s): 16, 15 & 9 dia 25 5/8x 5 5/8 Drg Nos: 605 & 606 648
Opening in Press Bed: 24 x 29 Adaptor: 3 dia x 5 Largest adaptor plate inside guides 28 L to R

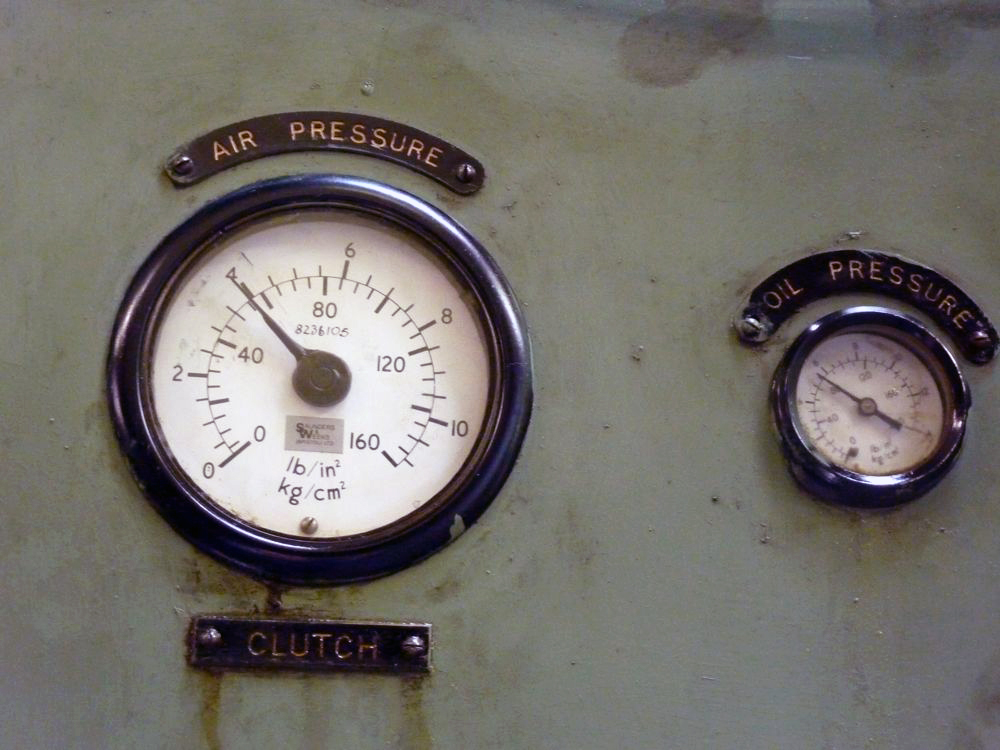

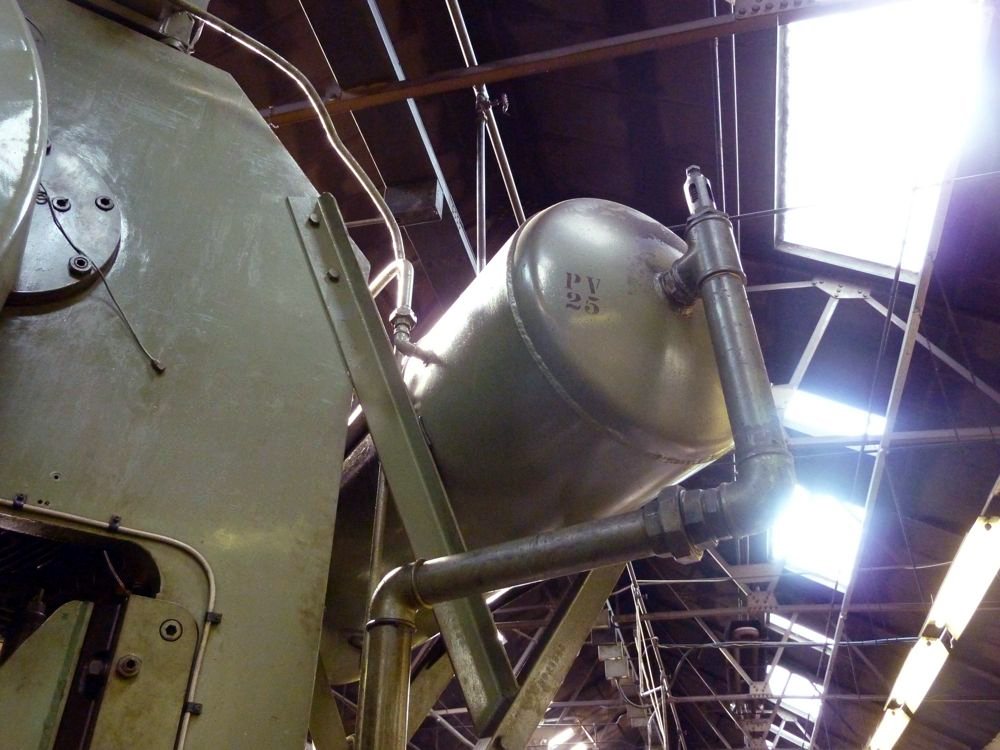

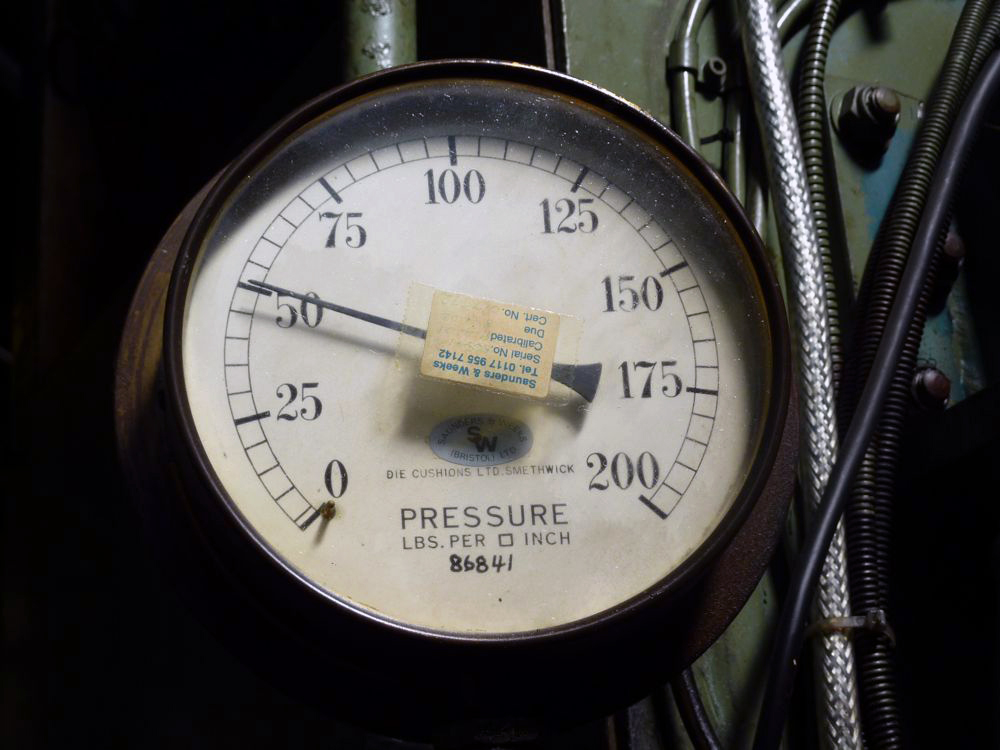

Air particulars: Cushion 9 3/8" movement KO Movement 3 3/4
KO Bar Length: 8.5"
bed area 35” wide x 30” deep
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
