Description:

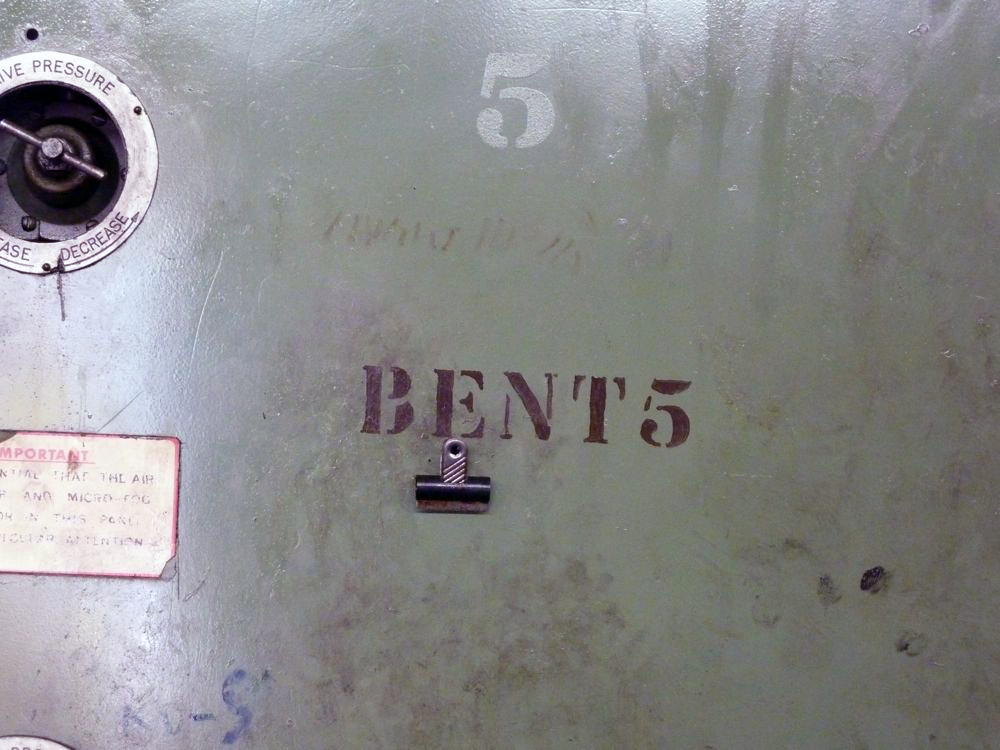

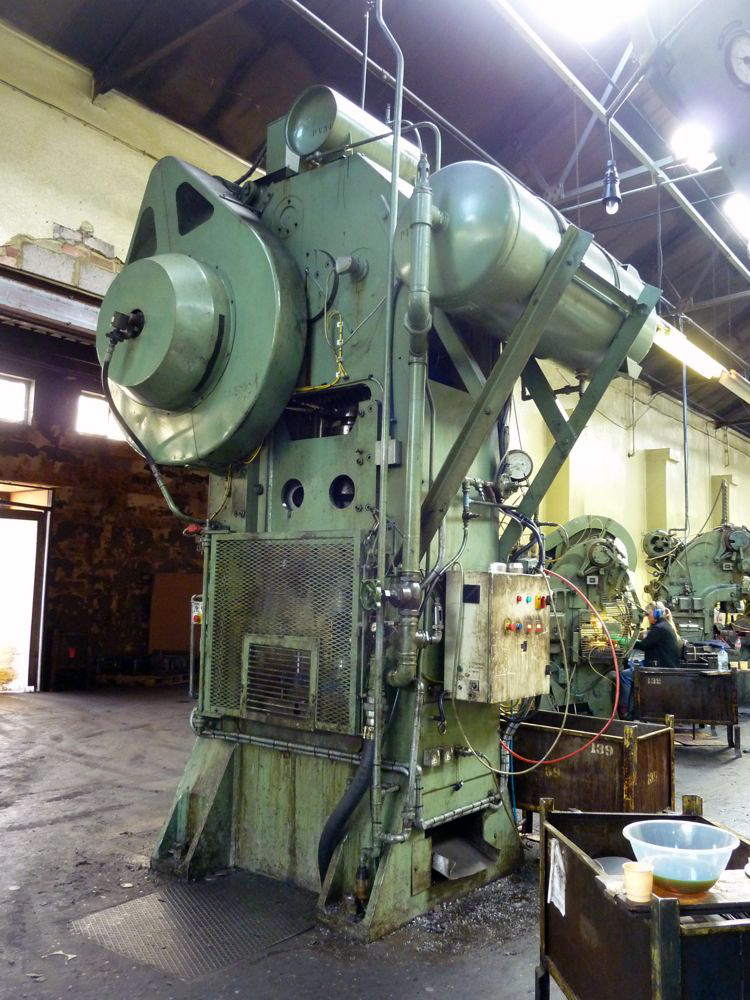

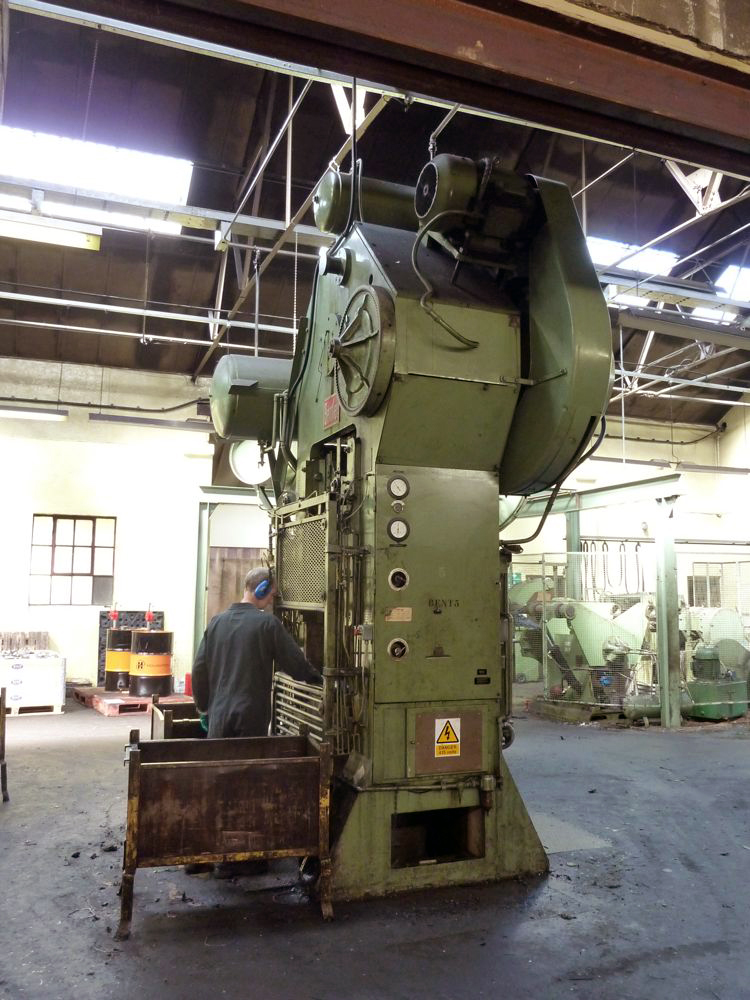

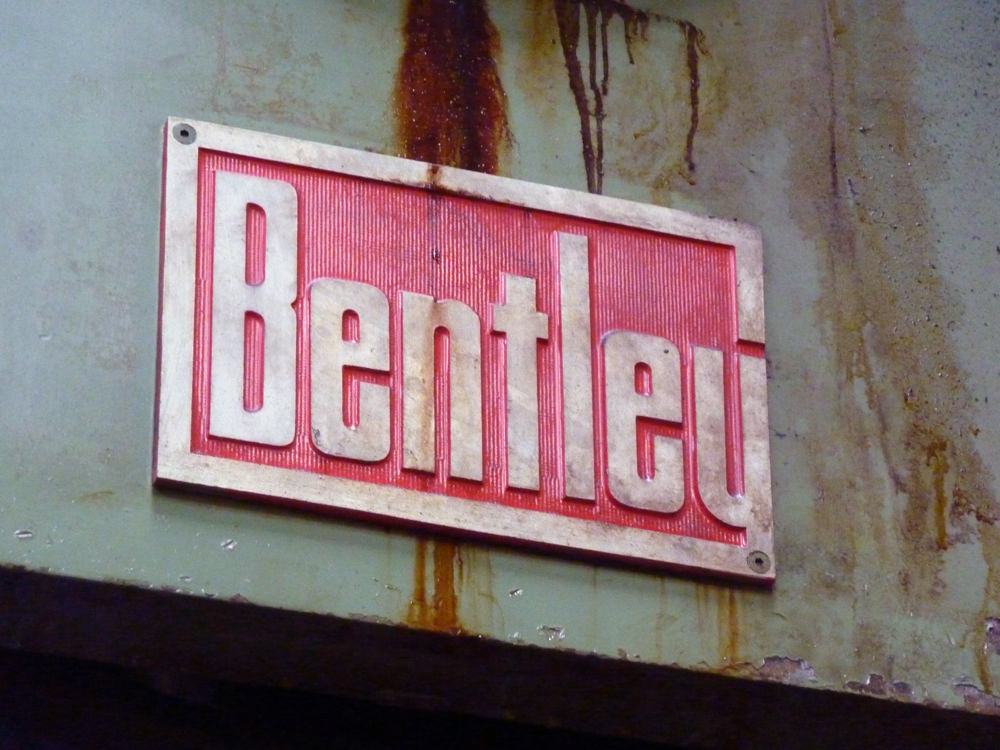

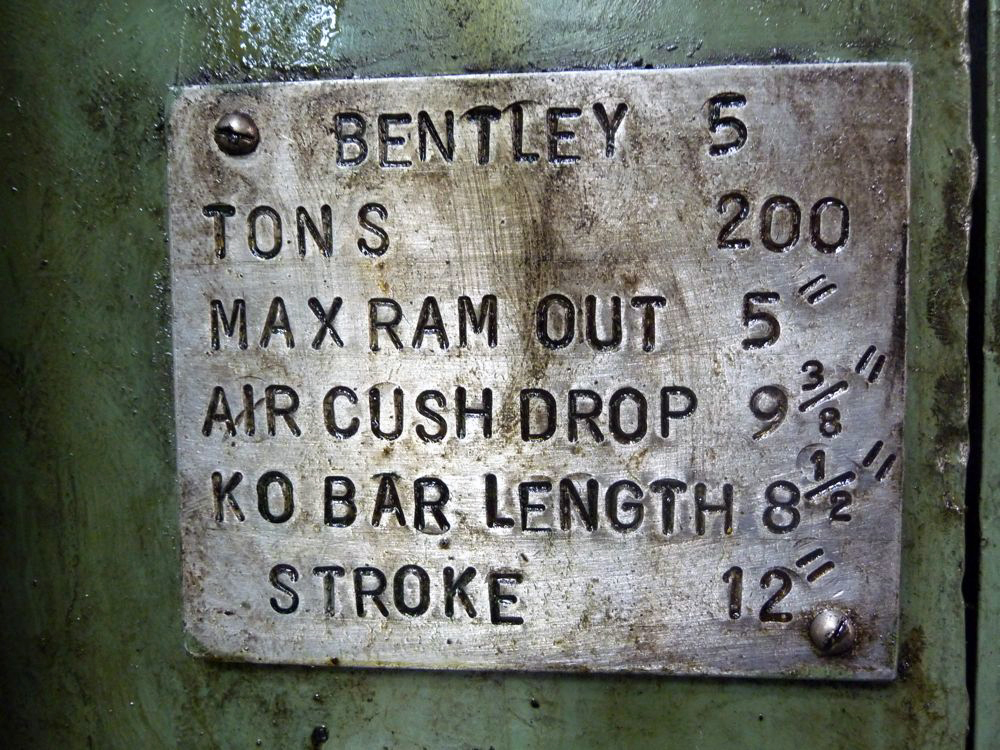

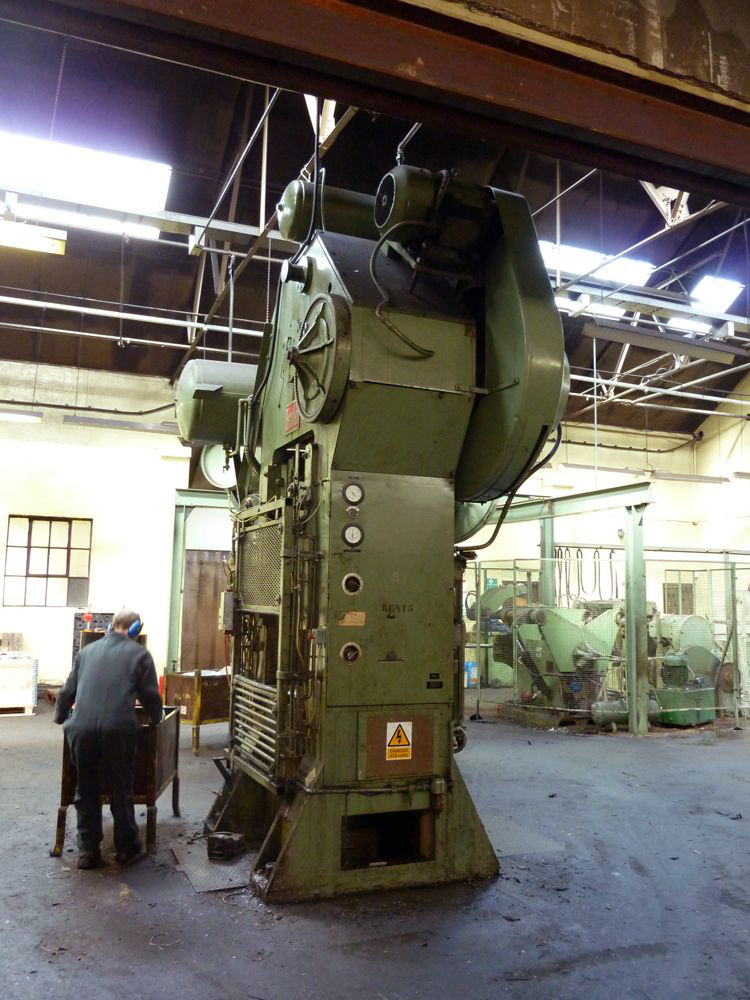

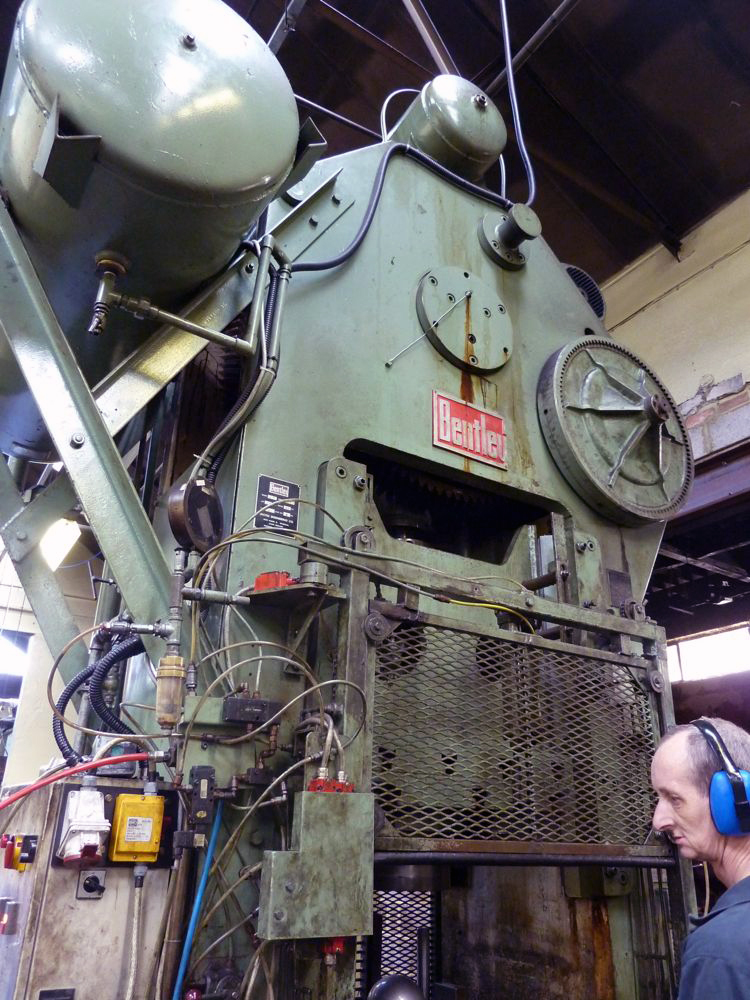

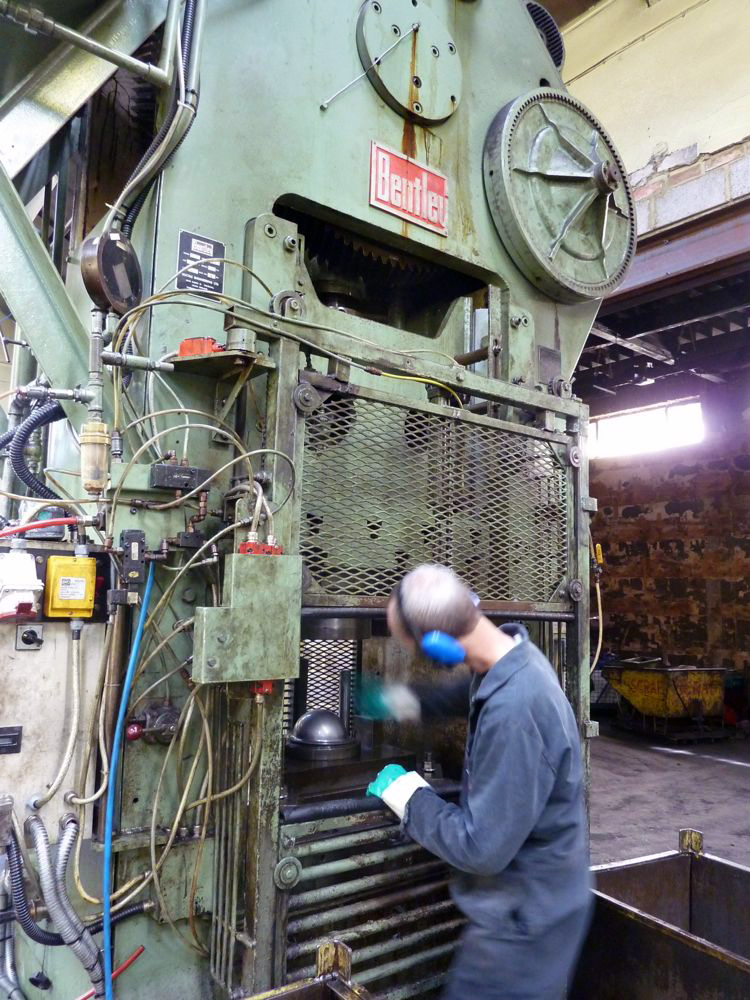

200 Ton G7 Bentley Press (Bentley 5)

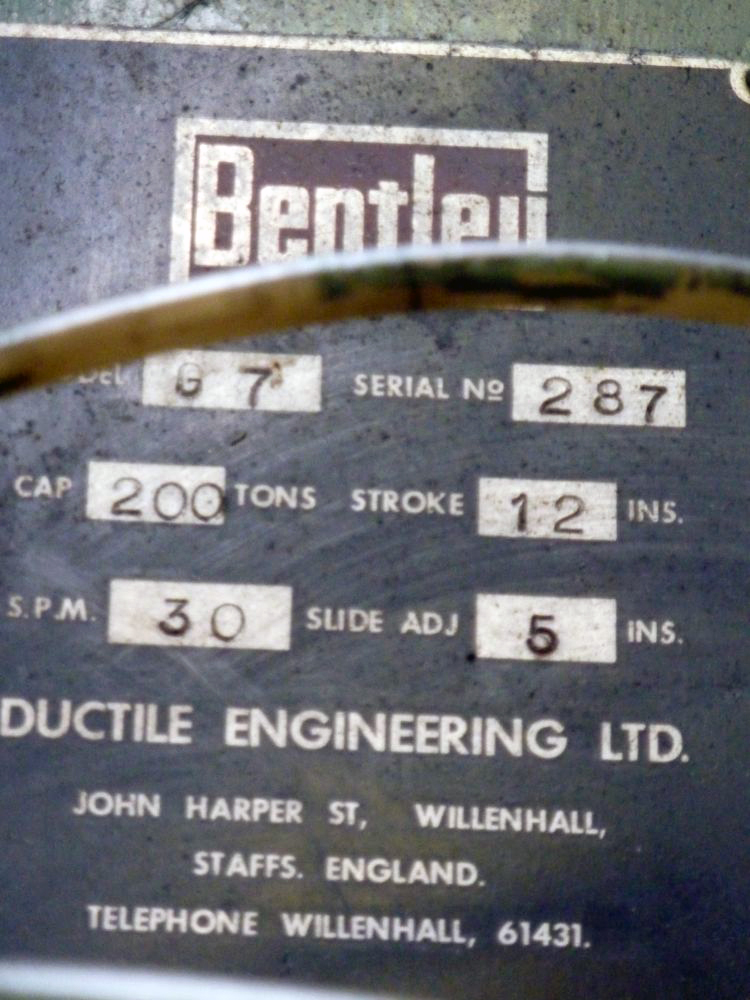

Capacity: 200 Ton Stroke: 12" RAM Adjustment: 5 Strokes/min: 30
Bolster to guides: 18
Centre of RAM to frame radius F to B: 16
Centre of RAM to frame F to B: Lto R 17 1/2
Bolster to Floor 36
Press Bolster: Thickness: 7.555, L to R 34 1/2, F to B 30,42, Hole(s): 15 1/4 dia, 9 dia
Opening in Press Bed: 25 3/4 L-R, 24 F-B Adaptor: 3 dia Largest adaptor plate inside guides 28 x 36

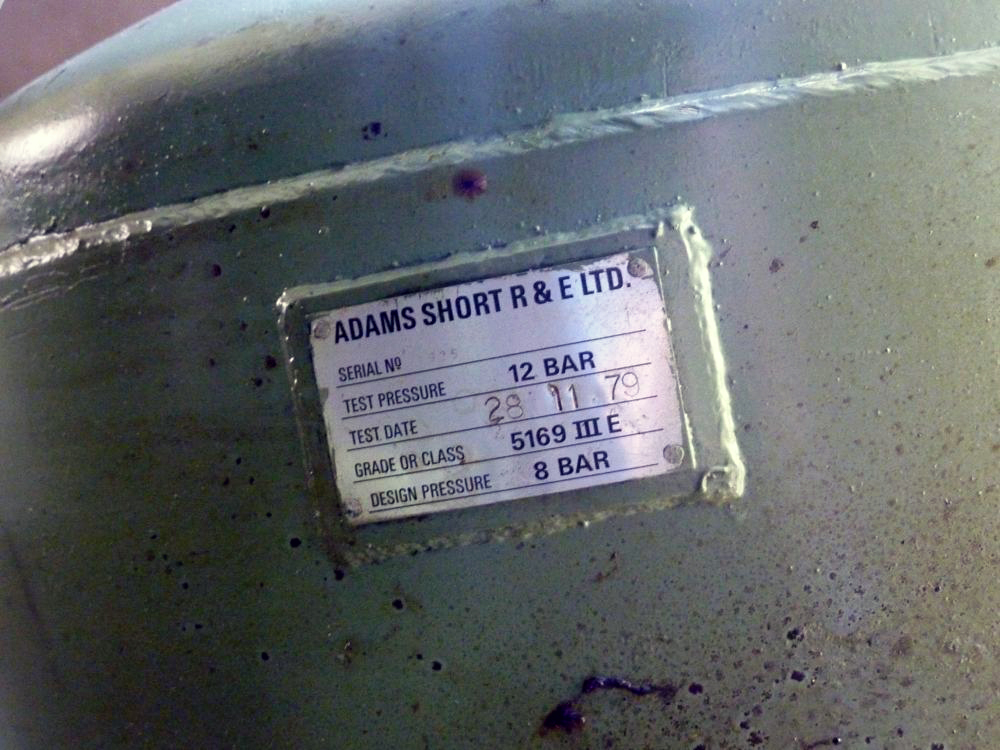

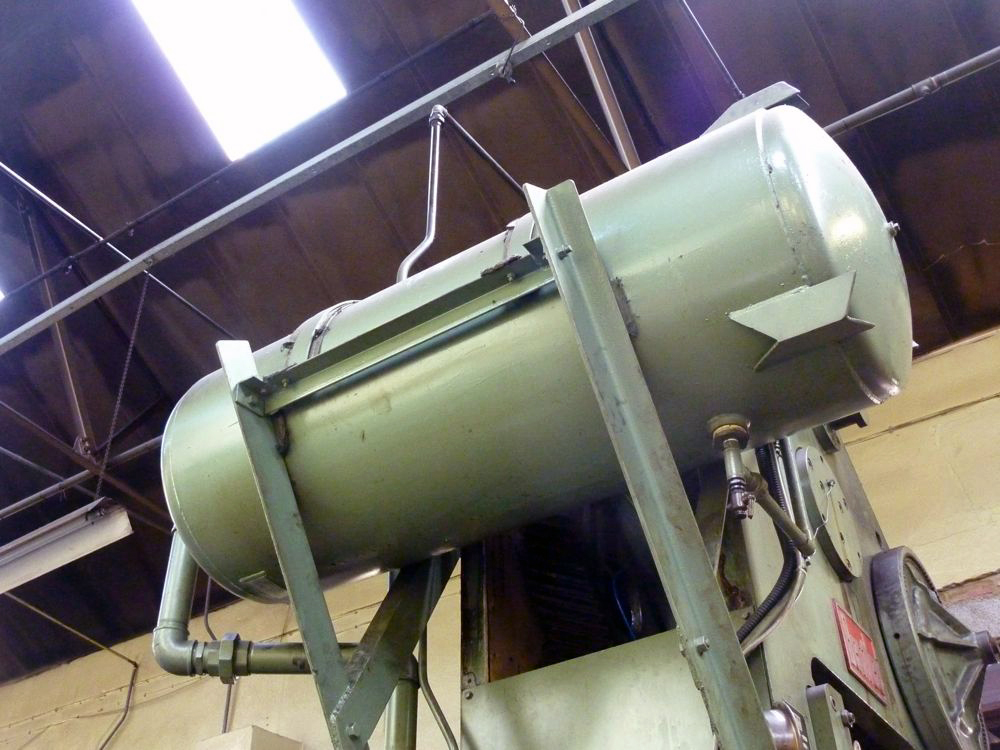

Air particulars: Cushion KO Movement 3 5/8
Bed area 35” wide x 30” deep
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
