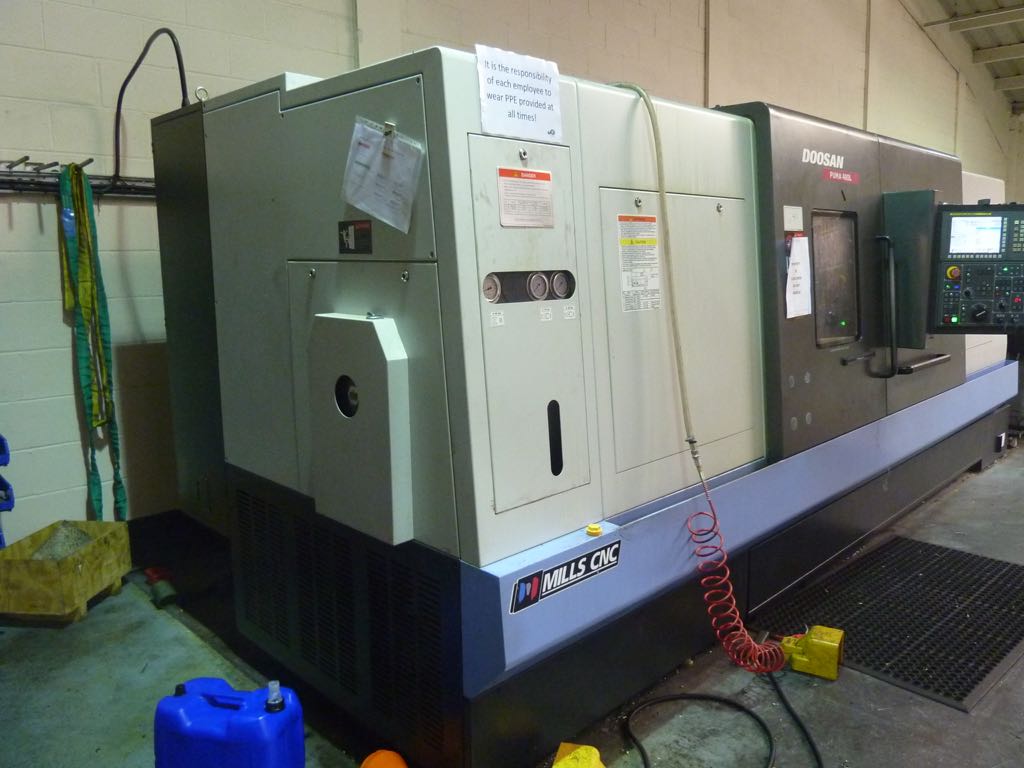

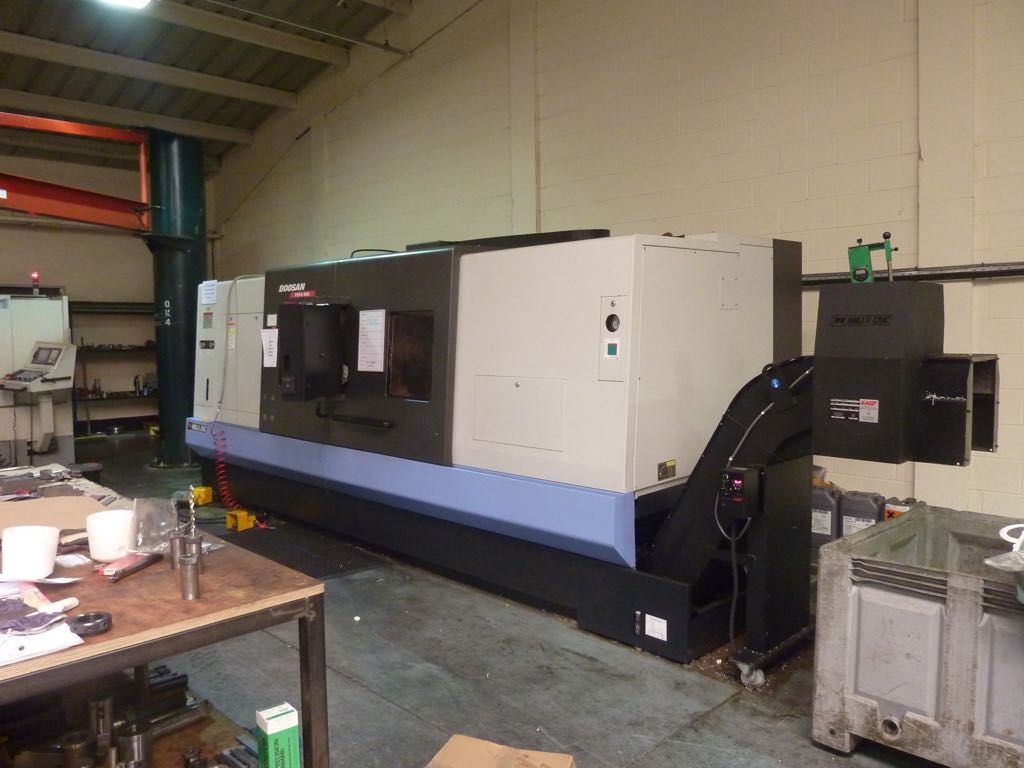

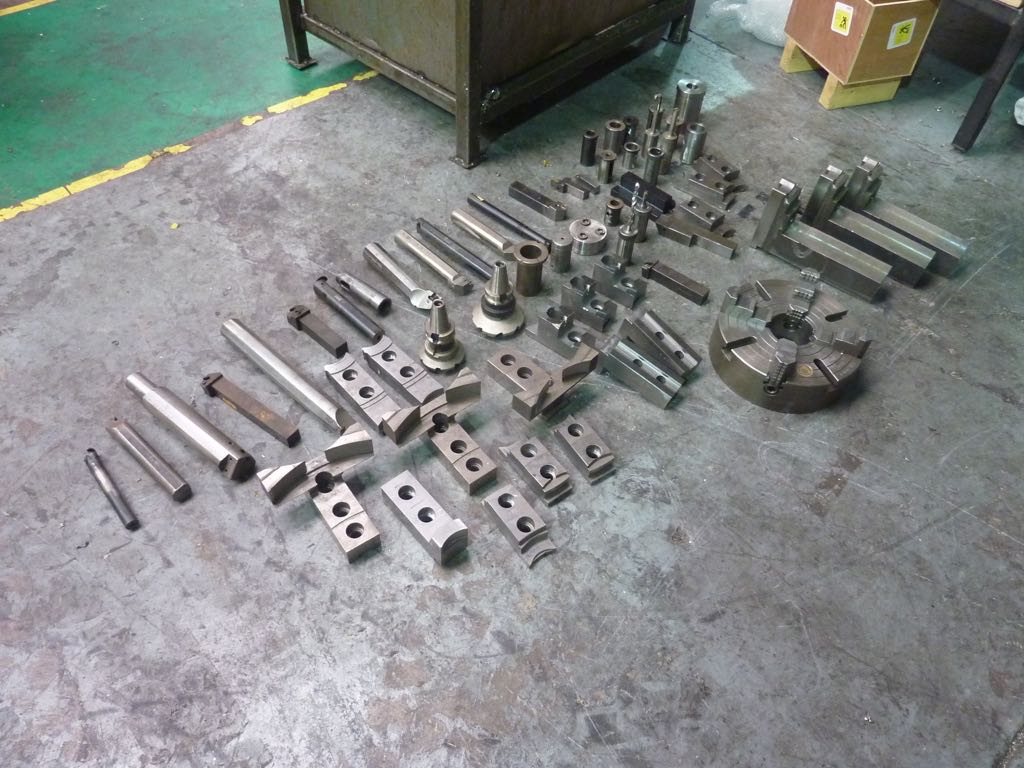

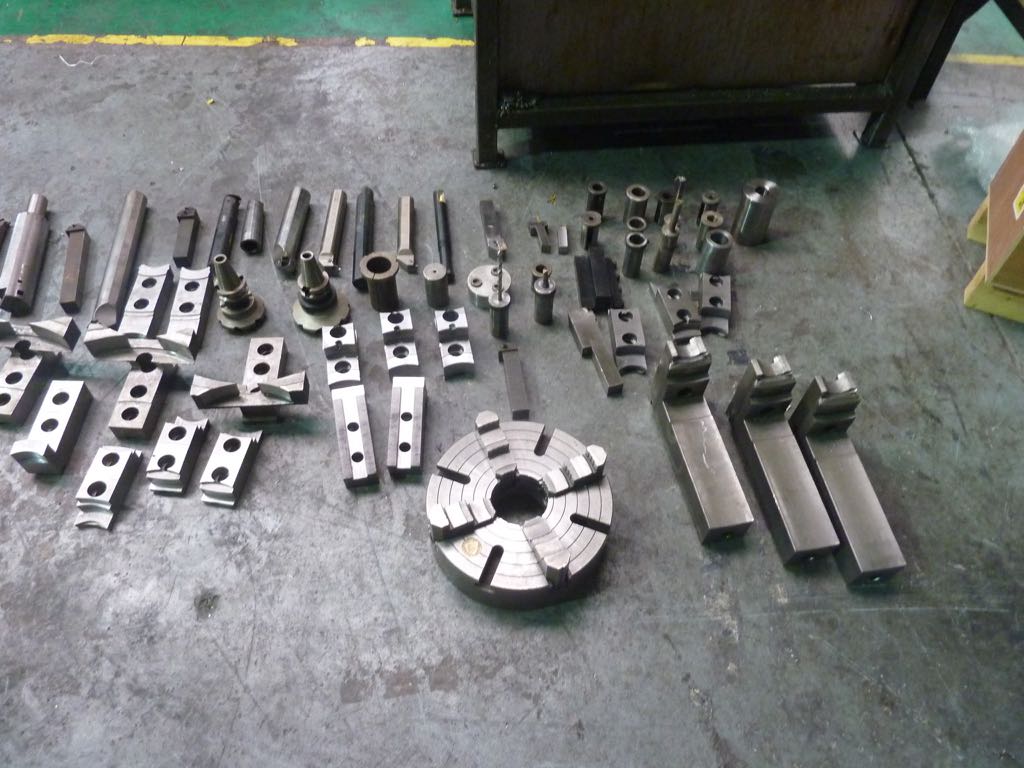

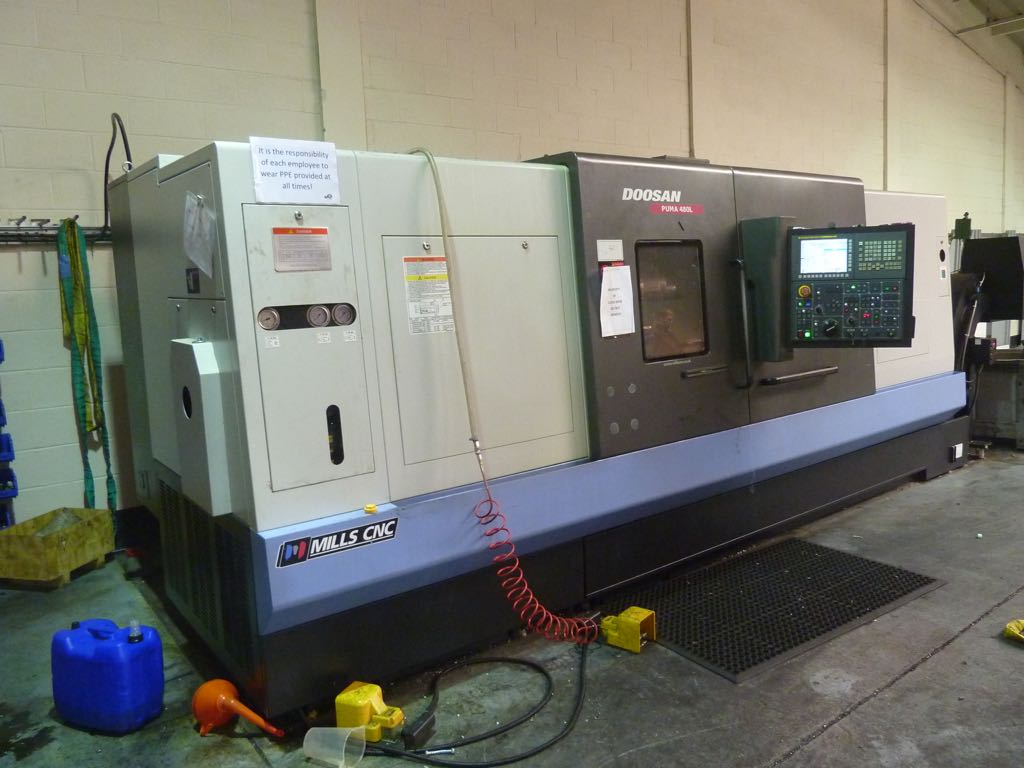

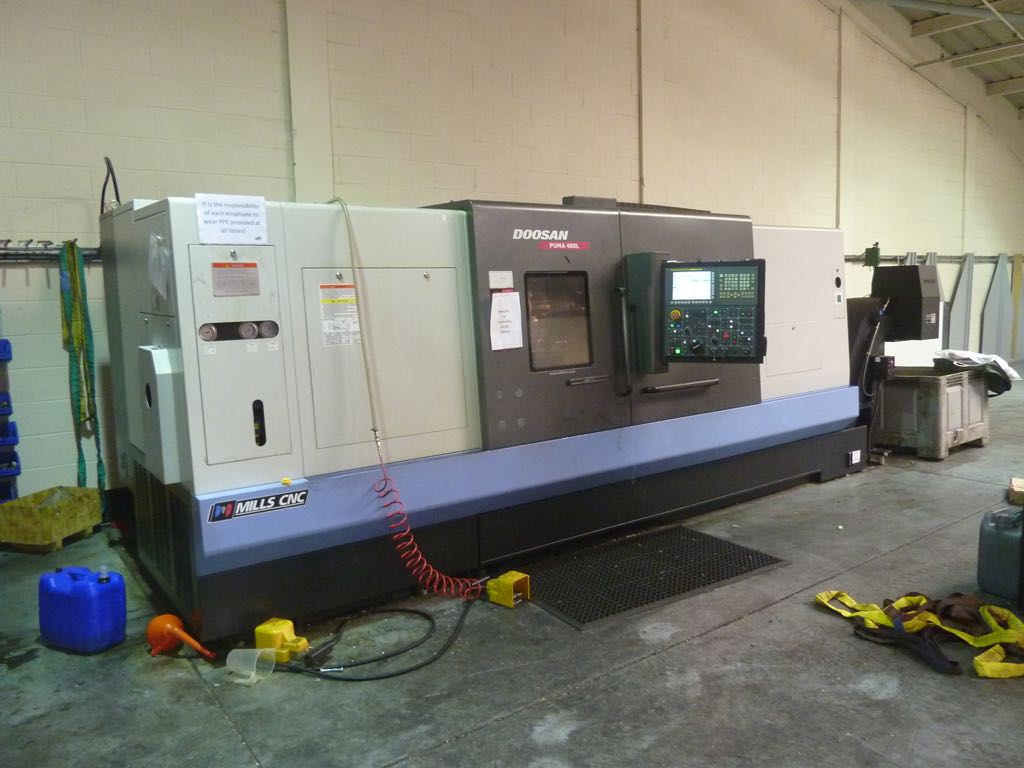

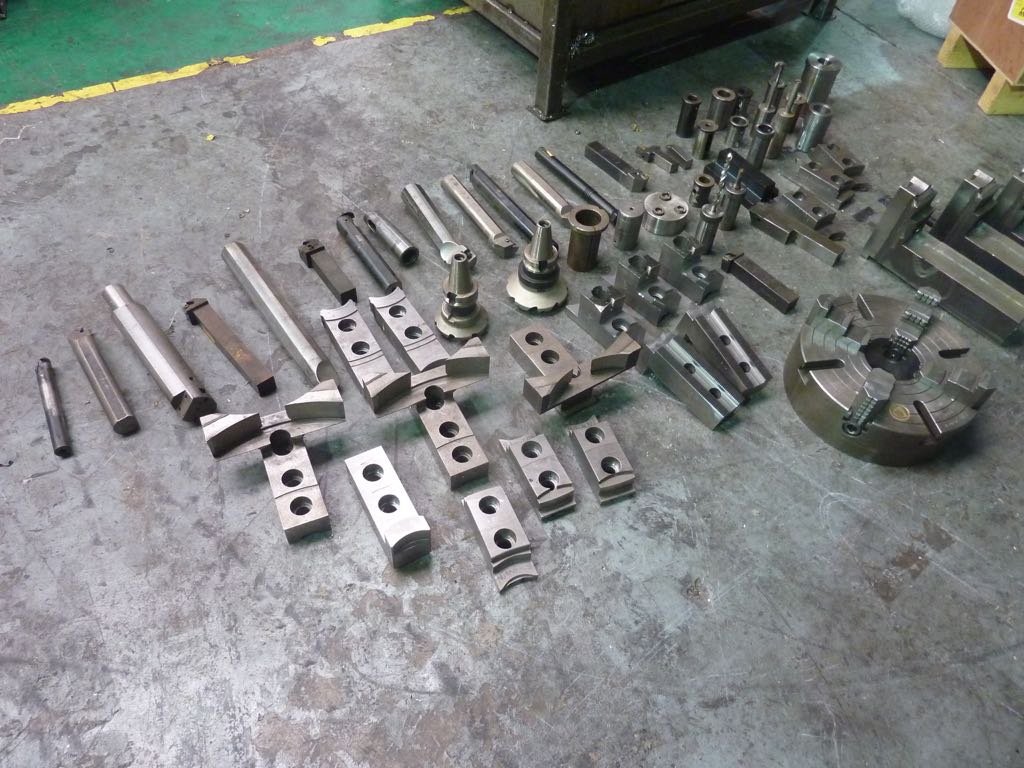

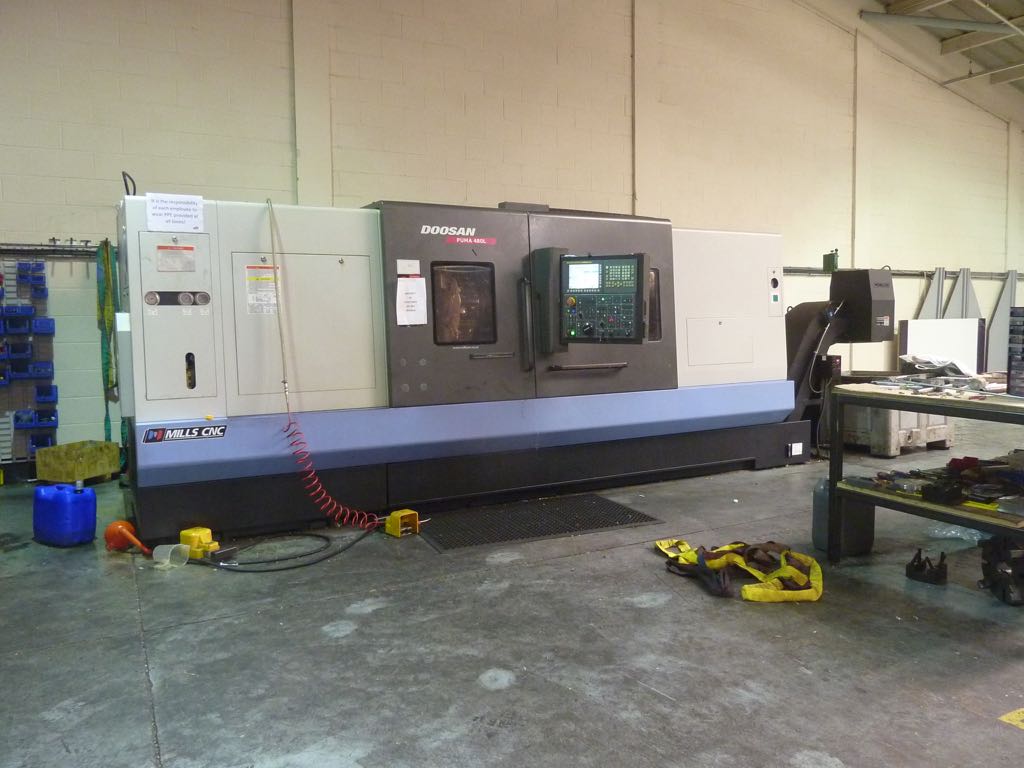

Lot 1 - 2011 Doosan Puma 480L CNC Lathe - With Tooling Package
Description:

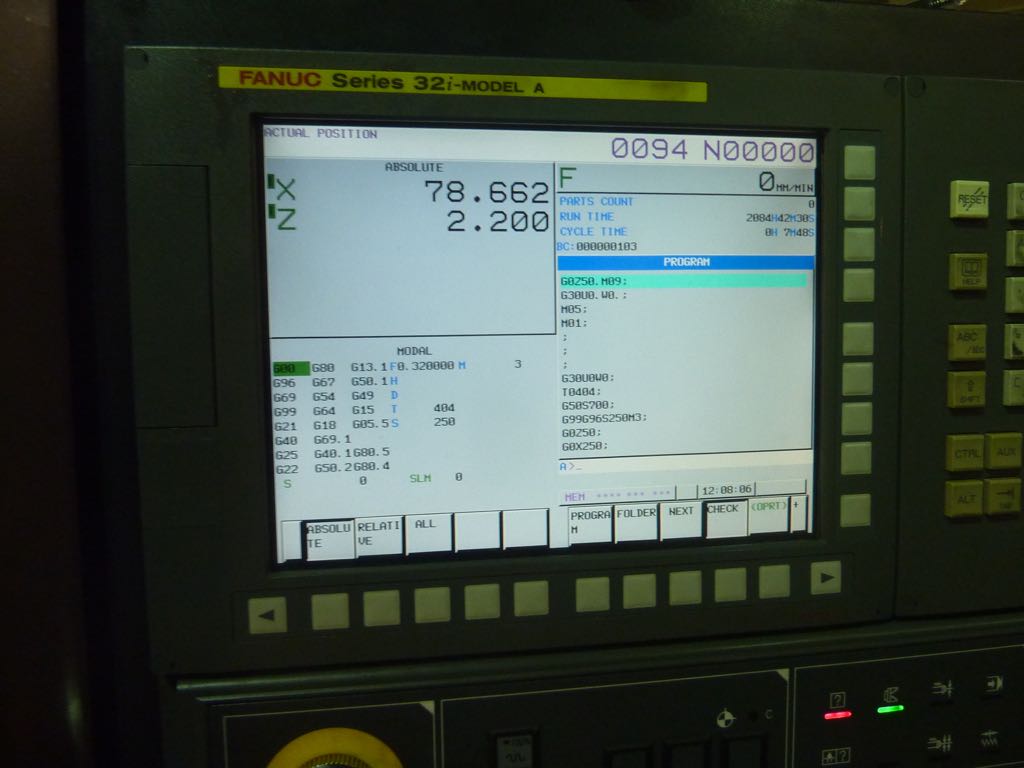

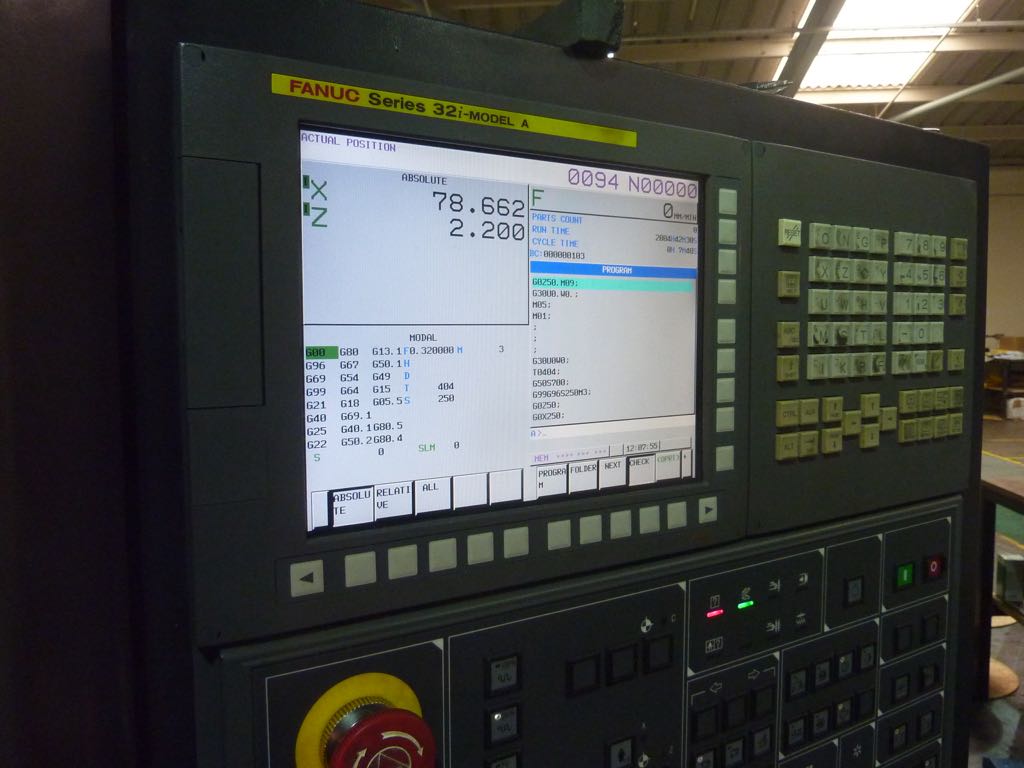

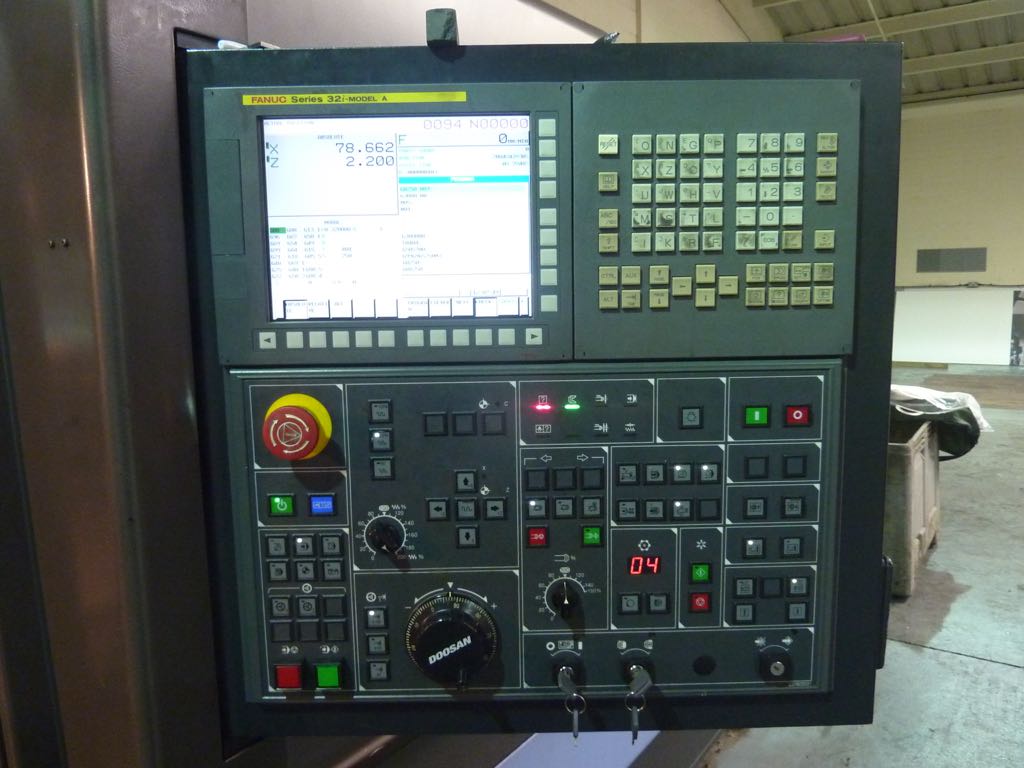

2011 Doosan Puma 480L - Fanuc Control

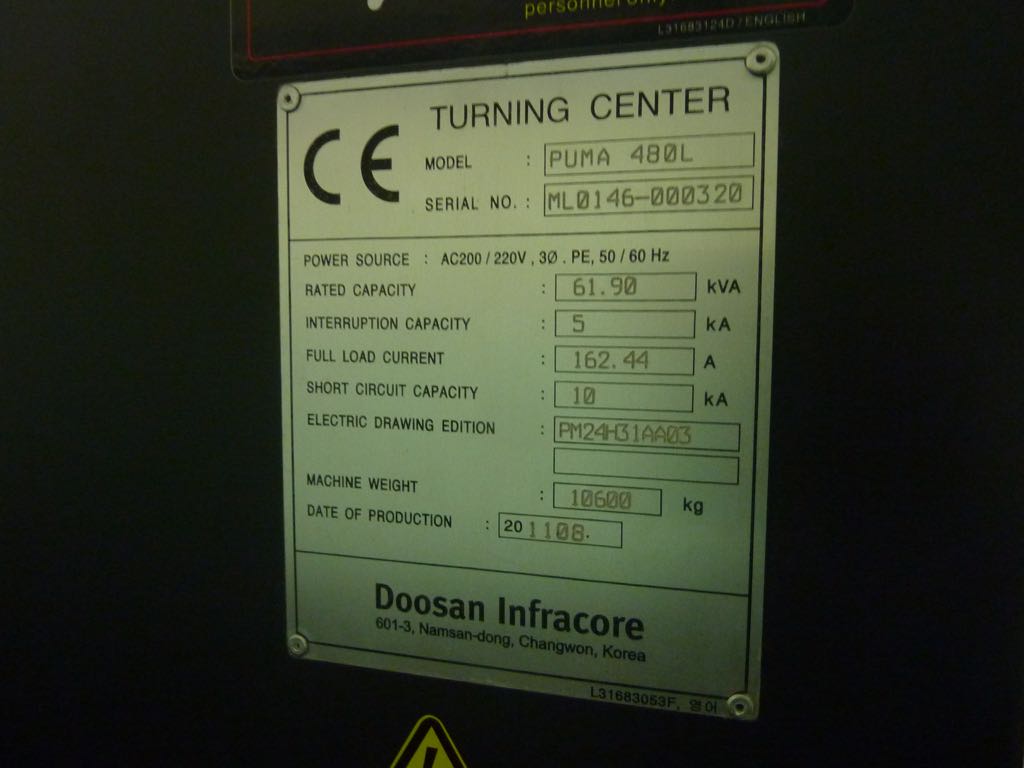

S/n: ML0146-000320
Date: 2011
Weight: 10600kg
Swing Over Bed 900mm.
Maximum Turning Diameter 610mm.
Maximum Work Piece Length 2155mm.
Bore of Draw Tube165.5.
Spindle Nose A1#15.
Spindle Power 37/45kw (Fanuc alpha 40).
Spindle Speed (3 range gear box) max 1500 rpm.
X = 362mm.
Z = 2155mm.

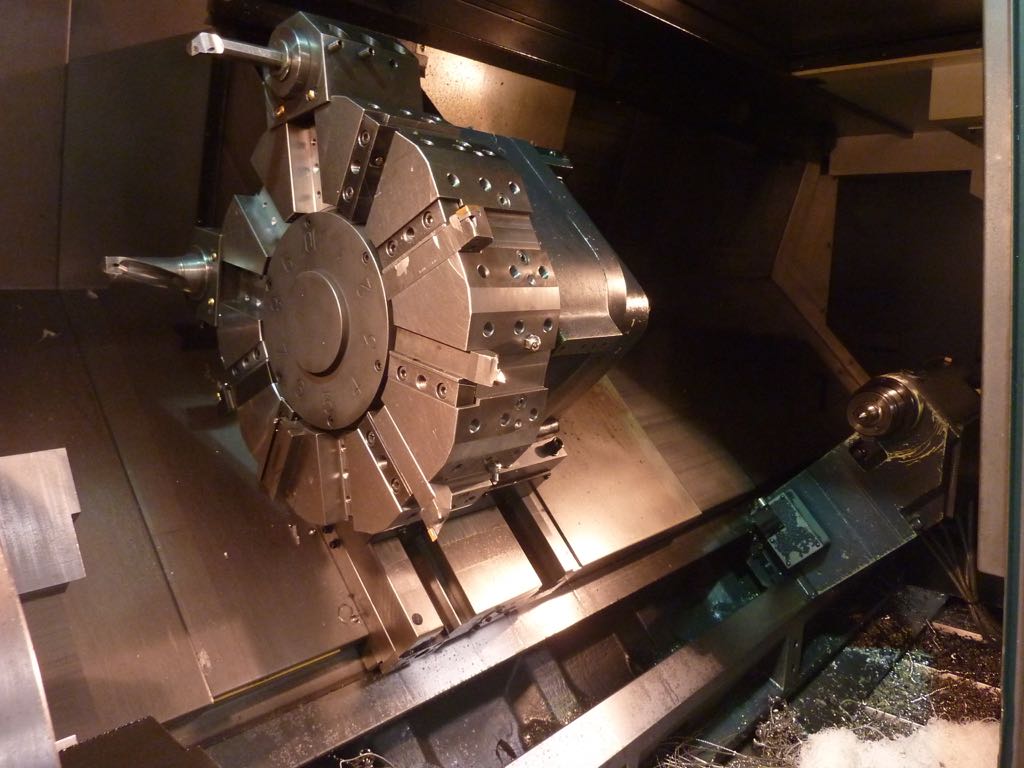

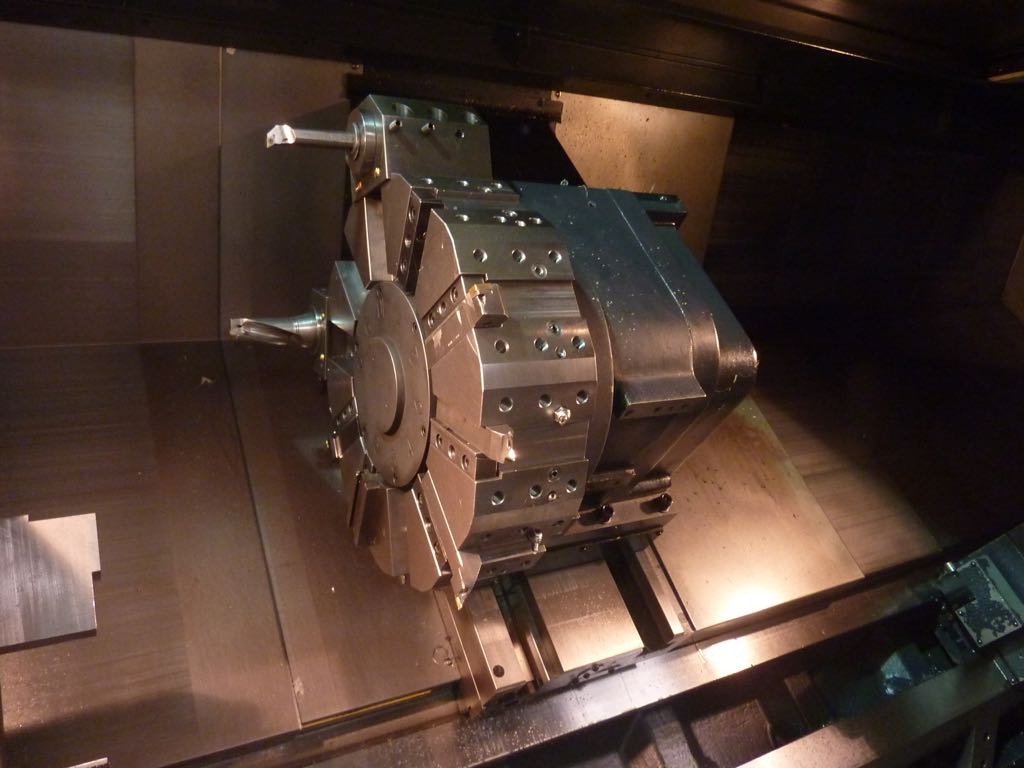

Number of Turret Stations 10.
Tailstock (Automatic tow-along type).
Machine Weight 9250kg.
Machine Floor Space 5342mm x 2179mm.

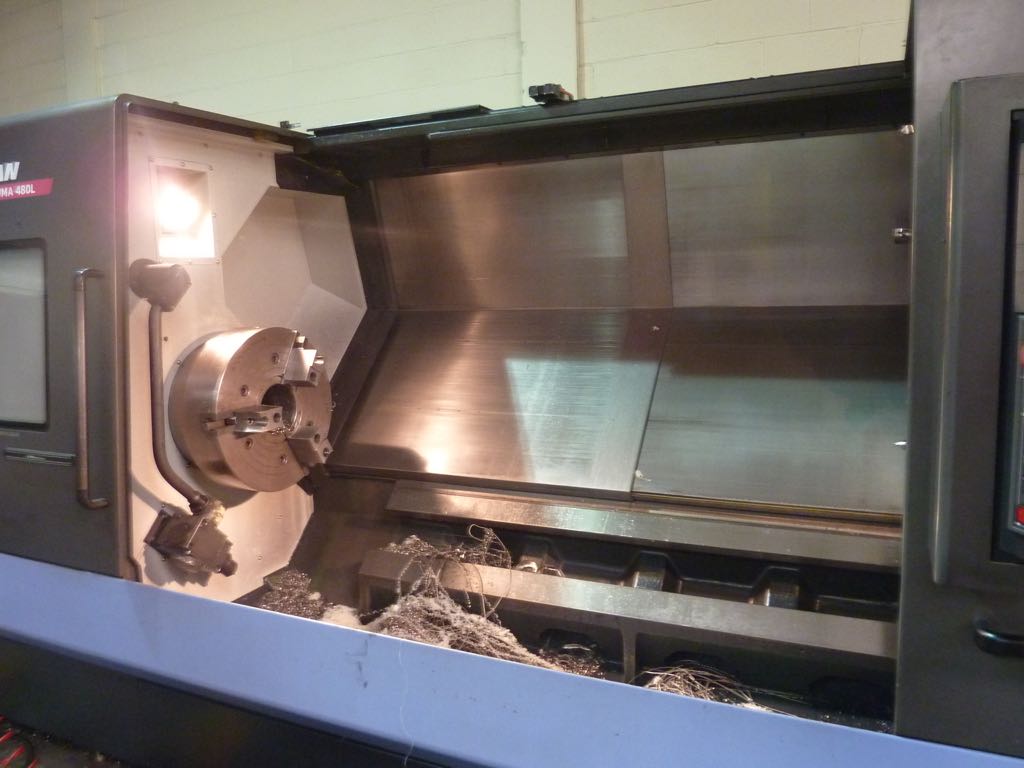

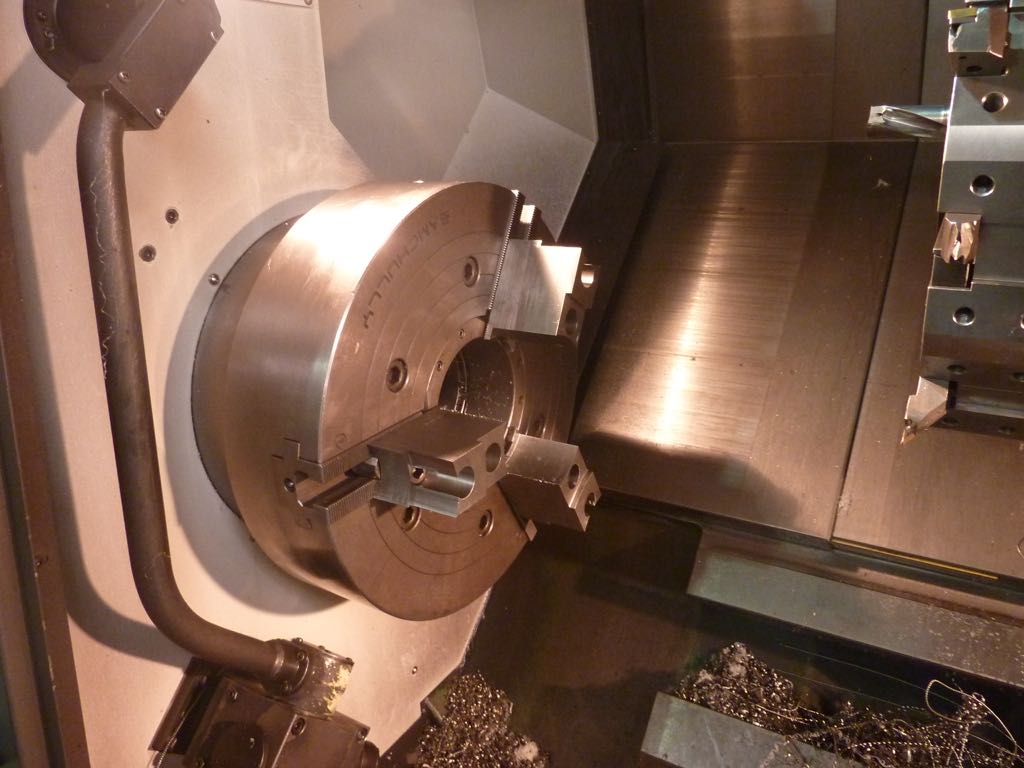

21" Hydraulic Chuck. Tool Touch Setter.
Location: Coventry
*Please satisfy yourself with the specifications before bidding as they may have been taken from the internet
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
