Lot 10 - 60 Ton Butterley Press (Butt 12)
Description:

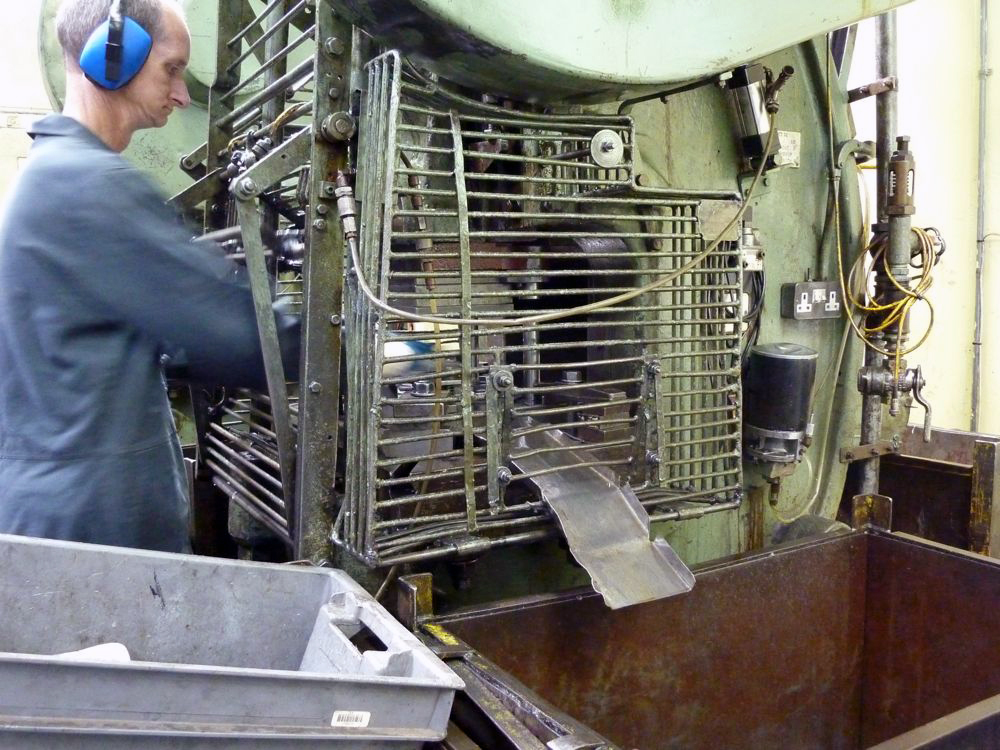

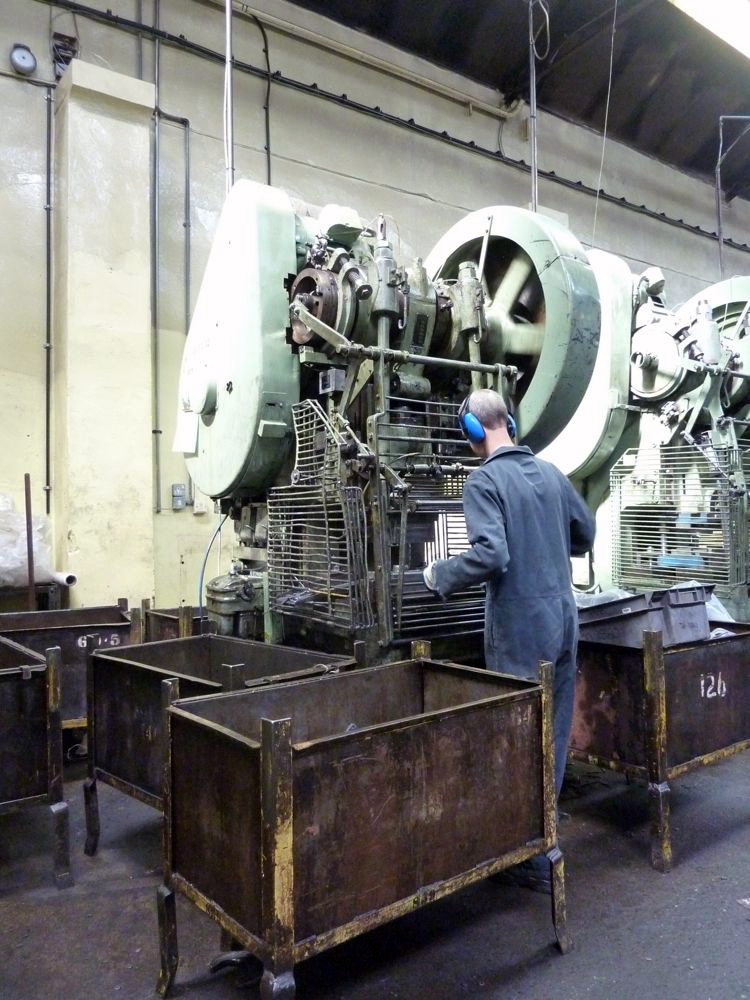

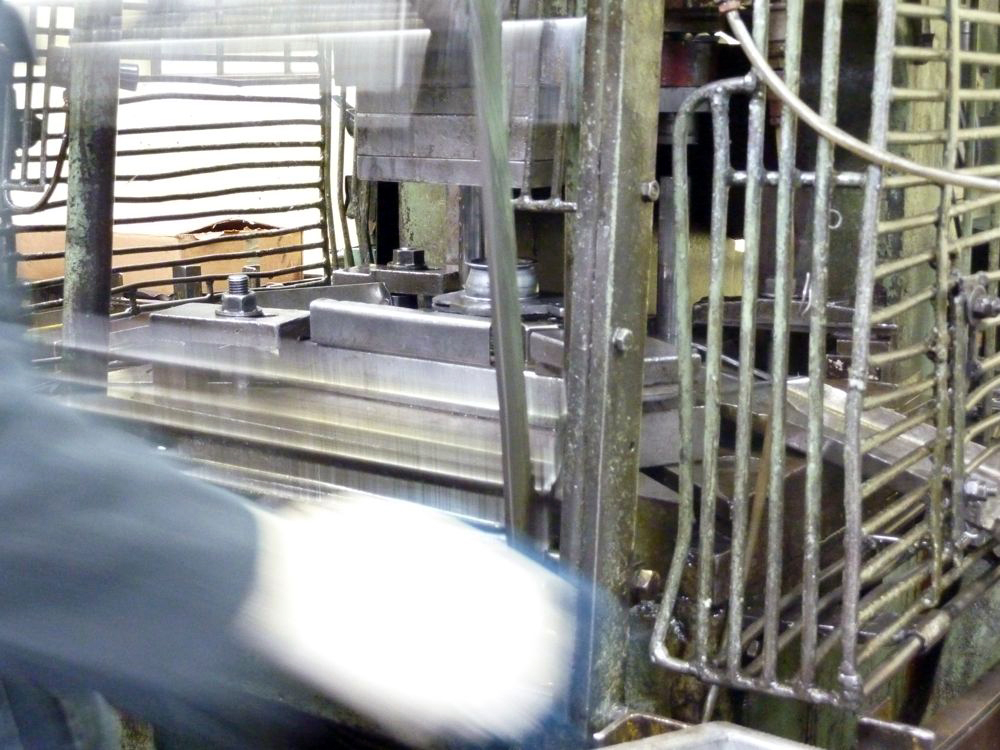

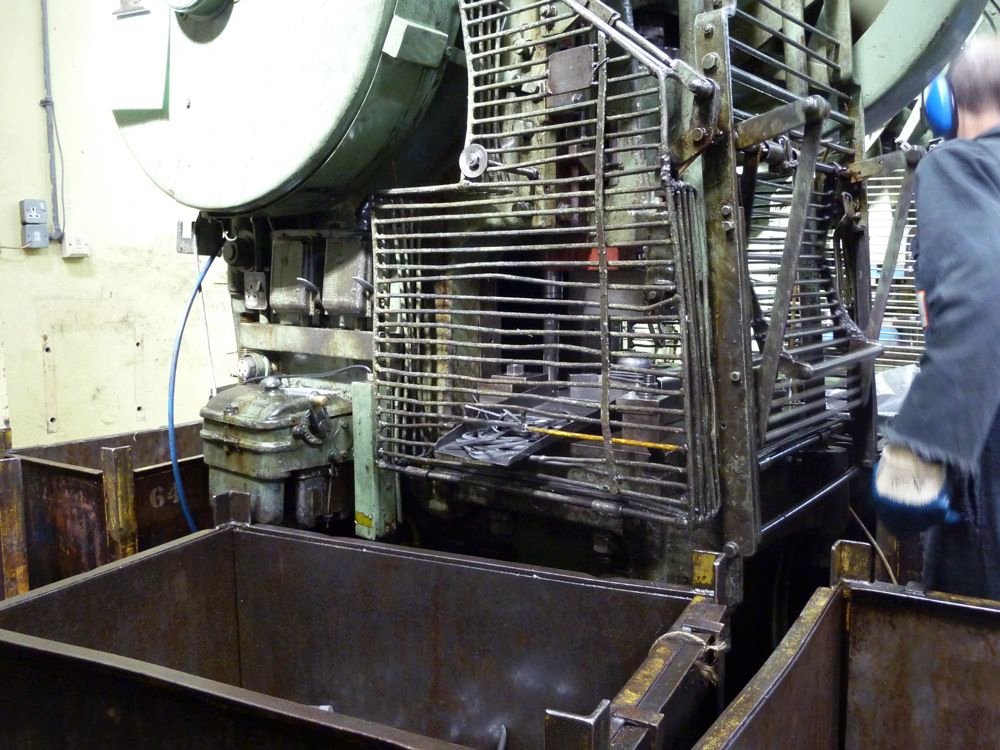

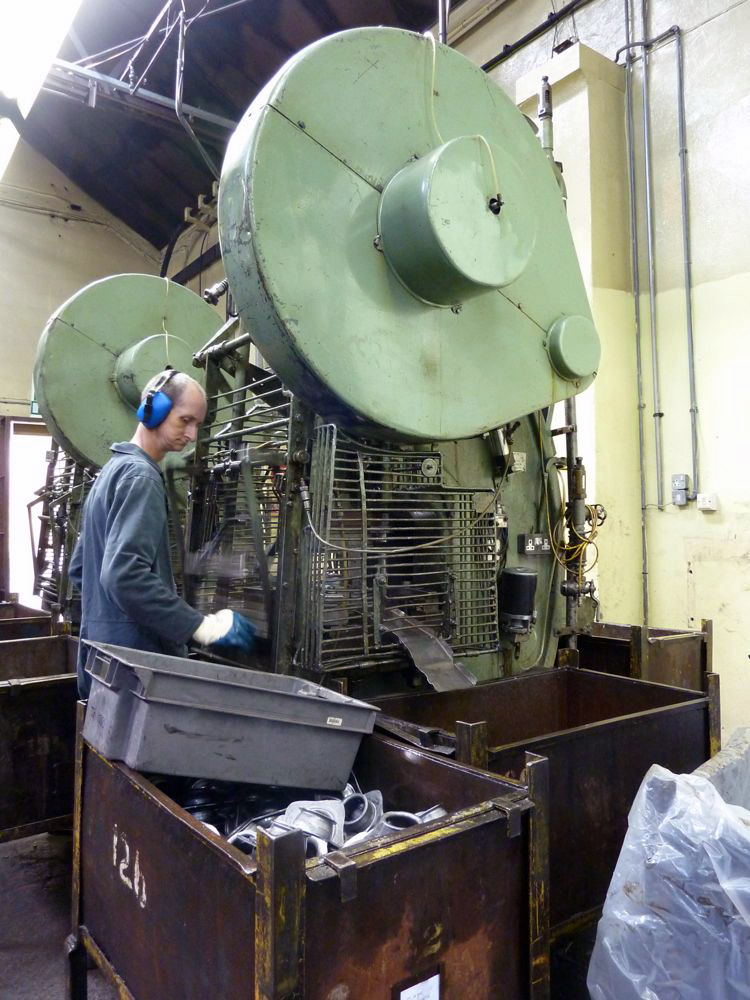

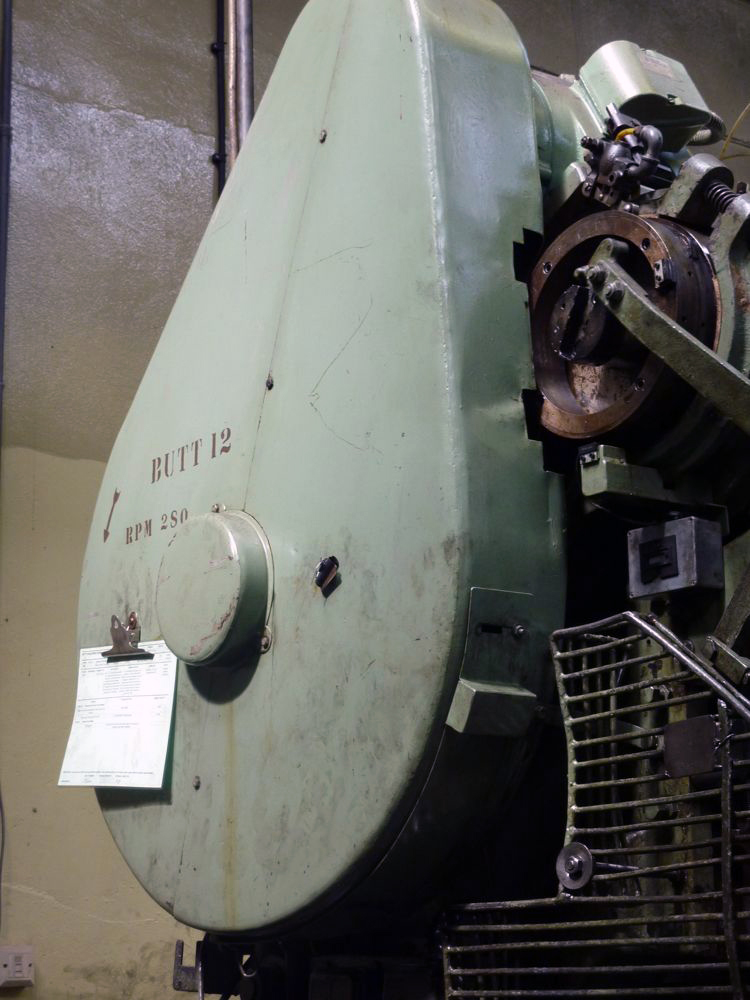

60 Ton Butterley Press (Butt 12)

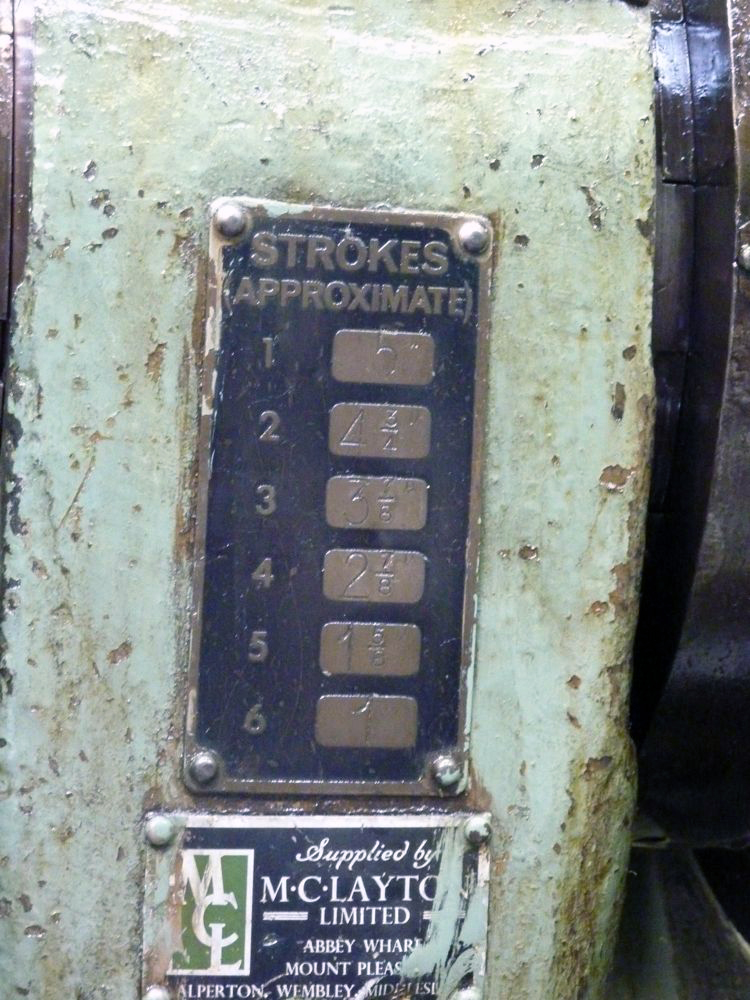

Capacity: 60 Ton Stroke: 1, 1 5/8, 2 7/8, 3 7/8, 4 3/4, 5 RAM Adjustment: 3 Strokes/min: 45
RAM Screwed in - Shut height: Min stroke: 11 19/32 Max stroke: 9 5/8 Open height: Min stroke:12 19/32 Max stroke: 14 9/16
Bolster to guides: 14 21/32 Bolster to frame radius: 11
Centre of RAM to frame radius F to B: 5 1/2
Centre of RAM to frame F to B: 9
Bolster to Floor 36 3/4
Press Bolster: Thickness: 2 15/16, L to R 30, F to B 19 3/8, Hole(s): 6 Drawing No: 656
Opening in Press Bed: 14 x 12 Adaptor: 2 dia Largest adaptor plate inside guides: 11 1/4 x 10
Air particulars: Cushion interchangeable
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
