Lot 11 - Agie Agietron 3U (1994)

Description:

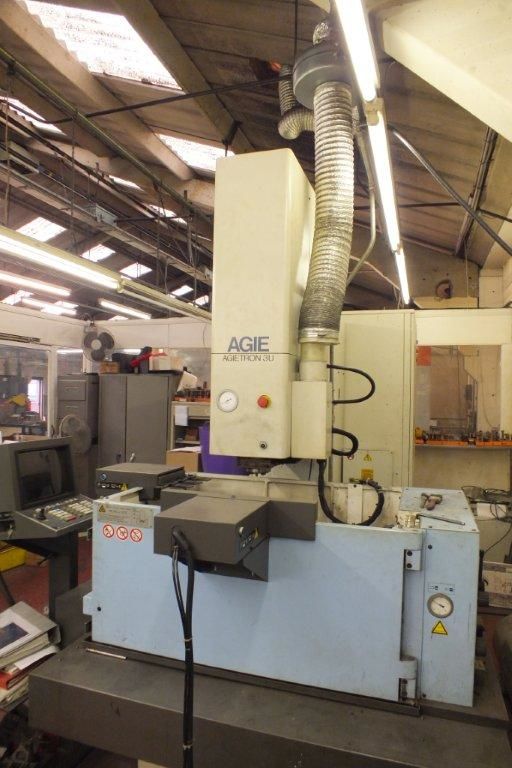

Agie Agietron 3U (1994)

Technical data
Table length 630 mm
Table width 500 mm
Dimension of the workpice:
Length 925 mm
Width 630 mm
Height 340 mm

Table load max. 800 kg
Longitudinal traverse (X-axis) 420 mm
Cross traverse (Y-axis) 320 mm
Max. distance from the table and sleeve 200 - 550 mm
Working vessel:length inside 945 mm
Width 650 mm
Height 470 mm

Working head: way rapid feed (Z) 350 mm
max. electrode weight 50 kg
Dielectric aggregate: Contents 420 l
Generator: 60 M
Power 60 A

Location: Leicester, Loaded for free to flatbed truck

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
