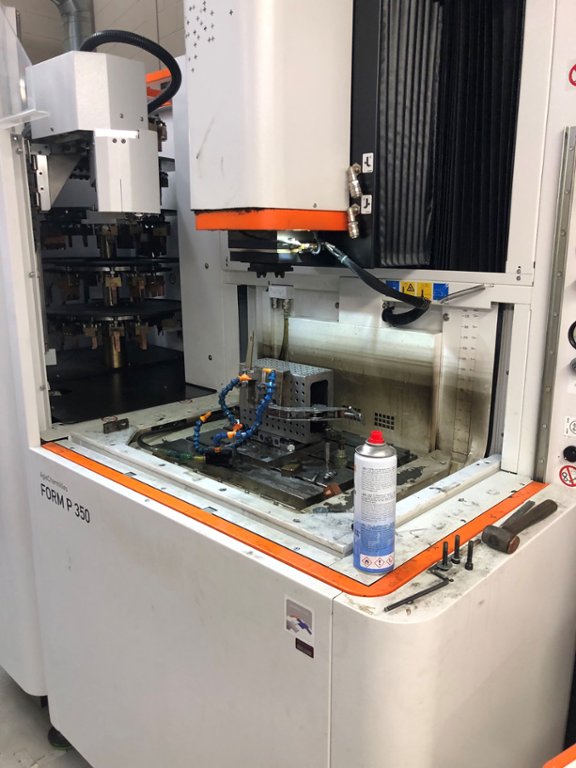

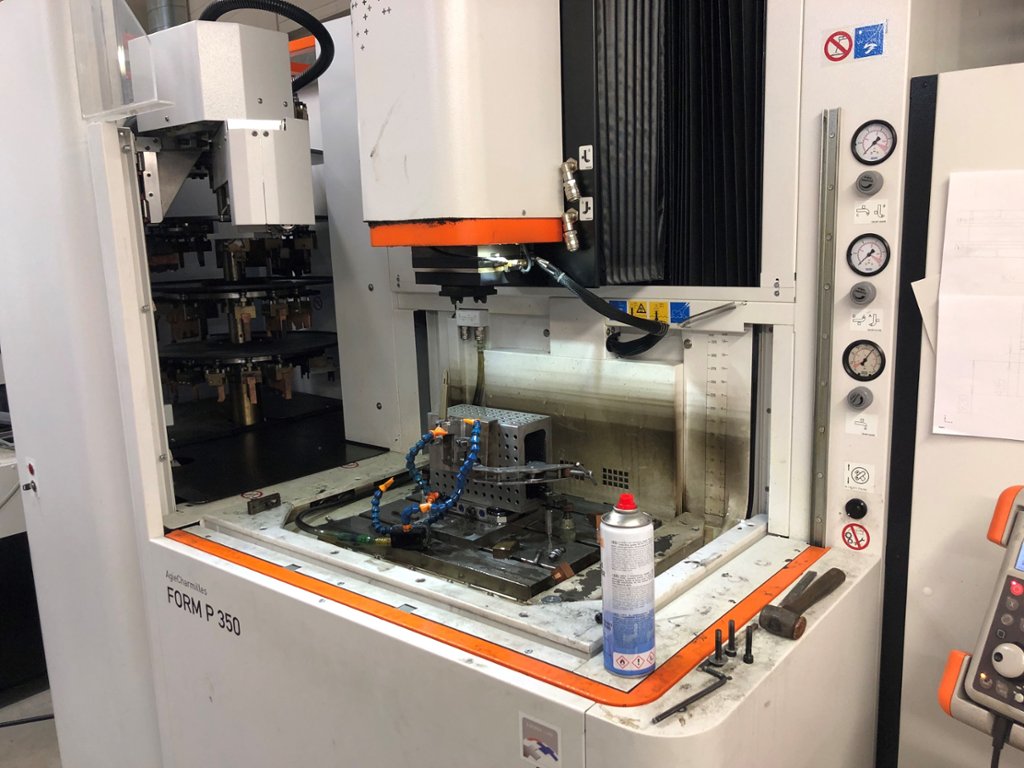

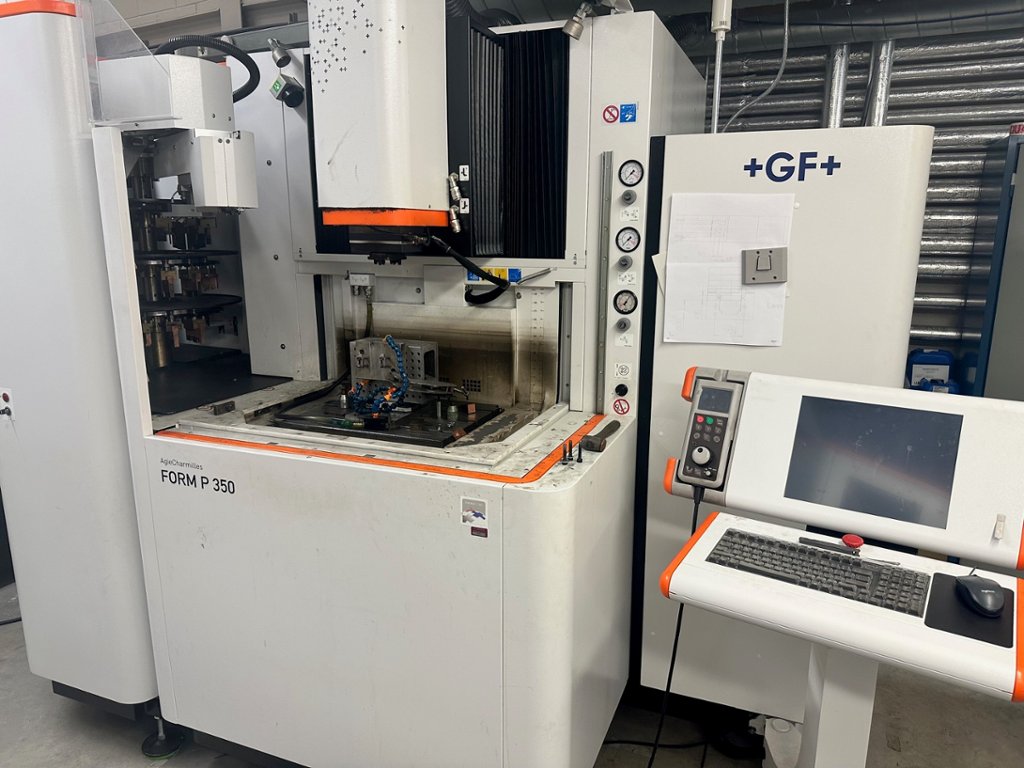

Agie Charmilles Form P350 EDM Machine (2018)

Lot 1 - Agie Charmilles Form P350 EDM Machine (2018)

Description:

Agie Form 350 EDM equipped with integrated tool changer. Allowing for the machine to work for long periods without surveillance.

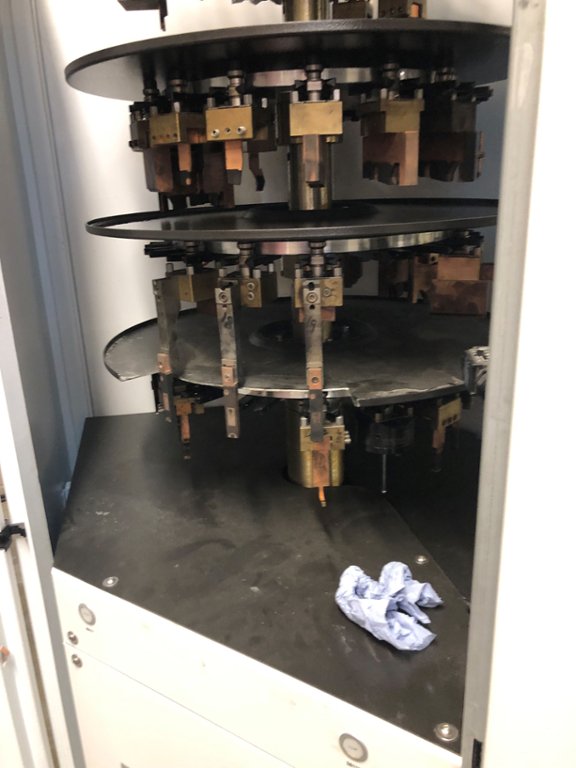

80 position rotary tool changer

3D probing

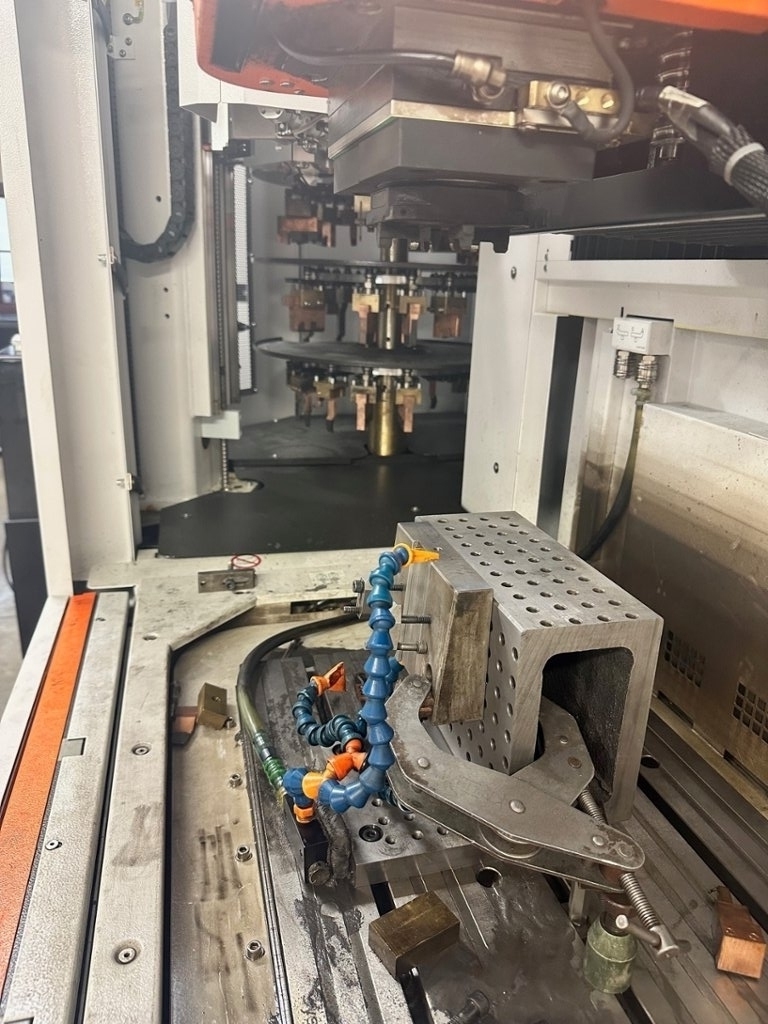

C-Frame/Fixed table/Drop tank

Complies with Machines Safety & Health Directive - 89/392/CEE

Complies with Electromagnetic Compatibility Directive - 89/336/CEE

X,Y, Z Travel - 350 x 250 x 300mm

X, Y Axes Speed - 6 M/Min

Z Axes Speed - 15 M/Min

Positioning resolution X, Y, Z - 0.05mm

Worktank Size - 790 x 530 x 350mm

Worktable size - 500 x 400mm

Distance floor to clamping level - 1000mm

Min/max distance between table & chuck - 150/450mm

Max Electrode weight - 50kg

Max workpiece weight - 500kg

Max workpiece dimensions - 790 x 530 x 275mm

Bath level (programmable) - 100 - 325mm

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
