Lot 1 - Agie Charmilles Cut 300 Wire Eroder (2014)

Description:

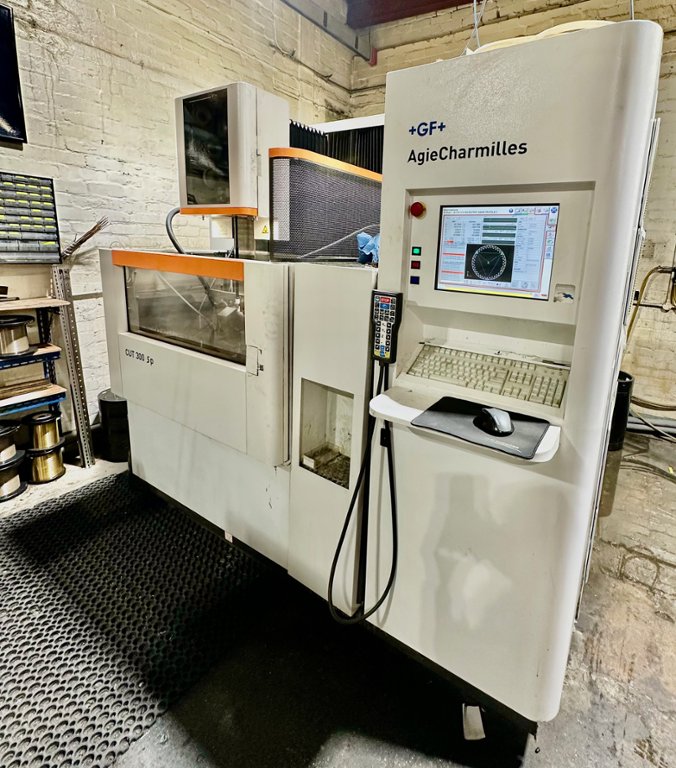

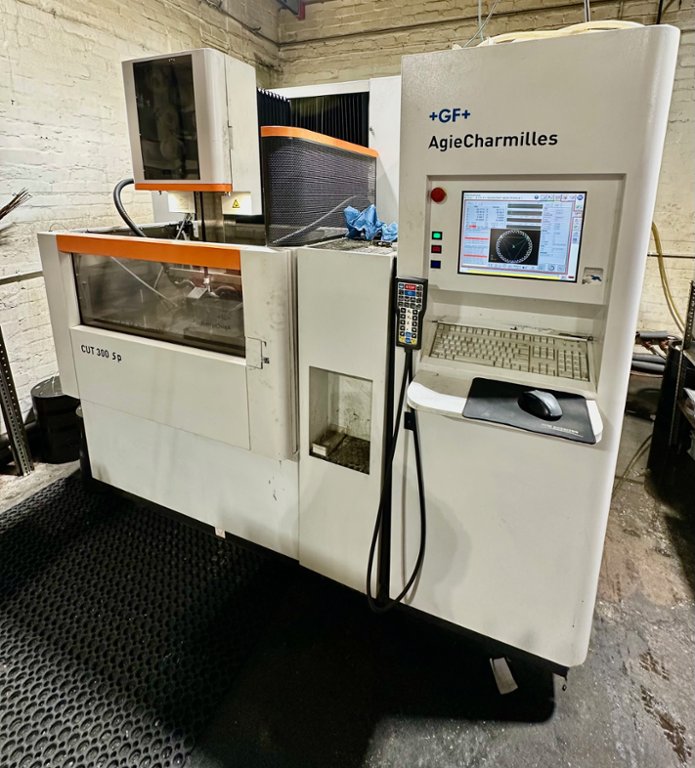

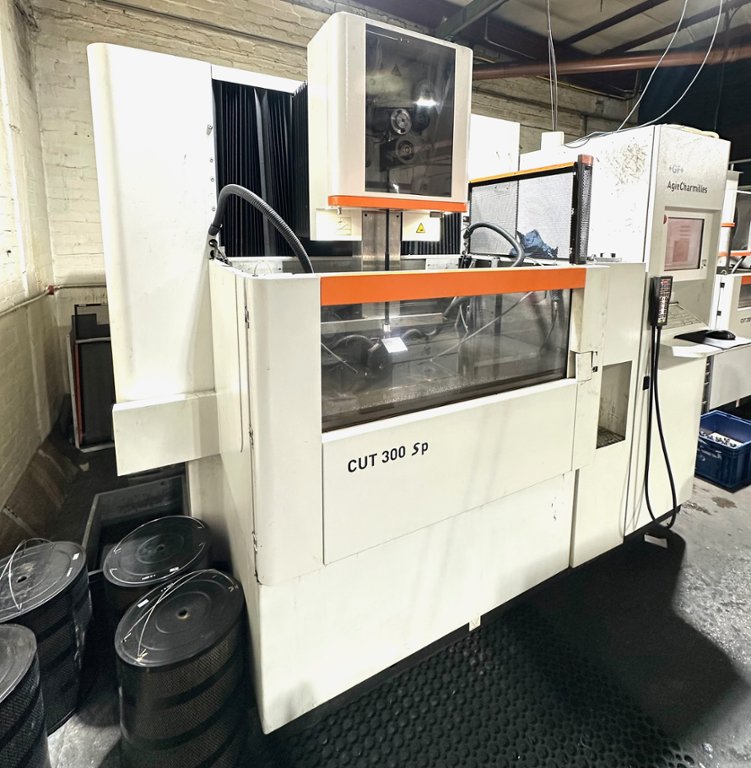

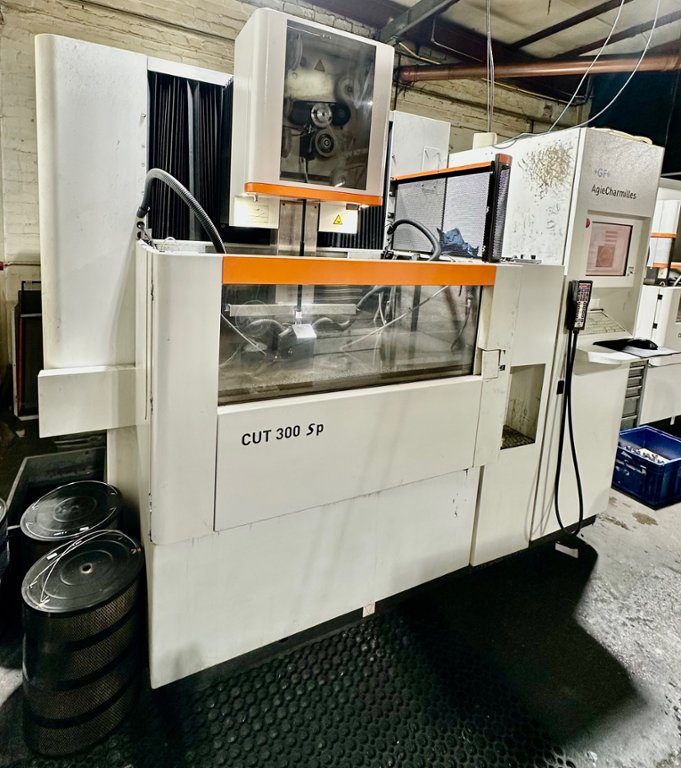

Agie Charmilles Cut 300 Wire Eroder (2014)

One owner from new, this machine has been maintained to the highest of standards by Agie Charmilles - only for sale due to purchase of a new machine.

CUT 300 Sp Highlights
- Compact space saving design
- Industrial cutting speed of 400mm2/min with 0.33 mm coated wire.
- Minimum surface finish 0.1um Ra on carbide
- Machining and threading capability with wire diameter from 0.070 mm to 0.33mm.
- Less than 30 seconds spark to spark time: Cut the wire, move, thread the wire into 80mm of water,
and turn the generator on.
- Positioning accuracy guaranteed by Heidenhain absolute linear glass scales with 0.050μm
resolution.
- Wire position guaranteed by closed round wire guides with no clearance
- Machine base made of mineral casting to damp vibration
- High level of polyvalence to fit with any technical demand in the workshop.
- Heavy work piece design without lose of accuracy. (up to 1500kg)
- 30° taper capability at maximum Z height

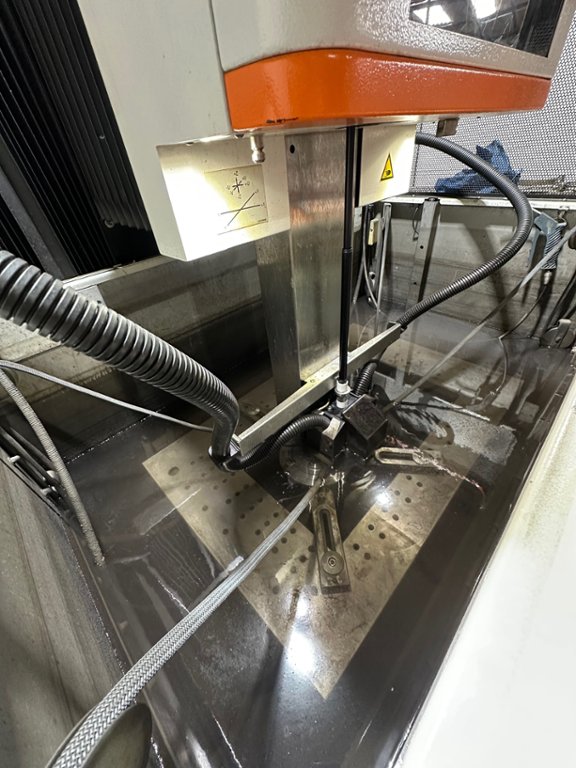

WORKING ZONE
CUT 300 Sp is of a fixed table design, which ensures high accuracy, even at the maximum
1500 Kg work piece loading. The working tank is designed to receive work piece up to
1200*700*400mm. The positioning of the wire to the work piece is achieved by motion of the guide
heads, ensuring a constant load on all axis movements.
Submerged machining can be accomplished over the full 400 mm of the Z travel.

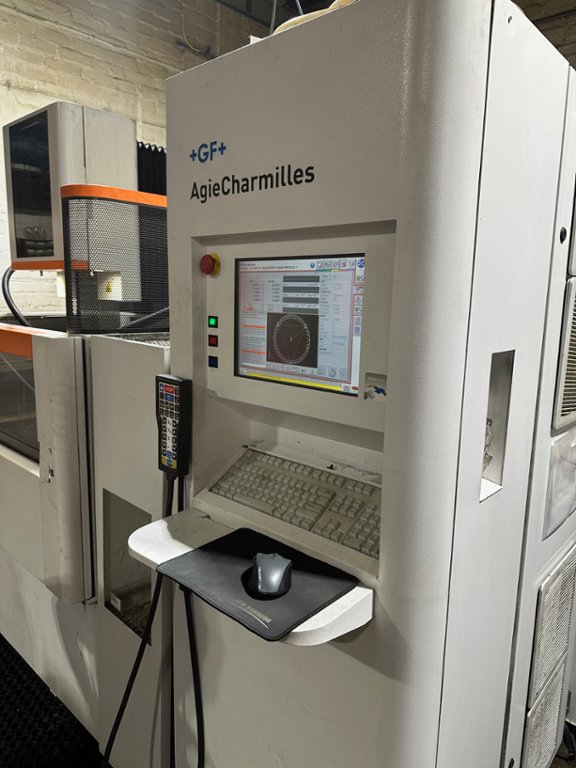

The water inside the work tank is monitored by the numerical control which is connected to a water
level gauge. Before machining, the work tank is automatically filled up according to the upper head
position. There is no need to adjust manually the water level. The set up of several parts with
different heights is permitted and the machining will be done unattended.
A fast filling pump is used to fill up the working tank. The internal side of the working tank is made of
stainless steel. A safety device prevents opening the door while the tank is filled or prevents filling if
the door is open.
A dielectric circulation ensures thermo-stabilization and removal of eroded particles in the work tank.

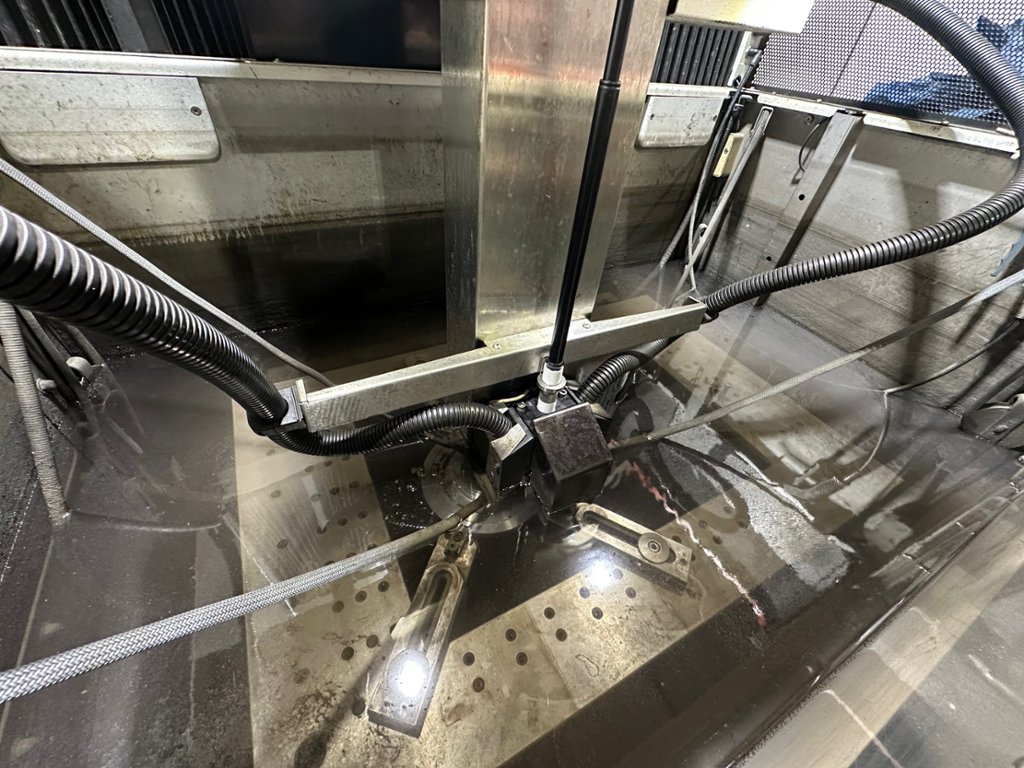

WORKING TABLE
The working table consists of a closed frame in stainless steel. It is 65 mm thick to ensure high
rigidity. It is equipped with 90 M8 holes distributed in 2 rows all around the frame with a pitch of 50
mm.
XY AND UV DISPLACEMENT - QUADRAX DESIGN
A bridge supports two coordinate tables XY and UV. The travels are symmetrical and equal:
X = U and Y = V.

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Bid information

Time remaining

DAYHRSMIN
262015

01 May 2025 15:00:00 BST

Opening bid: £15000

Bids: 0



Your Bid:

£


Minimum increment: £150

Autobid:

£

Final remove by date: 15/May/2025

Serial Number: 591 063 002 0058

Location: Solihull

Lot location

Transport information

  • Weight: 2850kg
  • Other Transport Details: No loading facilities onsite - however machine the machine will be disconnected, drained and skated to the door ready for purchasers transport to crane on.
