Lot 3 - Agie Charmilles Robofil 440CC (2004)

Description:

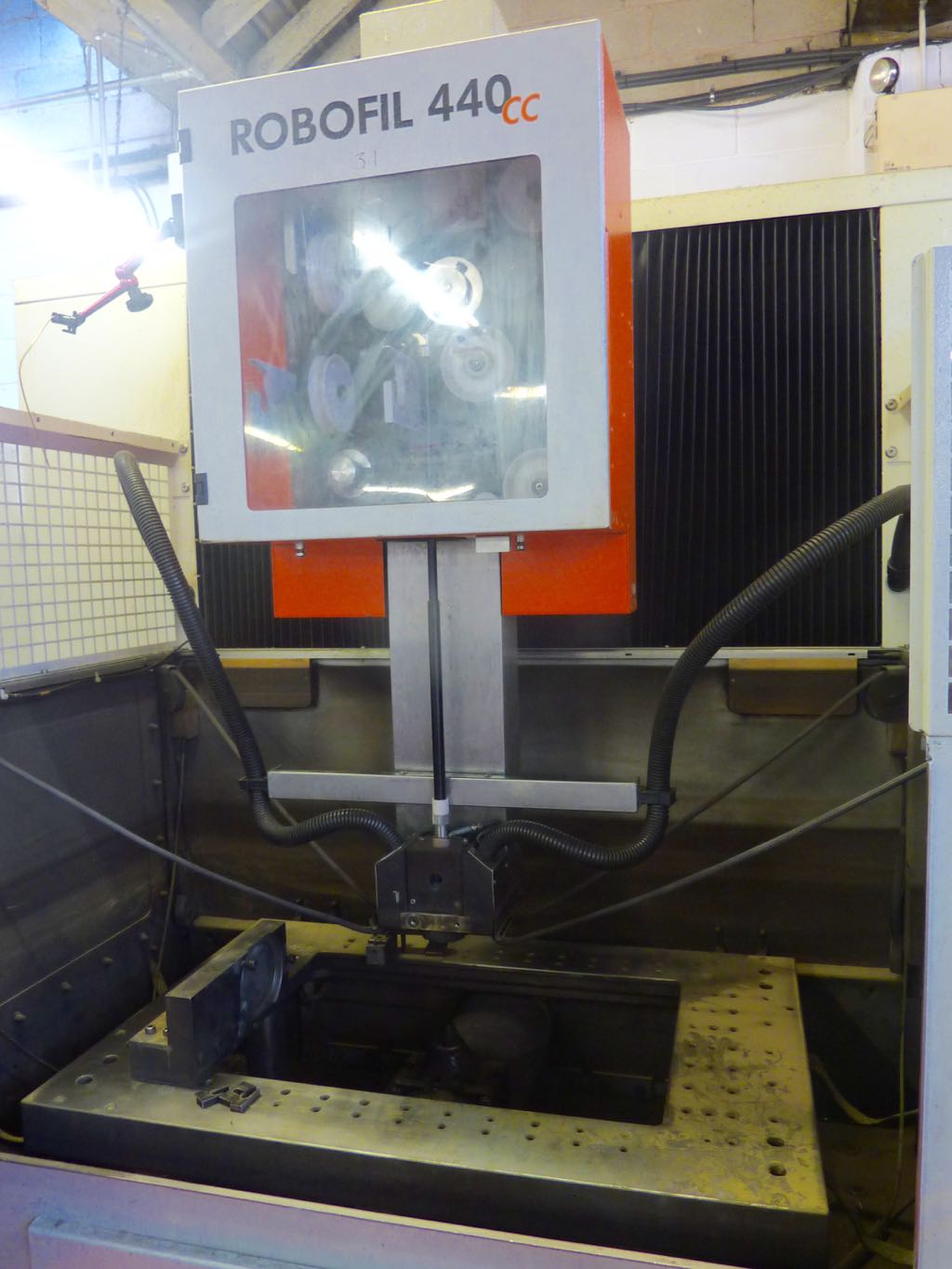

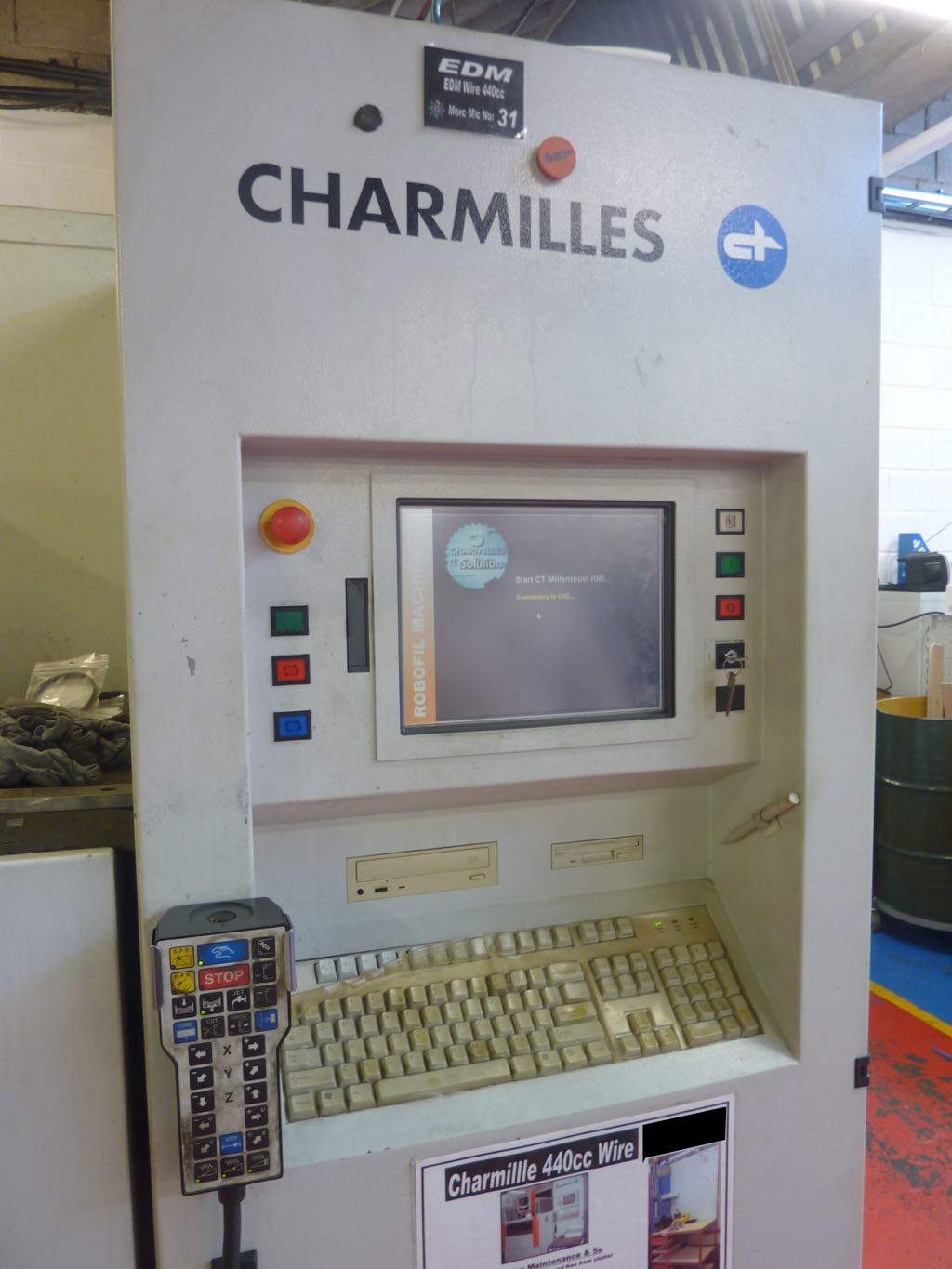

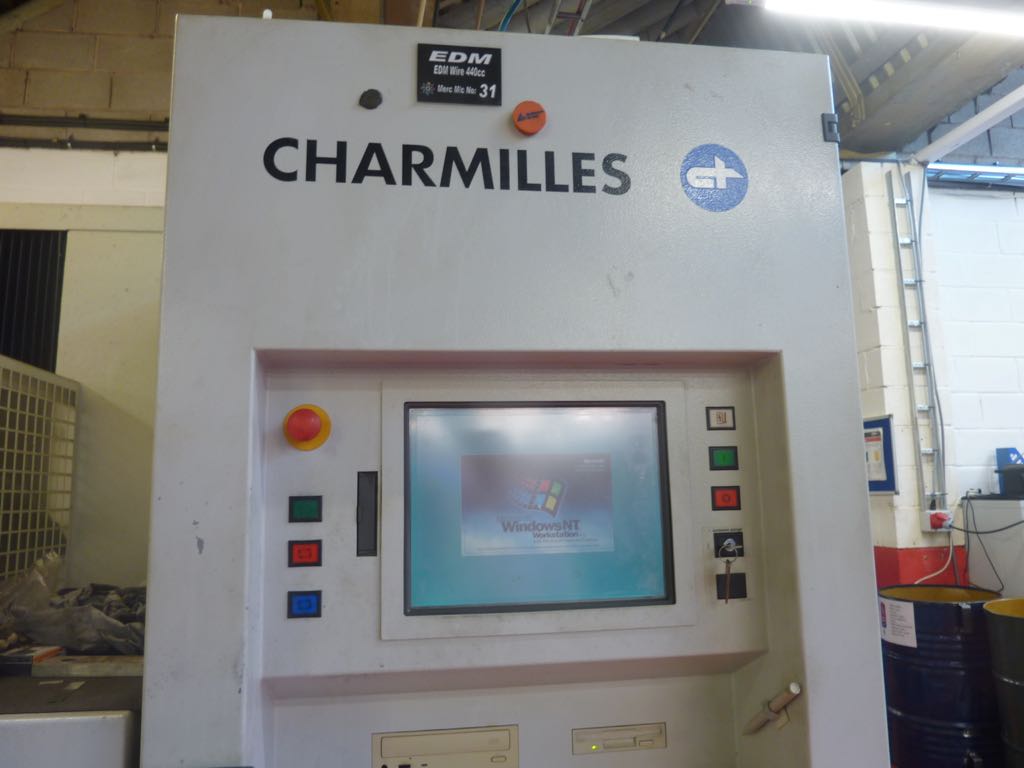

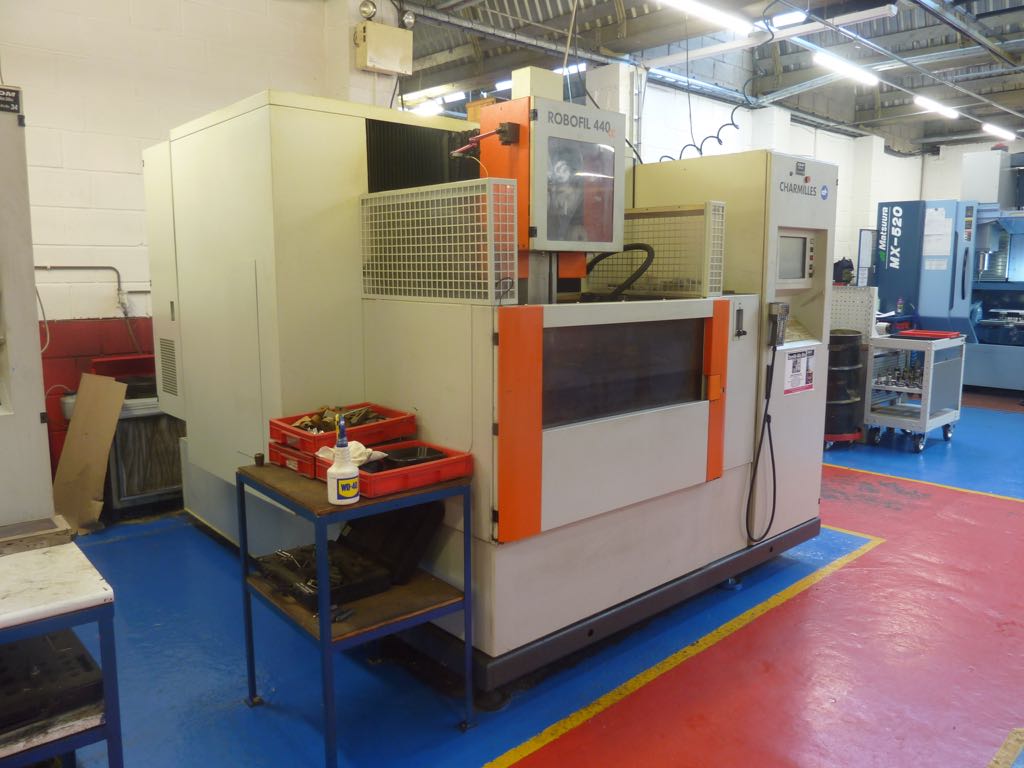

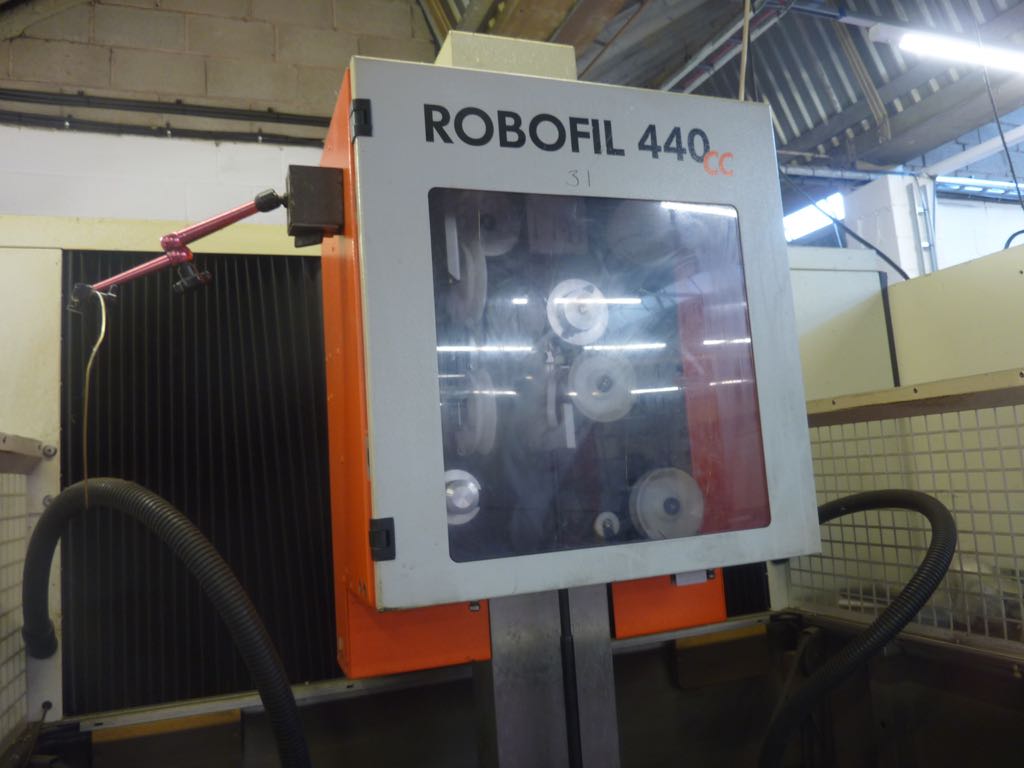

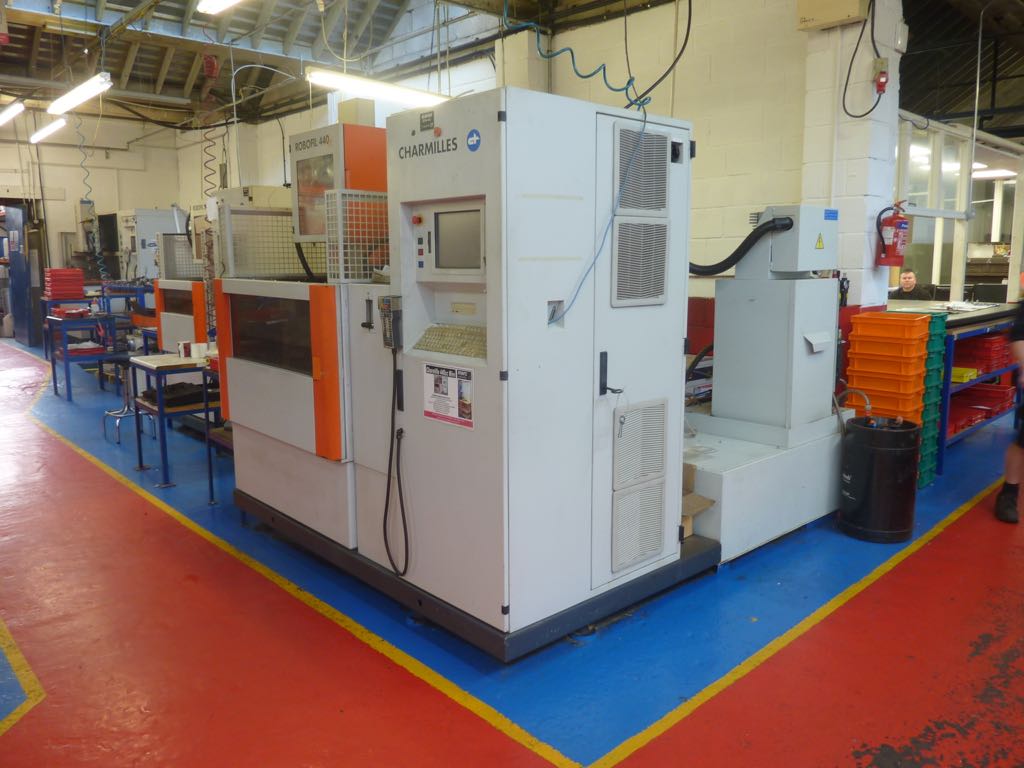

Agie Charmilles Robofil 440CC (2004)

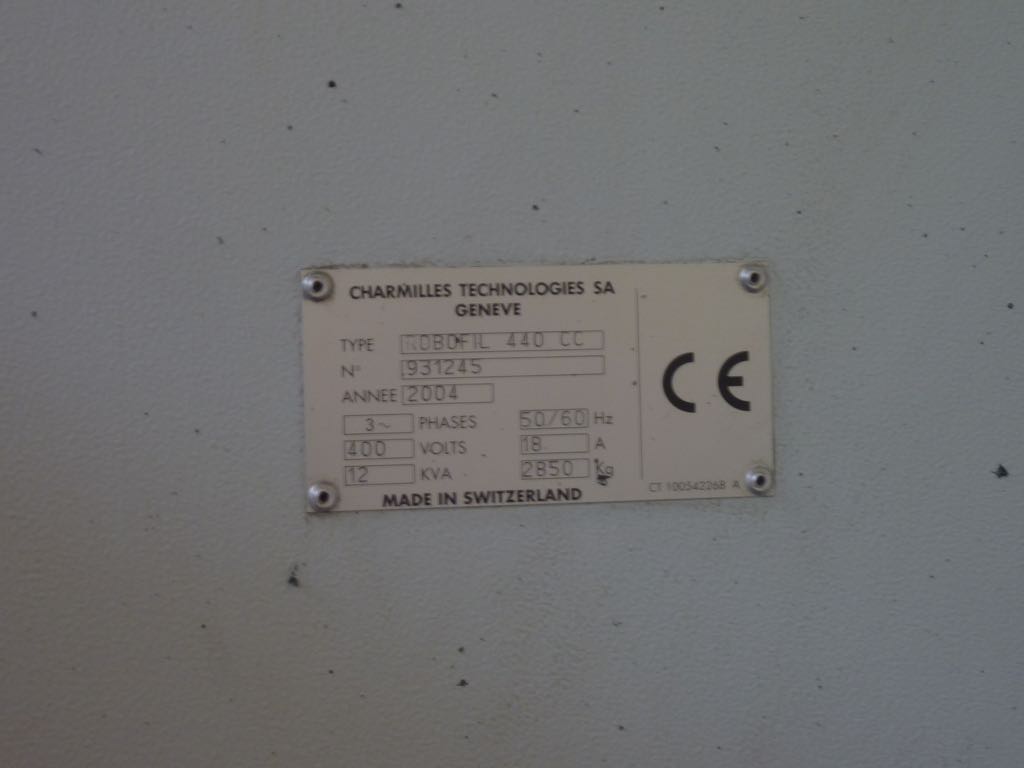

S/n:931245

GENERAL SPECIFICATIONS

X AXIS TRAVELS 21.65”

Y AXIS TRAVELS 13.78”

Z AXIS TRAVELS 15.7"

U/V AXIS TRAVELS 21.65” x 13.77”

TAPER CAPACITY 0-30 DEGREES

MAX. WORKPIECE DIMENSIONS 47.2” x 27.5” x 15.75”

MAX. WORKPIECE WEIGHT 3,300 Lbs.

WIRE DIAMETERS .004” - .012”

WIRE SPOOL SIZE 17.7 Lbs.

MAX CUTTING SPEED 37 SQUARE INCHES PER HOUR

MACHINE SIZE 101” x 110” x 101”

MACHINE WEIGHT 7,275 LBS - 2850kg

 Location: Lancashire

*Please satisfy yourself with the specifications before bidding as they may have been taken from the internet

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
