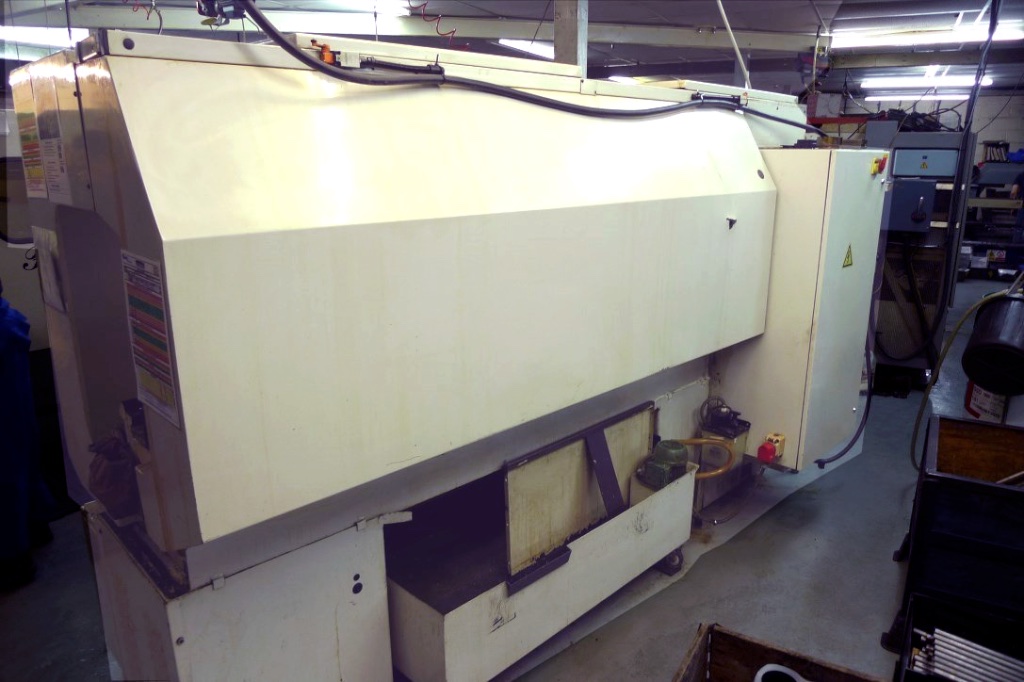

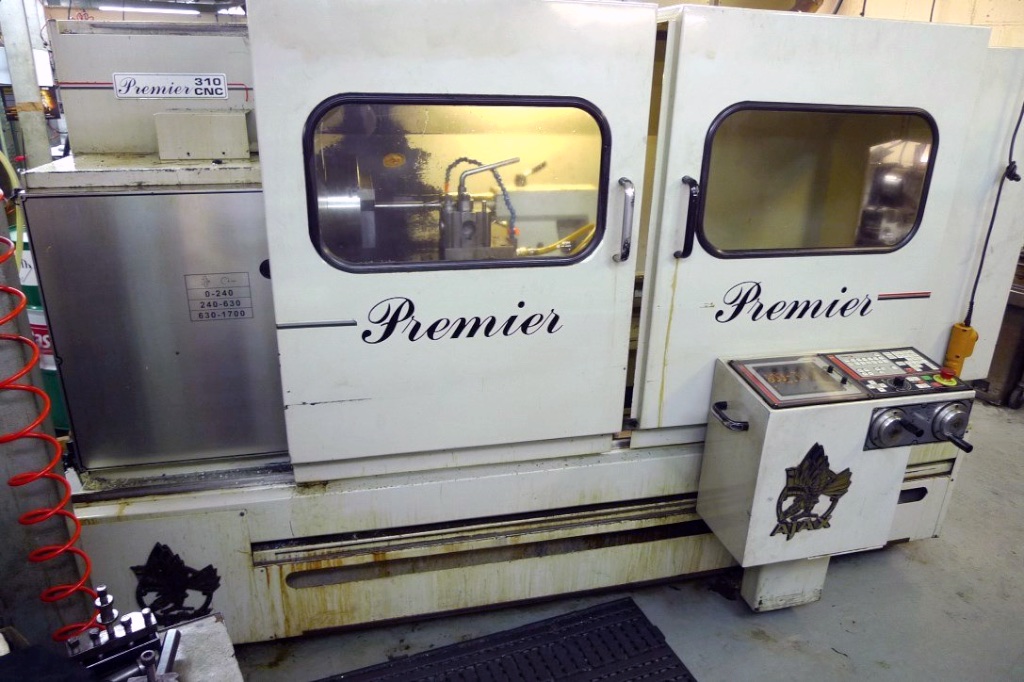

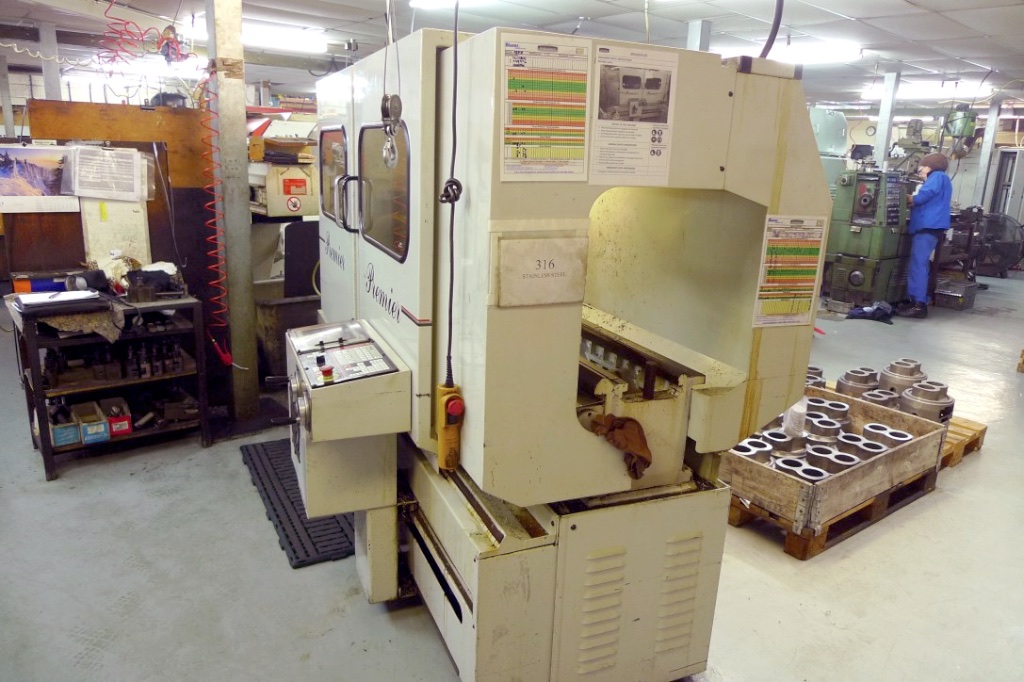

Ajax Premier 310 x 1650 CNC Lathe

Lot 3 - Ajax Premier 310 x 1650 CNC Lathe

Description:

Year 1996

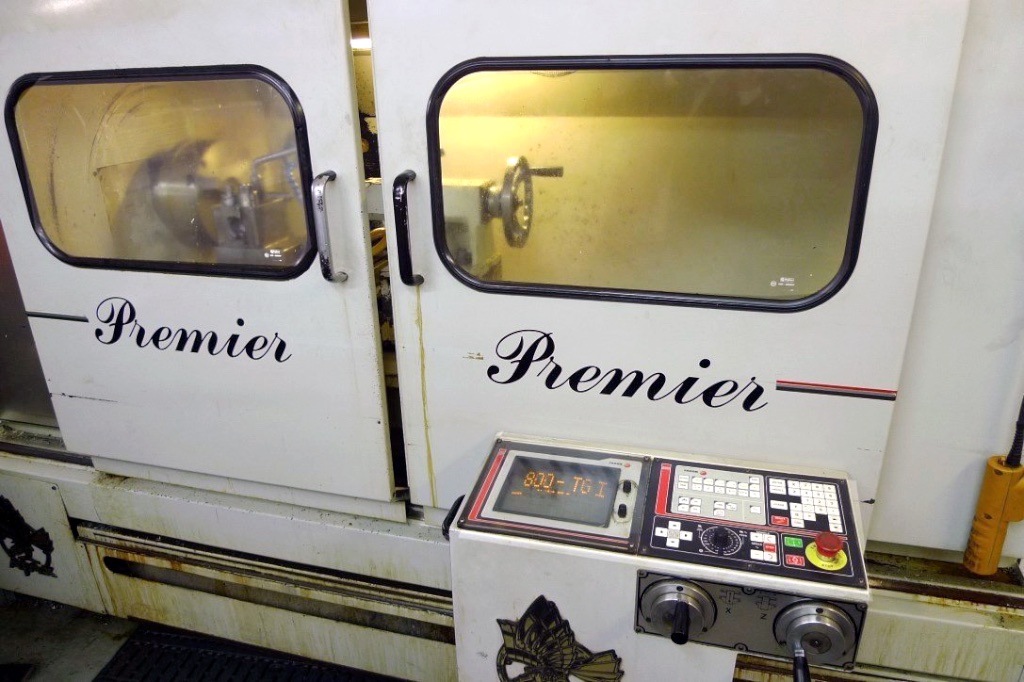

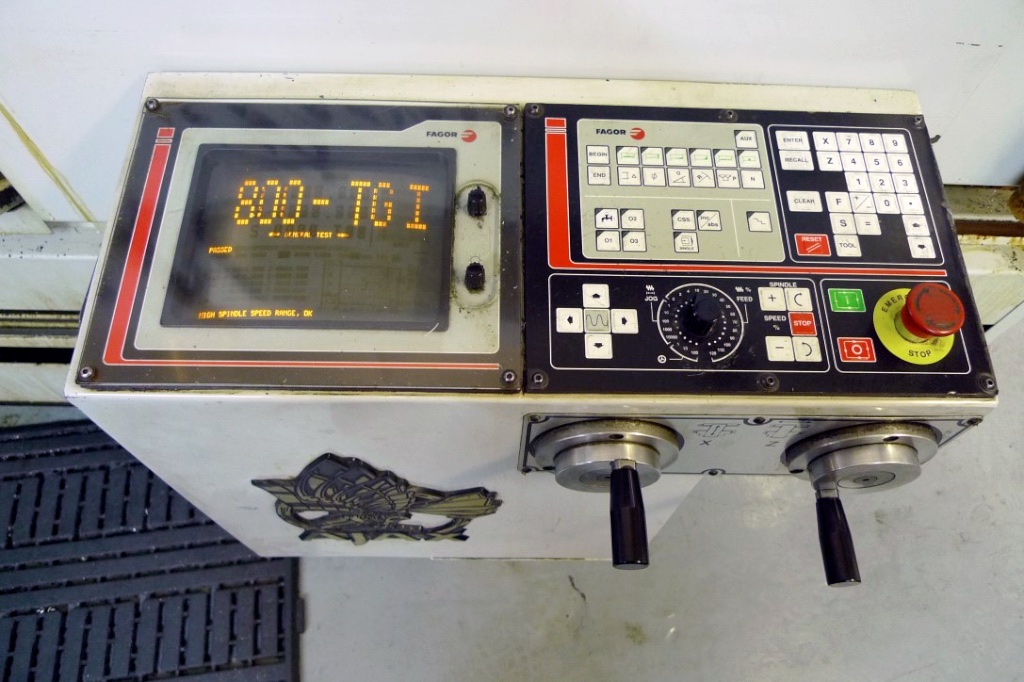

Fagor 800TGI Control

Centre Height: 310mm
Distance between Centres: 1,650mm

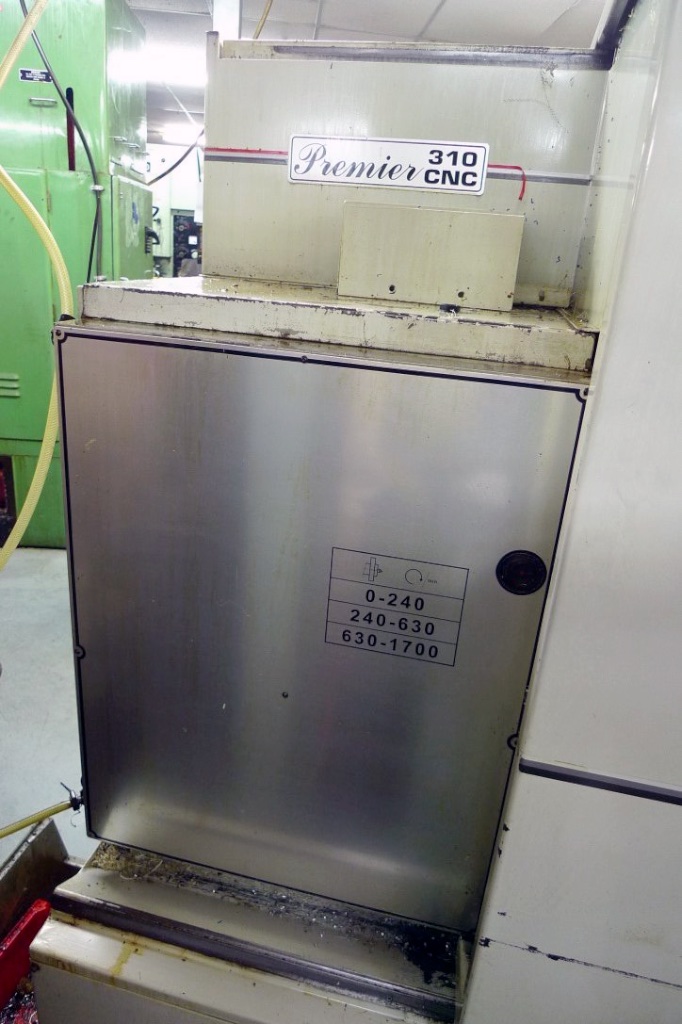

Programmable Speed within 3 Ranges (constant surface feed):
0-240-240-630-630-1,700rpm
Swing: 620mm

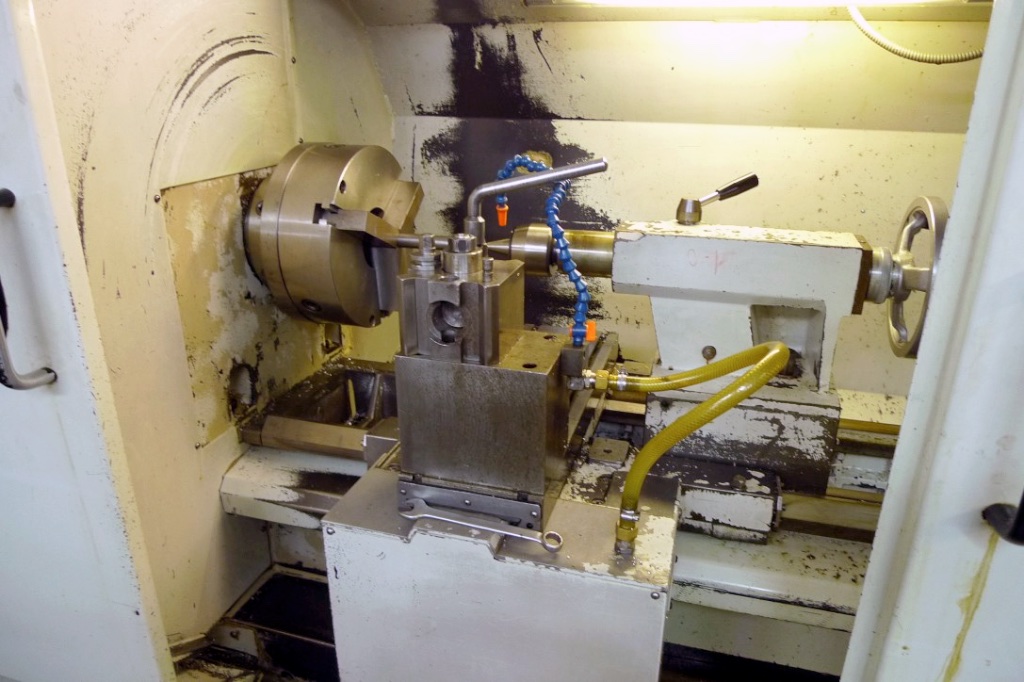

12” 3 Jaw Chuck :305mm
Spindle Bore :80mm
Swing Over Crosslide

Tailstock
4MT
Main Motor
7.5kW

Complete with

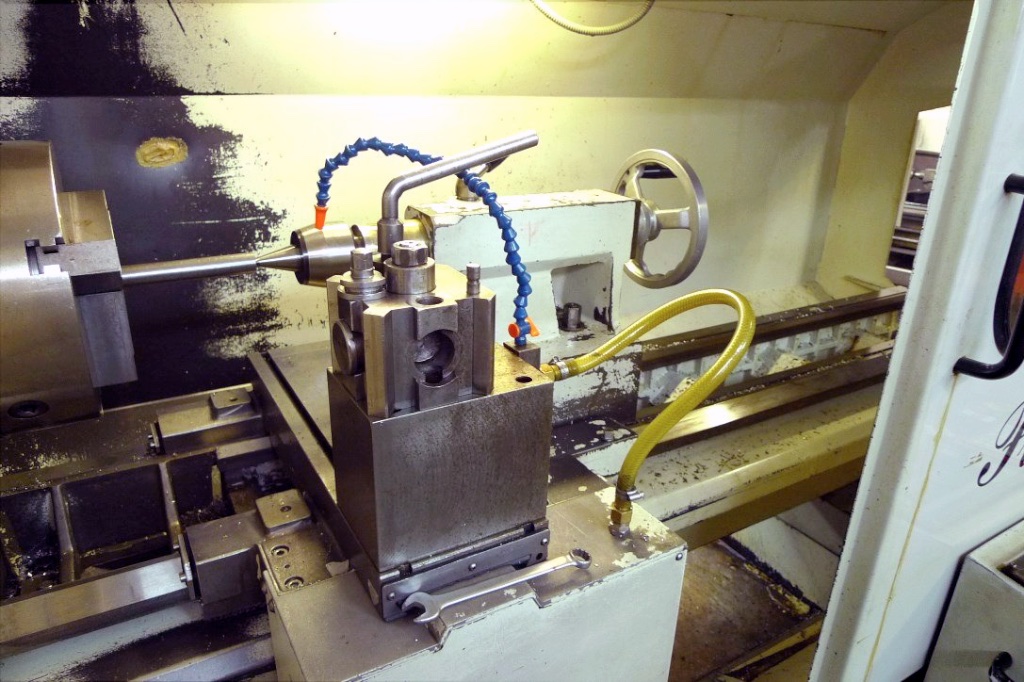

Quick Change Toolpost & Holders
Complete Set of Manuals
12” 4 Jaw Chuck
12” 3 Jaw Chuck
Lighting & Coolant

Location: GTP engineering, Bushbury Lane, Wolverhampton.
No facilities on site but machine will be disconnected from the electrics and coolant removed

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
