Ajax Turret Mill with DRO

Lot 9 - Ajax Turret Mill with DRO

Description:

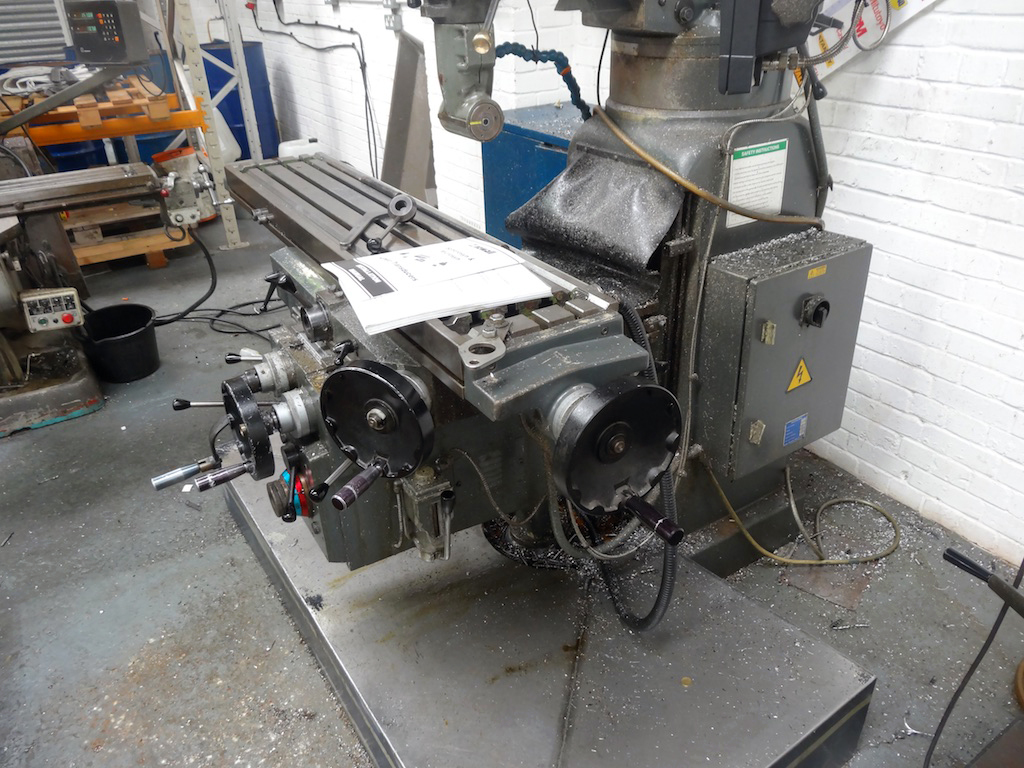

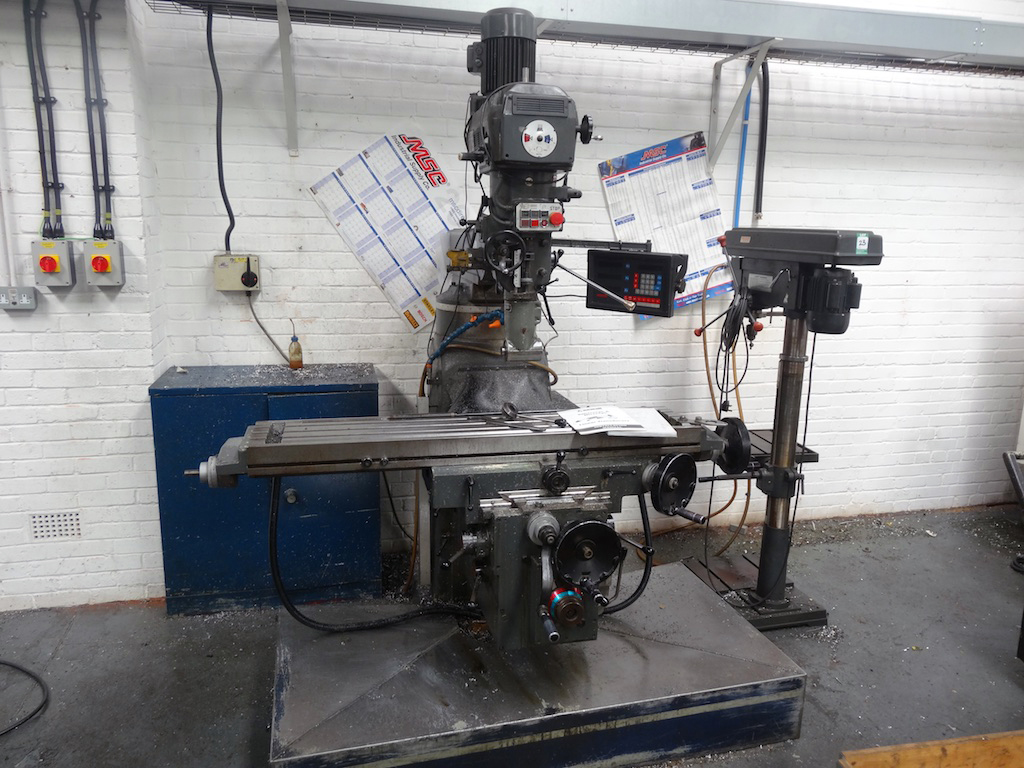

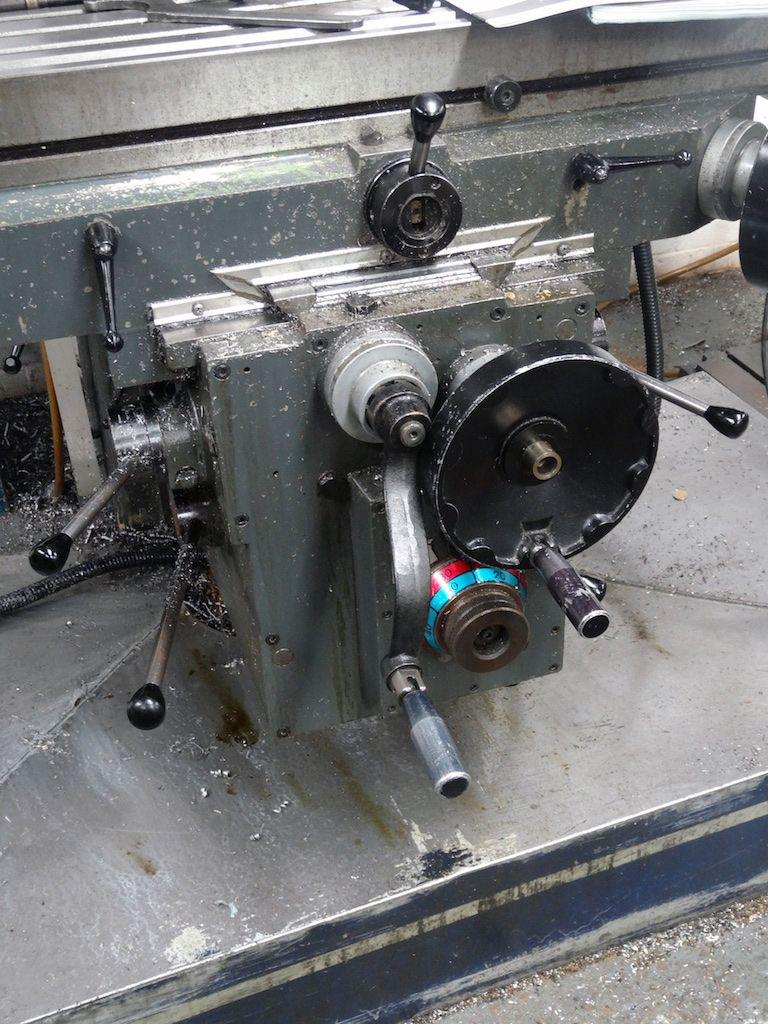

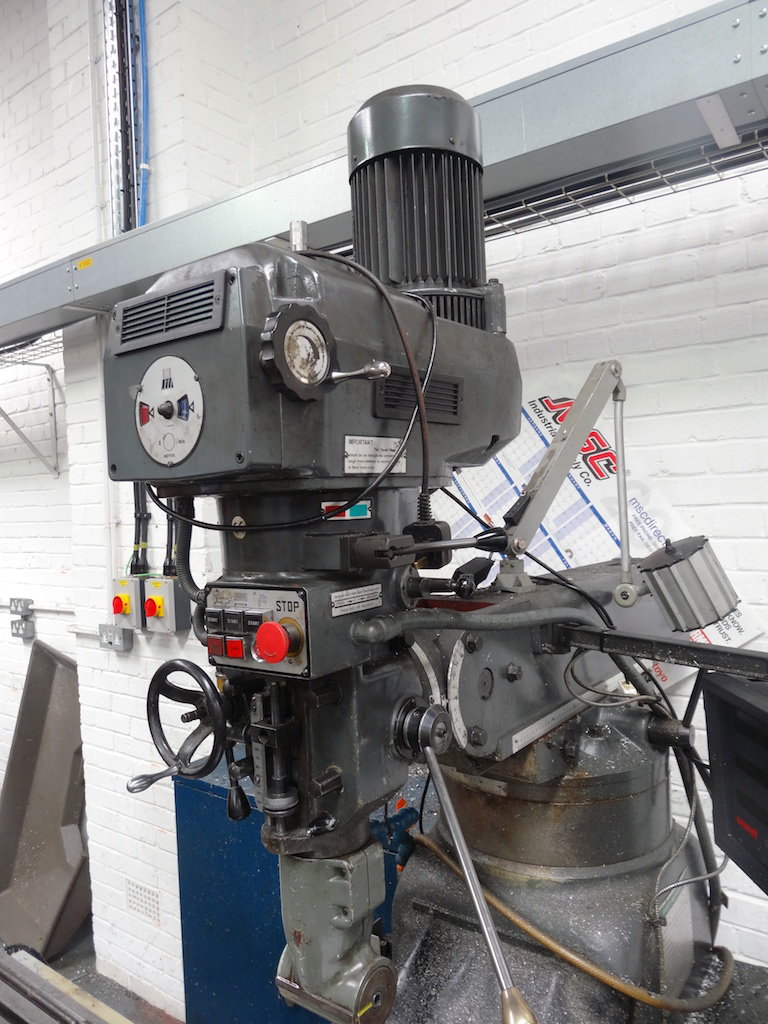

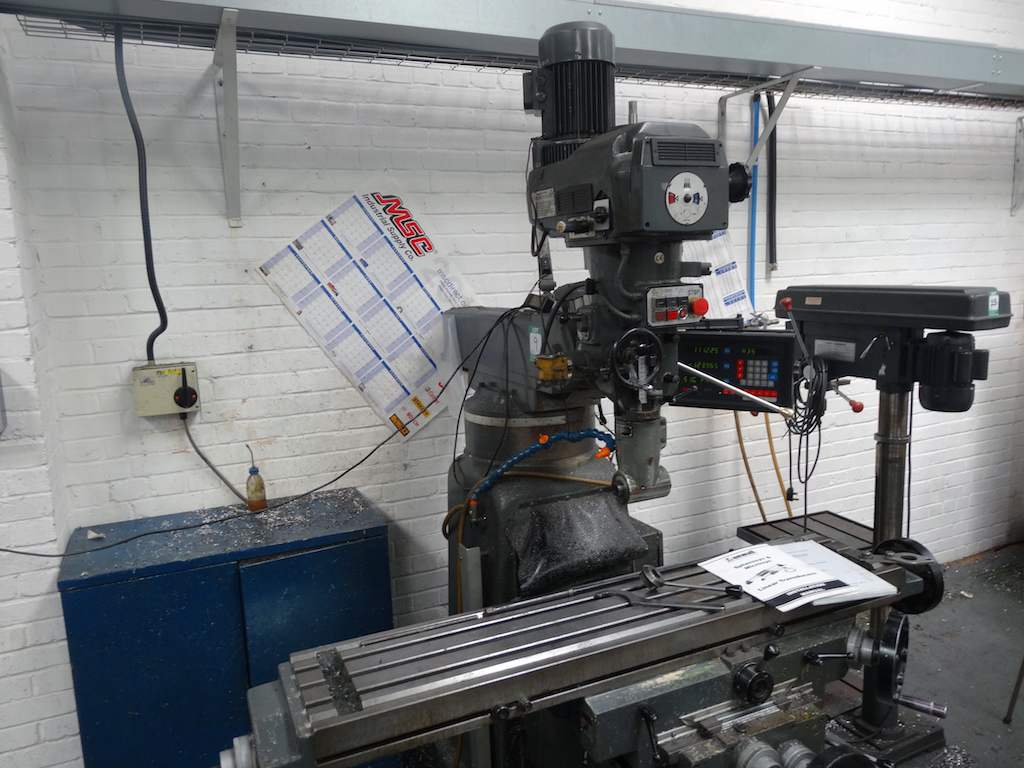

Ajax Turret Bed Milling Machine

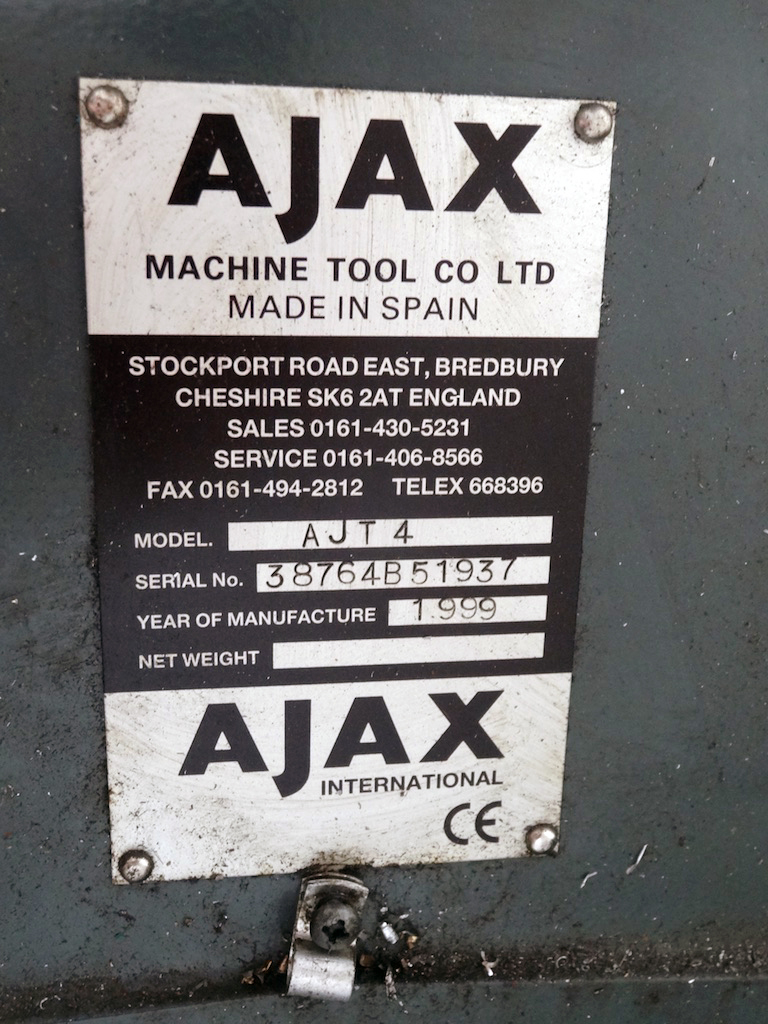

S/n: 38764B51937
L x W x H: 2200 x 2100 x 2300mm
Approx net Weight: 1450KG

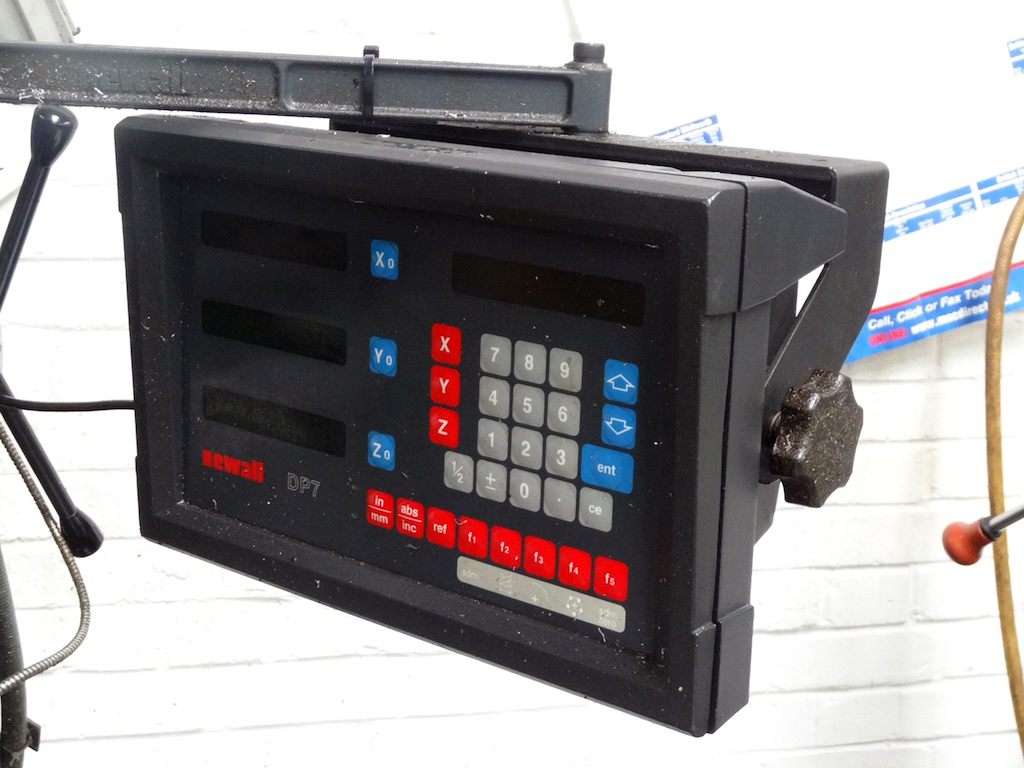

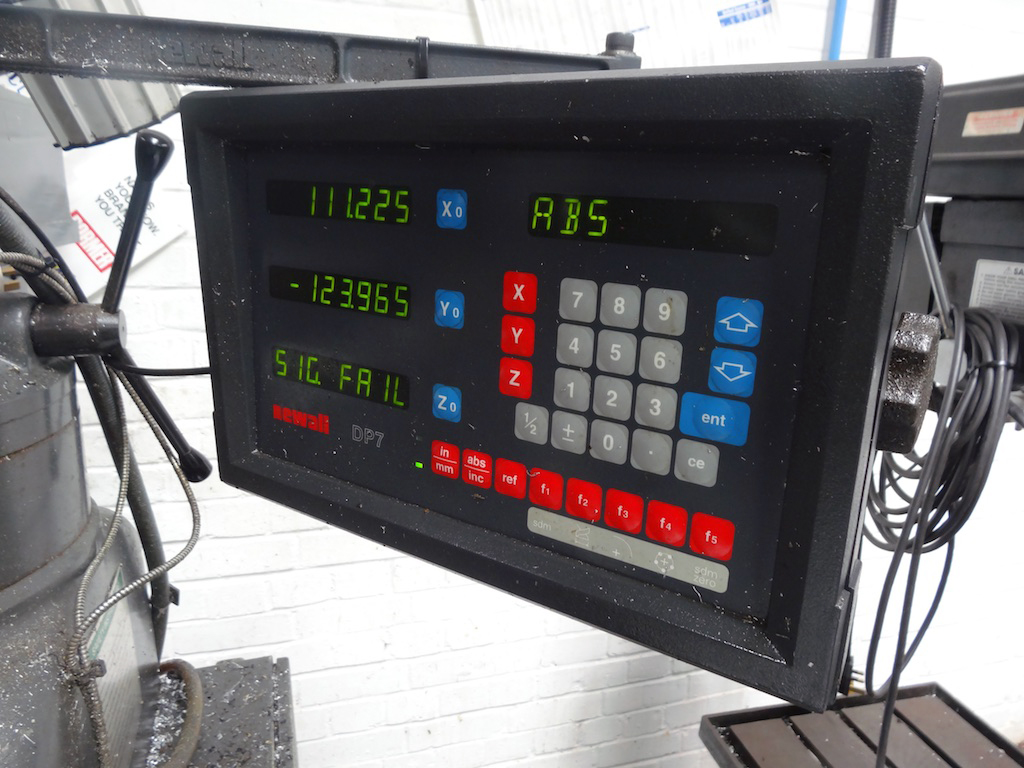

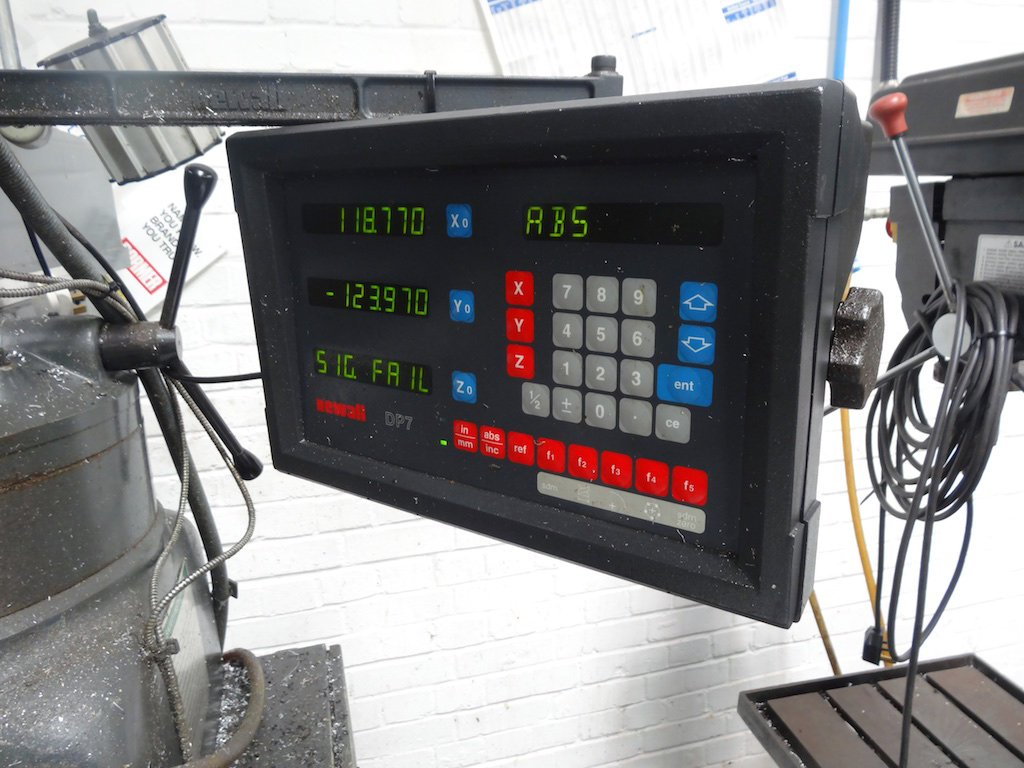

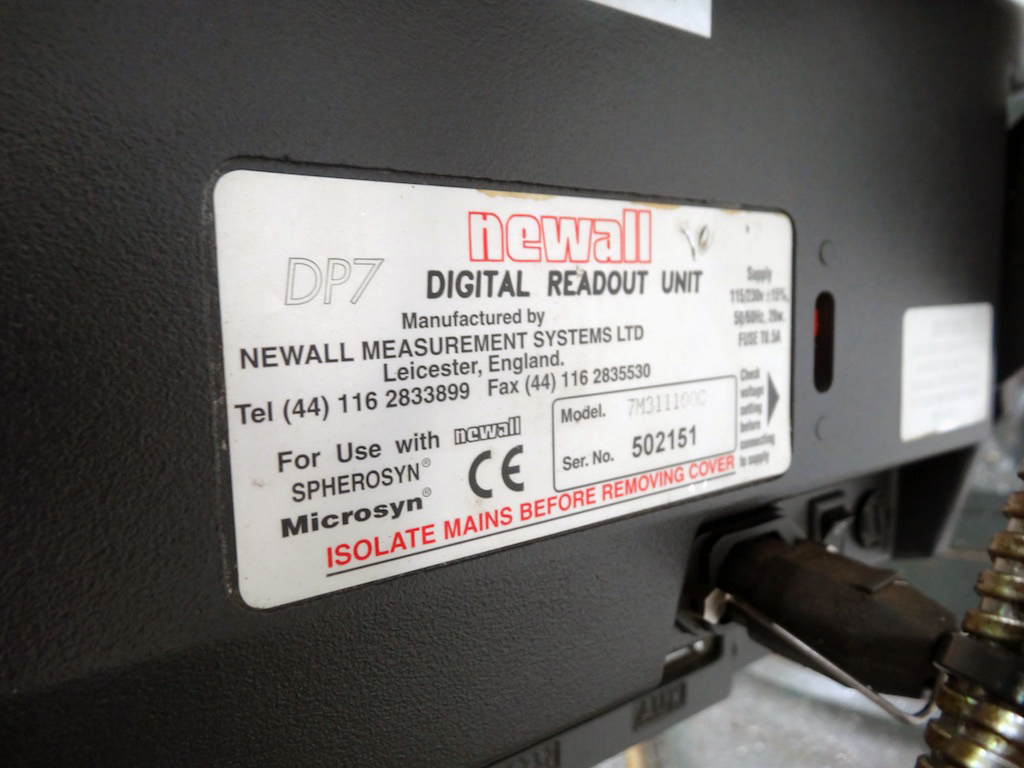

Newall DRO

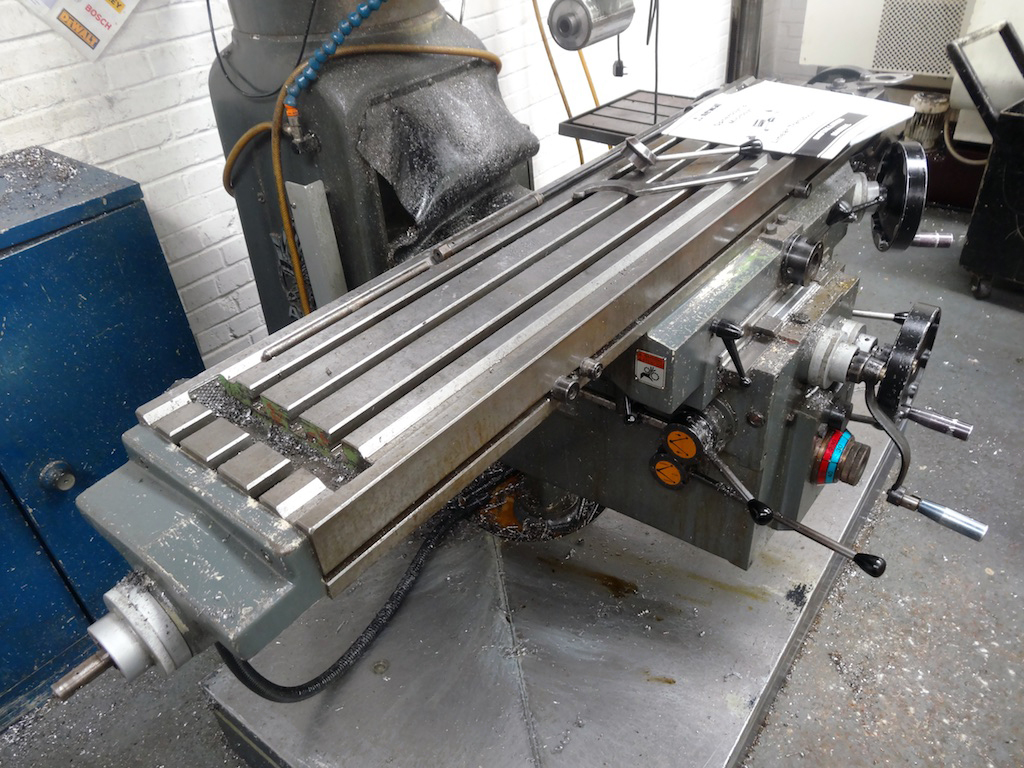

Bed: 1372 x 280mm with 3 x 3cm T Slots
Distance between slots: 63mm
Number of feed:12
Longitudinal and cross feed: 20 - 920mm/min
Vertical feed: 6 - 276mm/min
Rapid Longitudinal and cross: 2600mm/min
Rapid Vertical: 800mm/min
Longitudinal: 800mm
Cross: 345mm
Vertical: 400mm
Ram movement: 570mm
Spindle feed per revolution: 0,04-0,08-0,16
Taper: R-8/ISO-30/ISO-40

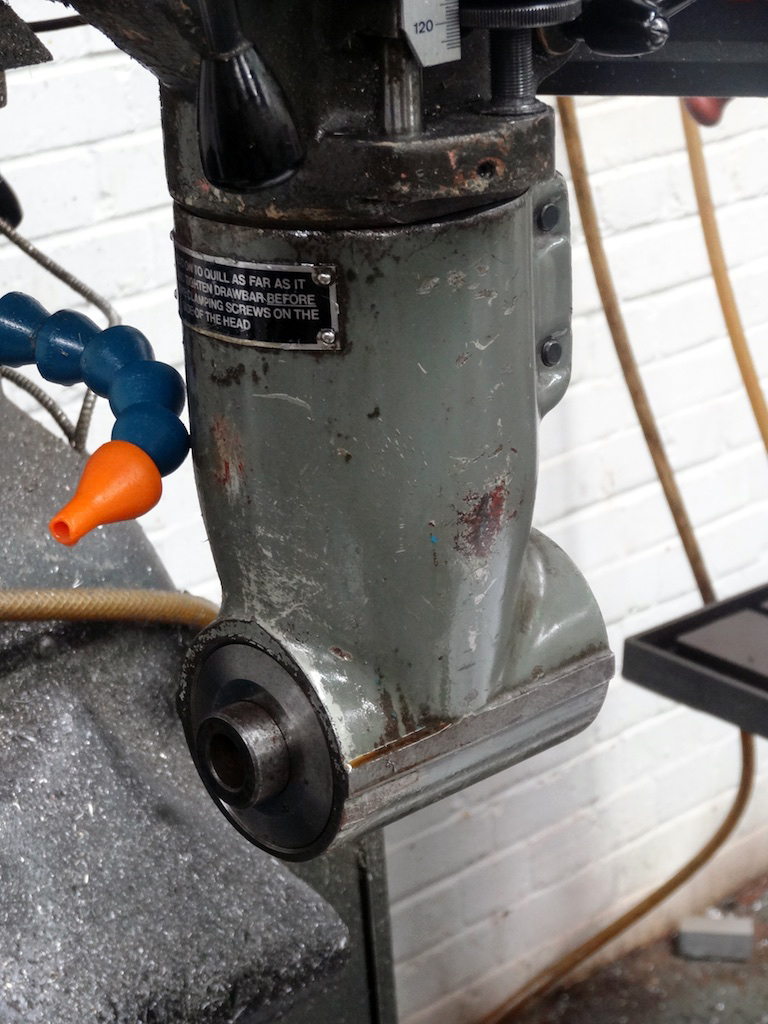

Quill Dia 85,70mm
Quill movement: 12mm
Speed range: 50-3.750 60-4.200

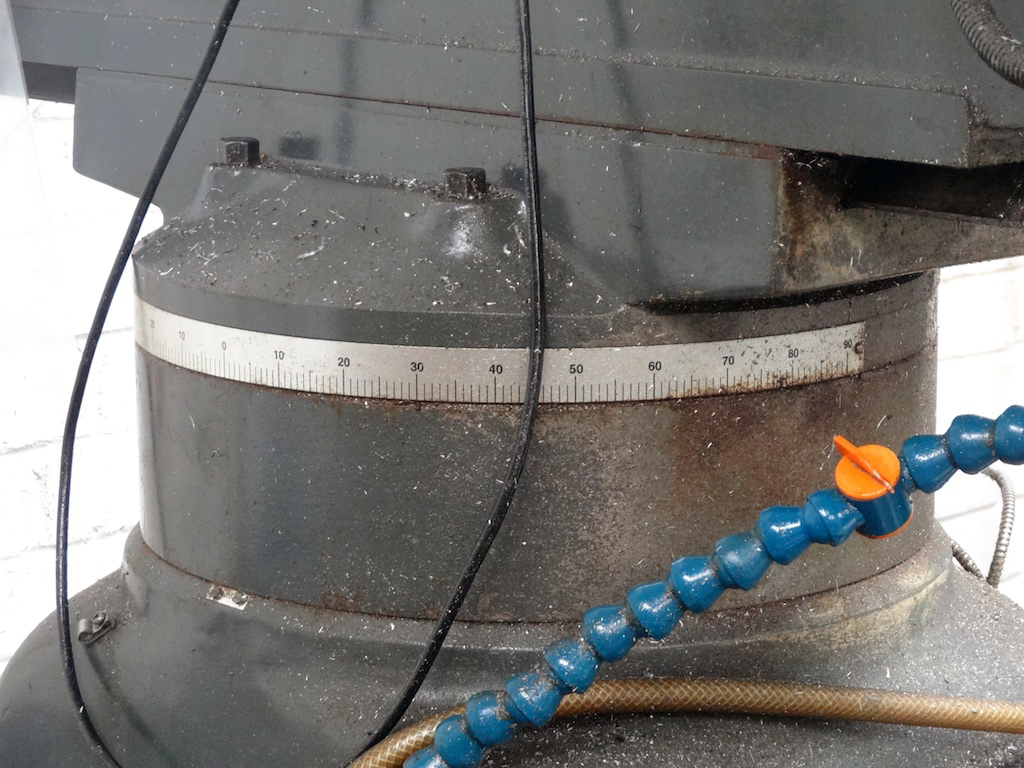

Moves from right to left/forward and backwards 90/45 deg
Max weight on table: 250kg
Work Light

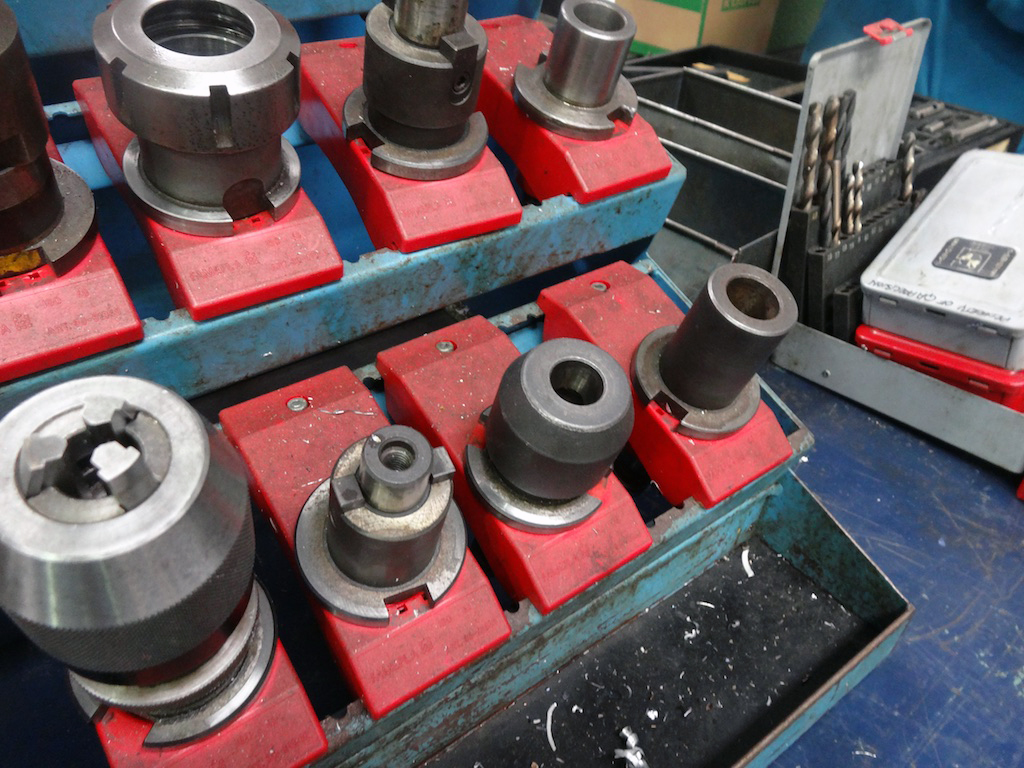

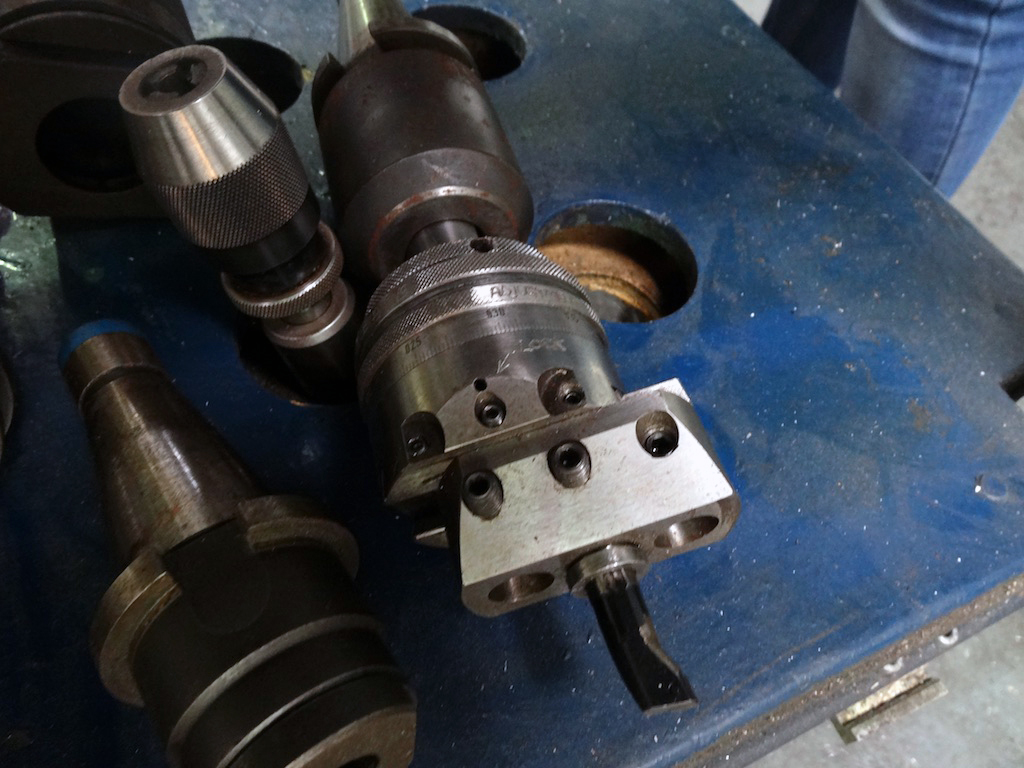

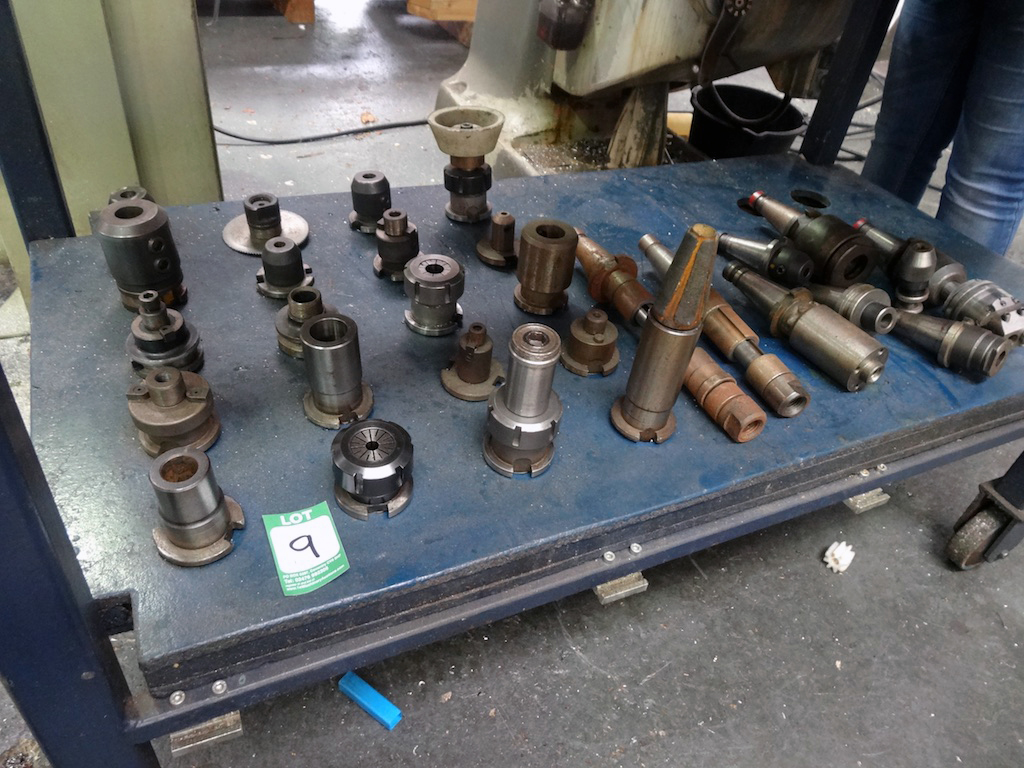

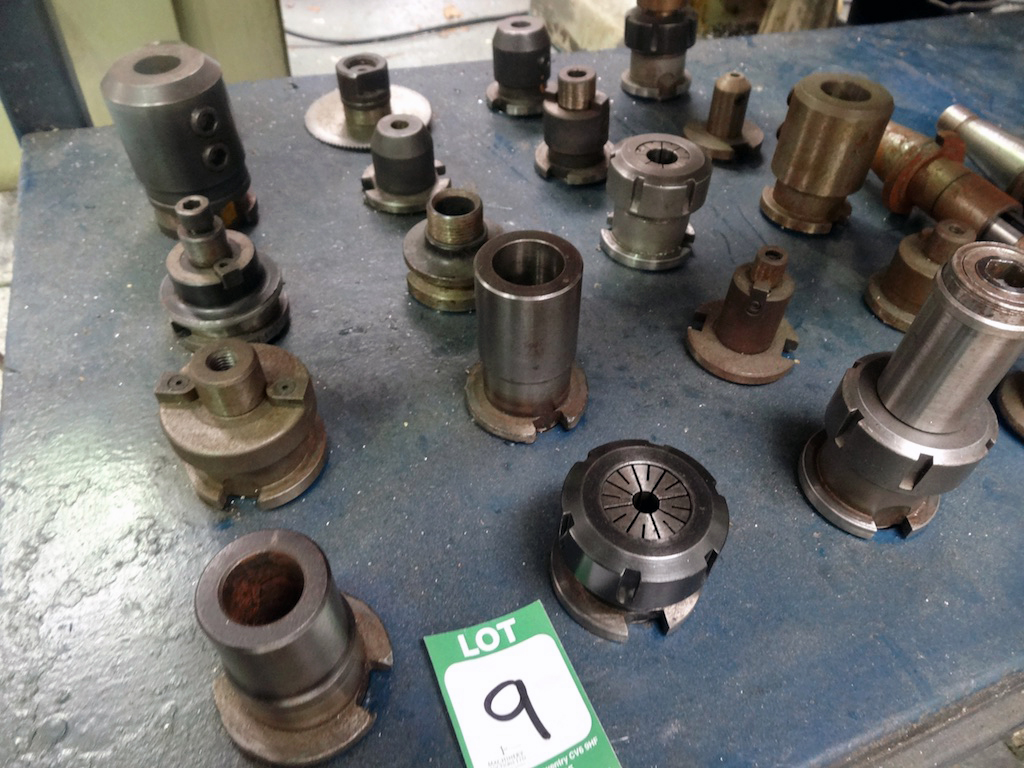

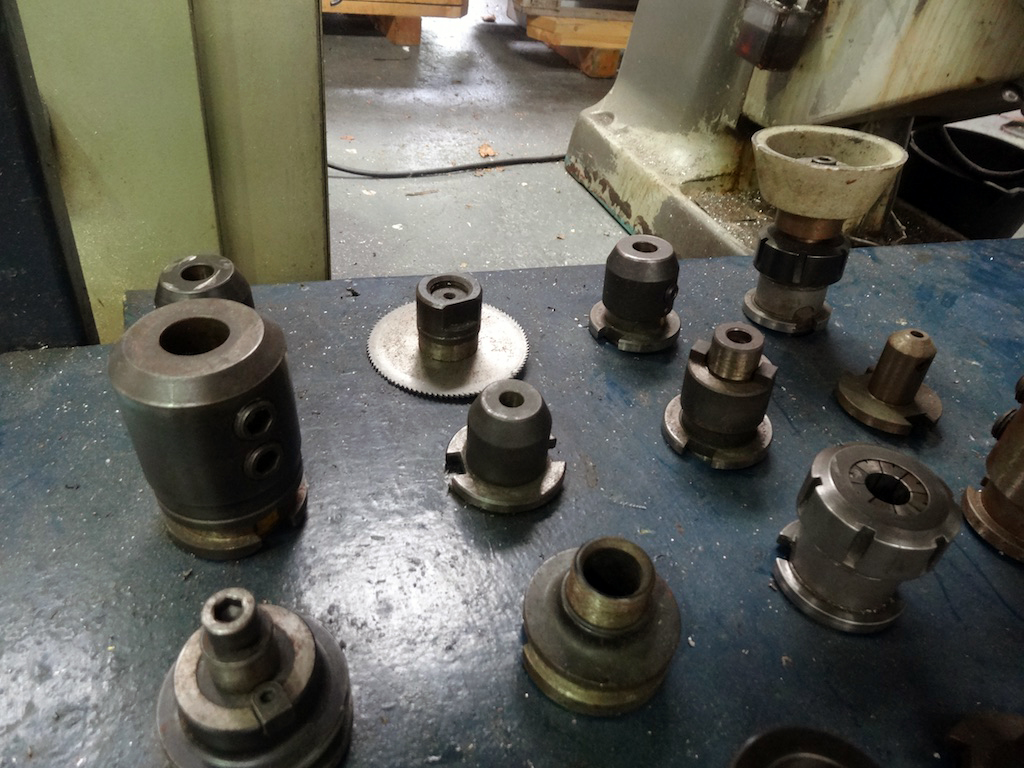

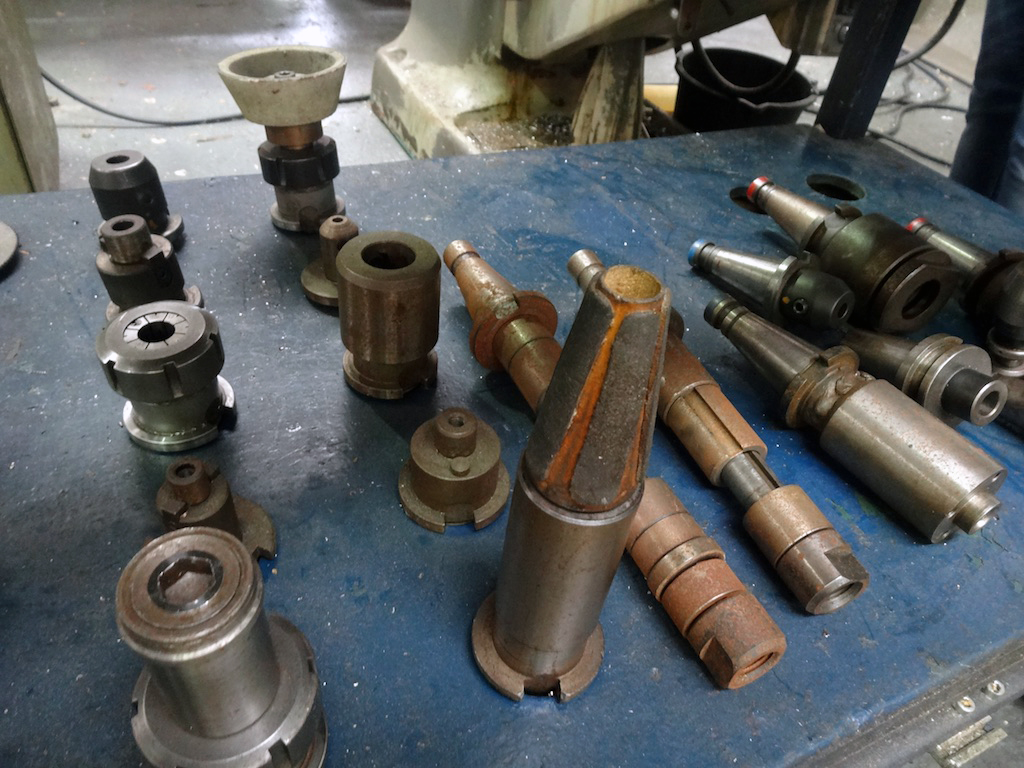

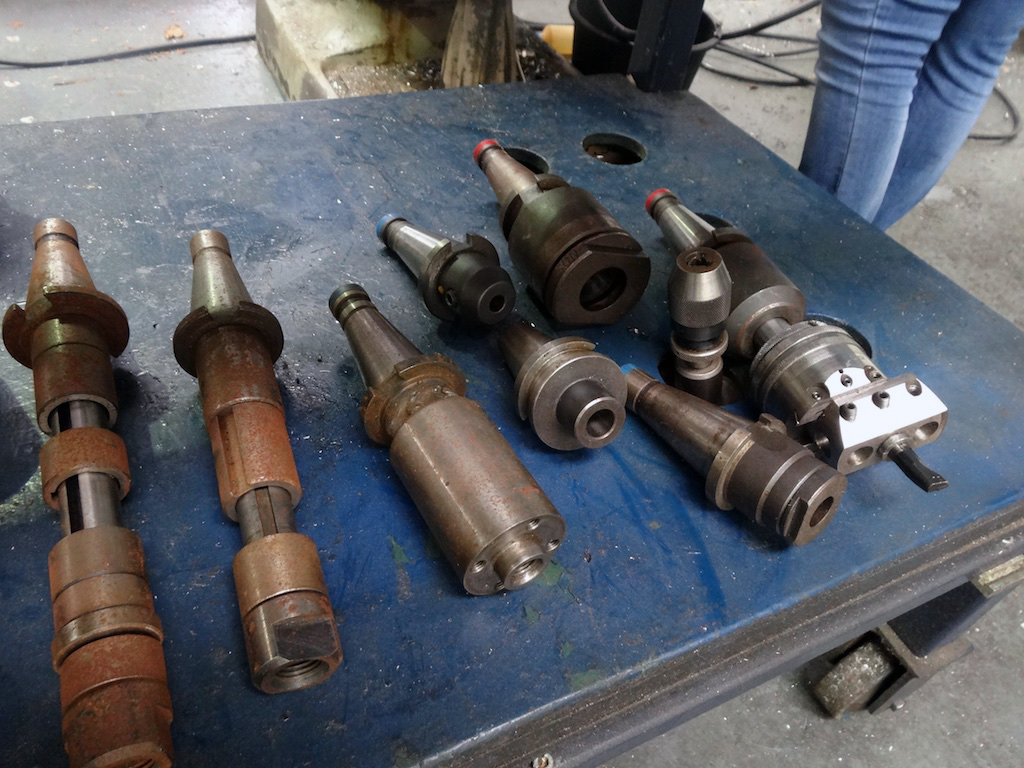

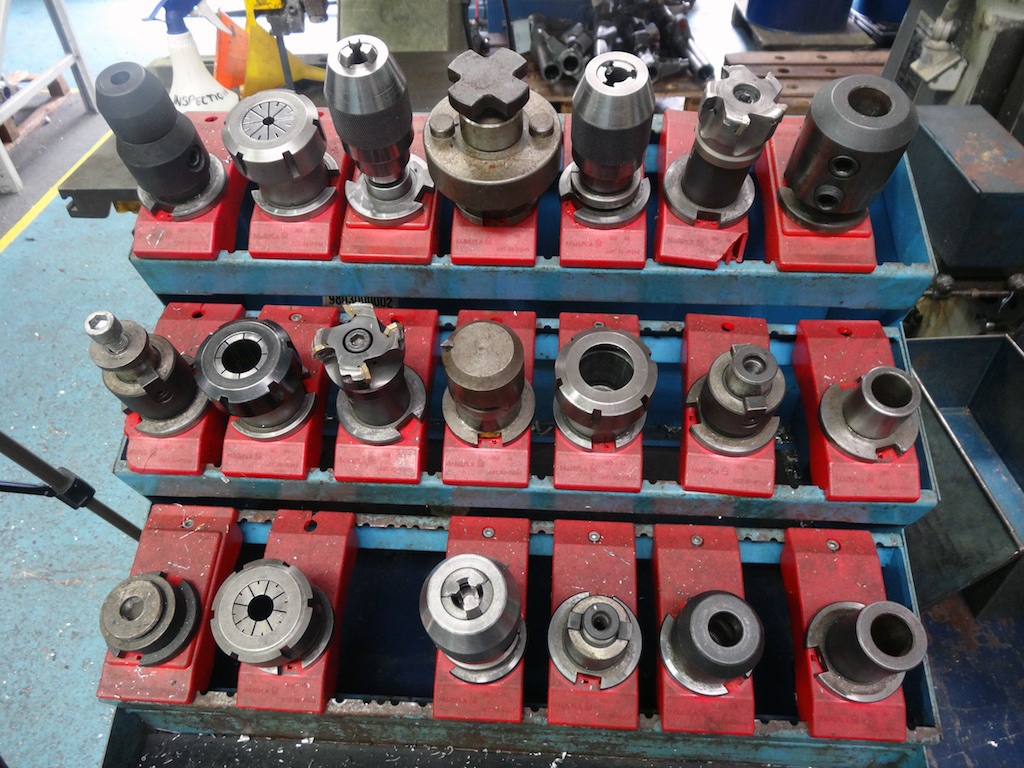

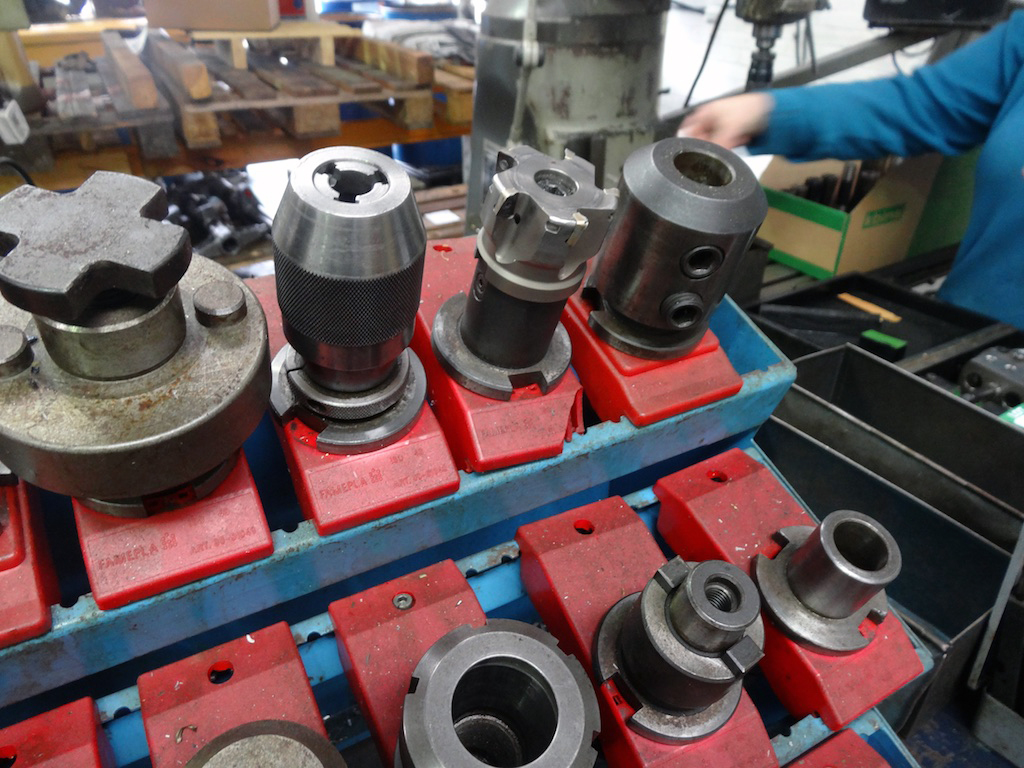

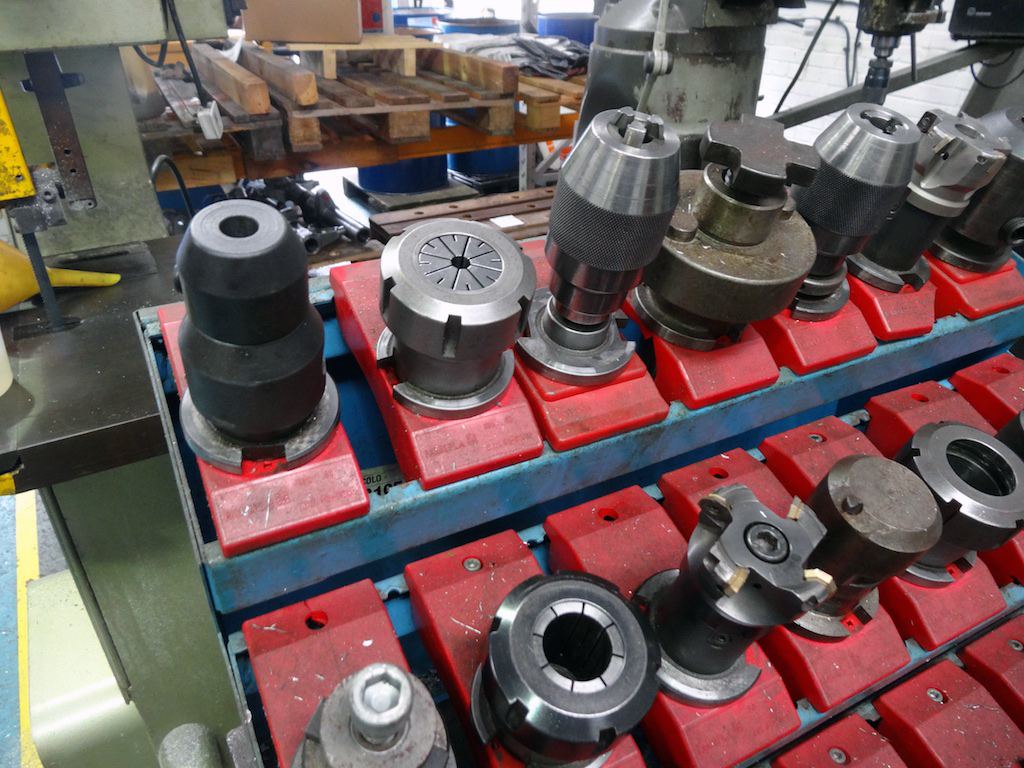

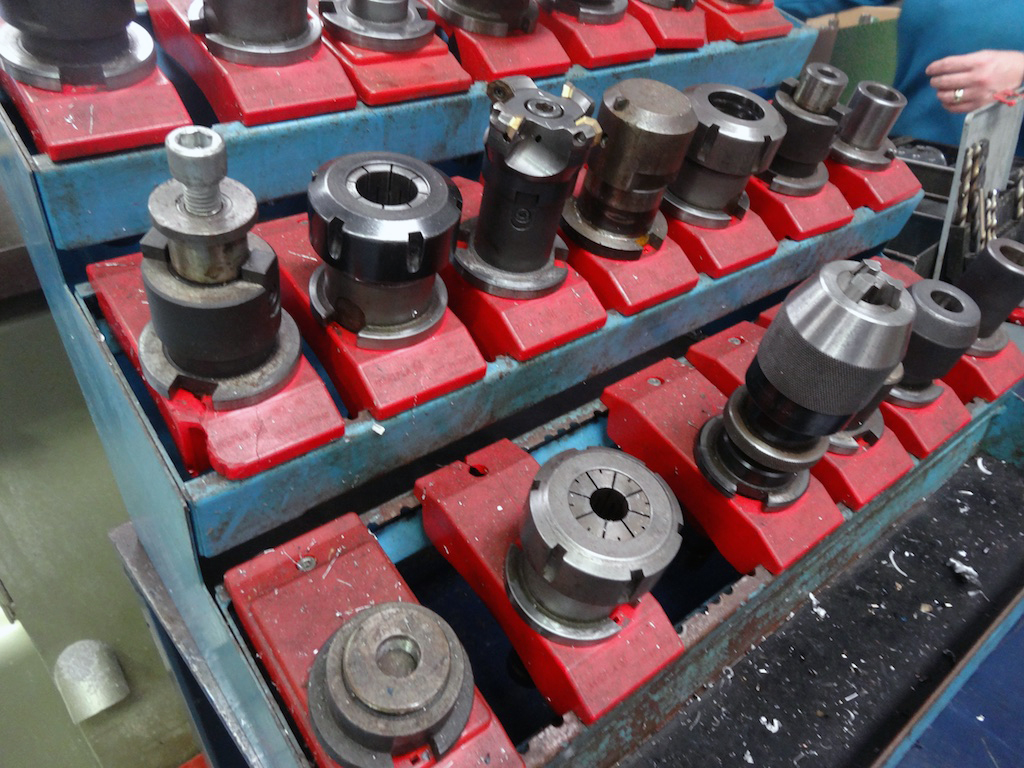

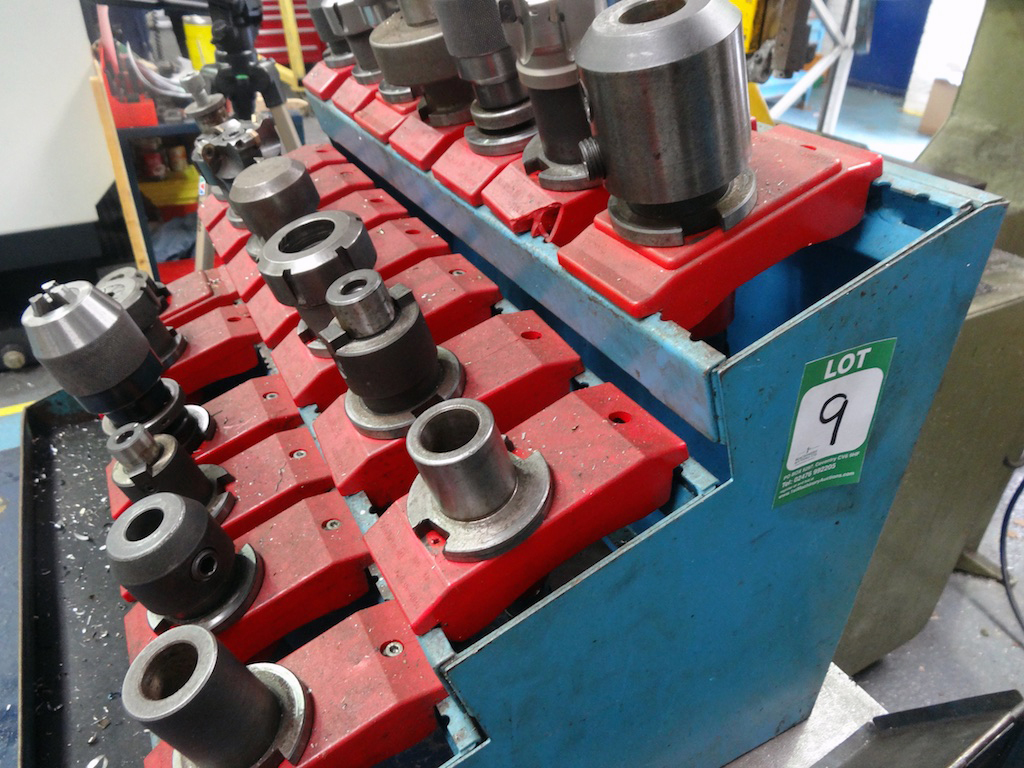

Tooling and tool holders as per photos

Location: Poole

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
