Lot 22 - Amada M2545 Guillotine
Description:

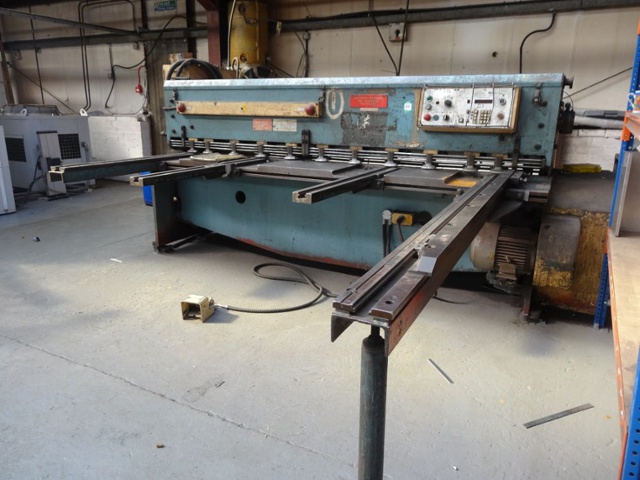

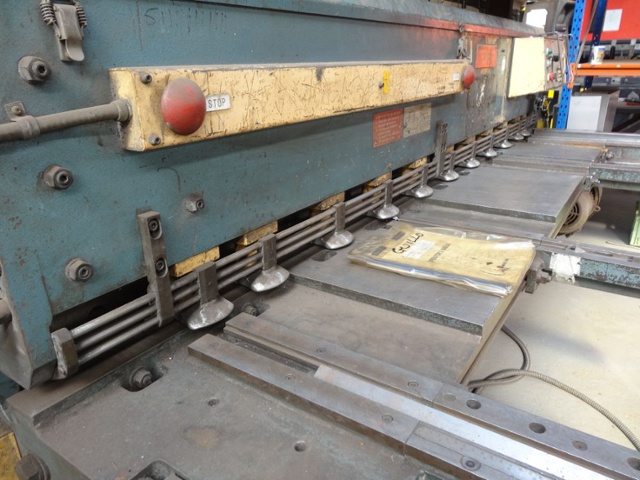

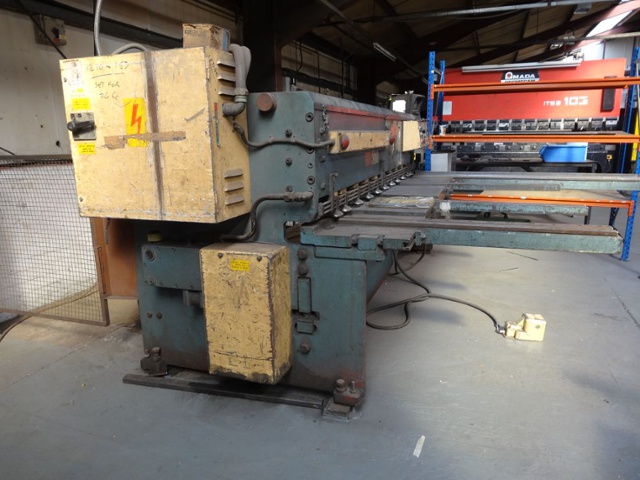

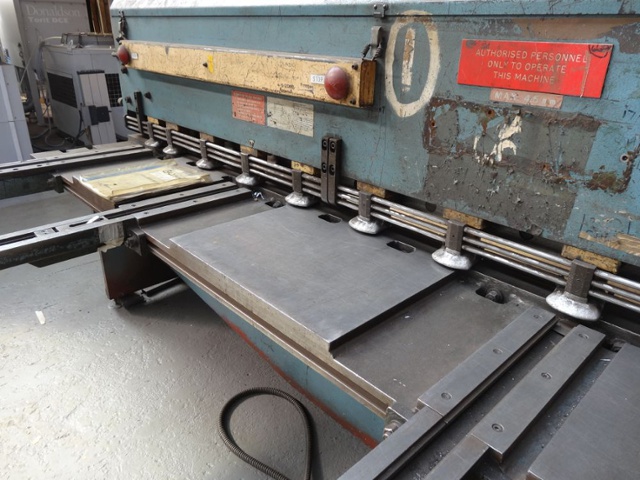

Amada M2545 Guillotine

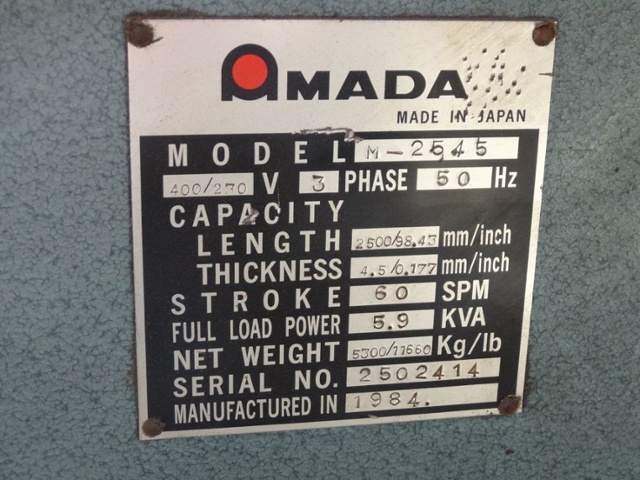

s/n 2502414

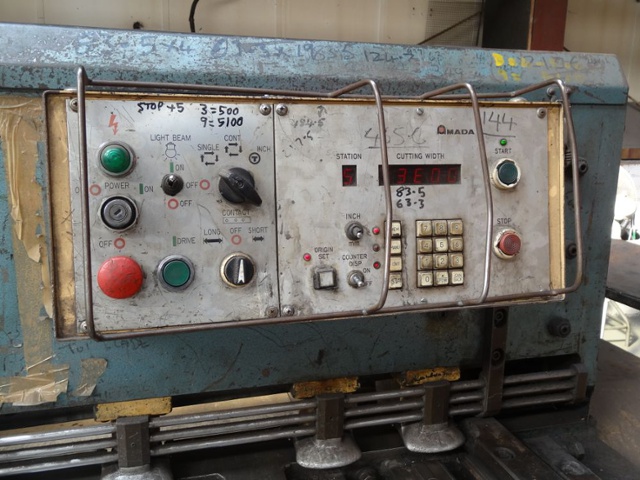

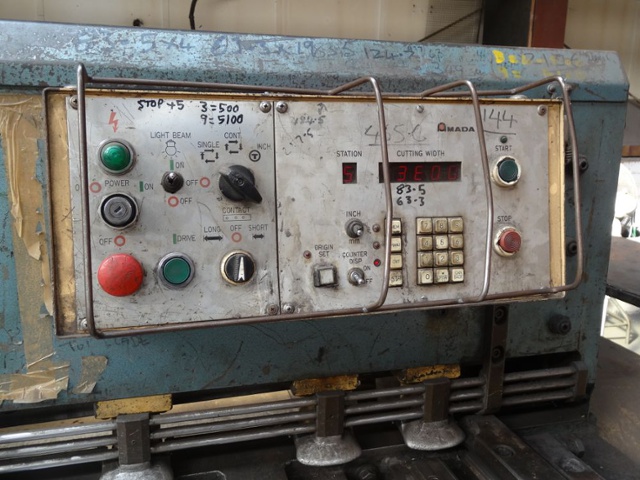

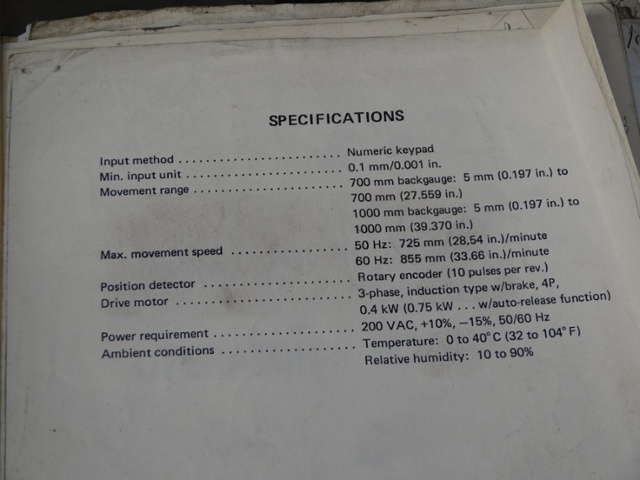

Input Method: numeric keypad
Min. input unit: 0.1mm

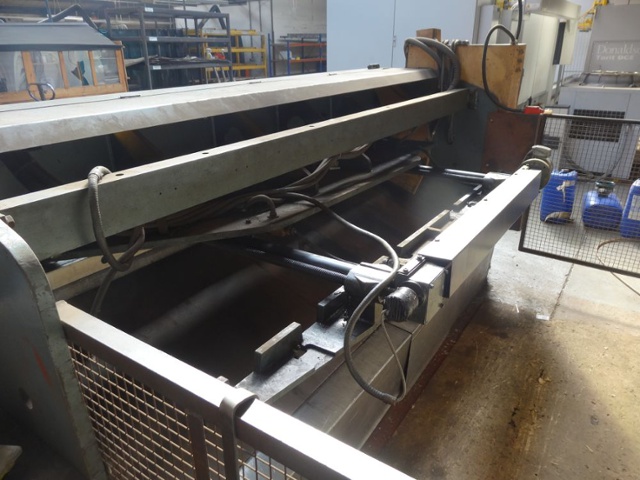

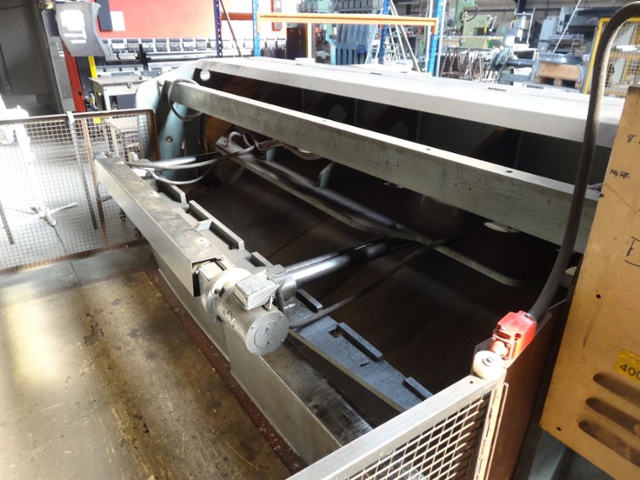

Movement range: 700mm/ 1000mm backgauge: 5mm to 1000mm
Max. movement speed: 50Hz: 725mm/ min, 60Hz: 855mm/ min
Position detector: Rotary encoder (10 pulses per rev.)
Drive motor: 3-phase induction type w/brake, $P 0.4kW (0.75kW...W/auto-release function)
Power requirment: 200VAC. +10% -15%, 50/60Hz
Ambient conditions: Temperature 0 - 40 Degrees C (32 - 104 degrees F)
Relative humidity: 10 to 90%
5300kg
1984
serial number: 2502414
LxWxH: 3550mmx1900mmx1700mm
Location: Engments Ltd, Derby
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
