Lot 6 - AMOB MDH 60 CN1 Tube Bender (2009)
Description:

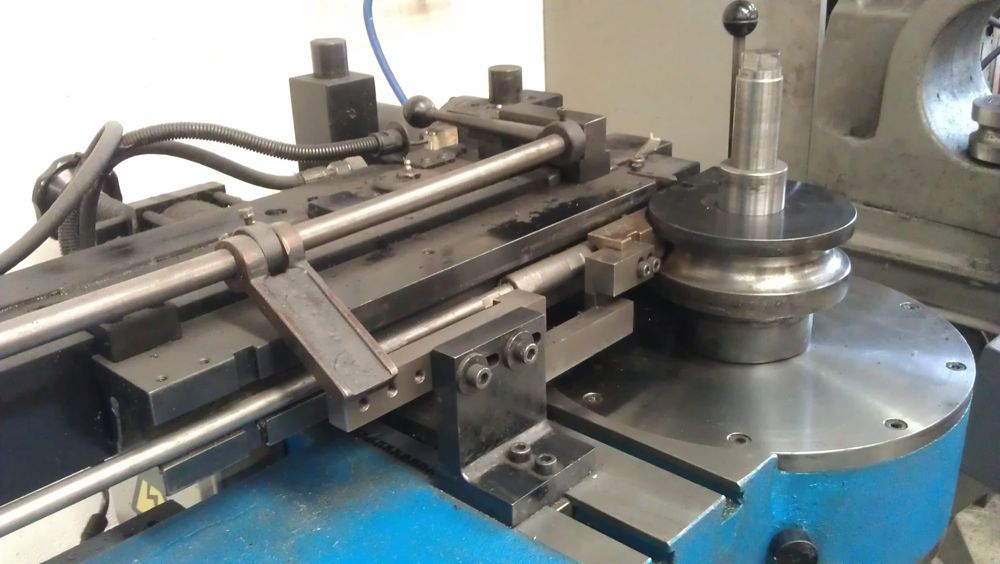

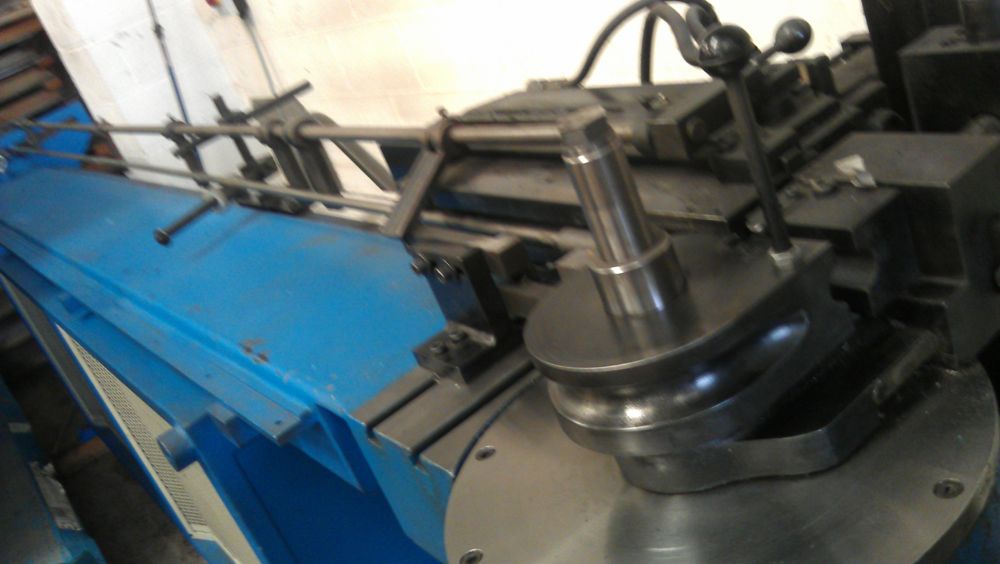

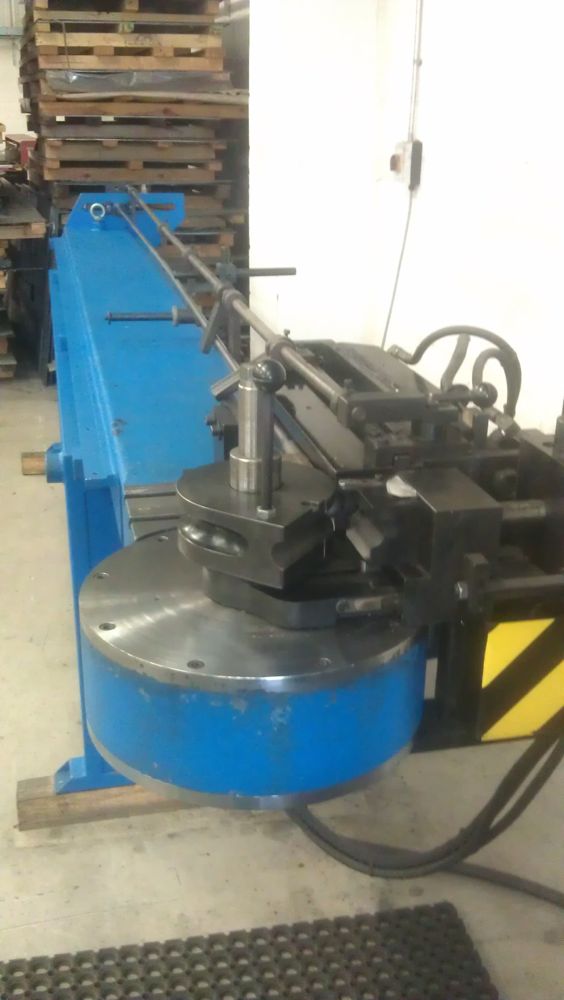

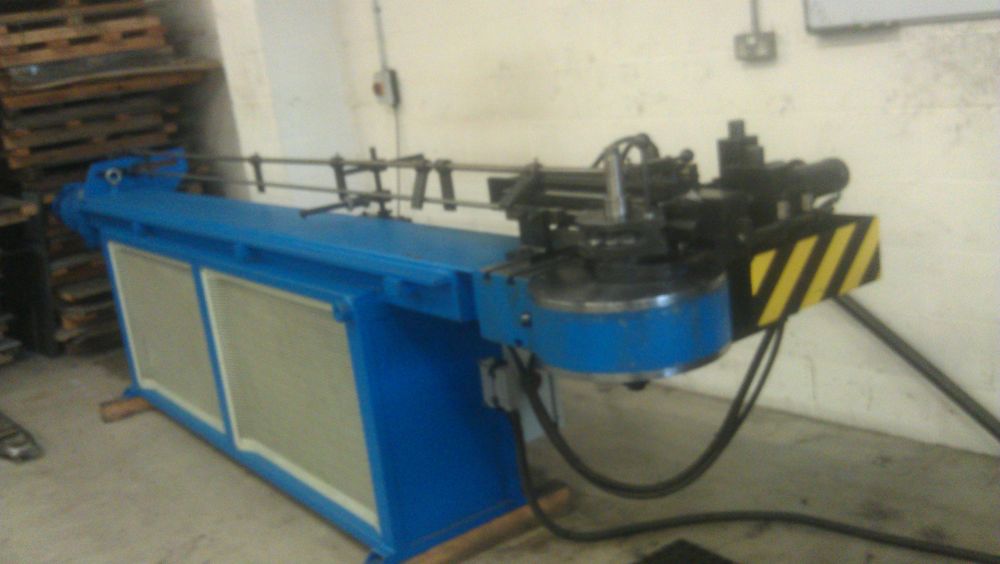

AMOB MDH 60 CN1 Tube Bender
Year 2009

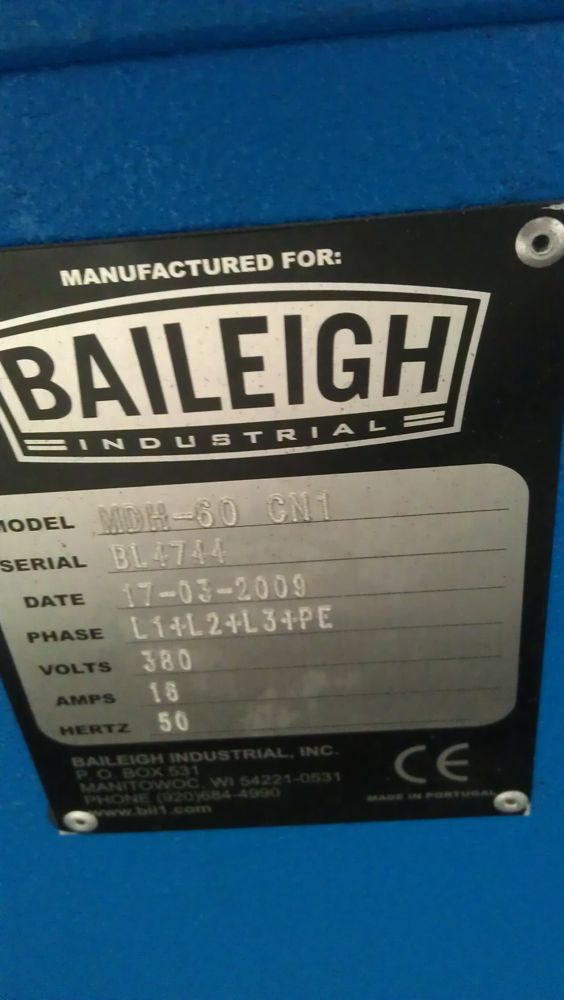

S/n: BL4744
Date: 17/03/2009
Mod: MDH-60-CNI
Sequentially adjustable flip stops (x axis) yes
Fully hydraulic clamping yes
Optional Equipment
Automatic hydraulic mandrel extraction yes
Automatic hydraulic pressure die yes
Automatic hydraulic pressure die assist yes
Automatic mandrel lubrication yes
Hydraulic clamp for plane of bend positioner yes
Machine useful length increments (1m) yes
Split die system (square/rectangular/others) yes
Dies for profiles/tubes yes
Capacities
Maximum bending OD x thickness (steel - 450 N/mm2) 60mm x 3
Maximum bending OD x thickness (steel - 700 N/mm2) 50.8mm x 2
Maximum bending side x side x thickness (steel - 450 N/mm2) 50.8mm x 50.8mm x 2
Maximum section modulus (steel - 450 N/mm2) 7.3cm3
Maximum bending Angle(°) 190
Standard bending direction Clockwise
Working pressure - (bar) 150
Power supply - (Volts-Hz-Phases) 380V - 50Hz - 3P
Technical information
Power (kW) 8
Dimensions (mm) 4250 x 1200 x 1170
Weight (Kg) 1700
Maximum Centerline bending Radius 225mm
Maxium useful length 3000mm
Location: Eye, Suffolk UK
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
