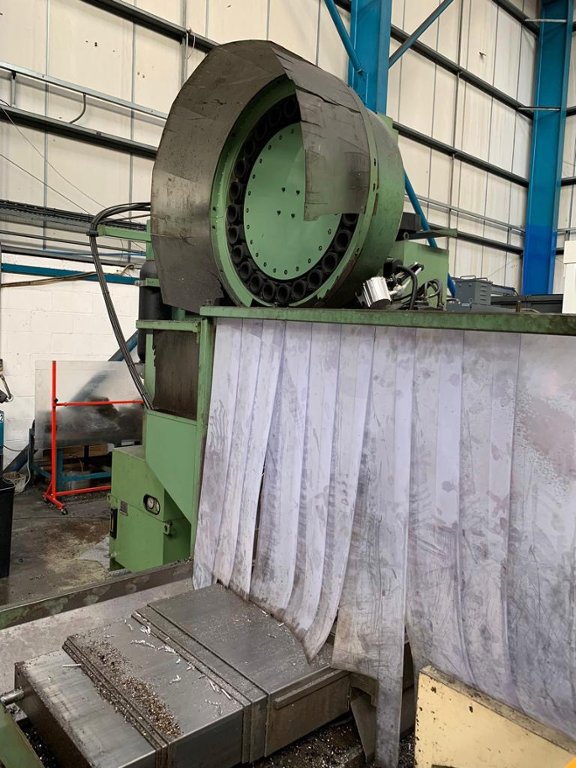

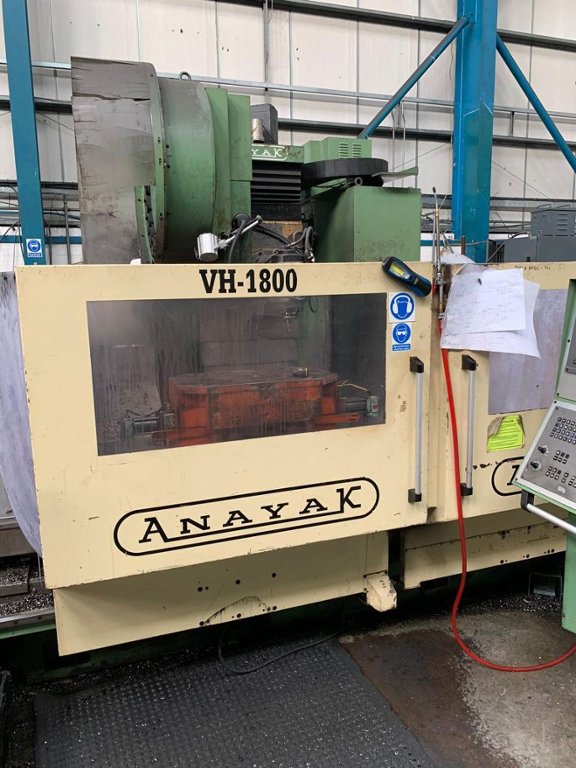

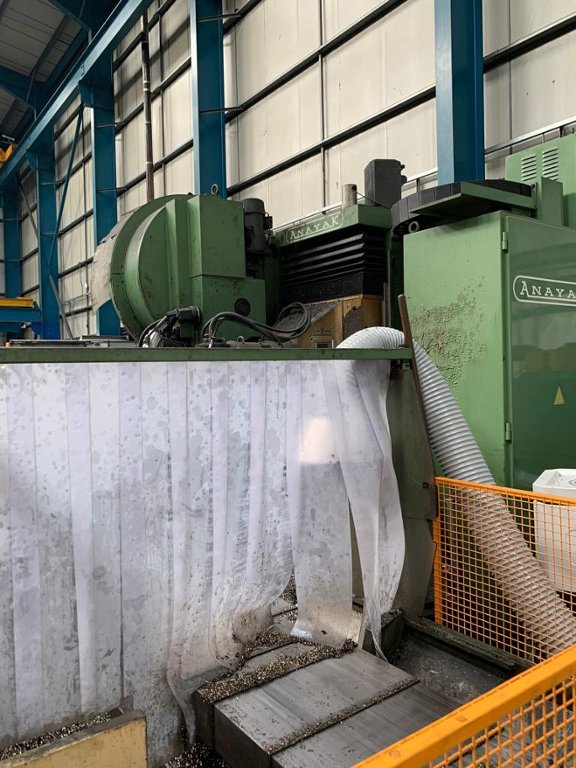

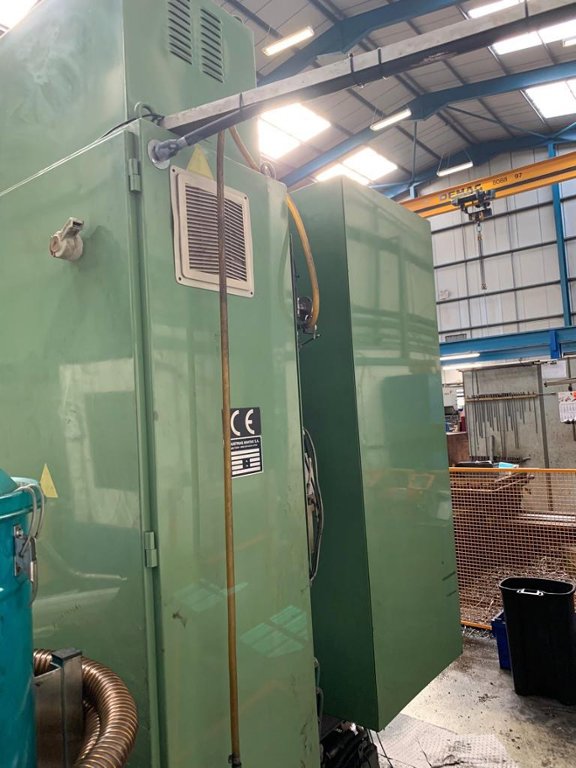

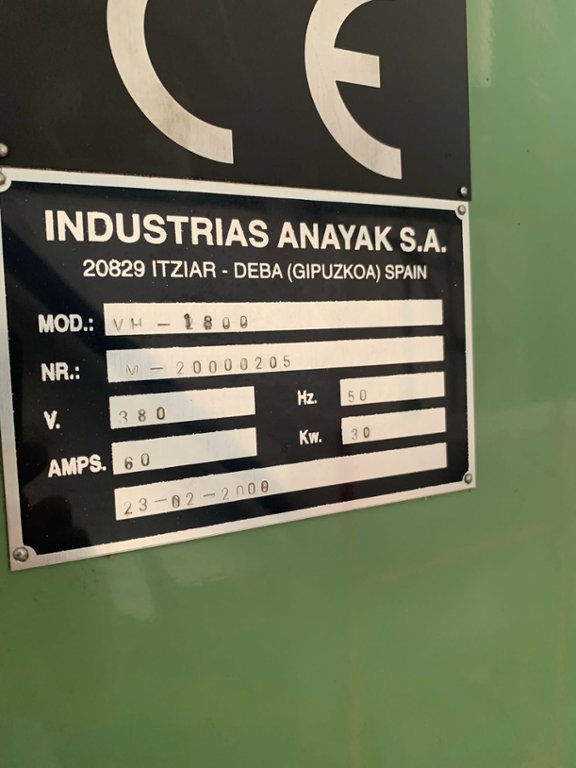

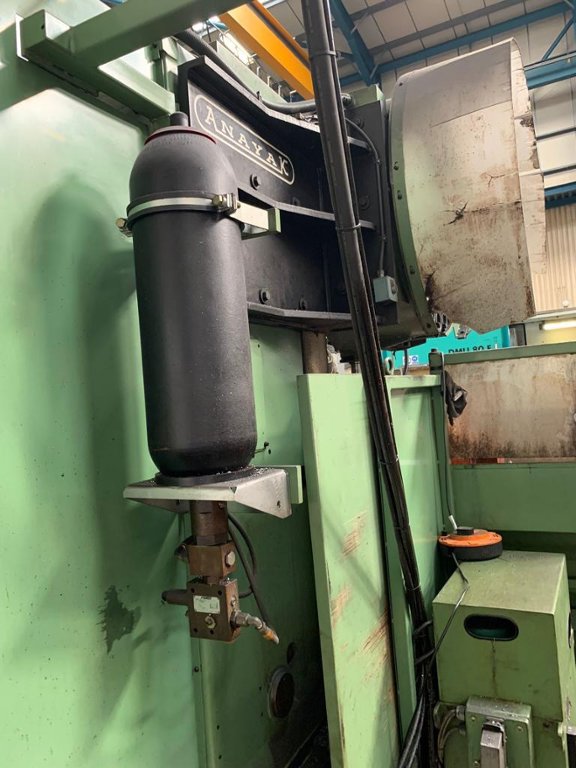

Anayak VH-1800 Milling Machine

Lot 2 - Anayak VH-1800 Milling Machine

Description:

TABLE

Table Surface - 100 x 700mm

Nr & width of T slots - 5-18mm

Distance between T slots - 120mm

Admissible weight on table - 2000kg

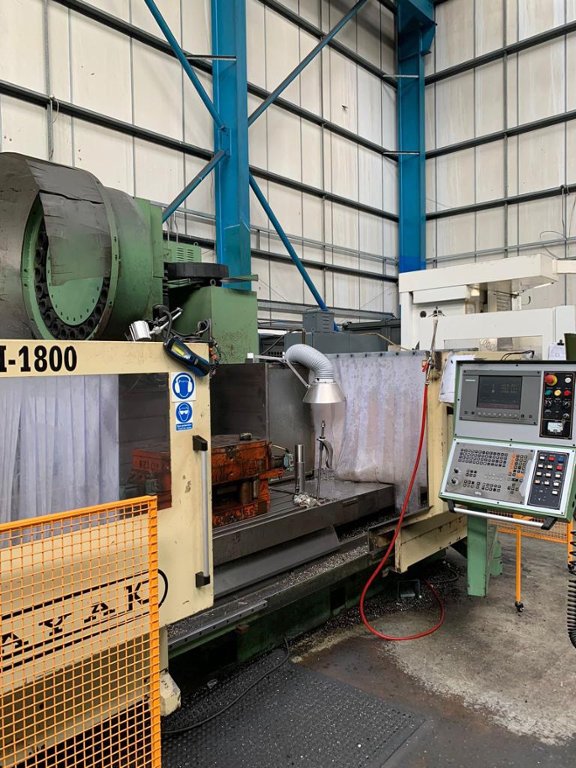

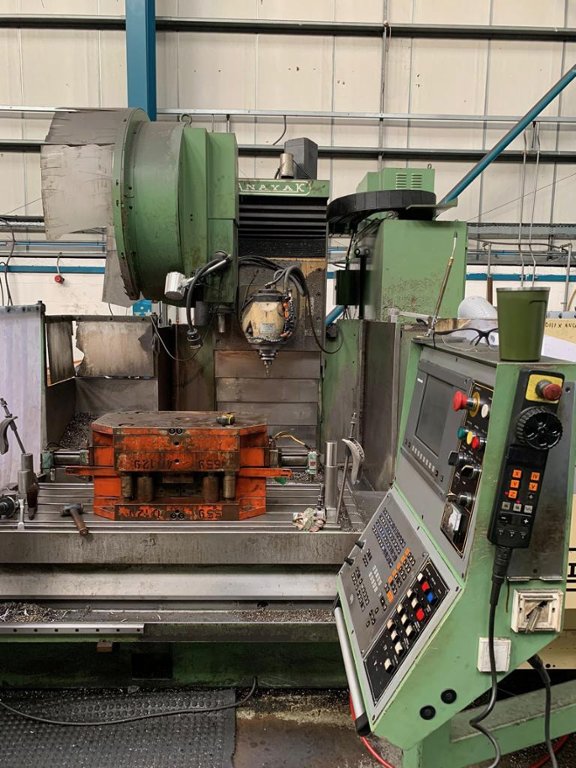

Heidenhain 426 Control

TRAVELS

X Longitudinal - 1600mm

Y Cross - 920mm1)

Z Vertical - 900mm2)

1) 2) These values correspond to the machine working capacities, they can slightly vary (always increasing) depending on the type of head. See the capacity drawing at the end of this chapter.

SPINDLE TAPER

Spindle Taper - ISO 50

Tool-holder Taper - DIN 69871-B

Pull Stud - ISO 7388/2A

Tool Clamping - Mechanical

Tool Unclamping - Hydraulic

Tool Blocking Power (daN) - 1750

PNEUMATIC GROUP

Inlet Pressure - 6 bar

Consumption - 240 L/min

OUTSIDE COOLING LIQUID GROUP

Power - 0.57 kW

Flow - 20 L/min

Pressure - 1 bar

Tank capacity - 150 L

INSIDE COOLING LIQUID GROUP

Power - 2.2 kW

Flow - 30 L/min

Pressure - 5.5 bar

AUTOMATIC LUBRICATION PUMP

Components to be lubricated - Slideways, Nuts & Ballscrew supports

Power - 70 W

Flow - 0.2 L/min

Working pressure - 20 bar

Decompression - 1.5 bar

Safety Valve - 25 bar

Tank Capacity - 3 L

Lubricating System - Single line -Lost oil

Dosing System - Direct action dosers

Lubricating Frequency - 30 min

Lubricating Time - 1.5 min

Control Systems - Pressure gauge, Oil minimum level, Working pressure, Operating cycle

HEAD AUTOMATIC LUBRICATION GROUP

Components to be lubricated - Head gears

Power - 70 W

Flow - 0.2 L/min

Working pressure - 20 bar

Decompression - 1.5 bar

Safety Valve - 25 bar

Tank Capacity - 2.7 L

Lubricating System - Single line -Lost oil, Single line -Oil recovery

Dosing System - Direct action dosers

Lubricating Frequency - 20 min

Lubricating Time - 1.5 min

Control Systems - Pressure gauge, Oil minimum level, Working pressure, Operating cycle

ACCURACY (in 1000mm)

Positioning - ±0.0014 mm

Repeatibility - ±0.008 mm
