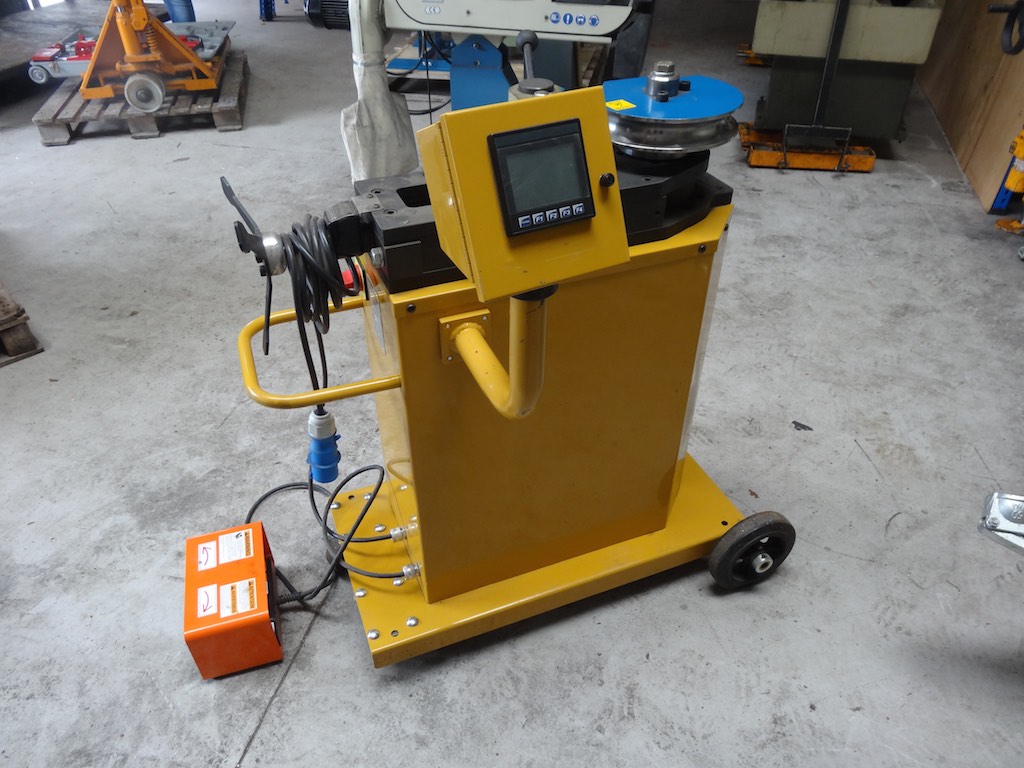

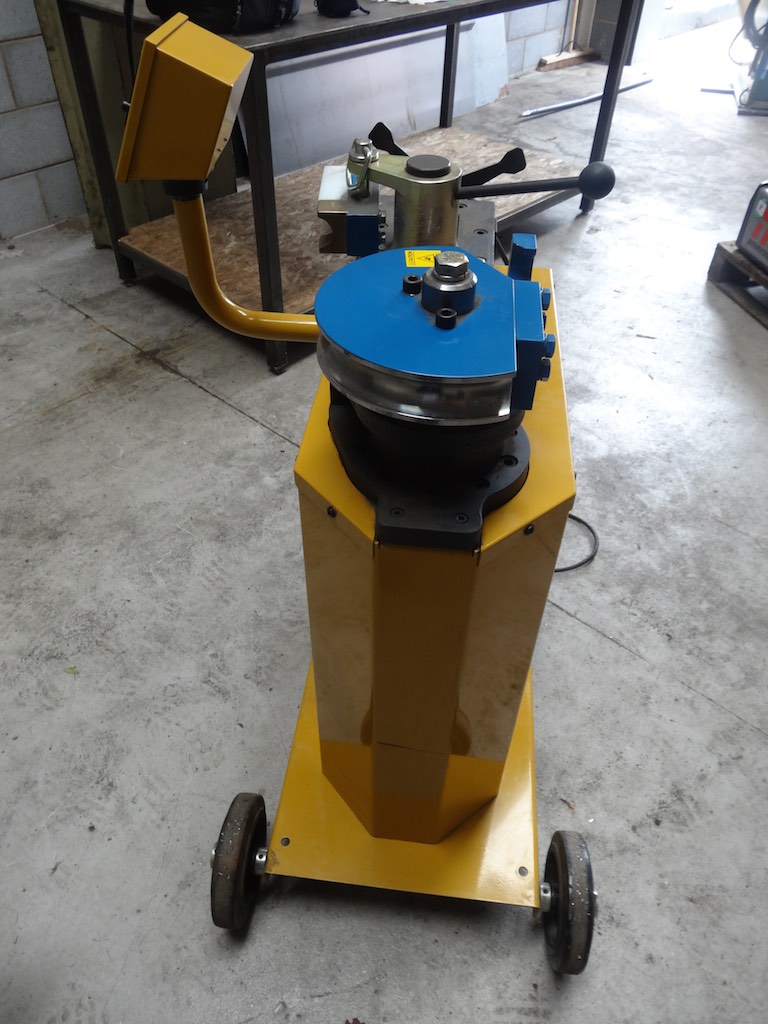

Lot 51 - Baileigh Pipe Bender (2012) Single Phase

Description:

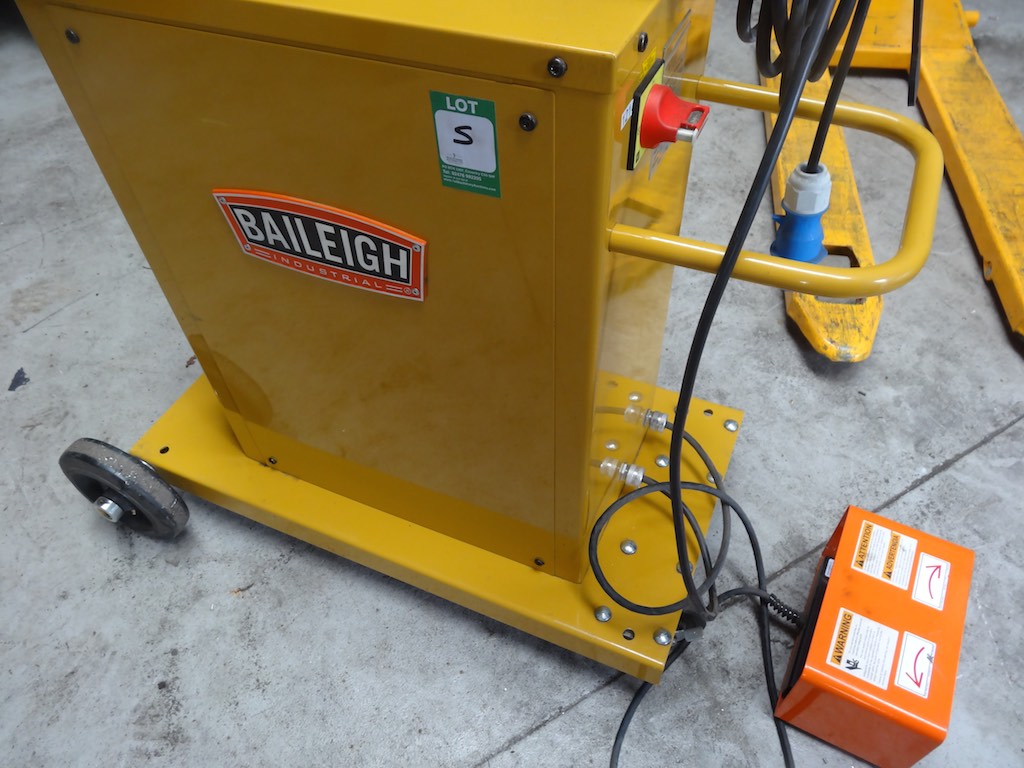

Baileigh Pipe Bender

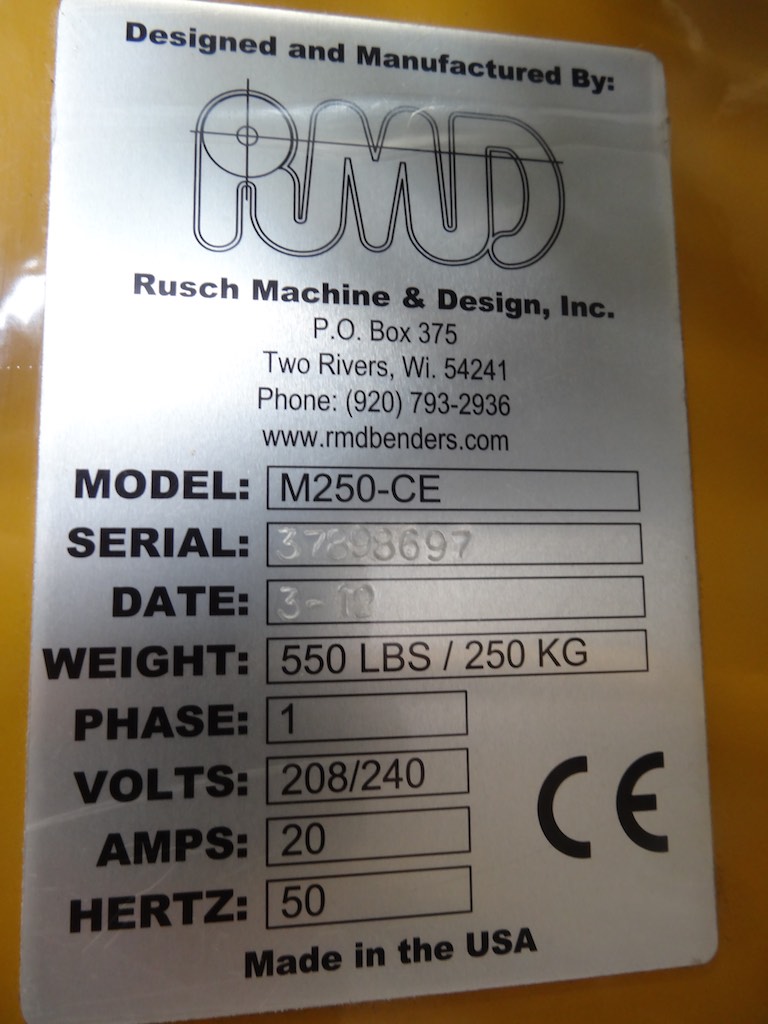

S/n: 37898697
Model: RDB250
Date: Installed New Aug 2012

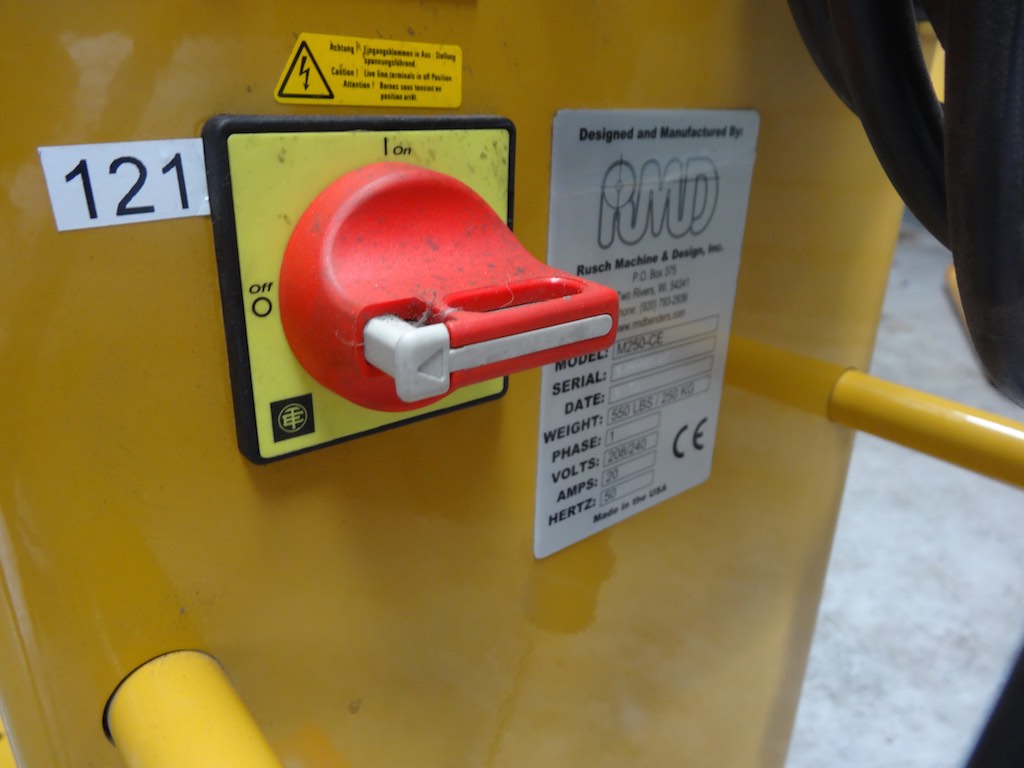

Powered by 220 volts, 50hz, single phase power,
Bends up to 62mm tubing (2.5") and 2" schedule 40 pipe (60mm x 4mm)
Bend to 180° in just 9 seconds
Bend up to 360° both left and right

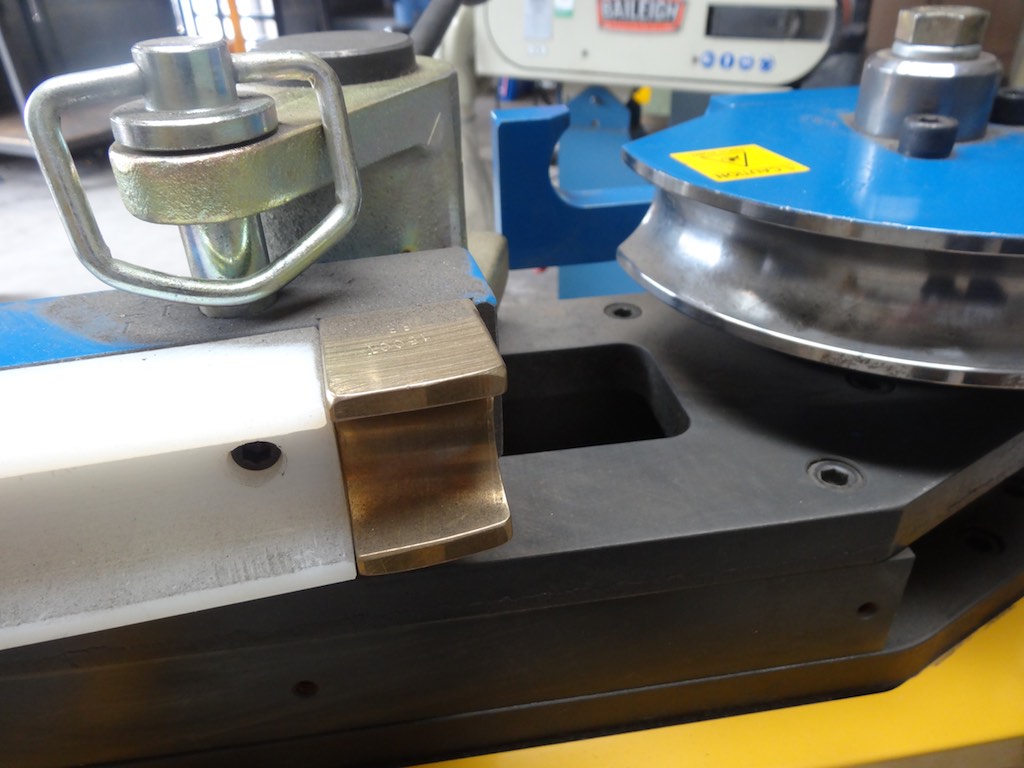

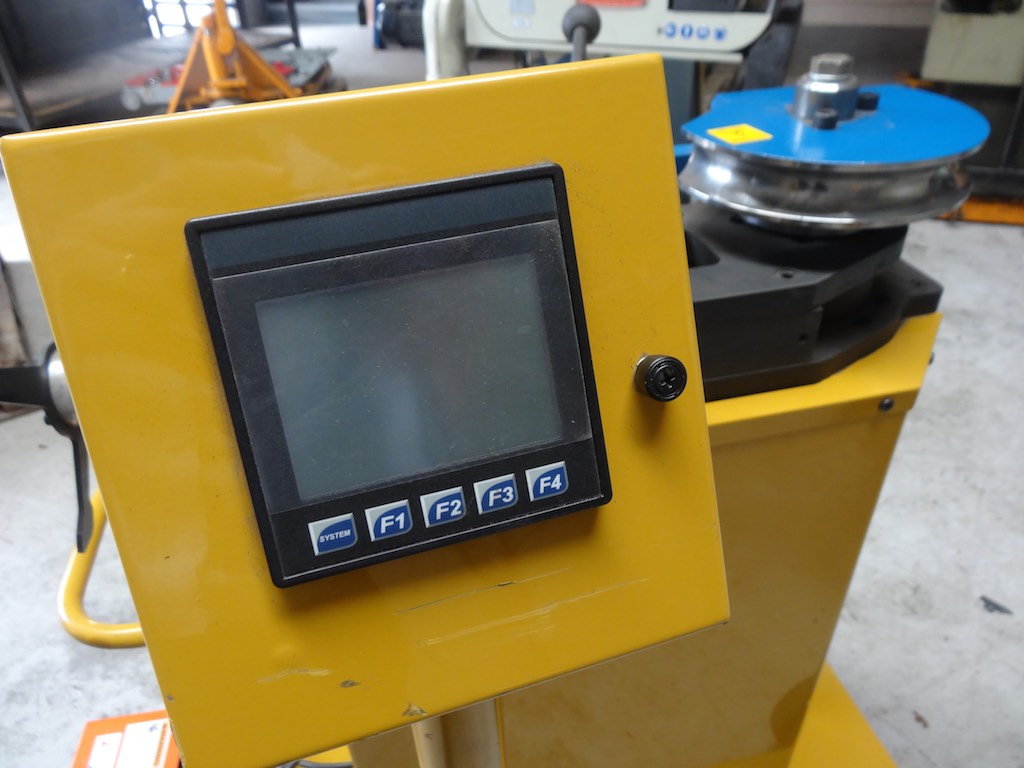

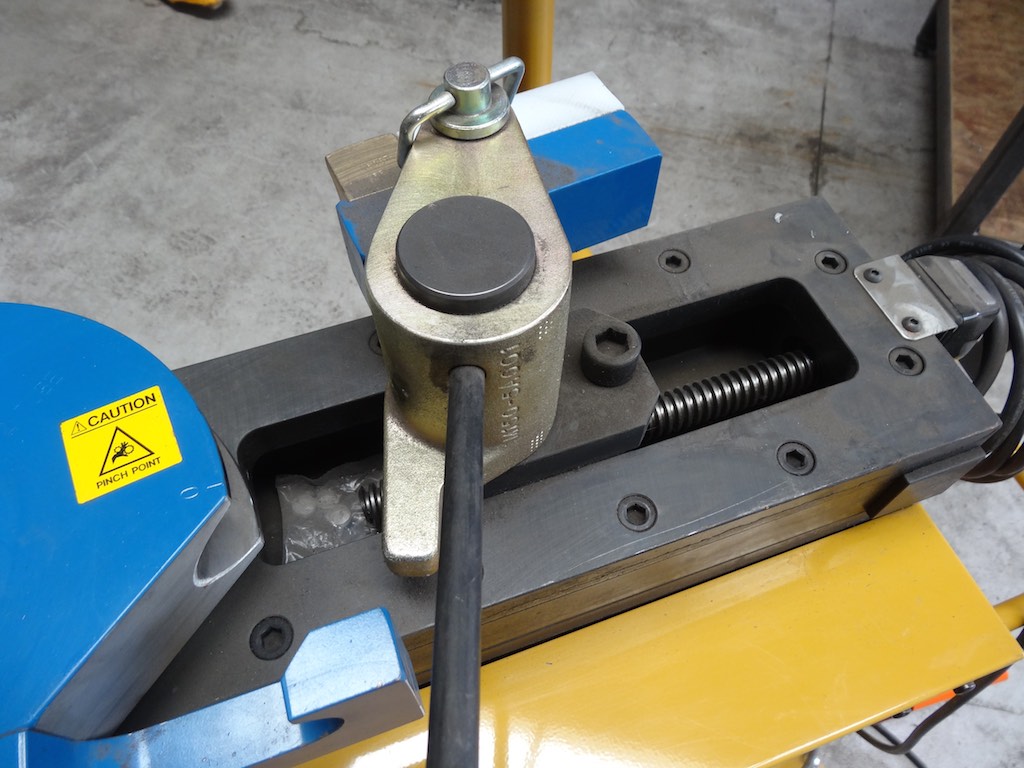

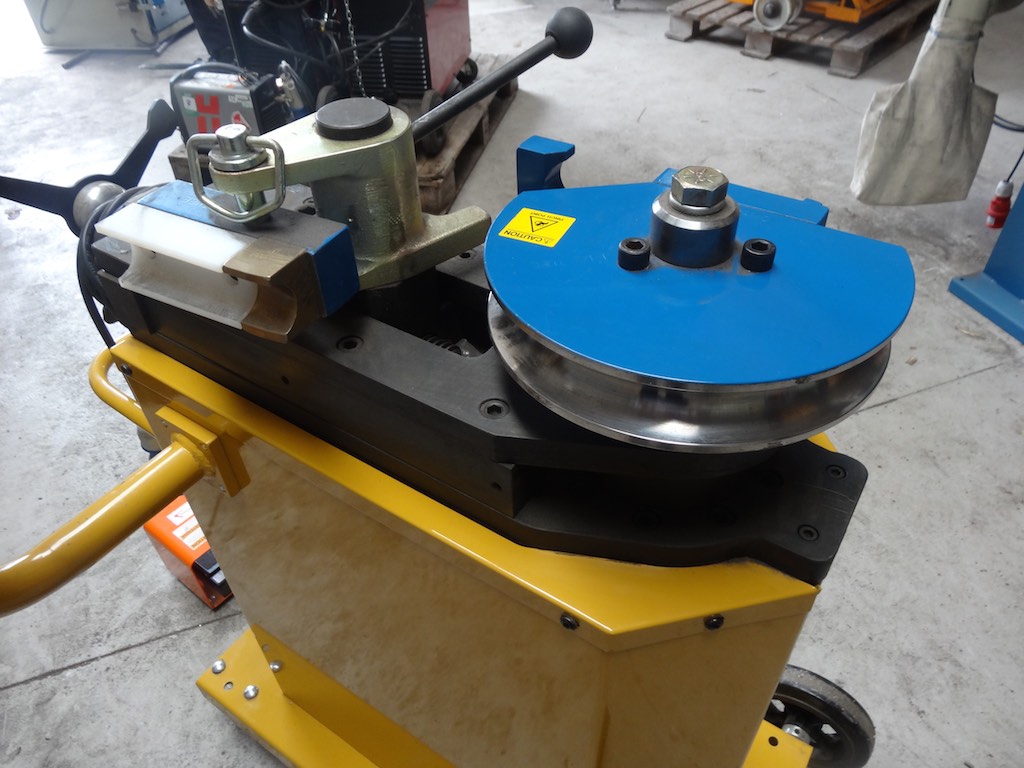

The RDB-250 makes quick work of complex serpentine bends due to its unique quick release counter die, and easy to use touch screen controller.
Internal memory that can hold 170 programs with 10 bends per program.
It also accepts a memory card (standard 2GB SD card, max) for unlimited storage.

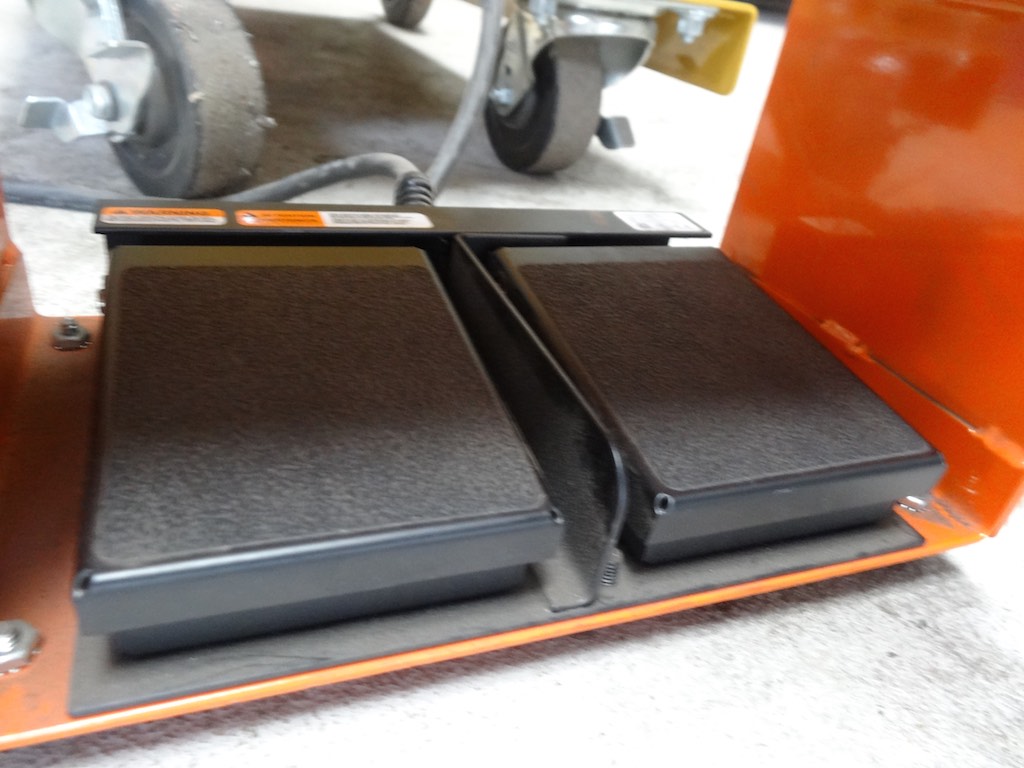

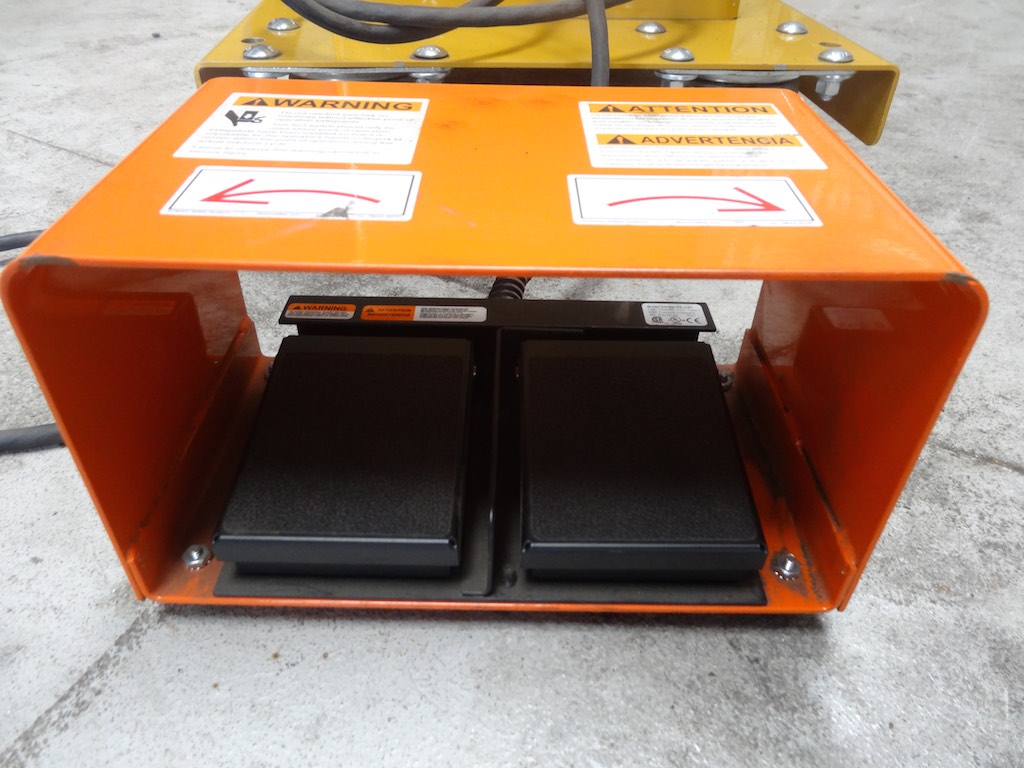

Foot pedal control for even more versatility.
Accepts an index table
SPECIFICATIONS
Round Tube M.S: 63mm x 3mm
Square Tube: 51mm x 3mm
Round Tube S.S: 60mm x 3mm
Steel Rod: 32mm
Speed to 9 sec
Minimum CLR: 13 mm
Maximum CLR: 229mm
Minimum OD: 6.3mm

L x W x H: 1016 x 813 x 1092mm

Was Lot 5 from Signasure Auction

Location: Dudley, West Midlands

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
