Baty RX14 GXL-E Shadowgraph with DRO

Lot 16 - Baty RX14 GXL-E Shadowgraph with DRO

Description:

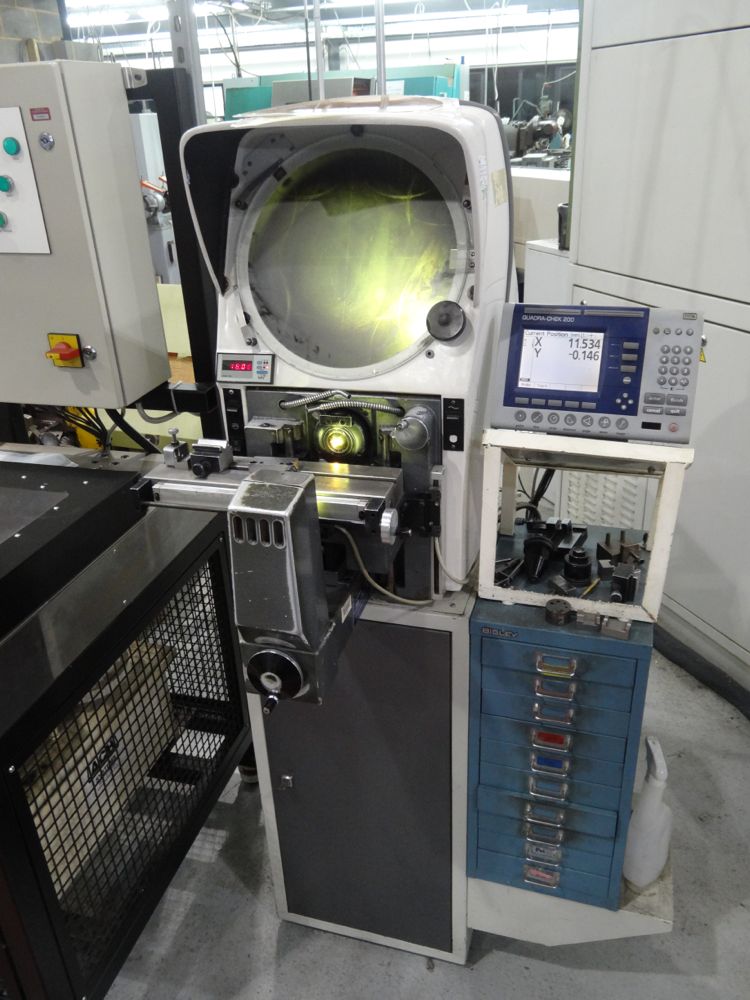

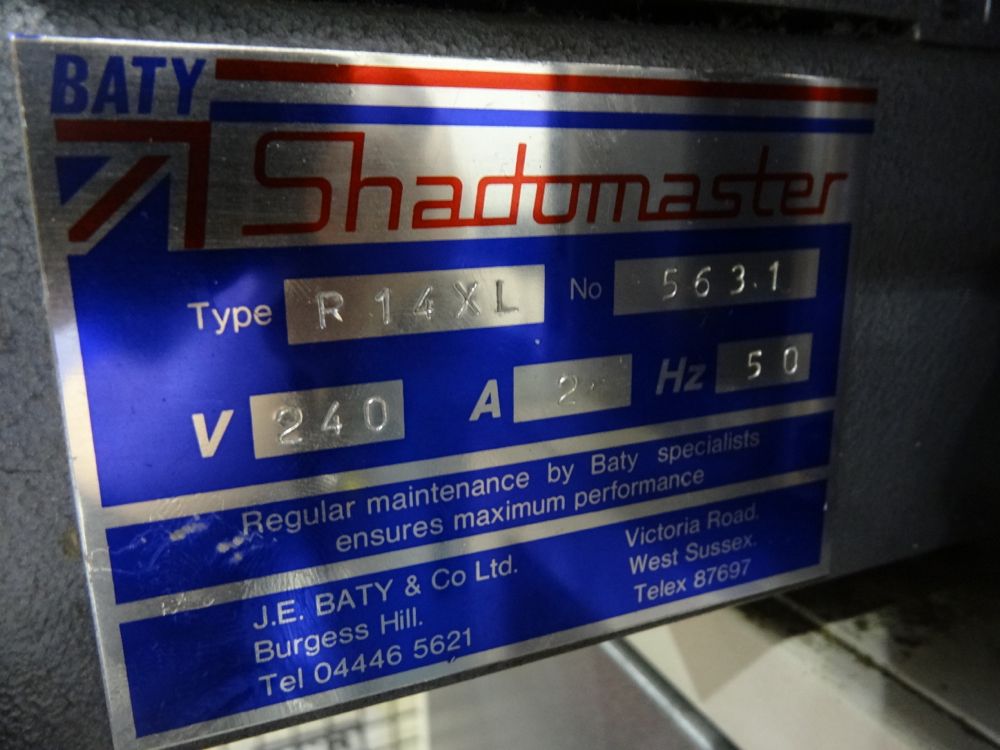

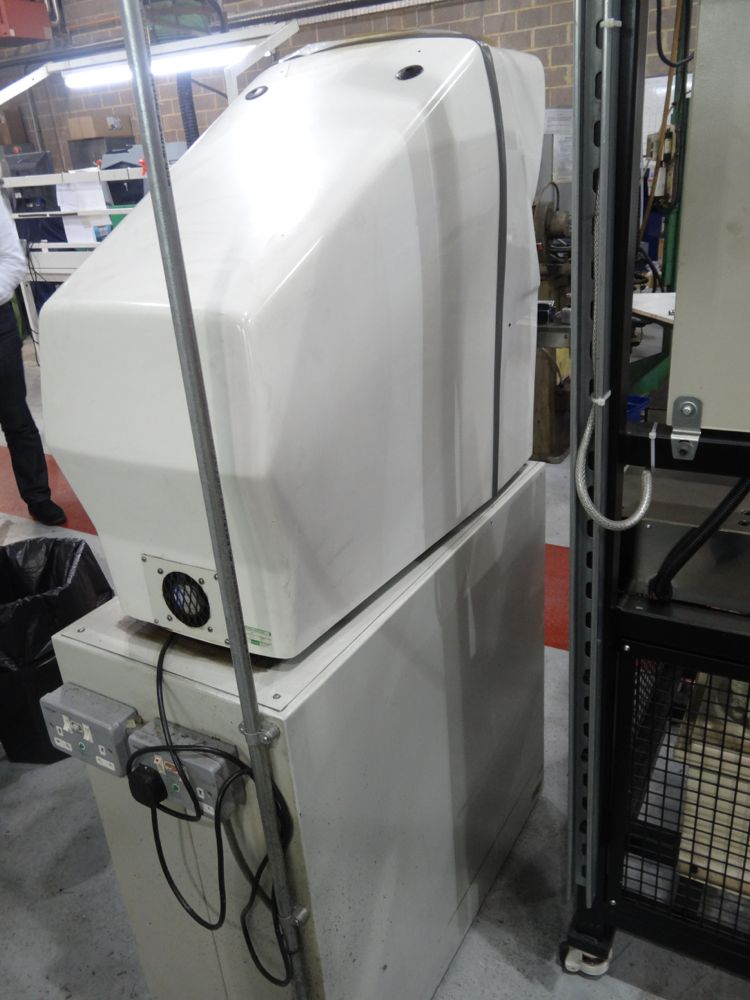

Baty RX14 GXL-E Shadowgraph

Sn. 5631

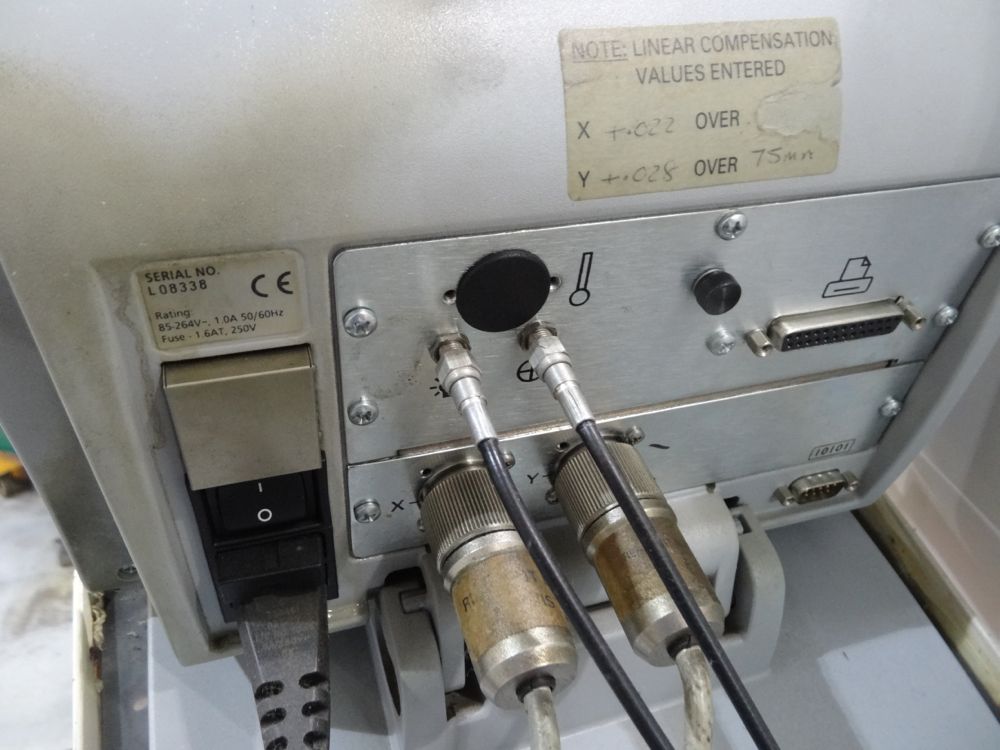

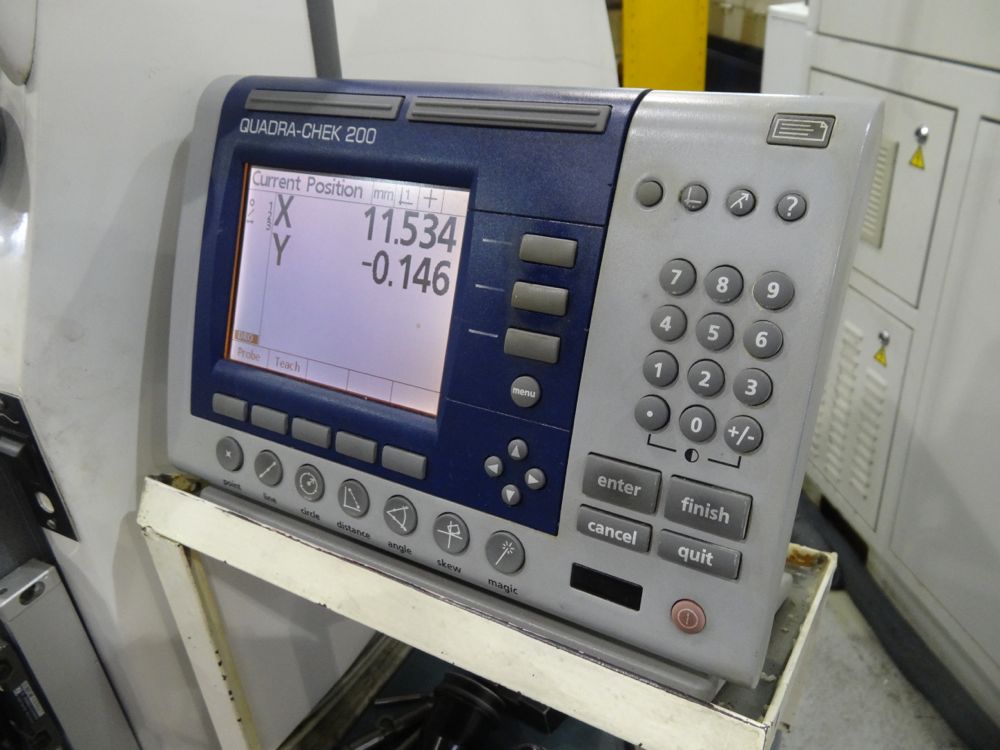

Quadra-Chek 200 2 Axis Digital Read Out

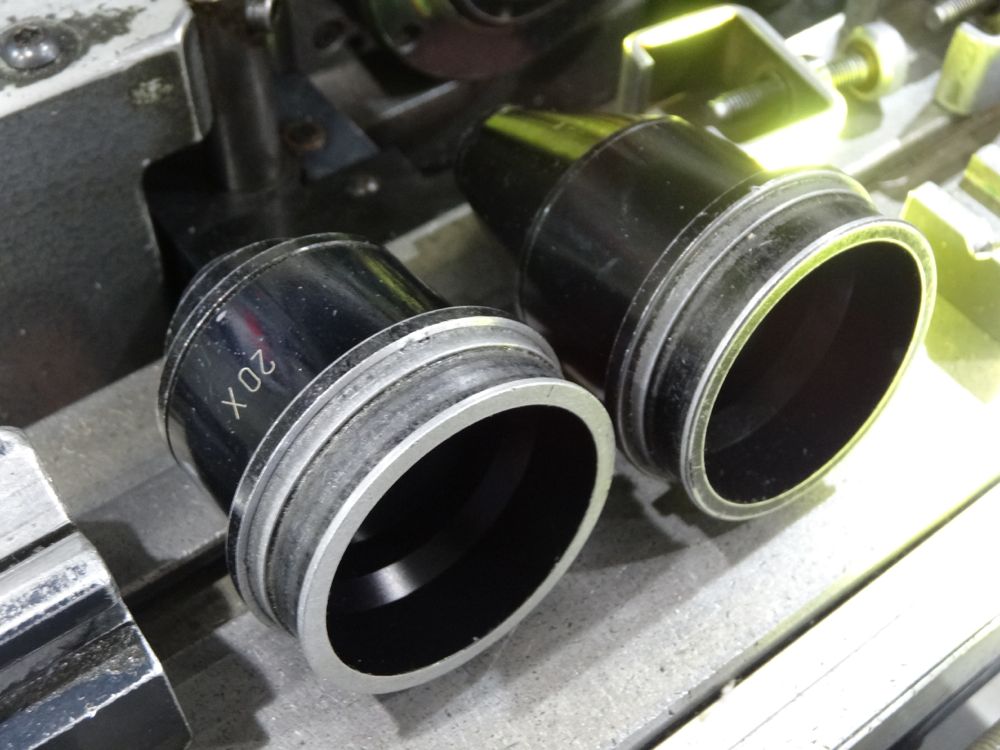

10x, 20x and 50x magnification lenses.

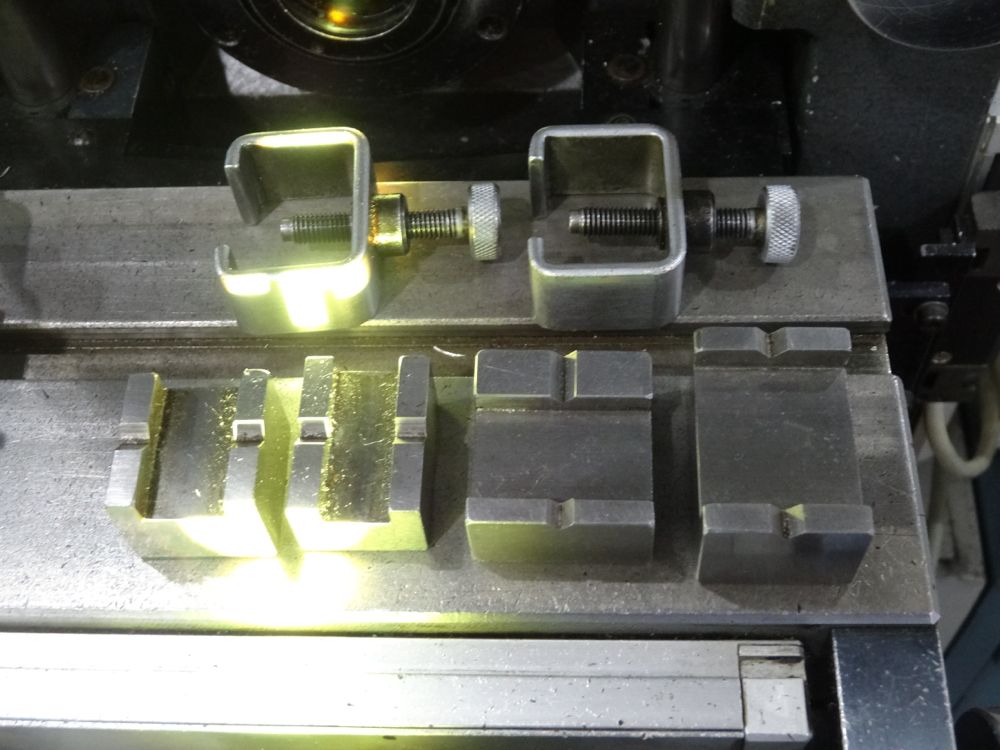

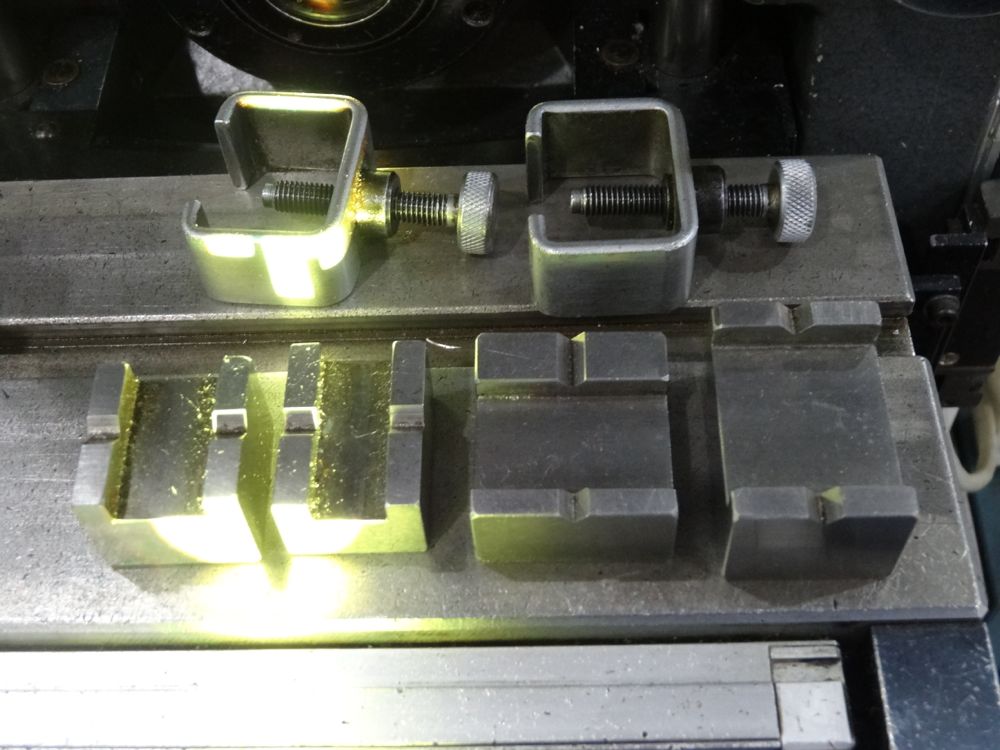

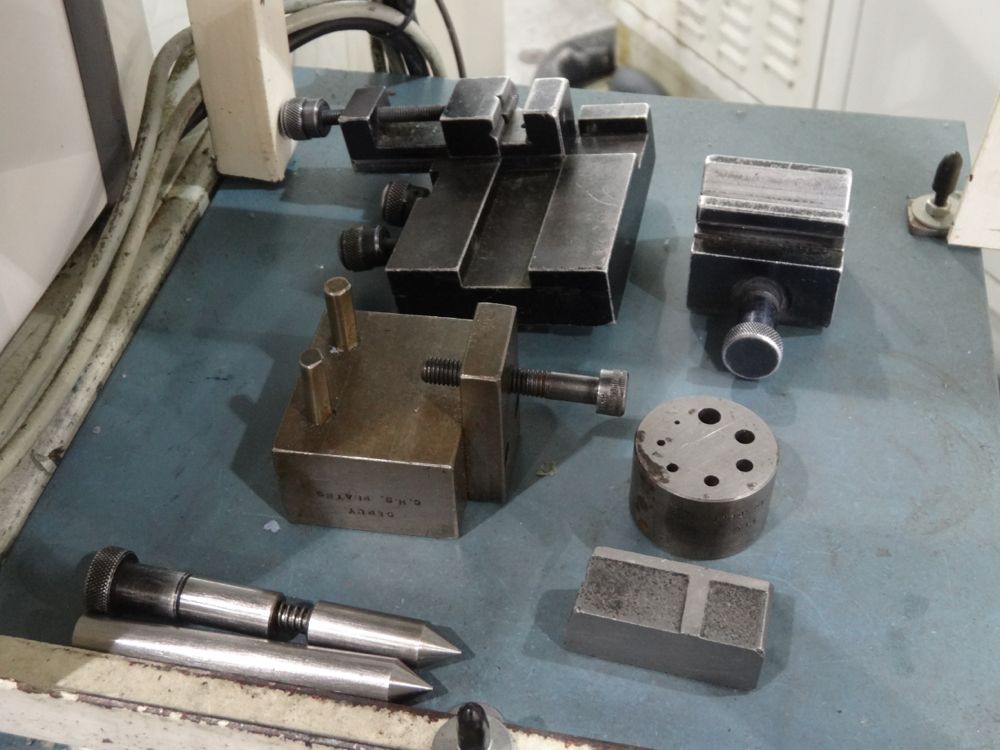

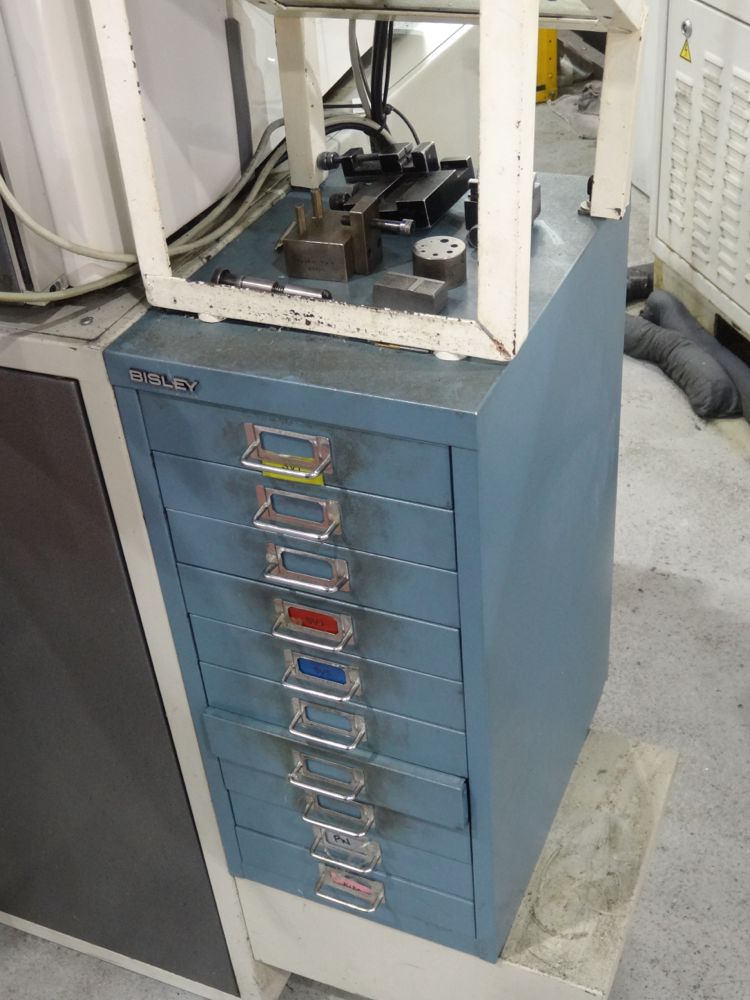

Selection of Clamps and blocks.

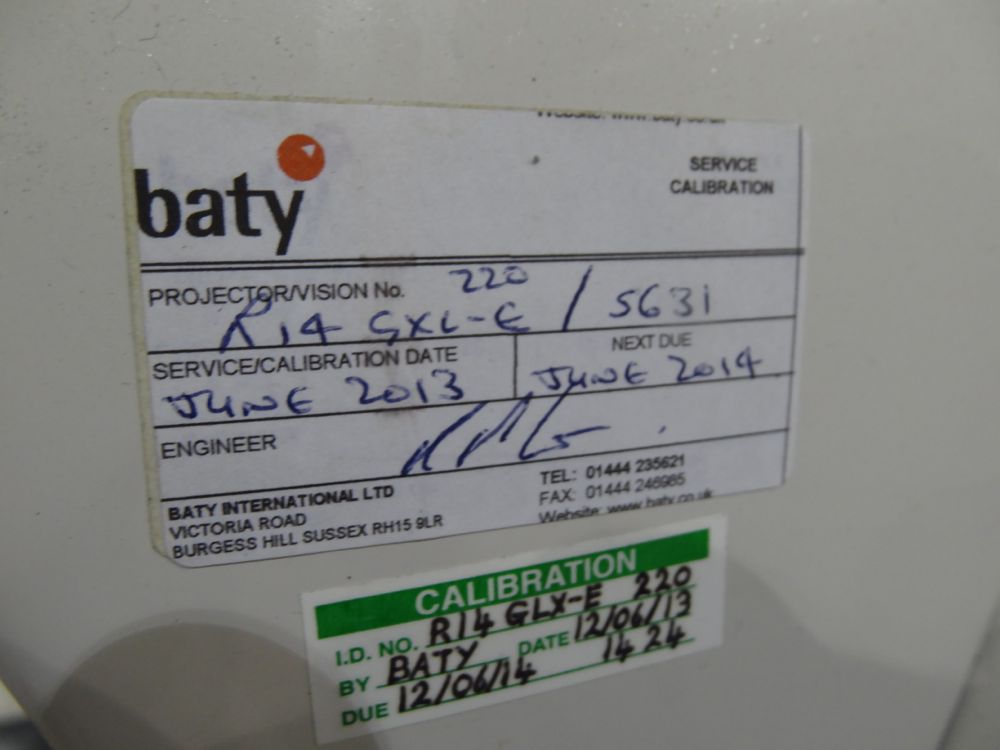

Calibrated June 2013 Next Calibration June 2014

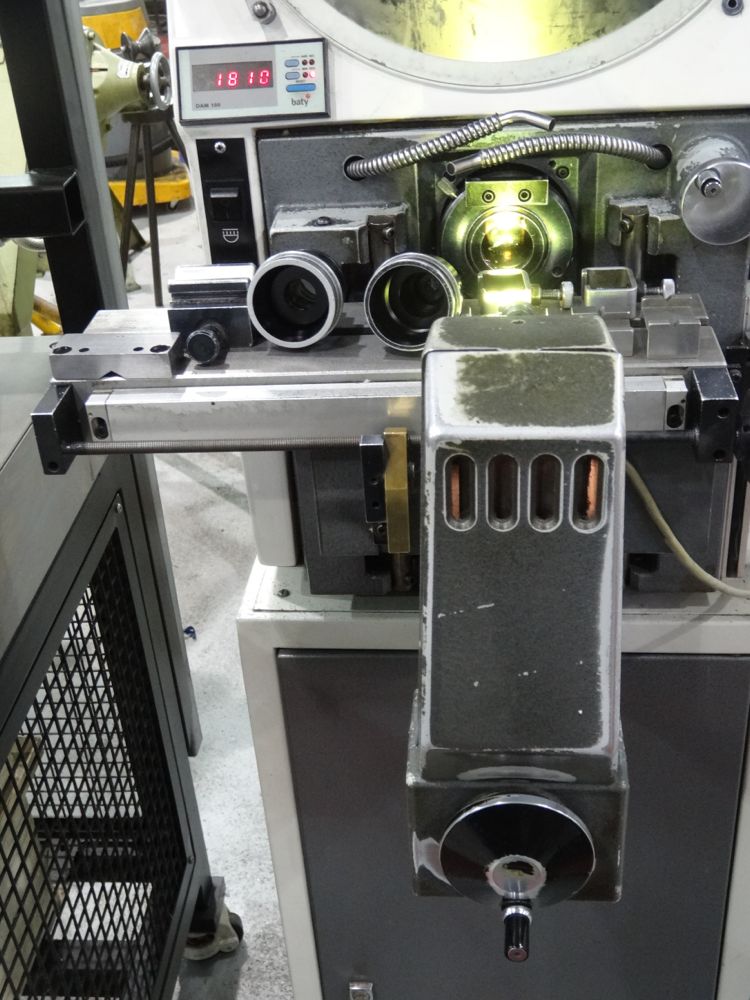

The Baty R14 bench mount profile projector with its 340mm screen combines high accuracy non-contact measurement and inspection with a large 175mm x 100mm measuring range.

The horizontal light path configuration is ideally suited to machined parts that can be secured to the workstage using a range of optional accessories from the Baty fixture family. The compact and robust lightweight chassis makes the R14 ideal for workshop environments.

Measuring options
XLS: A simple 2 axis digital readout for X&Y measurement
GXL: Incorporates geometric functions for skew alignment, angle radii measurement, pitch circle diameter and construction of intersect points etc
GXL-E: As GXL with screen mounted automatic profile edge sensor. As an option the sensor can be fitted internally Features

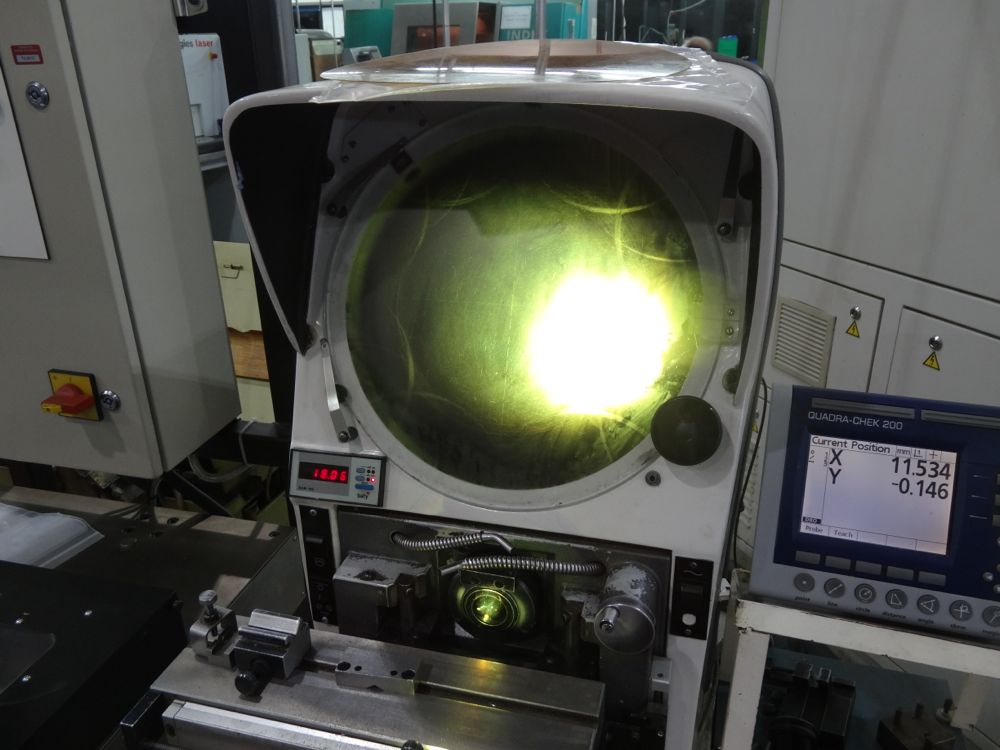

340mm (14") screen with 90° crosslines and chart clips
Profile illumination with halogen lamp and green filter
Lens magnification choice: x10, x20,x25, x50 and x100
Surface illumination (fibre optic)
Helix adjustment of light source ± 7° for accurate thread form projection

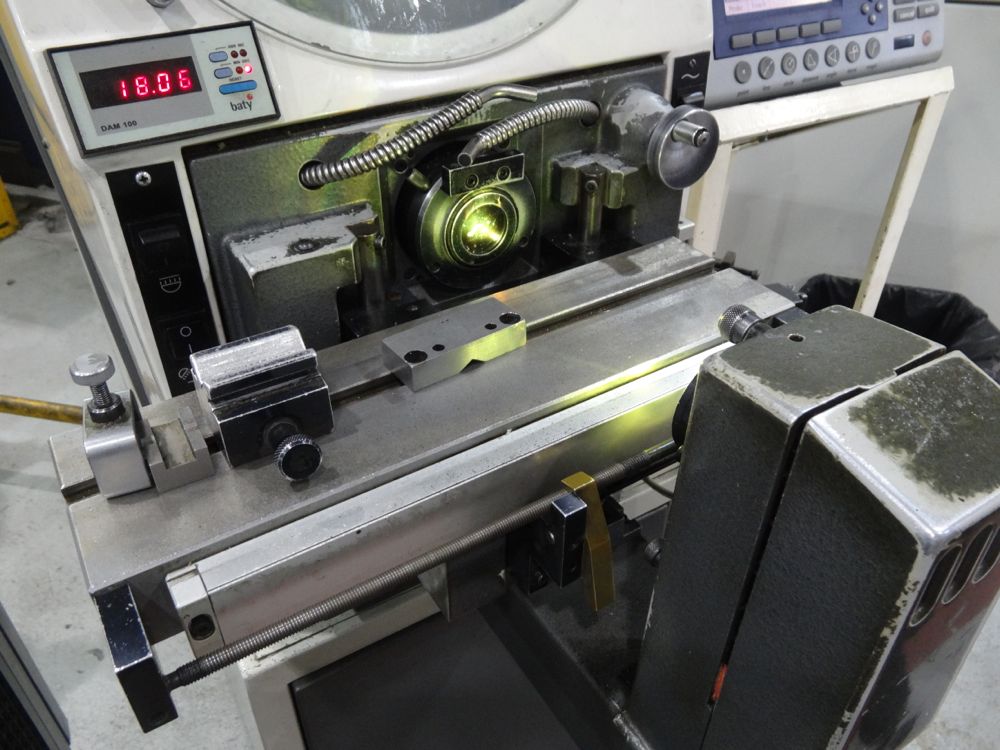

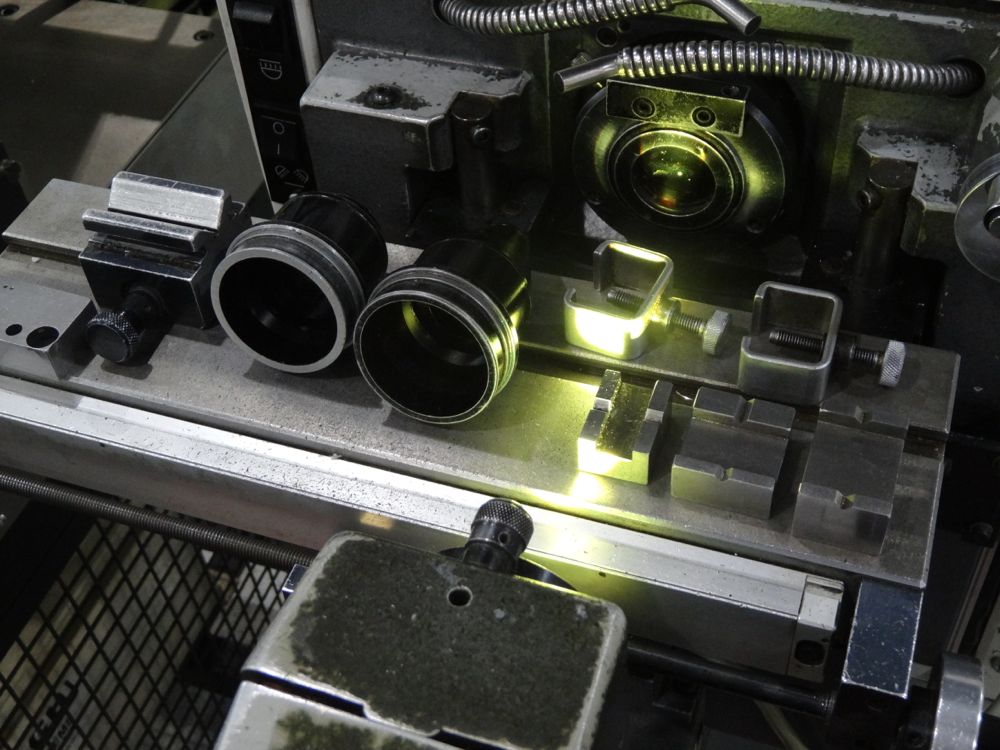

Workstage with machined slot for holding accessories
Workstage measuring range of 175mm (7") x 100mm (4")

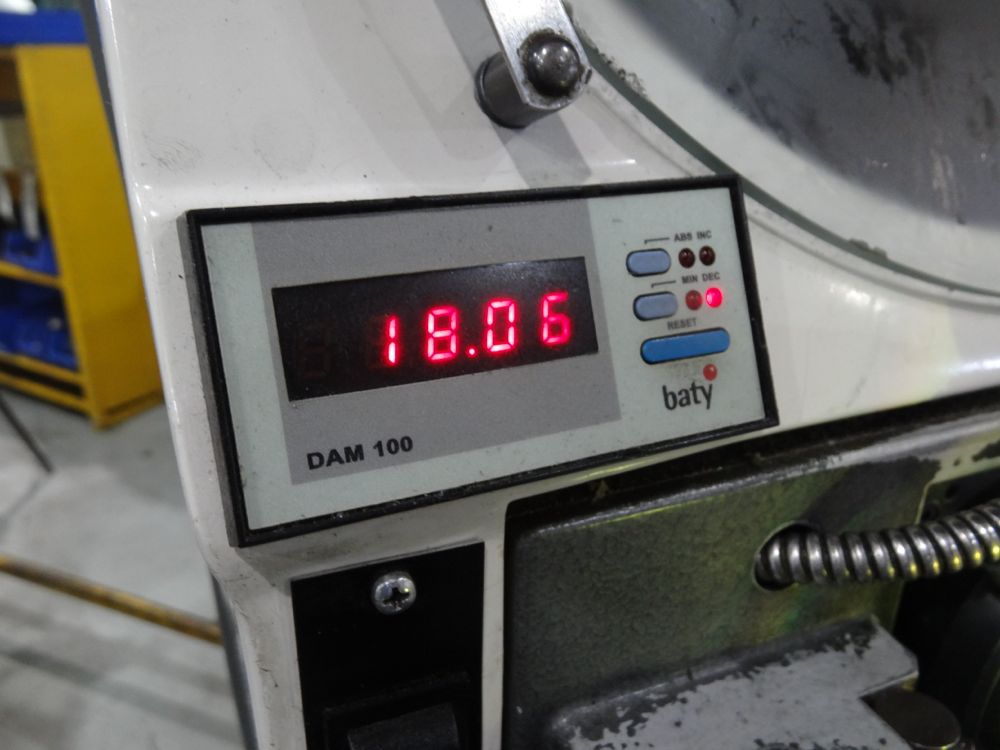

Digital angle measurement to 1 minute
Optional features

Internally fitted automatic edge sensor
Swing over lamphouse to allow clear access to the workstage
Various electronic measuring systems to suit individual requirements

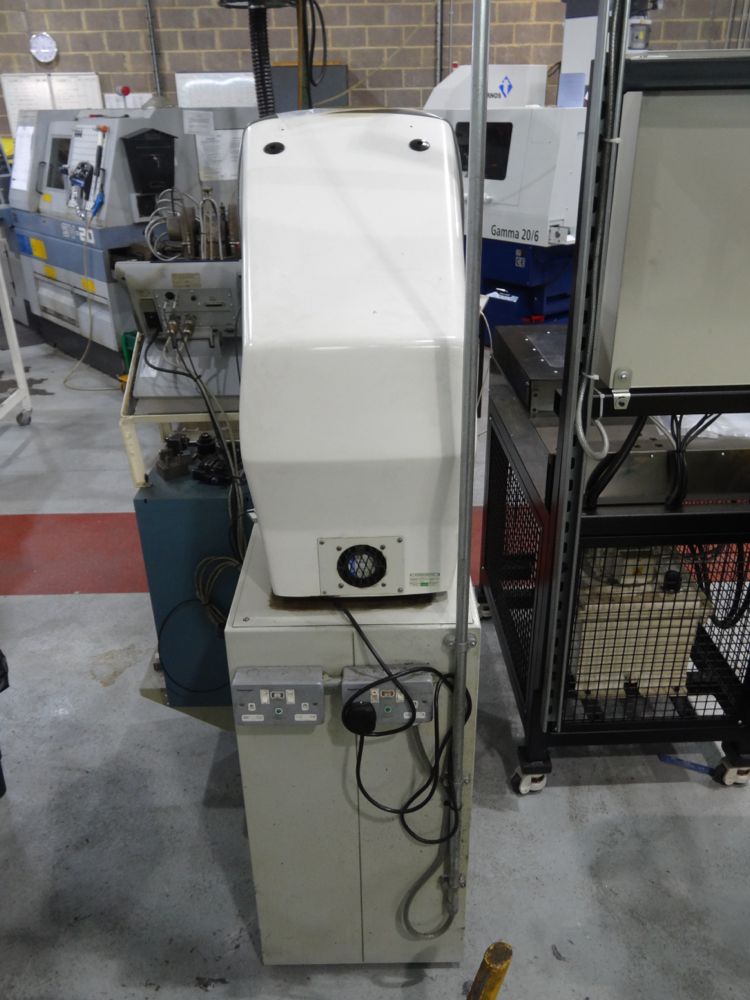

Cabinet stand ensures a solid base and provides storage
Other options include foot switch control and printer
Basic Machine
Type: Bench standing with horizontal light path
Screen: Rotating 340mm diameter, inclined 75° to horizontal, with hood
Image: Inverted and reversed
Power supply: 220 / 240 volt 50Hz or 110 volt 60Hz
Weight: 60kg (132lb)

The basic R14 model consists of

340mm diameter translucent screen with chart clips
Digital angle measurement, with 1 minute of arc resolution
Profile illumination with fan cooled lamphouse
Surface illumination
Focussing single lens mount
x10 magnification lens
Collimation lens
Helix adjustment
Machine slotted, chrome plated, cast iron workstage
Green filter
Workstage
Measuring range:

Horizontal (X) axis travel 175mm (7")
Vertical (Y) axis travel 100mm (4")

Surface area: 325mm (12.8") x 100 (4") with slot for mounting accessories
Scale resolution: 0.0005mm
Movement: Manual with fine screw adjustment, quick release on X axis
Optical System
Lens mount: Single, screw clamping
Lens magnification: x10, x20, x25, x50, x100,
Focussing: By hand wheel
Magnification accuracy: Profile 0.05%. Surface 0.1%
Helix adjustment: ± 7° by light source alignment
Light source:

Profile illumination 12v 100w lamp (tungsten halogen)
Surface illumination 12v 100w lamp (tungsten halogen)

Option: Internally mounted edge sensor

Location: London

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
