Lot 2 - Binns & Berry TB707 x 126 Gap Bed Centre Lathe

Description:

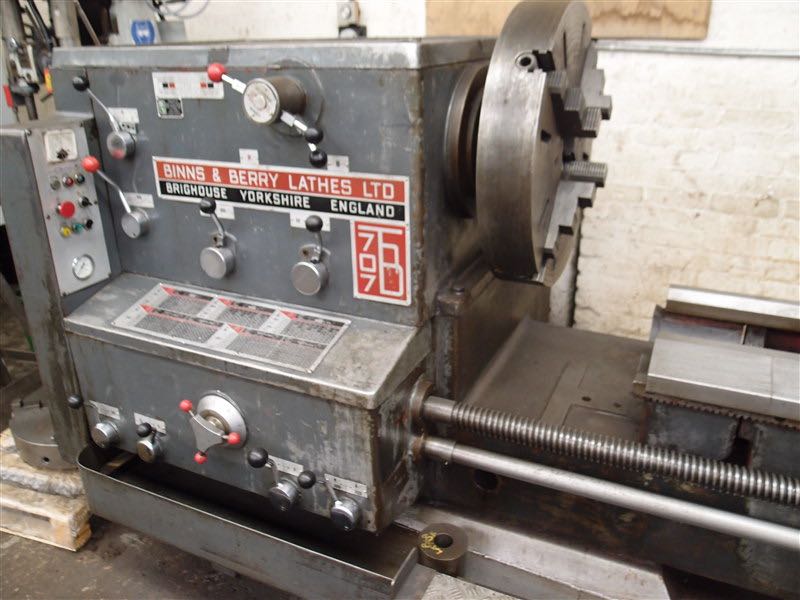

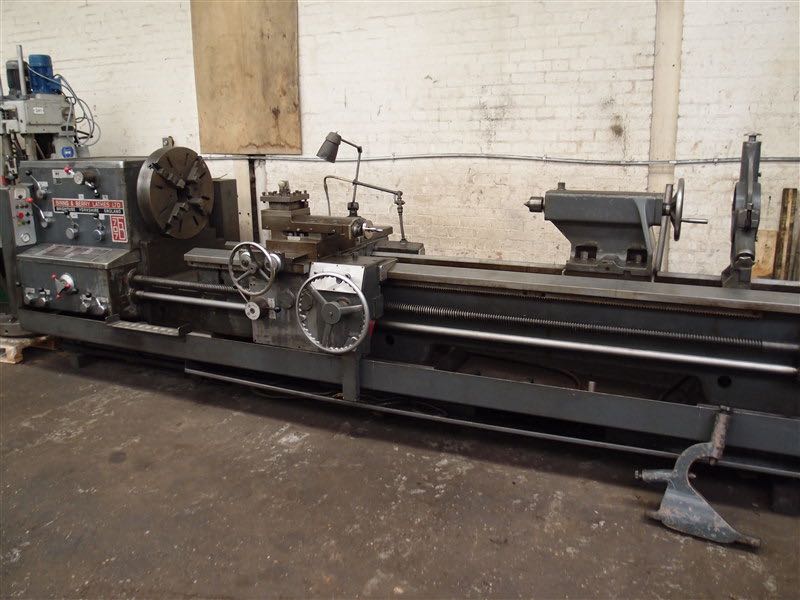

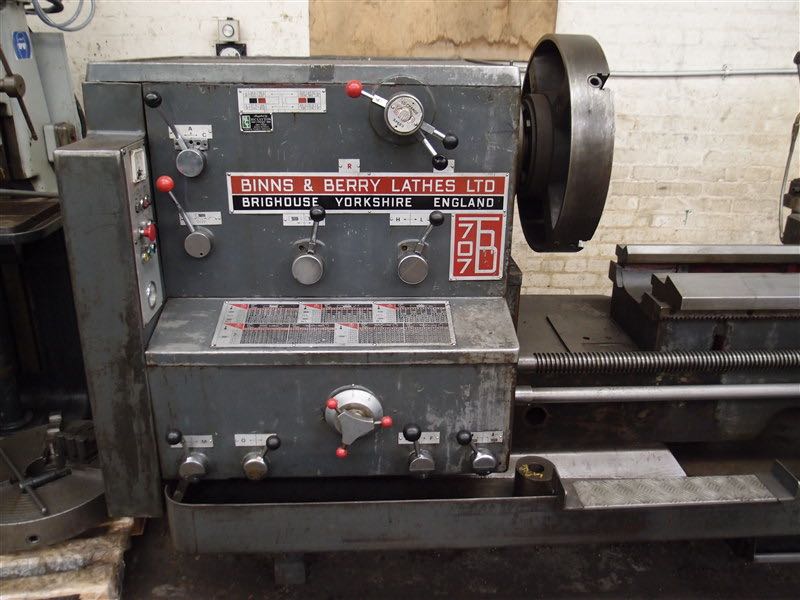

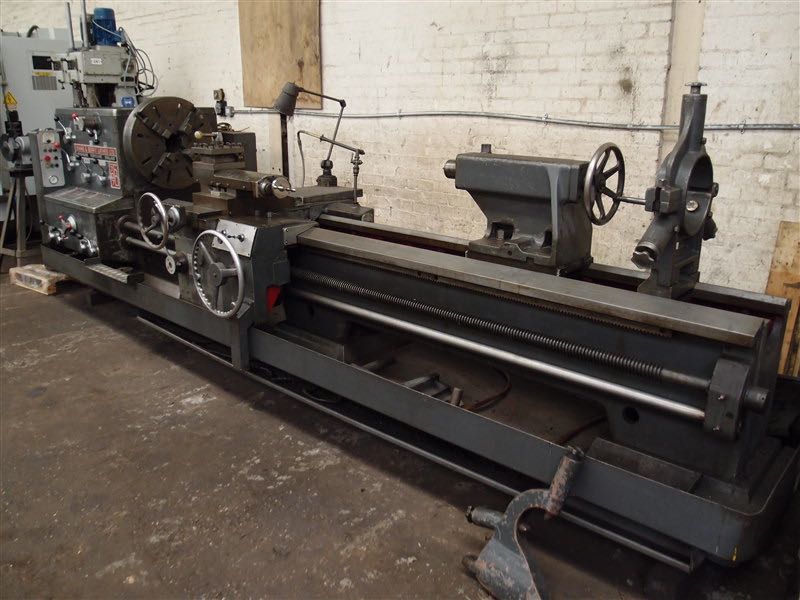

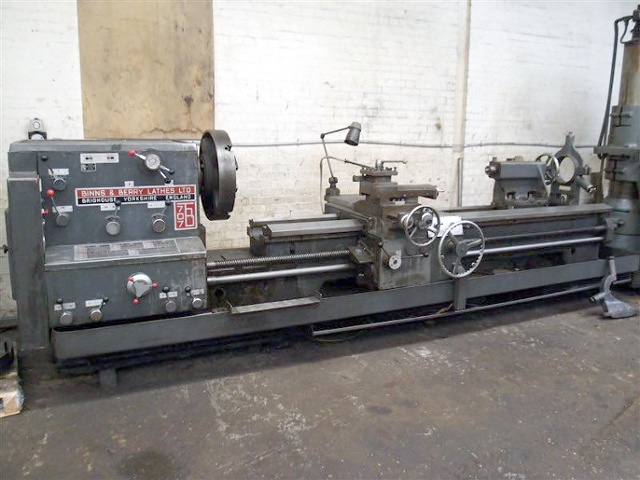

Binns & Berry TB707 x 126 Gap Bed Centre Lathe

Model TB707 x 126”
Serial number 20029
Year 1970

Distance between centres 126” 3200 mm
Swing over bed 27” 707 mm
Swing over saddle 19.5” 482 mm
Swing over cross-slide 17” 420 mm
Swing in gap 46” 1168 mm
Width of double gap in front of faceplate 18” 450 mm
Hole through spindle 4.125” 104 mm

Spindle speeds (16) 21.3 – 1078 rpm
Main motor 20 HP 15 kW

Longitudinal feeds per rev (70) 0.001 - 0.100 “ 0.026 – 2.54 mm
Cross feeds (70) 0.0005 – 0.050 “ 0.013-1.27 mm

Threads per inch (80) ½ - 112 tpi
Circular pitches (53) 1/32 - 3.5 “
Metric pitches (53) 0.5 - 56 mm

Height of centres 13.75”
Bed width 20”
Spindle nose 10”

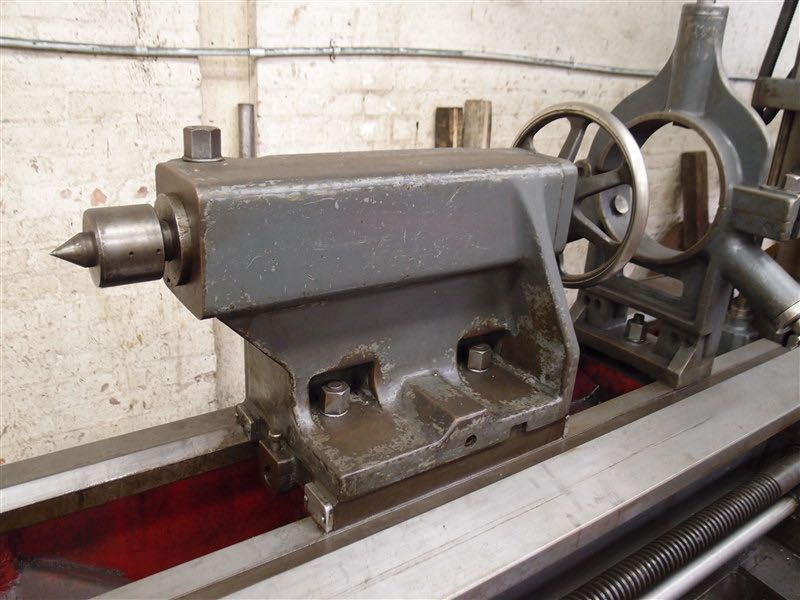

Taper of tailstock centre No. 5 Morse

Weight (approx.) 6.5 Tons

Machine complete with :-
Double gap
Rapid power traverse

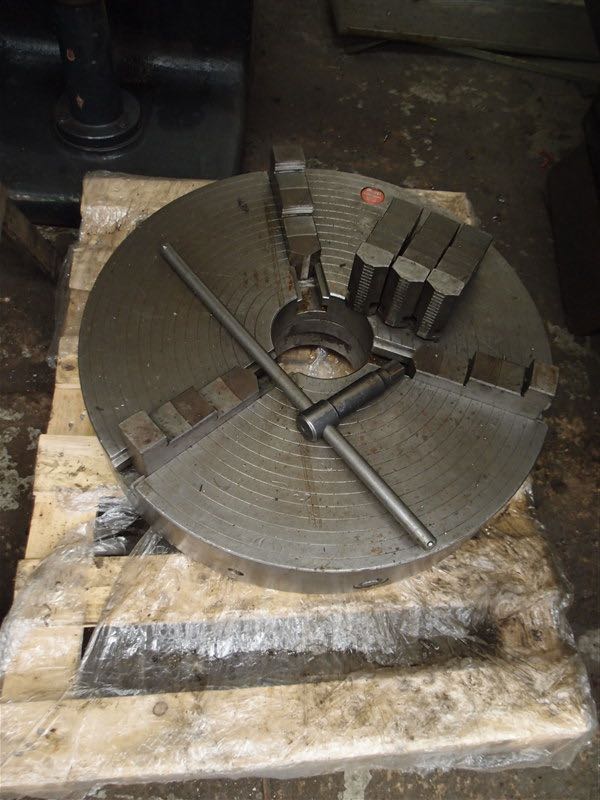

21” Pratt 3 jaw chuck

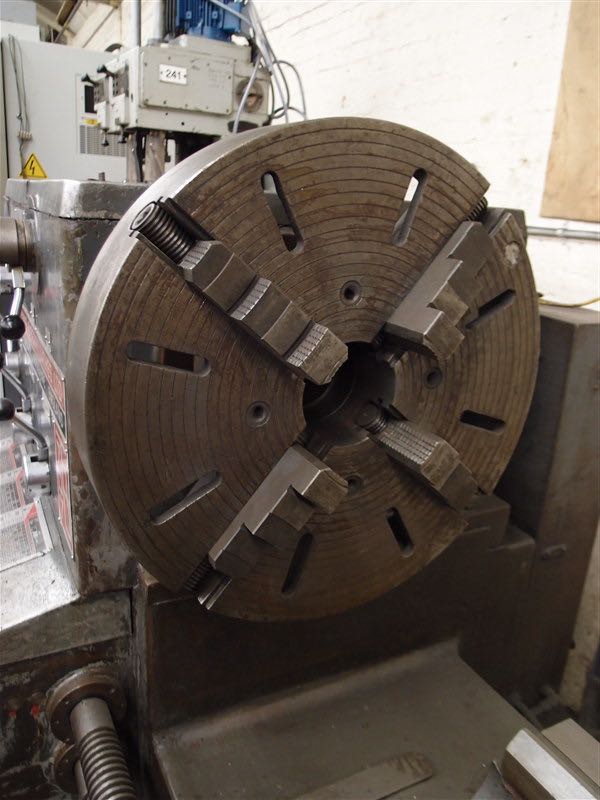

24” Pratt 4 jaw chuck

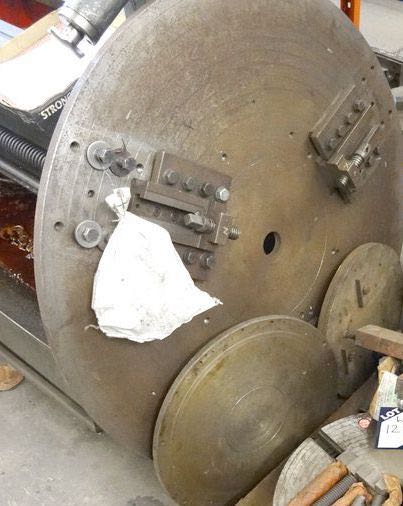

45” Faceplate with adjustable jaws
Catchplate

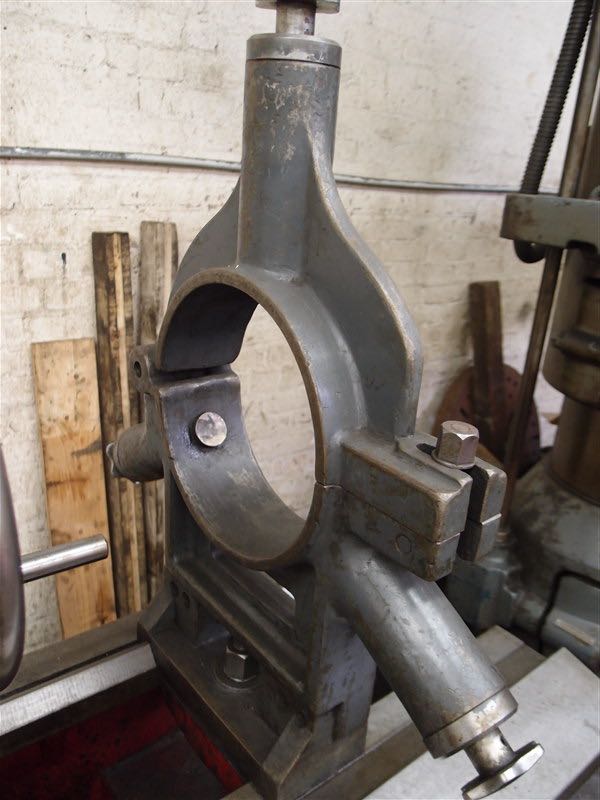

10” 3 point steady
Travelling steady

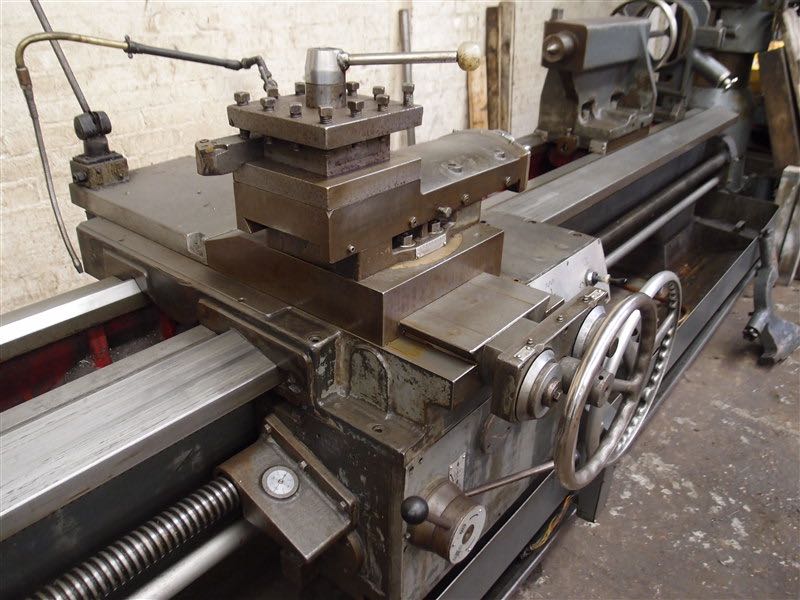

Square 4 way toolpost

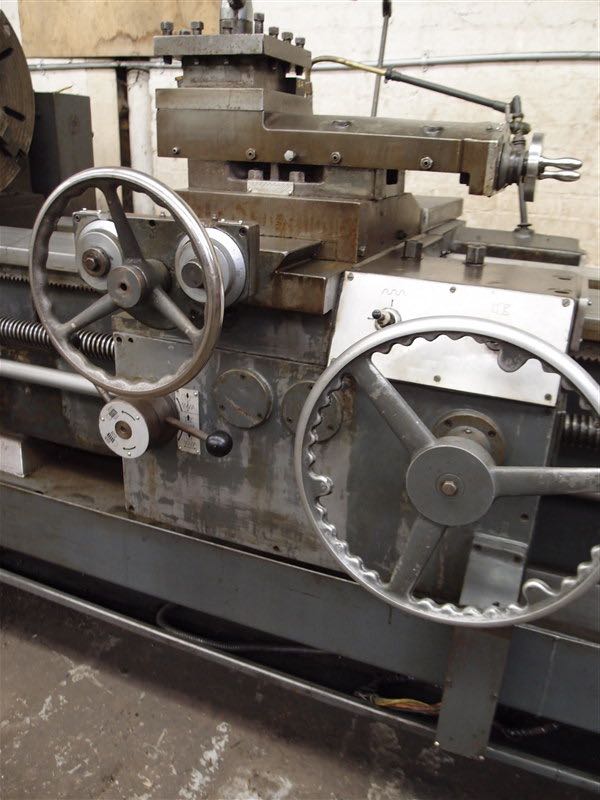

Dual dials
Coolant

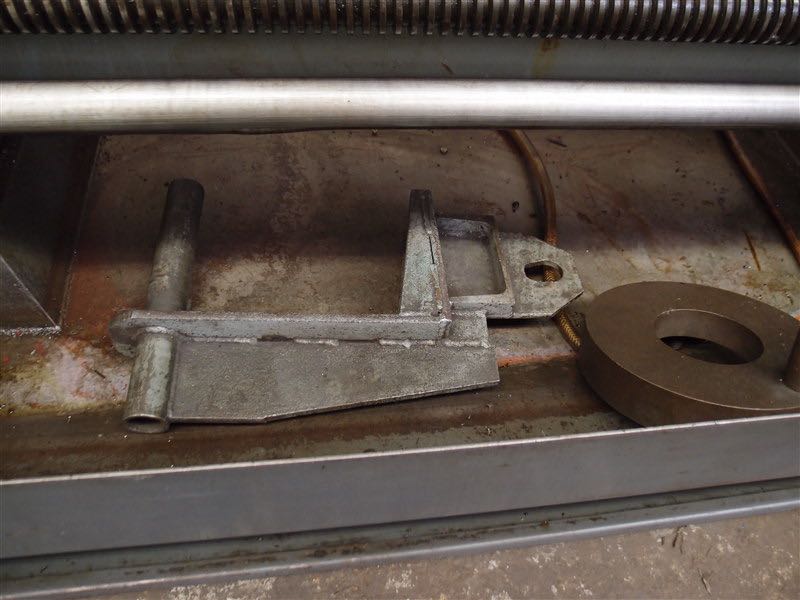

Chuck lifting bracket



Location: Solihull

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
