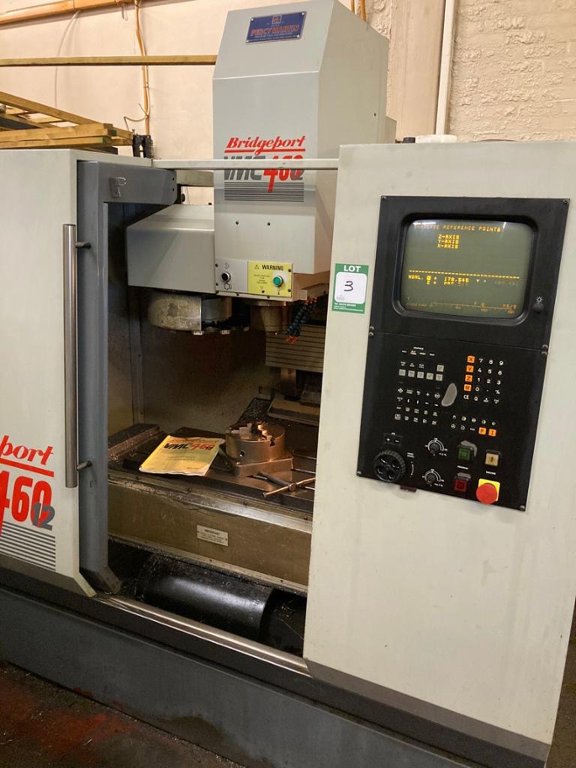

Lot 3 - Bridgeport 460/12 Vertical Machining Centre (1994)

Description:

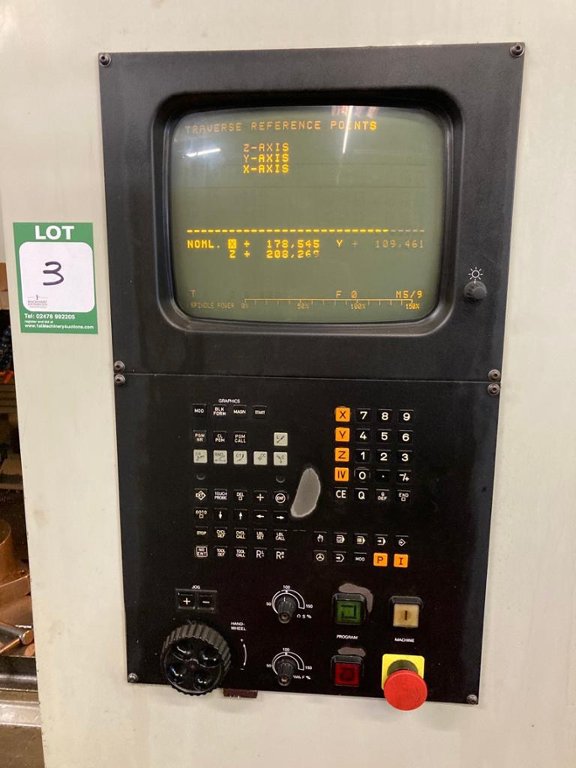

With Heidenhain Control

MAIN DRIVE
NUMBER OF SPINDLES: 1 SPINDLE SPEED RANGE: 6000 1/MIN
MOVEMENT
X-AXIS MOVEMENT: 490 MM Y-AXIS MOVEMENT: 340 MM Z-AXIS MOVEMENT: 480 MM
WORKPIECE
WORKPIECE DRM: 48 MM WORKPIECE WEIGHT: 500 KG
TABLE
OUTER LENGTH: 840 MM OUTER WIDTH: 360 MM
TOOLS
MAX WEIGHT: 7 KG MAX TOOL DIAMETER: 75 MM MAX TOOL LENGTH: 250 MM

Machines have been disconnected from the power but will need to be drained by the purchaser

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Recommended Transport

• Photos

Enlarge

Bid information

Location: Atherstone

Transport information

• Width: 2750mm
• Depth: 2100mm
• Height: 2500mm
• Weight: 2600kg
• Other Transport Details: Machines have been disconnected from the power but will need to be drained by the purchaser
