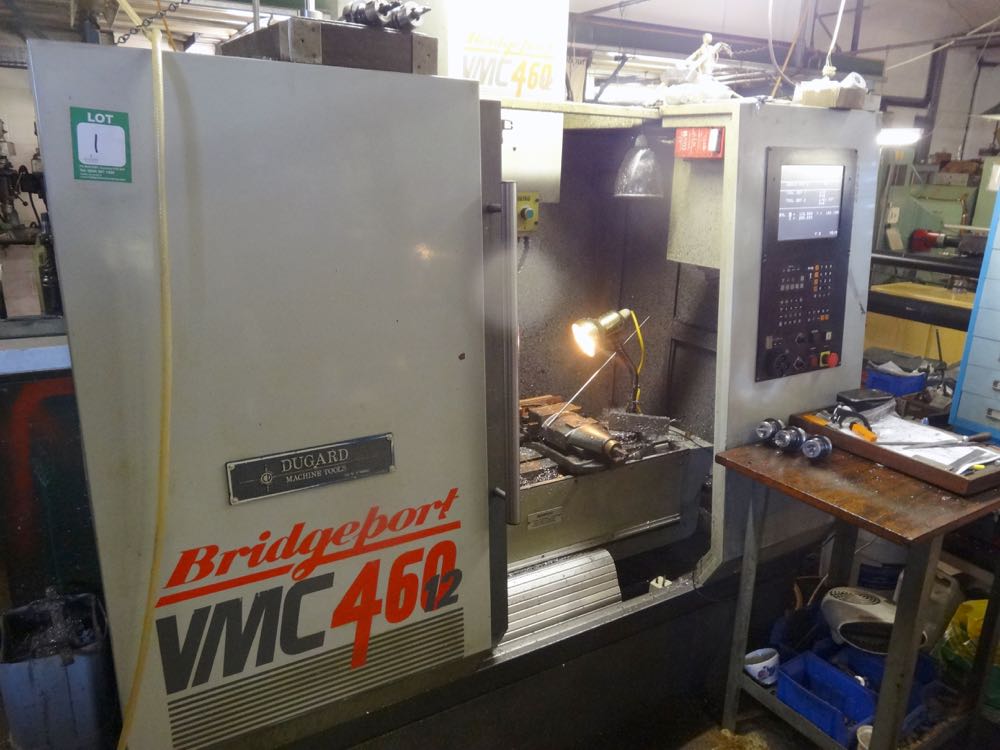

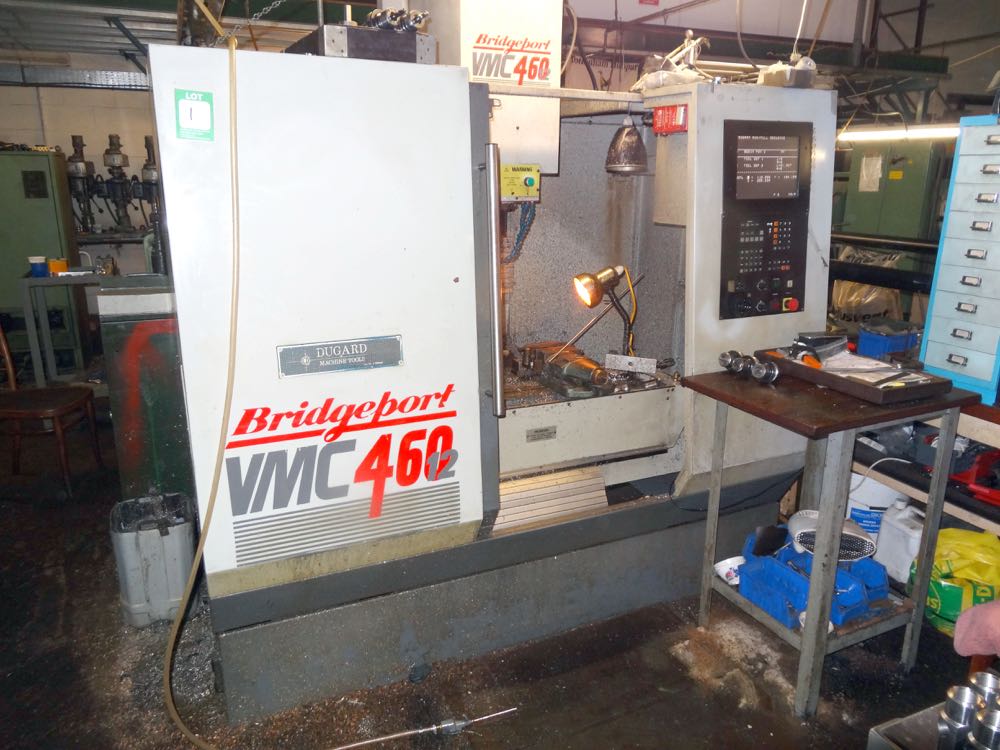

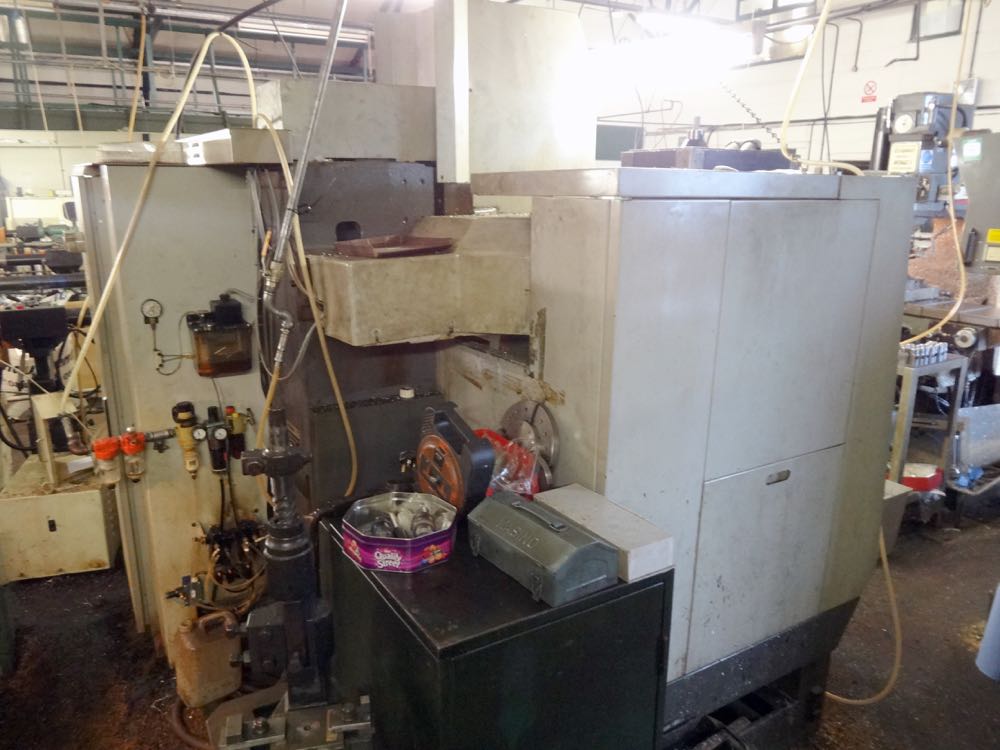

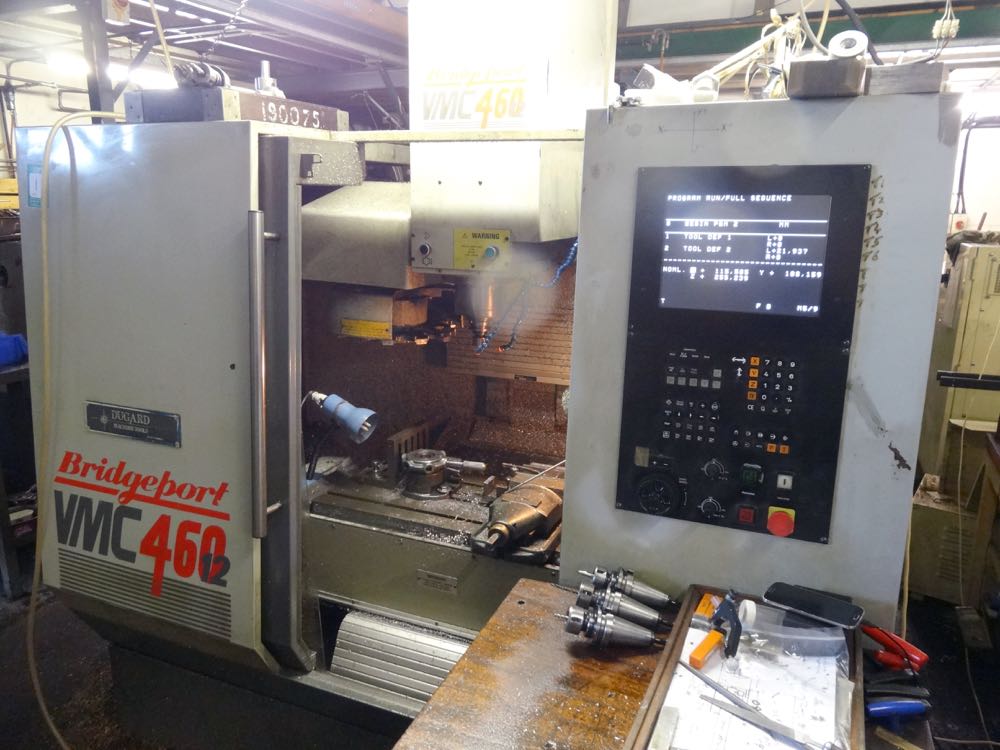

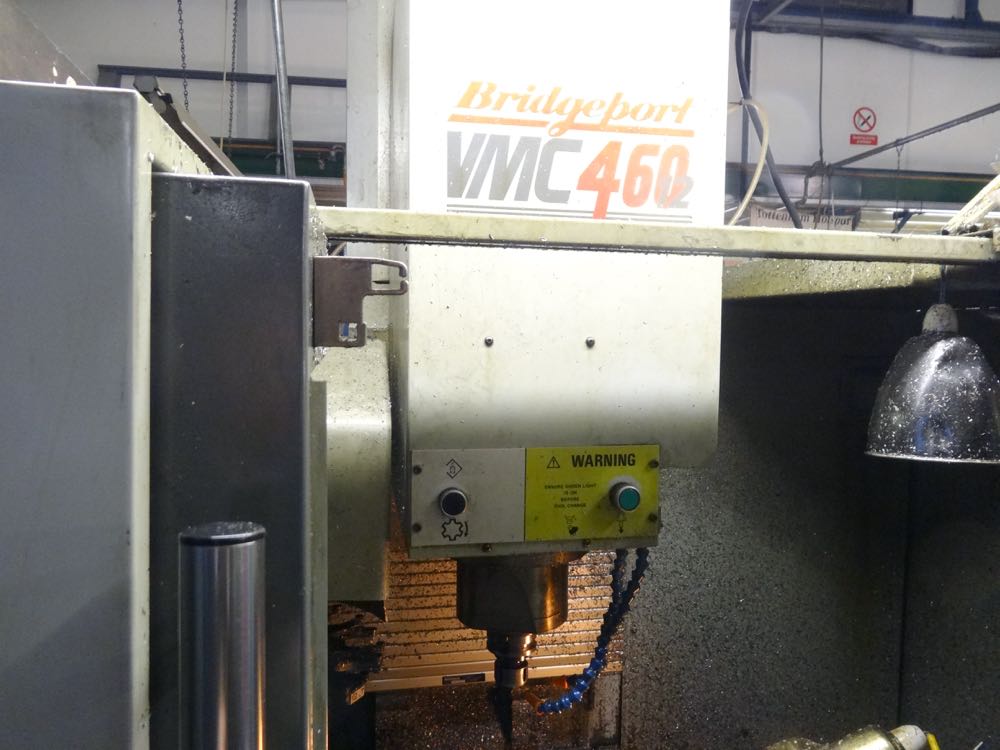

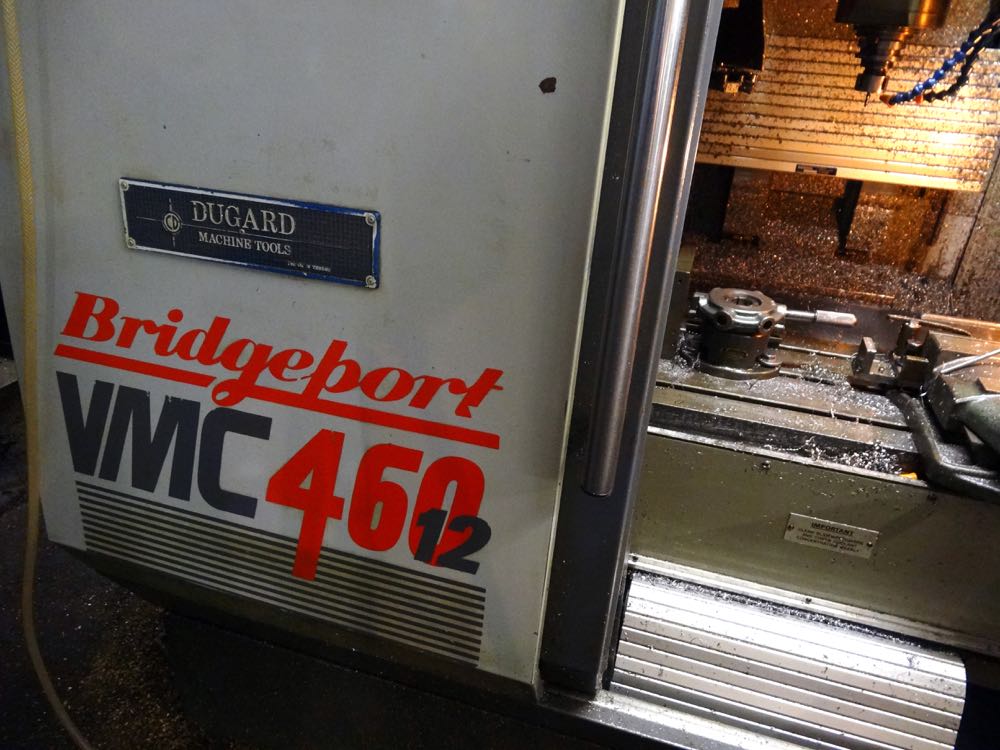

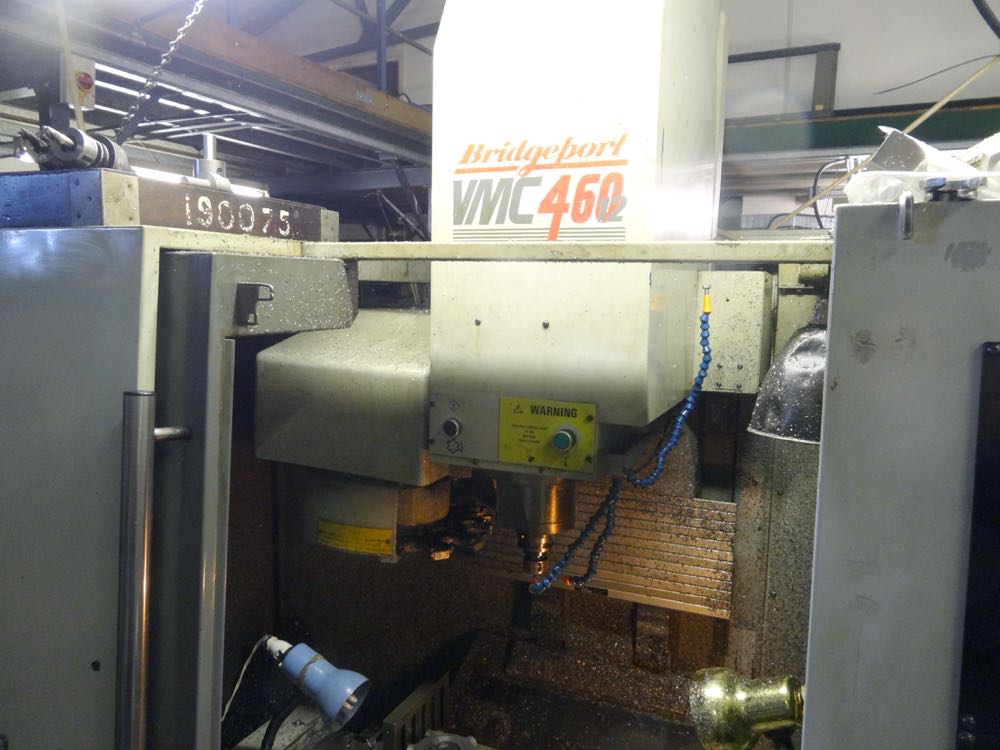

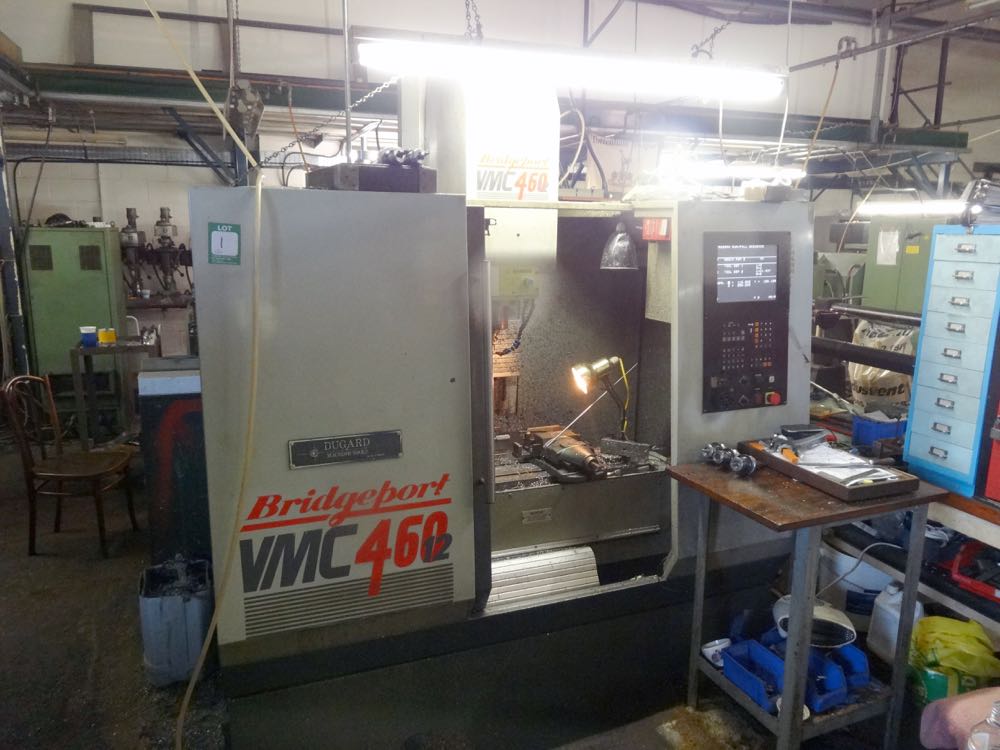

Bridgeport 460/12 VMC (1992)

Lot 1 - Bridgeport 460/12 VMC (1992)

Description:

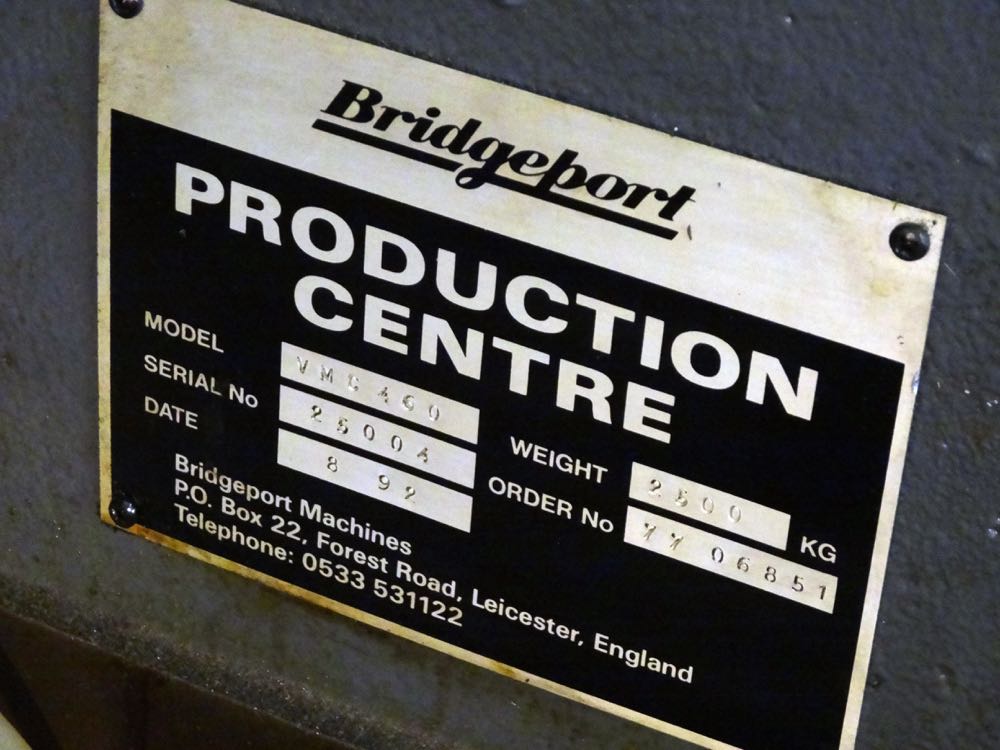

Model: VMC 460
S/n: 25004
Date: 8/92

Footprint: L x W x H: 2100 x 2780 x 2500mm approx.
Weight: 2500kg

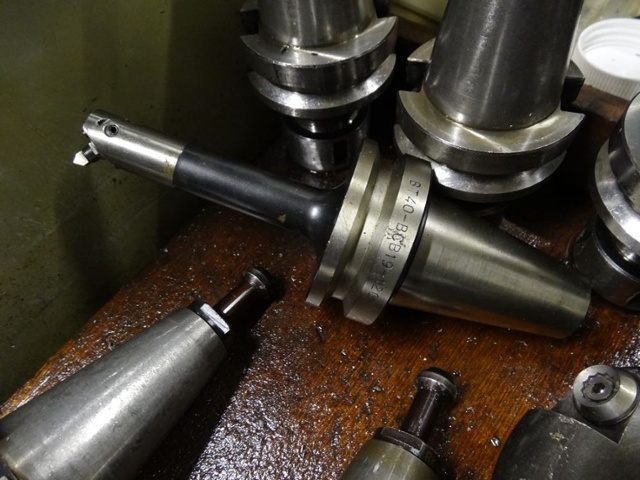

BT40 Tooling

Range:
Table travel: 490mm
Saddle travel Y: 340mm
Saddle travel Z: 480mm

3 T Slots in Table on 112mm Centres
T slot size: 18mm
Positioning speed: 12m/min
Max table load; 250kg
Table size: 390 x 800mm approx.
Speed: 40 - 6000rpm

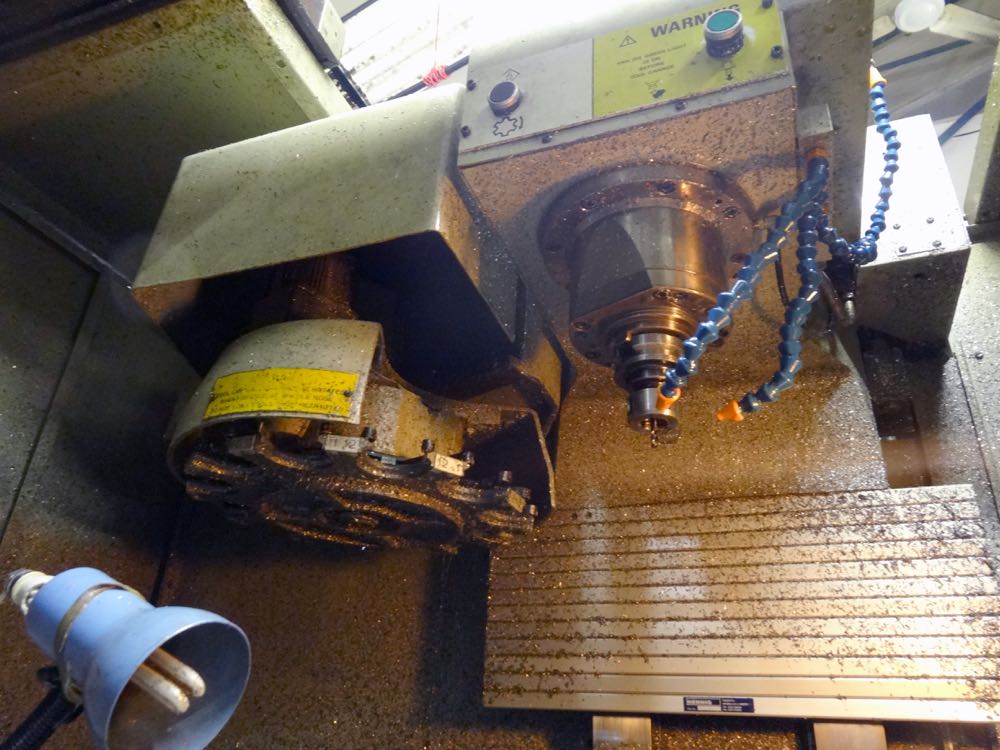

12 Station turret
480 V
3 Phase
50 Hz
20 A
7.5 kW

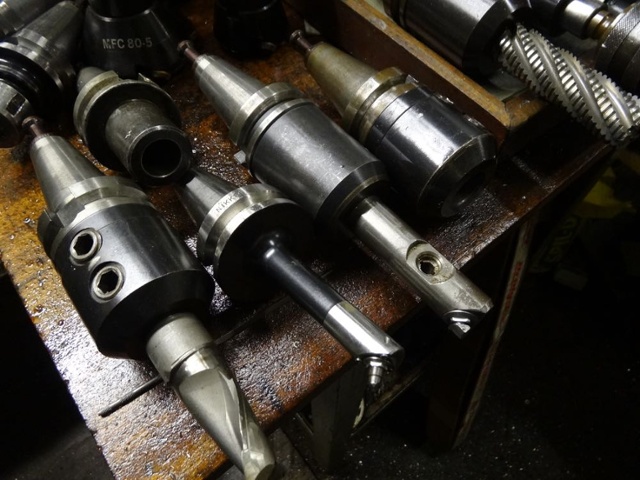

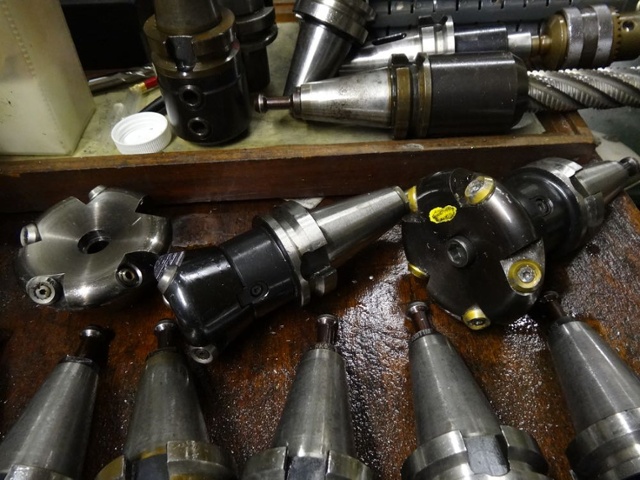

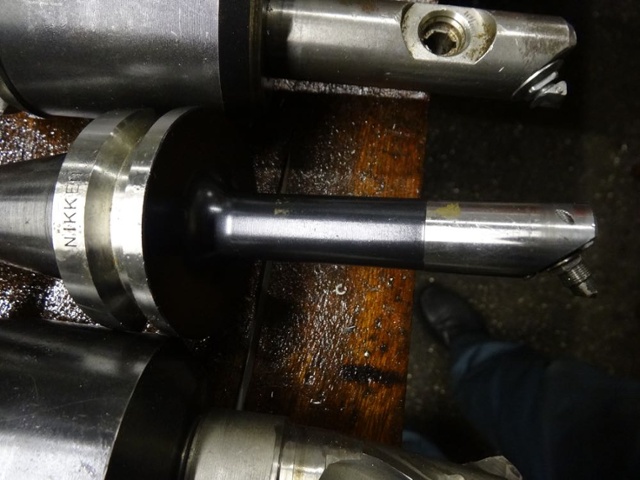

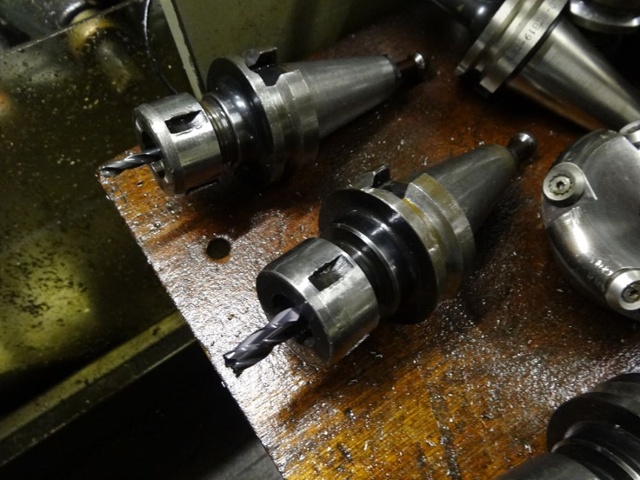

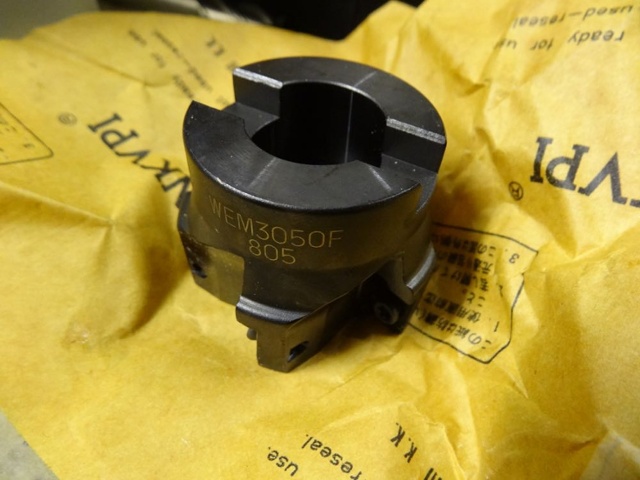

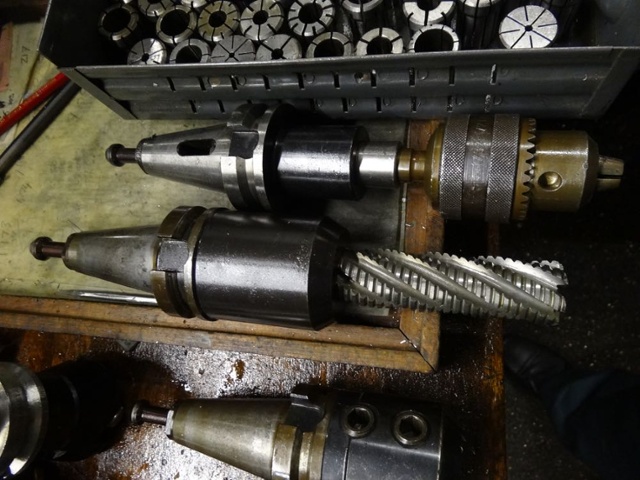

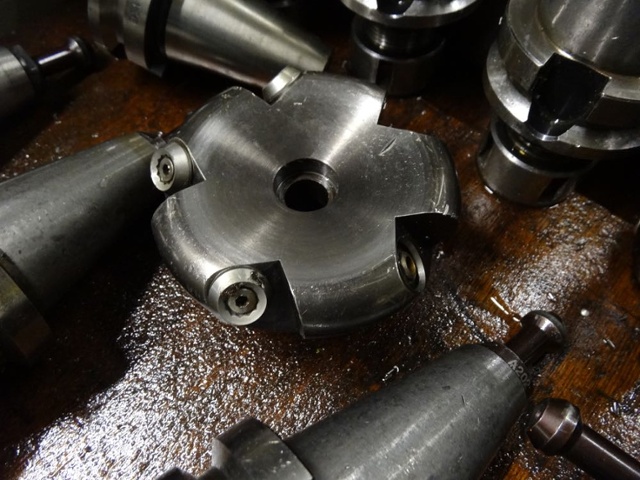

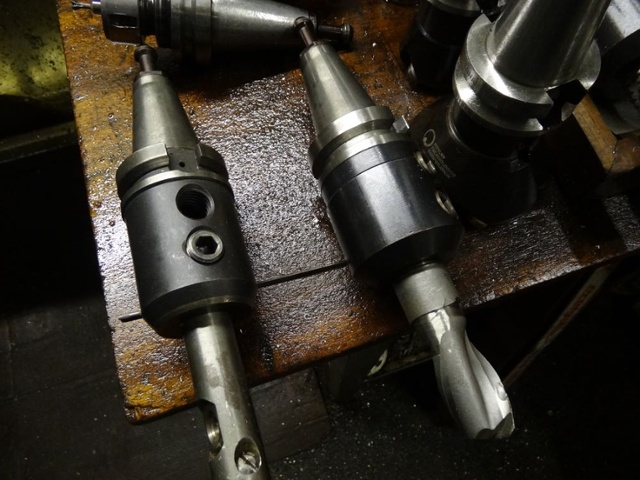

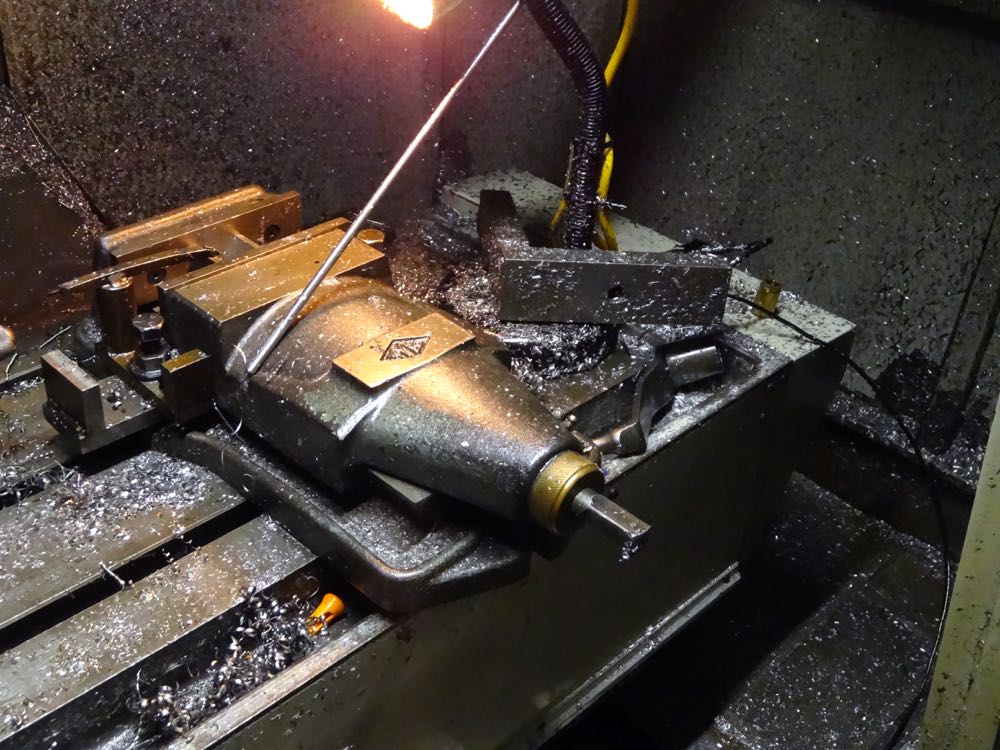

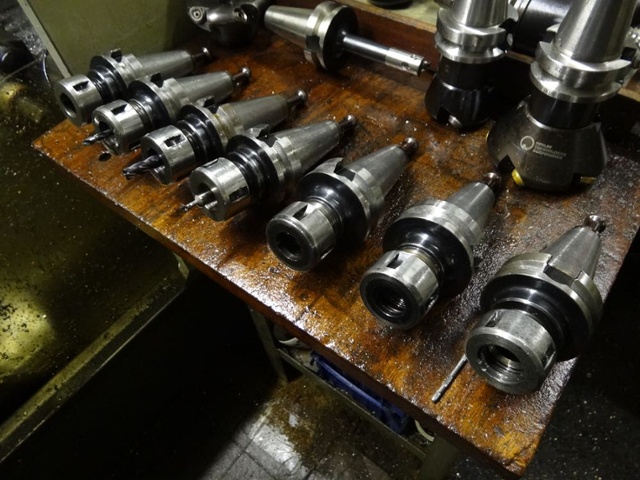

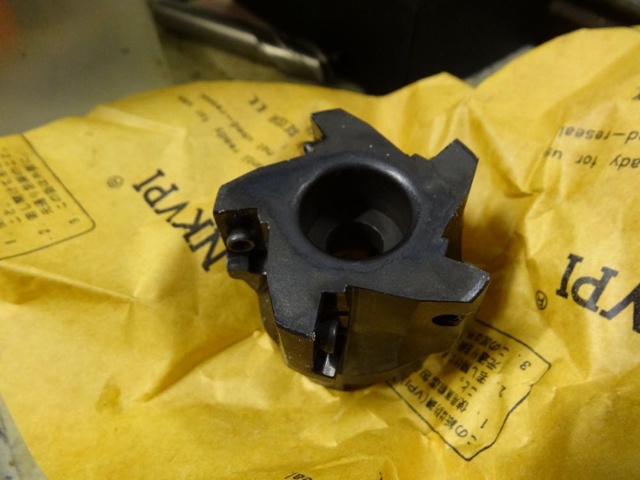

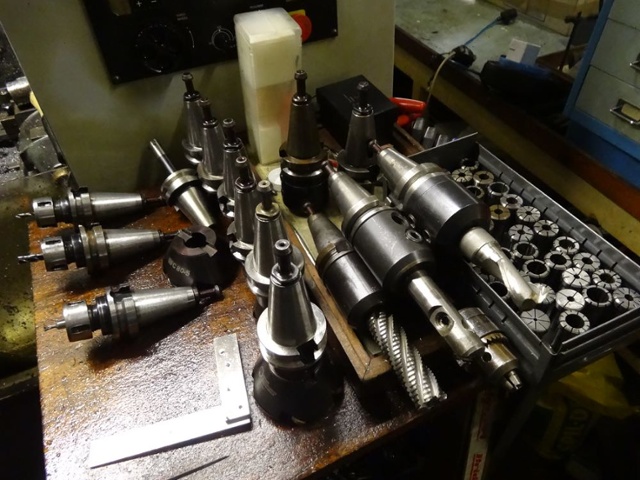

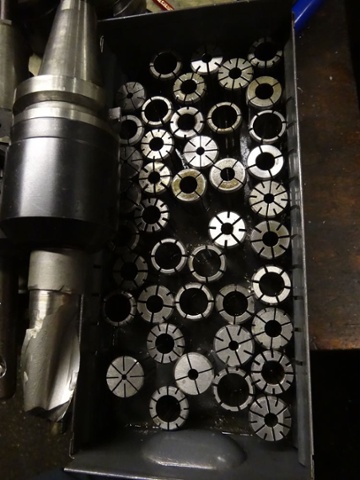

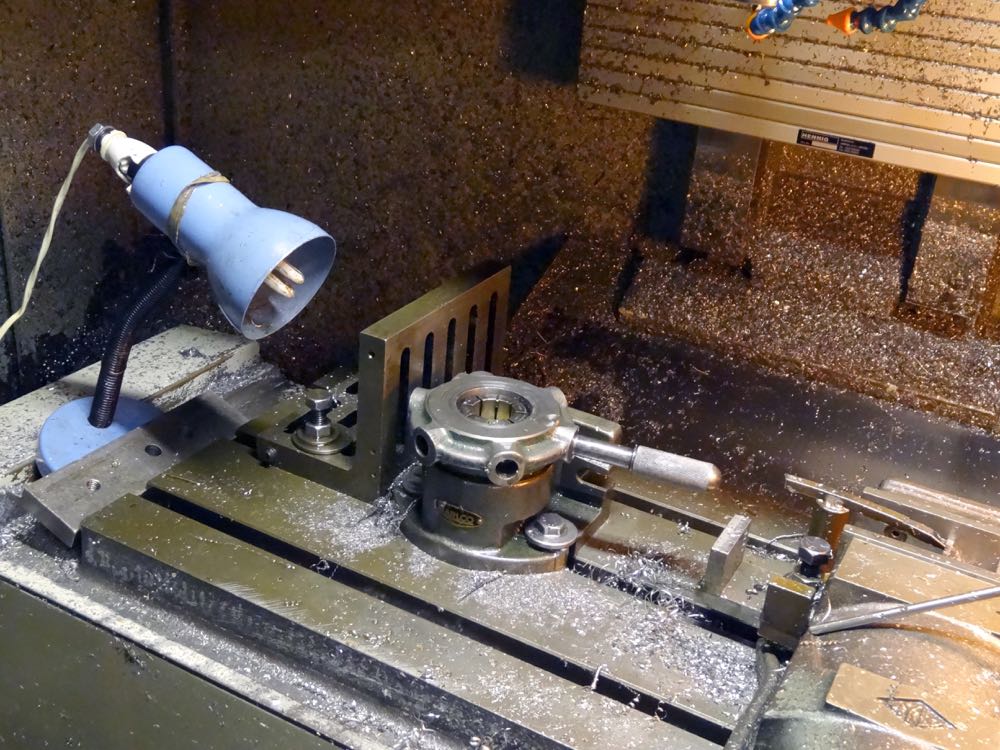

Some tool holders with the machine, machine vices, angle plates etc and tooling not included, see other lots.

Location: London (WJ Martin)

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
