Lot 9 - Bridgeport 5 axis VMC CNC Milling Machine (2004)

Description:

Renishaw Tool Setter- Probe Heidenhain

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Specifications:

The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

Incredibly capable fully synchronous 5 axis milling machine. Only selling as we produce mostly up to 4th axis work now.

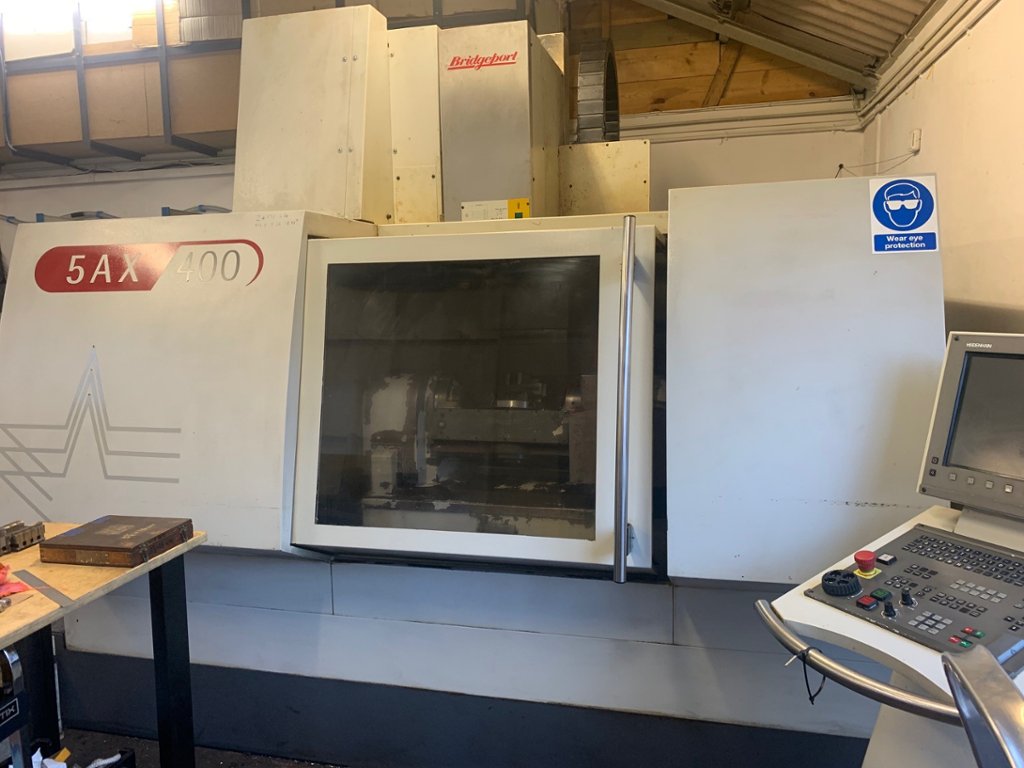

Bridgeport 5AX 400 5 axis VMC CNC milling machine 2004

• NP10 RENISHAW TOOL SETTER
• RENISHAW TOOL PROBE
• High quality linear roller guide ways X, Y and Z axes

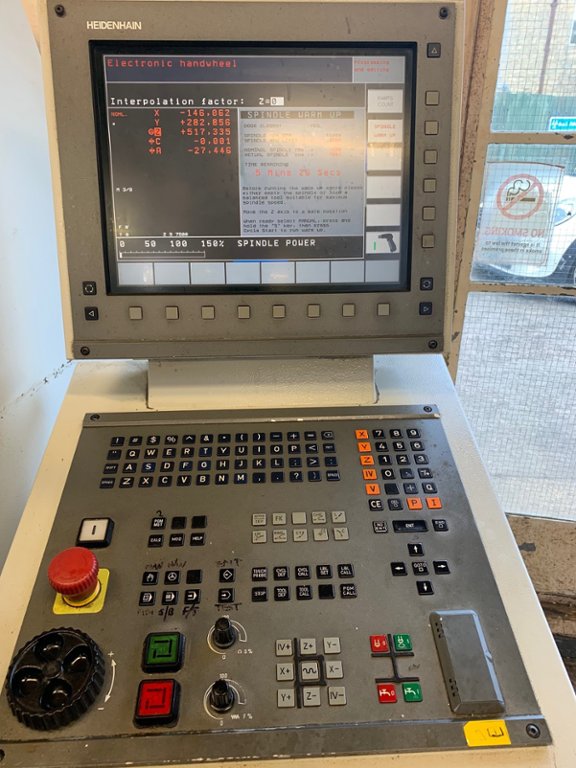

• Heidenhain ITNC 530 control

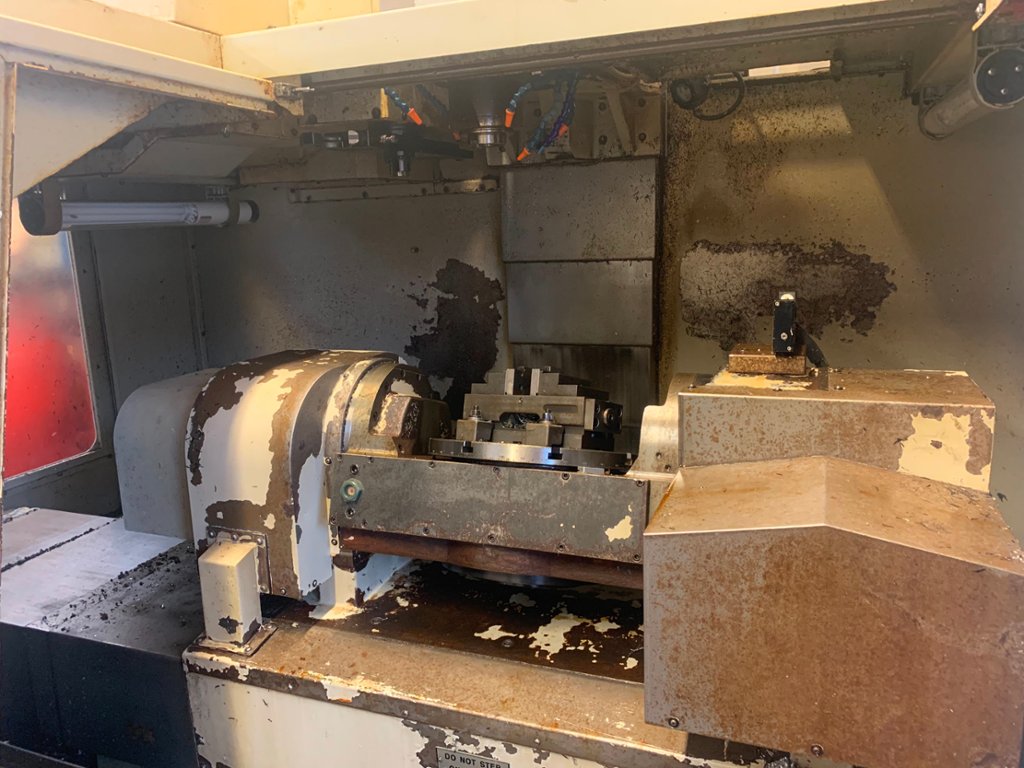

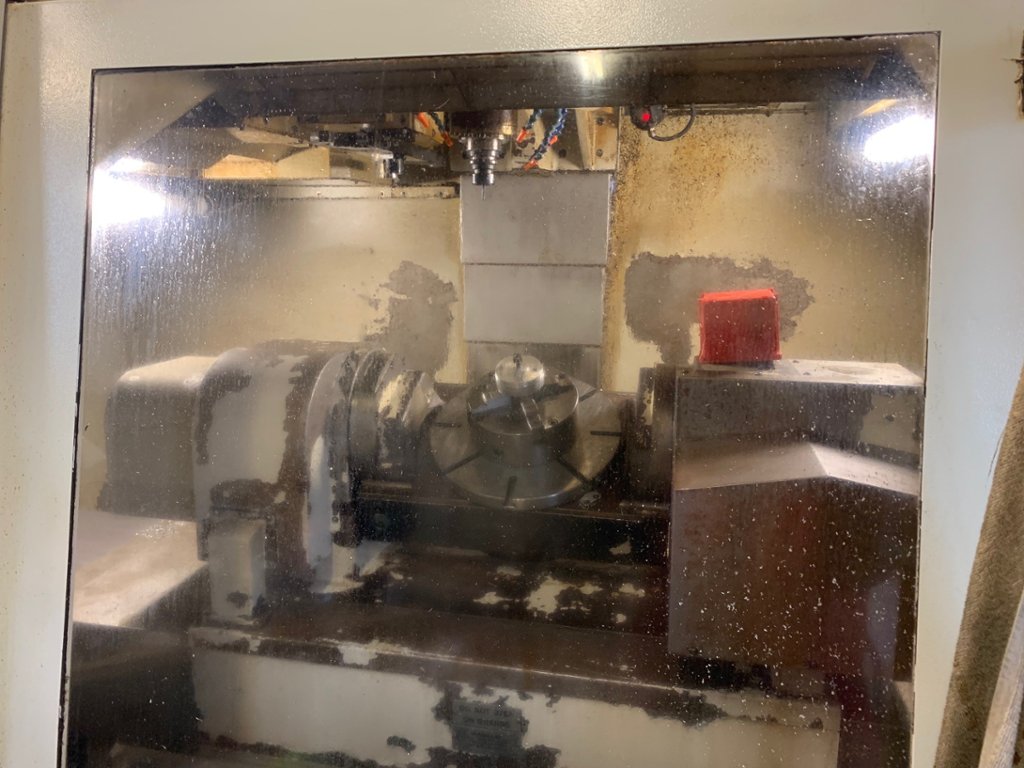

• Integrated 13.8?(400mm)diameter trunnion style rotary table with 8 radial T slots
• A (Tilting Axis) of ?30.deg / +120.deg
• C (Rotating Axis) 360,000 position full contouring
• X, Y and Z travels of 32? x 24? x 20?(1120mm x 610mm x 510mm)
• 1,692 ipm(43 meters/min)x,y and z rapid traverse rates
• 6 meters sec^2 acceleration
• 37HP (28KW)15,000RPM Ceramic Spindle
• 30 tool BT40- twin arm toolchanger
• High Speed Machining Software
• Thermal compensation
• Rigid tapping standard
• Complete flood coolant system with Swarf wash down
• Automatic, centralized lubrication system
• Buffer battery replaced last week.
• Brand new interior lights
MANY NEW PARTS IN THE PAST 12 MONTHS TO INCLUDE HEINDENHAIN CONTROL
POWER SUPPLY AND Z AXIS DRIVE WILL COME WITH WARRANTY AS ONLY JUST REPLACED.
TOOLING AVAILABLE. – NONE COMES WITH MACHINE AT PRESENT.
AVAILABLE IN JANUARY. – STILL IN USE.


Bid information

Time remaining

HRSMINSEC
000000

13 Feb 2020 15:00:00 GMT


Final remove by date: 27/Feb/2020

Location: Cheltenham

Lot location

Transport information

  • Other Transport Details: No loading available on site
