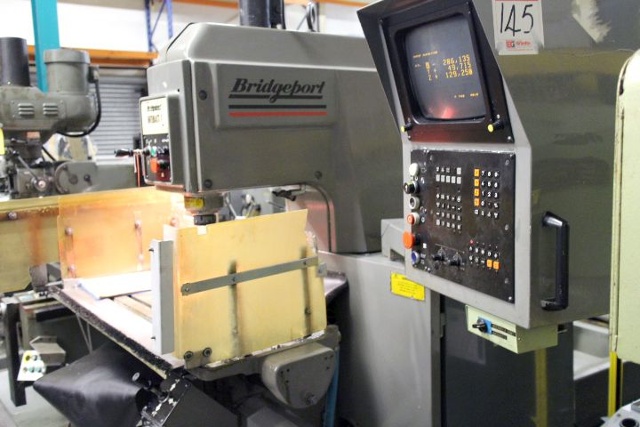

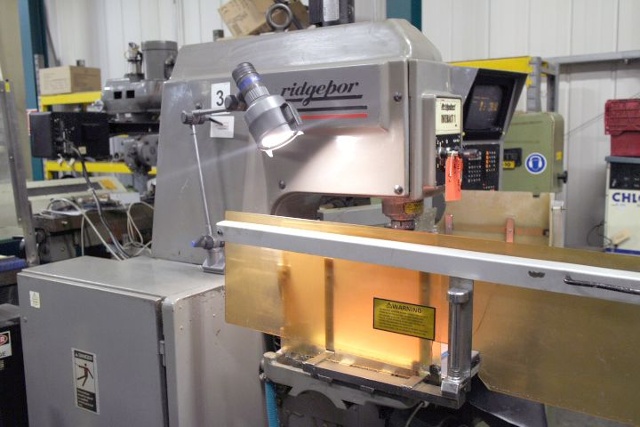

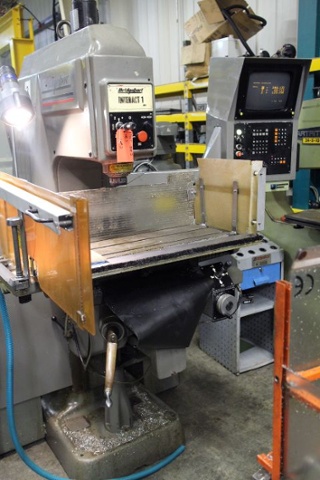

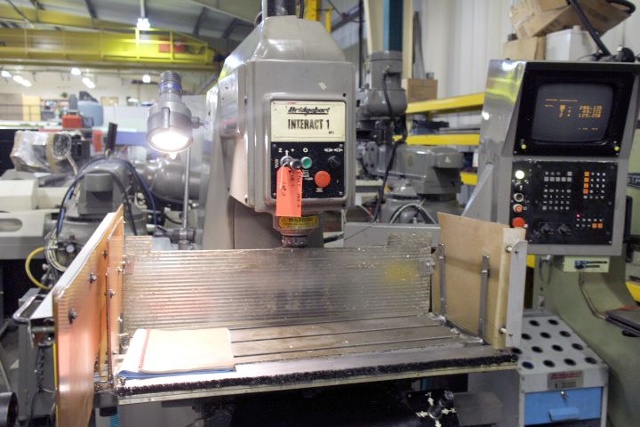

Bridgeport Interact 1 Mk 2 (1988)

Lot 5 - Bridgeport Interact 1 Mk 2 (1988)

Description:

s/n 661851288c,

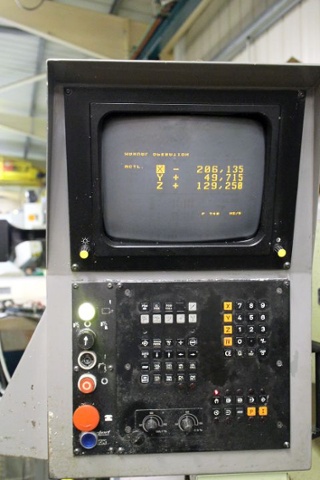

Heidenhain TNC151b,
Table Guards,
Table Size 1066 x 317mm.
Trav 457 x 305 x 125mm.
BE QC30INT Taper
Tooling: QC 30 ISO
Similar to the knee-type frame of the interact - but with a more powerful head- based on a rigid one piece of iron casting mounted directly on the column. The d.c motor spindle drive can transmit up to 6 h.p. (4.4 kW) and enables full advantage to be taken of carbide cutter for fast stock removal and high surface finish. Twin recruiting ball- screws with the Z axis drive ensure balanced power transmission and precise depth control. Fitted with No.30 ISO Quick Change Spindle.
Manuals

Ref: 7901
Location: Burgess Hill, Sussex

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Recommended Transport
