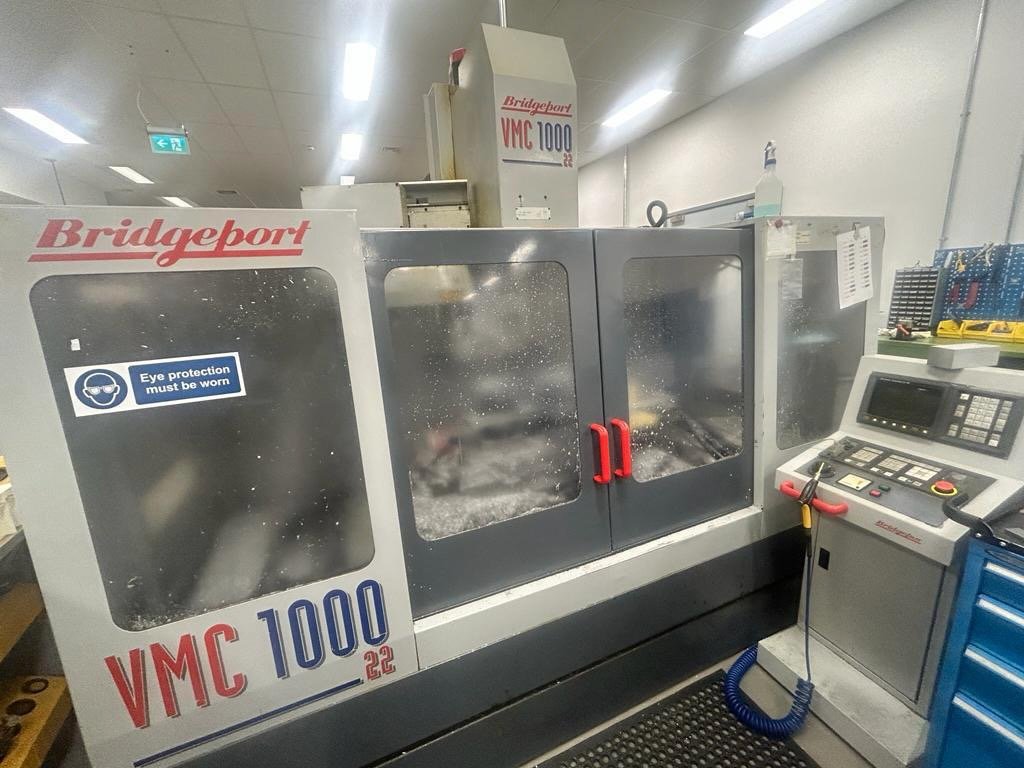

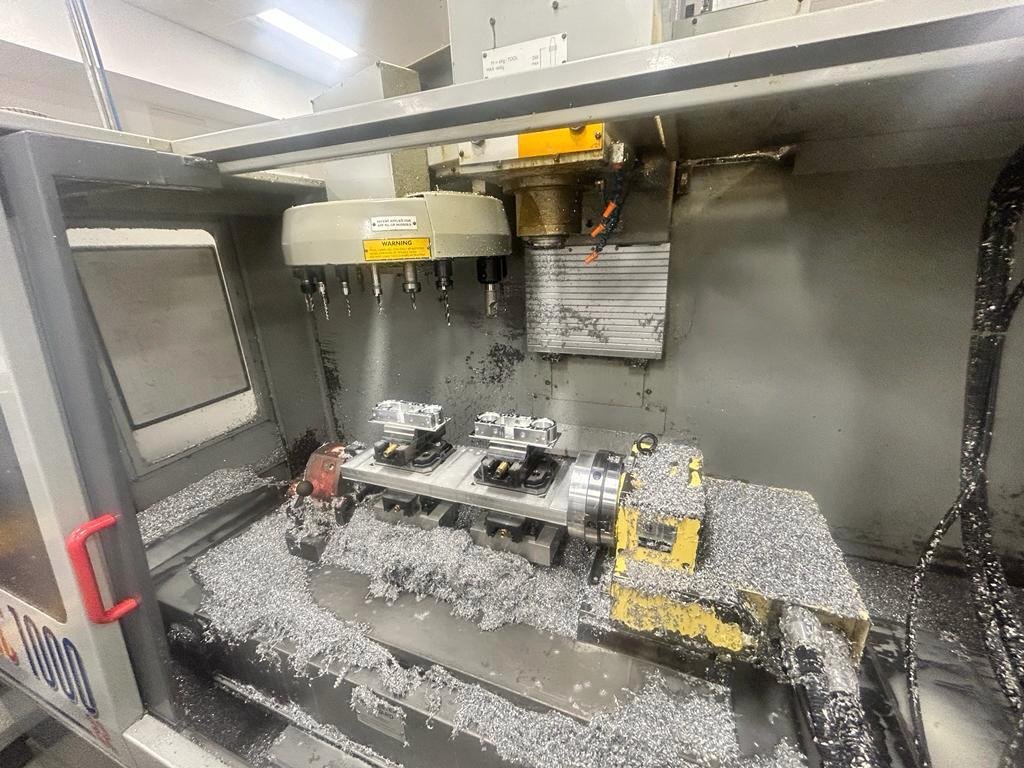

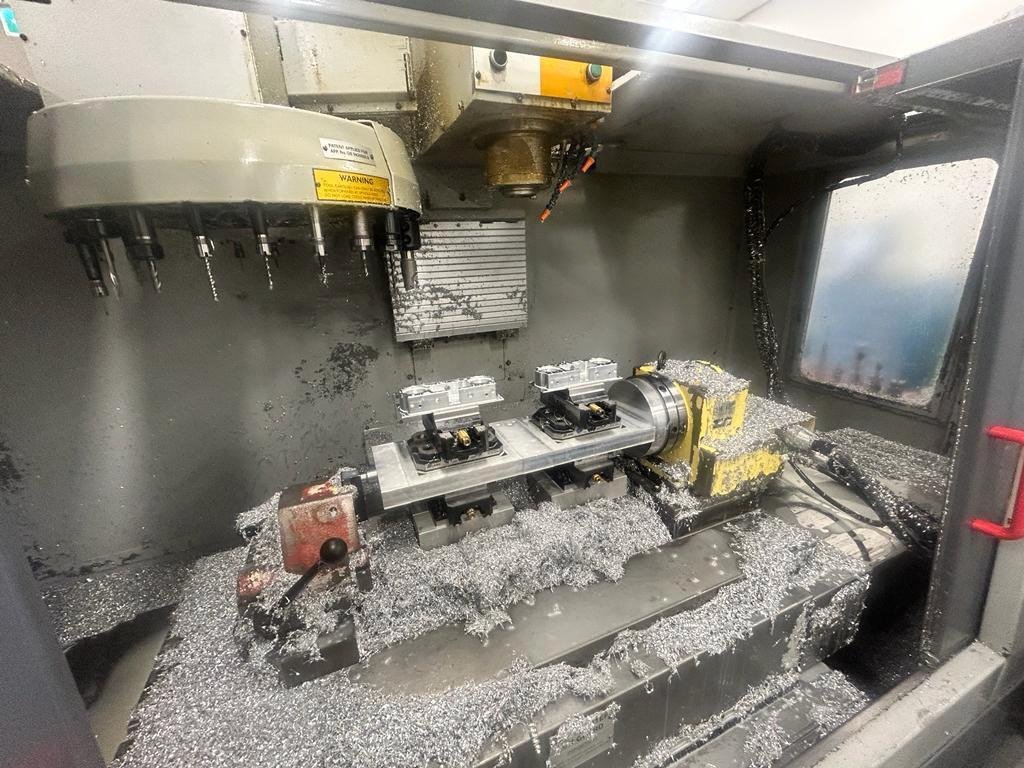

Bridgeport VMC 1000 Vertical Machining Centre with 4th Axis

Lot 3 - Bridgeport VMC 1000 Vertical Machining Centre with 4th Axis

Description:

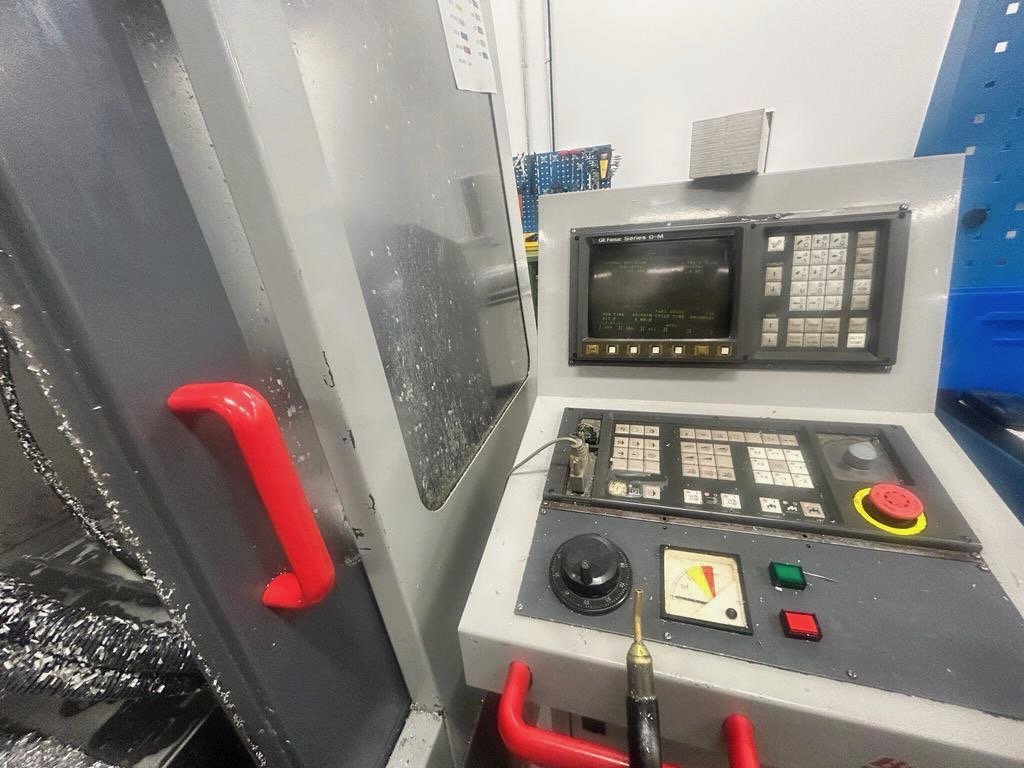

CNC Heidenhain TNC 410

WORK AREA:
Longitudinal X: mm 1020
Bb7eaainzo
Transversal Y: mm 510
Vertical Z: mm 500
Rapid X, Y axes: m/min 40
Z rapids: m/min 25

SPINDLE:
Spindle power: 11 kW
Rotation speed: rpm 40 - 6000
Spindle attachment: BT 40

TABLE:
Surface: mm 1150 x 490
T-slots: 5 on 100 mm
Maximum loadable weight: kg 900

TOOL CHANGE:
Warehouse locations: 22
Tool change time: 5.2 sec
Maximum weight of the tool: kg 6
Maximum length: mm 250
Maximum diameter: 75 mm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
