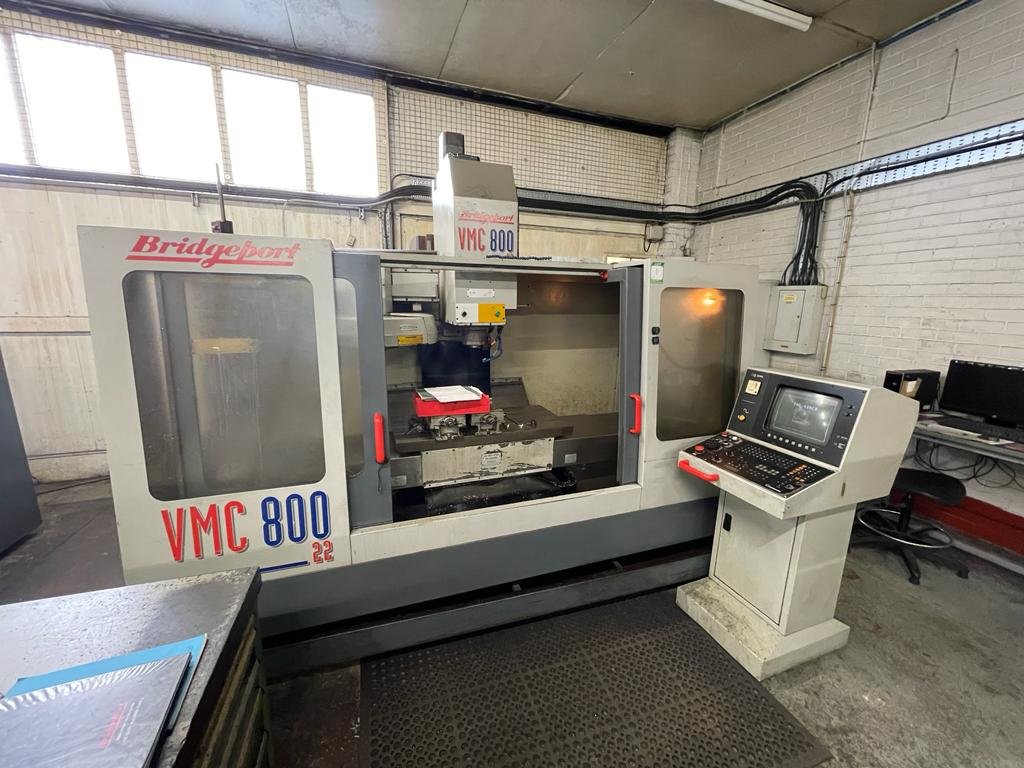

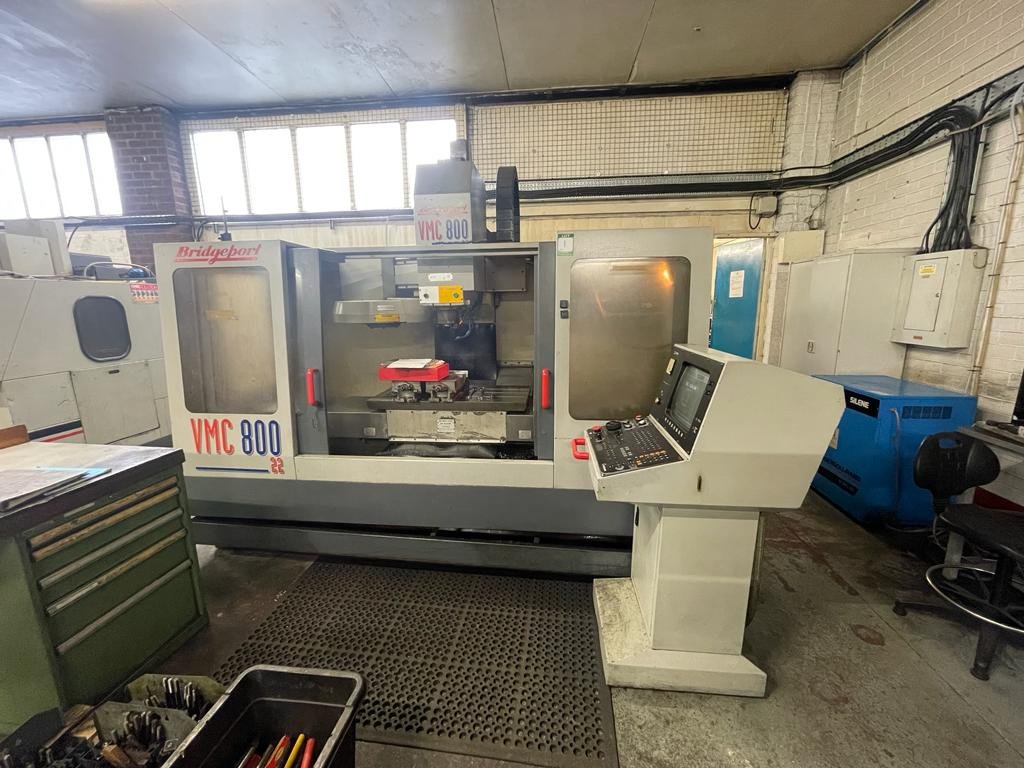

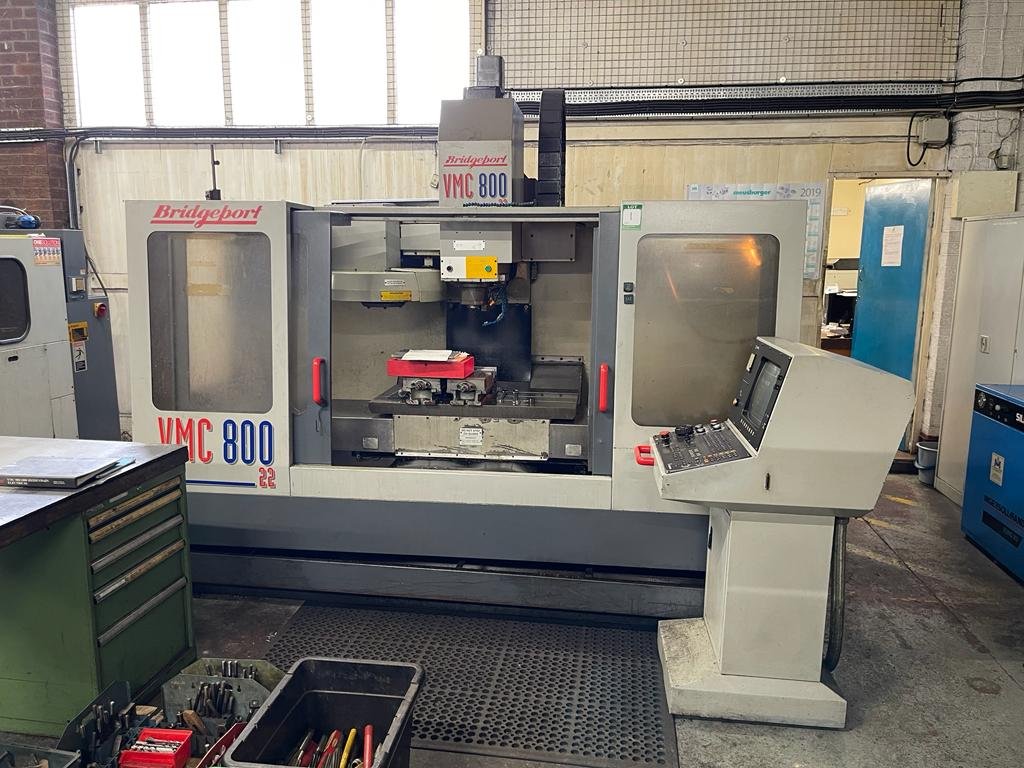

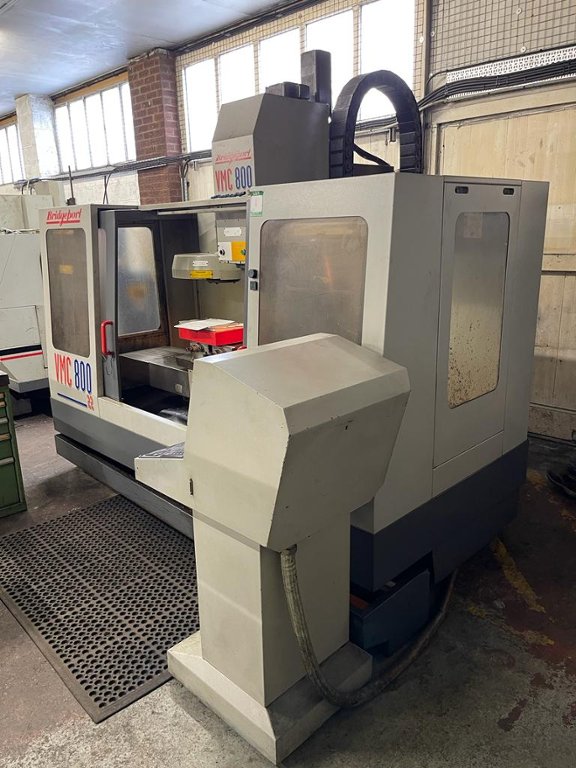

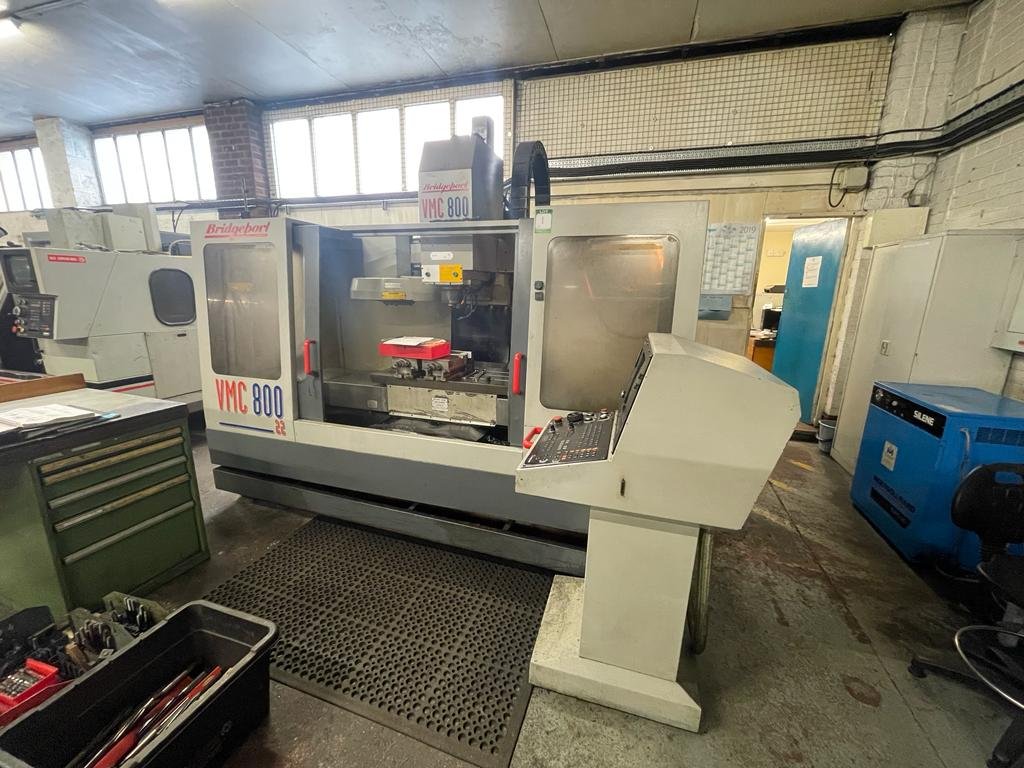

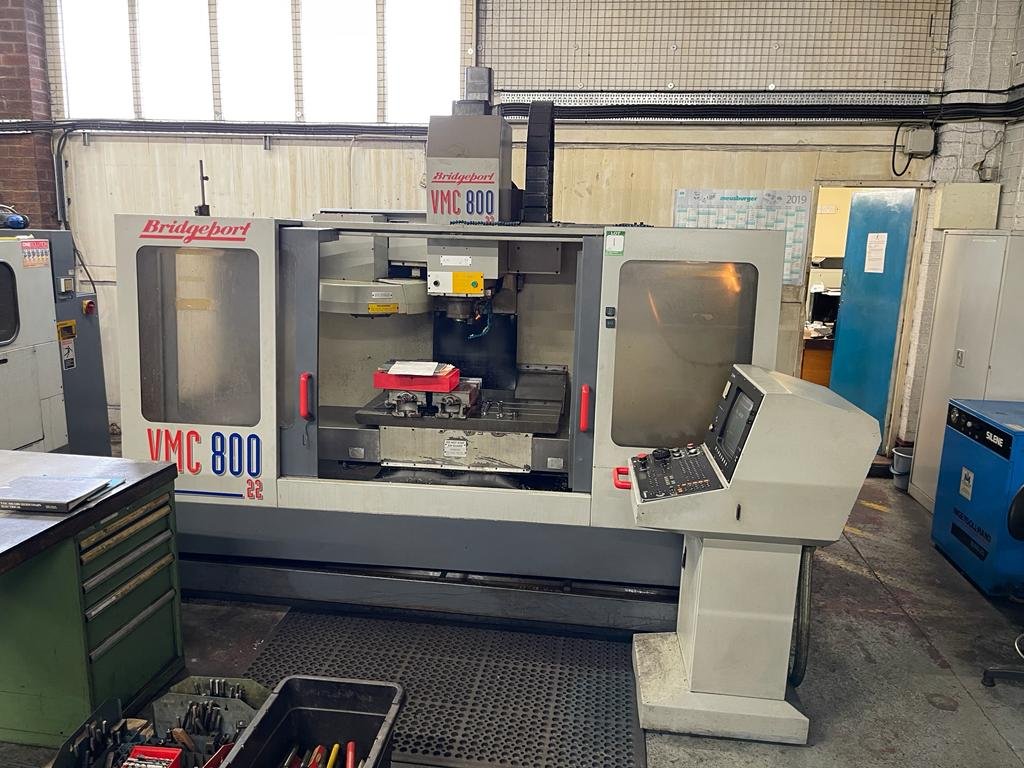

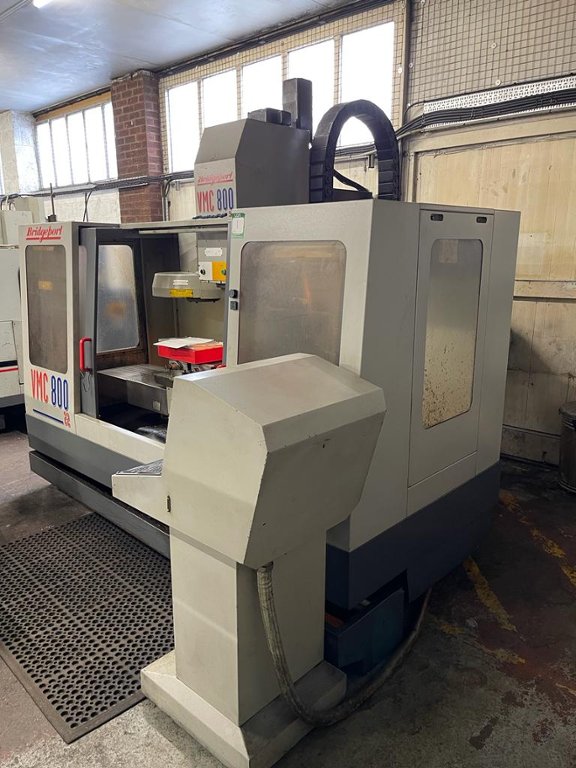

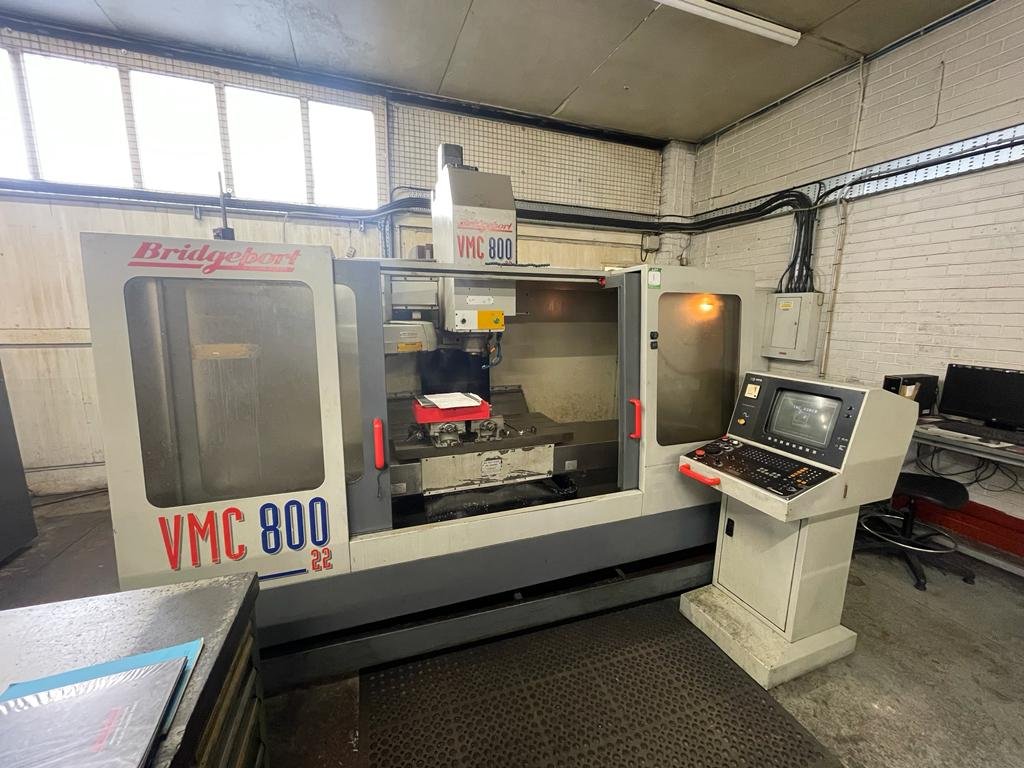

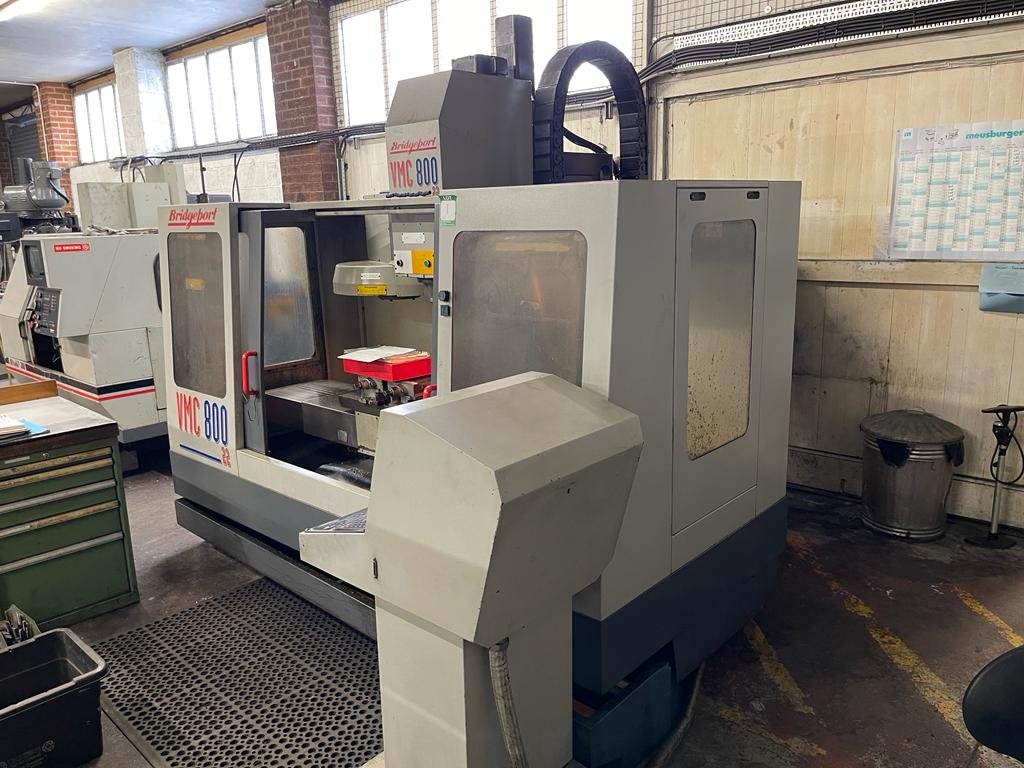

Bridgeport VMC 800/22 Vertical Machining Centre (1997)

Lot 1 - Bridgeport VMC 800/22 Vertical Machining Centre (1997)

Description:

Vice NOT included

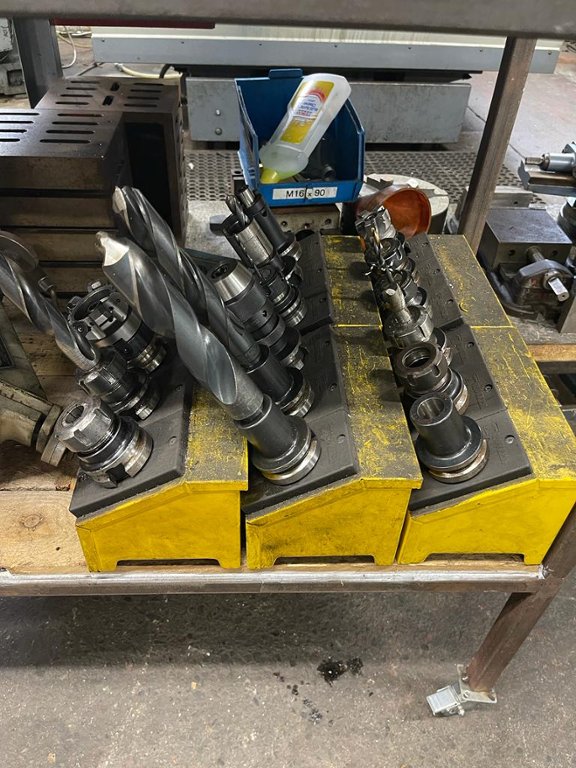

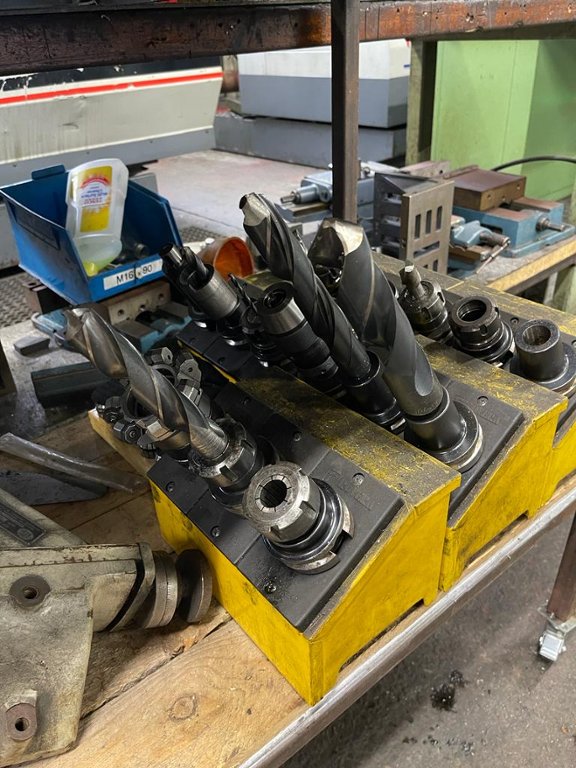

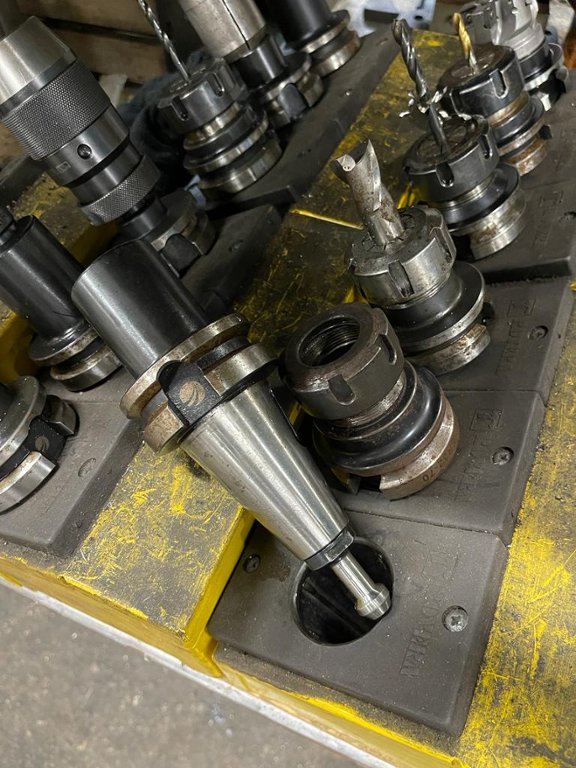

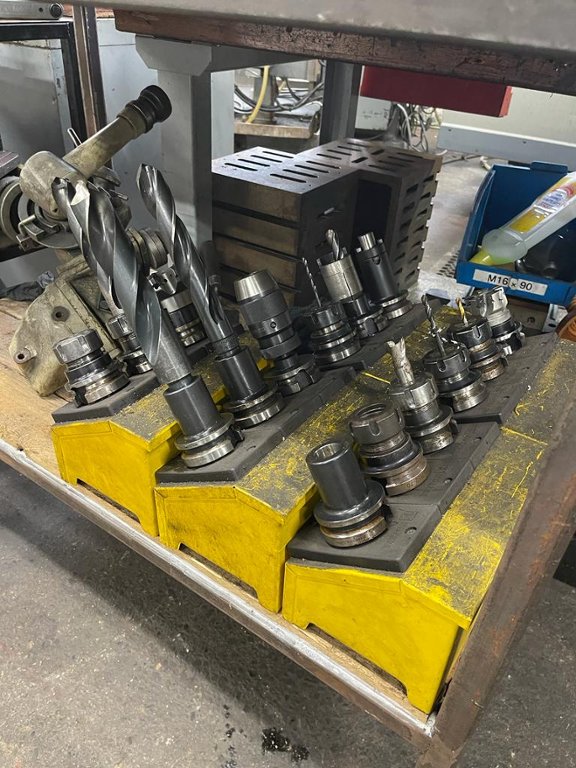

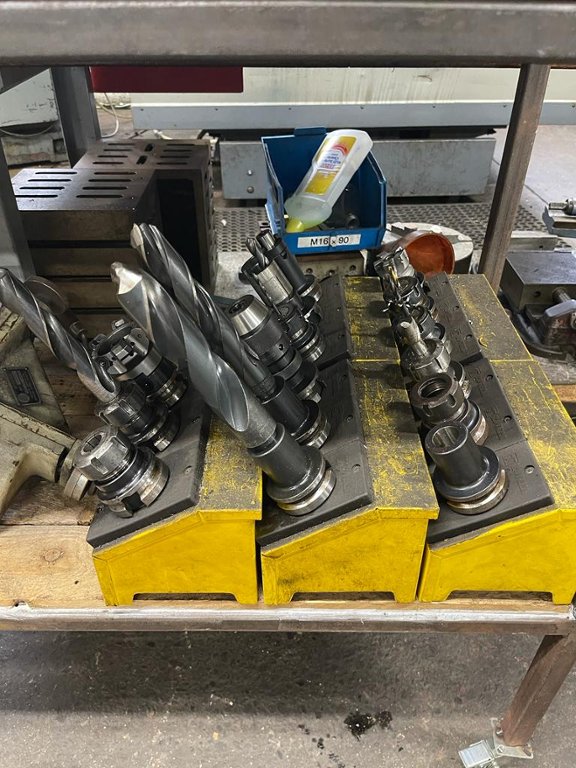

Selection of tooling included

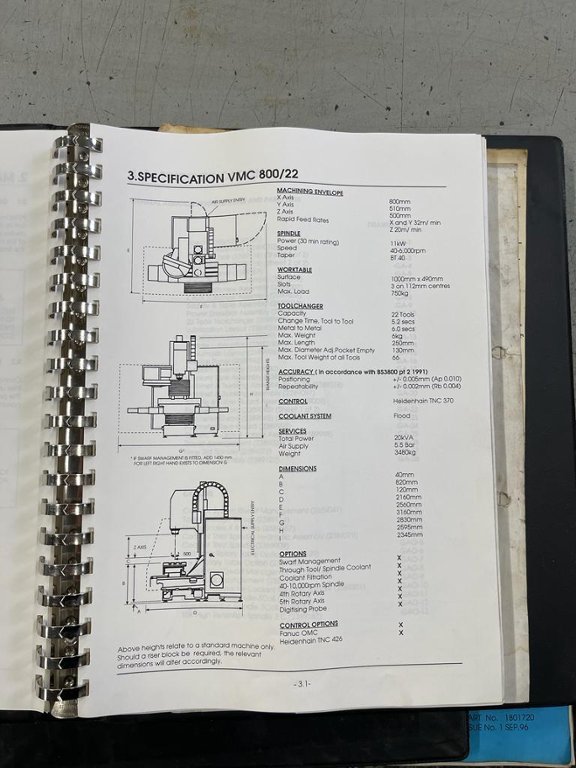

X Axis - 800mm, Y Axis - 510mm, Z Axis - 500mm, Rapid Feed Rates - X & Y 32m/min Z - 20m/min

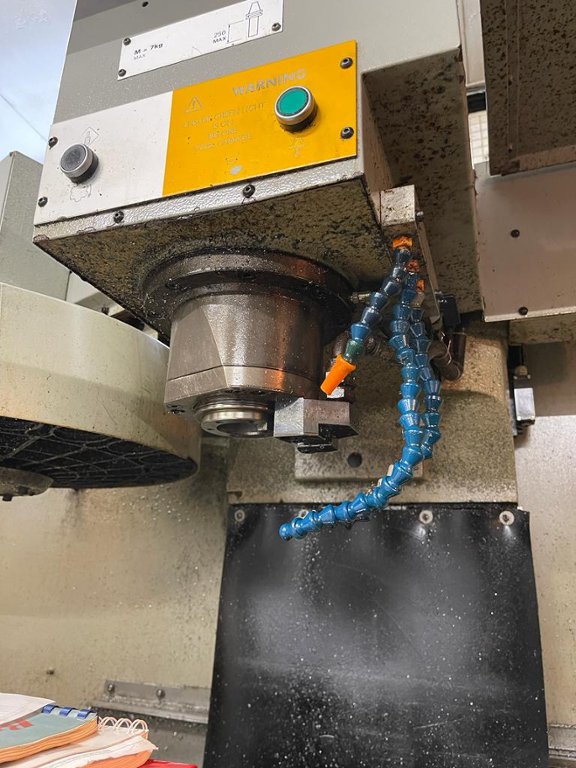

Power (30 min rating) - 11kW, Speed 40-6000 RPM, Taper BT40

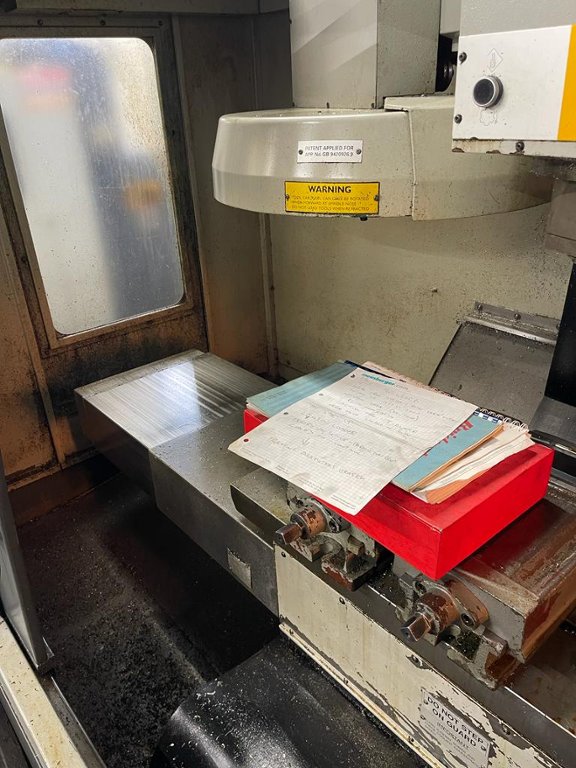

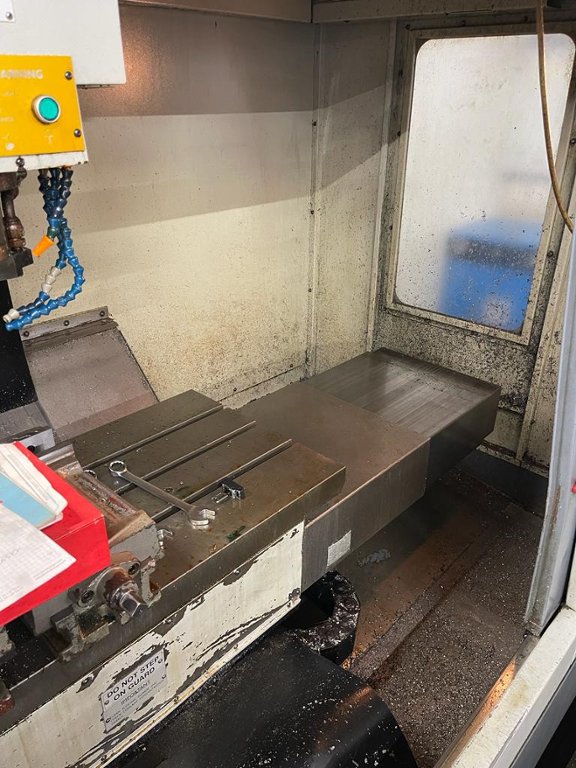

Surface - 1000mm x 490mm, Slots - 3 on 112mm centres, Max load - 750kg

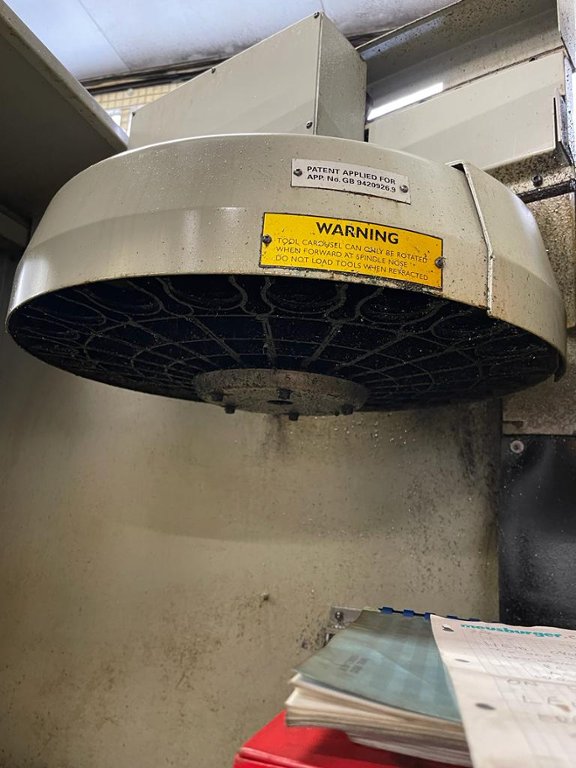

Capacity - 22 tools, Change Time. Tool to Tool - 5.2 secs, Metal to Metal - 6.0 secs, Max Weight - 6kg, Max Length - 250mm, Max Diameter Adj Pocket Empty - 130mm, Max Tool weight of all tools - 66

Positioning - +/- 0.005mm (Ap 0.010), Repeatability - +/- 0.002mm (Rb 0.004)

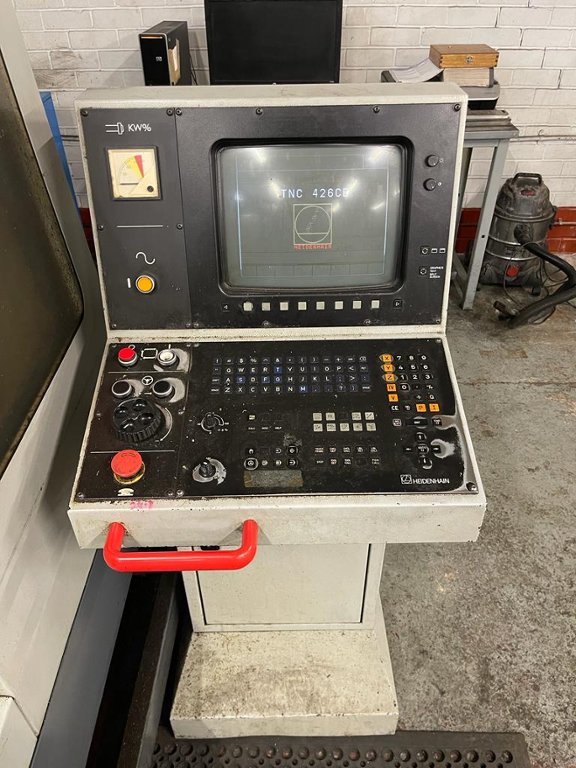

Heidenhain TNC 370 Control, Flood Coolant System

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
