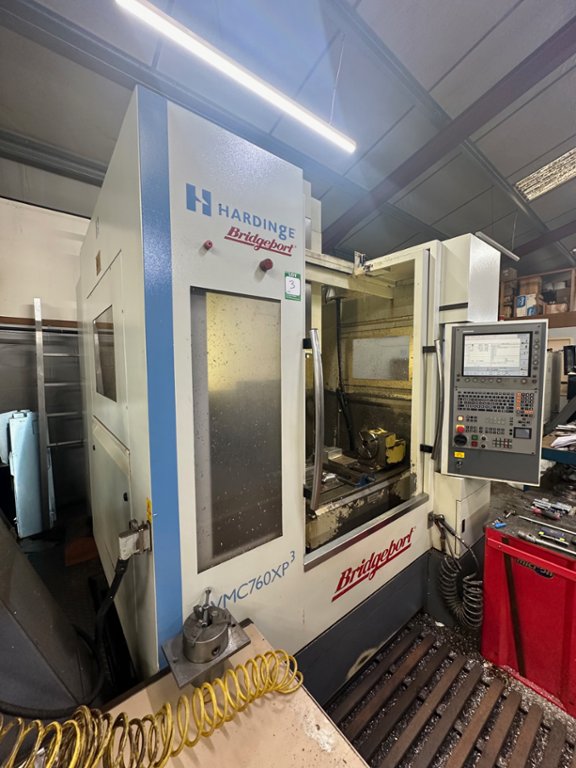

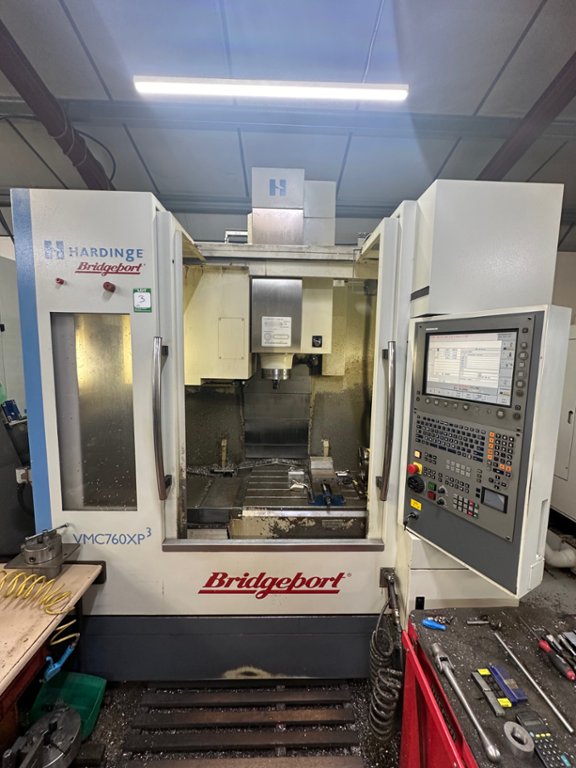

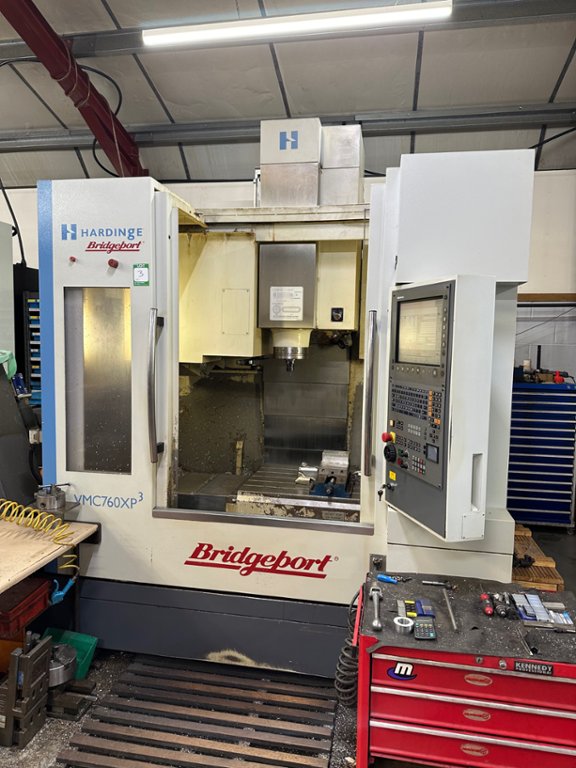

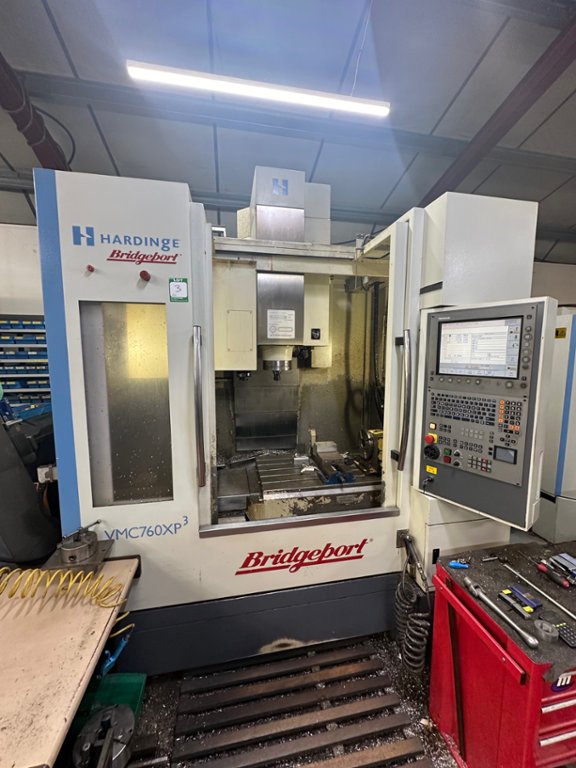

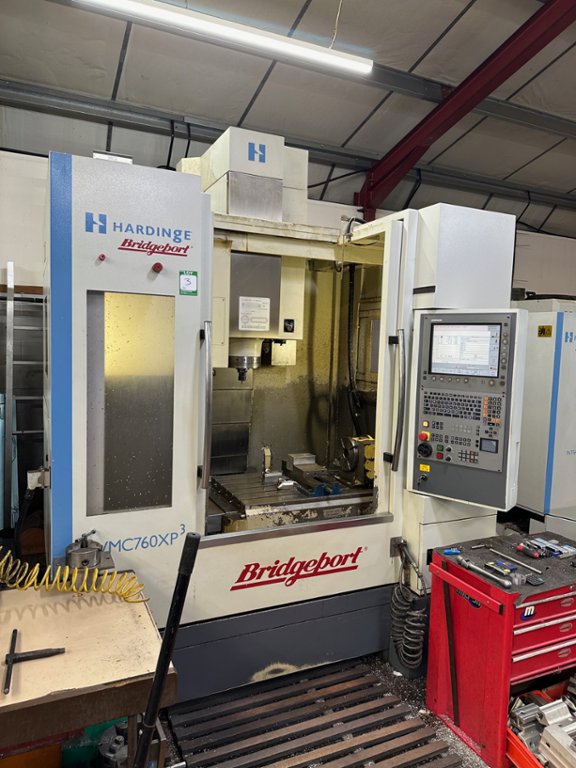

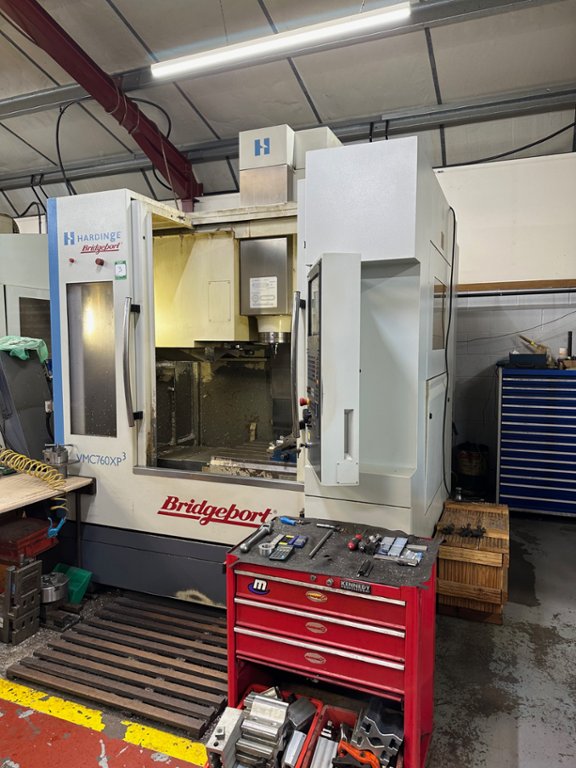

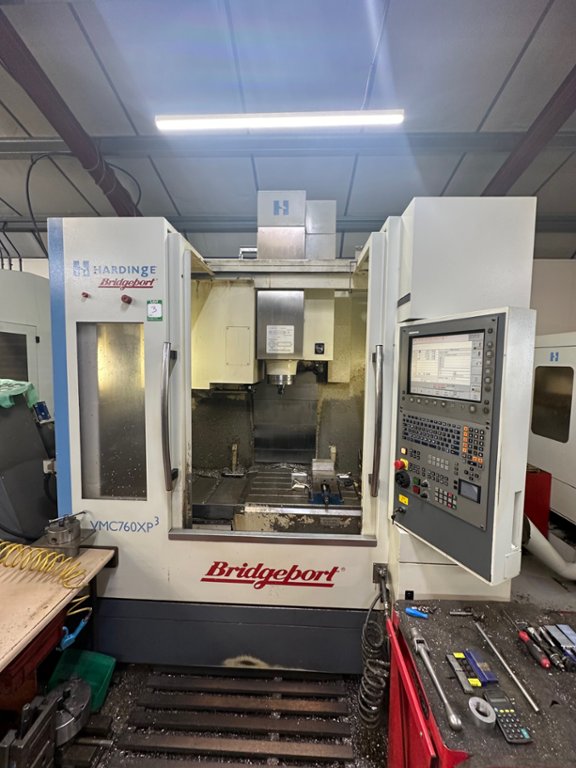

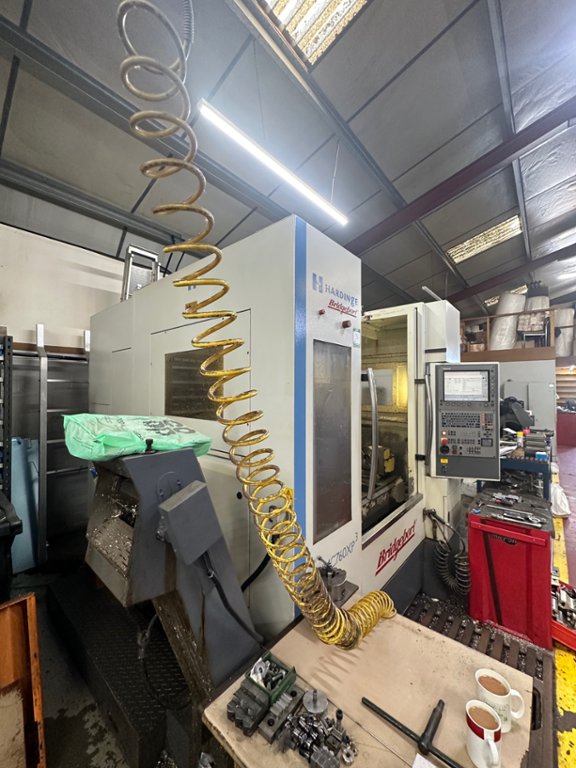

Bridgeport XP3 760 Vertical Maching Centre (2005)

Width: 3930mm
Depth: 2340mm
Height: 2340mm
Weight: 6700kg
Other Transport Details: Drained & Loaded to suitable Transport : £450

Lot 3 - Bridgeport XP3 760 Vertical Maching Centre (2005)

Description:

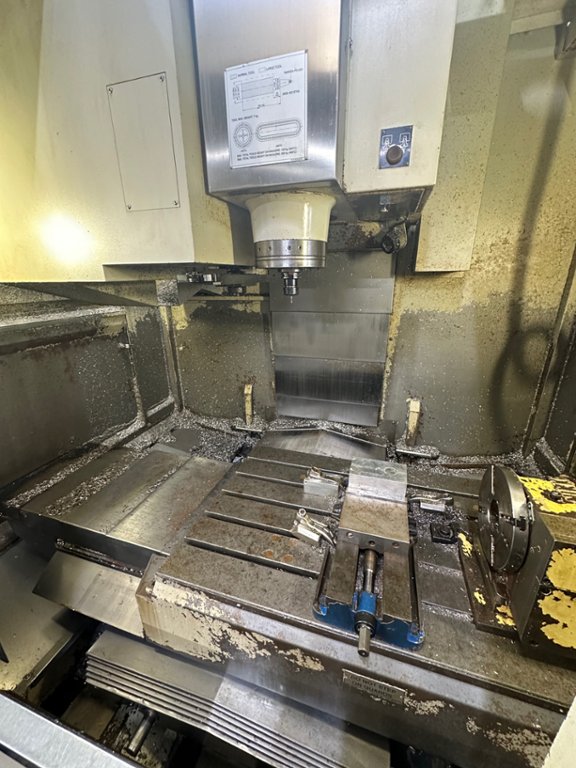

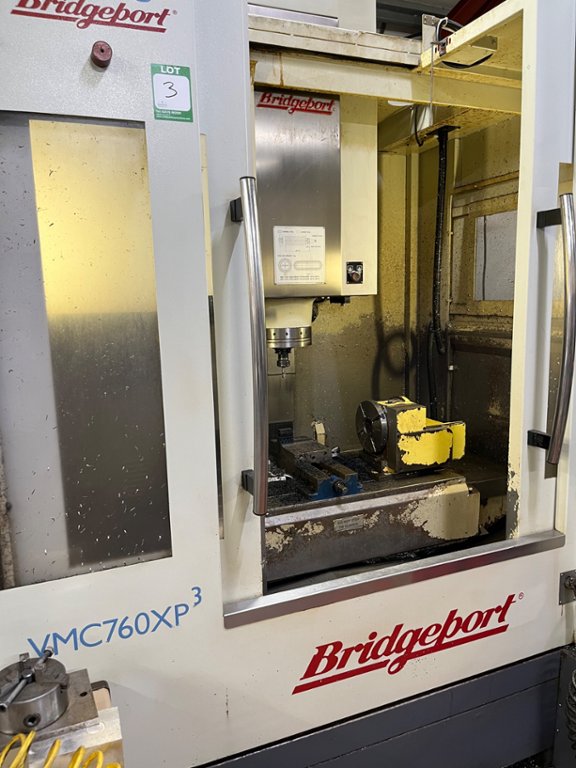

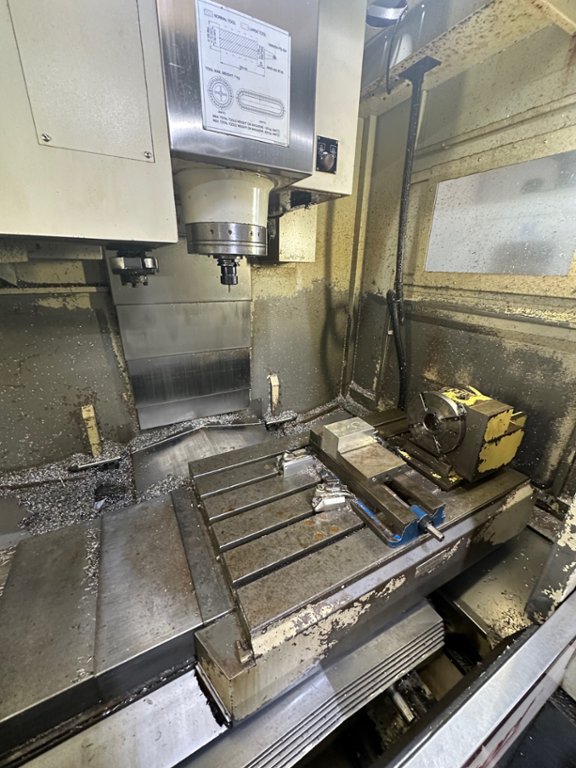

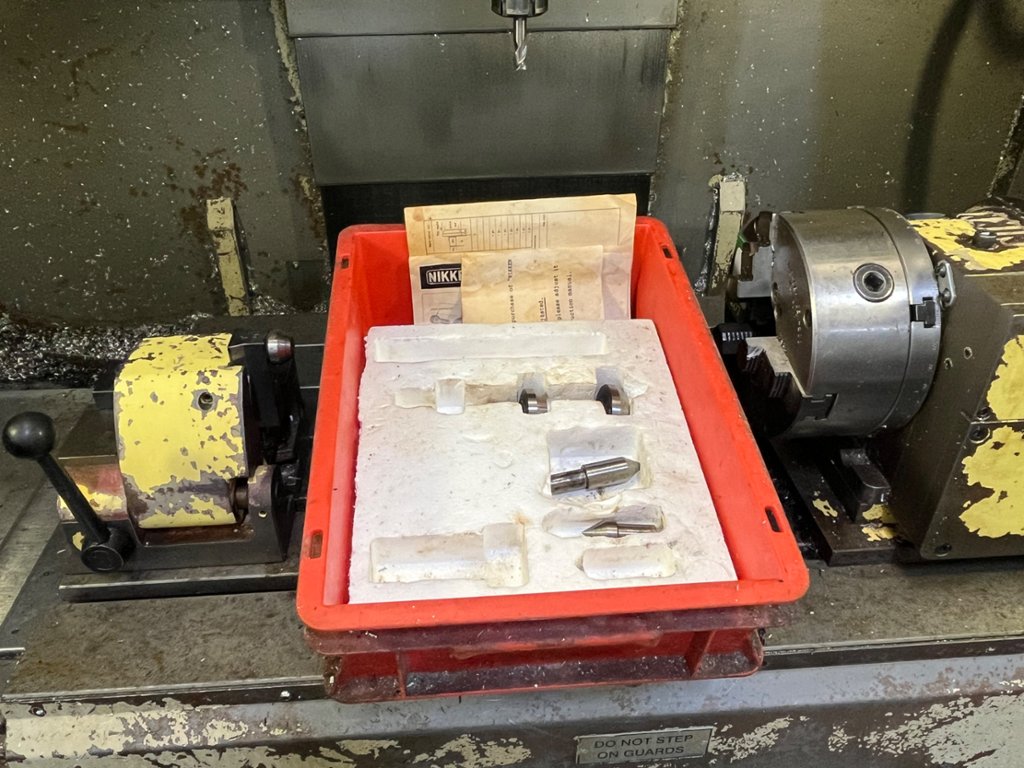

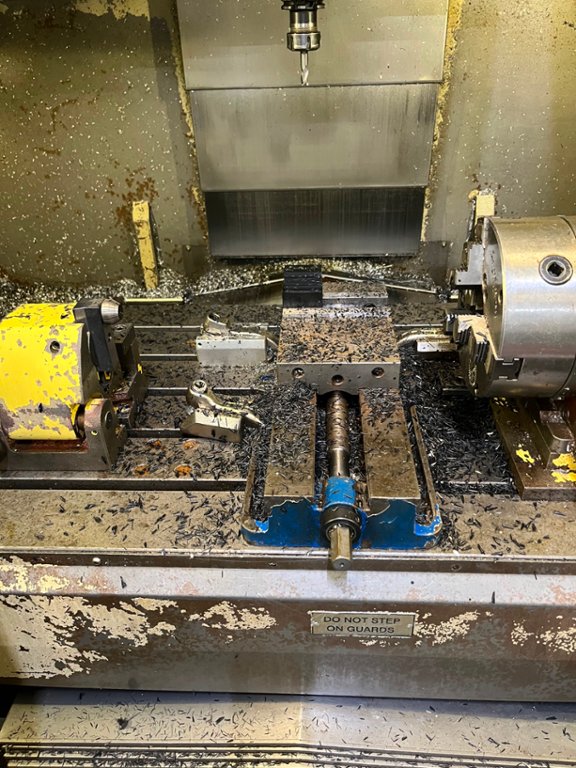

Comes with a 4th axis & a selection of tooling

Table Size: 35″ x 23.6″
Table Load Capacity: 2,000 LB
X Axis: 30″
Y Axis: 24″
Z Axis: 24″
Rapid Speed (X,Y): 1,692 IPM
Rapid Speed (Z): 1,417 IPM

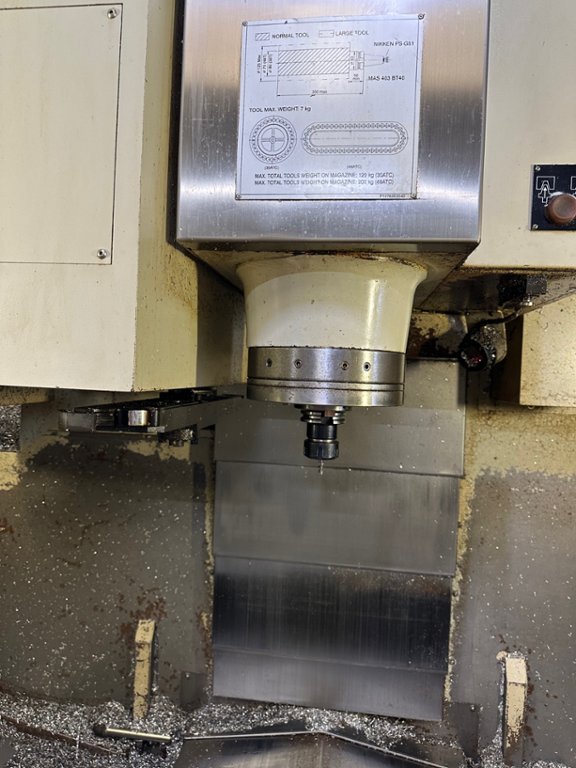

Spindle Taper: SK40
Spindle Speed: 12,000 RPM
Spindle Motor: 25 HP
ATC: 30 Tools
Tool Change Time: 4 sec chip to chip

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
