Lot 17 - 2 x Britan lathes with tooling

Description:

Britan lathes (Pair)

Manufacturer Britan GREEN
Model Serial Number 3616H
Type of chuck fitted Britan Collet
Length between chuck face & turret face (Max) 4"
Travel of turret 4"
Diameter of hole through spindle 1 1/4 "
Spindle speed range 100-2000
Number of spindle speeds 12
Main motor output 3Phase
Operating dimensions 125cm L x 90cm D x 140cm H
Shipping dimensions 100cm x 65cm x 120cm
Weight approx. 750Kg

Manufacturer Britan BLUE
Model Serial Number X1765E 1A
Type of chuck fitted Britan Collet
Length between chuck face & turret face (Max) 4"
Travel of turret 4"
Diameter of hole through spindle 1 1/4"
Number of spindle speeds 12
Main motor output 3Phase
Operating dimensions 125cm L x 90cm D x 140cm H
Shipping dimensions100cm x 65cm x 120cm
Weight approx. 750Kg

Both machines are 1 1/4 inch capacity

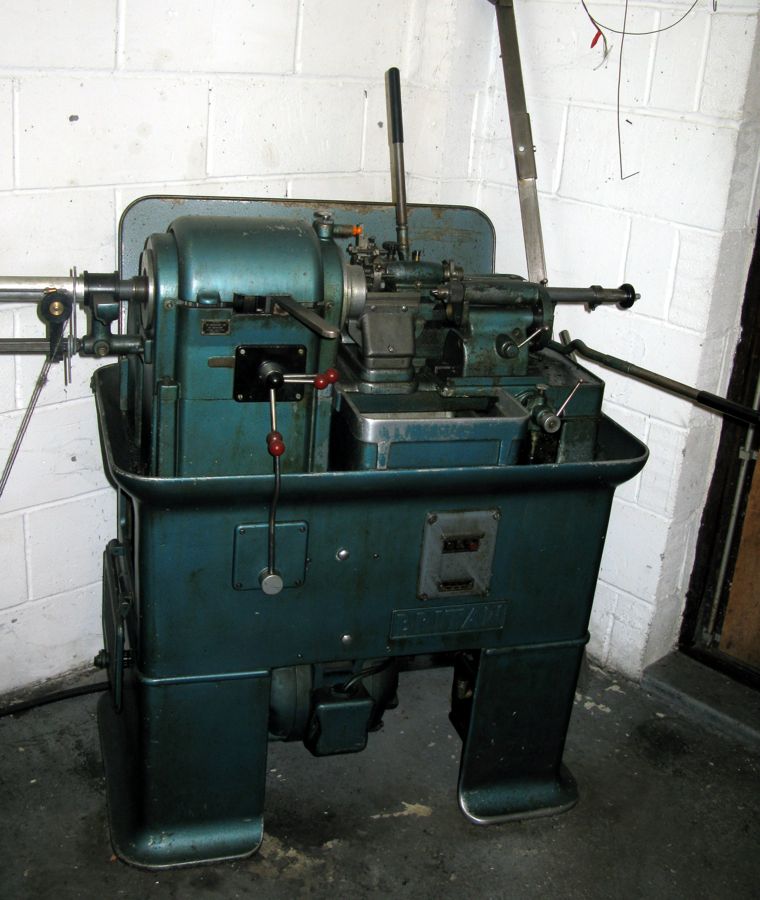

The dark blue machine has a repaired collet operating lever and no coolant tank.

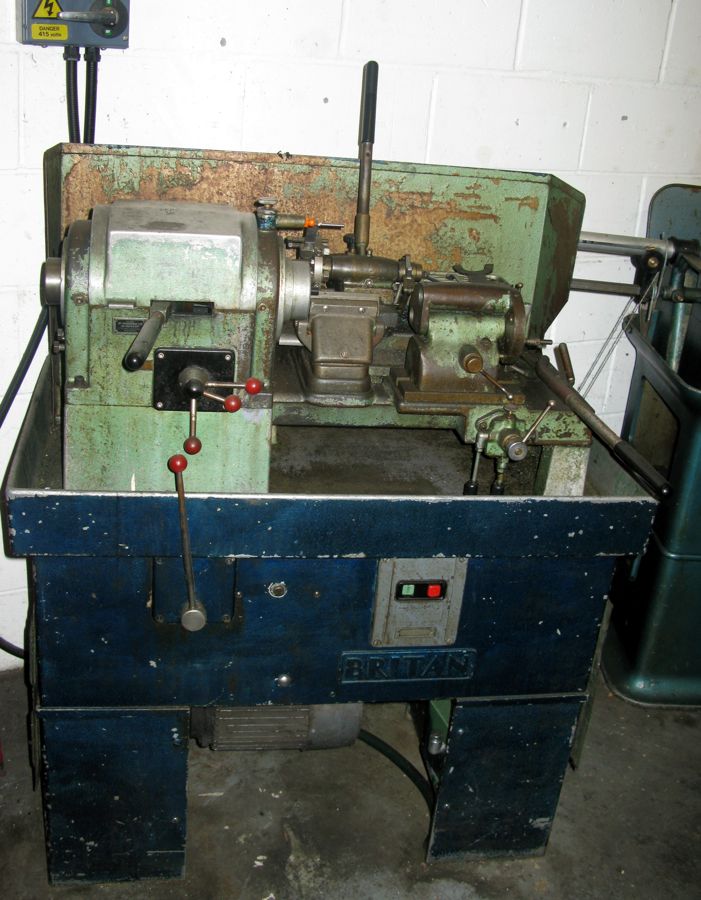

The machine with the light green head has a very noisy high/low speed clutch unit and no swarf tray

Both machines are currently still in service with the seller for 15 years.
Both redundant due to the purchase of a CNC lathe.

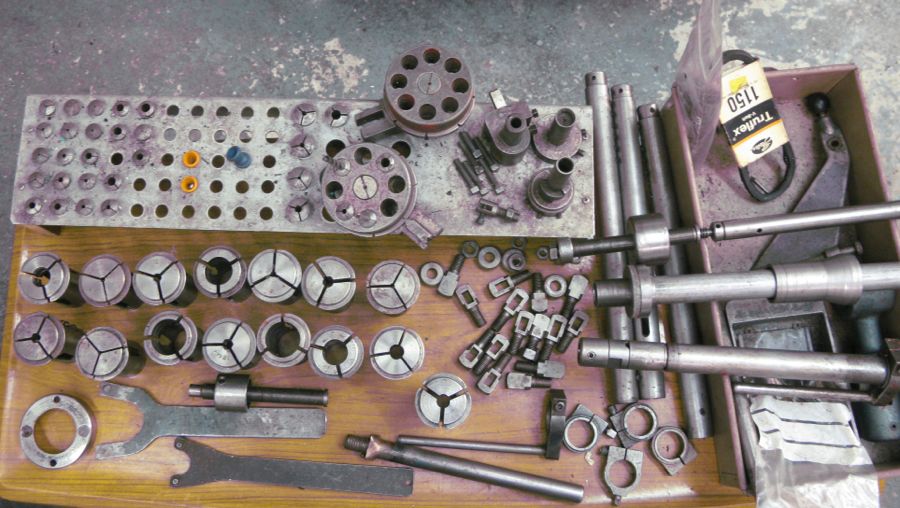

They share the spares & accessories between both machines.
There is only one collet chuck nut (bottom left hand corner of accessories photo)

Location: Coventry, Can be loaded for £50 to flatbed truck

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
