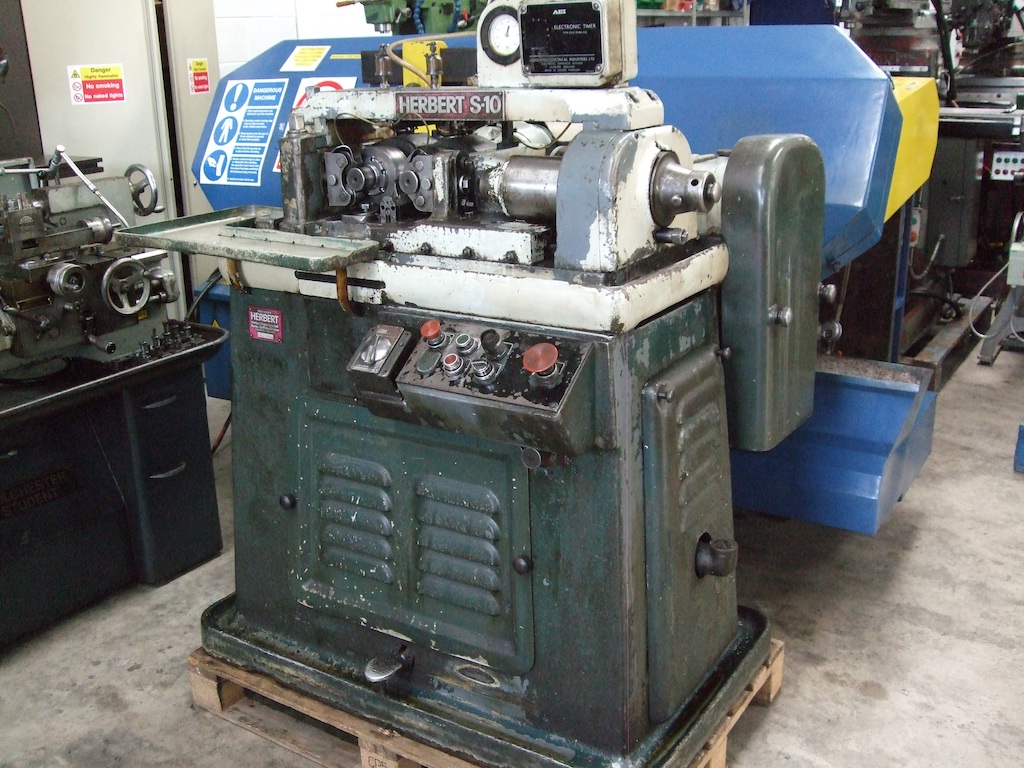

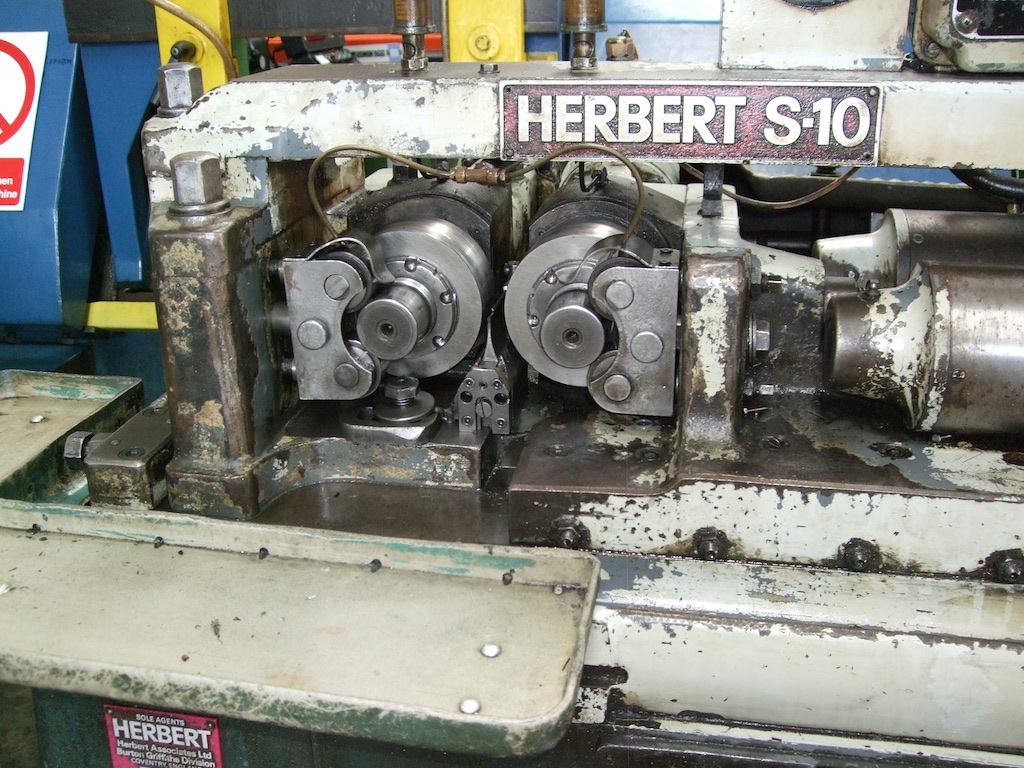

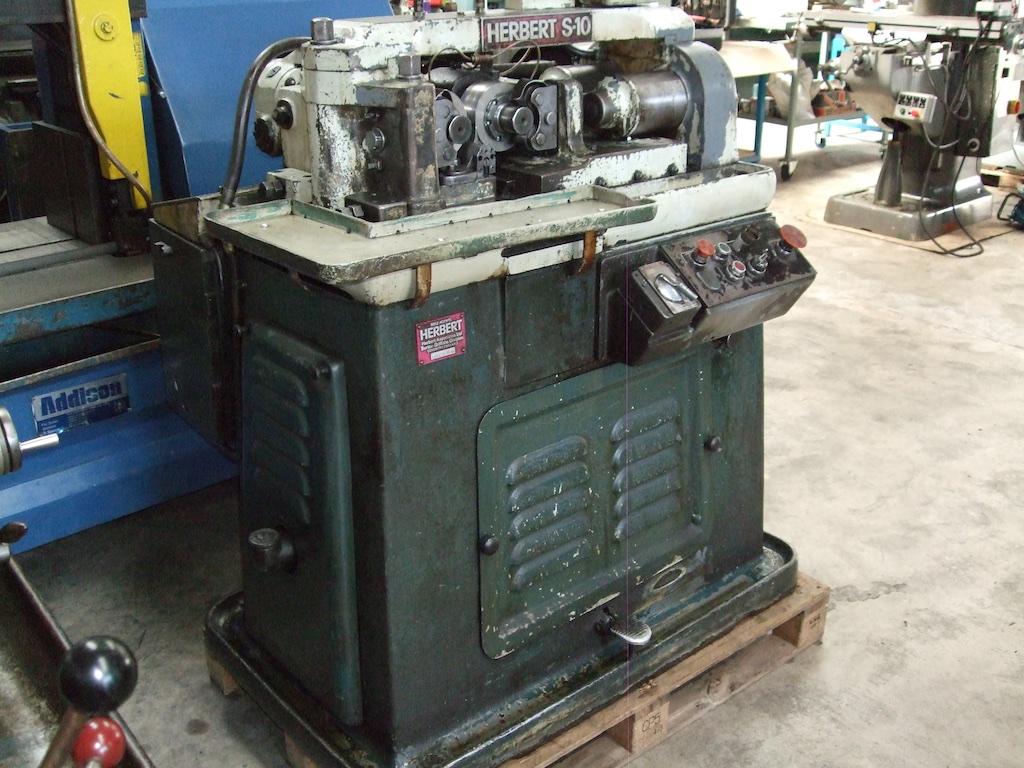

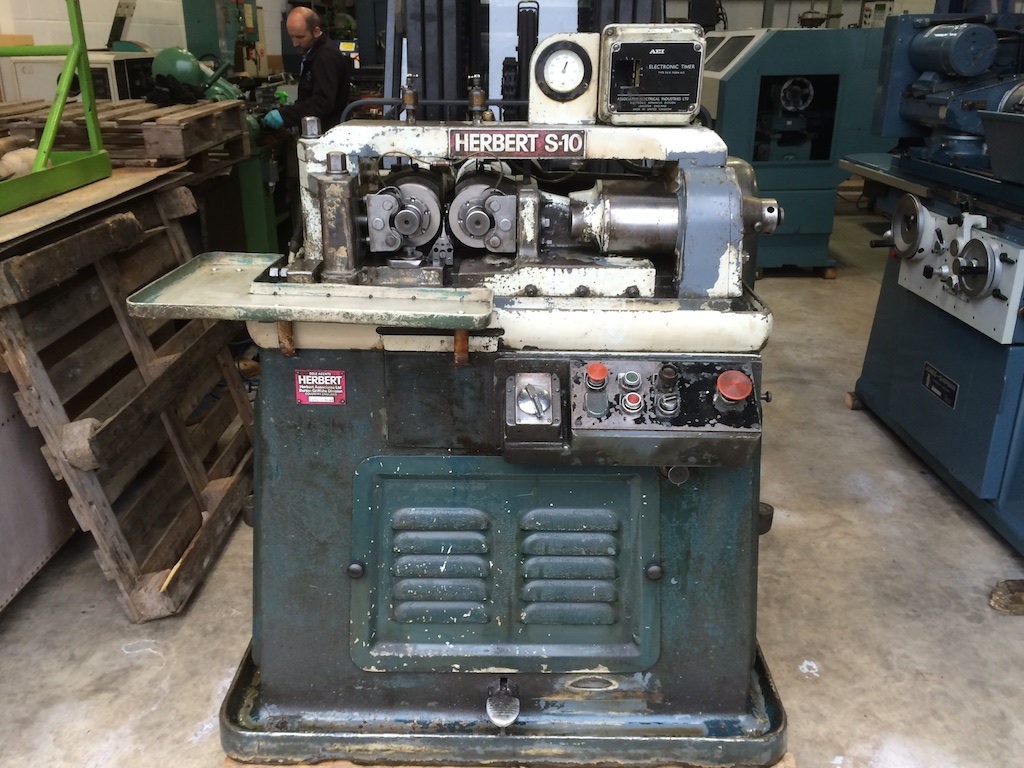

Lot 2 - BSA-Herbert No 1. 10 ton Two Roll Hydraulic Thread Roller with 50 sets of thread rolls
Description:
BSA-Herbert No 1. 10 ton Two Roll Hydraulic Thread Rolling
Machine with fixed spindles suitable for plunge feed rolling,
plunge & run rolling and thru-feed rolling with helical thru-feed rolls.
Maximum rolling pressure 10 tons
Maximum rolling diameter 25 mm
Minimum rolling diameter 3 mm
Maximum length to be plunge rolled 57 mm
Spindle diameter: (2 ¾”) 69.85 mm
Motorised 415 volts 3 phase 50 cycles supply and complete with:-
Open ended front spindle supports
Coolant equipment.
Work rest blade holder
New timer
50 pairs of used thread rolls Click Here to Download PDF list
(All the thread rolls are suitable for regrinding to other sizes)
Location: Derbyshire
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
