Lot 18 - BSA/Steinle 10 Ton Two Roll Hydraulic Thread Rolling Machine
Description:

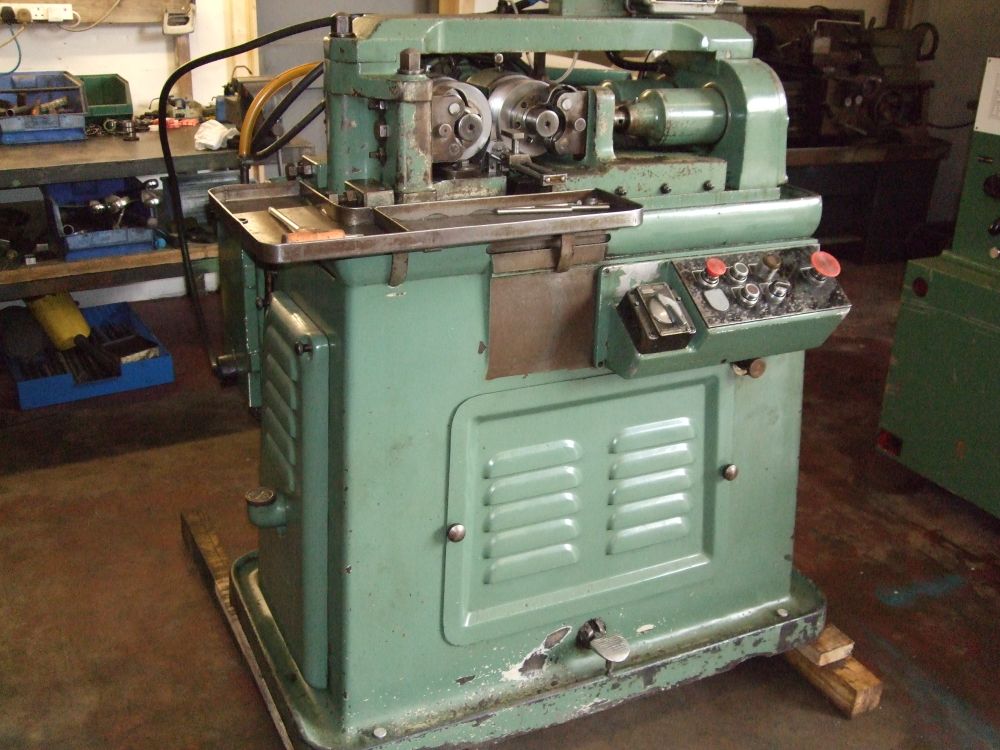

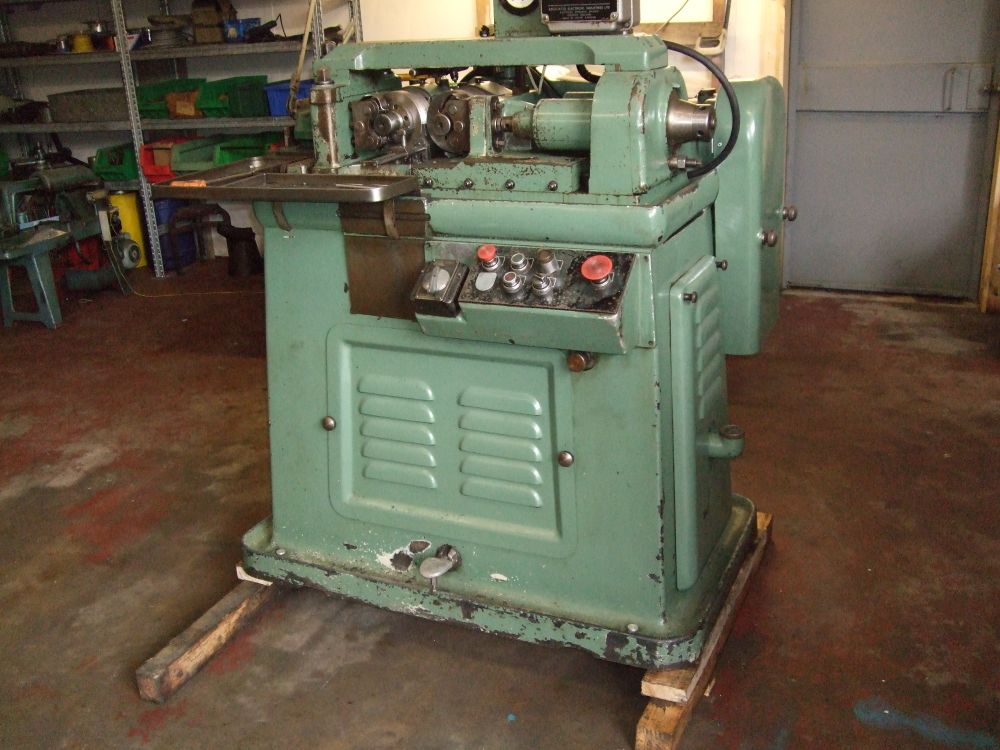

BSA/Steinle – 10 ton Two Roll Hydraulic Thread Rolling Machine
suitable for plunge feed or helical thru feed rolling.
50 pairs of used thread & serration rolls – various.
Work rest blade holder
Maximum rolling pressure 10 tons
Maximum rolling diameter 25 mm
Minimum rolling diameter 3 mm
Maximum length to be plunge rolled 57 mm
Spindle diameter: (2 ¾”) 69.85 mm
Motorised 415 volts 3 phase 50 cycles supply and complete with:-
Open ended front spindle supports
Coolant equipment.
Sets of 69.85mm bore thread rolls (two rolls per set) subject to verficiation:
Thread size O.D. Width --------------------------------------------------------------------------
M6 x 1.0mm pitch 115 57 M6 x 1.0mm pitch 130 57 M14 x 2mm pitch 125 57 M16 x 2.0 mm pitch 125 50 5/16" x 24 tpi UNF 130 45 3/8” x 16 tpi UNC 125 57 3/8” x 16 tpi UNC 125 57 3/8" x 24 tpi UNF 130 57 7/16” x 20 tpi UNF 120 57 7/16” x BSF 120 57 ½” x 16 tpi BSF 125 60 ½” x 16tpi BSF 125 57 ½” x 16tpi BSP 125 57 9/16” x BSF 125 50 9/16”x BSW 130 45 11/16”x BSF 130 45 7/8" x 11 tpi BSF 130 57 7/8” x 11 tpi BSF 130 57 7/8" x 11 tpi BSF 125 57
Plus Other sizes & types not listed 30/60 (31 sets)
Location :Derbyshire, Can be loaded free of charge to flatbed truck
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
