Lot 22 - Butler CNC Elgamill Model Hi Power HD30-5M

Description:

Butler CNC Elgamill Model Hi Power HD30/5M

Hiedenhain 470 TNC CNC Control
Table Size 5000 x 1030mm
Longitudinal X Travel 3200mm
Cross Travel Z 1050mm
Vertical Travel Y 1100mm
Spindle Motor 22KW
Spindle Speeds 50-1760rpm
Spindle Taper 50 ISO
Feeds 2-10,000mm/min
Rapid Feed 10,000mm/min
Total Power Required 45KW

Complete with:

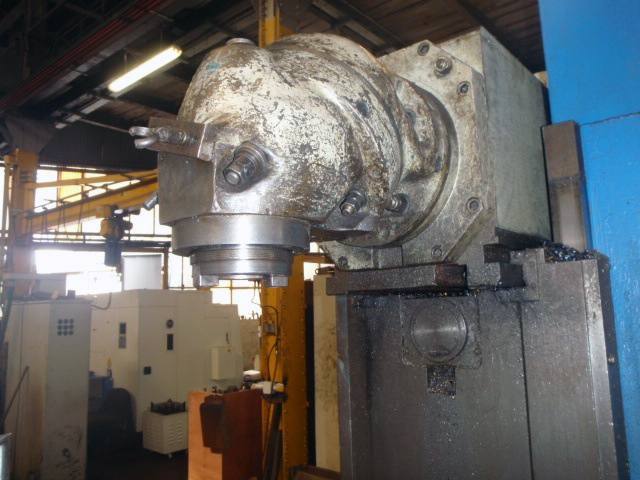

Manual Universal Milling Head

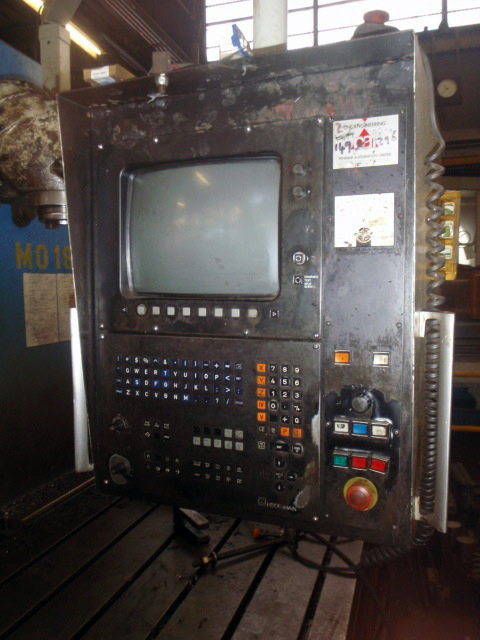

Pendant Control
Coolant
Manuals
Back Rail Support For Column

Buyer will have the use of the overhead cranes to loaded to transport.

Location: Briton Ferry, Neath

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
