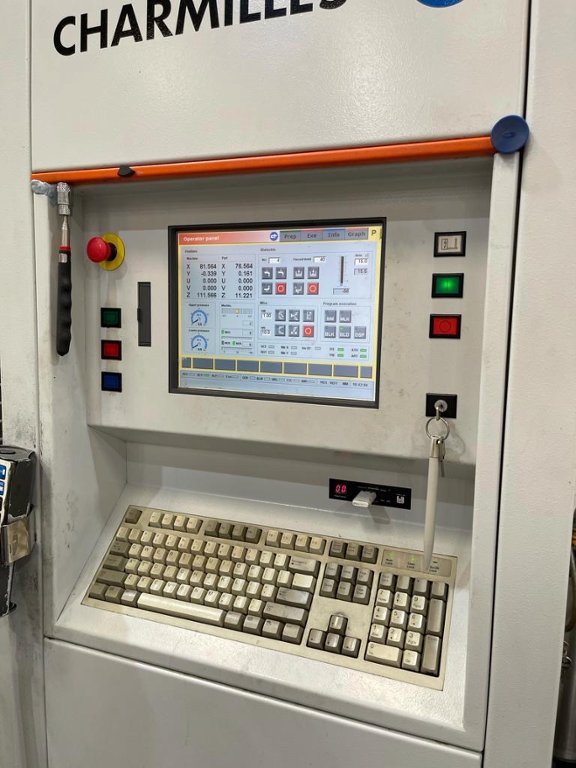

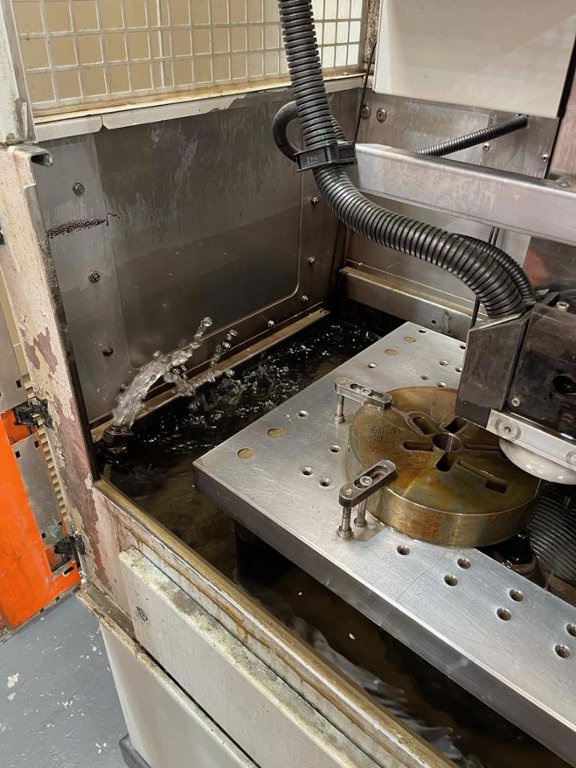

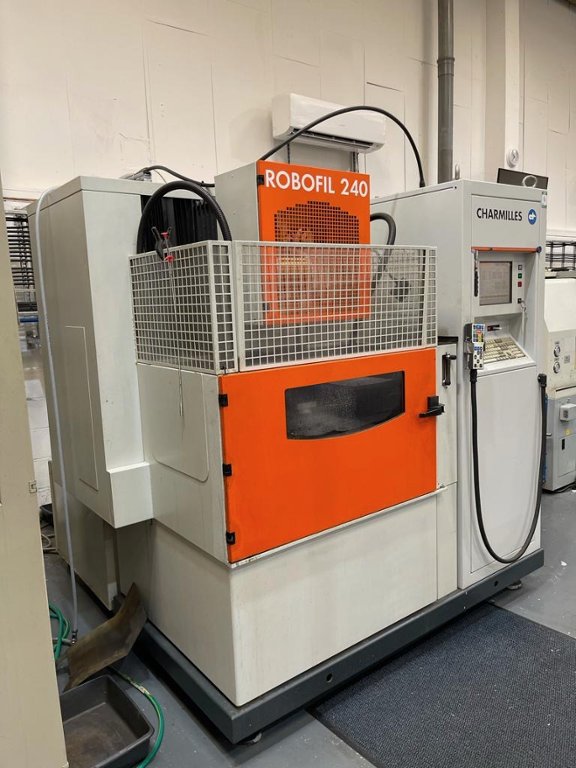

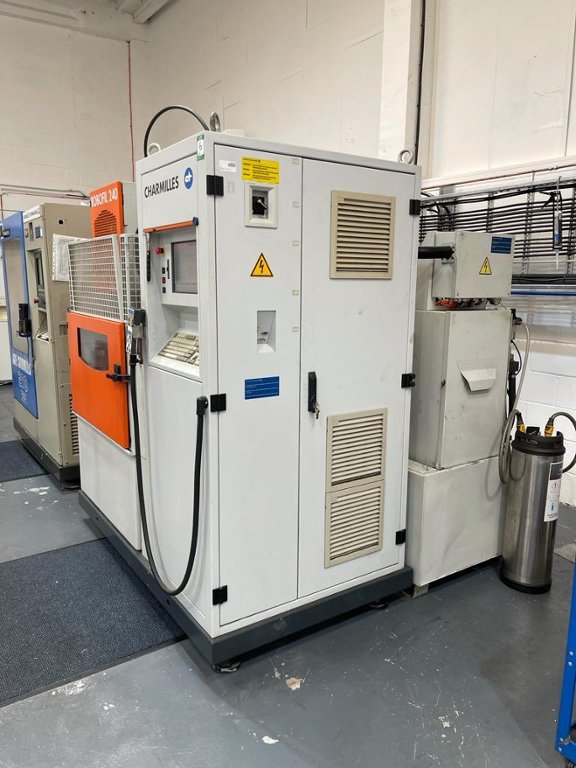

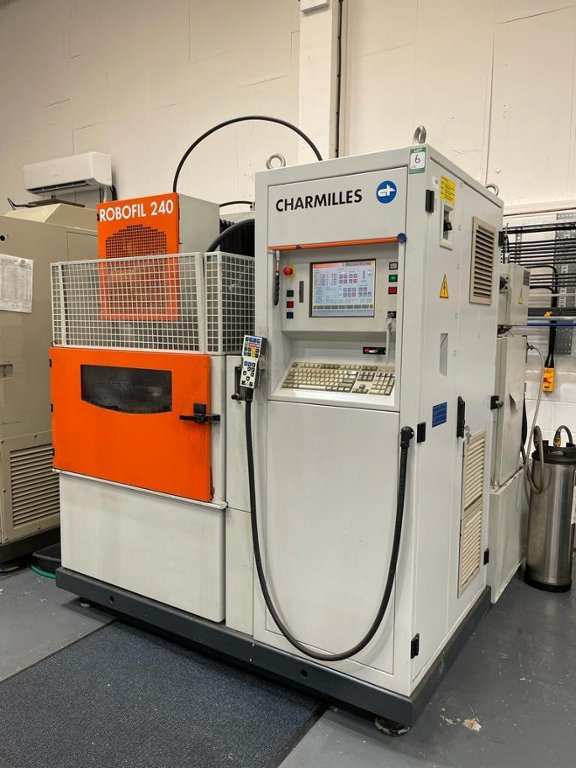

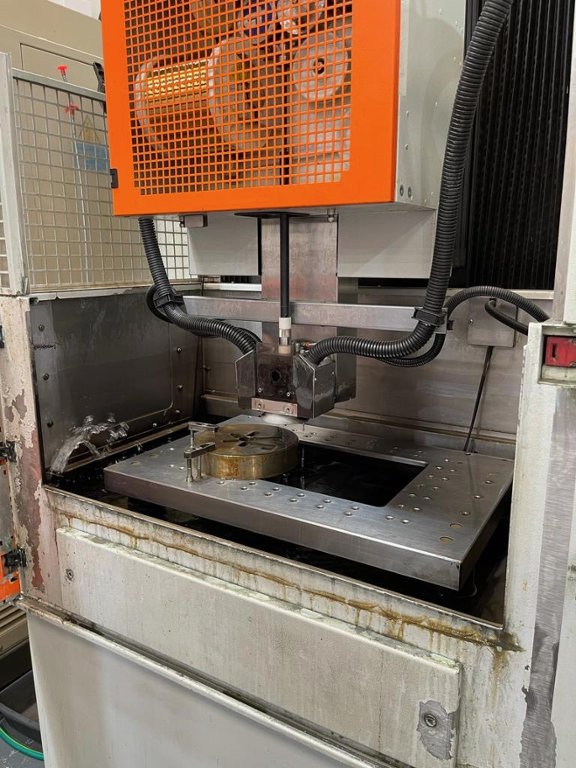

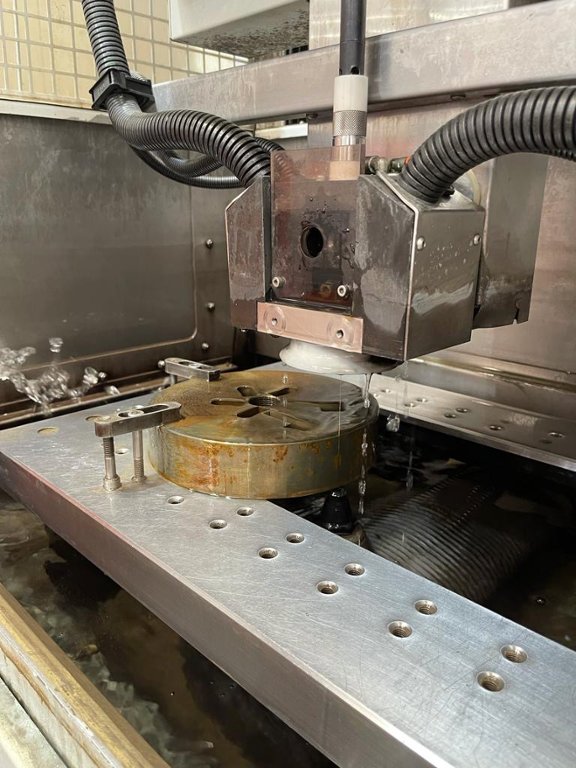

Lot 6 - Charmilles Robofil 240 EDM Machine (2001)

Description:

Vice NOT included

Maximum workpiece dimensions: 39.37" x 21.65" x 8.66"

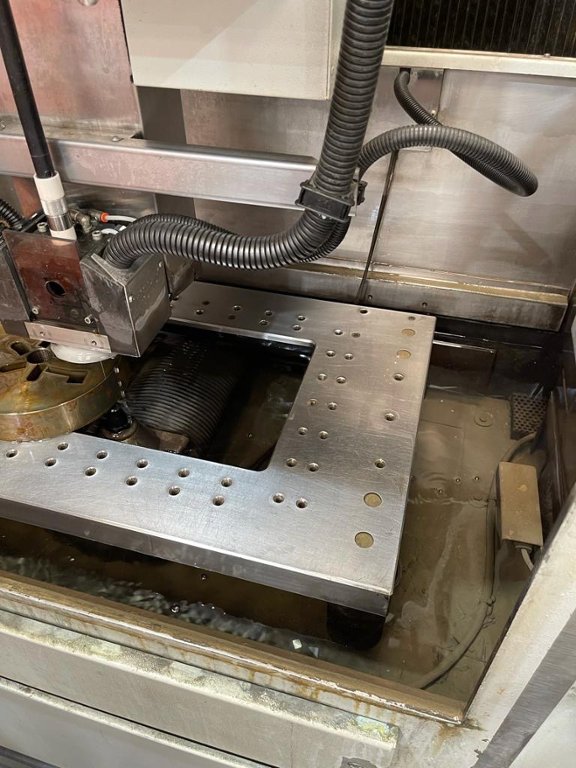

Table dimensions: 26.77" x 17.72"
Maximum workpiece weight: 1,650 lbs
X, y, z travels: 13.77" x 8.66" x 8.66"
U, v travel: 13.77" x 8.66"
Maximum taper angle: +/- 30 Deg / 8.66"
Wire capability: .004" to .012"
Reservoir capacity: 200 Gallons
Inside tank dimensions: 39.37" x 21.65"
Power supply: 380/400 V , 10 KVA

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Recommended Transport

• Photos

Enlarge

Bid information

Serial Number: 920316

Location: Banbury

Transport information

• Width: 80"
• Depth: 70"
• Height: 79"
• Weight: 2100kg
• Other Transport Details: Loaded to suitable transport £250
