Lot 13 - Chevalier FSG-1020AD, surface grinder
Description:

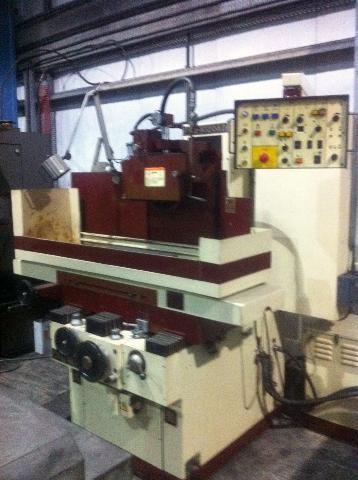

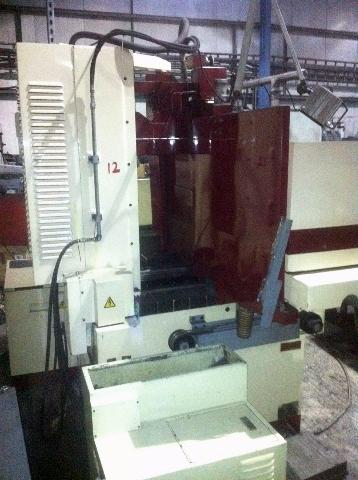

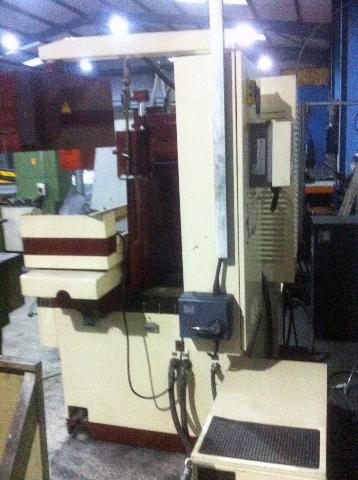

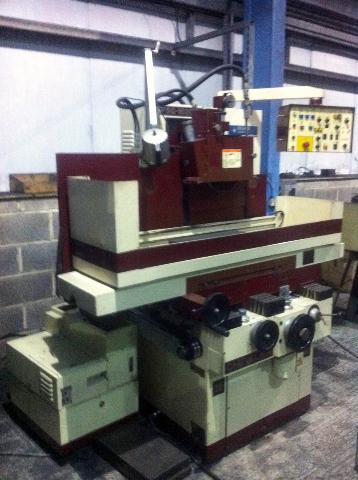

Chevalier surface grinder model FSG 1020 AD
Hydraulic Horizontal Spindle Surface Grinder,
10" x 20" Rated Capacity,
24-3/8" Longitudinal Table Travel,
11-3/4" Cross Table Travel,
21" Maximum From Spindle Center to Table Top,
Chevalier Controls,

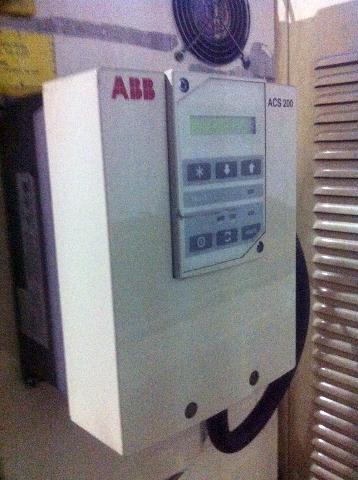

Wheel Guard, Wheel Dresser, Coolant Tank and Pump, 4.2 Kw, Three Phase Motor and Controls, Wheel speed electronic control
FSG-1020AD, surface grinder
Brand : CHEVALIER

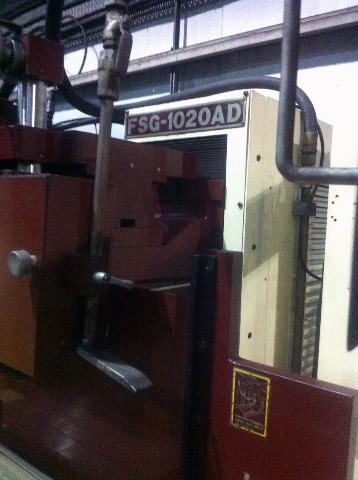

Model : FSG-1020AD
Maximum distance, top of table surface to centerline of spindle - 530mm (21")
Longitudinal travel of table, hydraulic - 530mm (21")
Maximum longitudinal travel of table, manual - 558mm (22")
Infinitely variable longitudinal table speed - 5 – 30 m/s (16-98 fpm )
Automatic transverse increment - 0.5mm (0.02")
Maximum cross travel, electro-mechanically actuated - 280mm (11" )
Maximum cross travel, manual - 282mm ( 11-1/8")
Standard grinding wheel diameter - 300mm (12")
Equipped with:
Hydraulically actuated longitudinal table feed
Electromechanically actuated feed of saddle

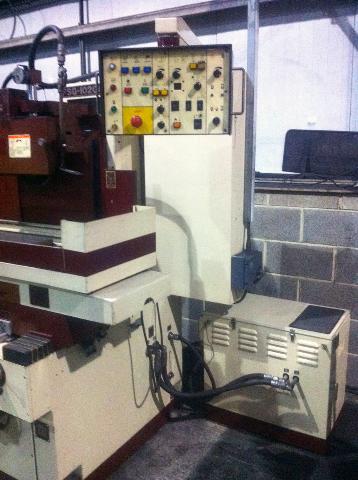

Pendant mounted and microprocessor controlled
automatic incremental down feed of grinding wheelhead in
surface or plunge modes of operation. Fully automatic grindng cycle including rapid
advance of grinding wheelhead, 0 to 7 spark out passes, and retraction of wheelhead
to a pre-set distance at the completion of the cycle.
Table and saddle guide ways made of special steel rails with high accuracy steel rollers
Precision needle roller bearings used on the elevating guide ways

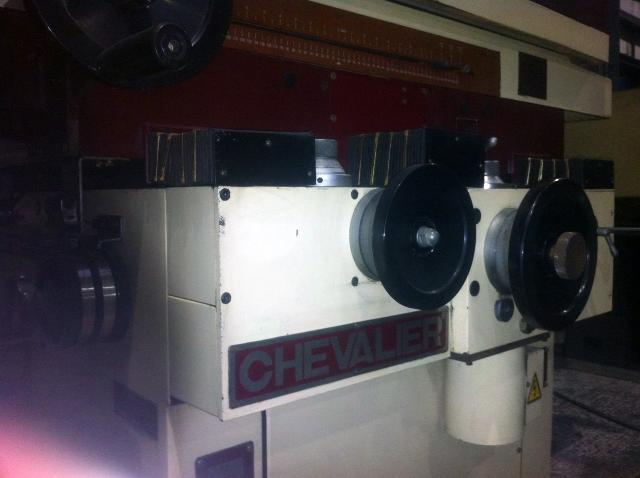

Fine (micro) feeds graduated to .00005" for vertical and cross feeds
500 x 250mm Walker Magnetics Uk Ltd electromagnetic chuck
Over-the-wheel parallel dresser
(4) Leveling pads
External coolant system with table splash guards
External hydraulic system with 2 H.P. 3/60/220-440 volt pump motor and tank
Location: Machine Transport Services, Coventry and can be loaded for £100.00
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
