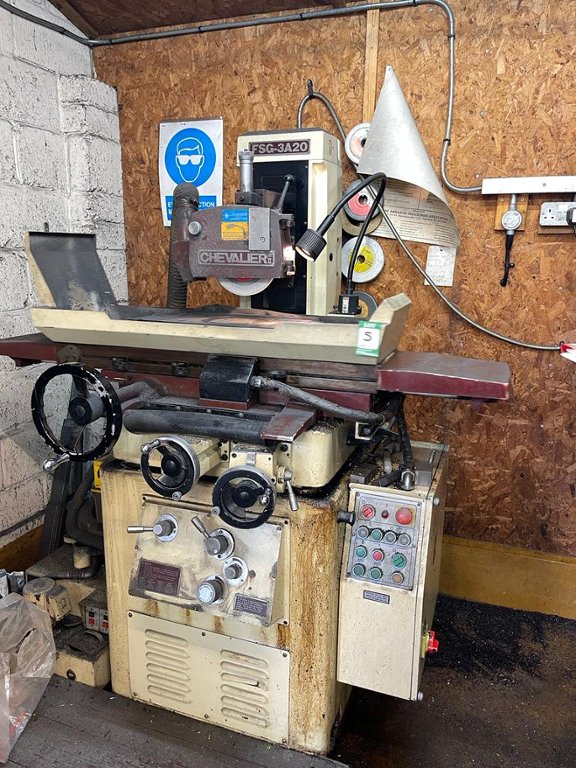

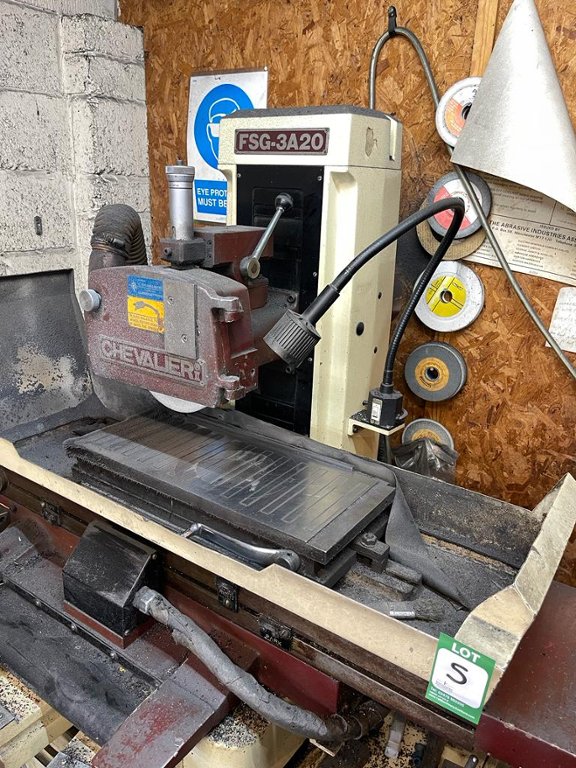

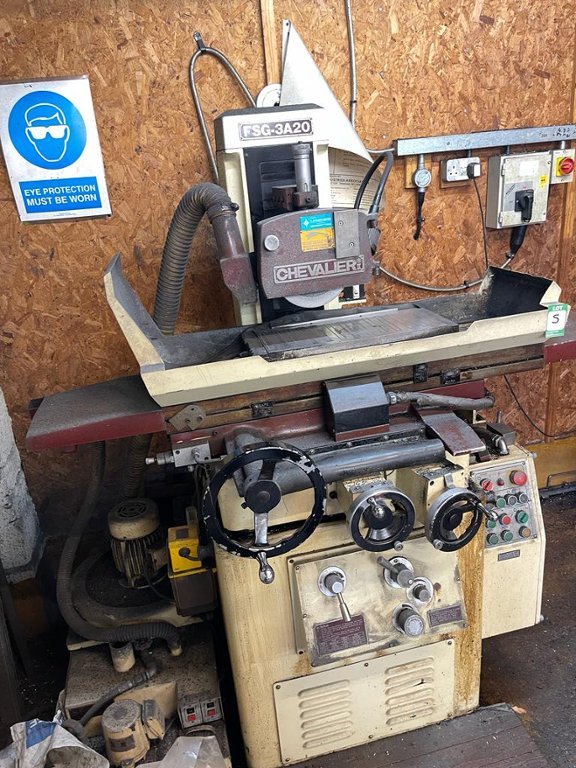

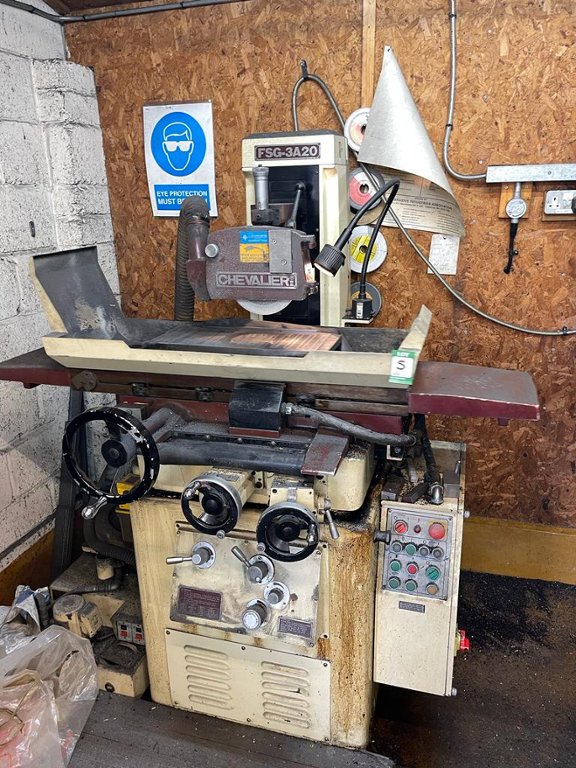

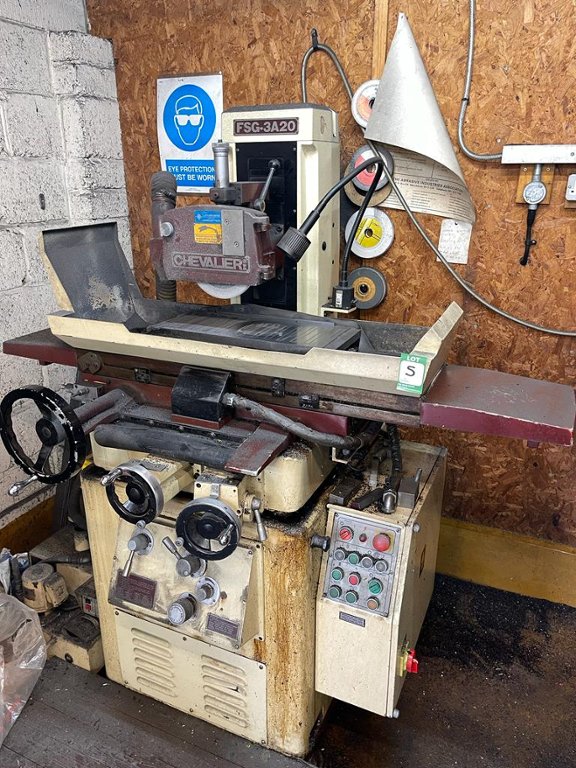

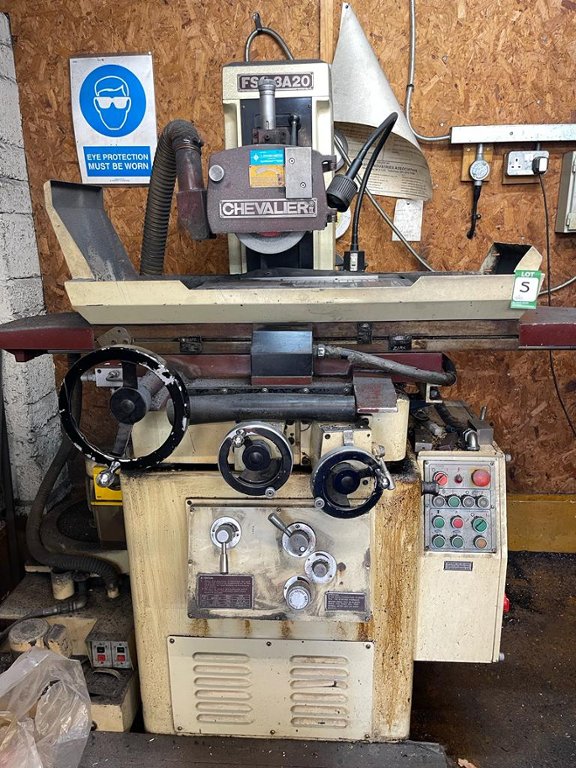

Chevalier FSG-3A20 Surface Grinder (1987)

Lot 5 - Chevalier FSG-3A20 Surface Grinder (1987)

Description:

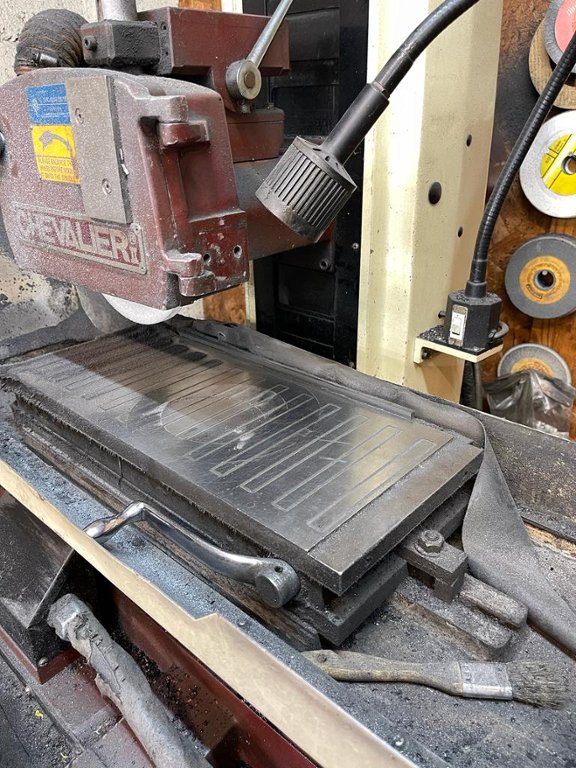

Working Surface - 8 x 18" (200 x 460mm)

Table Travel - Longitudinal - 21" (536mm), Crossfeed - 9 1/4 (235mm)

Max Distance from Spindle Center to Table Surface - Table - 14 3/8" (365mm) - Column with 4" riser block - 18 3/8 (467mm)

Table Feeds - Longitudinal - Manual or 0-70 f pm (0-18/min), Crossfeed Increment - Manual or 0.006" - 0.375" (0.15 - 9.5mm), Wheel Dress - Manual or 0.63 - 3.3 f pm (0.2-1m/min)

Lubrication - No recirculated automatic lubrication system with timer

Spindle & Motor - Direct Drive - 1.5HP/3ph/60Hz/3450RPM or 1.5HP/3ph/50Hz/2850RPM

Hydraulic Pump Motor - 2HP/3ph/60Hz/1720RPM or 2HP/3ph/50Hz/1420RPM

Machine Base - Cast Iron

Downfeed Handwheel - in column - per graduation - 0.0001" (0.005mm), per revolution - 0.025" (1mm) Under Saddle - per graduation - 0.0001" (0.005mm), per revolution - 0.025" (1mm)

Crossfeed Handwheel - per graduation - 0.0005" (0.01mm), per revolution - 0.1" (3mm)

Grinding Wheel recommendations - Diameter - 8" (203mm), Width - 1/2" (12.7mm) Max 1" (25.4mm), Hole Size - 1 1/4" (32mm)

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
