Lot 6 - Chiron DZ15 W VMC Twin Spindle, Twin Pallet with Trunnion Table (2005)
Description:

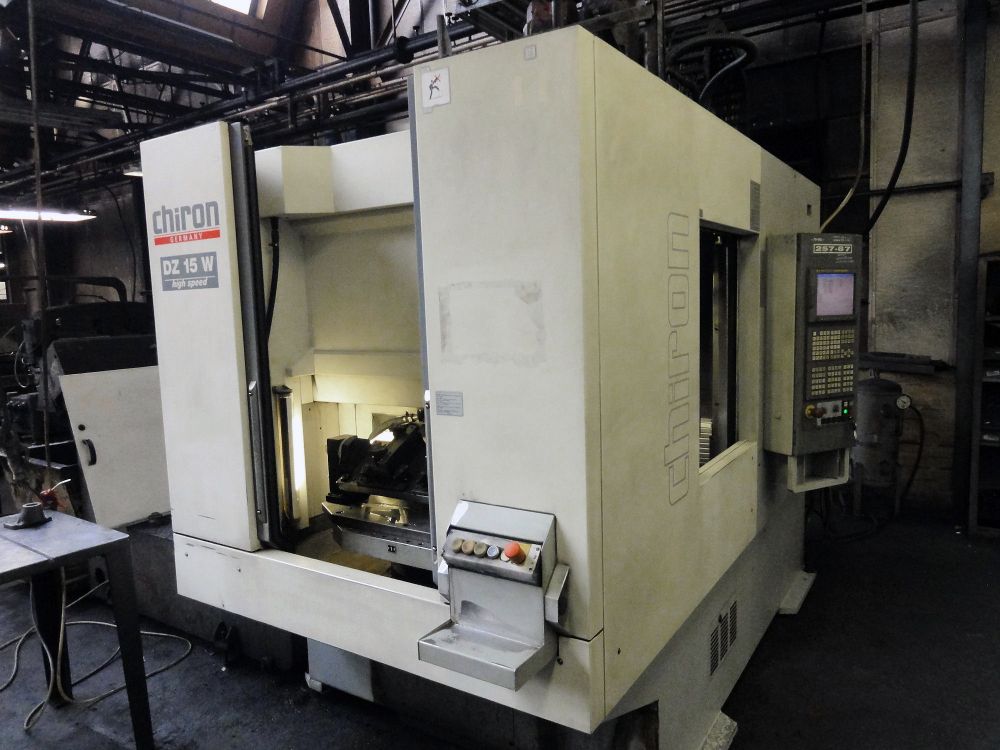

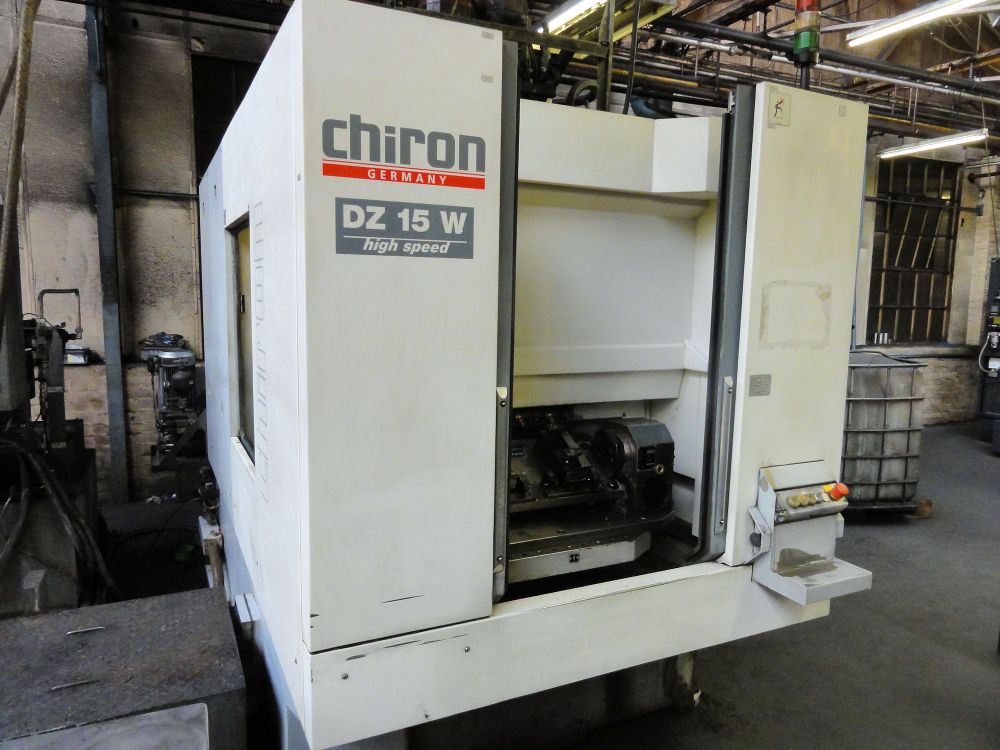

Chiron DZ15 W VMC Twin Spindle, Twin Pallet with Trunnion Tables (2005)

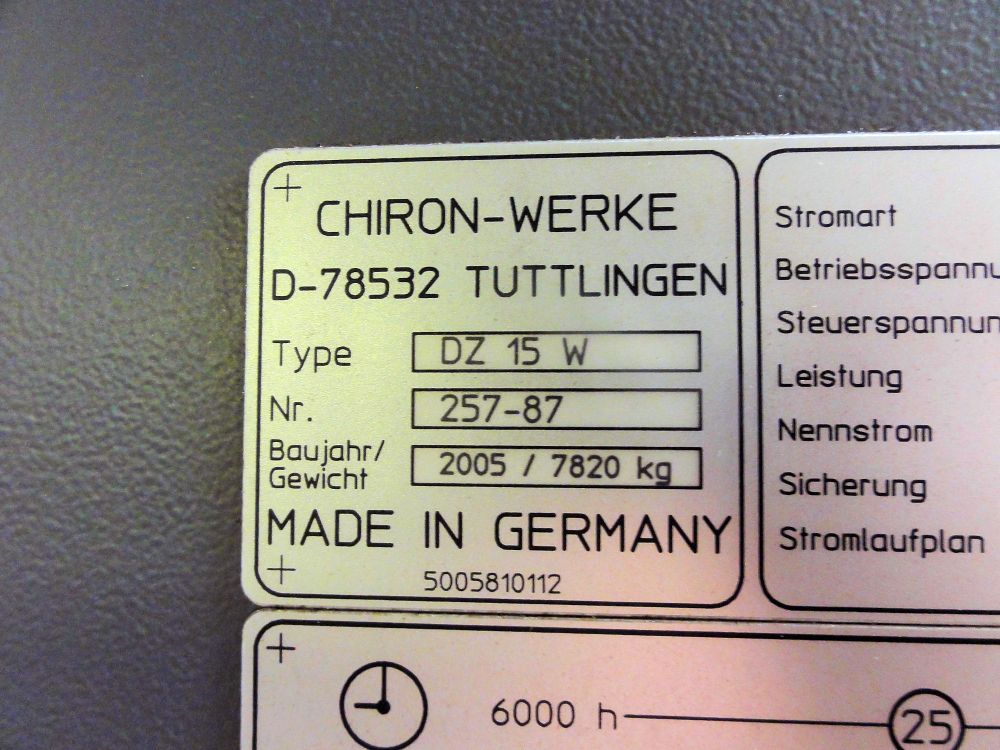

S/n: 257-87
Date: 2005
Weight: 7840kg

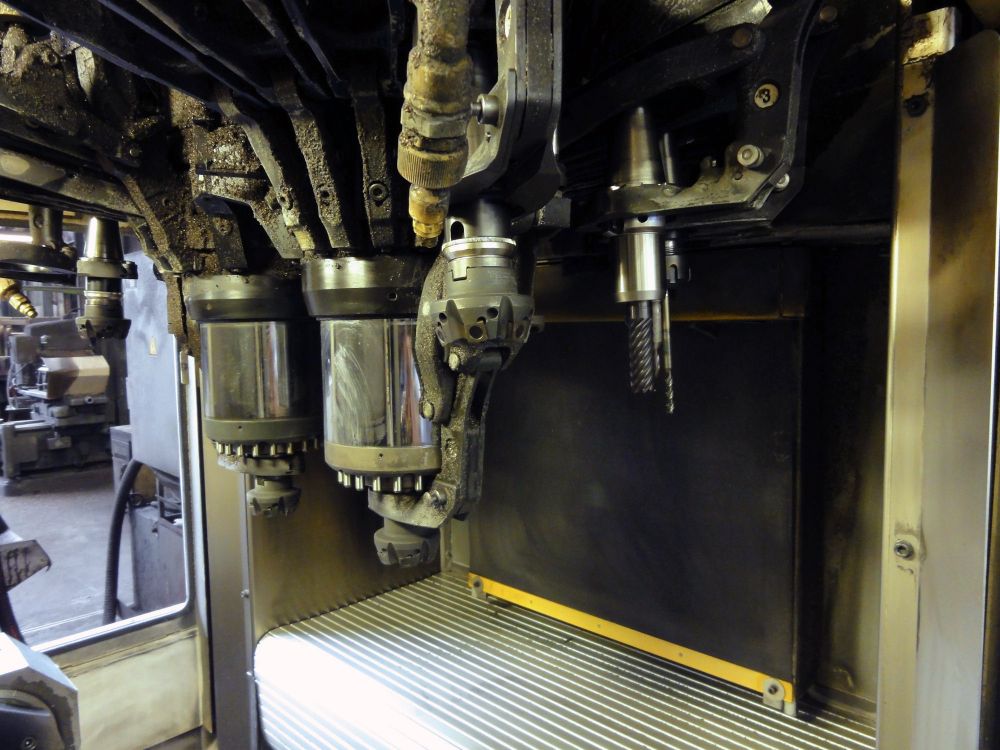

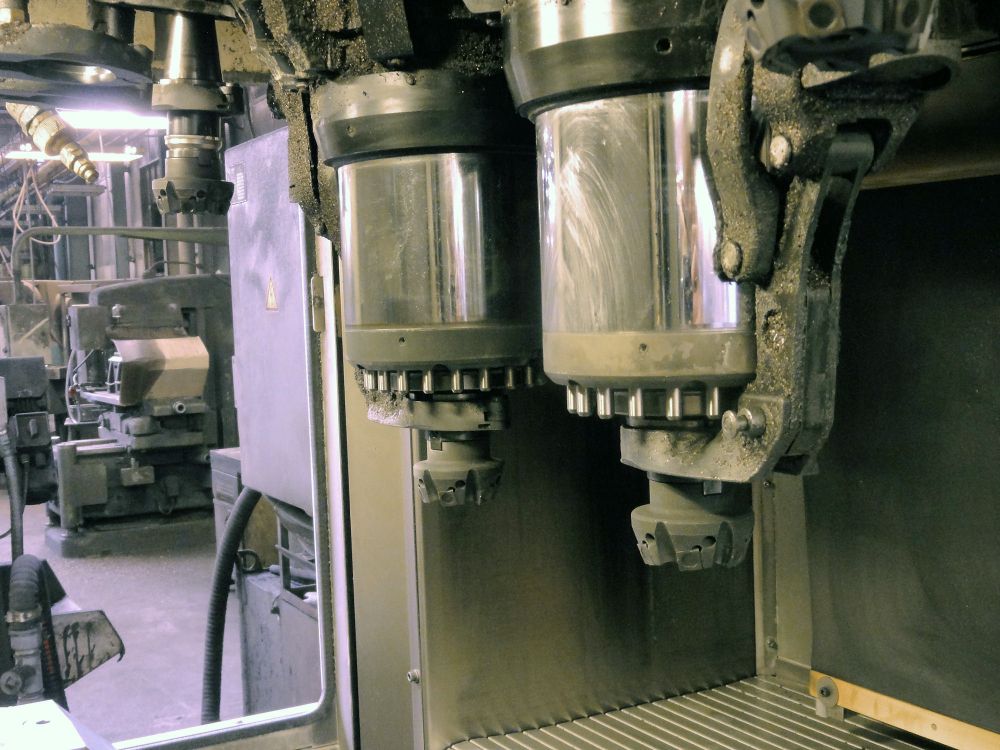

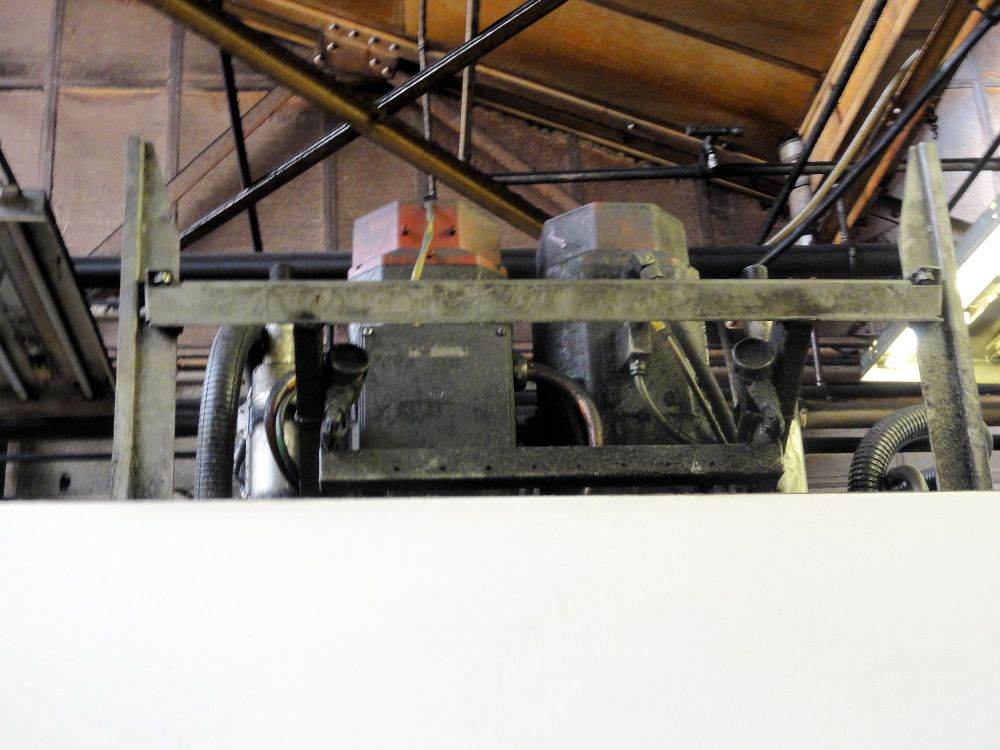

Main Spindle:
7.5kw at 100%
15.0kw at 256% for mainspindle
Spindle speed range: 20 - 10.500 rpm - max.95 Nm
Through spindle coolant
Travel:
X axis: 300mm
Y axis 400mm
z axis: 425mm wit adjustable tool change level
Spindle distance in x axis 250mm
High speed package:
Rapid traverse 60 m/min in XY and Z axis with 1g acceleration
Spindle speed range: 20 - 12000 rpm

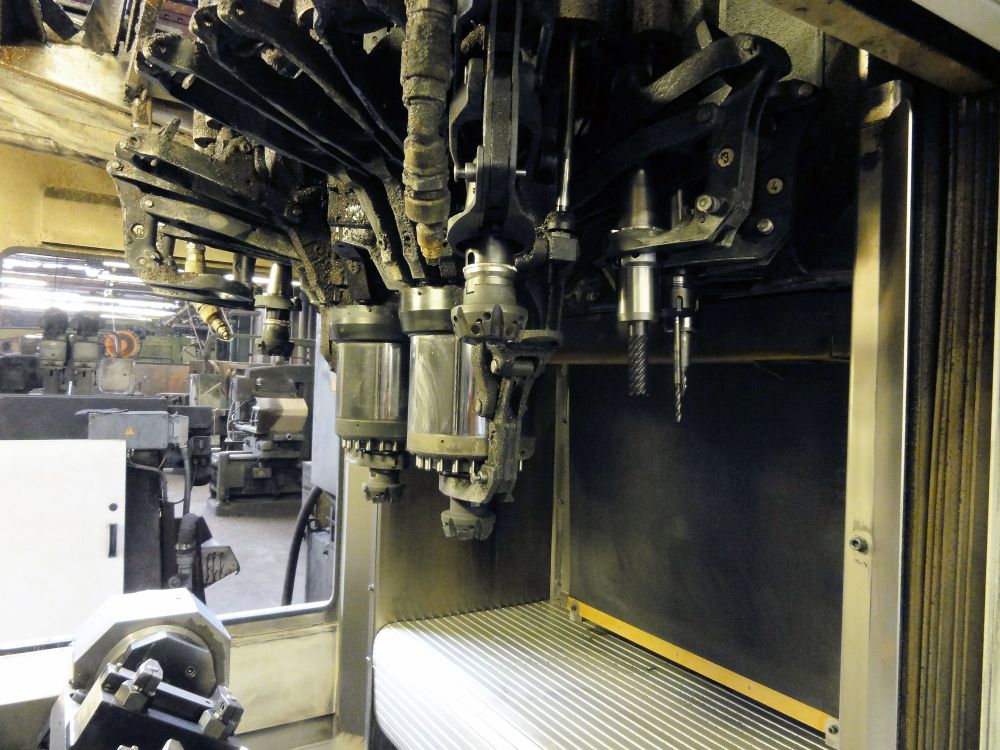

Automatic tool changer, protected against chips:
No. of tools: 2 x 12
Tool shaft: SK 40 DIN 69871 + 72
Max. tool dia: 65mm if all magazine pos. are occupied
Max. tool dia: 175mm if adjacent places are free
Max tool weight: 2.5kg (5.0kg at 2 places)
Tool change time approx.: 0.9s (depends on CNC)
Chip to chip time approx. 2.1s (depends on CNC)

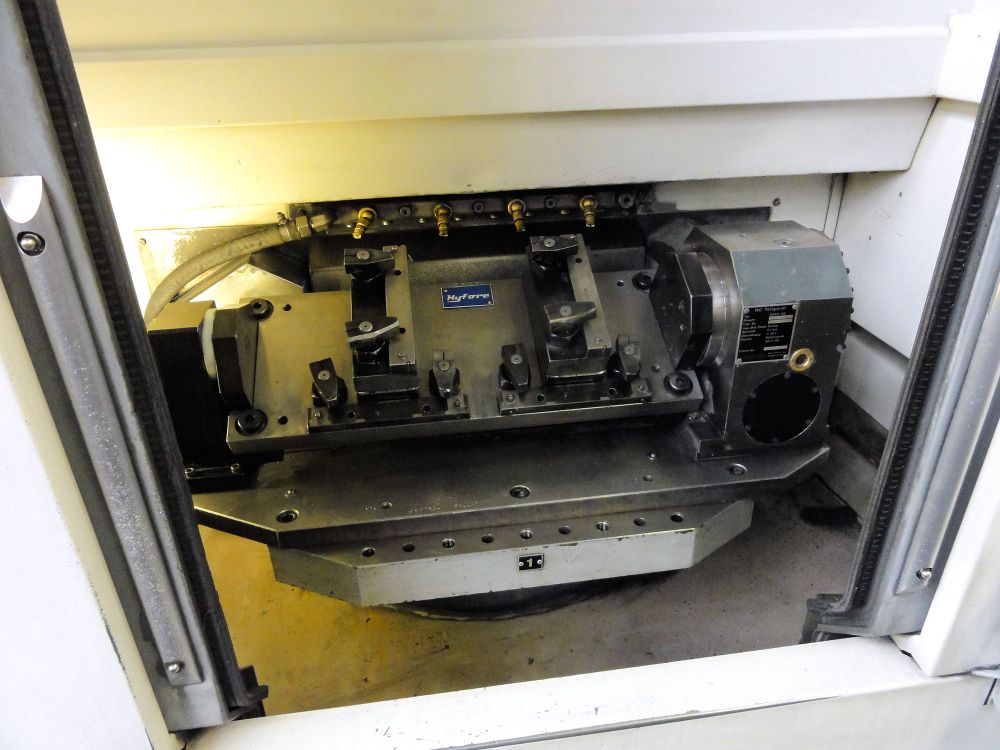

Workpiece swivel table 0/180 degrees:
Centre divider made of sheet metal
Clamping surface: 2 x 660mm x 400mm
Workpiece swivel time approx: 2.4s weight dependent. self regulating
Though self learning speed control
Table loading cap. per side 0 - max. 300kg
AC servo motors:
for X Y and Z axis
digital direct drives wit indirect absolute path measuring system
rapid traverse in all axis 40m/min
with 0.5g acceleration

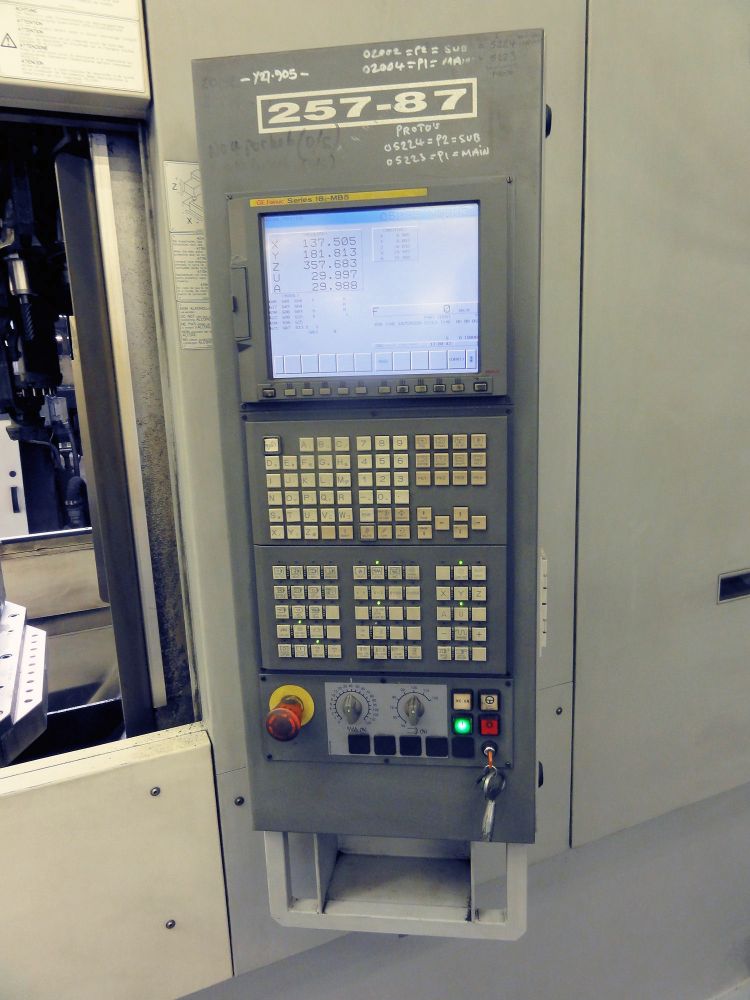

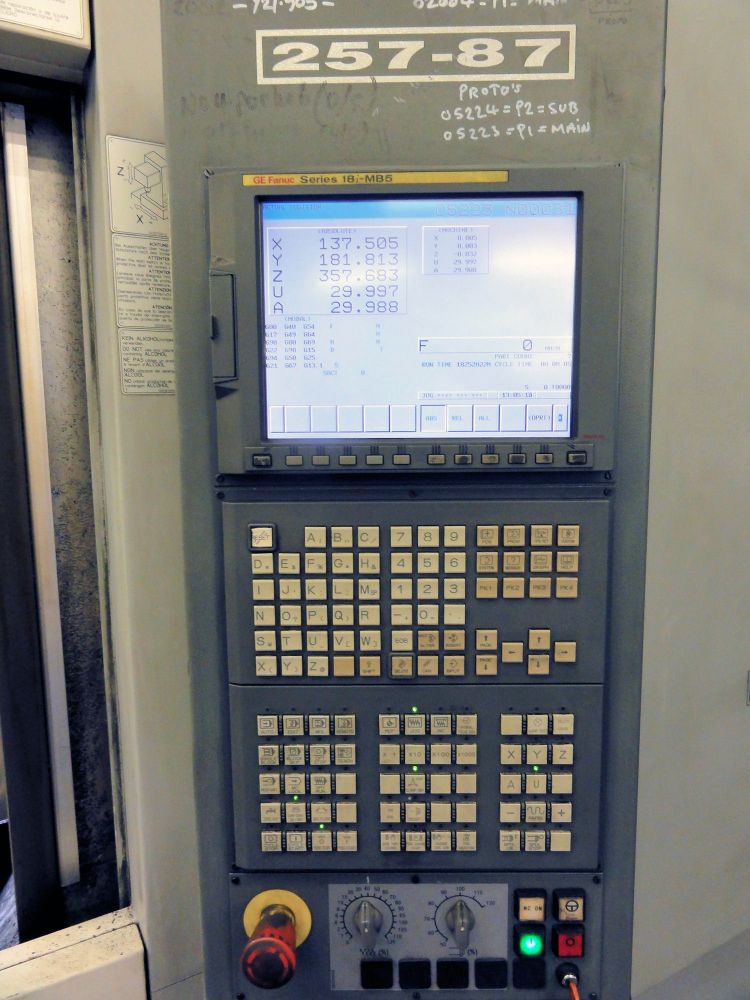

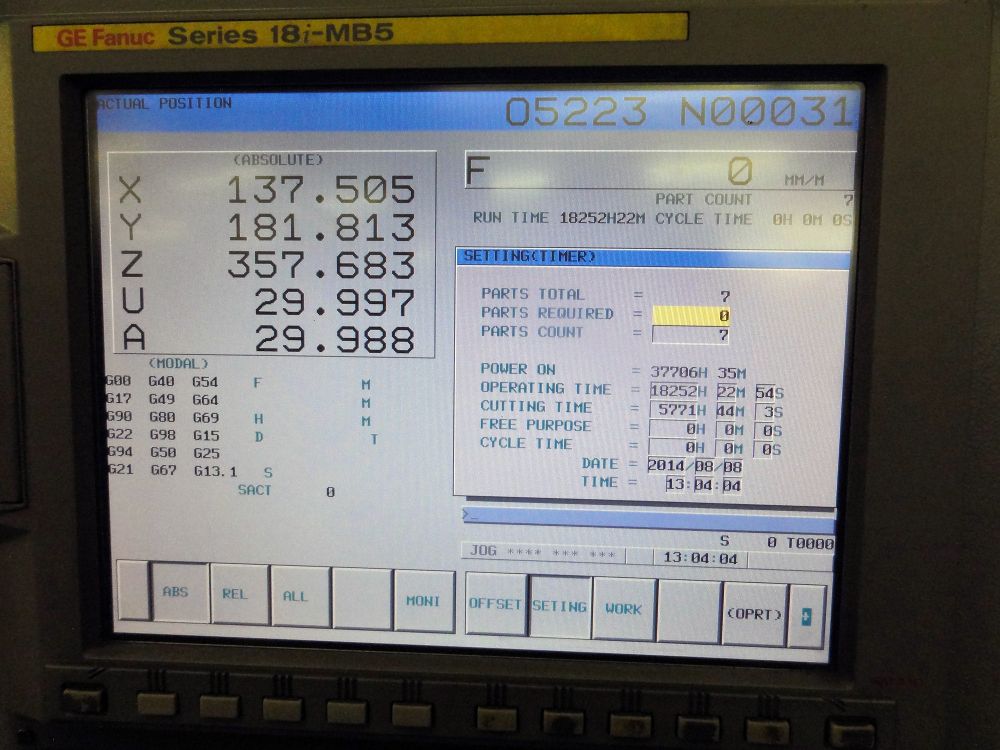

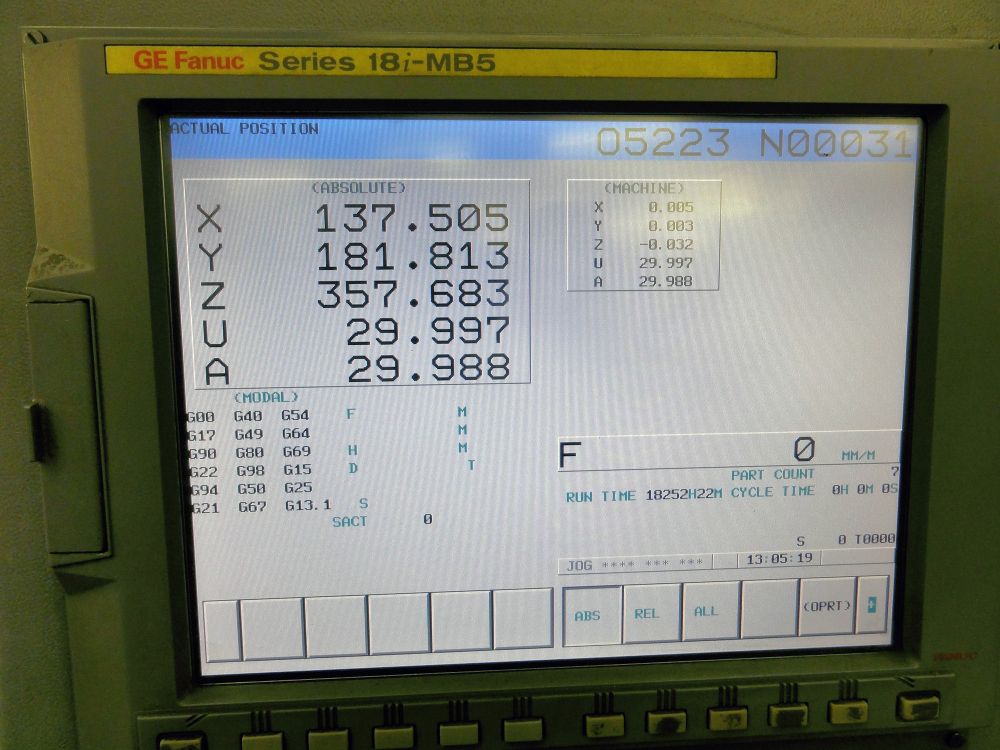

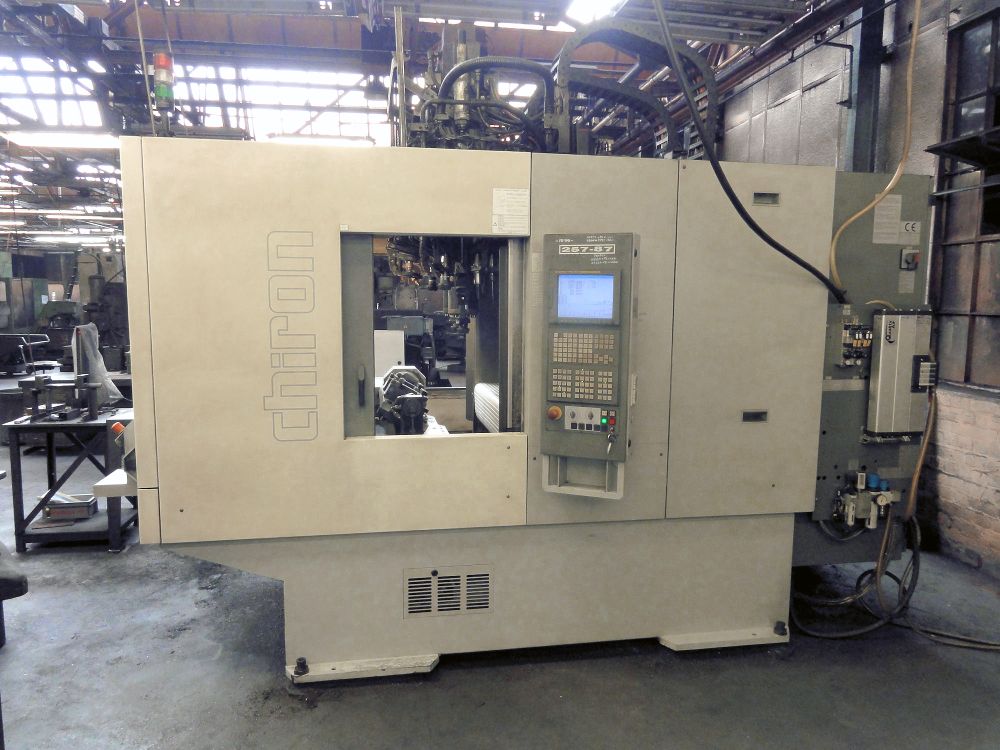

Fanuc 18i MB-5 axis continuous path control:
10.4” colour screen
memory cap. 256kb
drilling cycles G81-G89
absolute path measuring system
M- and T- functions
Circular interpolation (360 degrees)
re- start into program
makro B sub routines
look ahead
simultaneous programming
automatic corner override
32 tool offsets
cutter radius - contour compensation
6 zero shifts G54-G59
metric/ inch switch
3D-interpolation/ helical interpolation
S- analogue
orientated spindle stop
Slot for PCMCIA memory card
interface RS 232C on the side at the control panel
software limitswitch
NC diagnosis
machine diagnosis
Wash gun

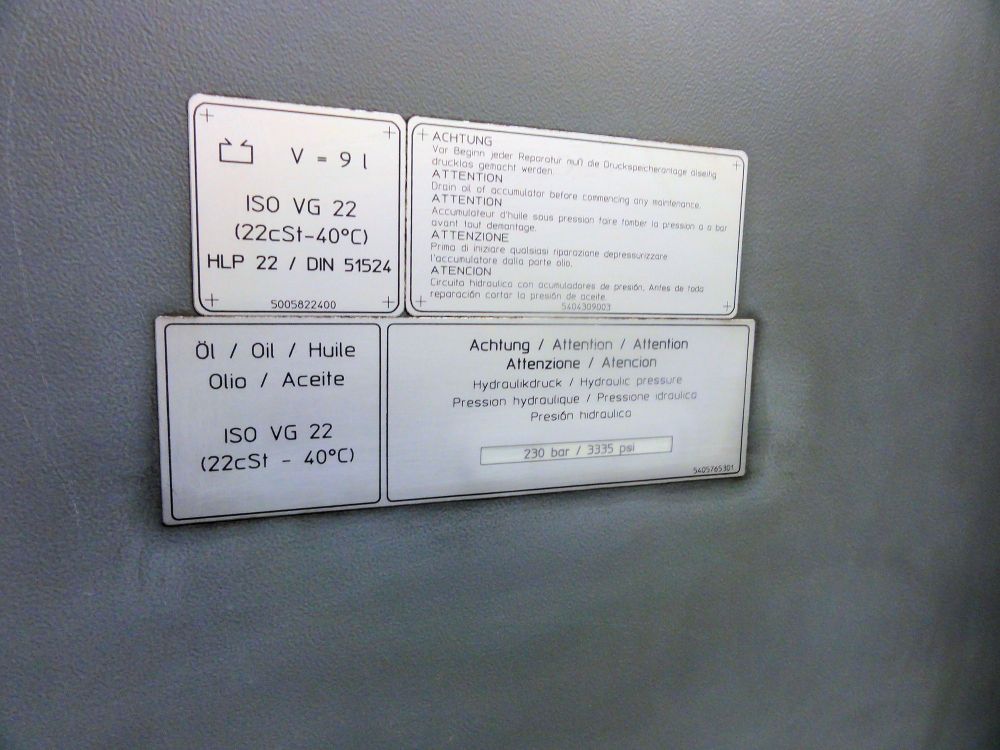

Central pneumatic supply

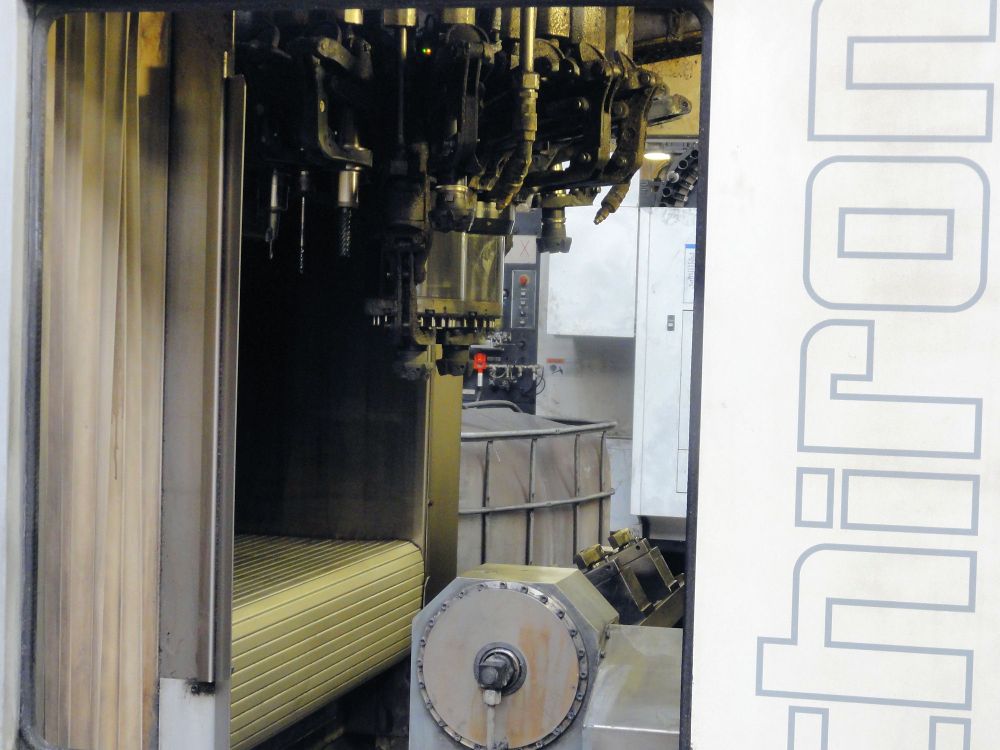

Fully enclosed workspace
Automatic loading door of total enclosure

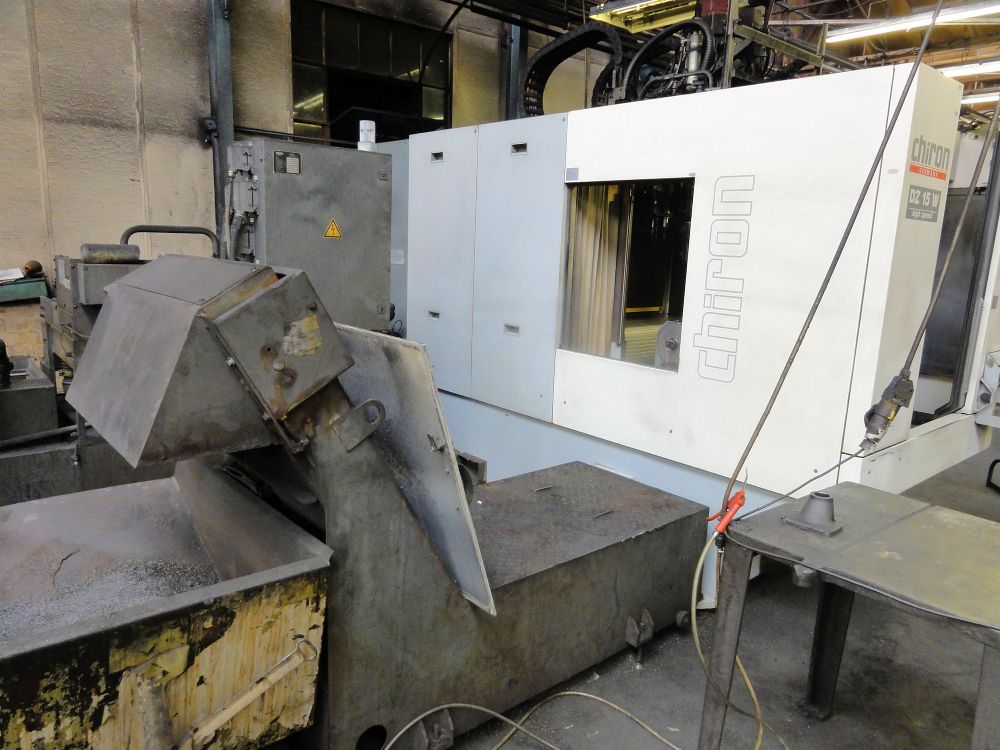

Swarf conveyor
Multi pallet machine
Interlocked guards

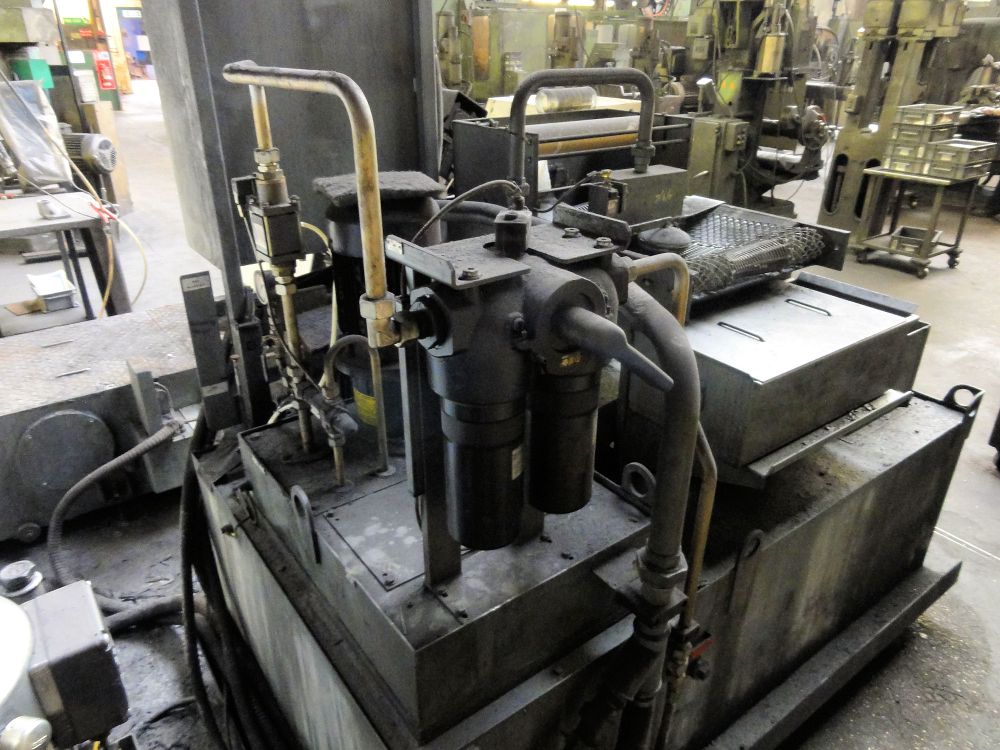

Coolant Tank: 900Lt
Pump cap. 100l/min at 2.1 bar up to 250l/min at 30 bar
High pressure pump cap.: 35l/min at 30 bar
High pressure circuit with filtration via paper bond filter
filtration 50um nominal
Twin filter in the high pressure circuit for the protection of the machine
incl. bed flushing system and fixture washing with nozzles installed at the
centre divider controlled with M functions for washing the working area.

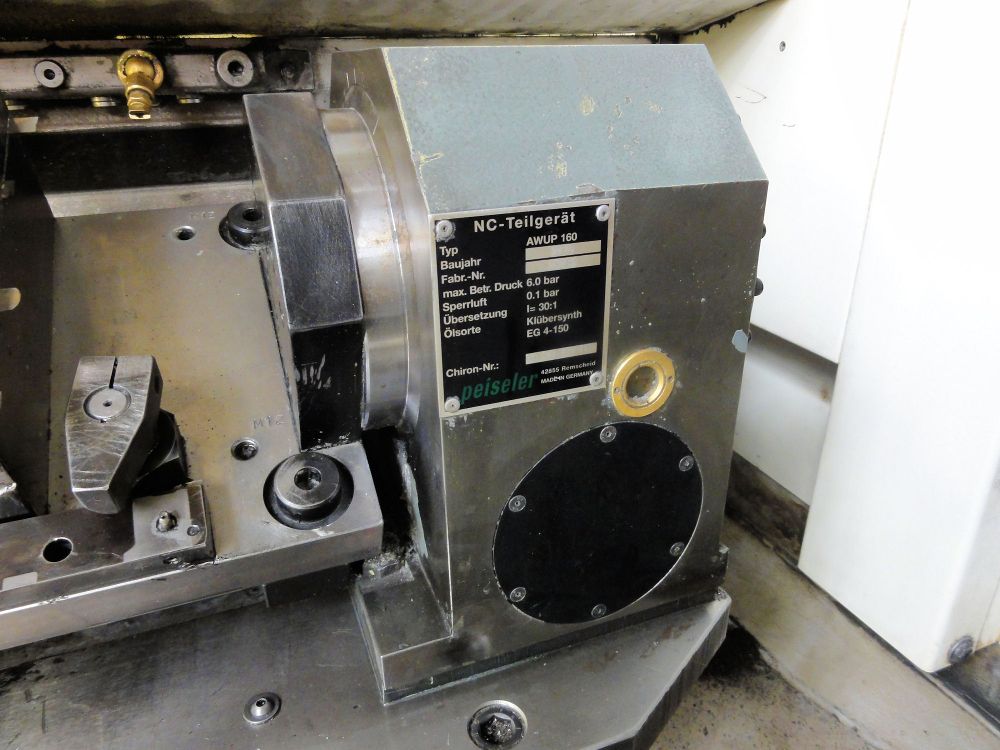

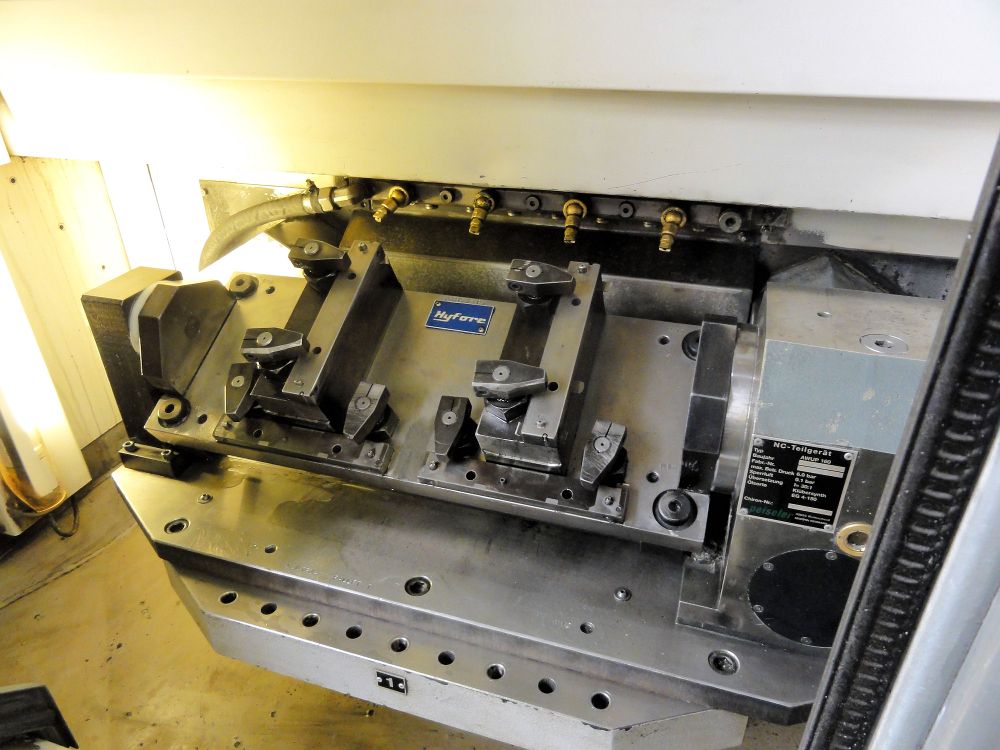

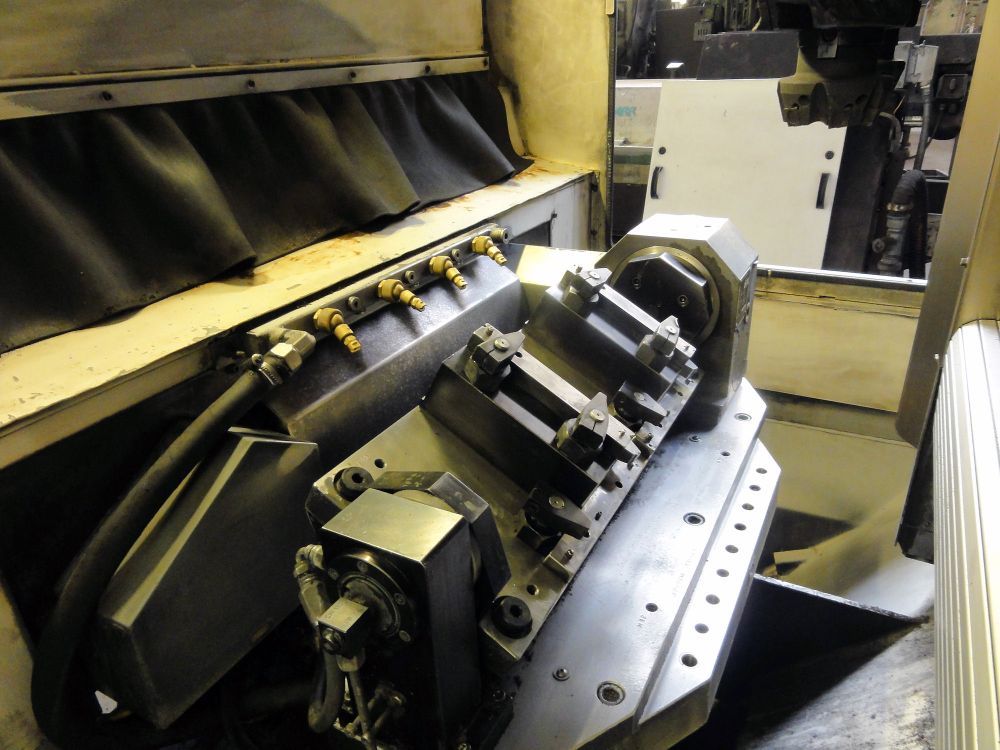

NC rotary table package installed:
2 x NC rotary table
NC 4th and 5th axis
2 adapter plates
Central pneumatic supply
Centre height: 165mm
Face plate dia: 160mm
includes pneumatic clamping
Location: Leicester
