Lot 3 - Chiron FZ28L Vertical Machining Centre
Description:
Bidding Suspended, If you are interested in this machine, please contact us.

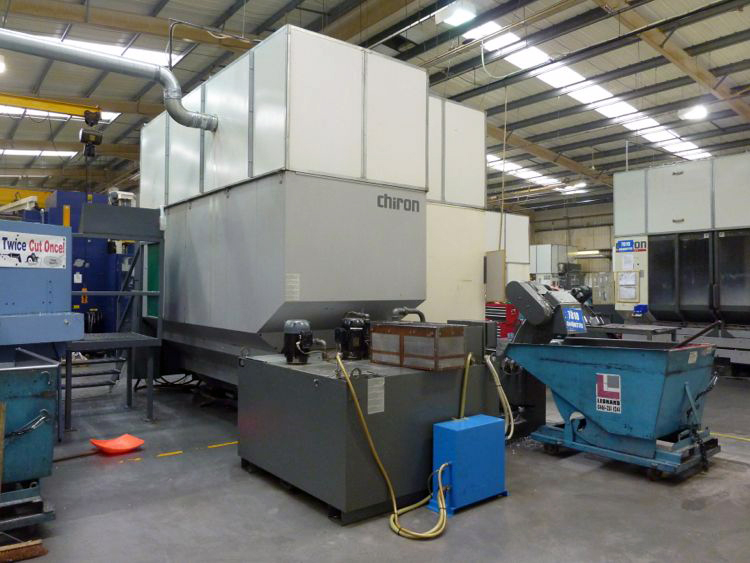

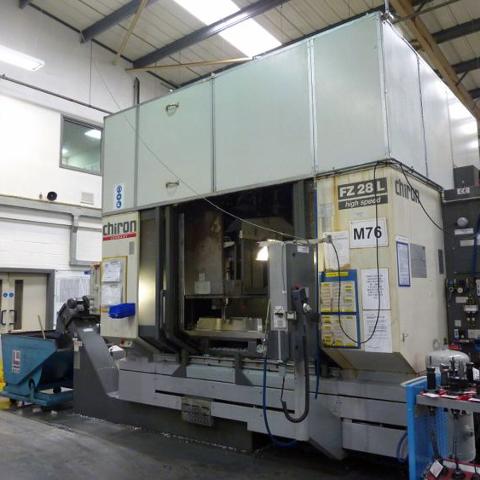

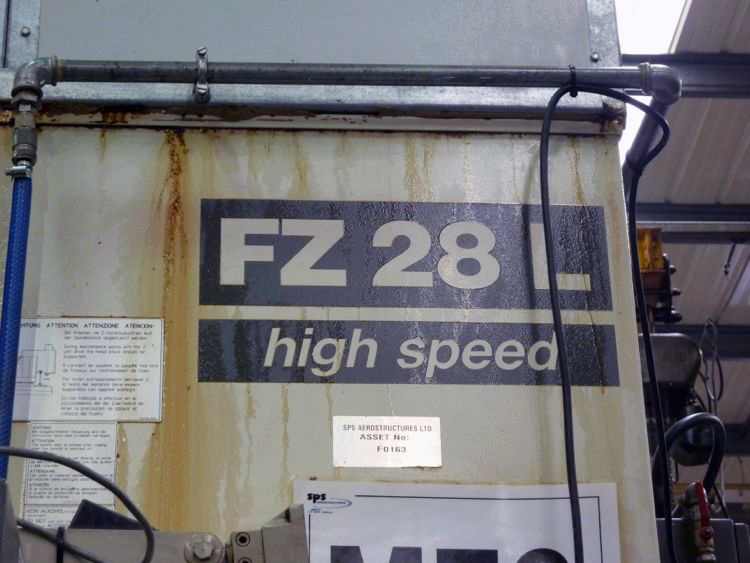

Chiron FZ28L Vertical Machining Centre
Machine 2: (M76)

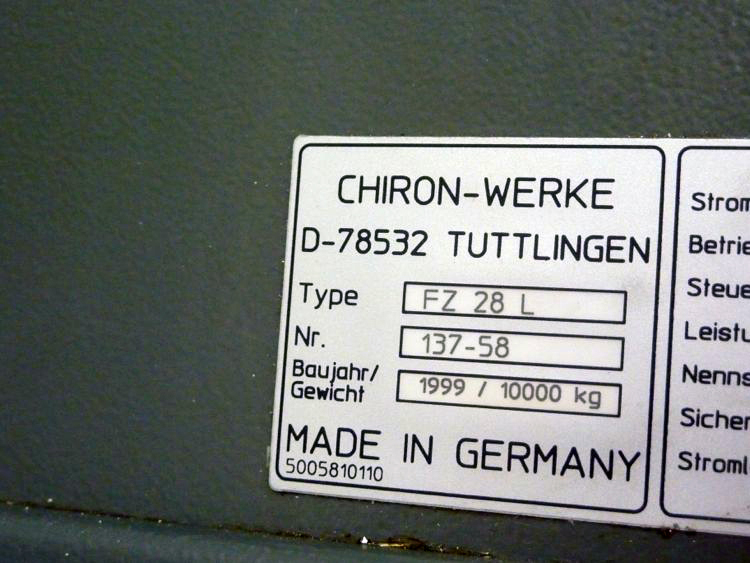

Serial Number: 137-58
Year: 1999

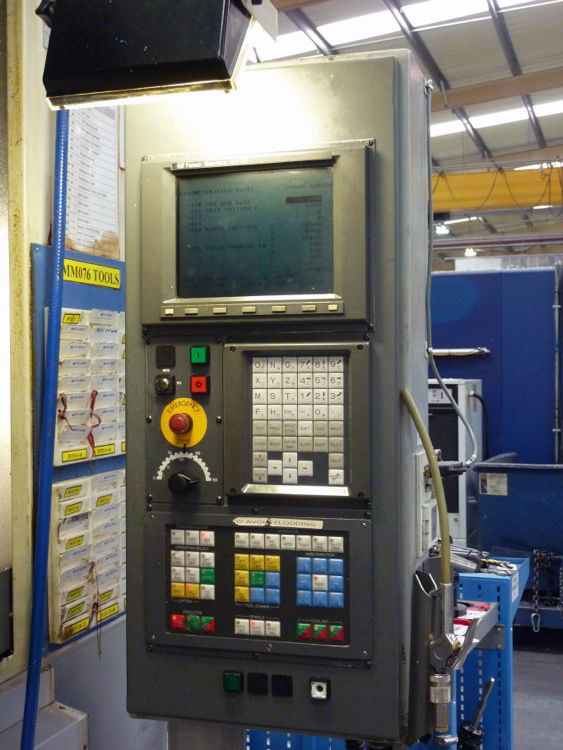

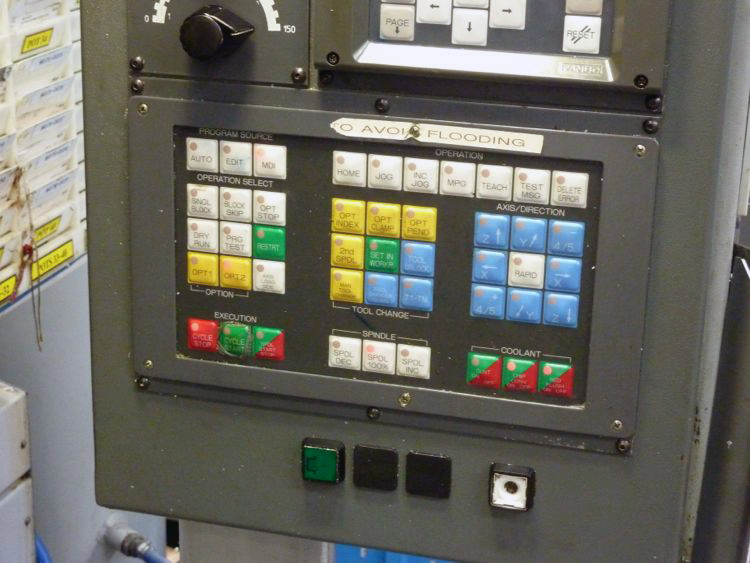

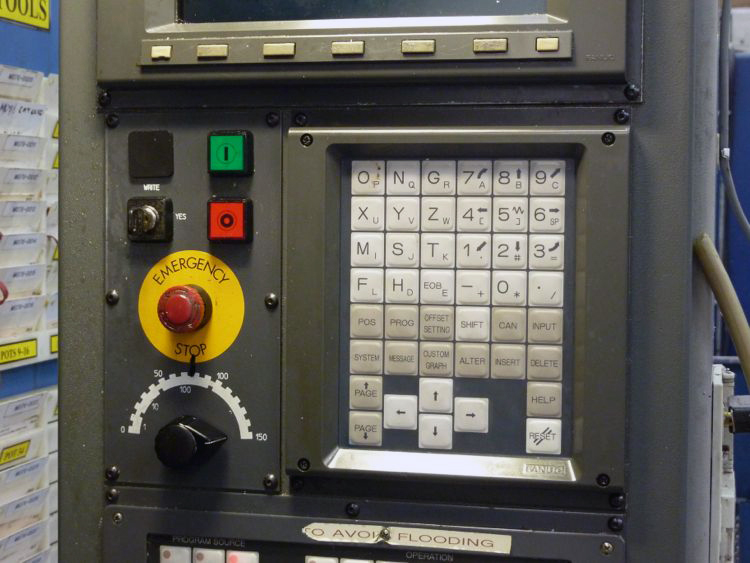

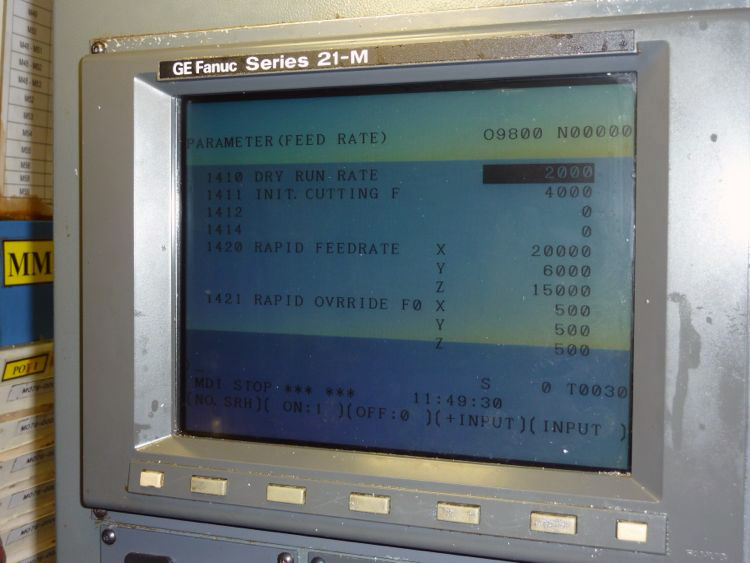

Fanuc 21M CNC Control

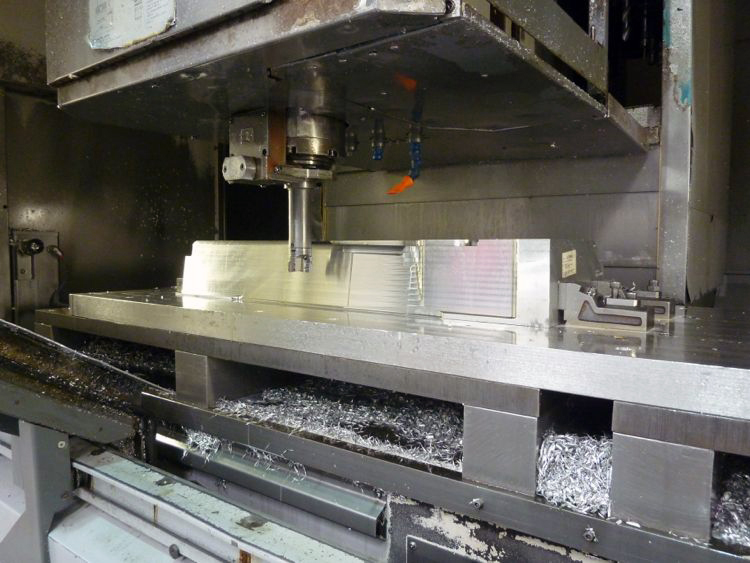

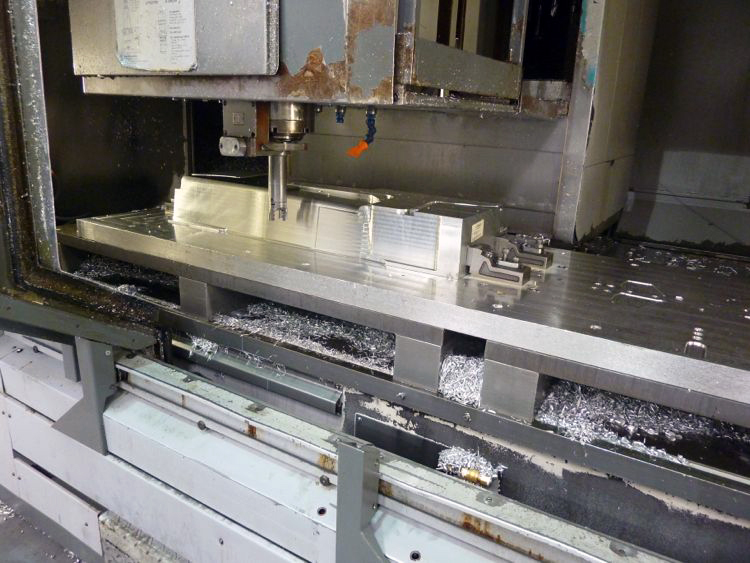

Table Size 2700mm x 700mm
X Axis Travel 2100mm
Y Axis Travel 631mm
Z axis Travel 631mm
Rapid Feed Rate:
X Axis 30000mm/min
Y Axis 20000mm/min
Z Axis 15000mm/min
Spindle Speeds 10500rpm

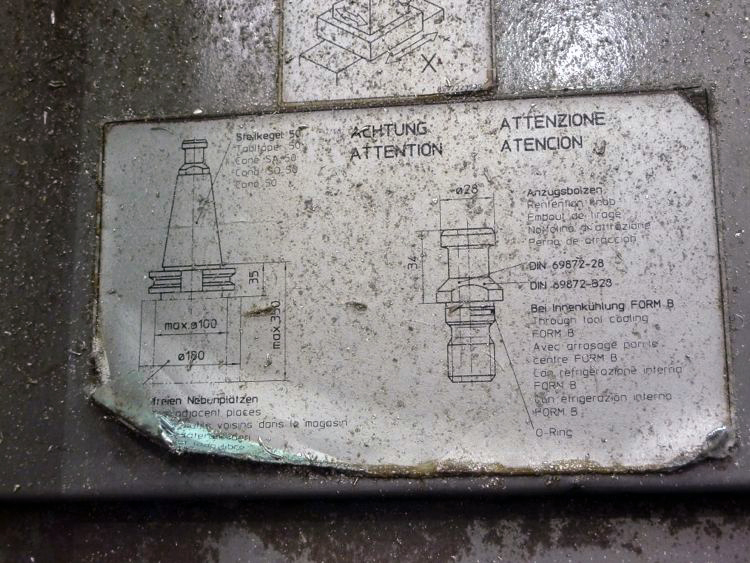

Spindle Taper 50ISO

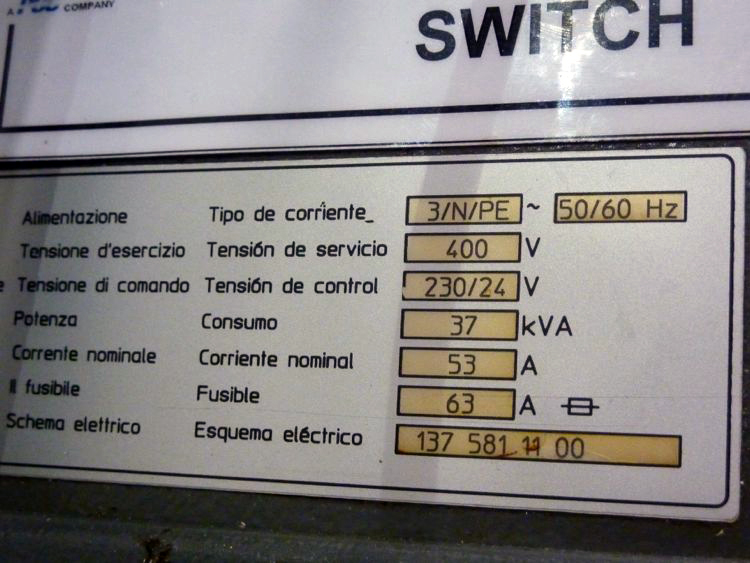

Spindle Motor 37Kw
40 Tool ATC
Floor Area Required:
5700mm x 3800mm
Complete with:
Flood Coolant

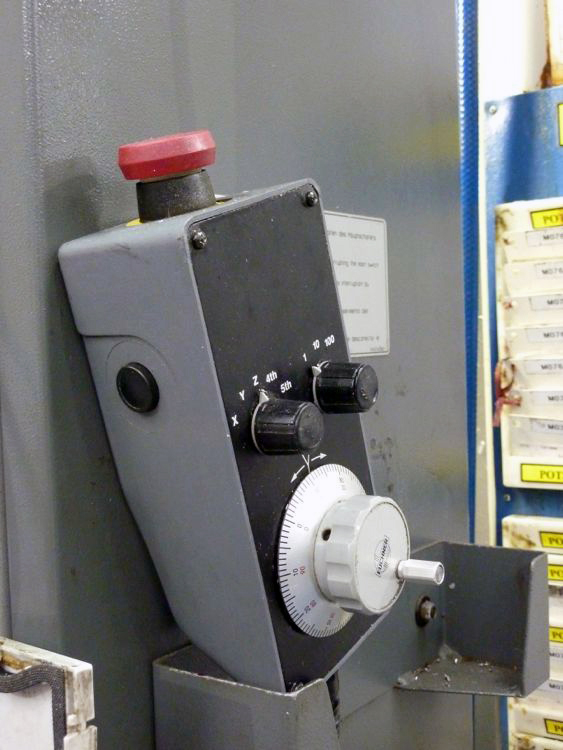

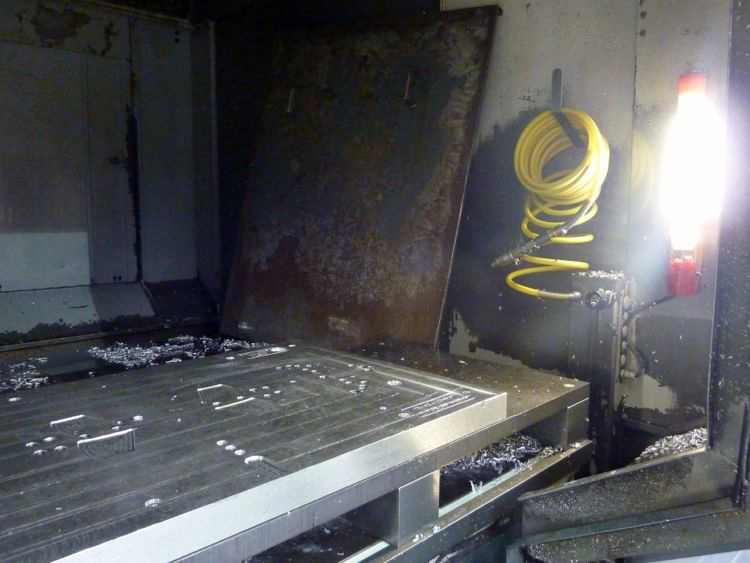

Wander Lead

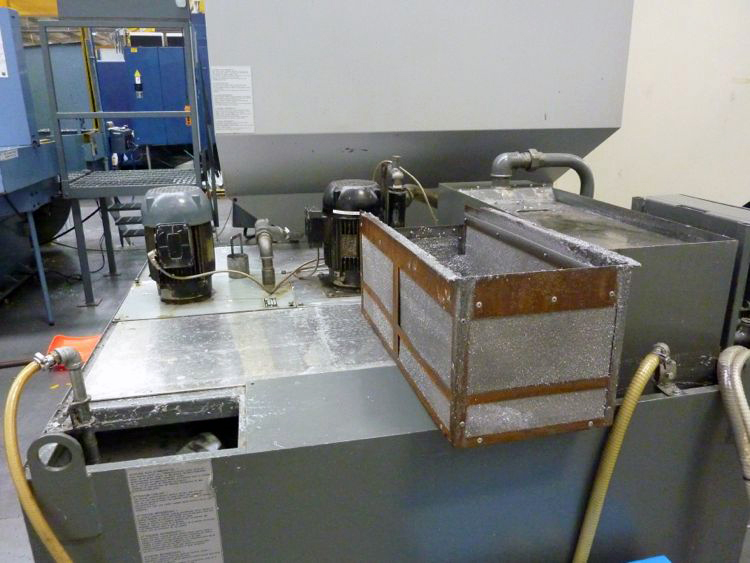

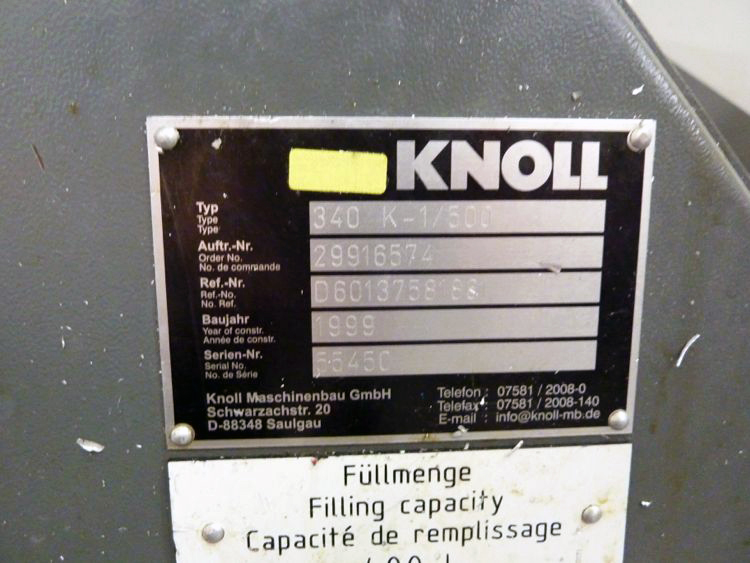

Coolant Filtration System
Manuals

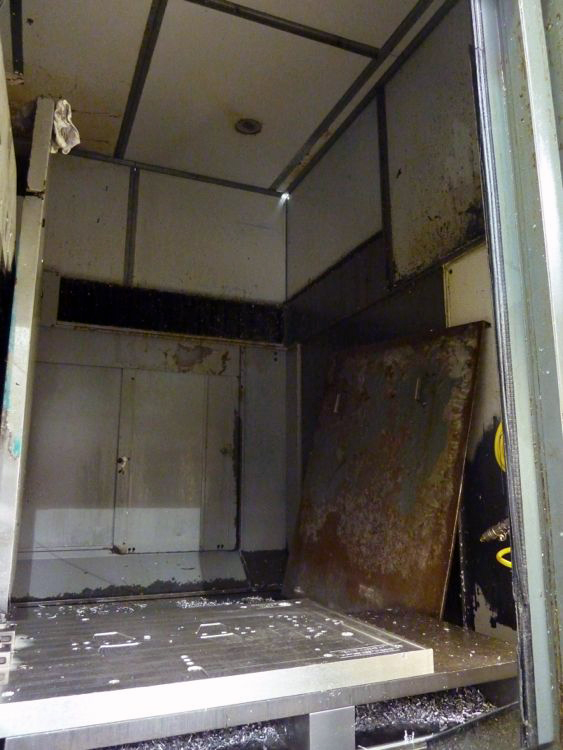

Fully Enclosed Guarding
Please note:

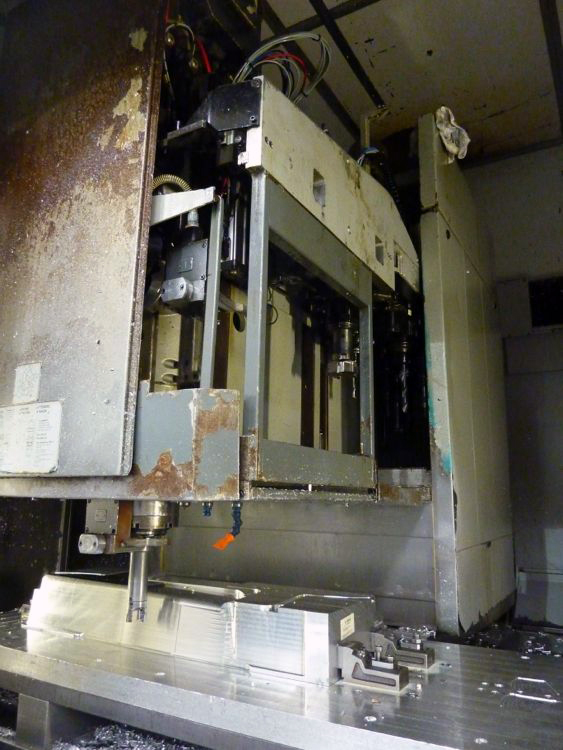

The Tool Changer Cover has been removed for the making of the Video and has been replaced.

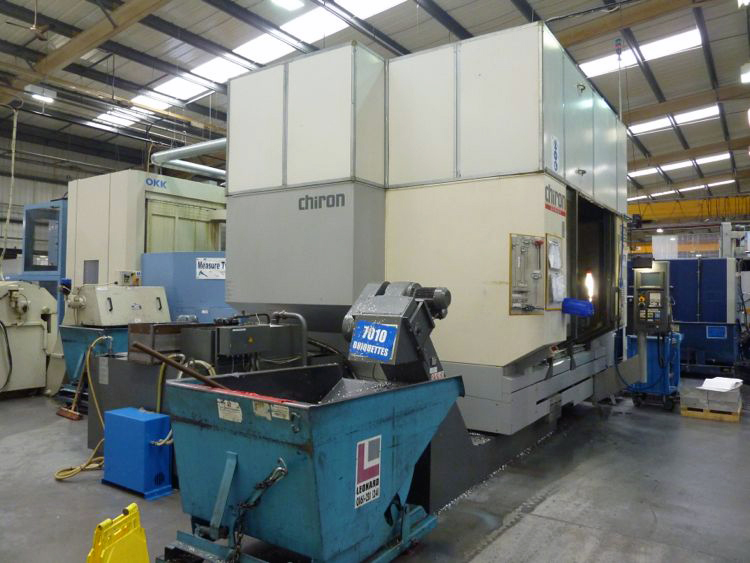

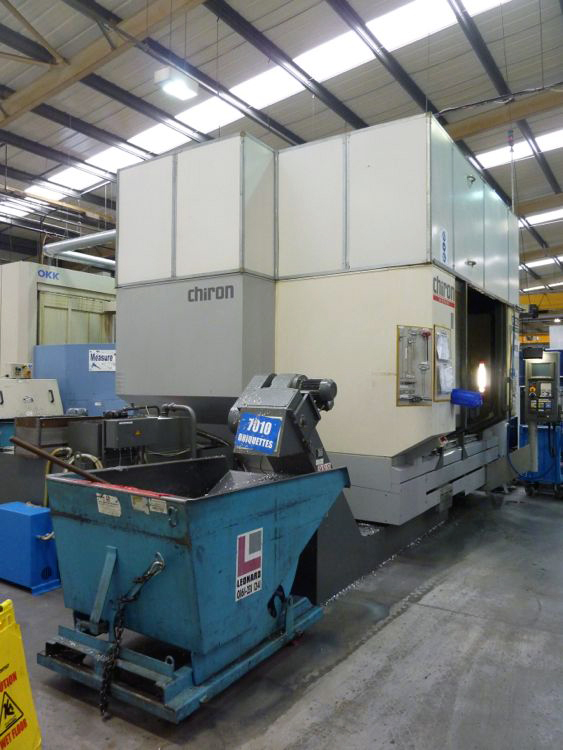

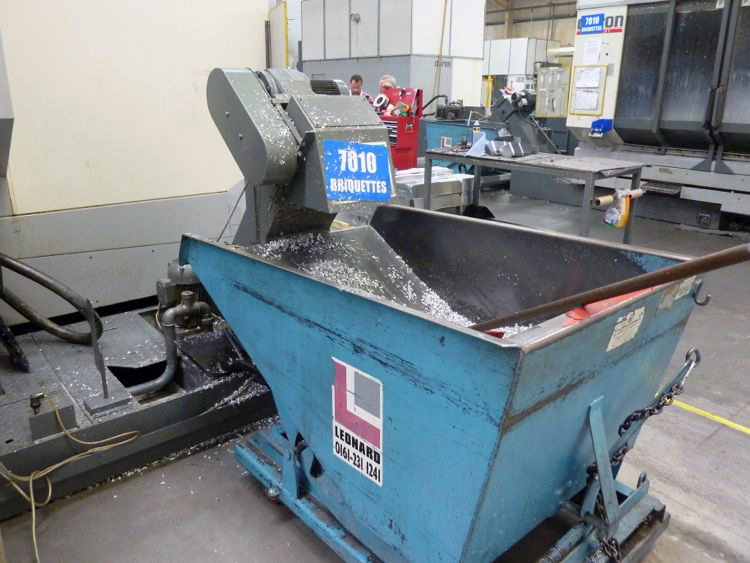

A swarf Bin will be included, but will not be the one in the pictures
Location: Leading Aerospace Company, Mansfield, Nottinghamshire UK
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
