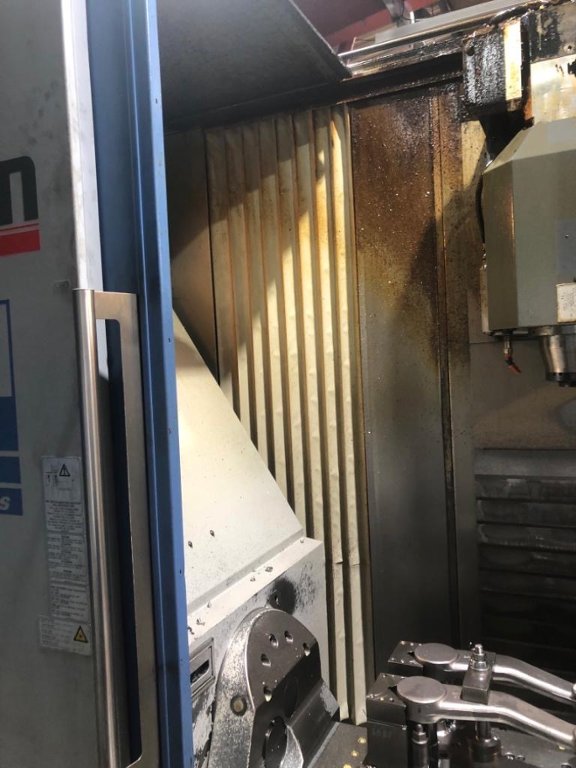

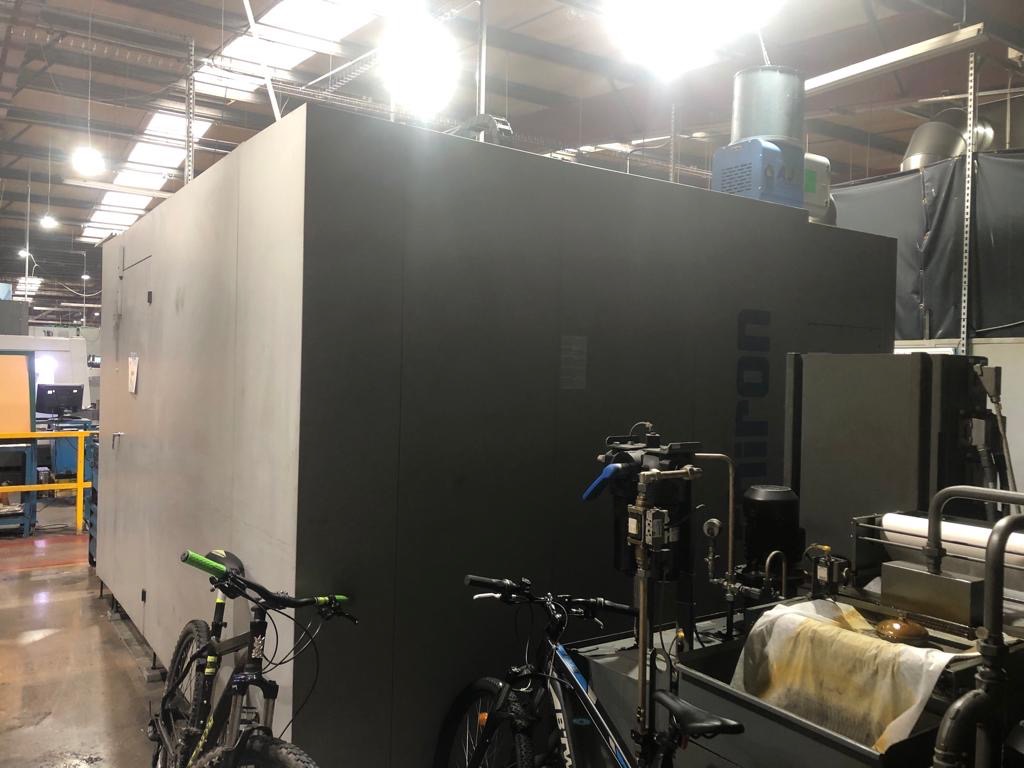

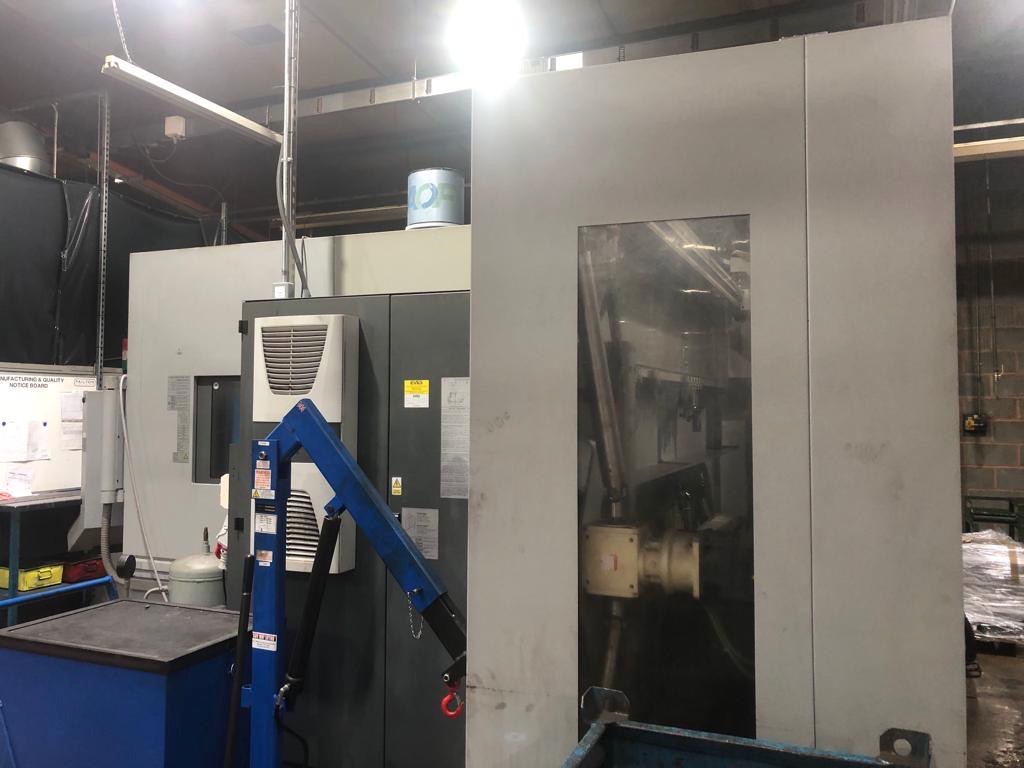

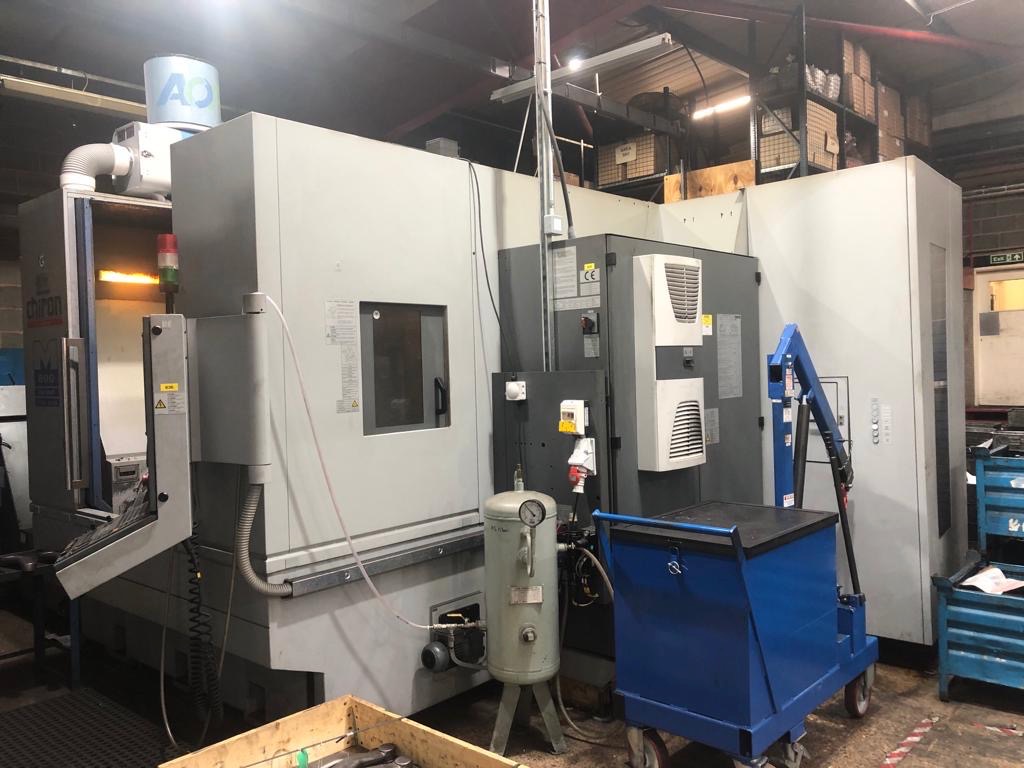

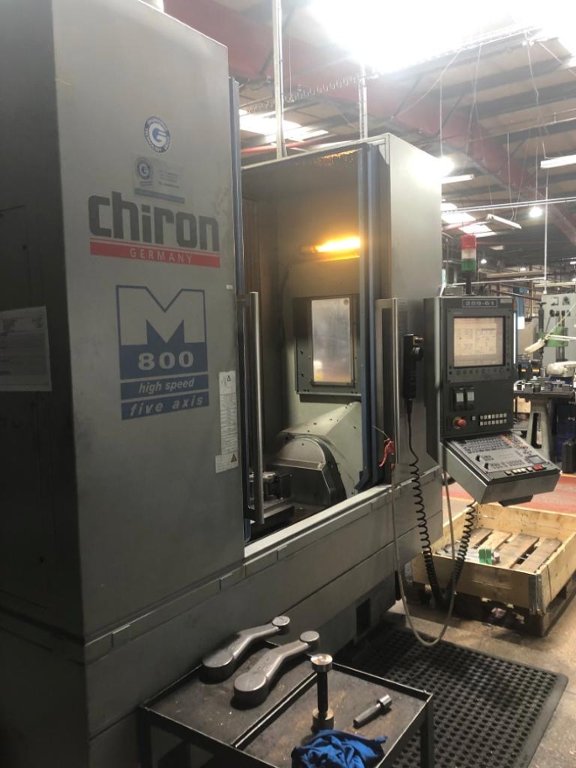

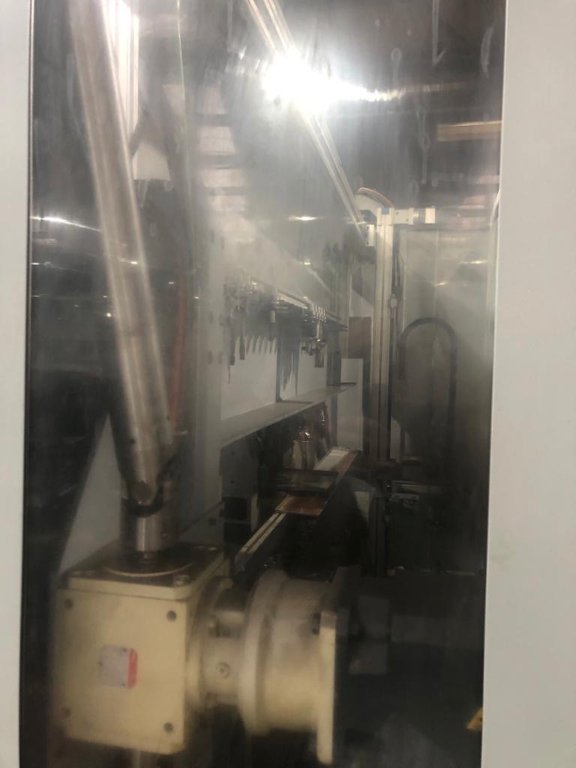

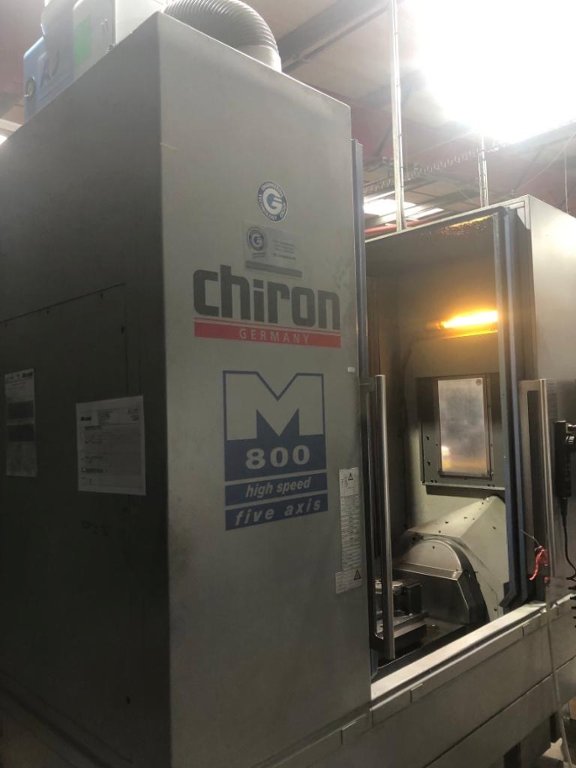

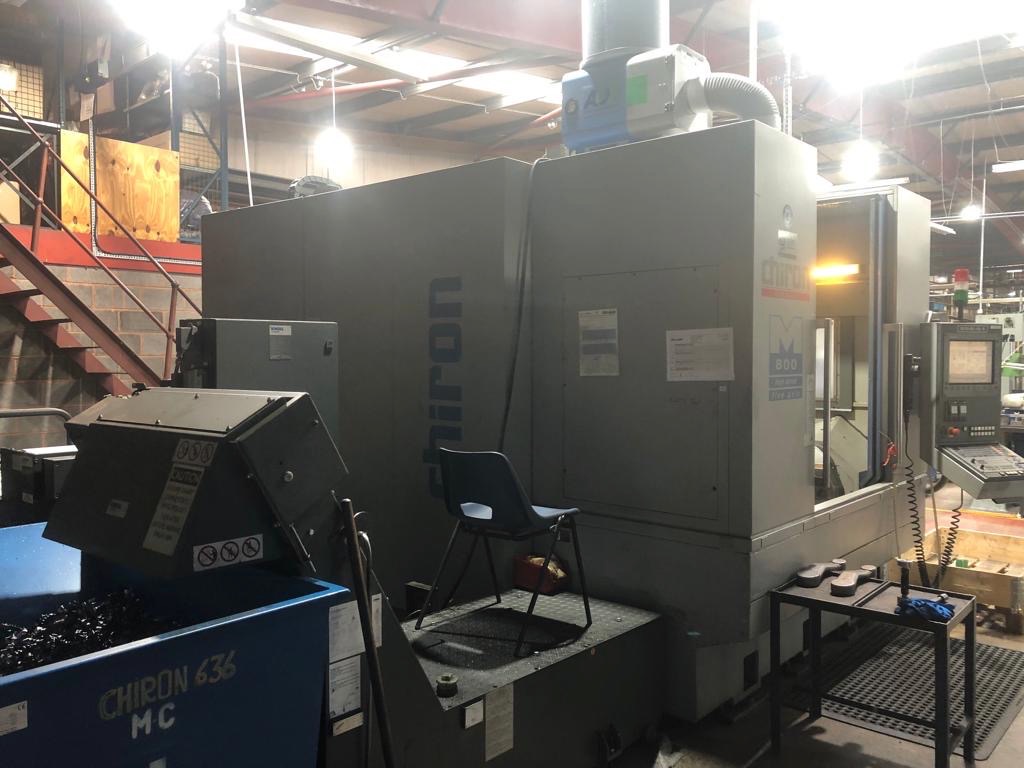

Lot 1 - Chiron M800 5 Axis CNC Vertical Machining Centre (2007)


CNC Fanuc 18iMB 5

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.


The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

Axis X - 800.0 mm
Axis Y - 500.0 mm
Axis Z - 550.0 mm
Type - Vertical
Type - Continuous
Type of axis - 1x head + 1x bed
Table length - 1400.0 mm
Table width - 400.0 mm
Max. part weight - 1200.0 kg
Number of tool pockets - 65.0
Spindle taper - HSK-A 63 DIN 69893
Max. spindle speed - 12000 rpm

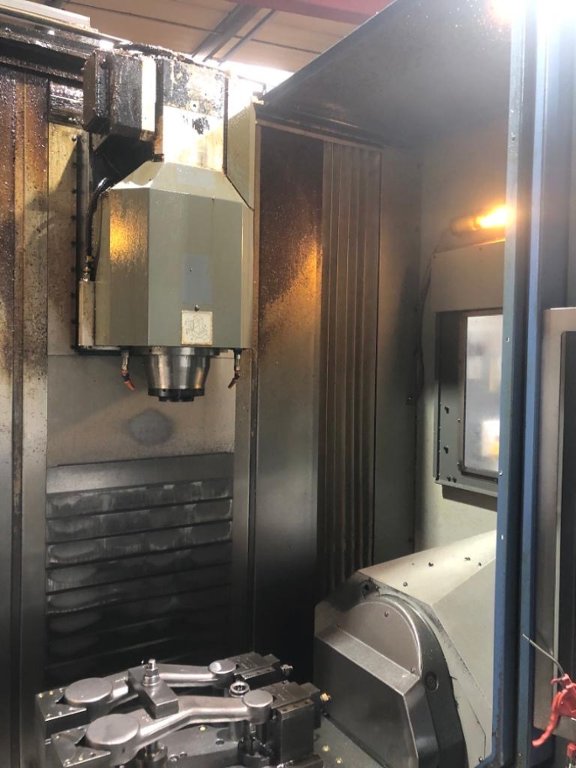

Swivelling head CNC controlled (B axis) +/- 100°

Rapids (Highspeed) 60 m/min

Bid information

Time remaining


13 Feb 2020 15:10:00 GMT

Final remove by date: 27/Feb/2020

Location: Coventry

Lot location

Transport information

  • Width: 4500 mm
  • Depth: 3500 mm
  • Height: 3300 mm
  • Weight: 9200 kg
  • Other Transport Details: Loaded to suitable transport £150
