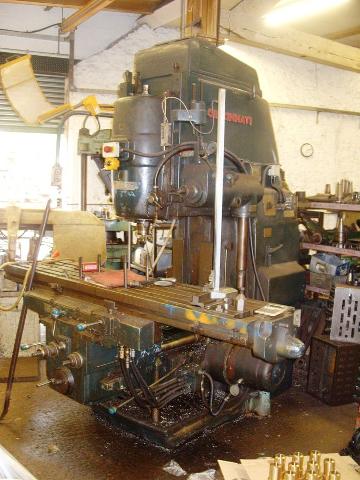

Lot 55 - CINCINNATI #3 VERTICAL KNEE TYPE MILLING MACHINE

Description:

CINCINNATI #3 VERTICAL KNEE TYPE MILLING MACHINE

Working surface of table 18" x 72", Longitudinal travel 34", Cross travel 16", Vertical travel 16", Head travel 8", Distance from spindle nose to top of table 22", centerline of spindle to column 18", Spindle taper    #50, Rapid traverse rates, Longitudinal 100 ipm Cross 100 ipm Vertical 80 ipm, Spindle Drive Motor 10 and 20 hp, Spindle speeds (21) 16 - 1600 rpm, Feeds  (32) ½" to 40", Approximate floor space 114" x 83", Approximate weight 4200kg

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
