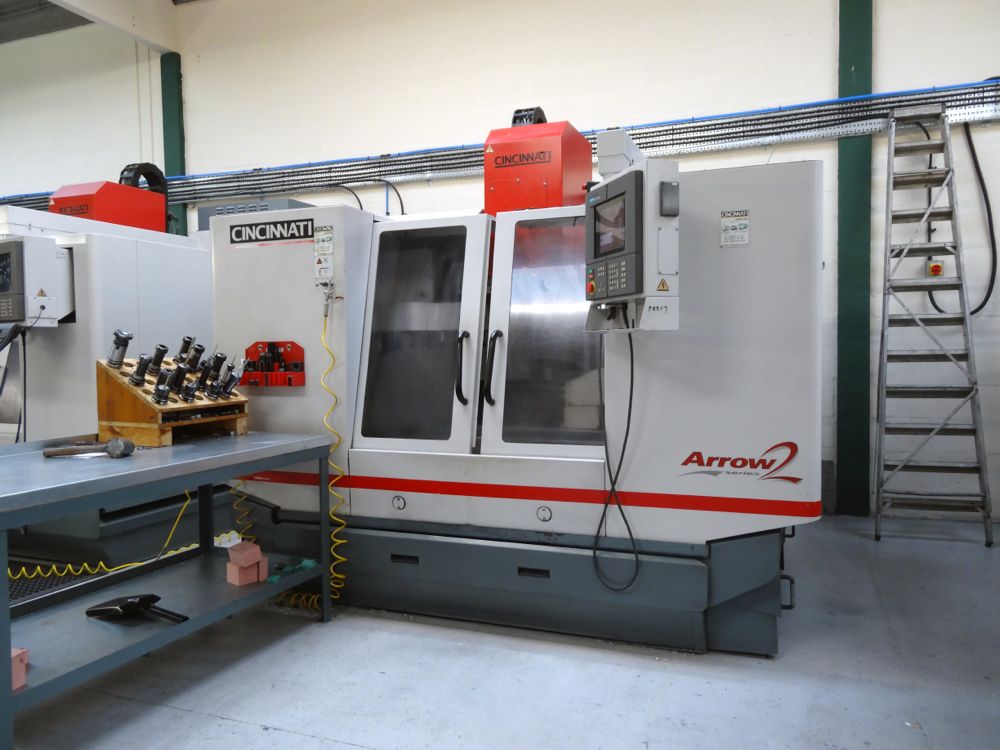

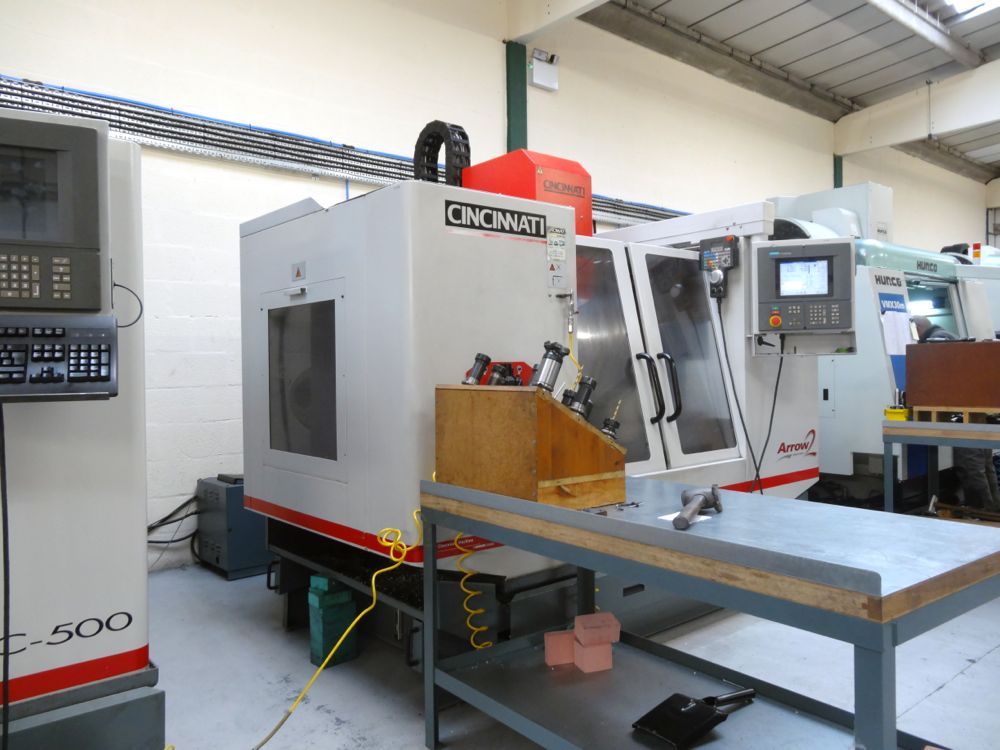

Lot 1 - Cincinnati Arrow 750 Series II with 4th Axis (2001)
Description:

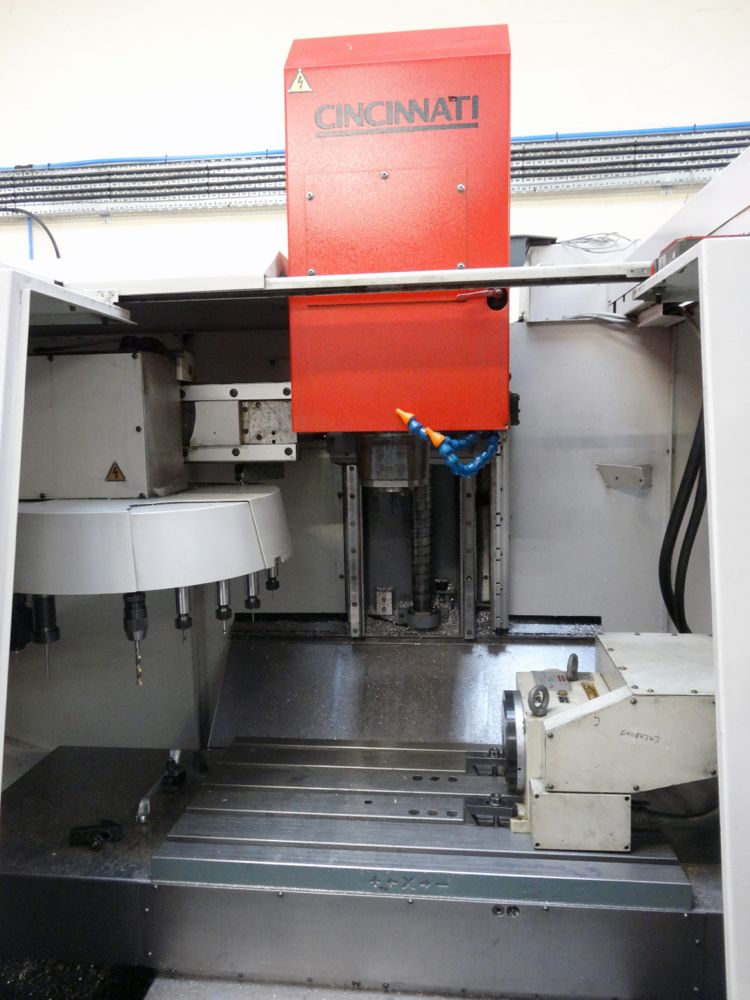

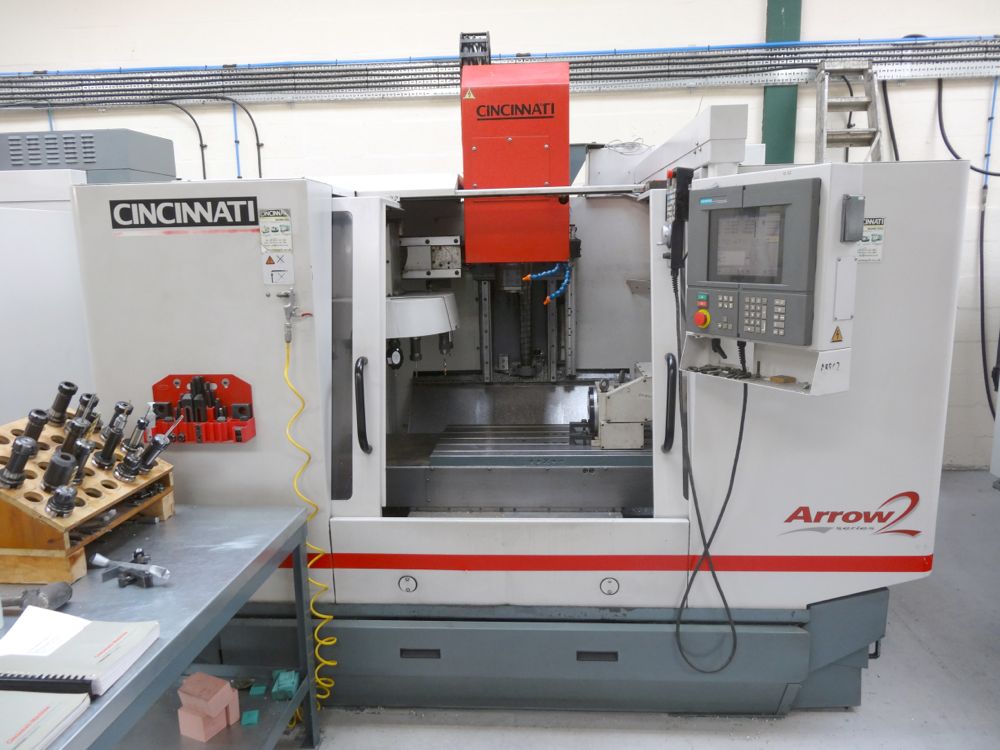

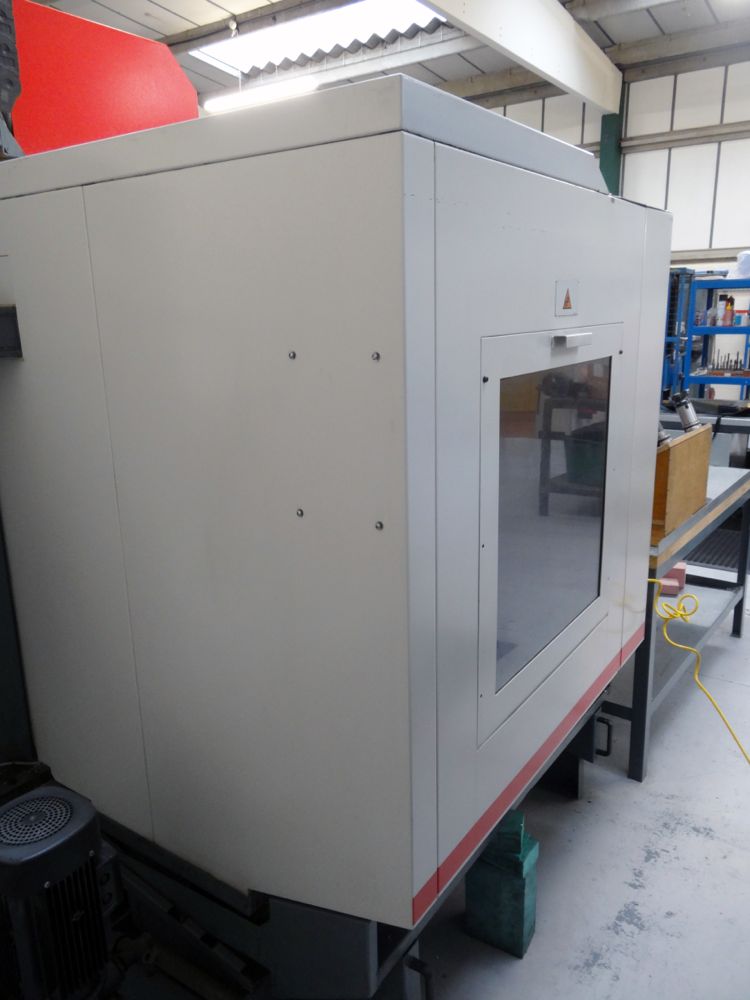

Cincinnati Arrow 750 Series II with 4th Axis (2001)

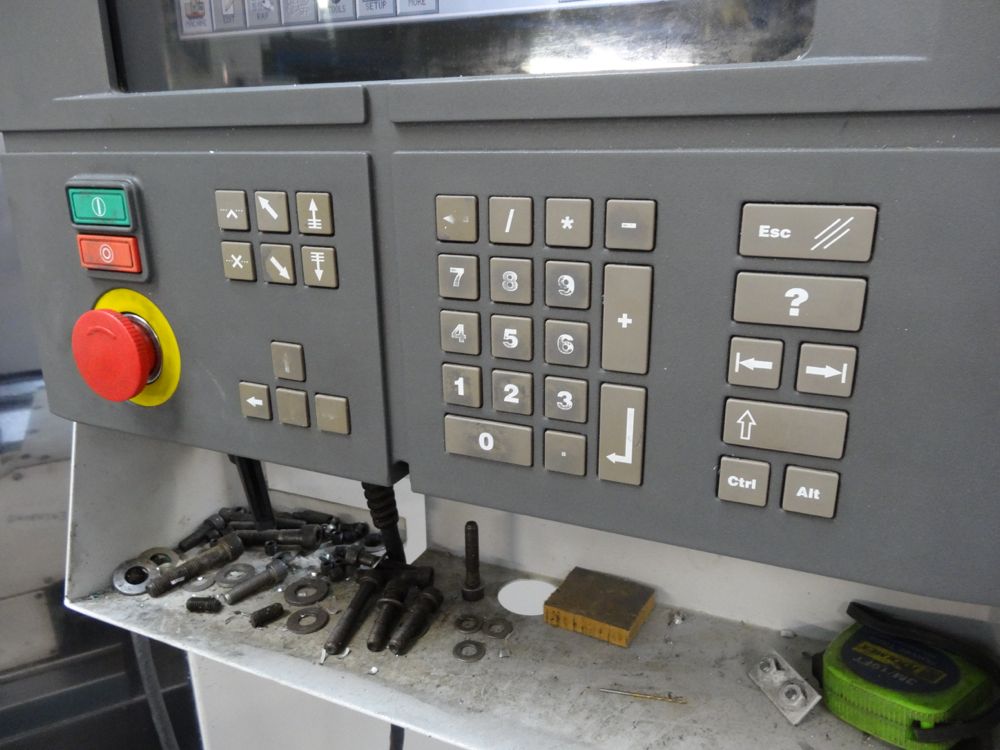

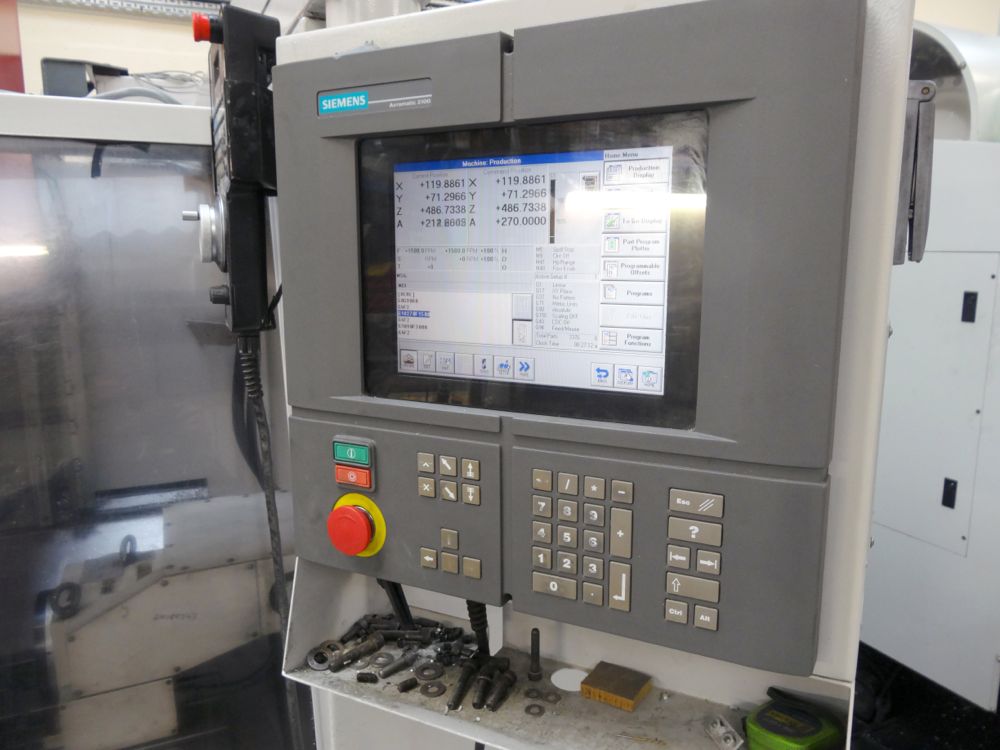

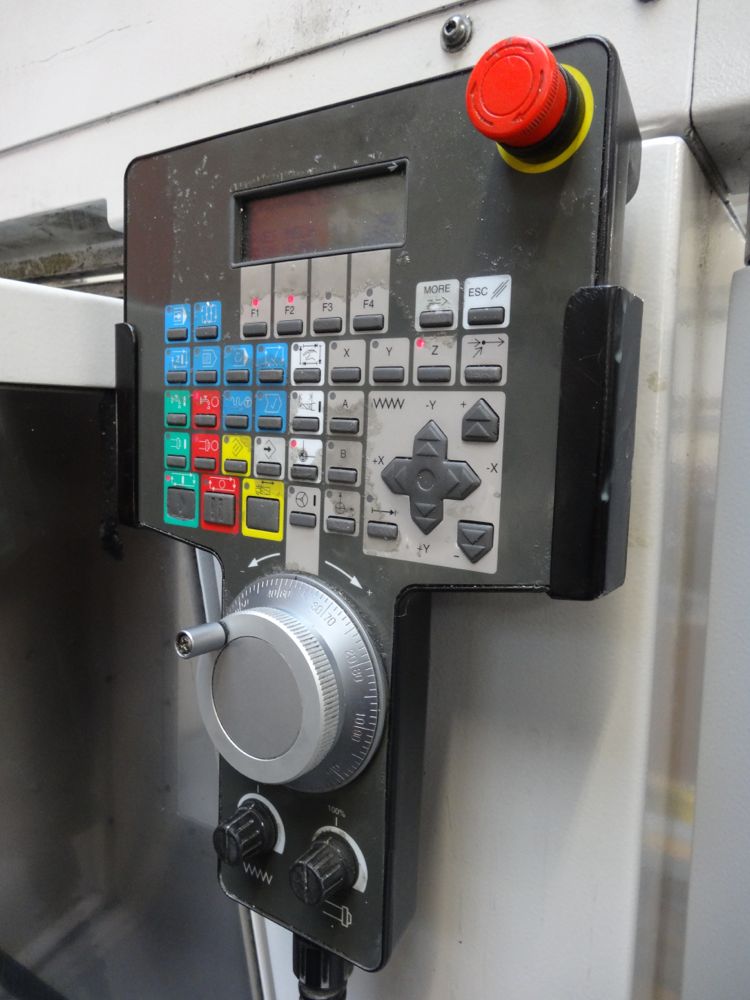

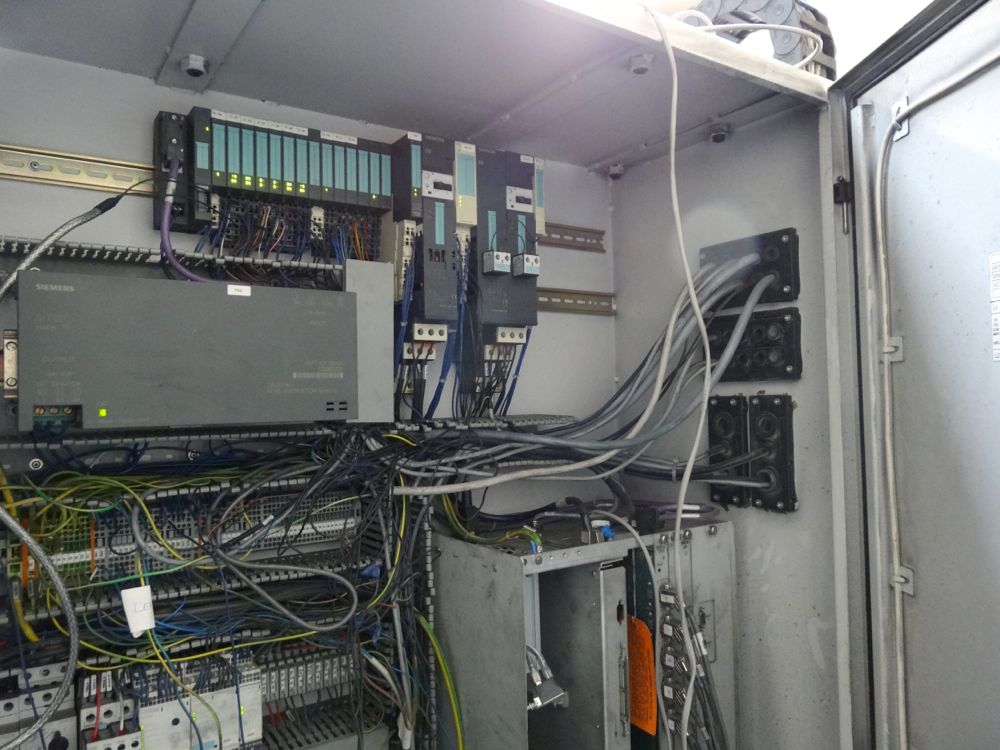

CNC System

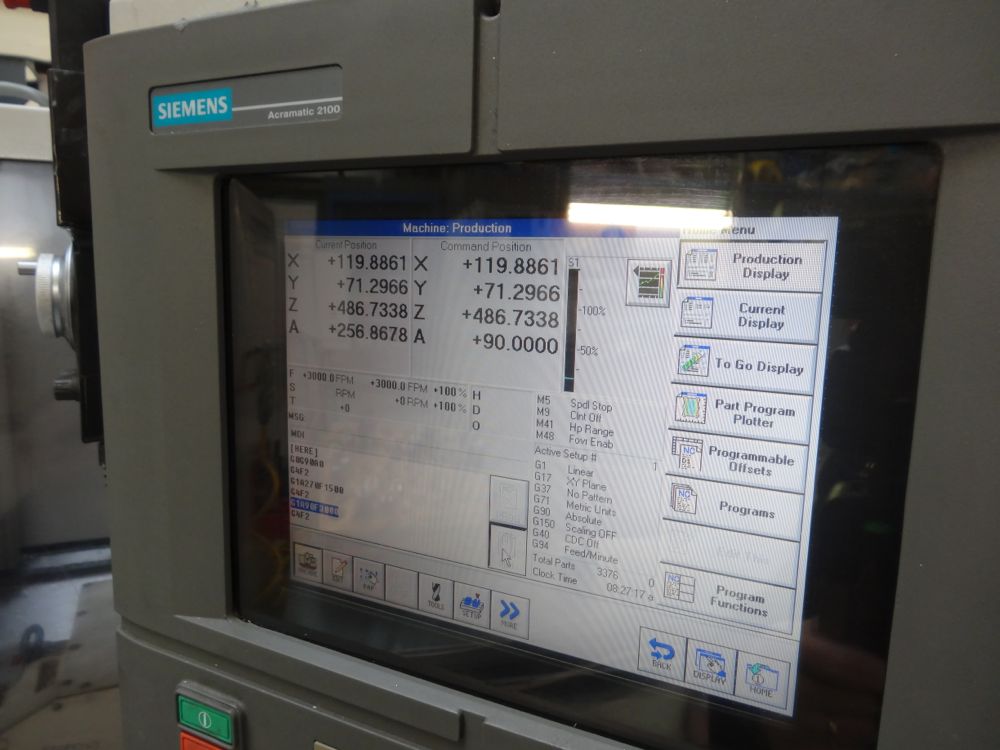

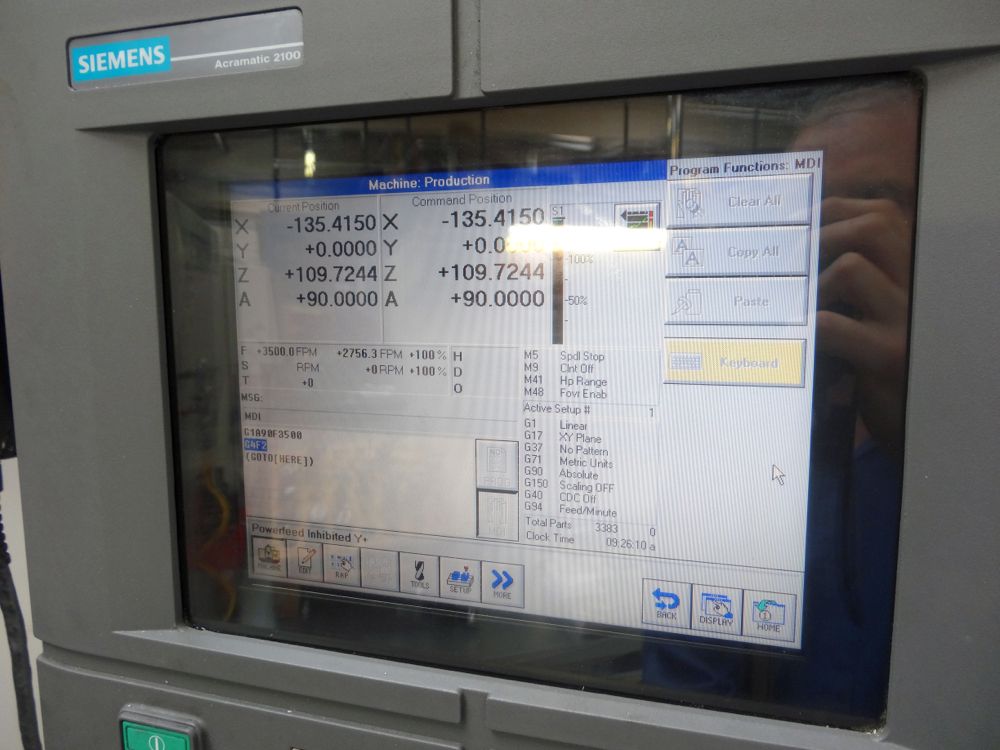

Model and type: Acramatic 2100E
Manufacturer: Vickers E.S.D. Inc
Number of contouring axes: XYZA

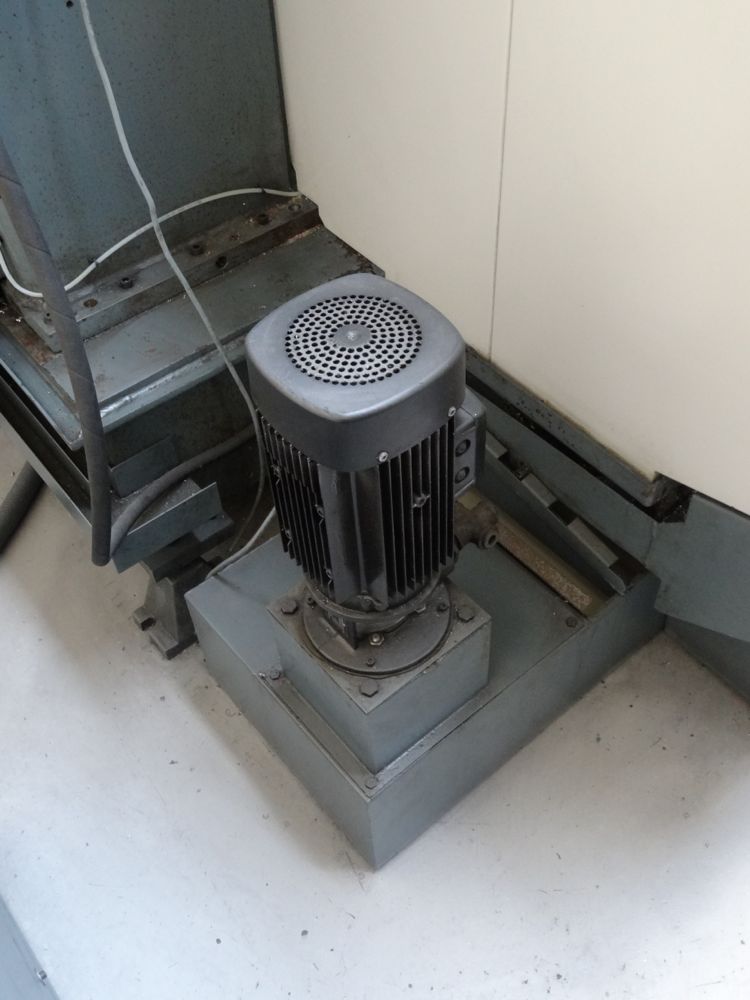

Coolant System: Flood through nozzles
Tank capacity: 178

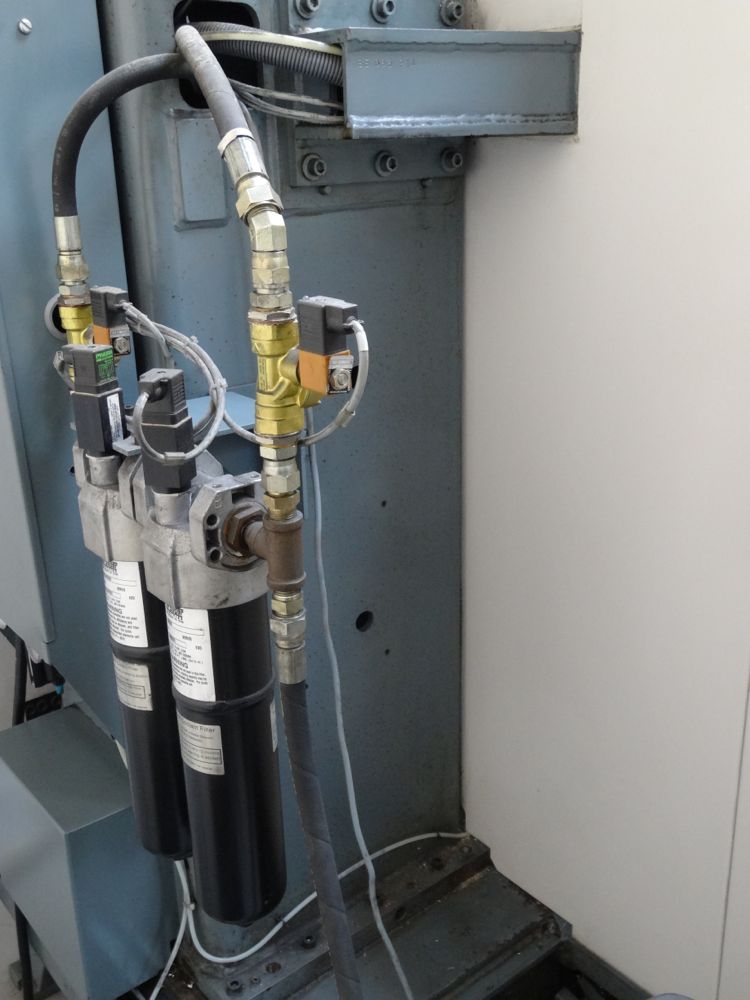

Air requirement: Air supply pressure: 5.5 bar
Continuous volume: standard machine: 6.6 dm 3/s

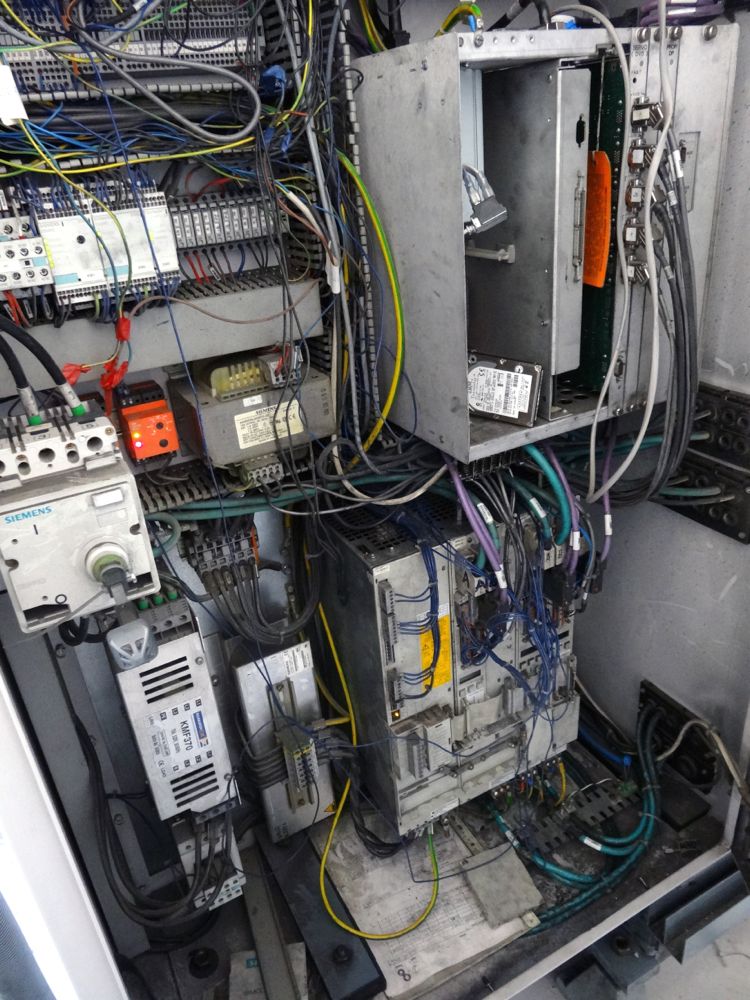

Electrical Power Requirement:
Spindle drive unit: 16 kva
Axis drive unit (inc 4th axis: 8.75 kva
Tool change motor: 46 kva
Standard coolant pump: 0.8 kva
Control gear: 0.75 kva
Sundries: 0.35k kva
Machine Weight/Floor space
Machine net weight approx: 3050kg
Overall Height: 2700mm
Width x Depth: 2300 x 2650mm
Axis Travel Ranges: XYZ
Longitudinal (table X axis): 510mm
Cross (saddle Y axis): 510mm
Vertical (spindle carrier Z axis): 510mm
Range, spindle gauge line to work surface: min. 127mm max. 637
Table X-axis: Work surface dimensions. Length: 700mm Width: 520mm
Load Capacity: 350kg

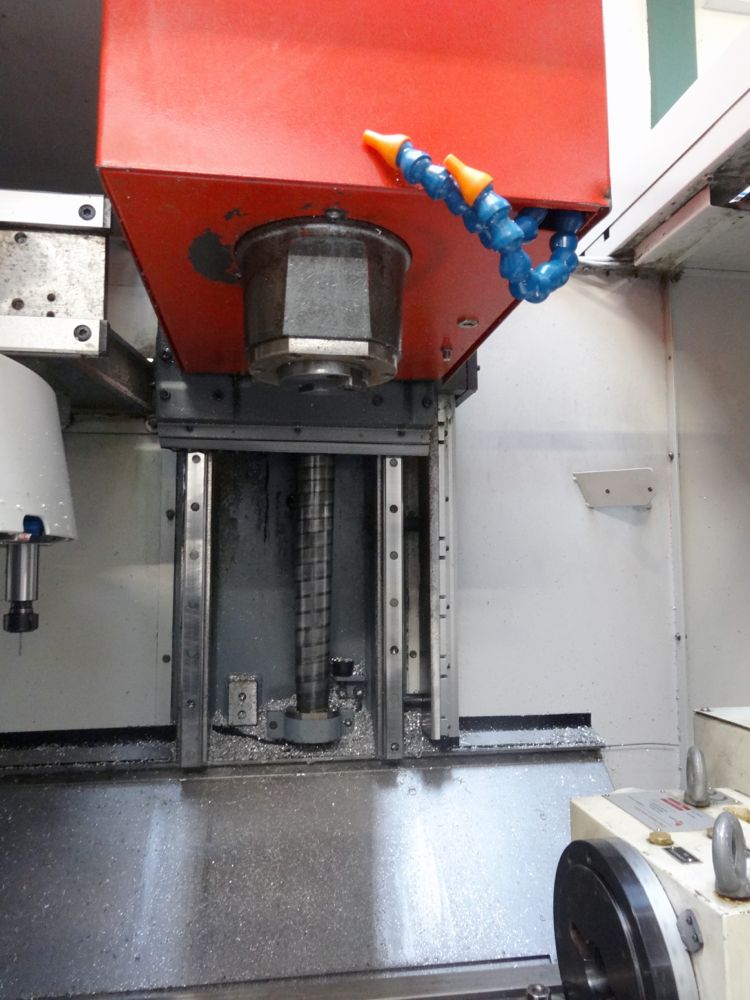

Spindle Carrier Z axis
AC Drive Motor (continuous rated): 5.5kW
Spindle speed range: min 60 rpm / max. 6000 rpm / high speed spindle: 8000 rpm
Speed Selection: 7 rpm increments
Tool Holder: BT40
Linear Axis Federates and Thrust:
Feedrates: 12000mm/min
Rapid traverse rate: 20mm/min
Axis thrust: duty rated : 3kN (X & Y) 7 kN(Z)
Accuracies:
Uni - directional positioning per linear axis over full travel: 0.004mm
Uni - directional repeatability per linear axis over full travel: 0.001mm

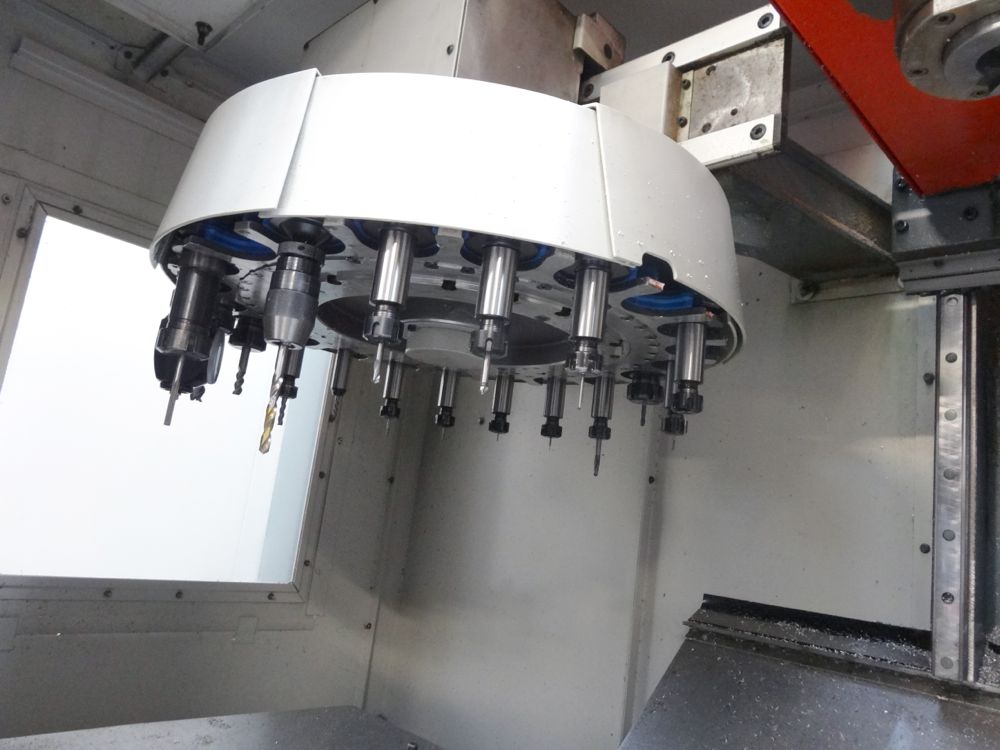

Automatic Storage/ Changer Unit
Storage capacity: Number of tools: 21
Tool selection method: Bi-directional rotation of tool drum
Tool and holder weight: max. 6.8kg
Tool drum load (evenly spaced): max 68kg
Tool length: max 305mm
Tool diameter (adjacent pockets full): 80mm
Tool diameter (adjacent pockets empty): 160mm
Automatic tool change time (metal to metal): 7.5 sec

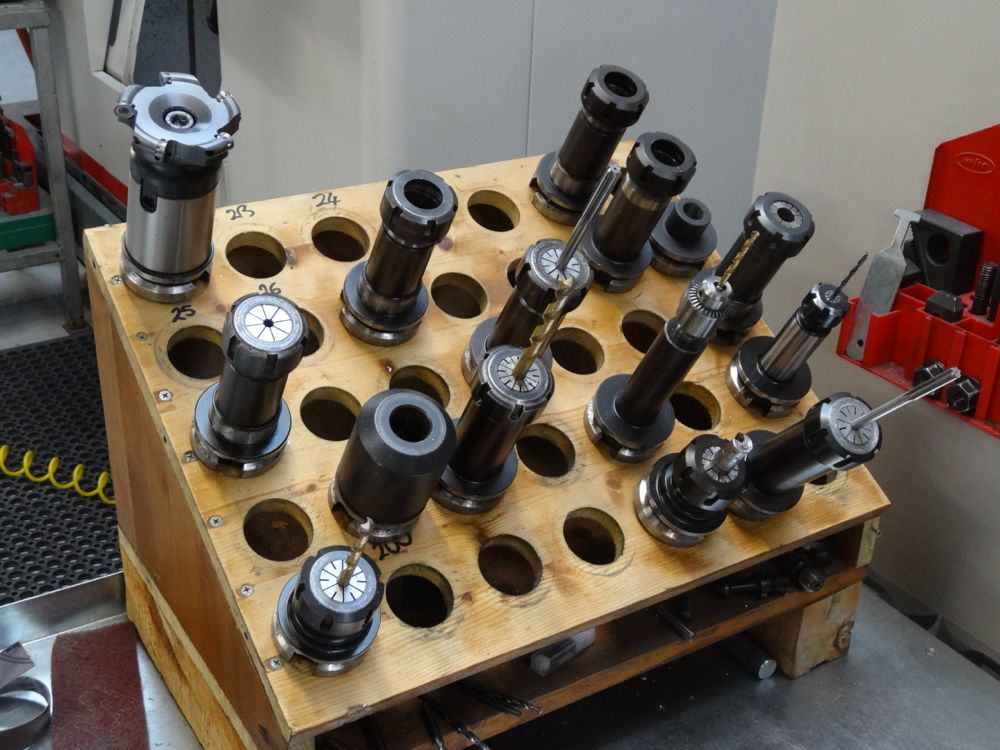

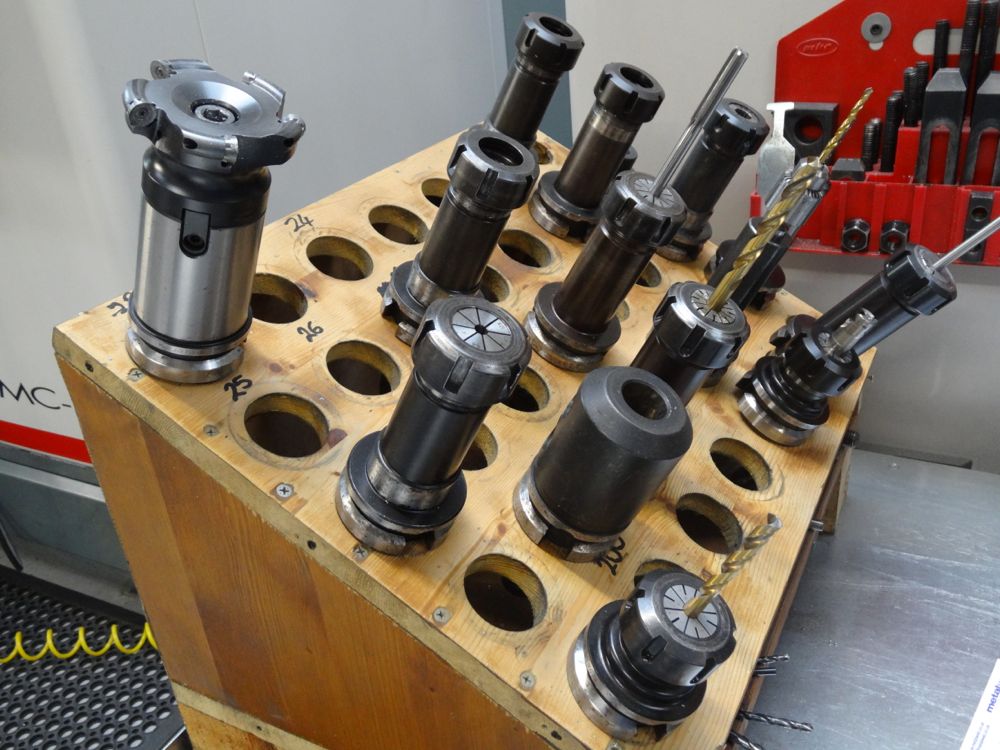

Includes 30+ Tool Holders.

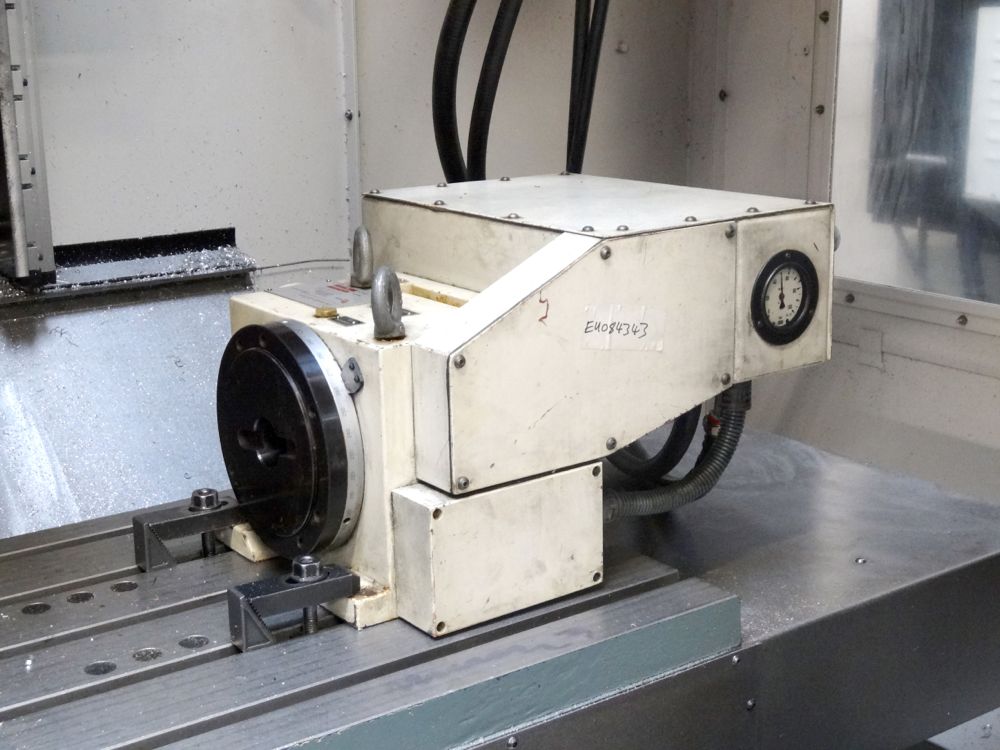

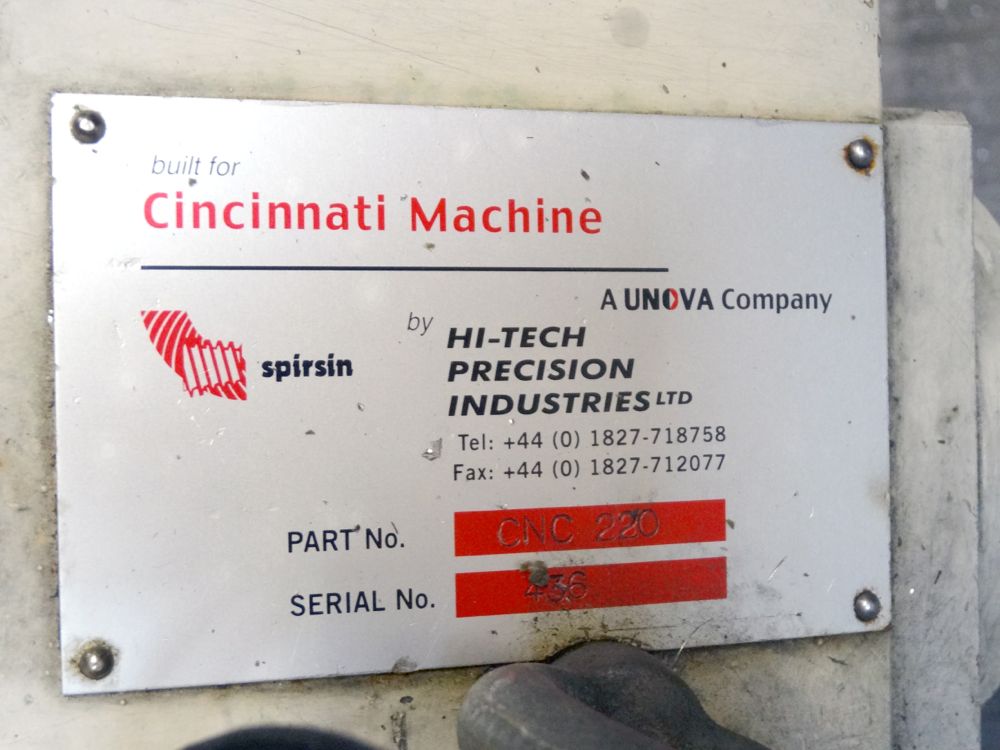

4th Axis
Please note that Tooling will be removed from the tool holders.
Location: Cradley Heath, Midlands
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
