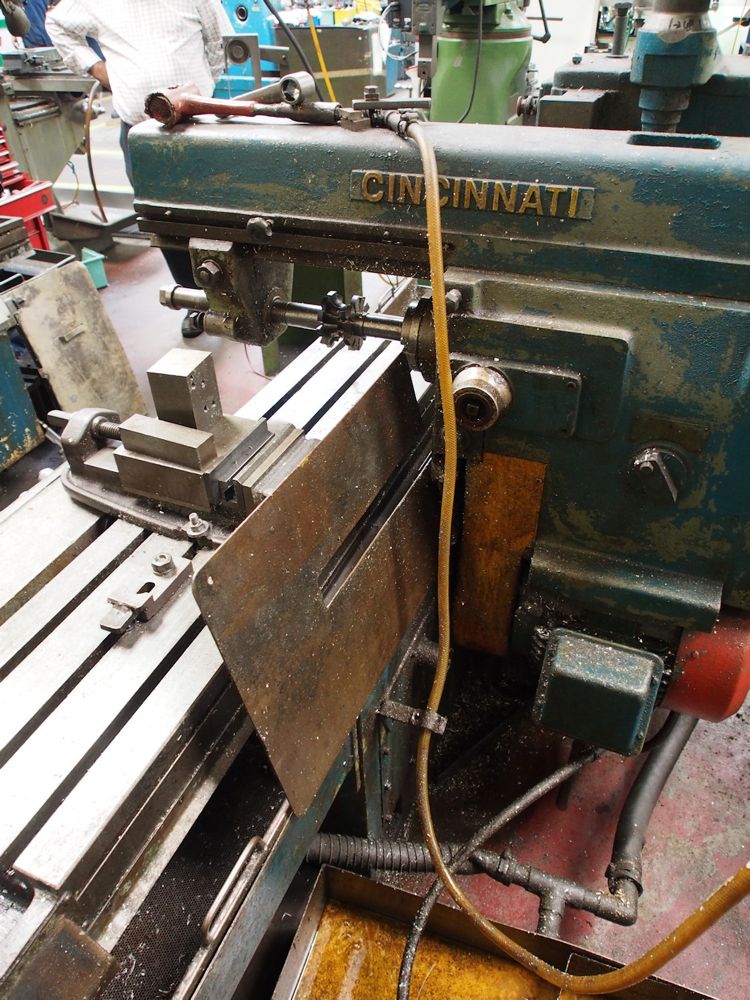

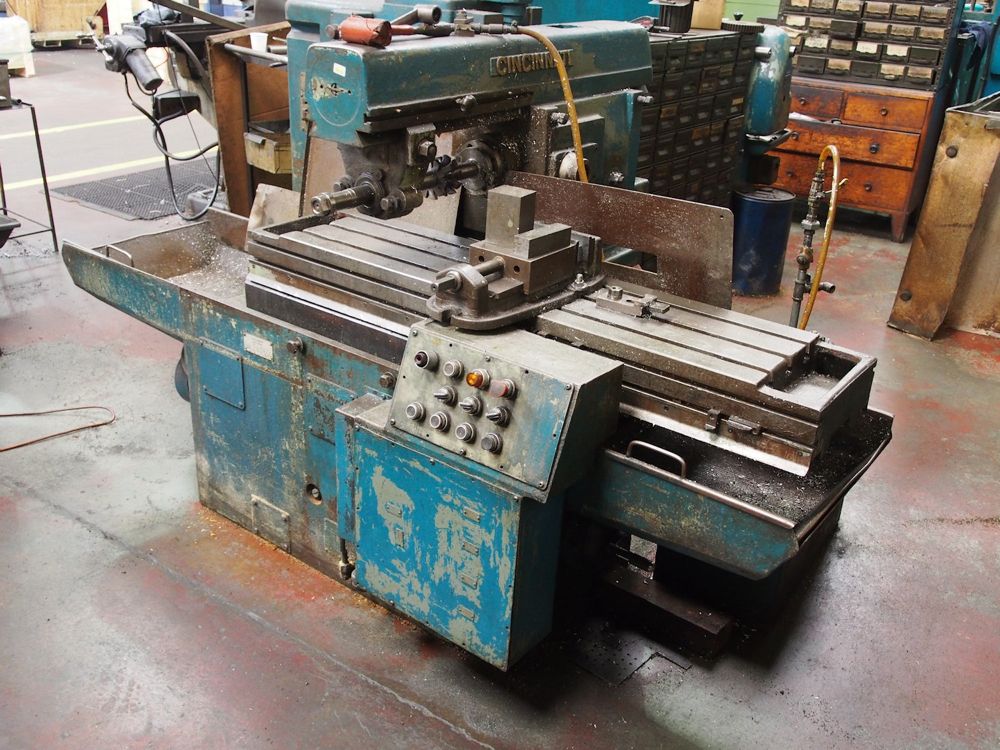

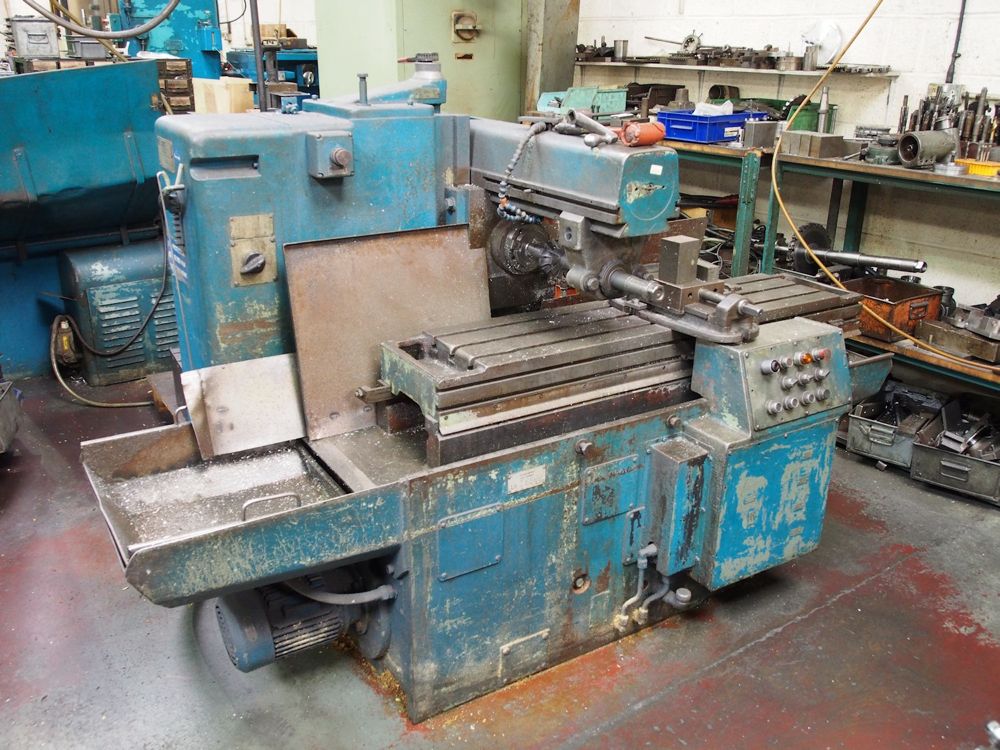

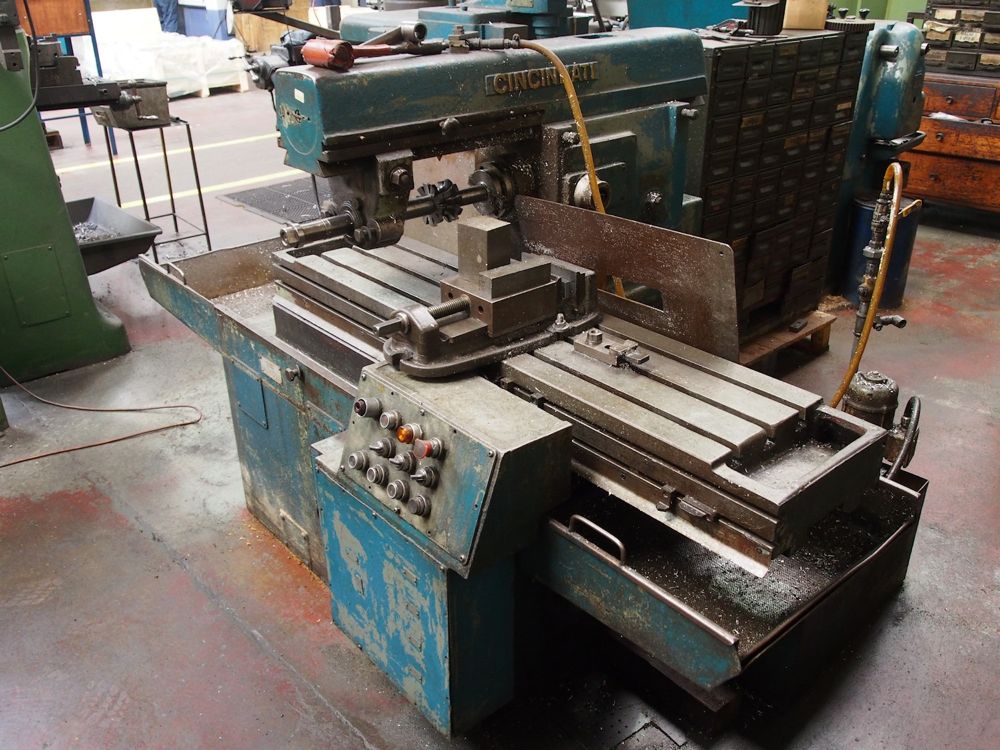

Lot 46 - Cincinnati Horizontal Miller Model 100 POWERMATIC SERIES

Description:

Cincinnati Horizontal Production Mill
Model No. 100 POW

Table Size:12" x 54"
Table Travel:24"
Vertical Adjustment of Spindle Carrier:10"
Max. Dist. Spindle Center to Table Top: 13 1/4"
Cross Quill Adjustment:3"
Quill Diameter:6"
Spindle Speeds:40 - 1600RPM
Table Feed Rates:1/2 60 In/Min.
Rapid Traverse Rate: 300 In/Min.
Spindle Taper:No. 50
Machine Weight, Approx: 6,050 lbs

Please note Specifications not confirmed

Location: Leicester LE1 4JT

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
