Lot 1 - Cincinnati Arrow 500 4 Axis VMC (1998)

Description:

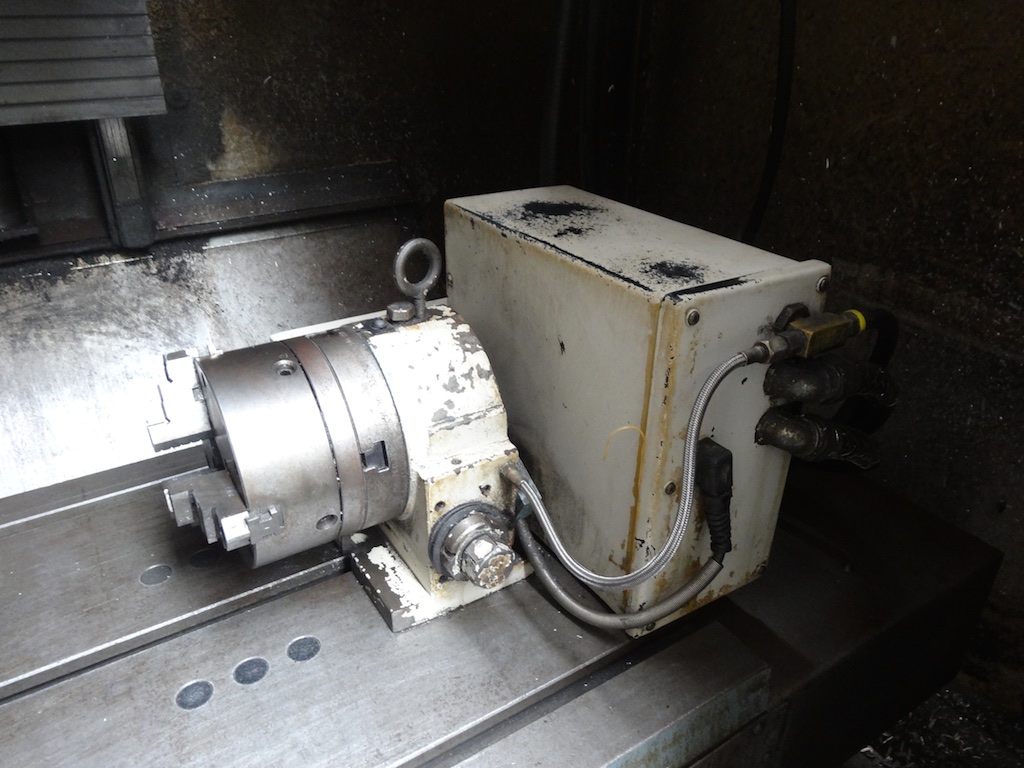

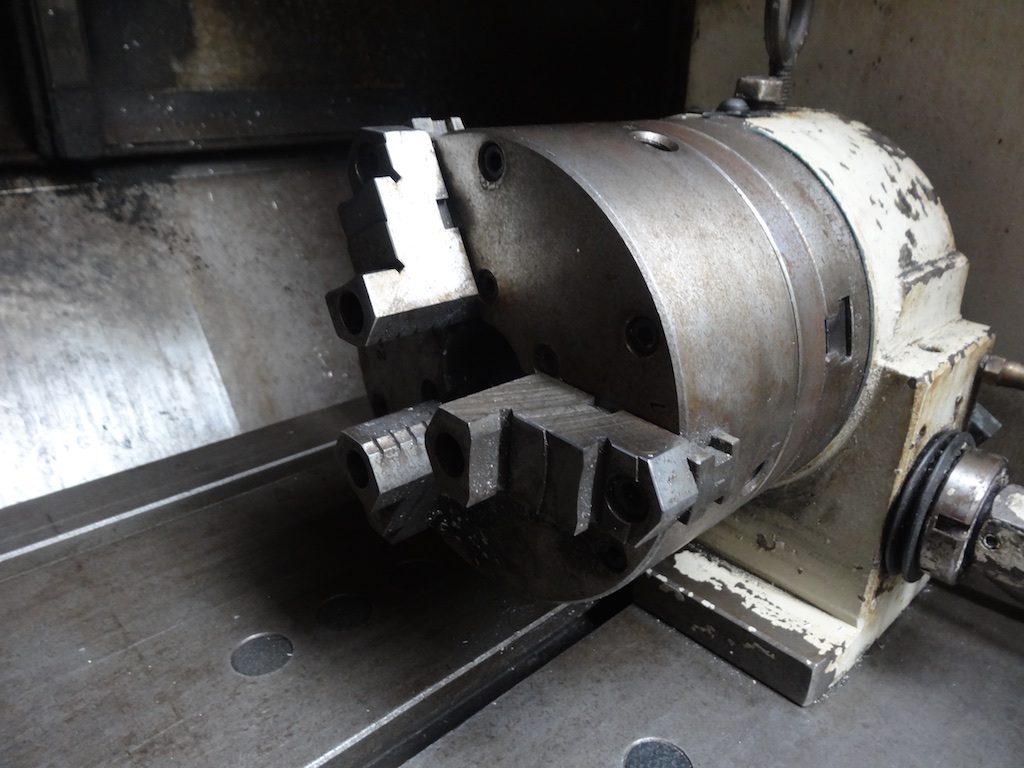

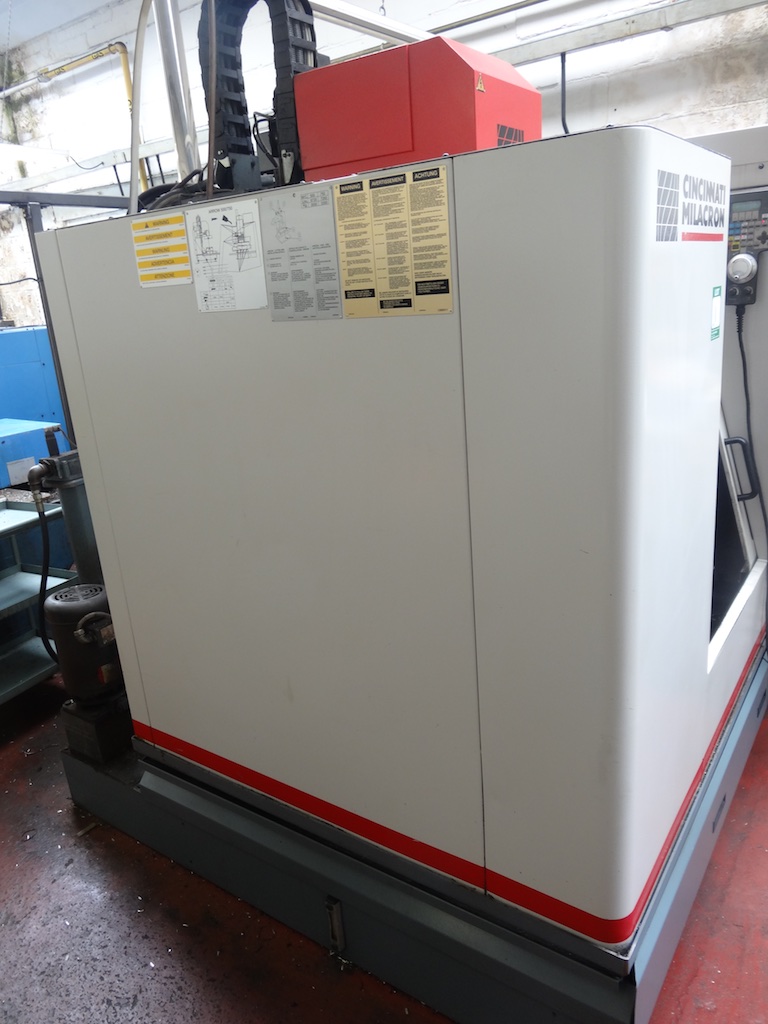

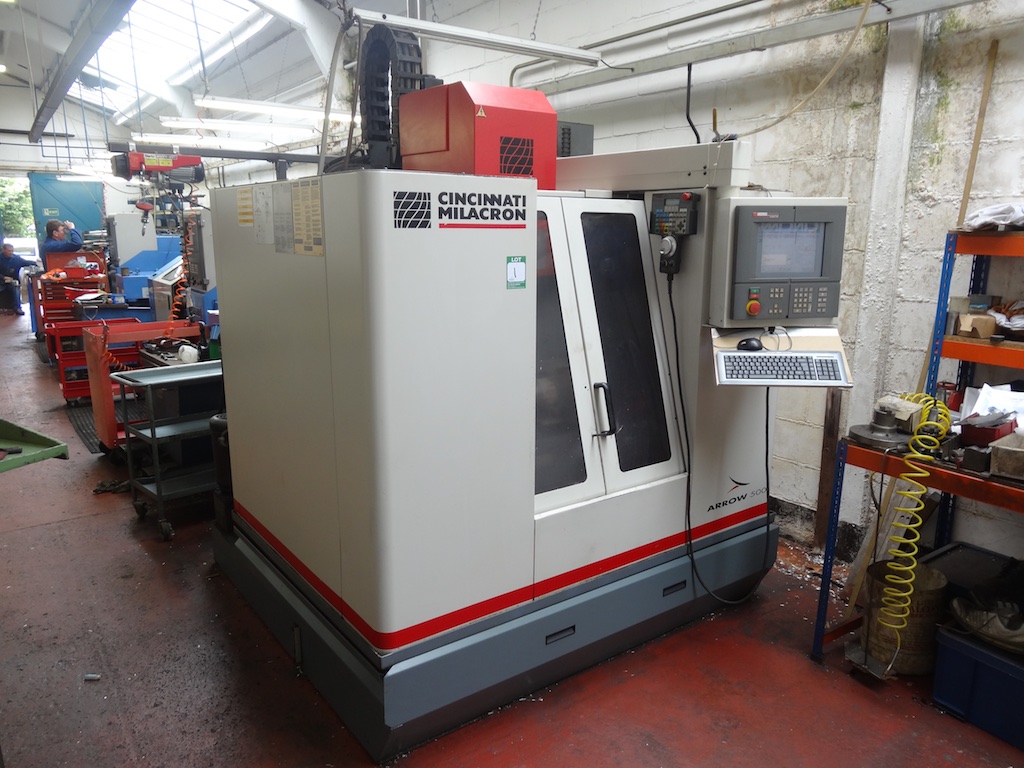

Cincinnati Arrow 500 VMC With 4th Axis

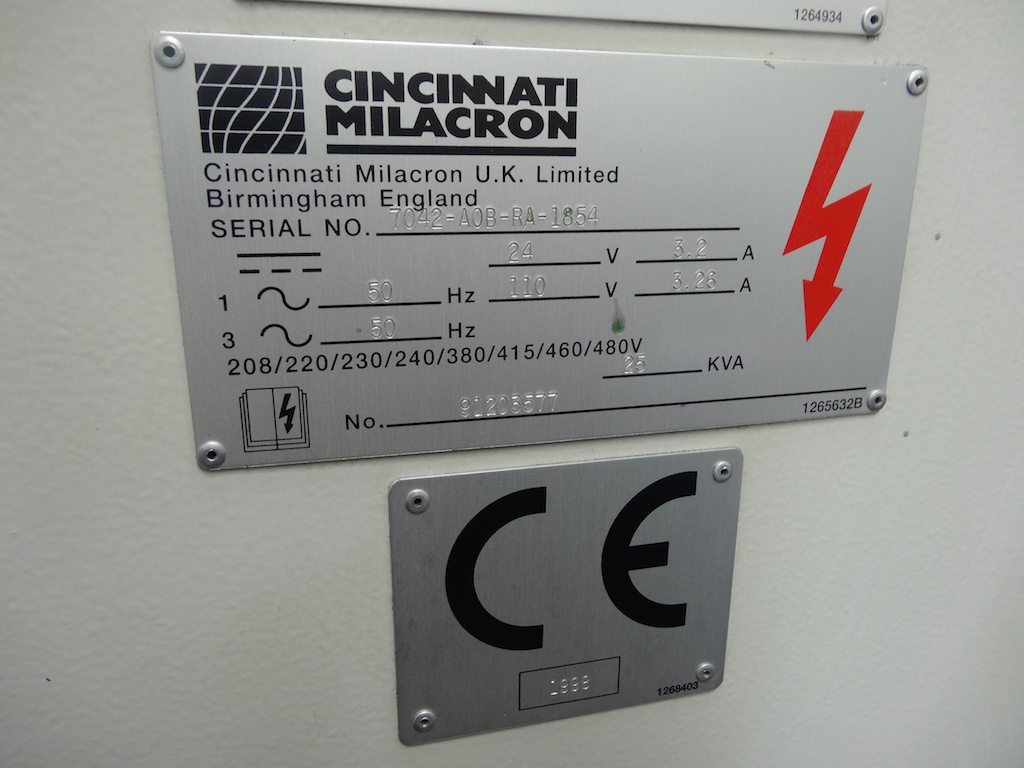

S/n: 7042-AOB-RA1854
Date: 1998, Installed New in 1999

X axis: 510mm
Y axis: 510mm
Z axis: 510mm
Range, spindle to work surface: 127 - 637mm
Spindle speed: 60 - 6000
Spindle selection increments: 1 rpm
Tool holder BT40
Feedrates: 12000mm/min
Rapid traverse rate 20m/min
Axis thrust x & y: 3kN z: 7kN

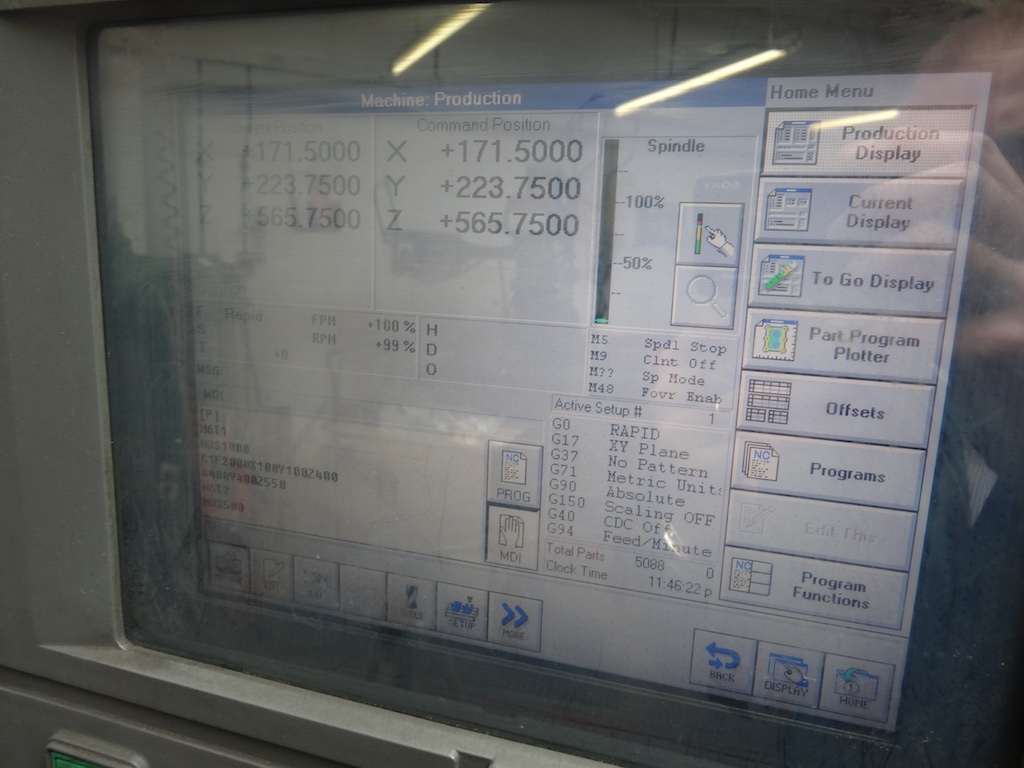

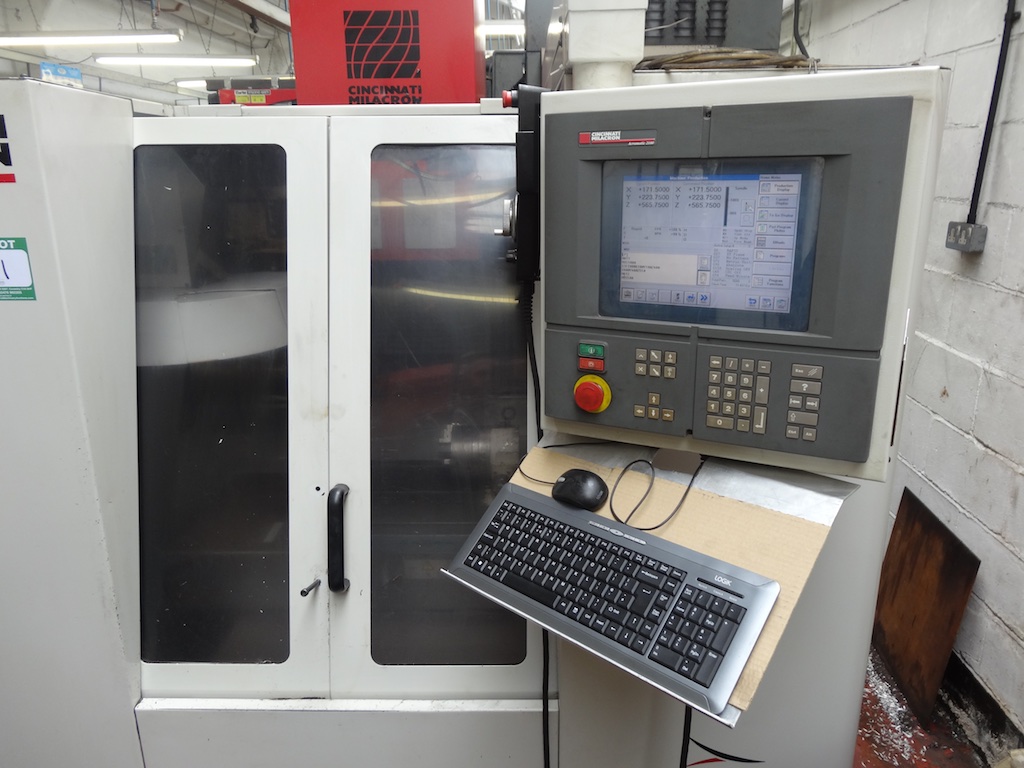

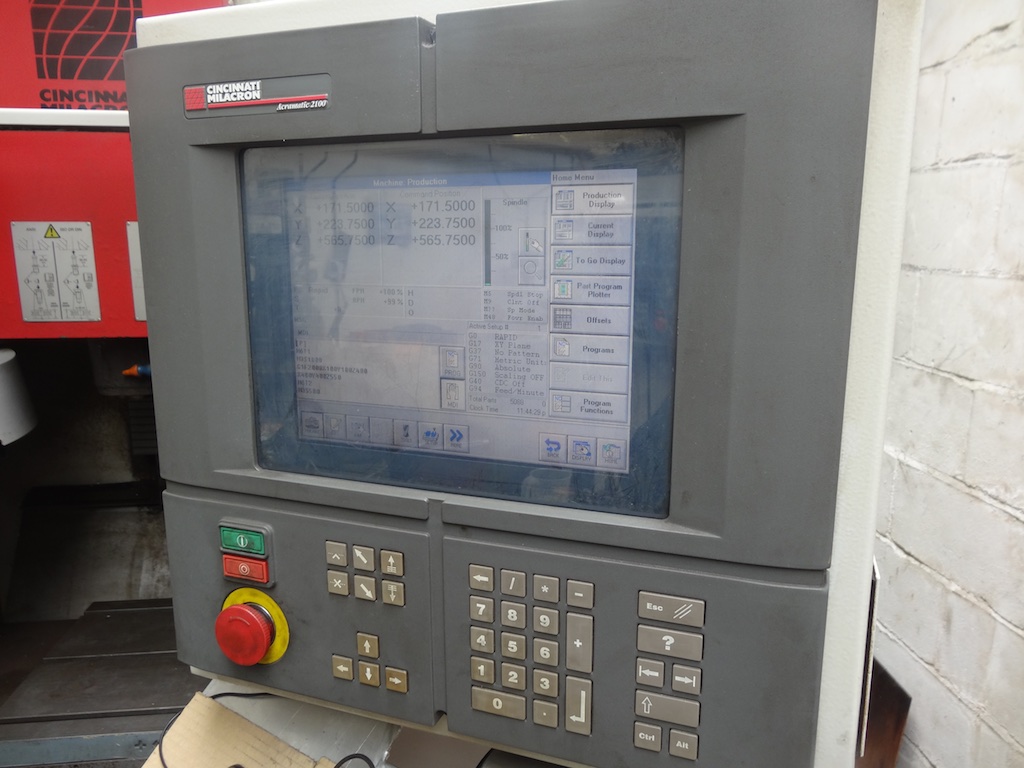

Acromatic 2100 Control
Manufacturer: Vickers ESD Inc

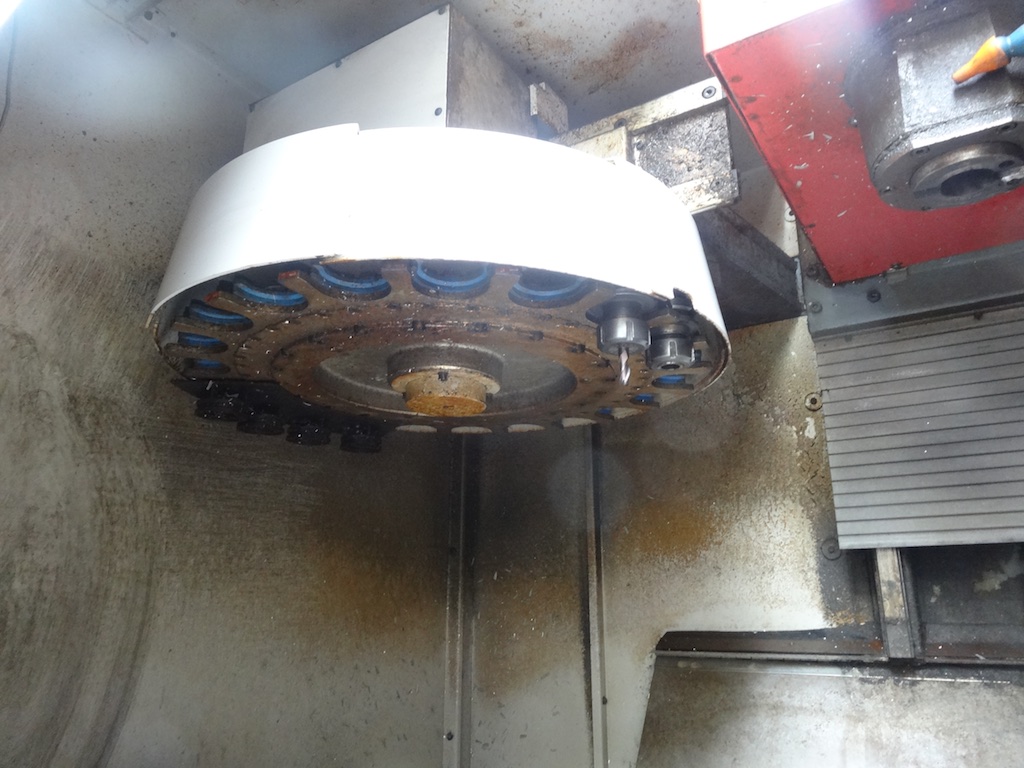

21 Station Turret
Bi- directional rotation of tool drum
Tool and holder weight: 6.8kg
Tool drum load (evenly spaced) 68kg
Max tool length: 305mm
Max tool dia (adjacent pockets full): 80mm
Tool Dia (adjacent pockets empty):160mm
Auto tool change time (metal to metal) 7.5 seconds

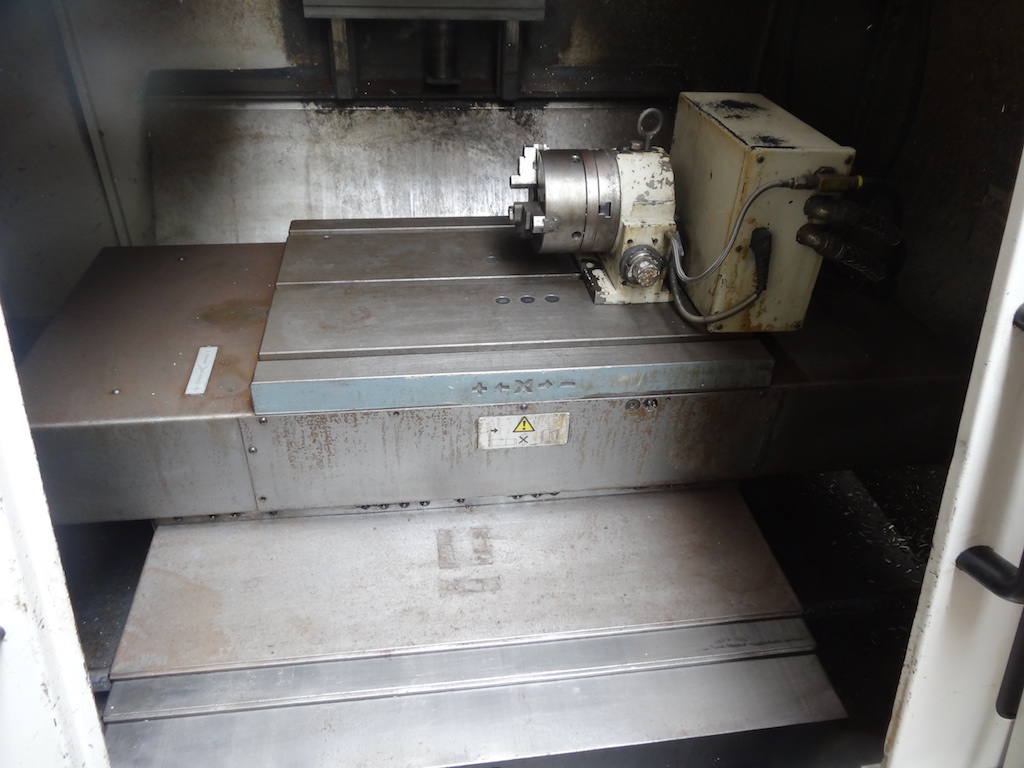

3 x 3cm T Slots on 700 x 520mm table
Table load capacity: 350kg

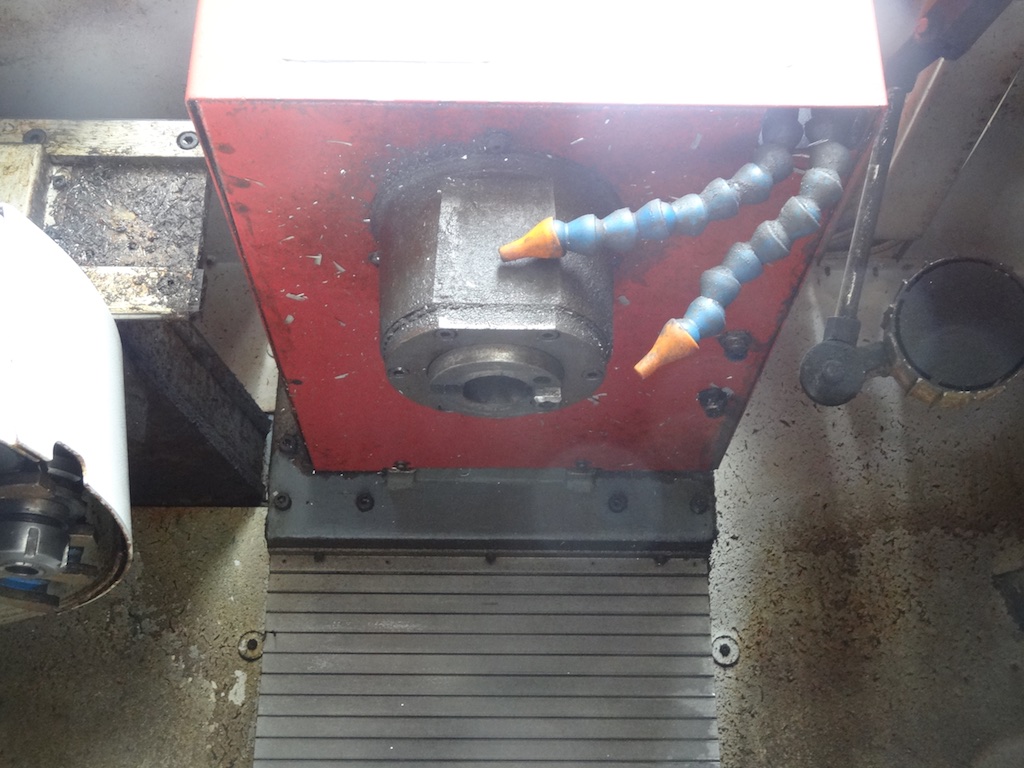

Coolant: Flood through nozzels
Tank Cap: 178Lts

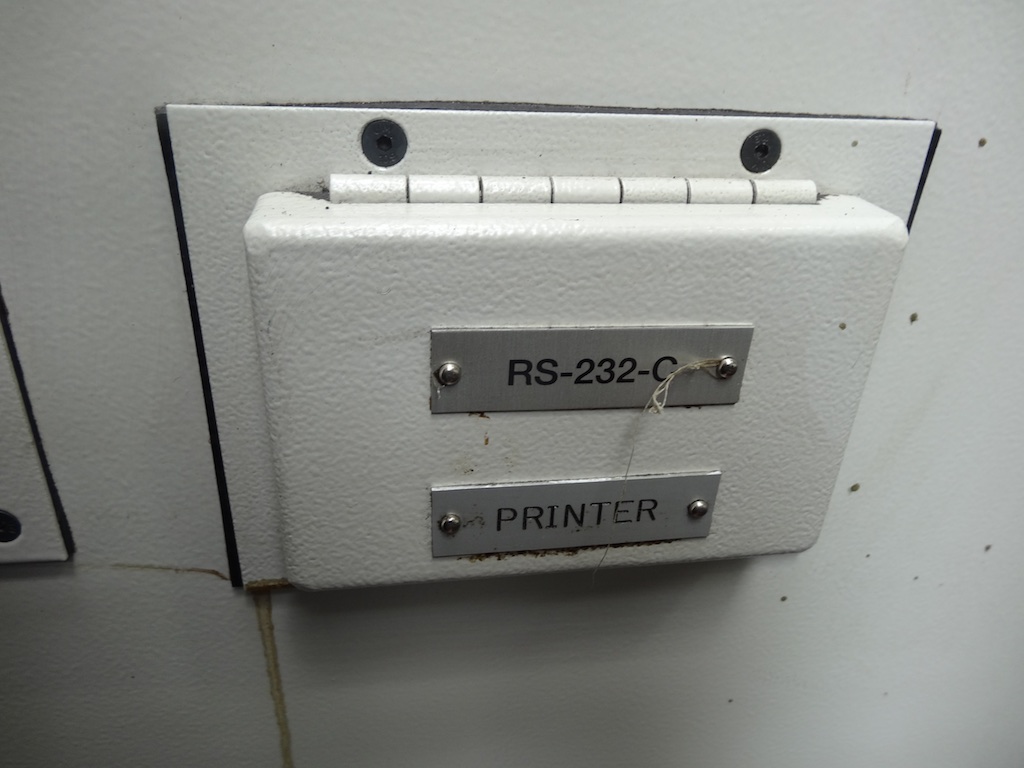

Printer Ports on the back of the machine x 2

L x W x H: 2300 x 2600 x 2700mm

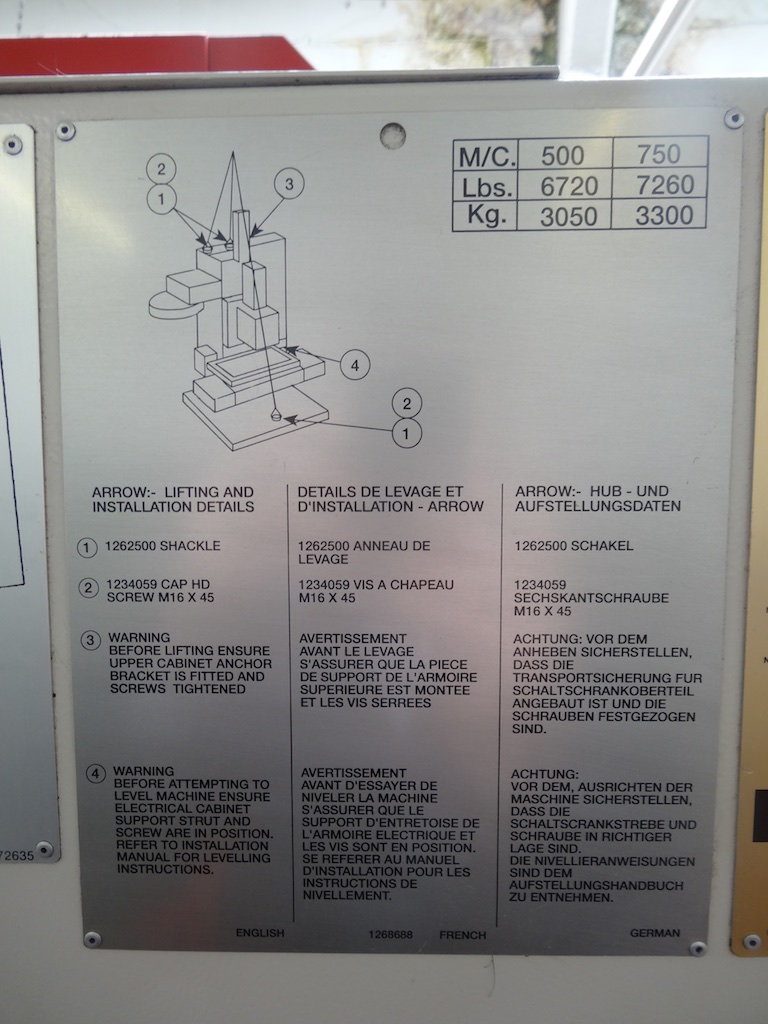

Weight: 3050kg

Location: Bishops Stortford

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
