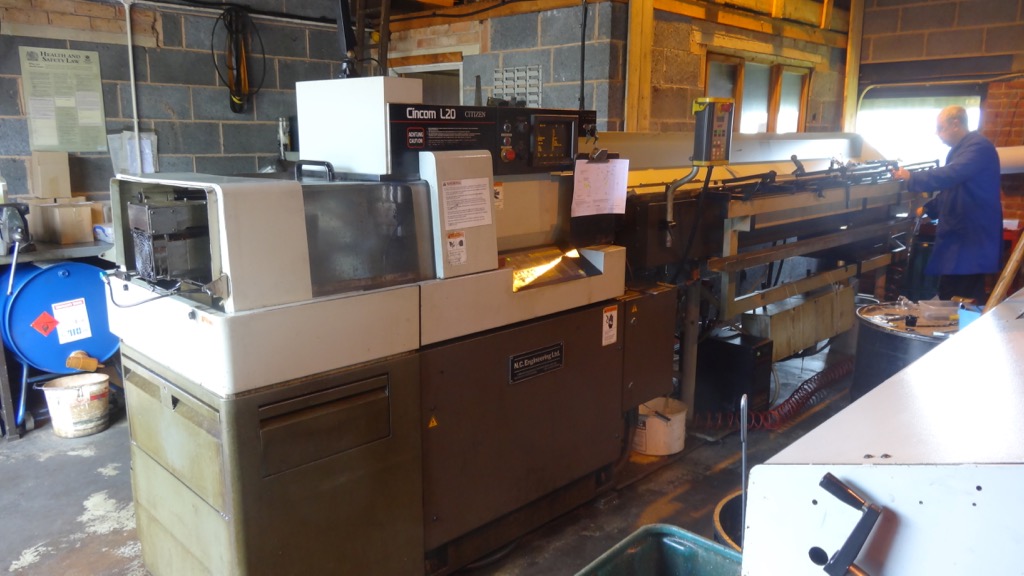

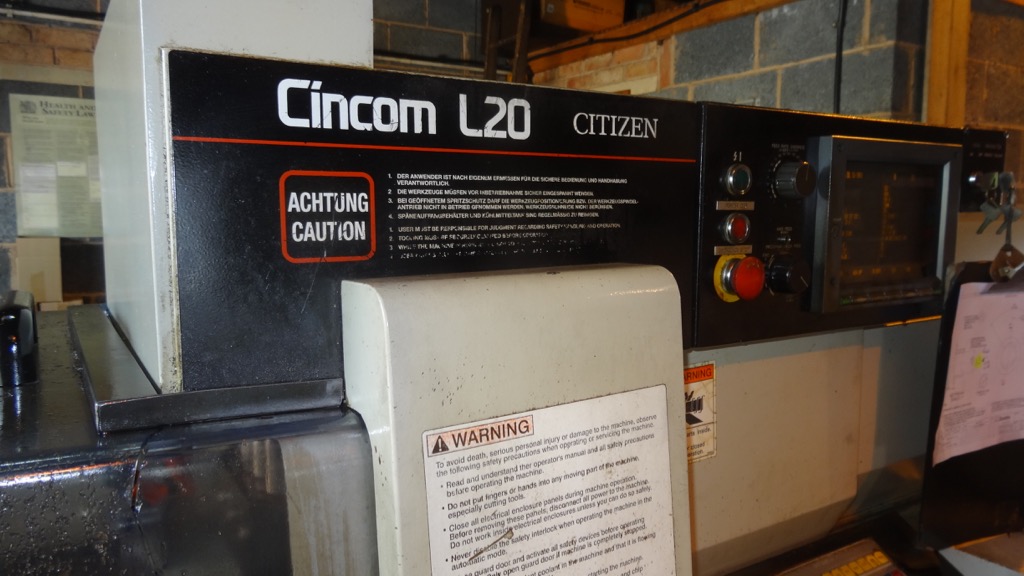

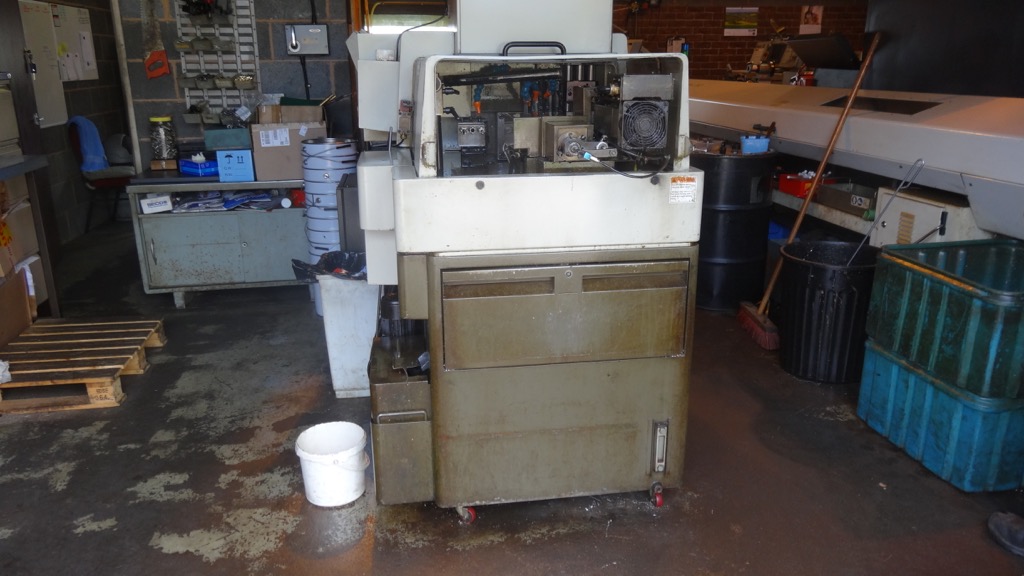

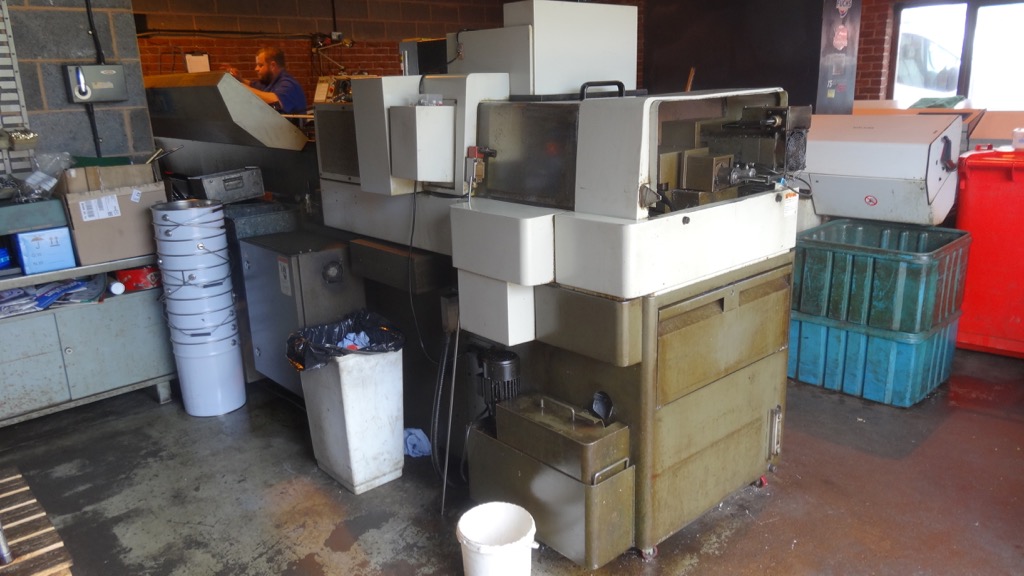

Citizen L20 Sliding Head Lathe (1997)

Lot 6 - Citizen L20 Sliding Head Lathe (1997)

Description:

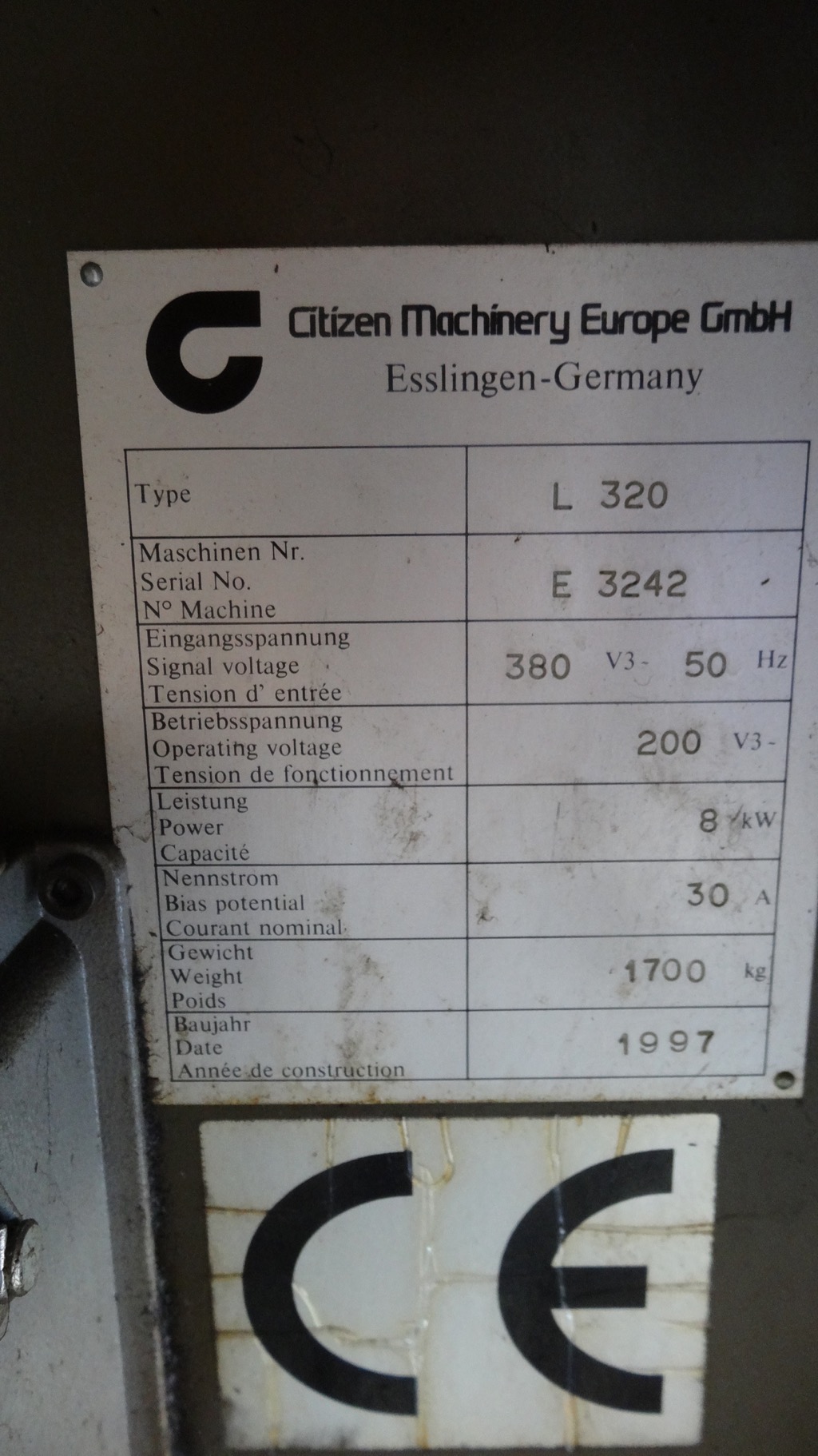

Serial No: E 3242

Weight: 1700kg

Max. Machining Diameter: 0.812"
Max. Machining Length per one chuck: 8.1"
Max. Drilling Diameter: up to .394"
Spindle Speed: 200 - 10000 rpm
Main Spindle Indexing: 15 degree

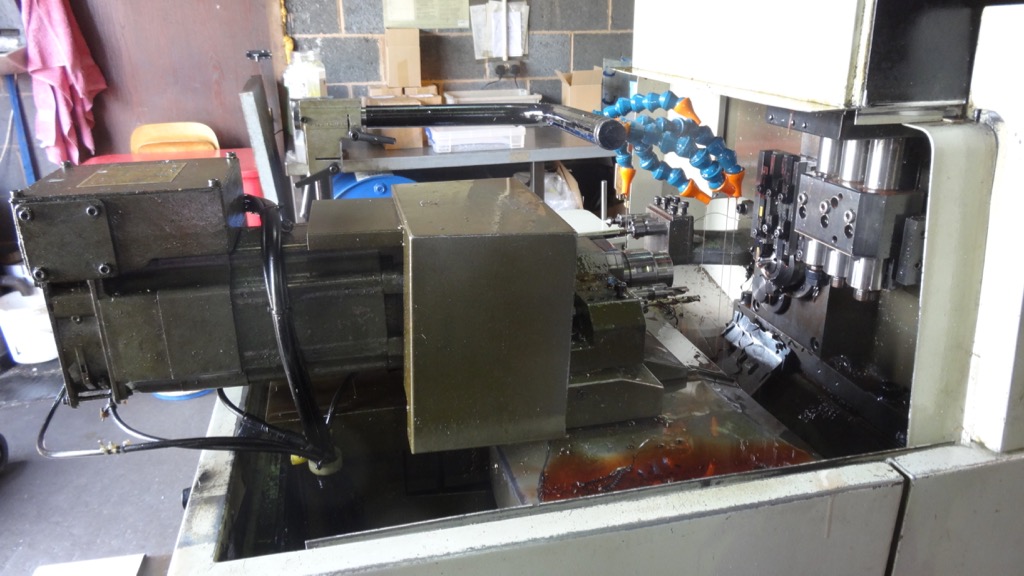

Back-work:
Max. Chucking Dia. of Pick-off Spindle: .812"
Pick-off Spindle Speed: 200 - 8000 rpm
Pick-off Spindle Motor: 2 hp

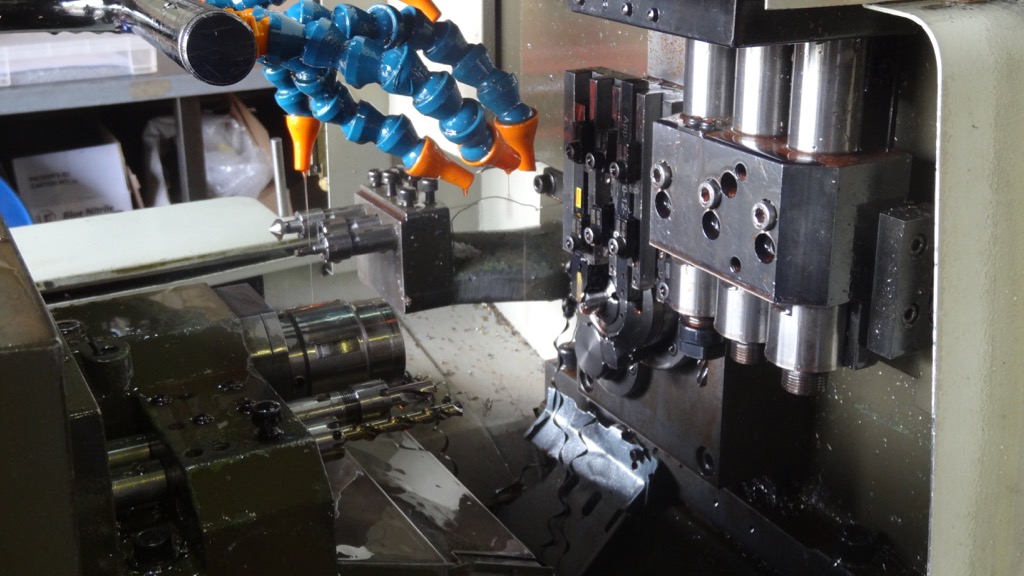

Rotary Tool:
Rotary Spindle Speed: 200 - 5000 rpm
Rotary Tool Motor: .5 hp
Power Consumption: 6 KVA
Required Floor Space: 65" x 37"

Location: Coventry

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
