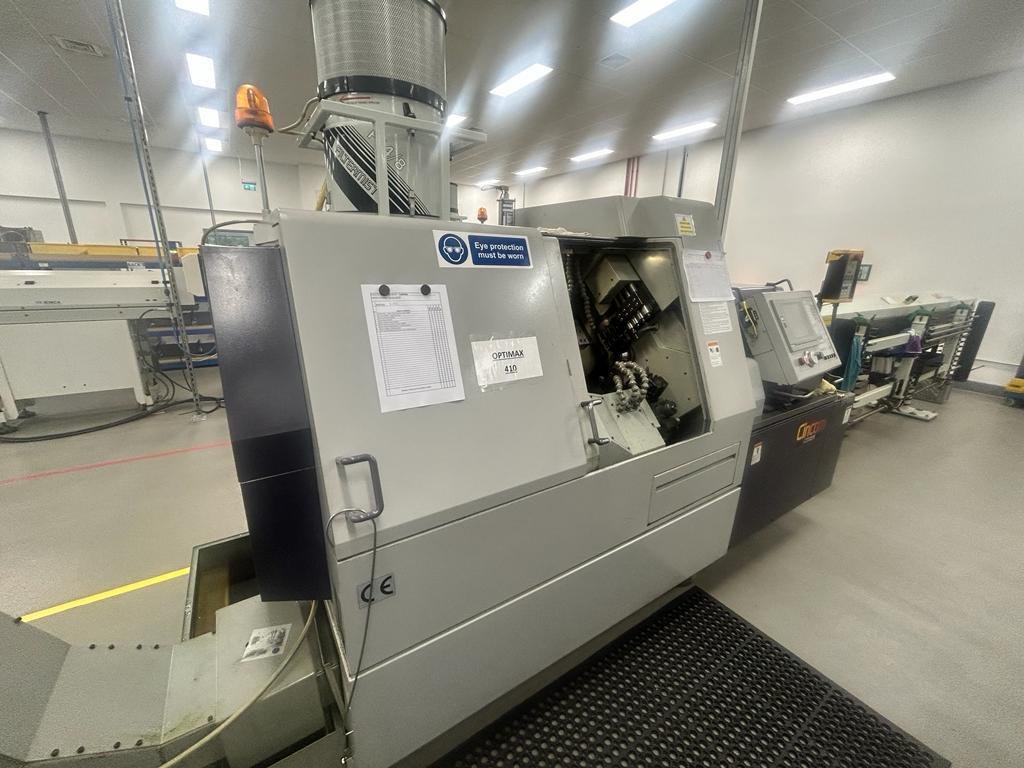

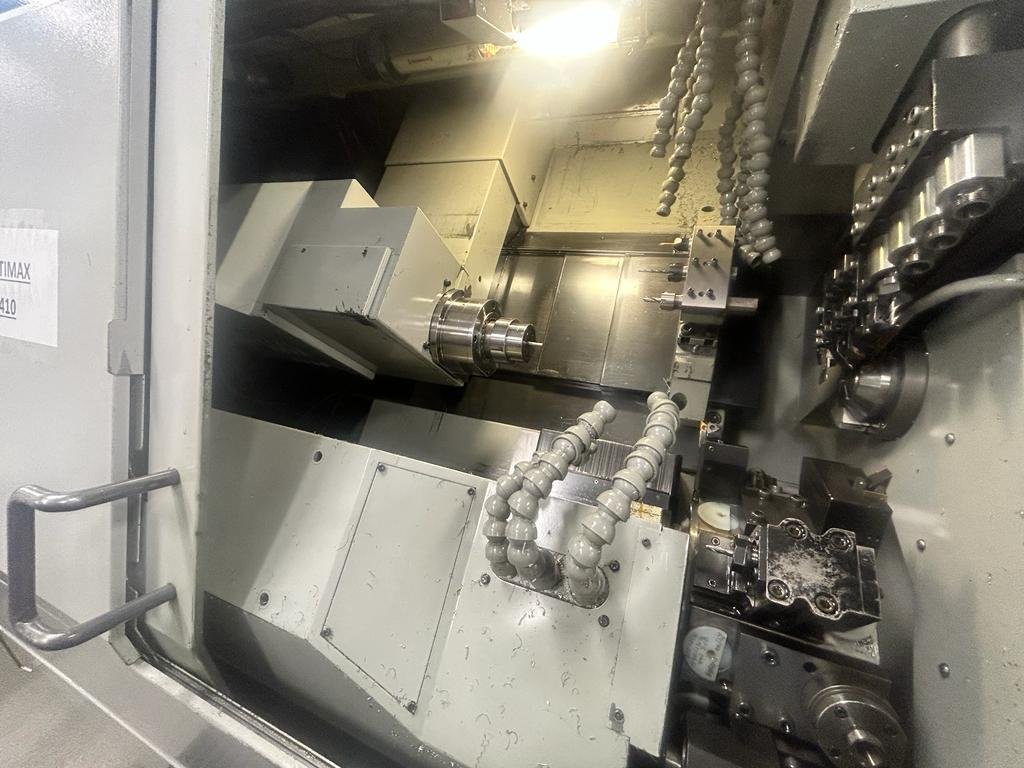

Citizen M32 CNC Lathe (1999)

Lot 2 - Citizen M32 CNC Lathe (1999)

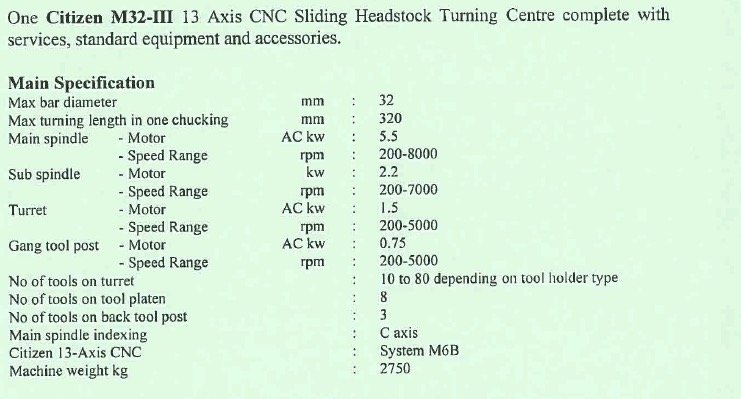

Description:

Maximum Bar diameter: 32mm

Maximum Turning Length: 320mm

Main Spindle Motor - 5.5 AC kw

Main Spindle Speed: 200-8,000 RPM

Sub Spindle Motor - 2.2 kw

Sub Spindle Speed - 200-7000 RPM

Turret Motor - 1.5 AC kw

Turret Speed - 200-5000 RPM

Gang Tool Post Motor - 0.75 AC kw

Gang Tool Post Speed - 200-5000 RPM

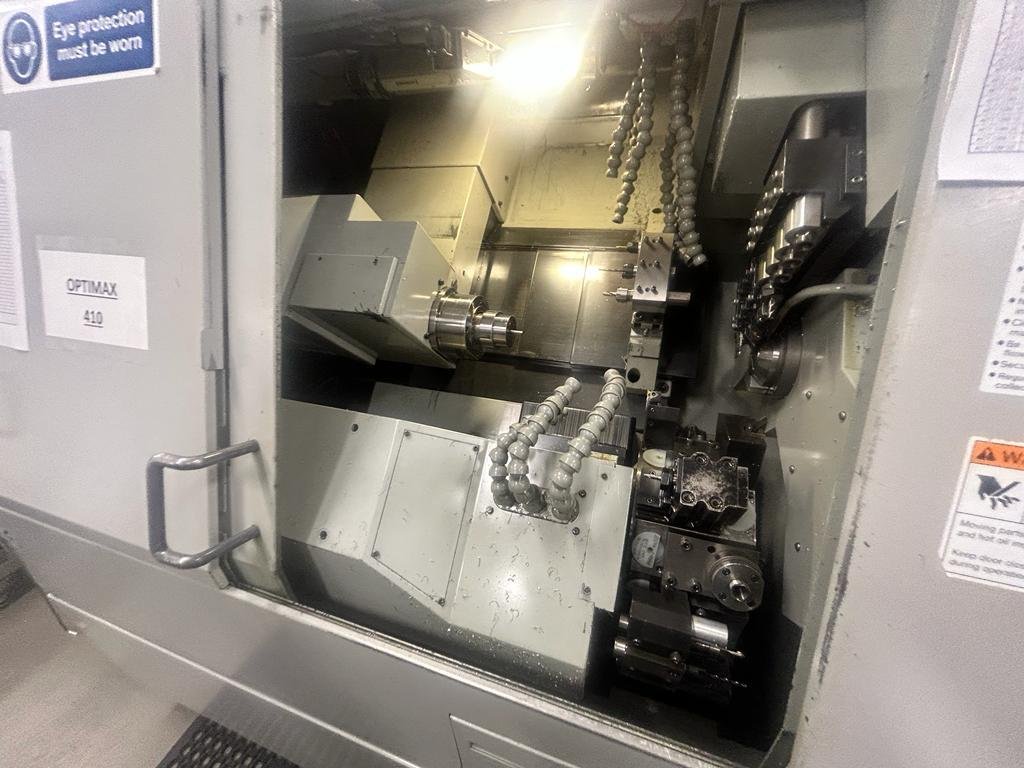

No of Tools on Turret - 10 to 80 depending on tool holder type

No of Tools ON Tool Platen - 8

No of Tools on Back Tool post - 3

Main Spindle Indexing - C Axis

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
