Lot 1 - CNC Cylindrical Grinder KELLENBERGER KEL-VISION URS 125x430
Description:

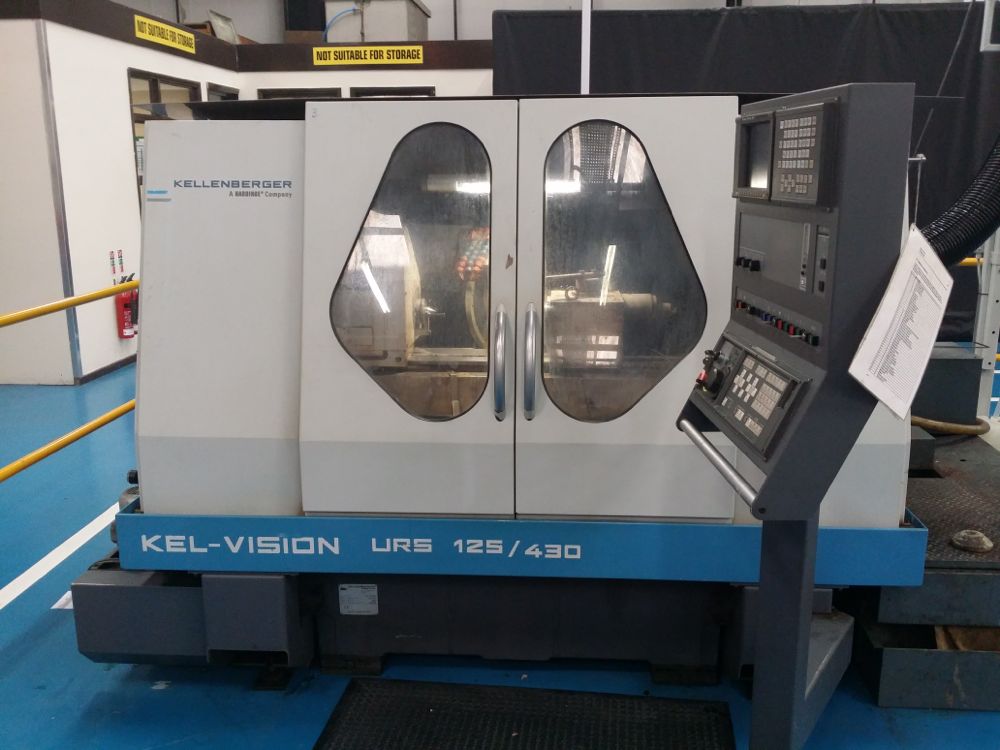

CNC cylindrical grinder
KELLENBERGER KEL-VISION URS 125x430

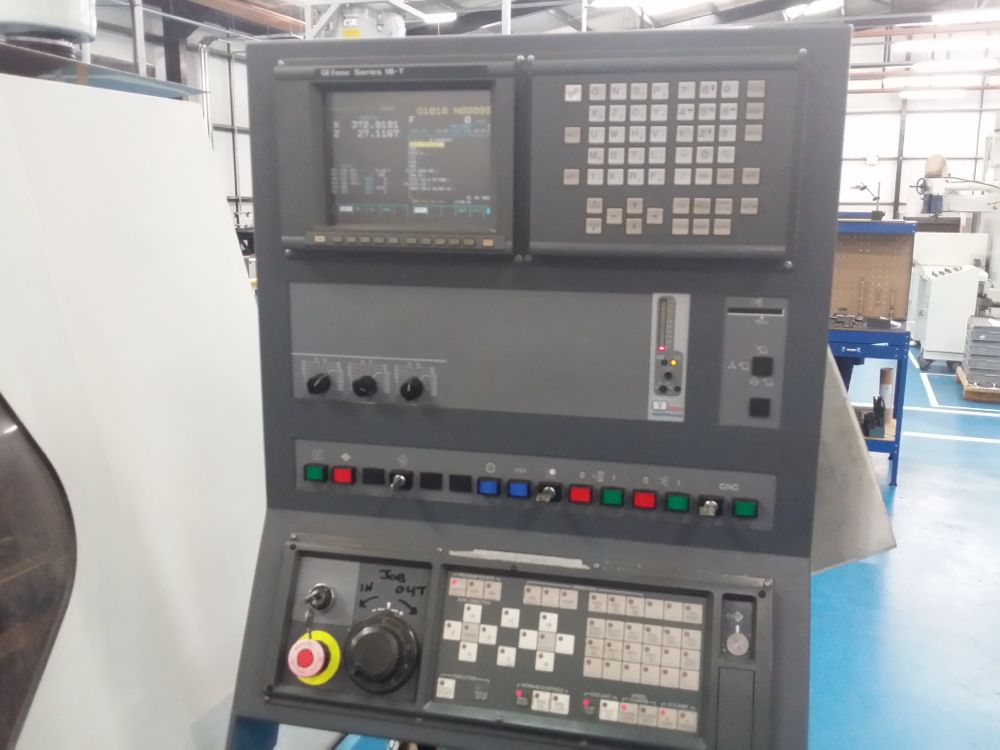

With Fanuc Series 18 T Control
Technical data
Centre height: 125mm
Distance between centres: 760mm
Grinding length: 430mm
Workpiece weight on centres max: 100kg
Grinding wheel: Standard diameter: 400mm
Width: 63mm
Bore: 127mm
Indexing manually: 2.5°
Longitudinal slide: Z
Max. travel: 650mm
Transversal slide: X
Max. travel: 320mm
Work piece spindle head:
from 8rpm up to 800rpm
Taper in spindle: 5 MT
Tailstock:
Taper in tailstock: 4 MT
Tailstock travel of barrel: 50mm
Table speed:
Rapid motion: 12/6 m/min
Voltage: 50 Hz 3x400 Volt
Grinding spindle motor: 7.5 / 10 kW
Overall dimensions machine:
Length: 2500mm
Width: 2000mm
Various accessories:
Length positioning automatic
KEL-POS
Internal grinding attachment:

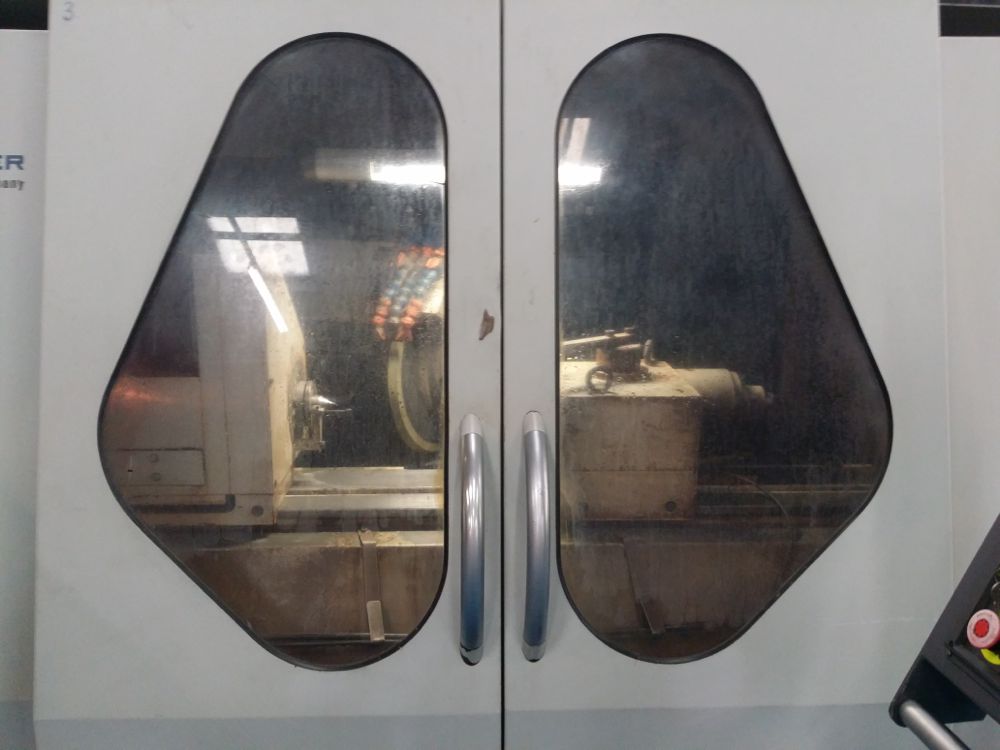

Full splash cabin
Newport, South Wales
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
