Colchester Mascot 1600 x 40 Gap Bed Lathe

Lot 3 - Colchester Mascot 1600 x 40 Gap Bed Lathe

Description:

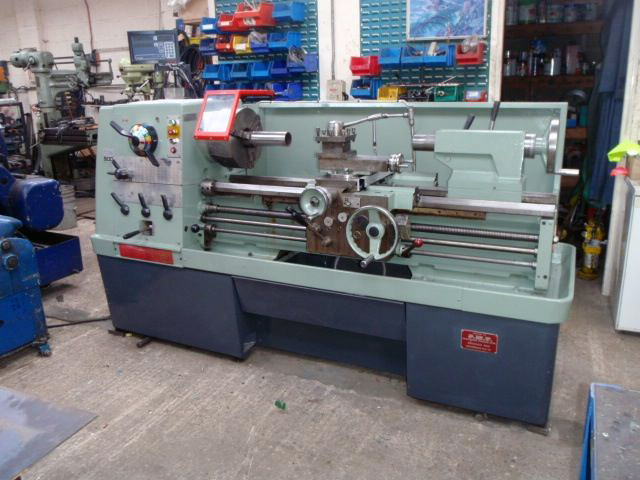

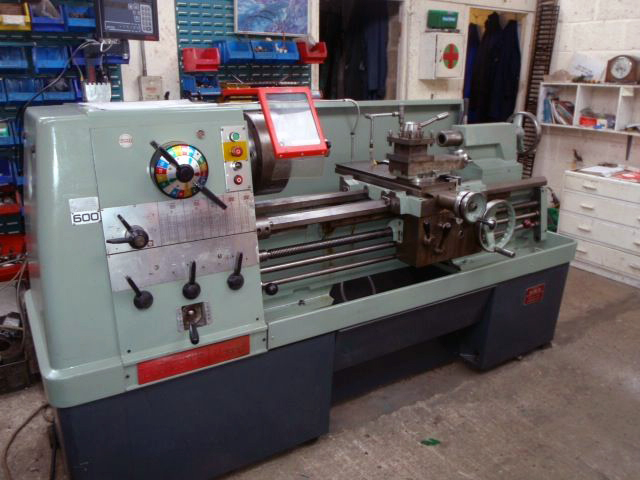

Colchester Mascot 1600 x 40 Gap Bed Lathe
Serial Number: 7/0201/12652
Swing over bed 433mm
Swing in gap 711mm
Swing over cross slide 267mm
Distance between centres 1016mm
Number of spindle speeds 16
Range of spindle speeds 20 – 1600rpm
Spindle Motor 12.5hp
Cross slide travel 279mm
Top slide travel 152mm

Complete with

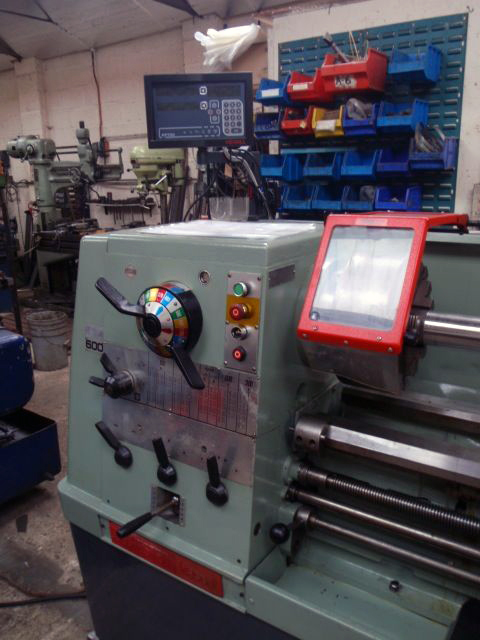

New Newall DP700 Digital Read Out

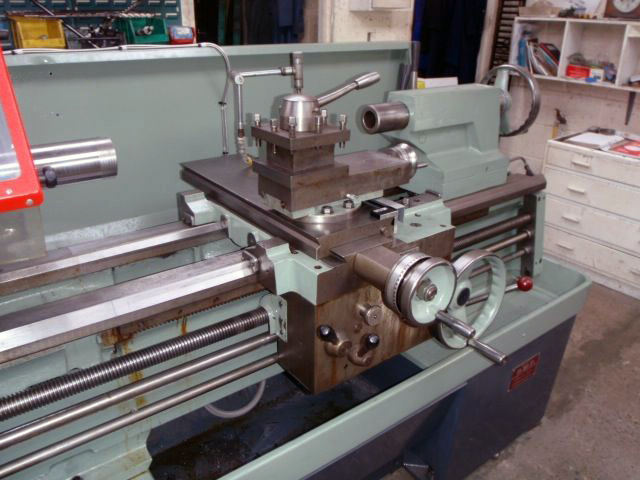

4 Way Tool Post
Coolant
Chuck Guard
Splash Guard

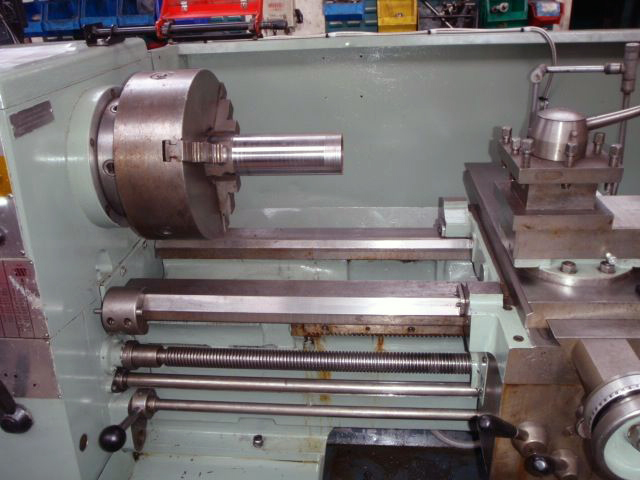

4 Jaw Chuck
3 Jaw chuck

The machine has been completely check over and is in very good condition.

Crane Lorry Required to load

Collection Address:

C & M Services Limited
Lower Mills
Bridgend
Stonehouse
Gloucestershire
GL10 2BB

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
