Colchester Multi Turn 1000 CNC Lathe (2006)

Lot 3 - Colchester Multi Turn 1000 CNC Lathe (2006)

Description:

Distance between centres 650mm
Swing over bed 350mm
Swing in gap 535mm
Gap width from faceplate 165mm
Swing over cross slide 196mm
Spindle bore 42mm

Spindle speed ranges (1 to 366rpm) 1 to 1088rpm) (1 to 3500rpm)
Speed Motor S3-40% 7.5kW
Constant power range 86 – 3500 (5.5kW)

Types of thread Metric / Imperial / Diametral / Module
Width over bed ways 318mm
Width of cross slide 180mm
Cross slide travel 250mm

Tailstock

quill diameter 63mm
quill travel 140mm
quill taper No. 4 MT

Standard electrics 400V AC + 10%/-15% 50/60Hz
Electrical supply required 12kVA

Complete With:

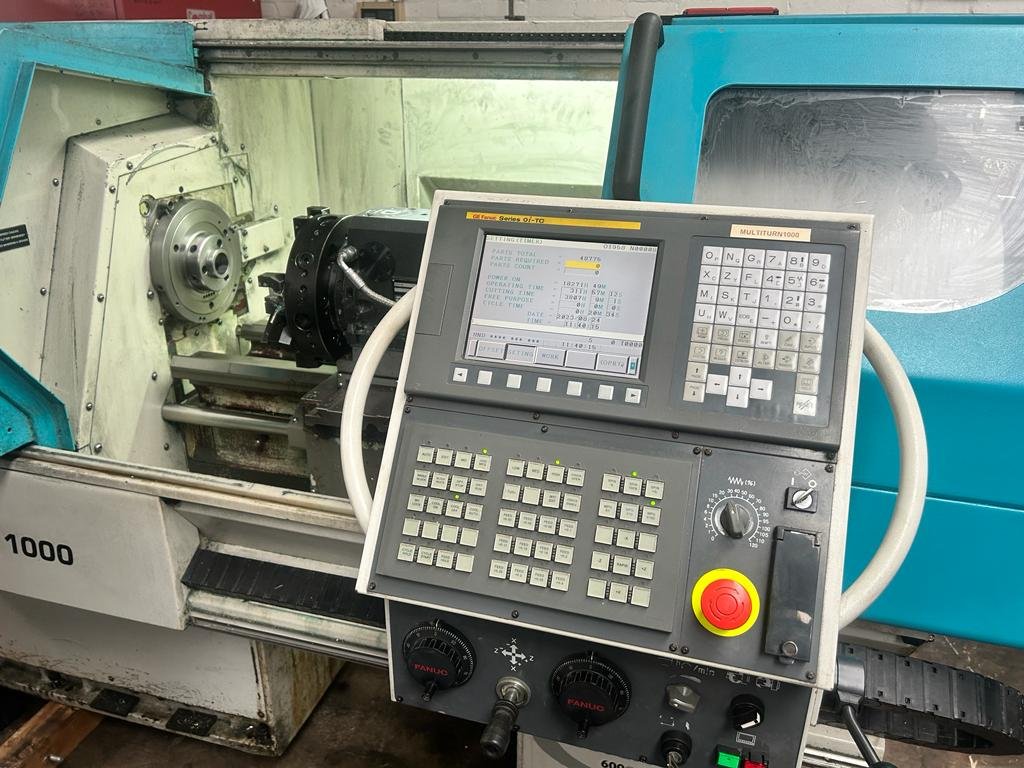

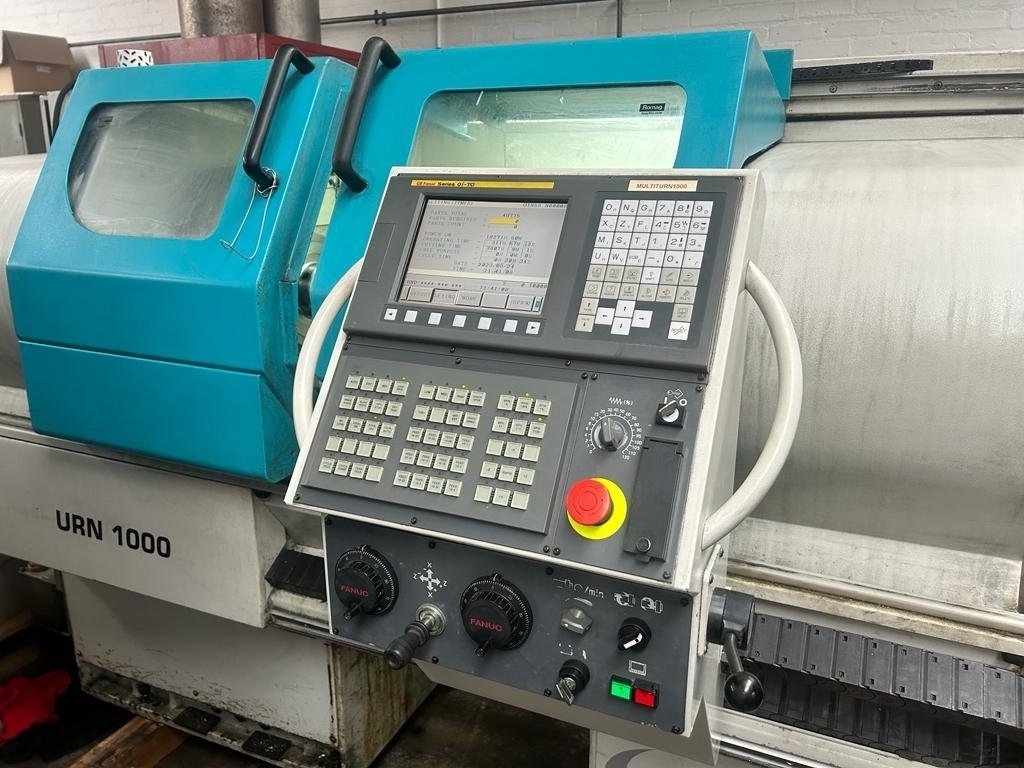

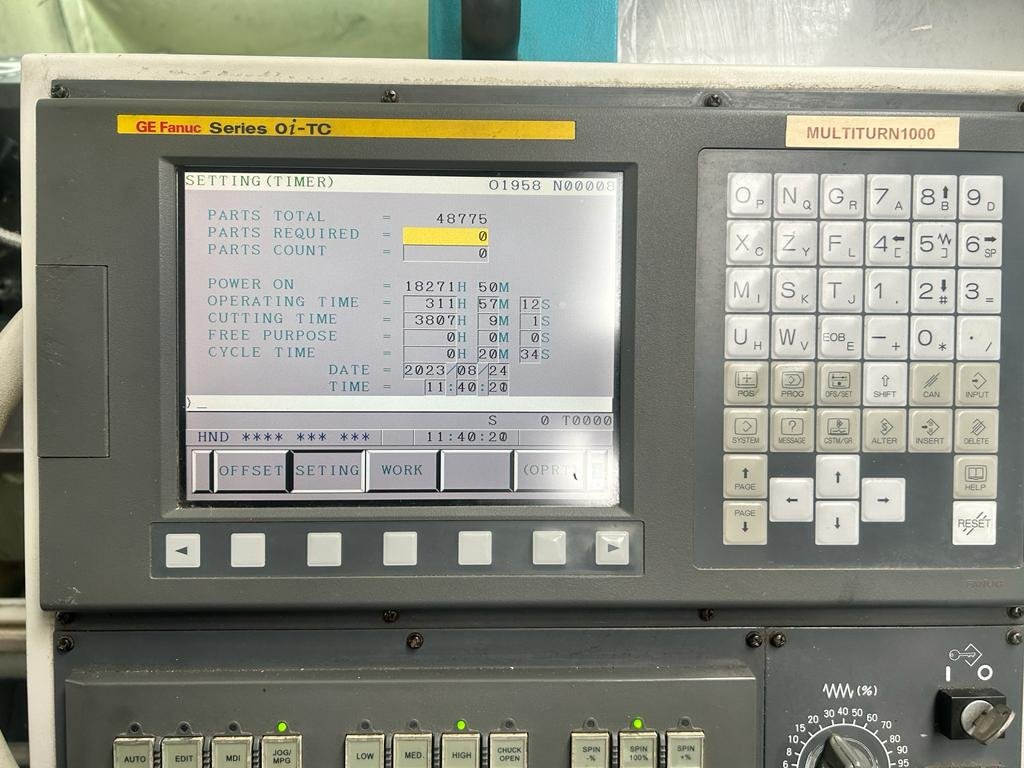

Fanuc OiTC Control

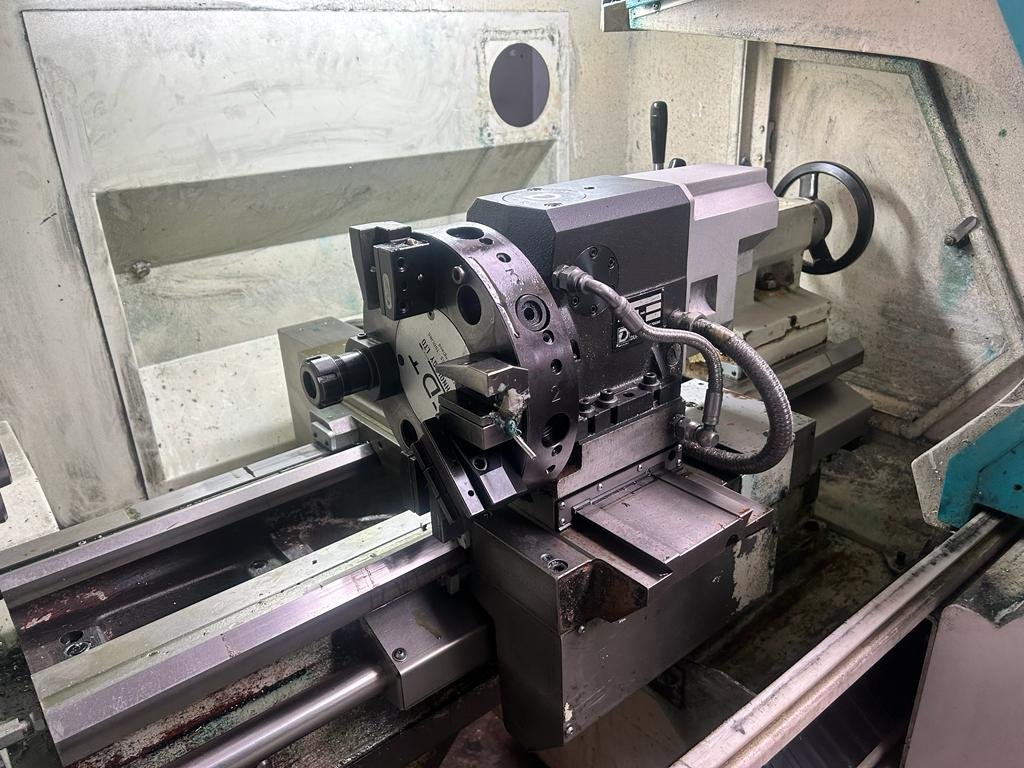

Duplomatic 8 Station Turret

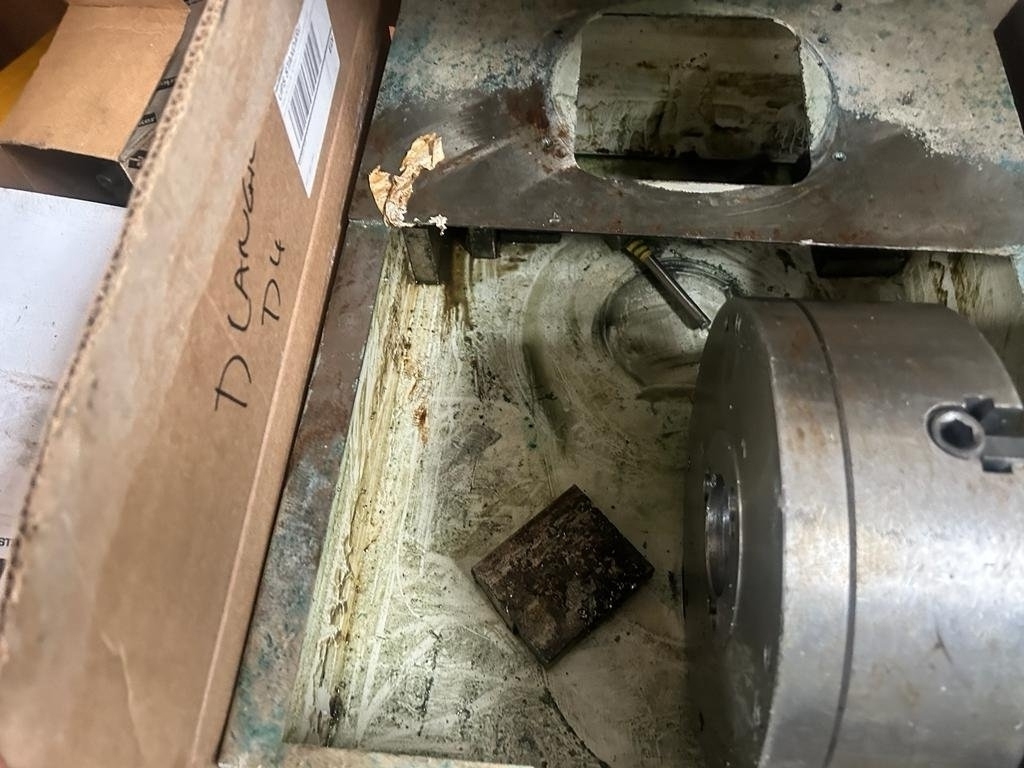

3 Jaw Chuck
Tailstock
Coolant Pump
Swarf Tray
Interlock Guards

Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
