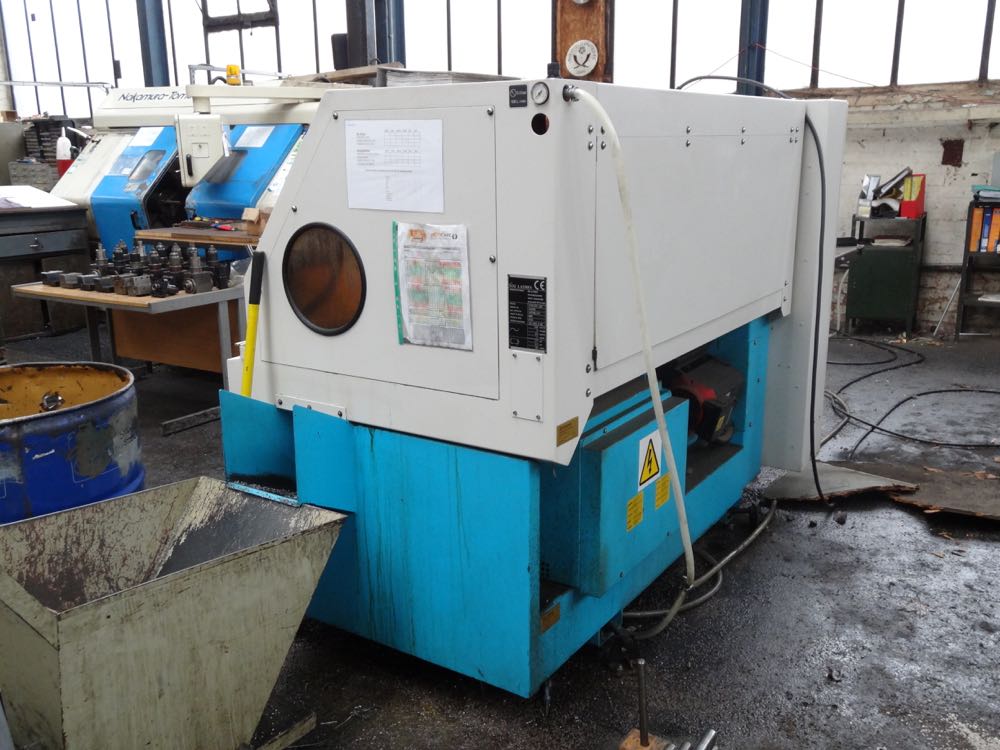

Lot 5 - Colchester Tornado A50 CNC Lathe With Fanuc 21iT Control and Bar Feed

Description:

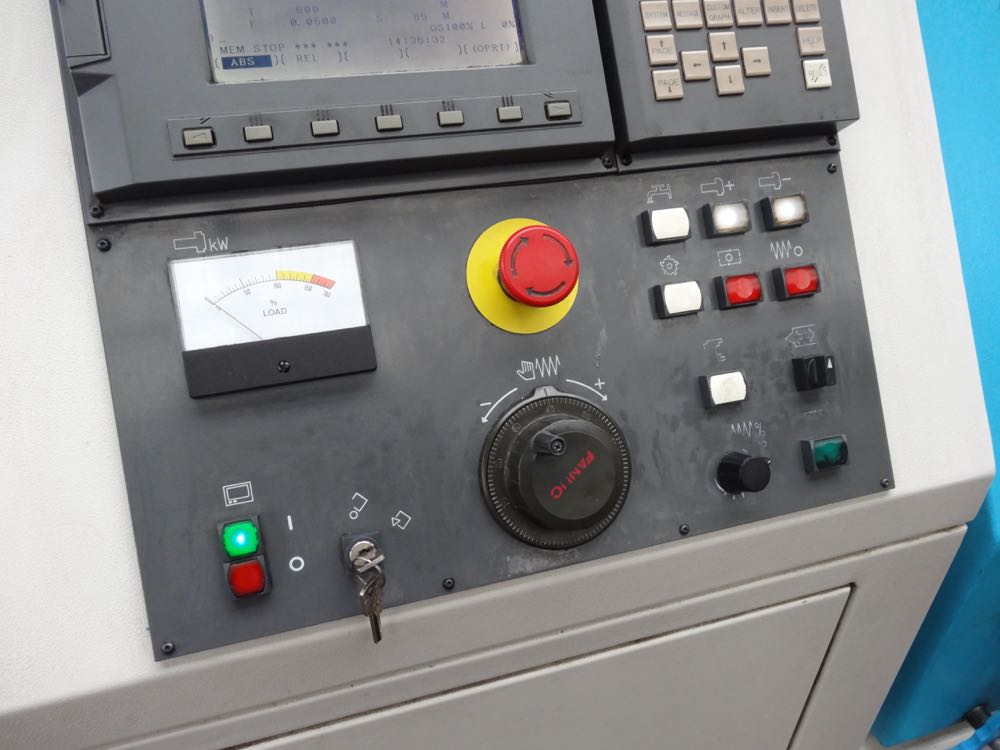

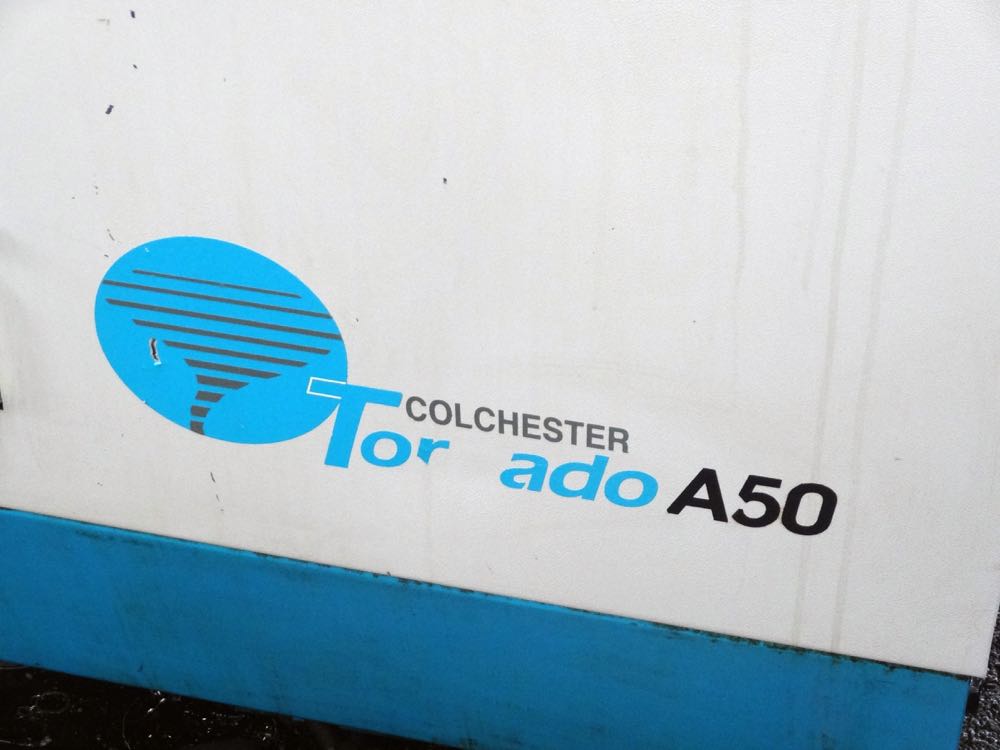

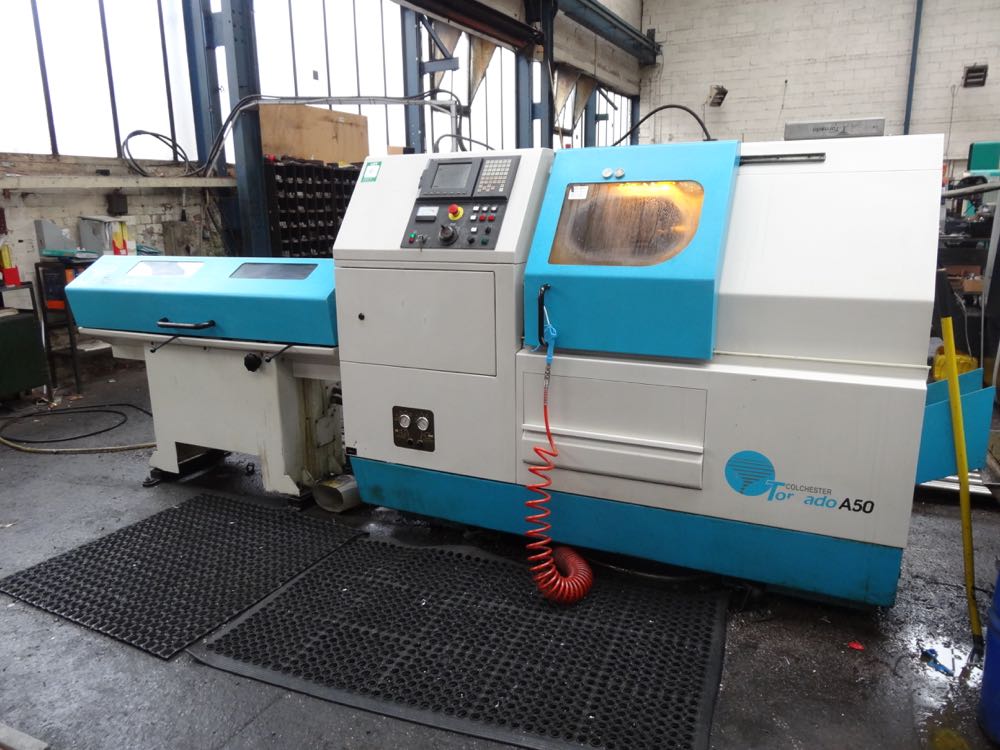

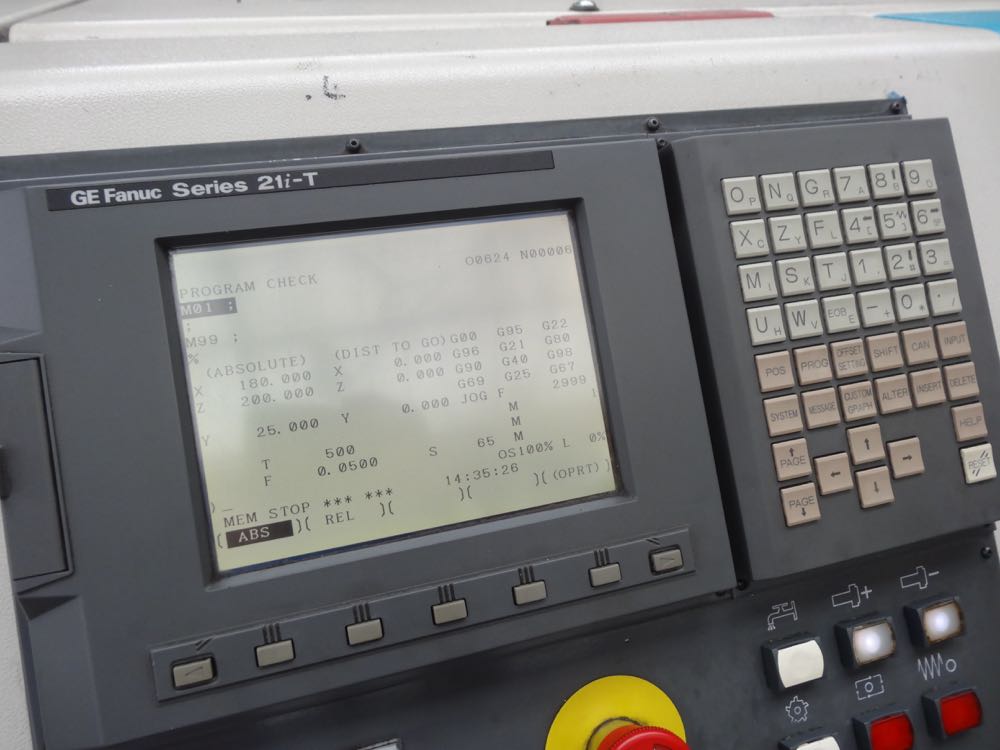

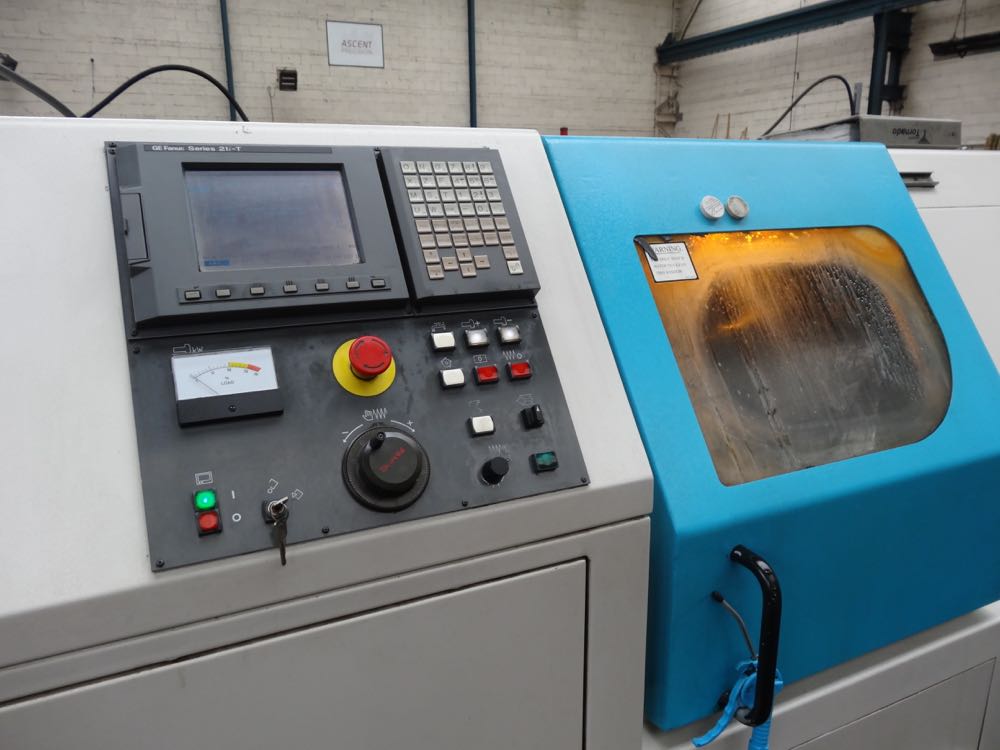

Colchester Tornado A50 CNC Lathe With Fanuc 21iT Control and Bar Feed

Specification

410mm Swing
170mm Max Turned Dia
350mm Max Turned Length
42mm Bar
4000rpm Spindle
5.5kW Spindle Motor

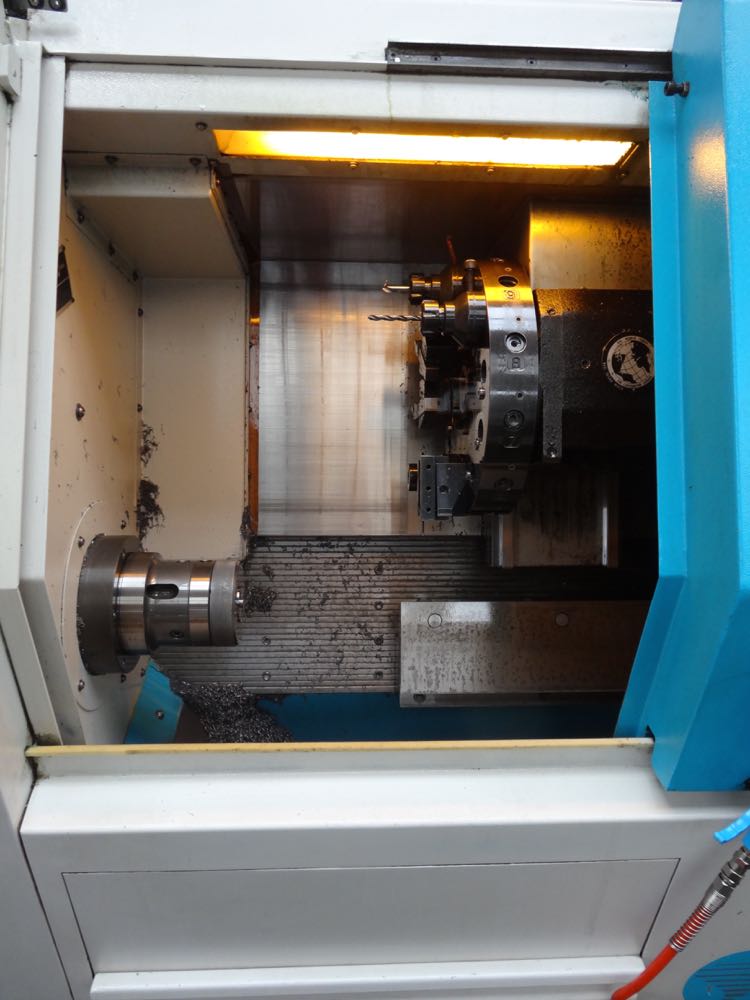

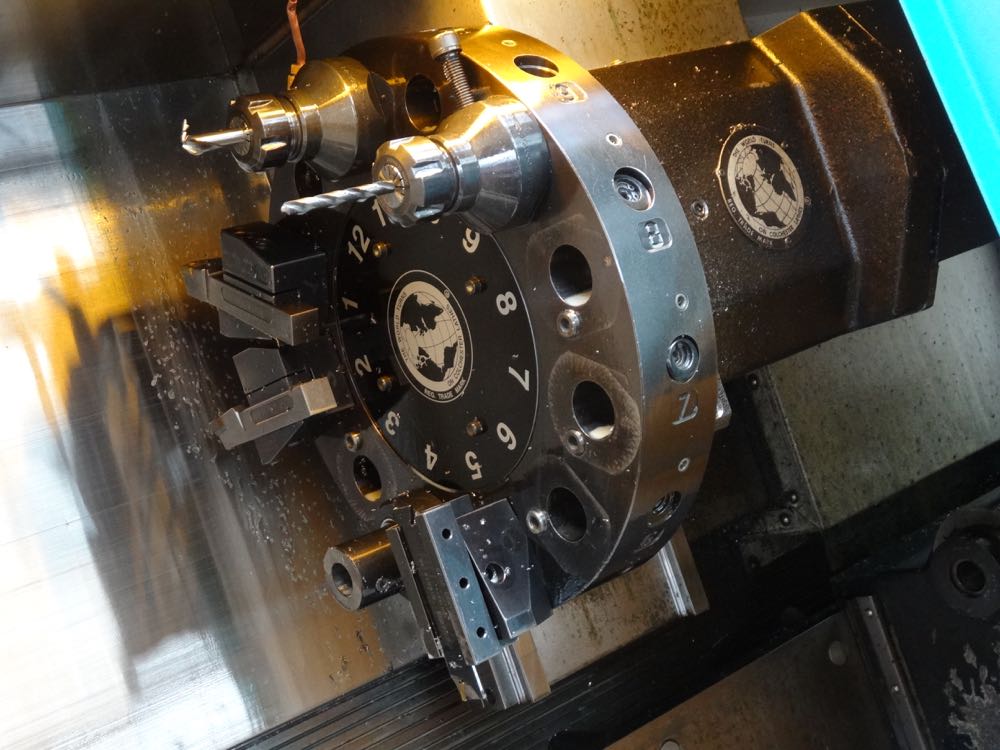

12 Station VDI30 Turret

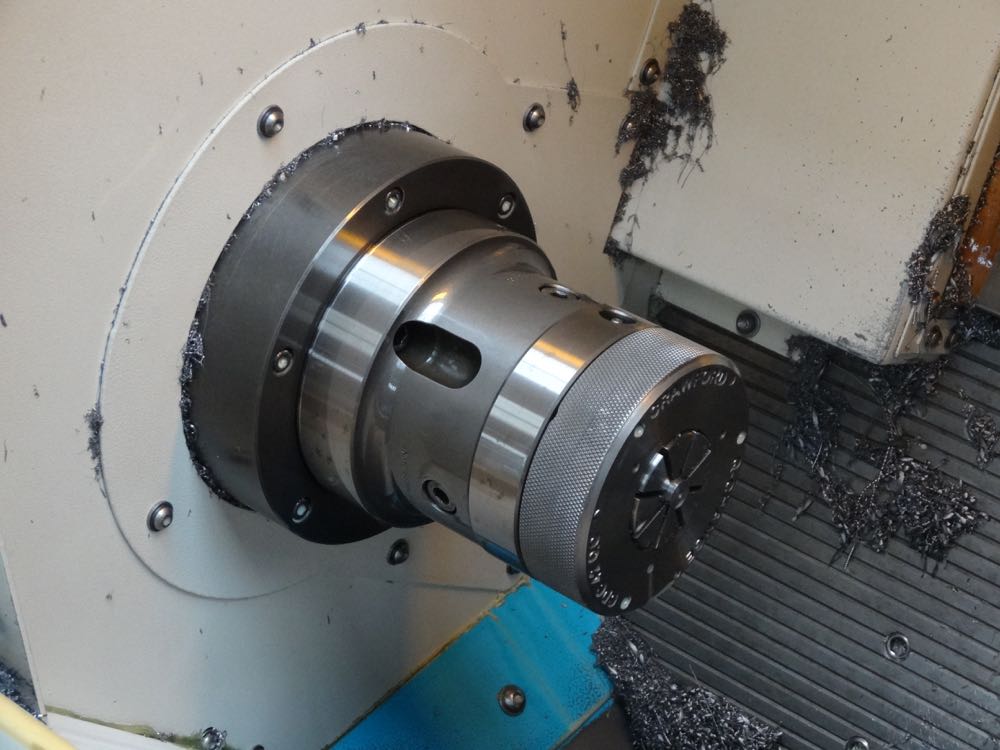

200mm 3 jaw power chuck
Interlocked guarding
Coolant

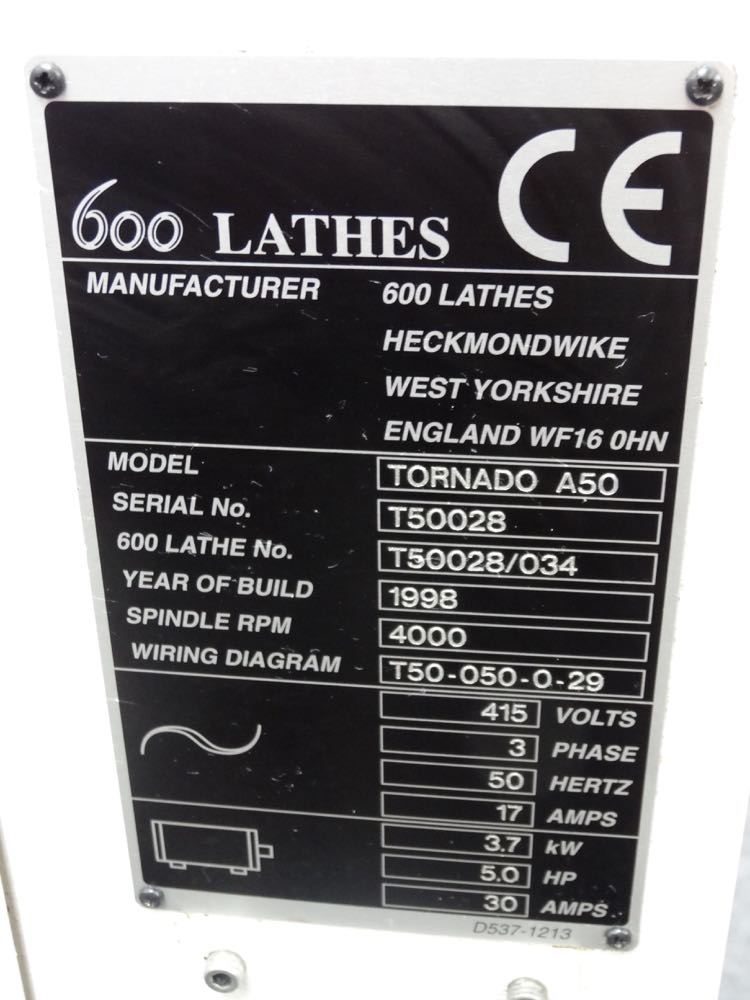

S/n: T50028
Lathe Number: T50028/34
Date: 1998
L x W x H: 2400 x 1200 x 1800mm approx.
Weight: 2324Kg / 2458Kg with base

Spindle speed: 4000rpm
Bar pressure: 15.5

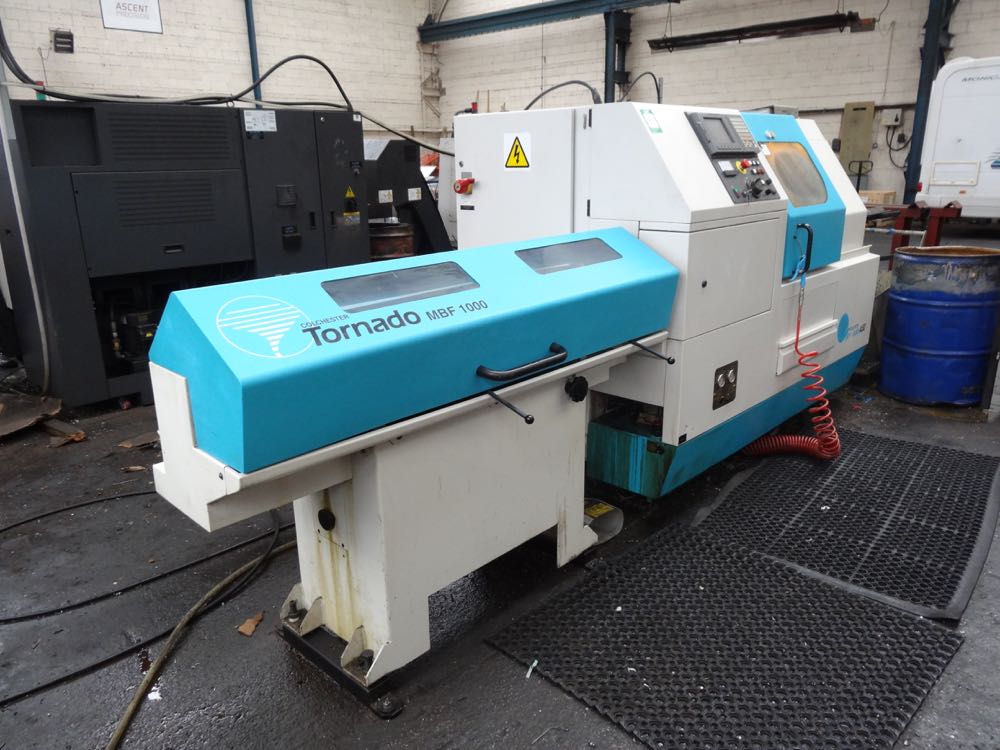

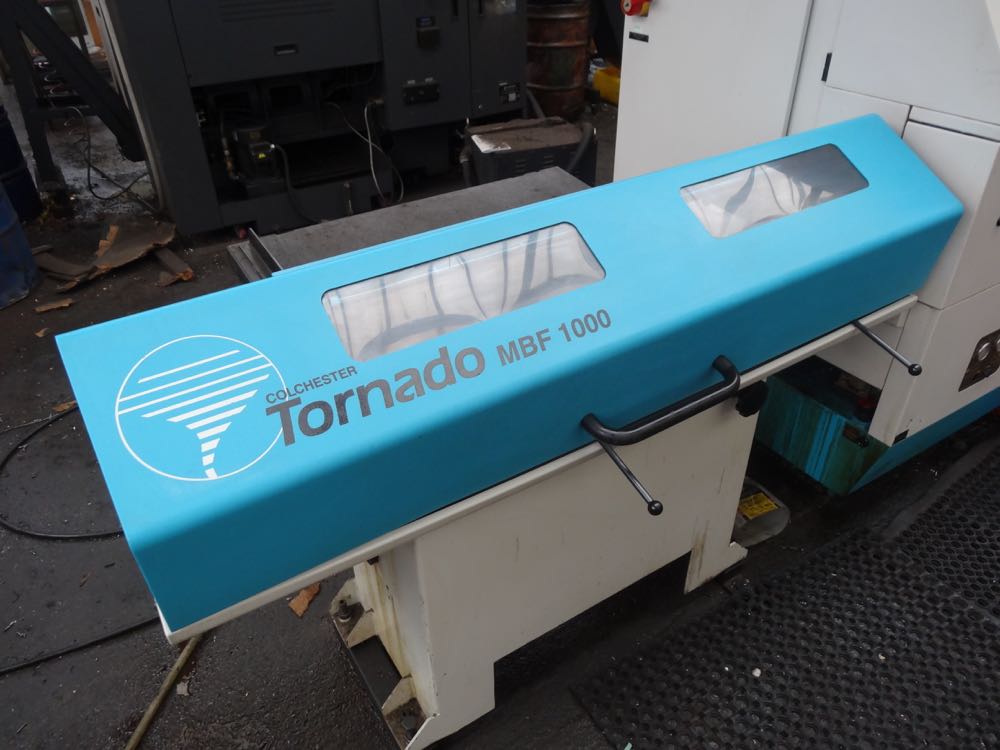

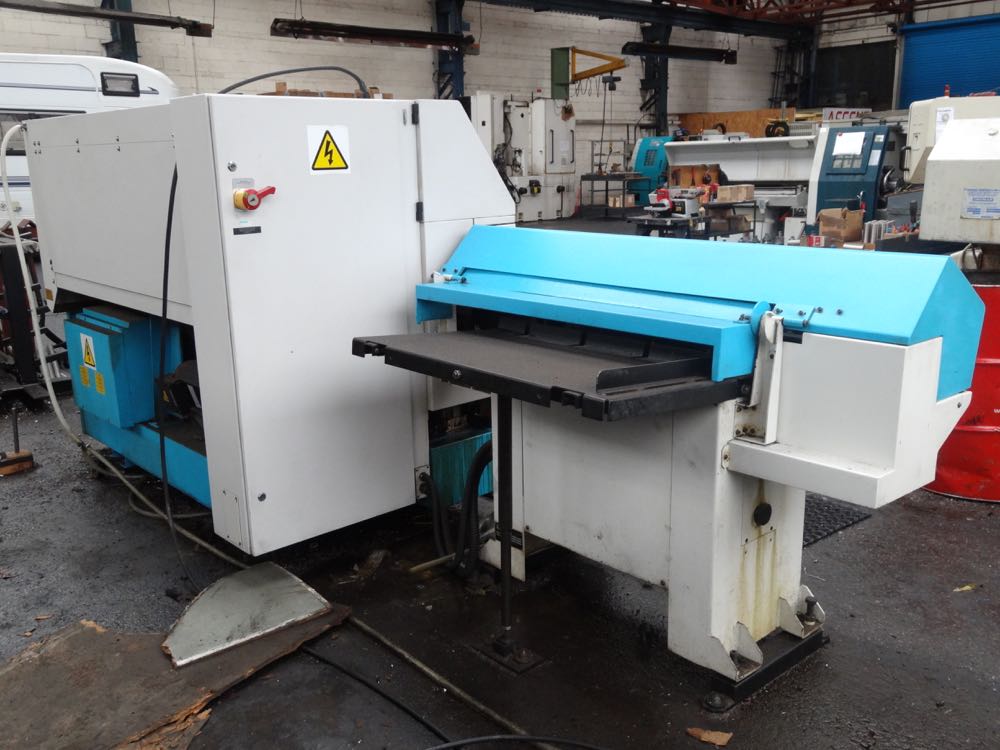

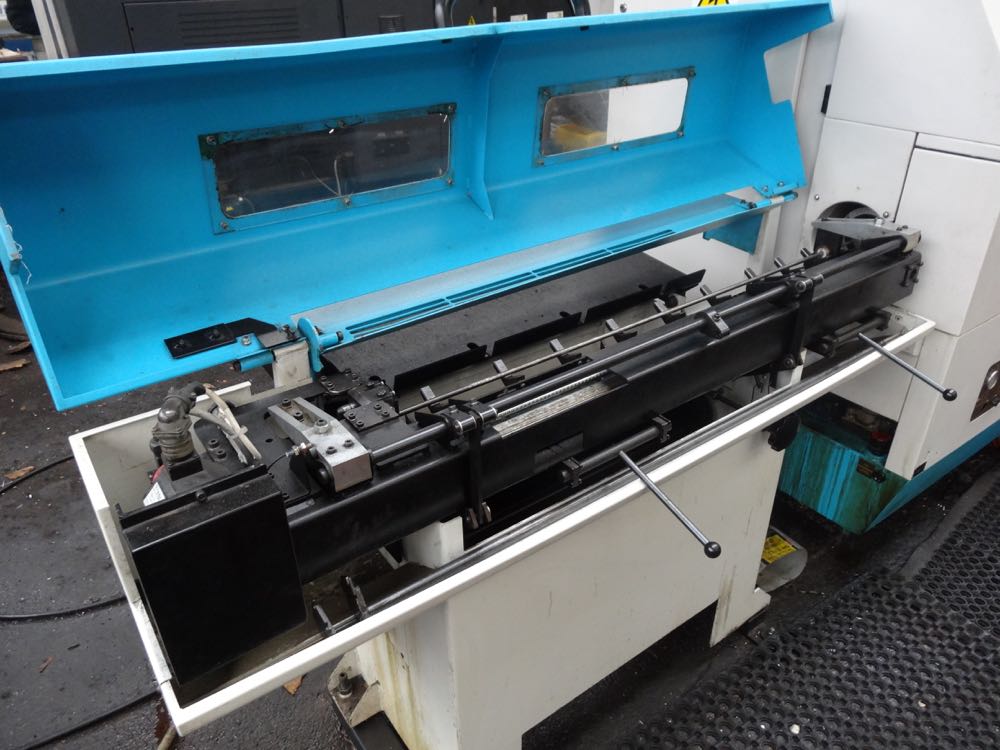

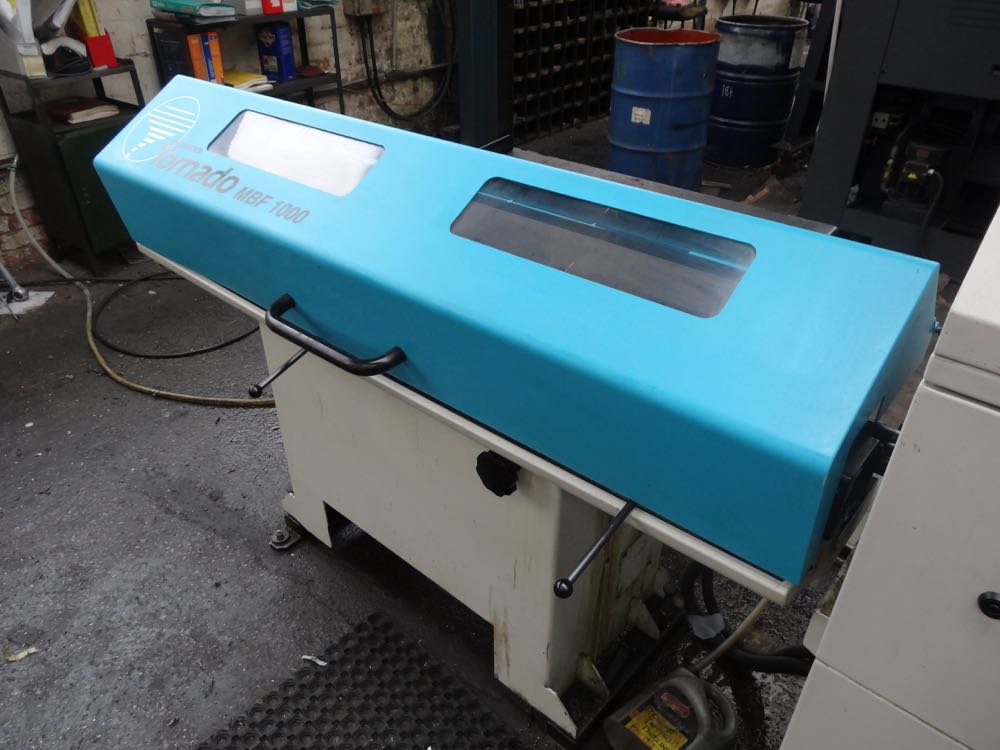

Bar Feed:
L x W x H: 650mm x 1000mm x 1400mm approx

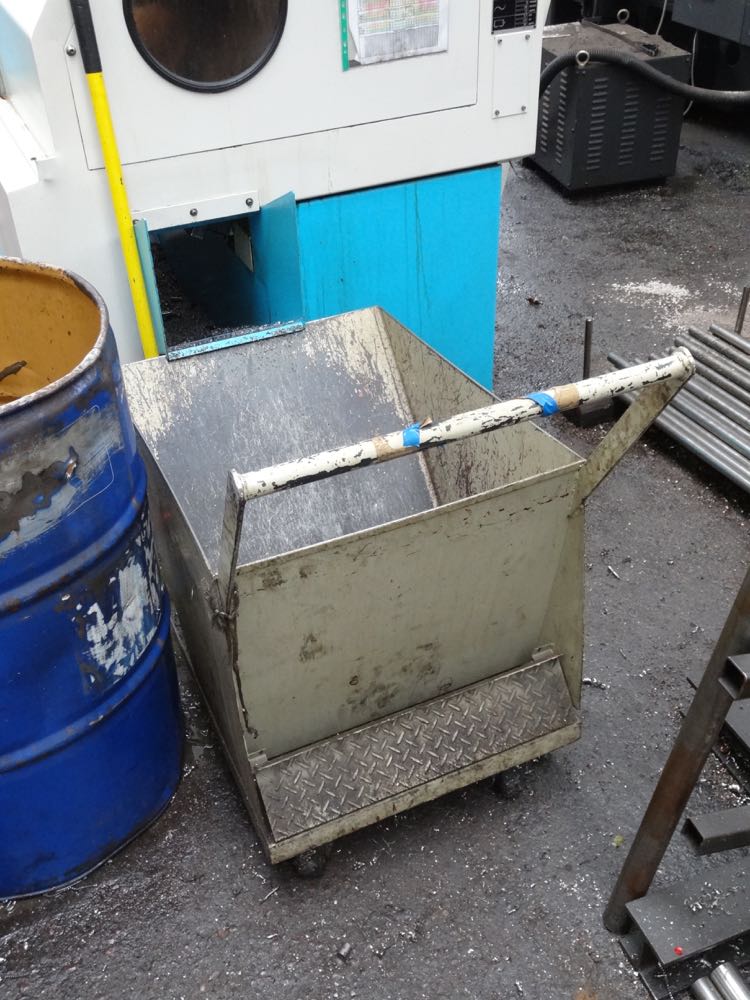

No Swarf Bin Included

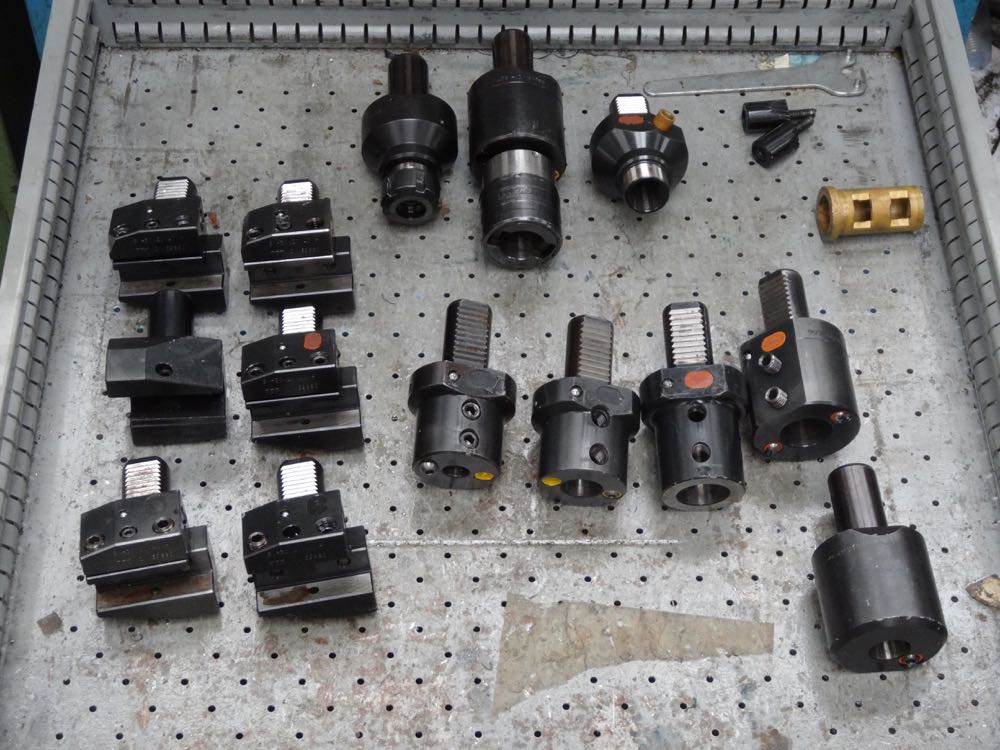

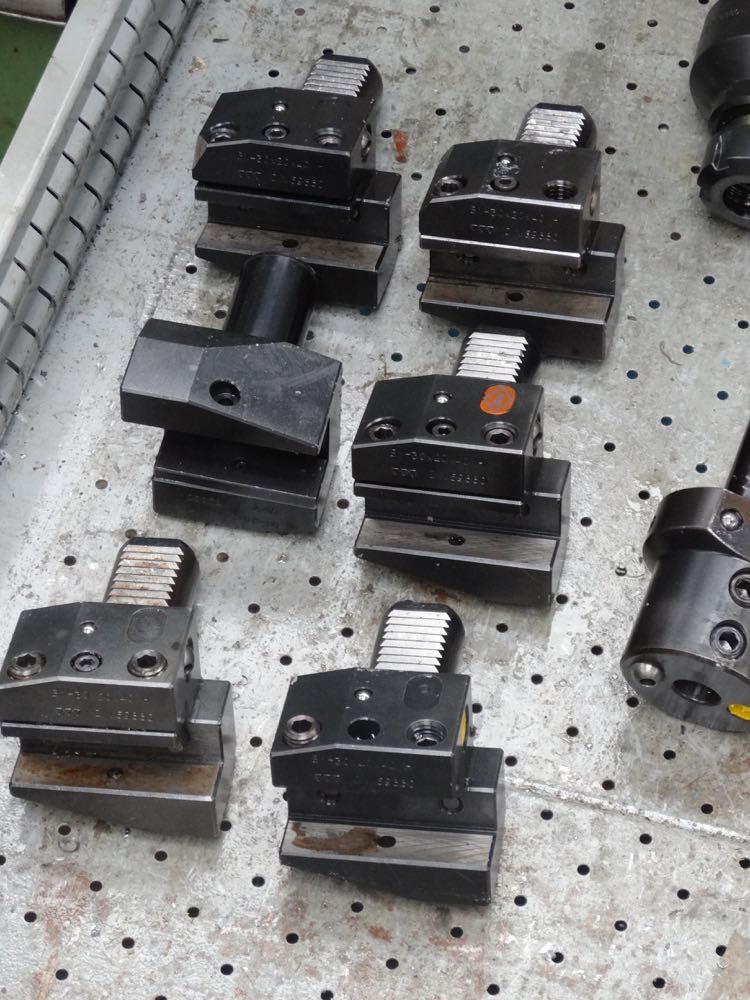

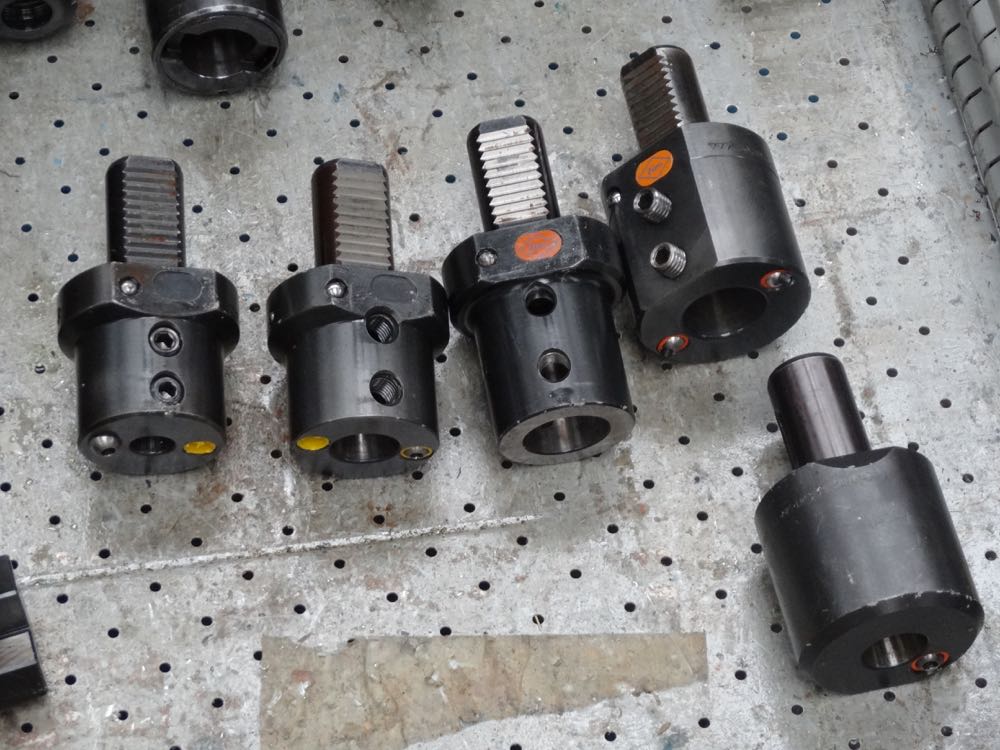

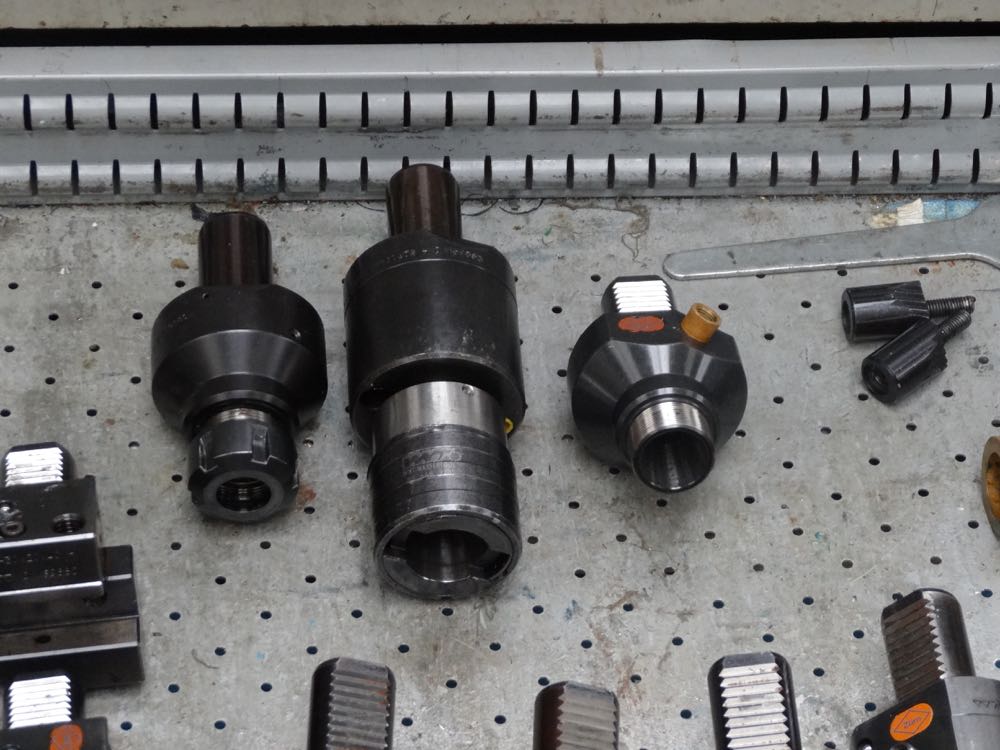

Tool Holders Included, no cutting tools included

Location: Sheffield

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
