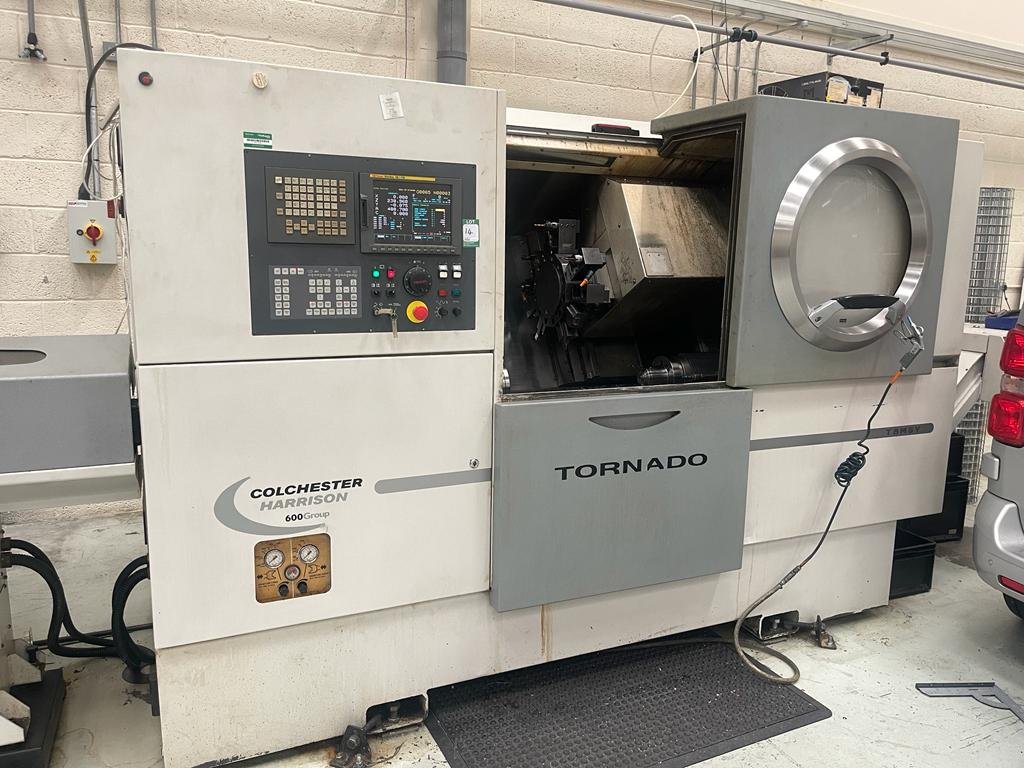

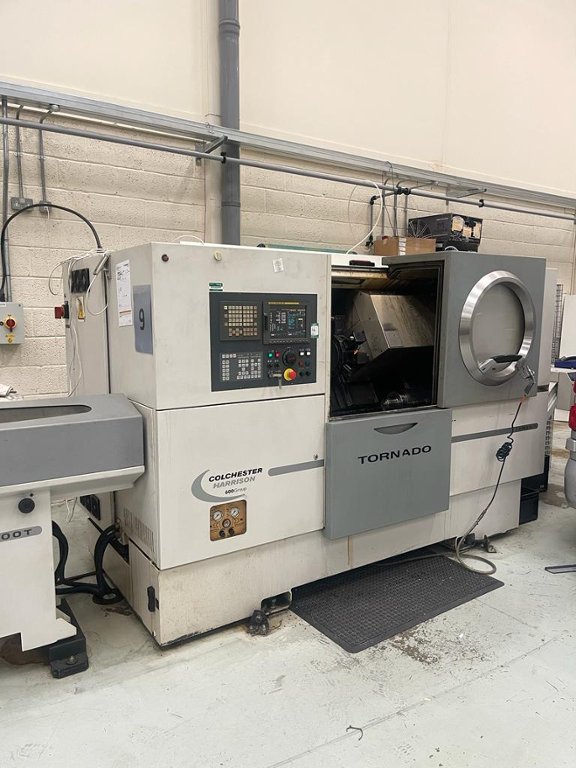

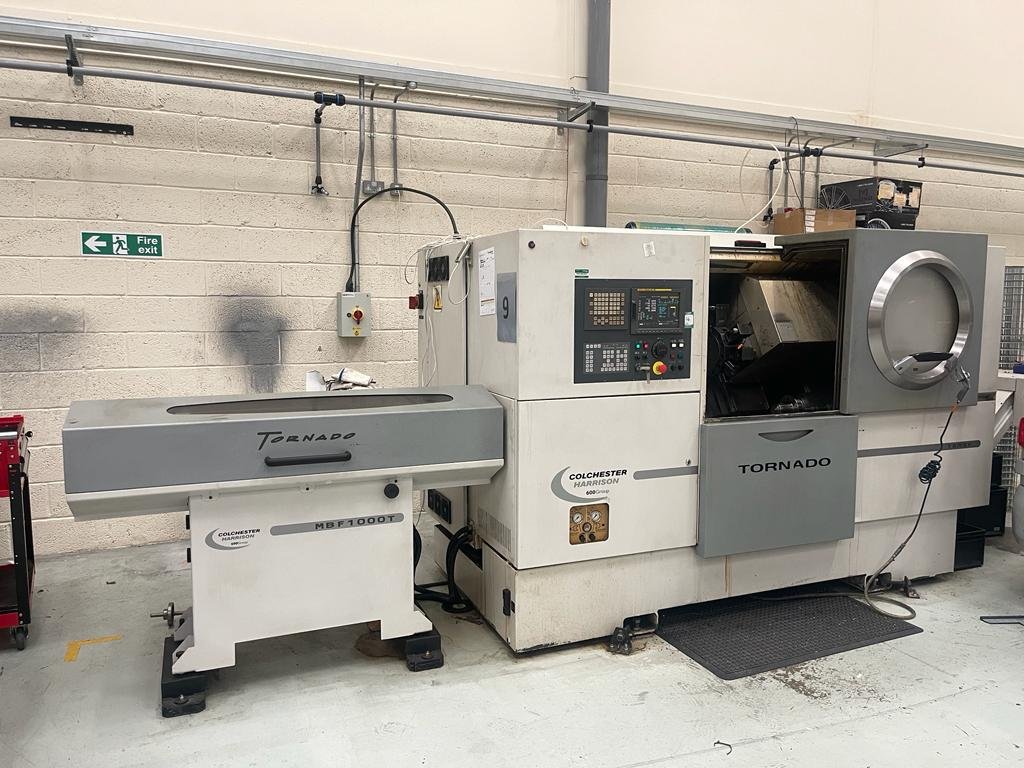

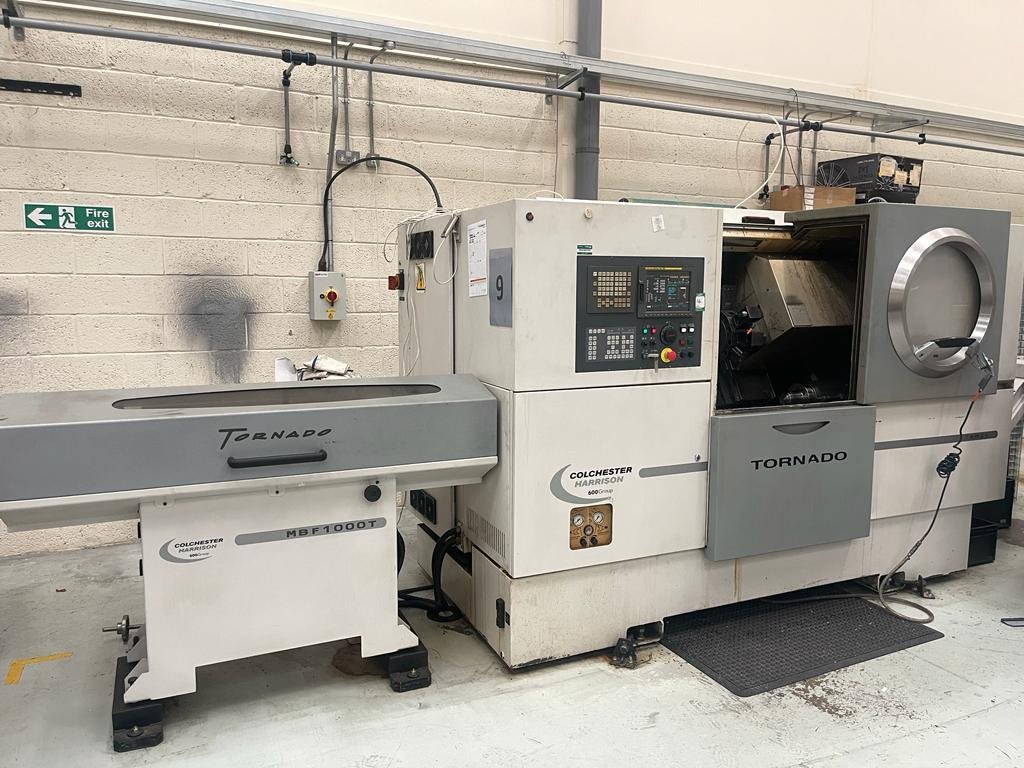

Lot 14 - Colchester Tornado T8MSY CNC Lathe (2008)
Description:
Vice NOT included

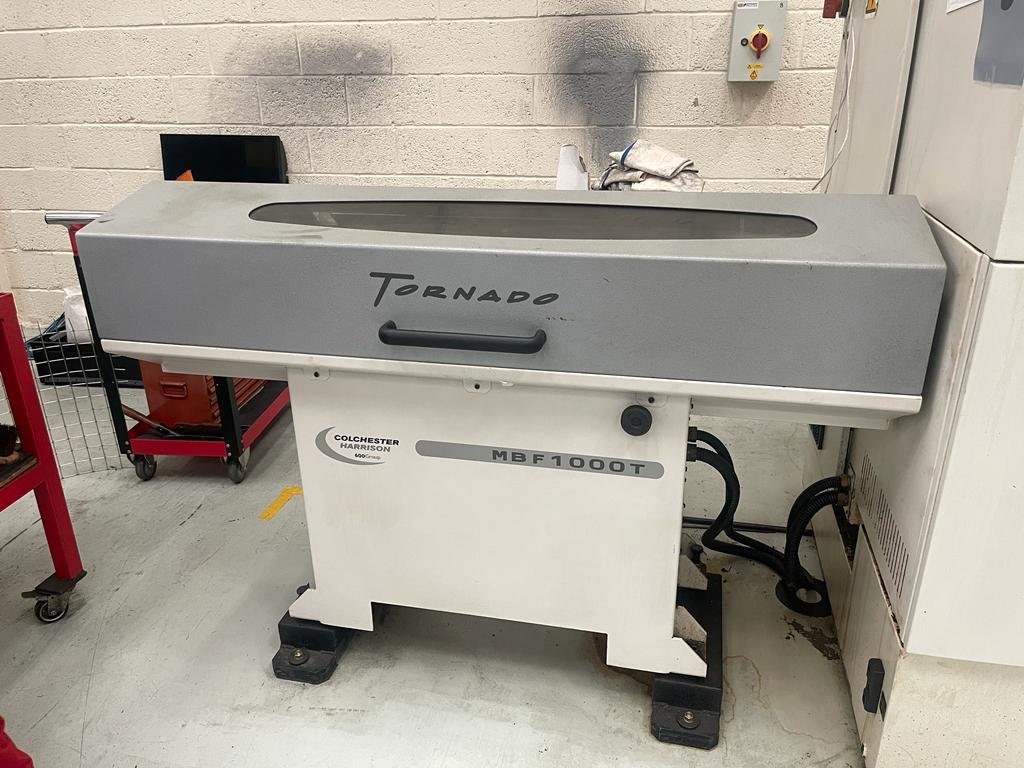

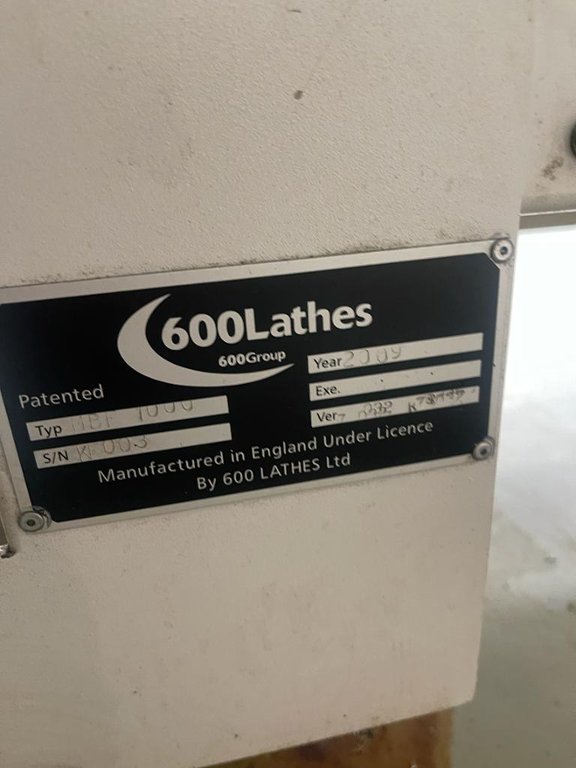

Barfeed (2009) 65" x 37"

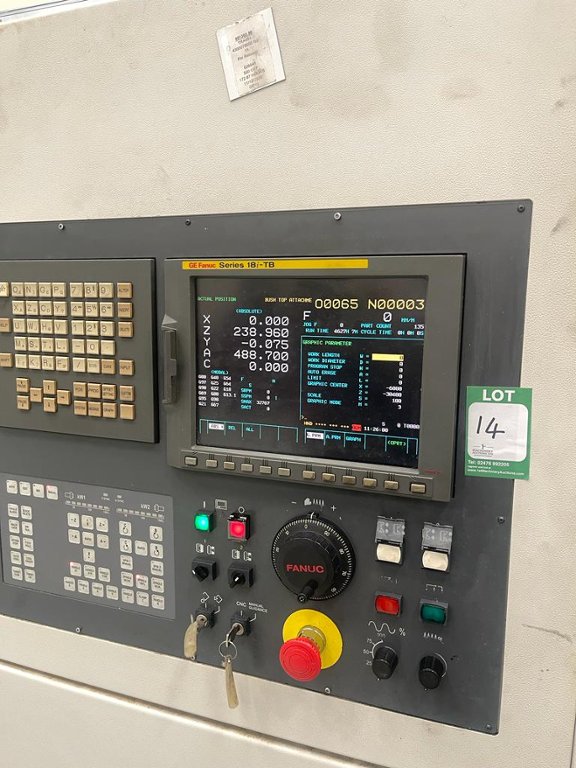

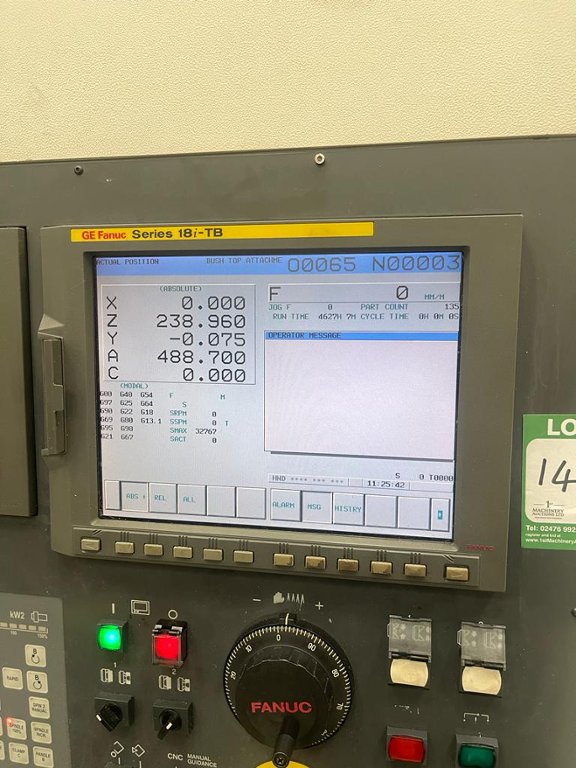

Control FANUC 18iTB control
Swing 510mm
Bar Capacity 65mm
Maximum Cutting diameter 260mm
Maximum Cutting Length 490mm
Milling Motor Power 3.7kW
Milling RPM 4000rpm

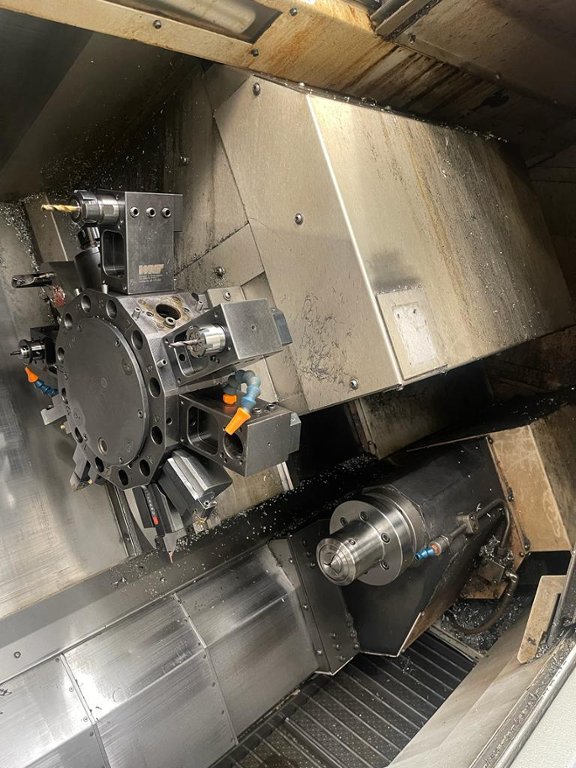

Turret Positions 12 Station
Rapid Feedrates XZ: 25 x30m/minute
Spindle Motor Power 22kW
Spindle Nose A2-8

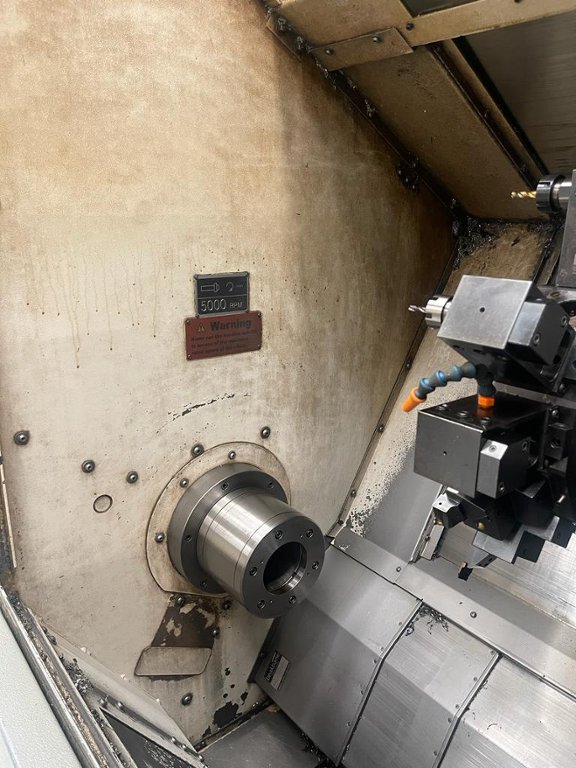

Spindle Speed 5000rpm

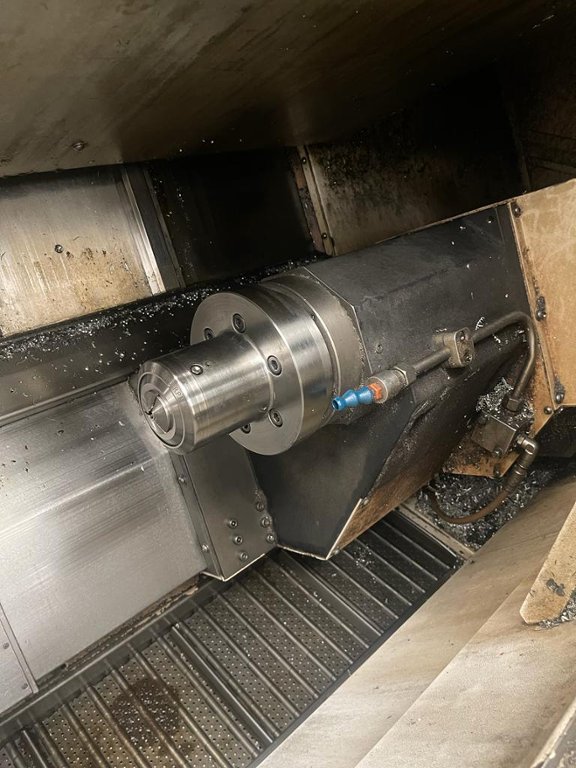

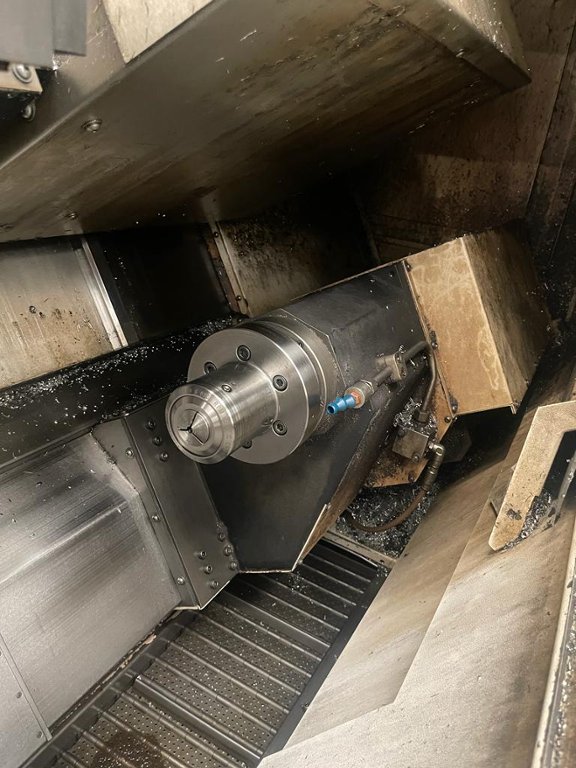

Sub Spindle Max Speed 6000rpm
Sub Spindle Motor 7.5kW

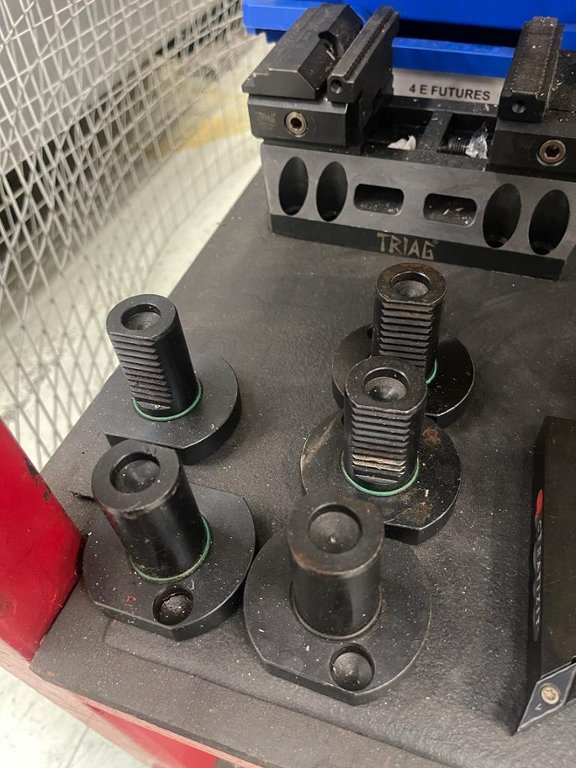

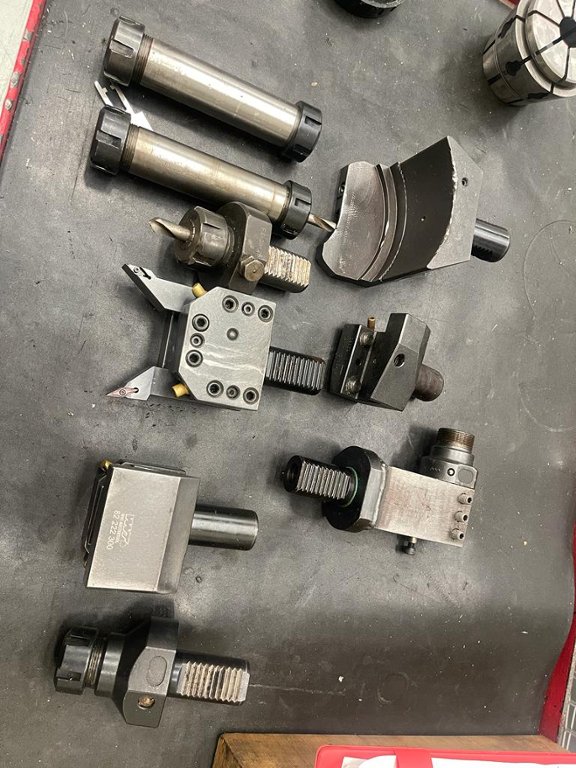

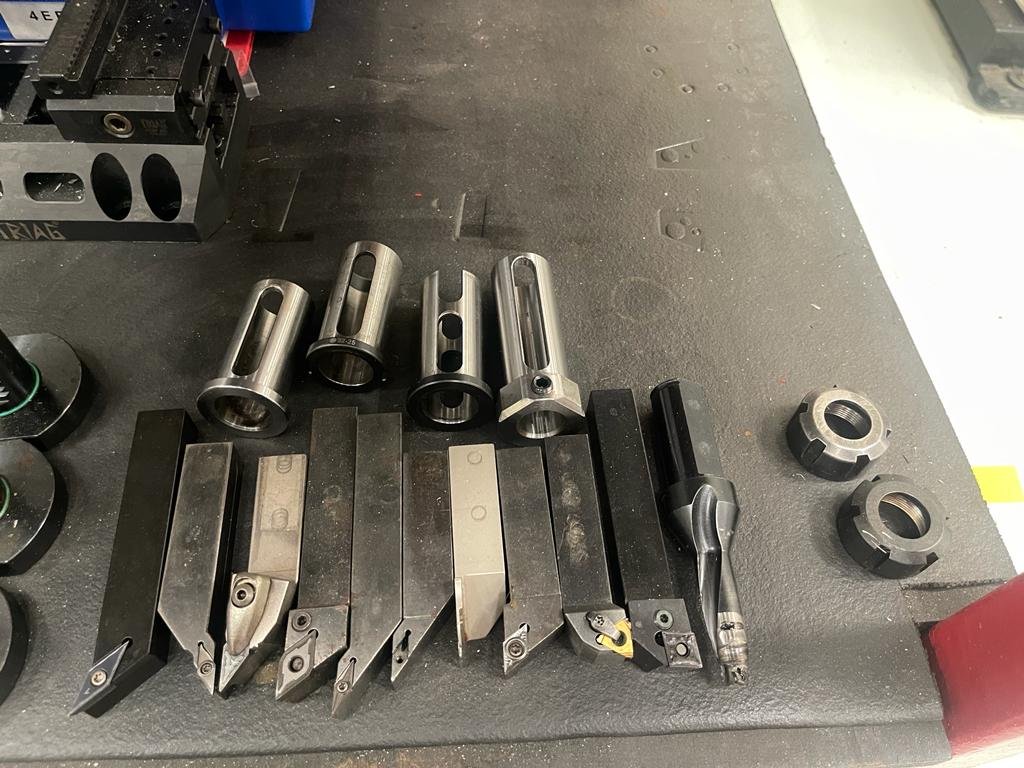

Tool Size VDI30
C axis 0.001 degree
X axis Travel 235mm
Y axis Travel +/- 40mm
Z axis Travel 540mm
Machine Weight 4550kg
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
20 Apr 2023 15:30:00 BST

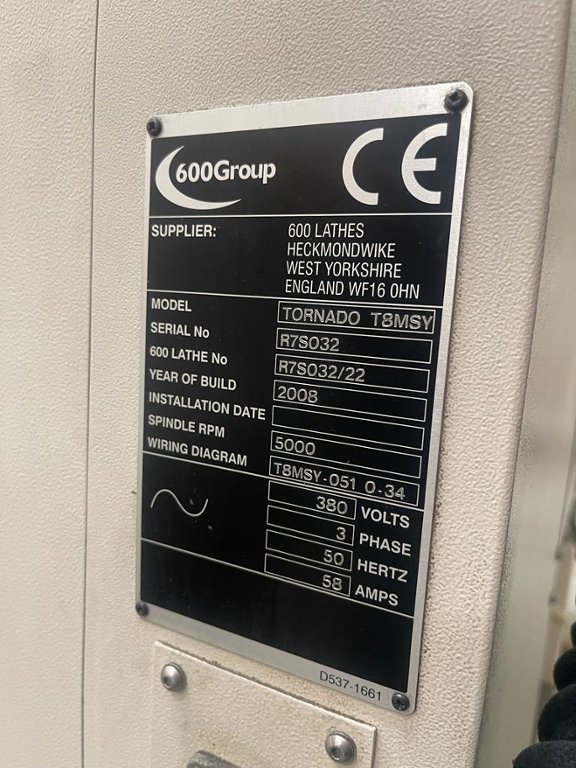

Serial Number: R7S032
Location: Bedfordshire
Transport information
- Width: 335cm
- Depth: 148cm
- Height: 188cm
- Other Transport Details: £350 - Machines will be disconnected, drained and loaded to suitable transport. Please note the loading charge will be automatically added to purchasers invoice. *No other loading companies will be allowed on to site
