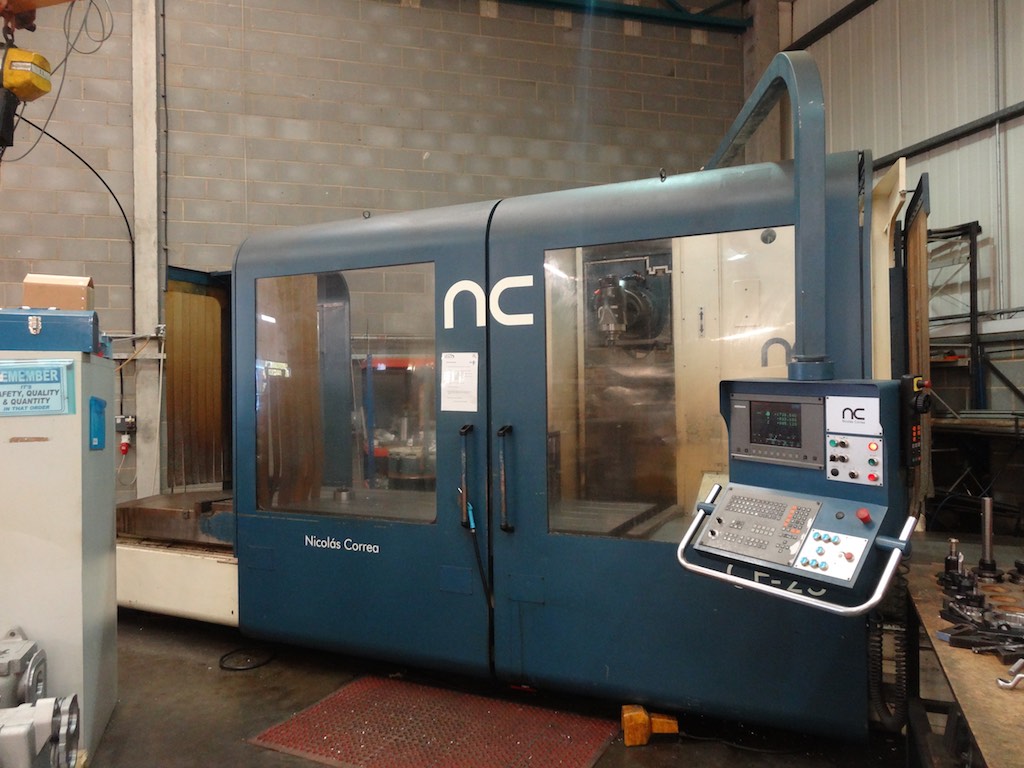

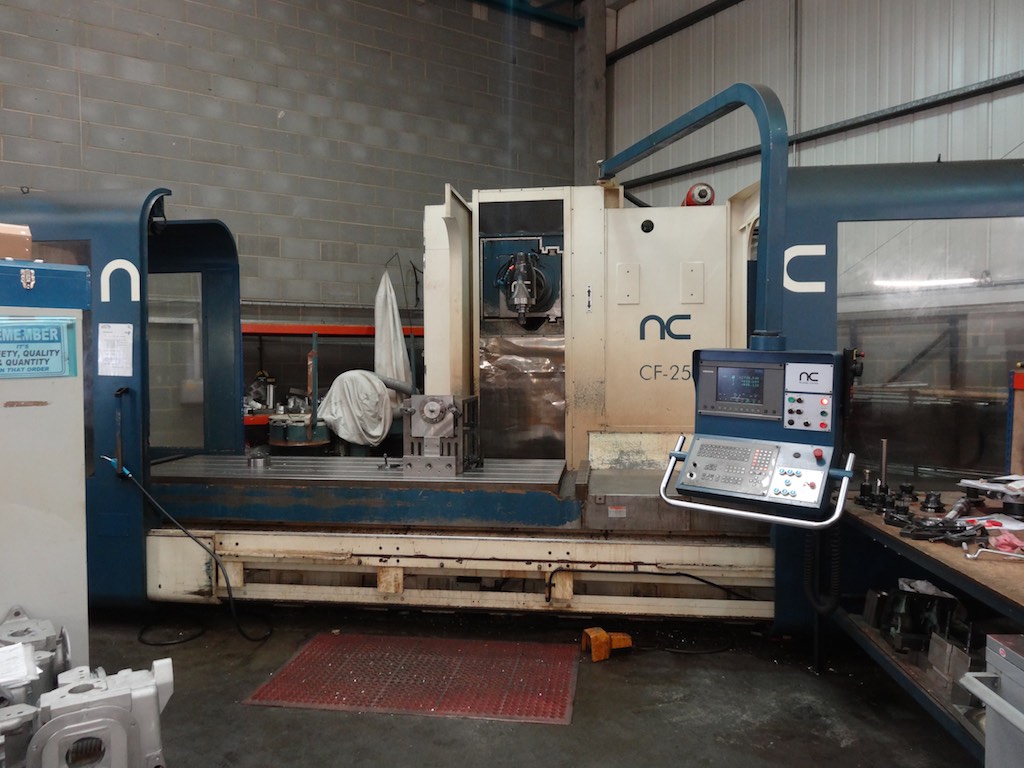

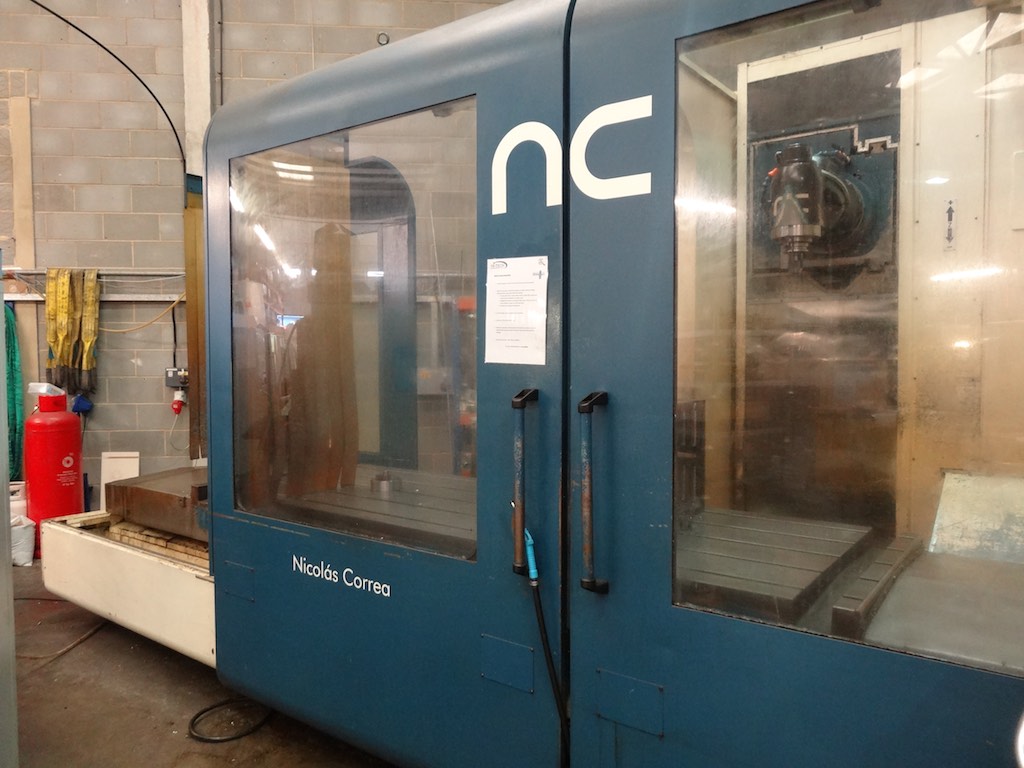

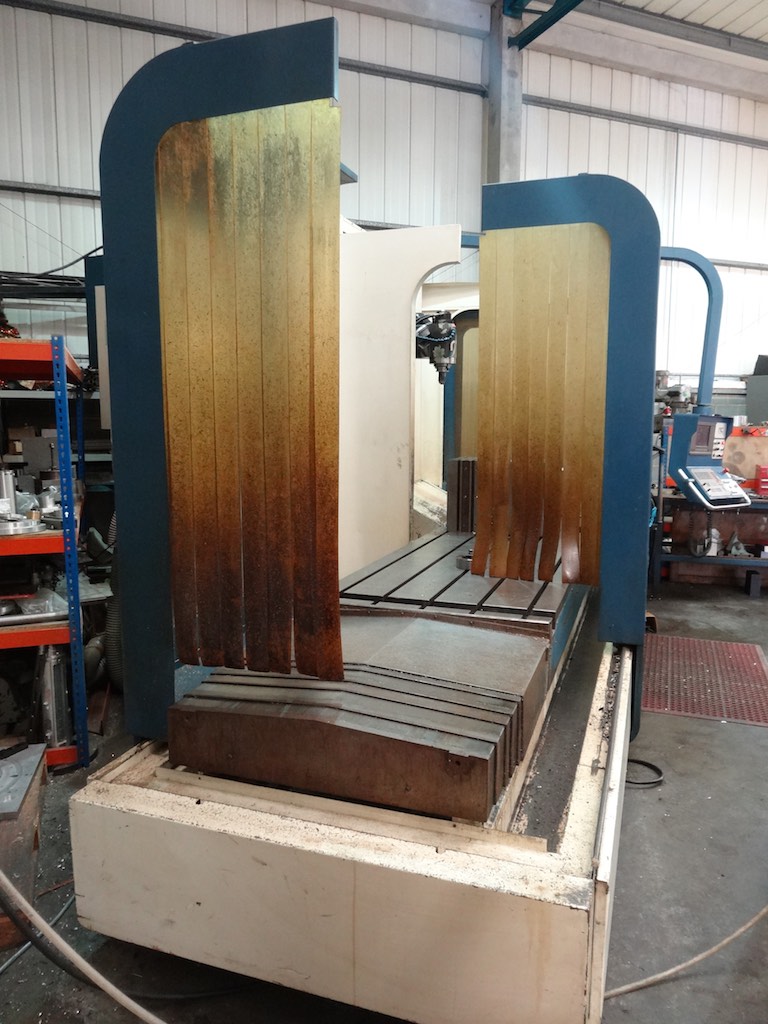

Correa CF-25 CNC Bed Mill (2002)

Lot 1 - Correa CF-25 CNC Bed Mill (2002)

Description:

Correa CF-25 CNC Bed Mill (2002)

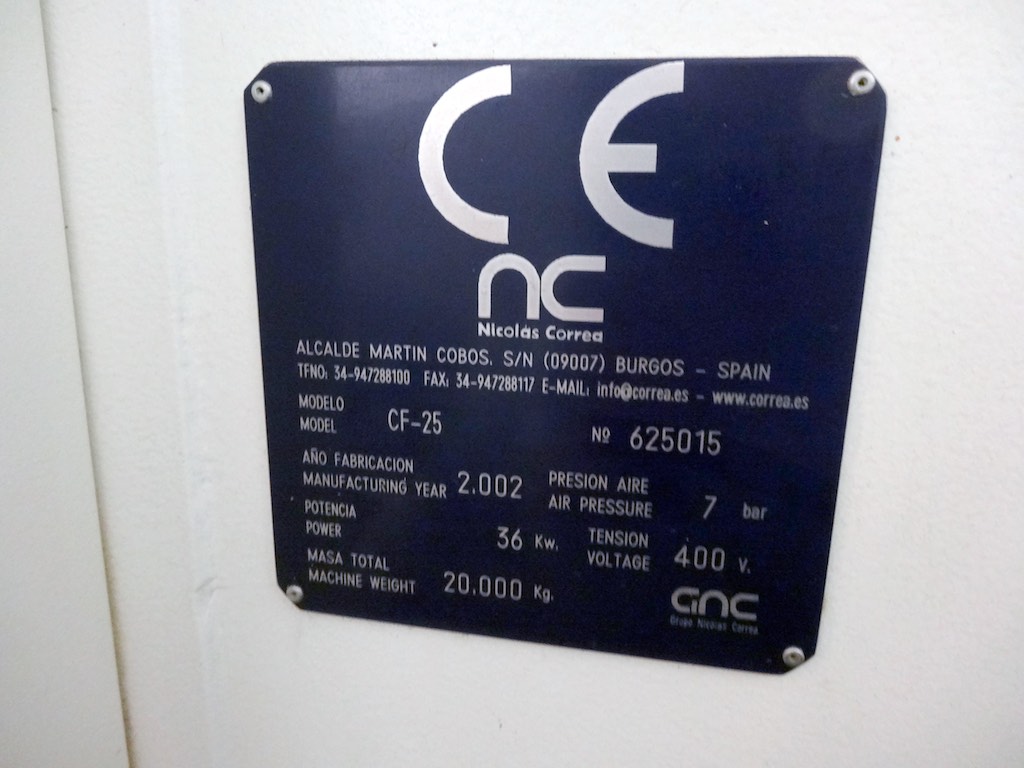

S/n 625015
Date: 2002
Machine Weight: 20,000kg

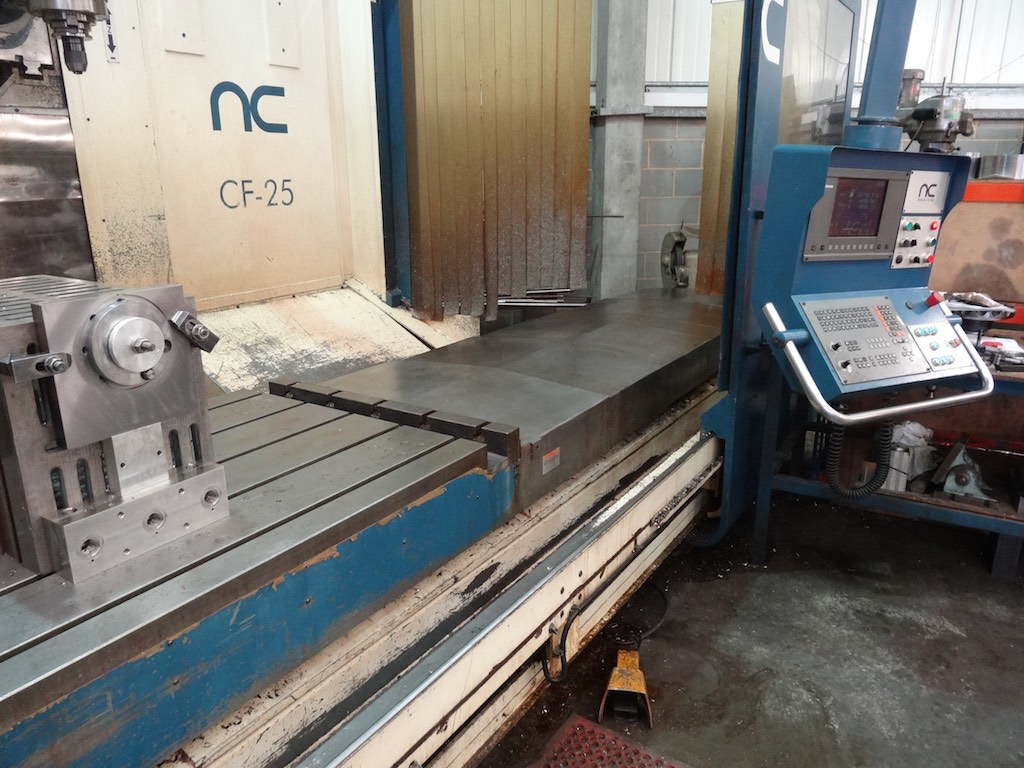

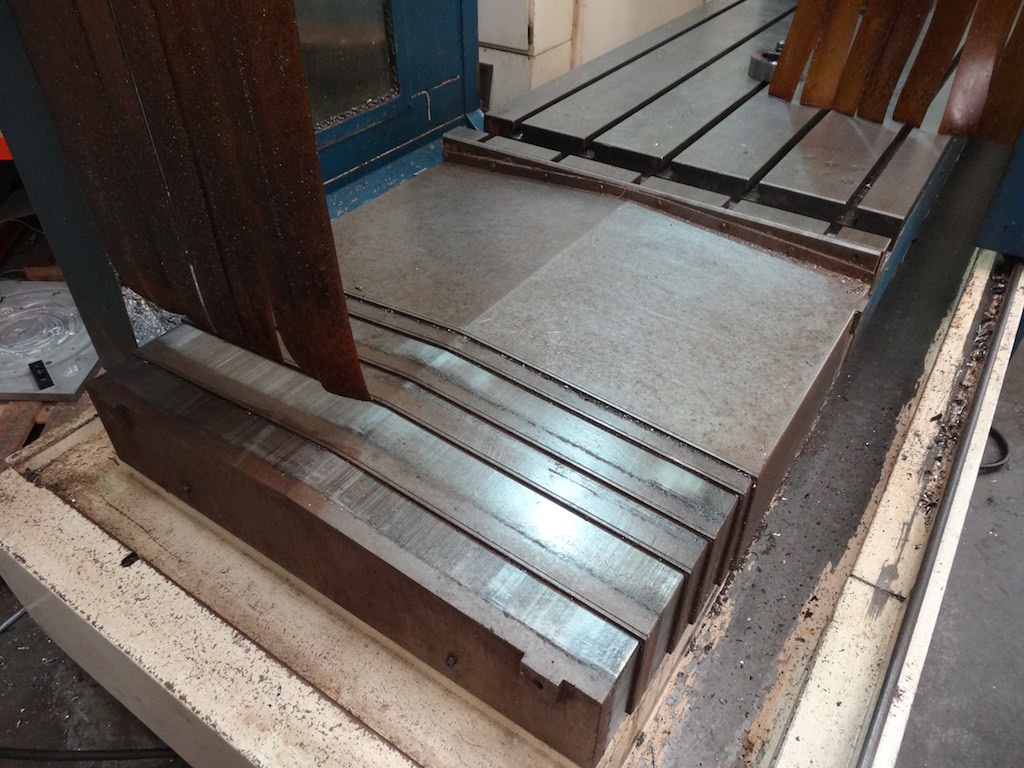

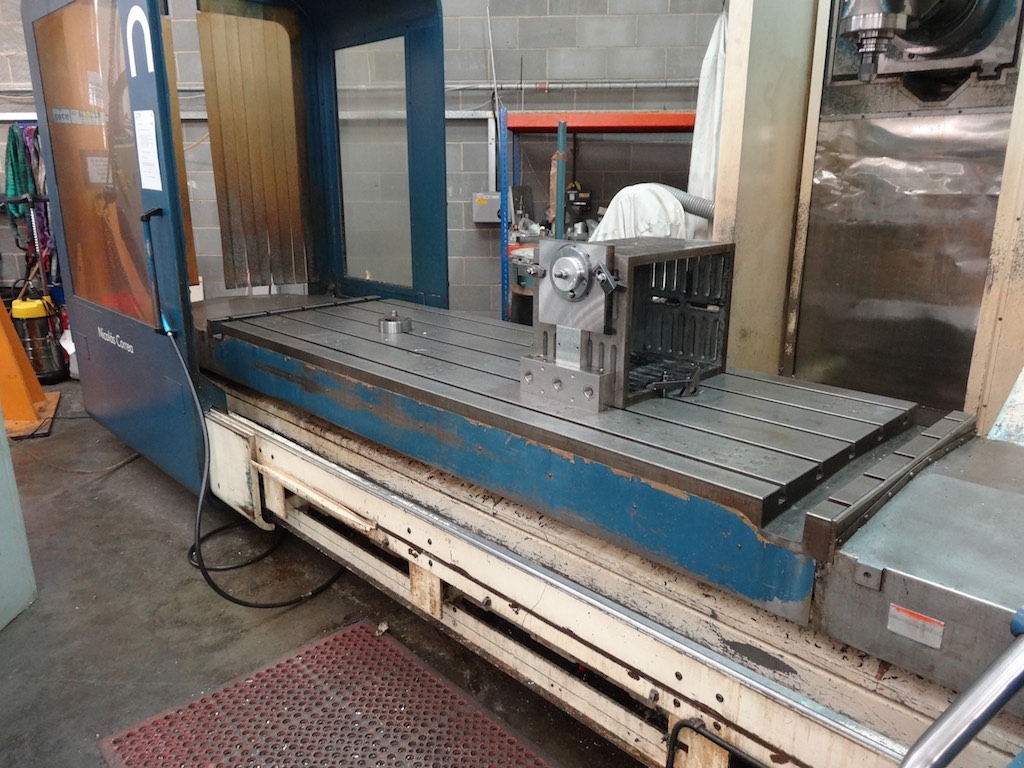

2800mm x 1000 Table with 5 3cm t Slots weight on table: 4000kg approx

Axis XYZ, 2500mm x 1000mm x 1000mm
BT50 Taper
Spindle Power: 22kW
Spindle Speed: 6000rpm
Max Table load: 6000Kg

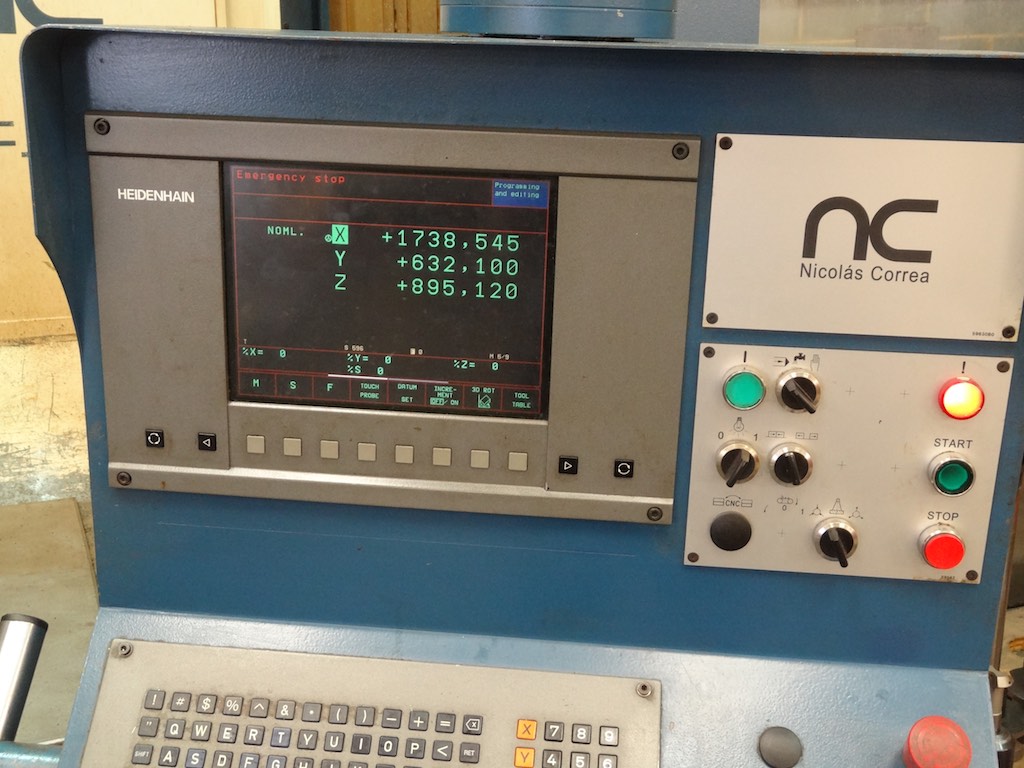

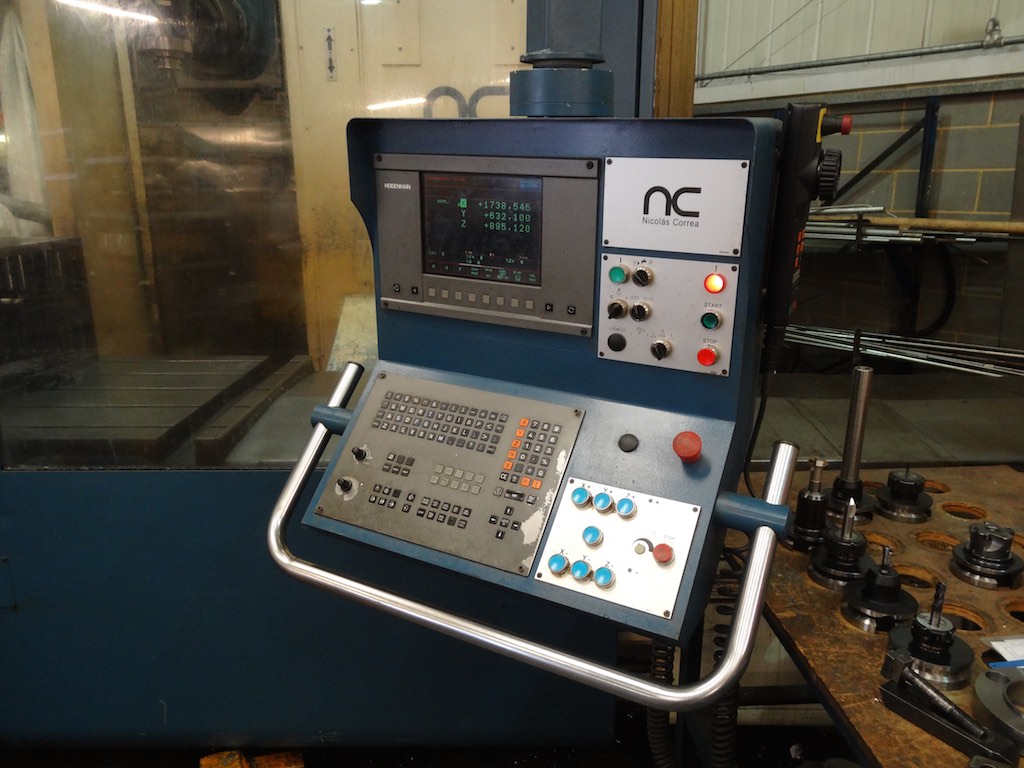

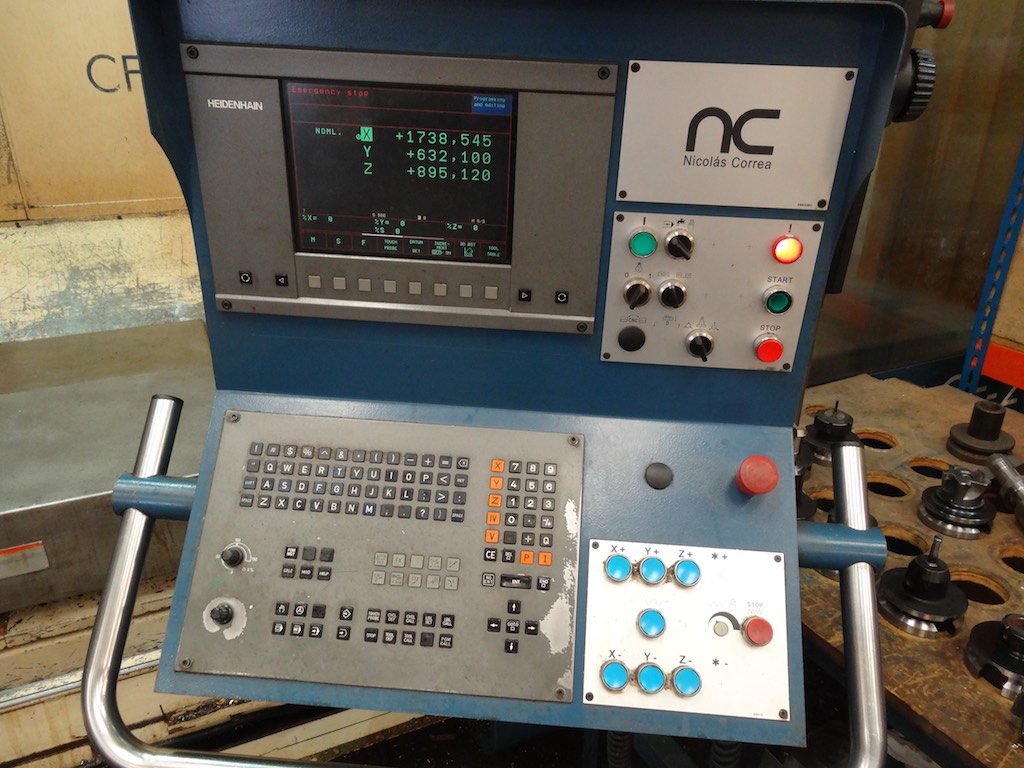

Heidenhain 530 Control

Standard Equipment:

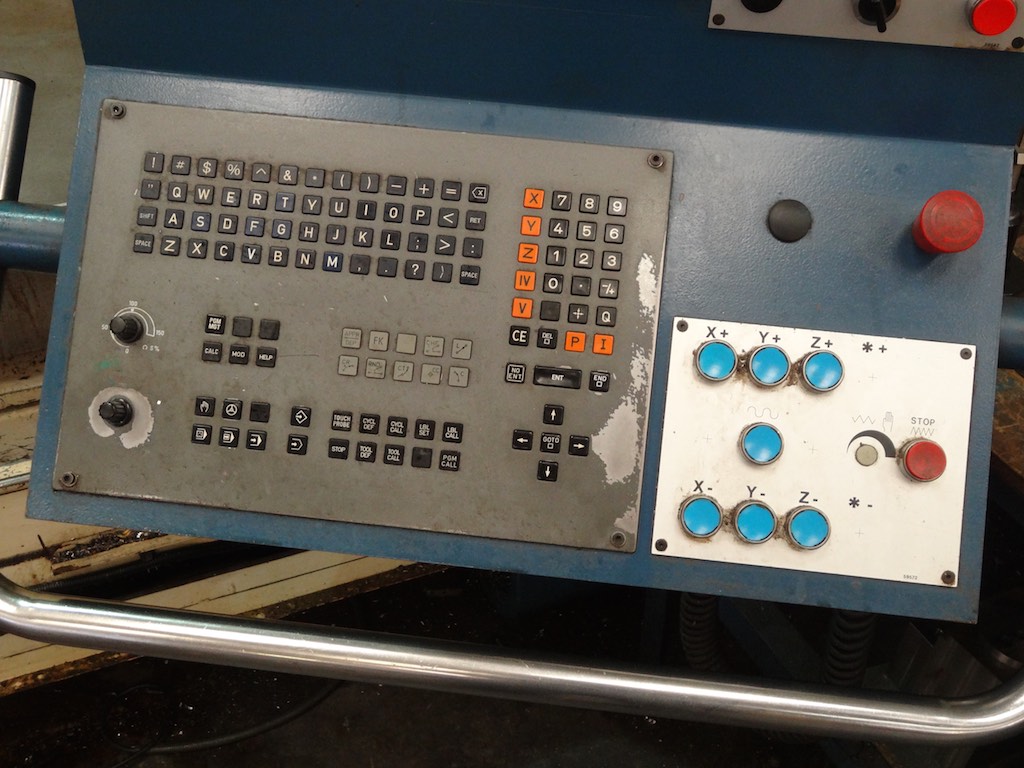

Electronic Hand Wheel
Fully Independant, Brushless type , A.C feed and main spindle servo motors.
Motors digital ammeters.
Programmable spindle speed selection.
Working hours counter
Electronic growth compensation device for the cross axis.
Recirculating roller linear slideways on all three axes.

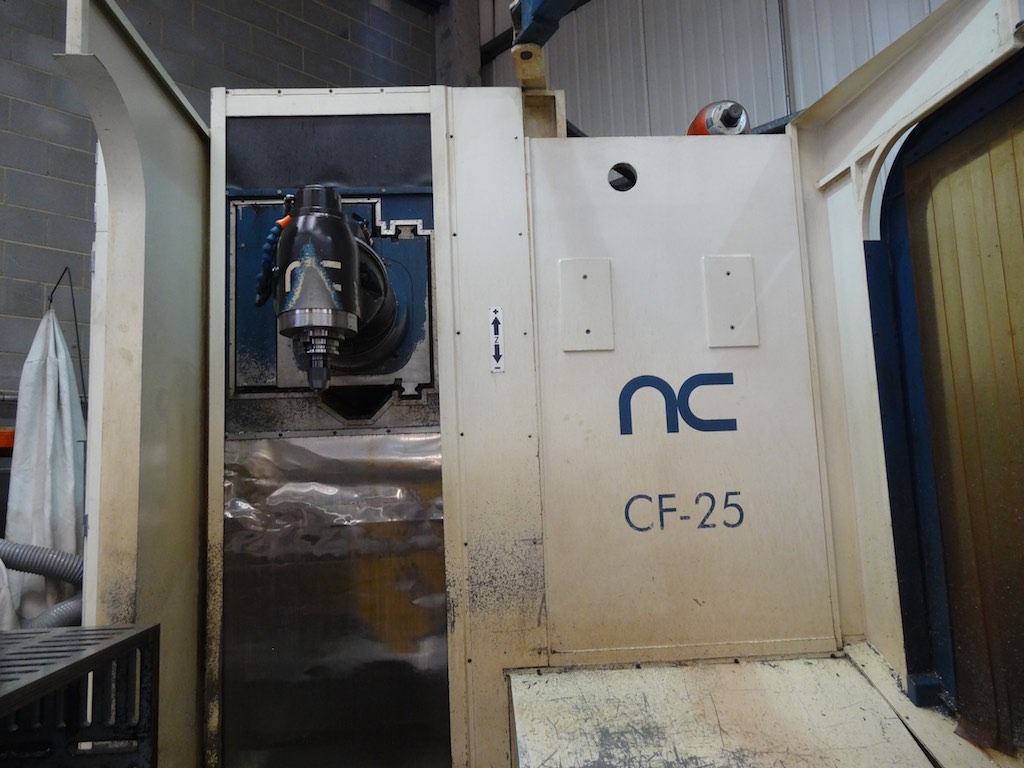

Universal head.
Built-in hydro-mechanical tool clamping system.
3 Axis double nut recirculating ball leadscrews.
Hydraulic counterbalance on vertical axis.
Coolant equipment.

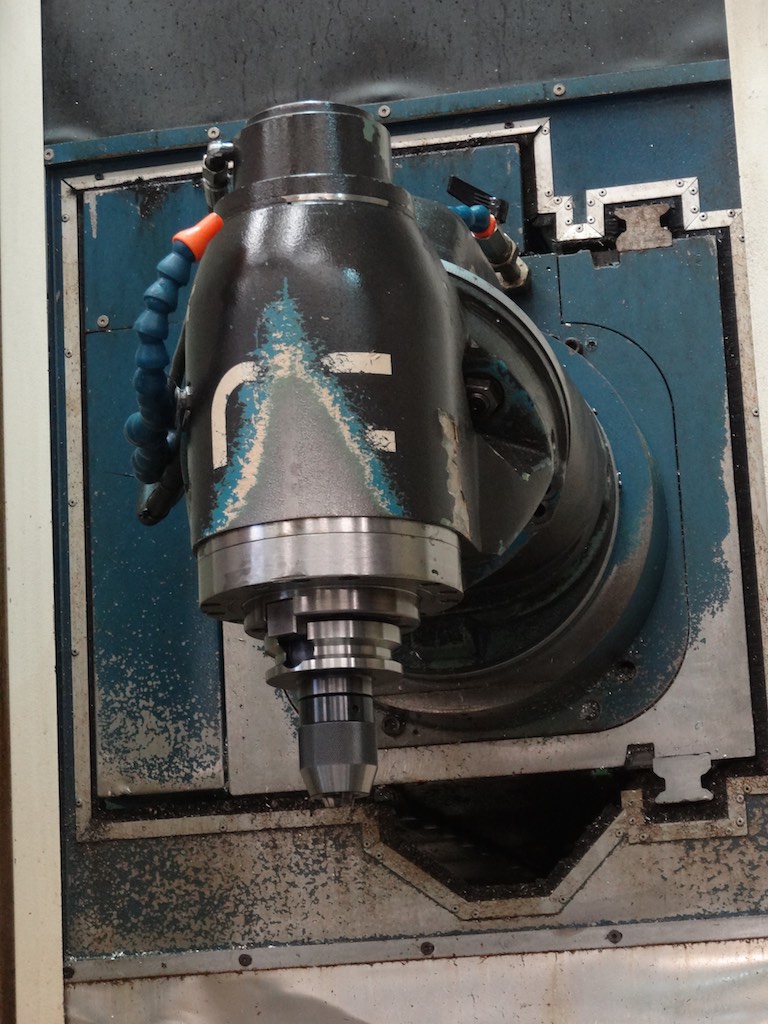

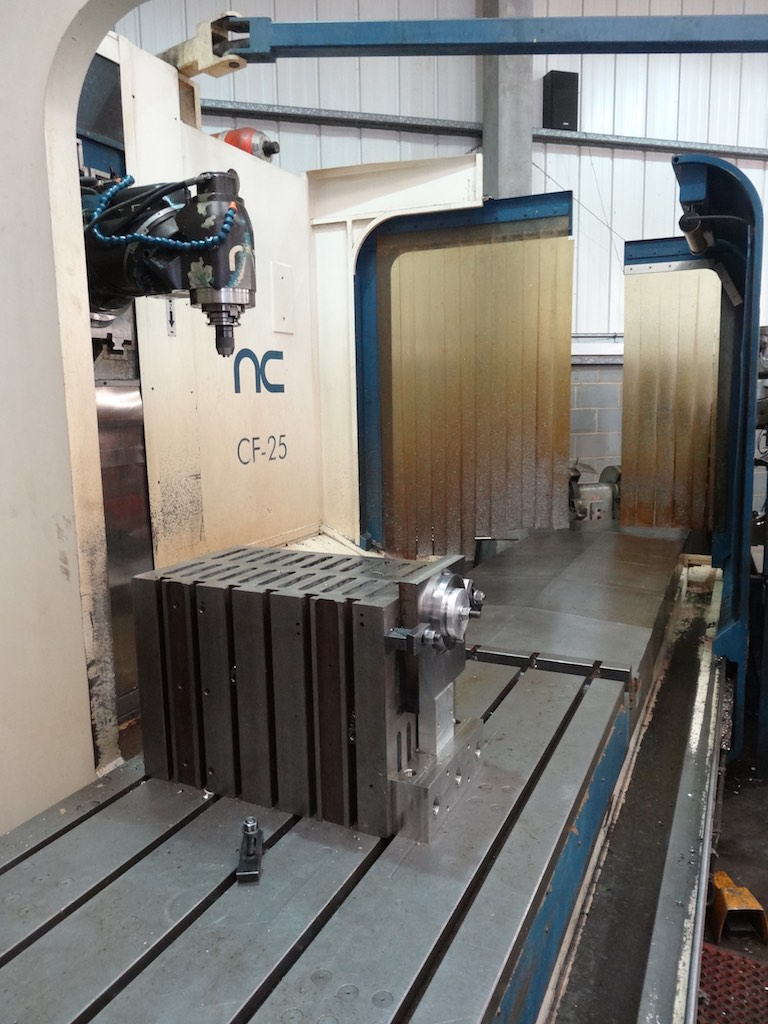

swivel mounted milling head for 5-sided machining
6,000 rpm spindle
Bolt on Tool Magazine available

(No Manuals)
Location: Waterlooville, Hampshire

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
